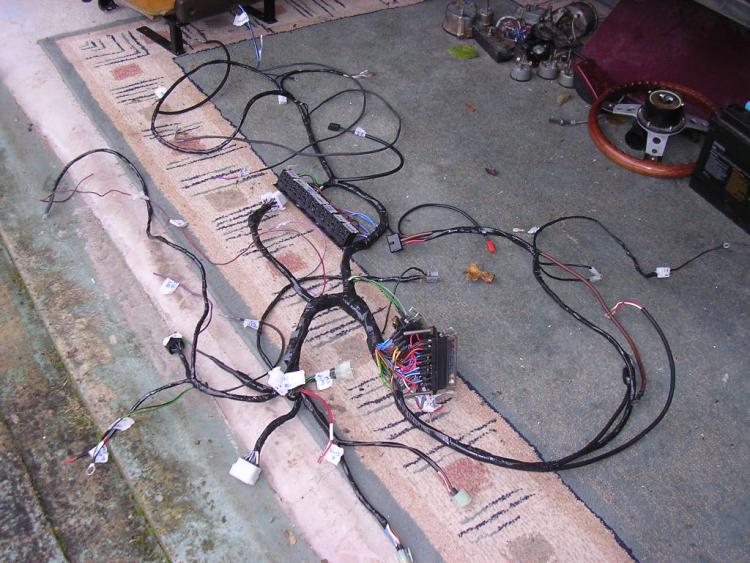

Main loom. The wiring diagram was drawn from memories of my days in the rectification department of British Leyland in the seventies; I have generally used BL colours throughout. Took about three days to work out the layout and several more days to assemble!
