777

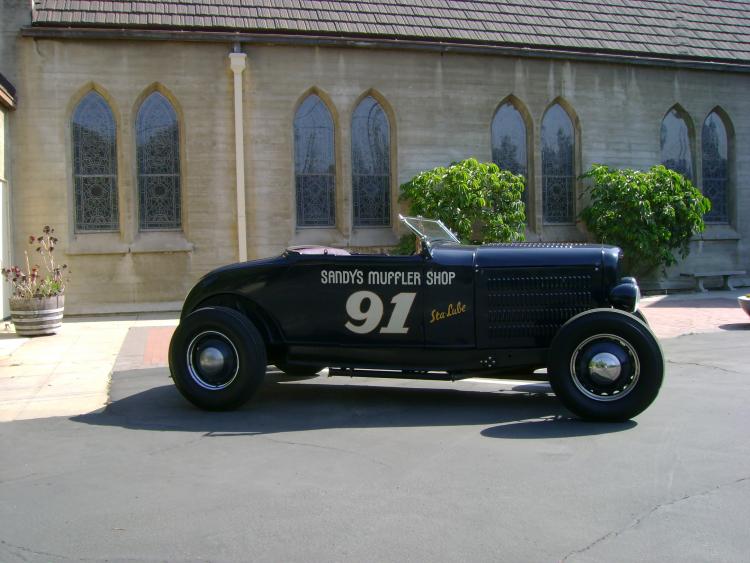

Sandy's roadster is a '31 on '32 rails with a modified wheelbase and highly modified front and rear crossmembers. The engine is based on a production '40 Merc but was built by Sam Hanks who replicated a Miller Ford Indy engine. It features a Miller crank, Eddie Meyer dual plug heads with custom chambers to match the Bohn-A-Lite flat top pistons, a one off Thickstun/Radke 4X2 IR intake manifold; ignition is a modified Nash Twin 8 distributor driven through a Bugatti Scintilla angle drive adapter and of course a set of Belond W headers with tapered scavenger extensions.

Sandy's roadster is a '31  on '32 rails with a modified wheelbase and highly modified front and rear crossmembers. The engine is based on a production '40 Merc but was built by Sam Hanks who replicated a Miller Ford Indy engine. It features a Miller crank, Eddie Meyer dual plug heads with custom chambers to match the Bohn-A-Lite flat top pistons, a one off Thickstun/Radke 4X2 IR intake manifold; ignition is a modified Nash Twin 8 distributor driven through a Bugatti Scintilla angle drive adapter and of course a set of Belond W headers with tapered scavenger extensions.
777, Sep 3, 2009
  • There are no comments to display.
  • Album:
    Sandy Belond's Muffler Shop roadster
    Uploaded By:
    777
    Date:
    Sep 3, 2009
    View Count:
    378
    Comment Count:
    2
