Technical 1927 Coupe Trunk Lid Adjustment

Discussion in 'The Hokey Ass Message Board' started by Flathead Dave, May 16, 2014.

  1. Flathead Dave
    Joined: Mar 21, 2014
    Posts: 4,029

    Flathead Dave
    ALLIANCE MEMBER
    from So. Cal.

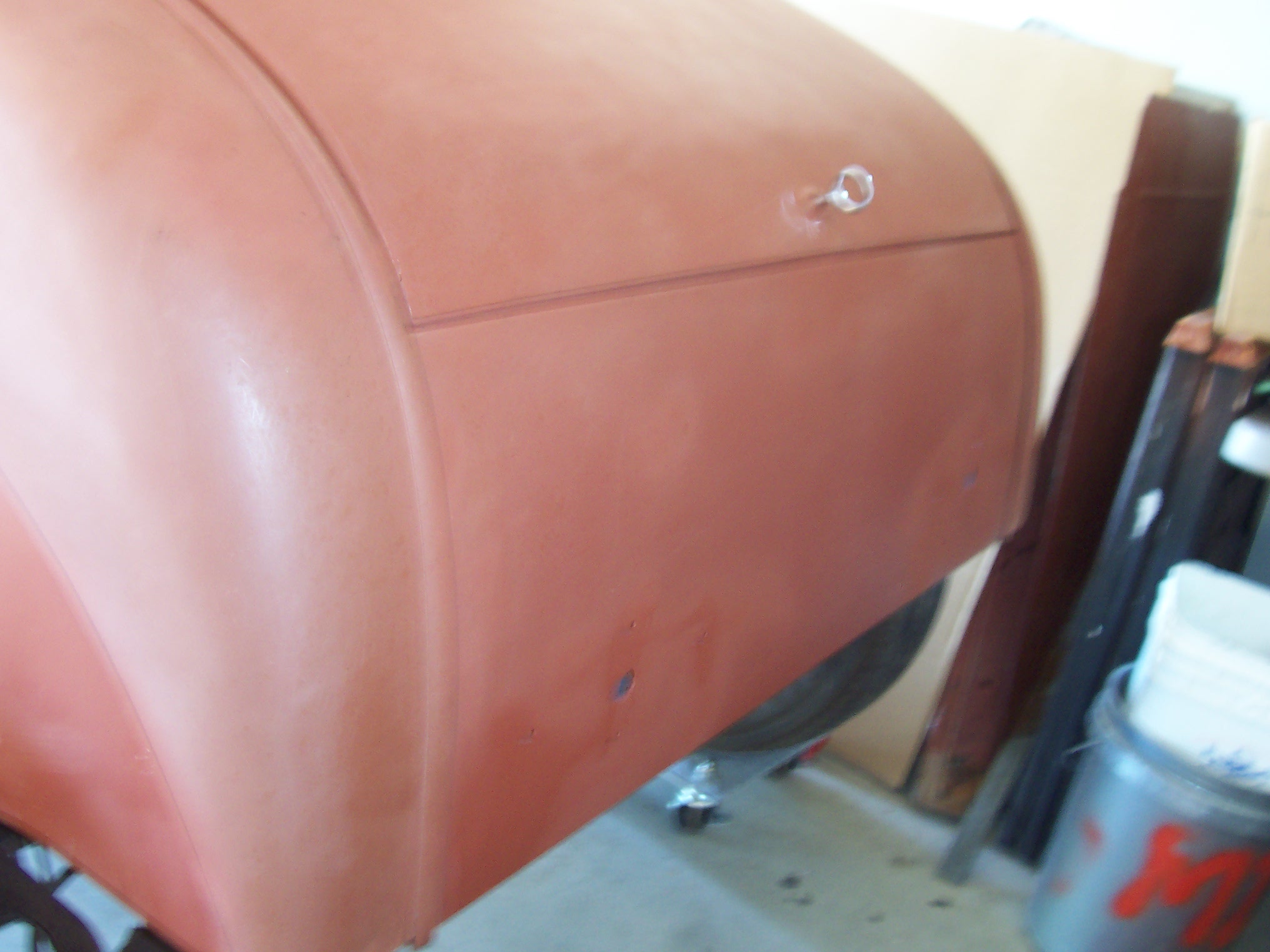

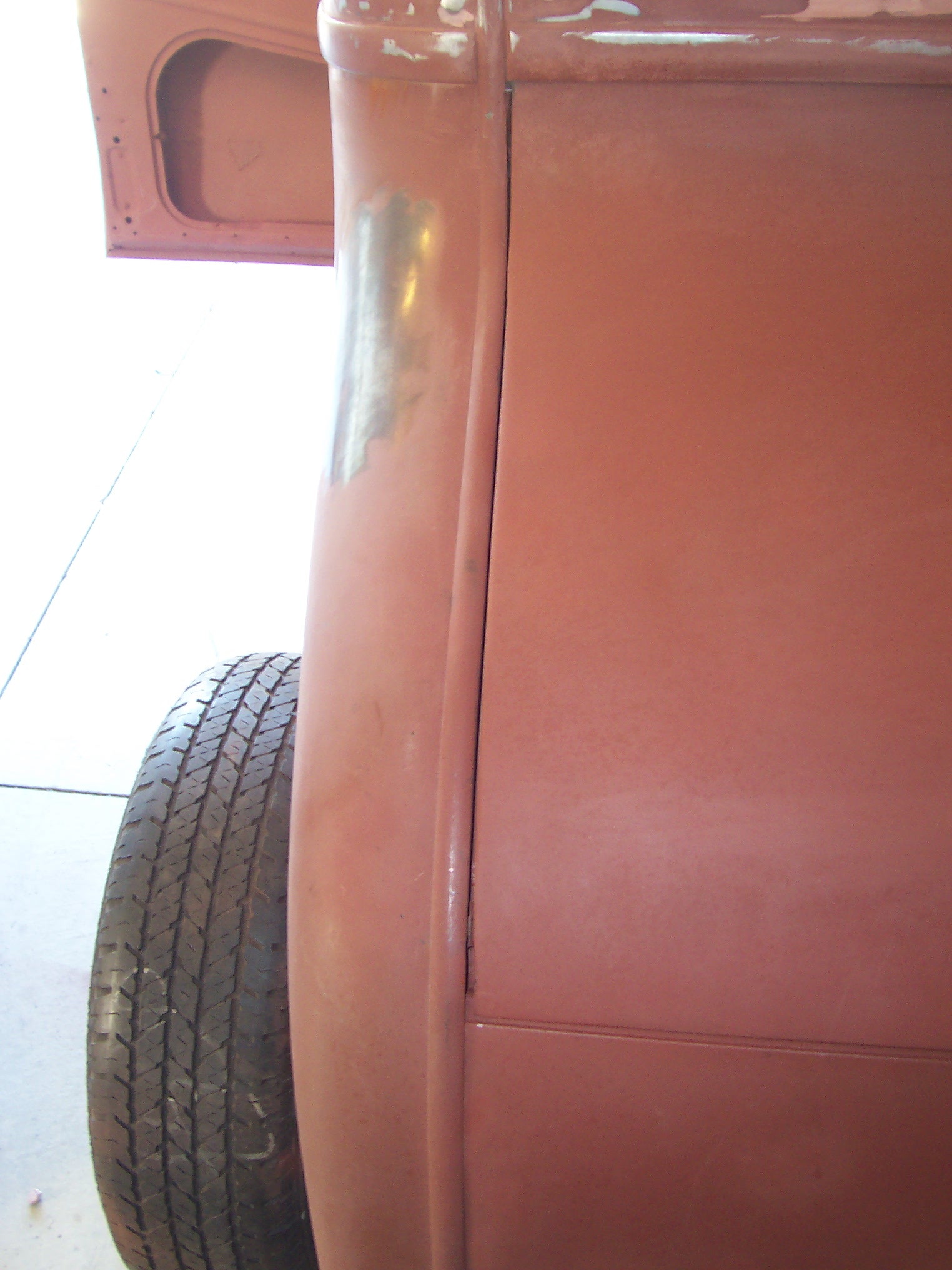

    000_0728.JPG Hello everyone. I finally got the curvature problem remedied on my Coupe trunk lid. I think it looks a lot better with the bow in the brace and has an exceptional fit. All I did was put an arc in the trunk lid brace. How about that..... 000_0728.JPG Now, I have one more small problem with the deck lid....I need to adjust it to make it even on the both sides. I have a 1/2 inch gap on the right side of the deck lid.

    I'm assuming that I need to use the hinge bolts on the deck lid to make this adjustment?


    Attached Files:

  2. jaw22w
    Joined: Mar 2, 2013
    Posts: 1,701

    jaw22w
    Member
    from Indiana

    I have a 26 Coupe. There are 2 bolts in each hinge. Each on a slot. You adjust deck lid fit here. It is really a hit and miss deal. Tighten it up in one spot. Check fit. Adjust. and repeat and repeat and repeat, etc. Pretty soon you will get a feel for which hinge to move which way and how much. It was a PITA to get mine where I wanted it, but it fits pretty good now. Not perfect, but you are never going to get these old cars perfect within the fit of the hinges.

  3. Flathead Dave
    Joined: Mar 21, 2014
    Posts: 4,029

    Flathead Dave
    ALLIANCE MEMBER
    from So. Cal.

    Jaw....Very cool. I thought that was how it's done. I just wanted to be sure. Thank you for the quick answer.
