1932 Ford 5 Window Dimension

I bought a 32 5 window coupe body. It was chopped long ago, like in the 50's. I am trying to figure out exactly how much was chopped. Can someone with the info give me a reference dimension from stock, say a window height or windshield height so I can measure mine.

thanks



According to the Restorers Guide a measurement from the top of the lower reveal on the cowl (immediately ahead of the door) to a level line across the crown of the top is 48 1/2".



Mine is bone stock. The center of the door opening is right at 13". The small side windows, measure 12 7/8 right in the middle of the opening and 13" at the tallest point. The tops of the small side windows are a bit angled.

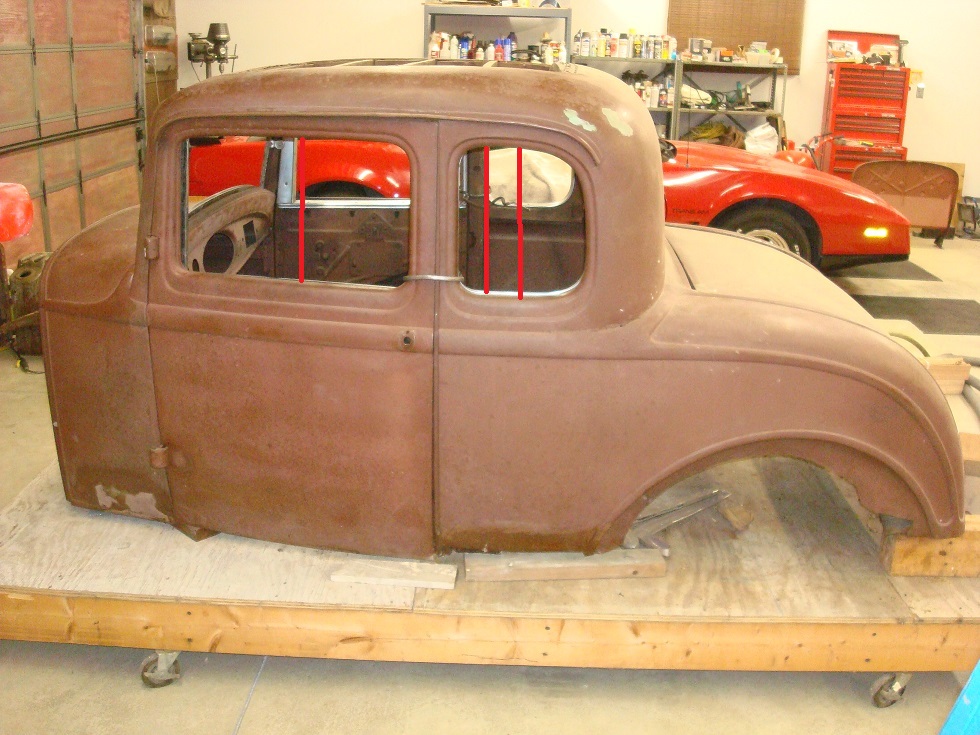

The red lines are where I measured.



thanks Dale, man that seems like a lot but if you say so..



Big Duece, thanks man! Appreciate the pic.



I just went and measured my '32. 13" on the side window openings, 9" for the rear and the windshield frame is 12.5" in the center.



Thanks man! This means mine is chopped exactly 3 inches.

thanks for the help gentlemen!



so mine is chopped 3.5 inches, thanks
