Technical 1932 Ford 5 window quarter panel measurement help, please

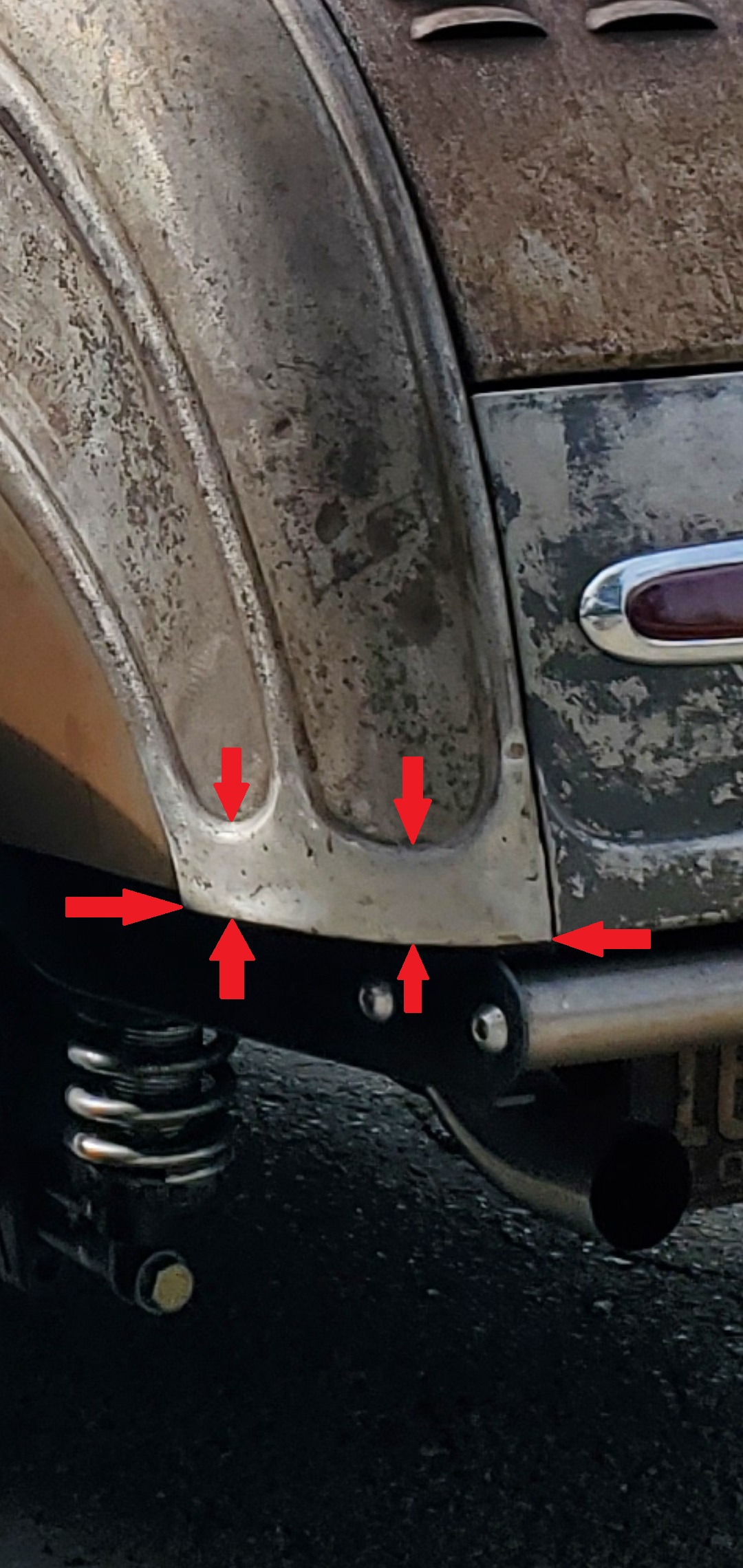

I am hoping someone out there can help me with a few measurements from a 5 window quarter panel. The 2 vertical measurements between the bottom corner of the body to each of the bottom of the "valley" of each reveal. Also the measurement from the wheel well to the corner of the quarter panel as it goes around the curve. See the attached pic for clarification Please and thank you.



Back in the day, Barry Lobeck told me to buy a patch panel for a Model A and make it look right. LOL



Call Frank Boritwits at 602-245-4110, who makes the corners you need. He will ship them to you.



Surprised that no 32 - 5 window owners in the US and Canada haven't provided the dimensions that you need.
Assuming that my UPAC body is the same as Henry's I will get the measurements when I get out in the shed this morning.



@ct1932ford



OK @Kevinsrodshop here's what you wanted.
Using wife's dressmaking tape to measure round curved things I got 7 1/4" for the horizontal
The two verticals were identical at 1 11/16"
Both corners measured the same.



He's too busy sowing lawn seed at present Ted



@Kevinsrodshop
@swifty
My self unable to give a correct legit measurement , full fenders & rail covers



Thank you Swifty! Much obliged.



Thanks Swifty! Seed is down



Give Derek a call in Nova Scotia. He made me a set and very economical, “made in Canada”!
