1932 Ford Firewall Identification

Discussion in 'The Hokey Ass Message Board' started by tractorguy, Sep 4, 2012.

  1. tractorguy
    Joined: Jan 5, 2008
    Posts: 1,022

    tractorguy
    Member

    I just picked up a Ford firewall that was marked "Model B" (given how other items were mis-identified by the auctioneer , I'm not sure about the marking). It was with lots of misc. Model A parts at an huge estate auction over the weekend. I am sorry that at this point I do not have any pictures ( or the skill to post them).
    The firewall looks like a 32 and has " feet" on it. My question is.....can anybody give me any info on how to determine whether this is a 1932....1933....1934 or "other".

    Thanks

  2. 117harv
    Joined: Nov 12, 2009
    Posts: 6,586

    117harv
    Member

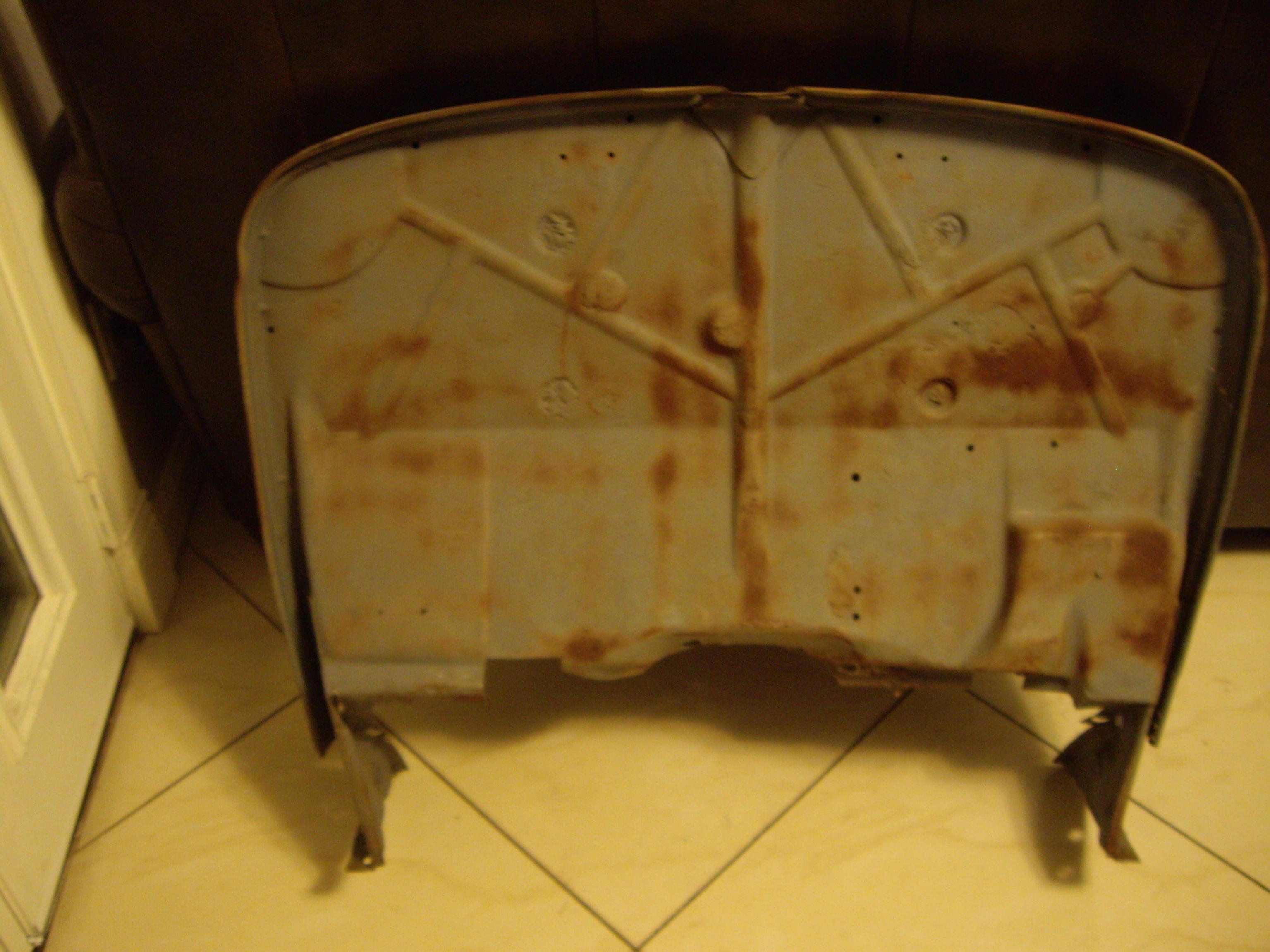

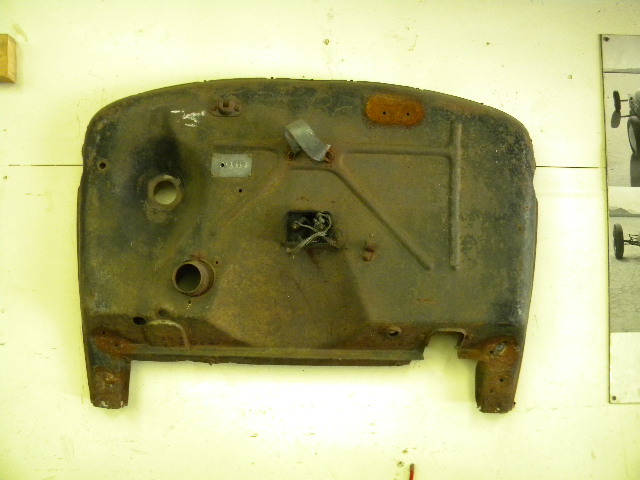

    First pic, 32 second 33-34 and thrird late 31 model A.


    Attached Files:

    Last edited: Sep 4, 2012
  3. pictures would be a big help

    33/34 car are welded in and are completely different than 32.

    33/34 pickup are different again

  4. Bruce Lancaster
    Joined: Oct 9, 2001
    Posts: 21,681

    Bruce Lancaster
    Member Emeritus

    And...'33-4 pickup, also welded, looks similar to '30-31.
    There are twop slightly different basic versions of the '32 but they are similar and hard to mistake for anything else after seeing the picture above.

  5. tractorguy
    Joined: Jan 5, 2008
    Posts: 1,022

    tractorguy
    Member

    Thanks for all the great replies. The one I have looks exactly like the first picture, so I will assume that I do have a 1932 firewall with legs and the original sealing on both sides on the top of the firewall.
    Thanks again to all the quick responses.
