Technical 1934 Ford Toe Board hole?

Discussion in 'Traditional Hot Rods' started by stubbsrodandcustom, Oct 15, 2023.

  1. stubbsrodandcustom
    Joined: Dec 28, 2010
    Posts: 2,559

    stubbsrodandcustom
    ALLIANCE MEMBER
    from Spring tx

    I have done some searching with no real answers on the function of this large hole you could almost slide a coke can through....

    So ...

    Does anyone have a real idea on what the big hole in the toe board right above the trans pan is there for?

    And How did you seal yours up?

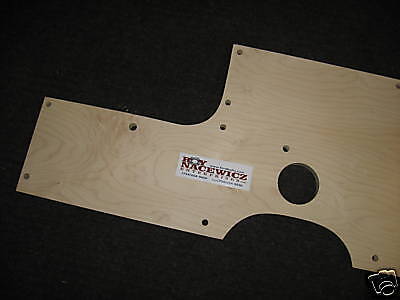

    R (1).jpg

  2. GordonC
    Joined: Mar 6, 2006
    Posts: 3,452

    GordonC
    ALLIANCE MEMBER

    Well if it's not the shifter or the emergency brake would it be for a floor mounted starter pedal? I don't know any original 34 fords so I've never seen one so just guessing.

    stubbsrodandcustom likes this.
  3. Fordors
    Joined: Sep 22, 2016
    Posts: 6,273

    Fordors
    Member

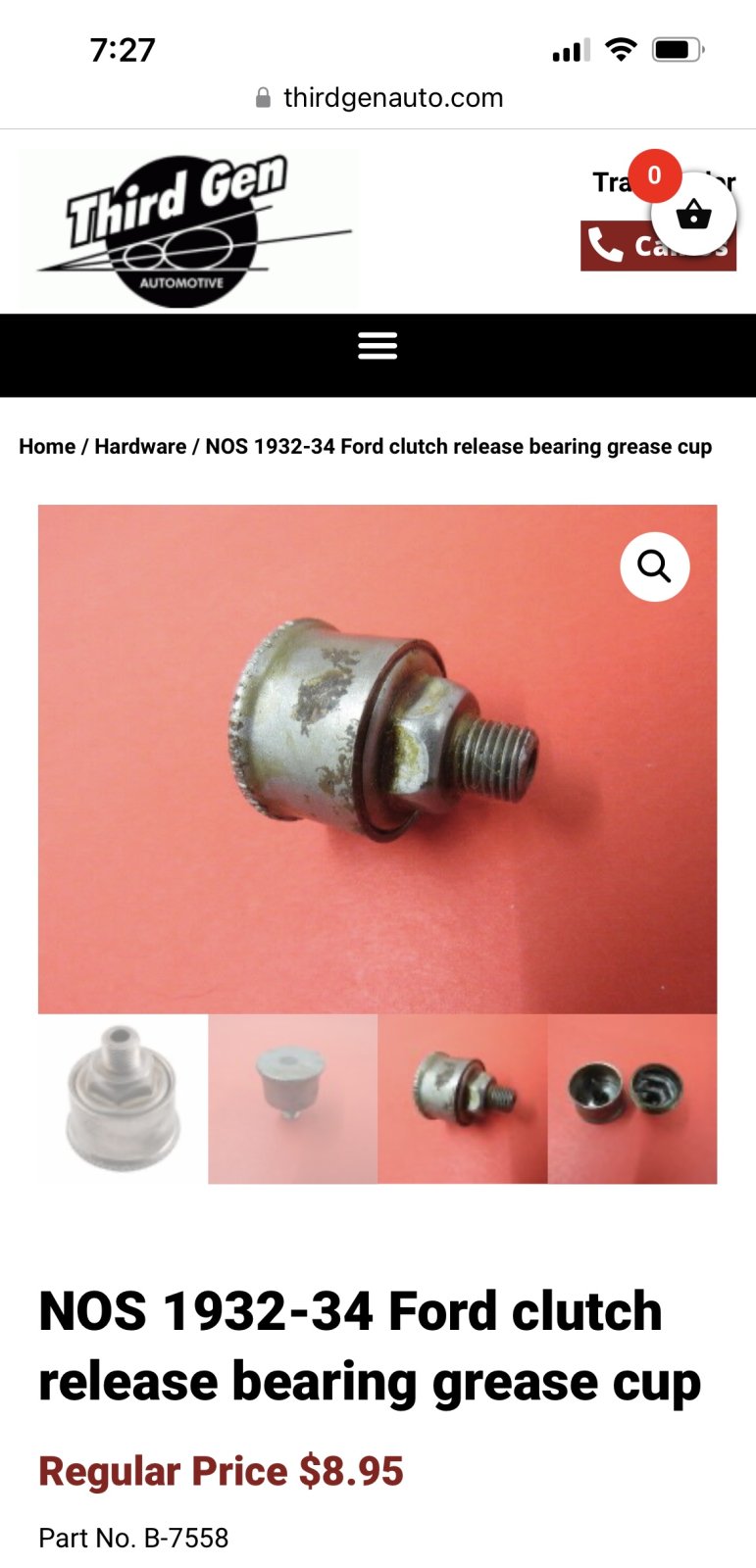

    I think at that time Ford had a grease fitting, maybe it was a grease cup, and a hose to lube the cross shaft of the clutch linkage.

    Edit- looks like it was for the throw out bearing, not the shaft.

    Last edited: Oct 15, 2023
    stubbsrodandcustom likes this.
  4. dlw1932
    Joined: May 19, 2018
    Posts: 557

    dlw1932
    Member
    from Nebraska

    It is for access to grease the early style throw-out bearing as mentioned above. There is a similar oval hole in 32 Ford floorboards for the same reason.

    stubbsrodandcustom likes this.
