Technical 1947 Ford Truck - Steering Box Mount

Discussion in 'The Hokey Ass Message Board' started by Voh, Sep 13, 2024.

  1. Voh
    Joined: Oct 18, 2006
    Posts: 1,058

    Voh
    Member

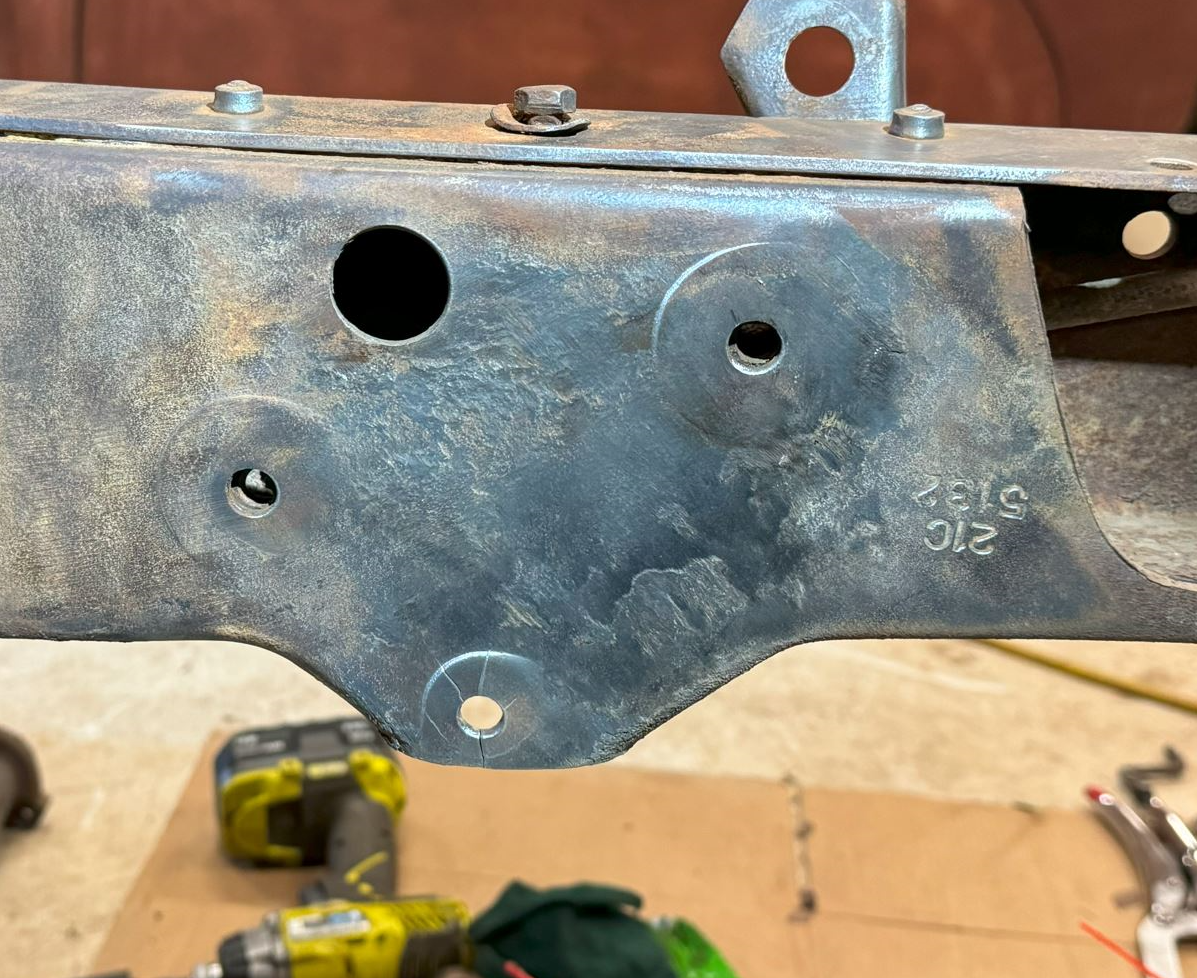

    All, after reading in a number of locations to double check the bolt holes for the steering box, it was found to have some anticipated cracks. couple questions on the repair process:
    1) Can it be done well enough on the truck, or do I need to look at removing the piece to correctly fix it.
    2) In welding the crack, I am right in drilling the end of the crack to stop it right?

    VOH
    upload_2024-9-13_11-57-11.png upload_2024-9-13_11-57-36.png upload_2024-9-13_11-58-11.png



  2. Dak Rat
    Joined: Mar 8, 2006
    Posts: 569

    Dak Rat
    Member
    from NoDak

    Cut that cracked piece out and weld in a new piece of steel, then drill the hole for the box. You don't want to try welding all those cracks!

    alanp561 likes this.
  3. deathrowdave
    Joined: May 27, 2014
    Posts: 4,667

    deathrowdave
    ALLIANCE MEMBER
    from NKy

    Any way to add new piece and a new piece to the outside with a sleeve between the two ?

  4. Budget36
    Joined: Nov 29, 2014
    Posts: 14,950

    Budget36
    Member

    The cracks also get to the frame. One issue I see of putting a new piece in, notice the holes, the holes protrude/stick to the outside of the frame.
    Me? Drill a hole at the end of the cracks in the frame. Slight v, fill and weld a thick washer around the hole.

    oneratfink57 and patsurf like this.
