Projects 1950 "Bad Mouth" Buick build thread

Discussion in 'The Hokey Ass Message Board' started by Franco51merc, Dec 12, 2023.

  1. Franco51merc
    Joined: Oct 22, 2015
    Posts: 55

    Franco51merc
    Member

    Continuing the build thread of my 1950 Buick 4dr Special here. I originally posted it under traditional kustoms, but I guess it don't exactly meet the guidelines over there.
    https://www.jalopyjournal.com/forum...om-in-less-than-1-year.1302671/#post-15009552

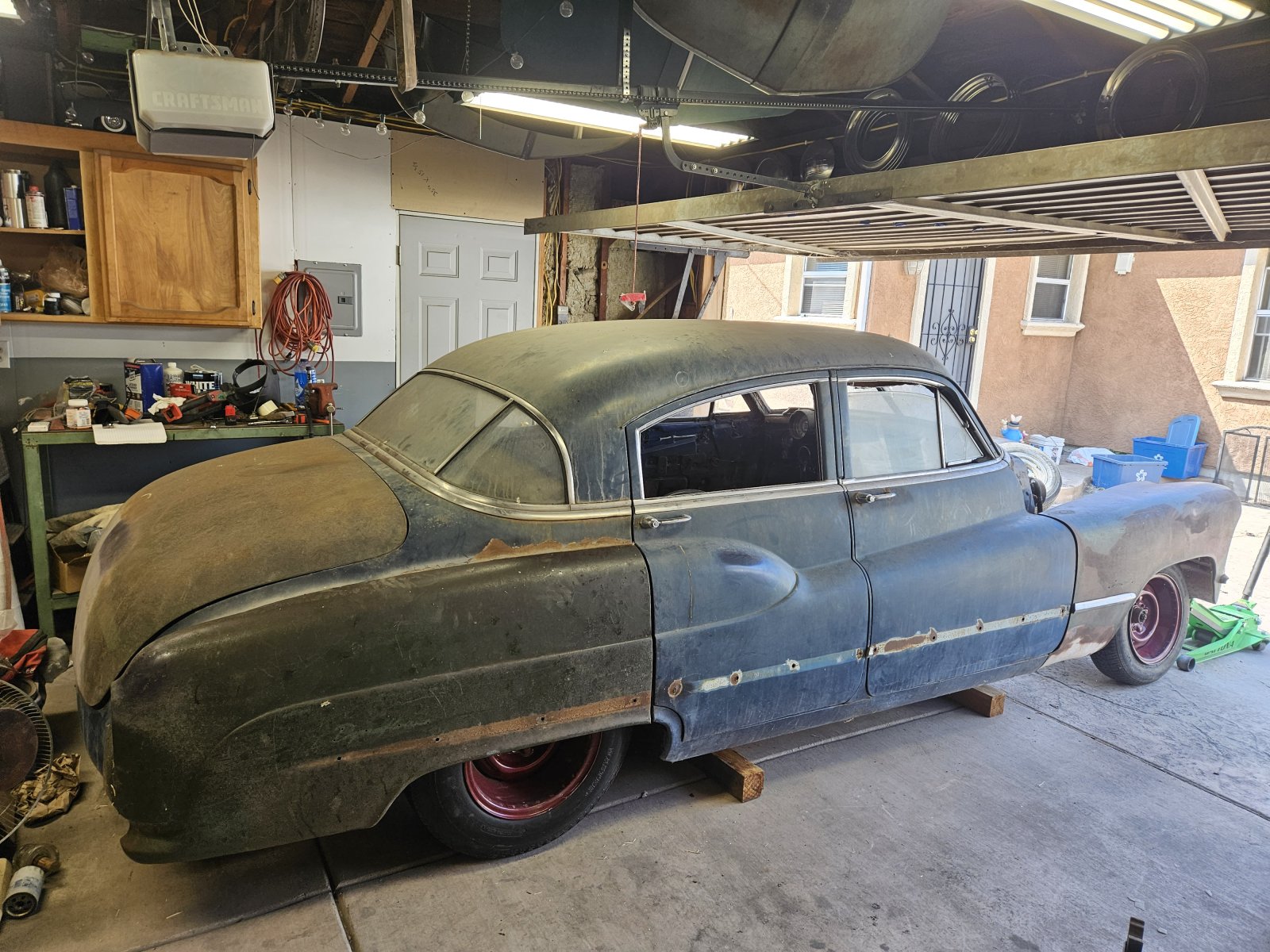

    So when we left off I had the car sitting on 4x4s at the desired ride height, trying to locate the rear end in the frame. 20230920_140315.jpg

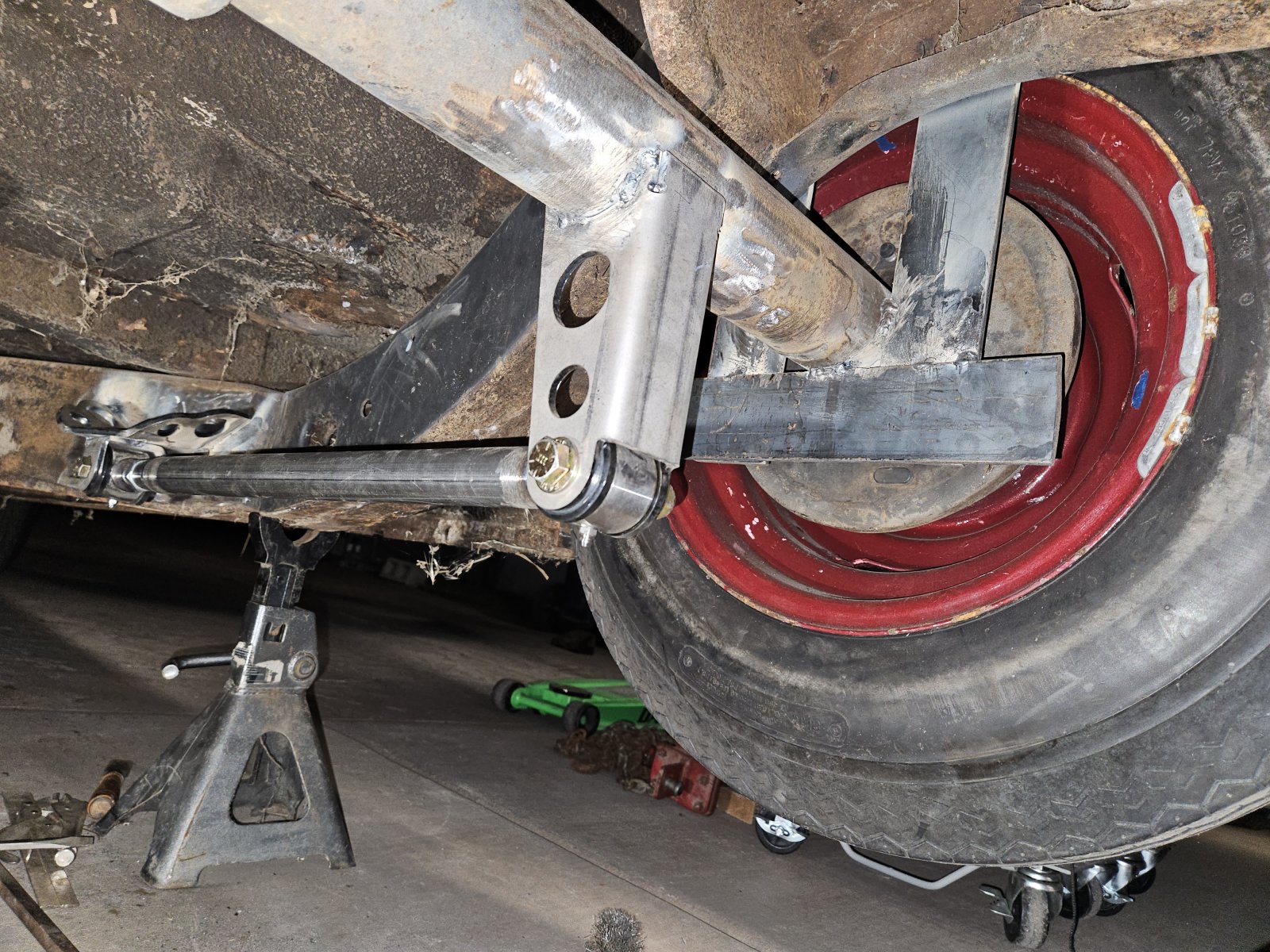

    Basically that rear fender is just hanging there on the car, so I could center the wheel in the wheel opening. Once I got it close on both sides I took the rear fender off and started measuring from the frame to the axle. It took me a couple tries, but I was able to locate the rear end. Once pinion angle was set I welded it to the frame with some 1/4 in flat bar in exactly desired ride height position. 20231031_145337.jpg 20231106_192651.jpg

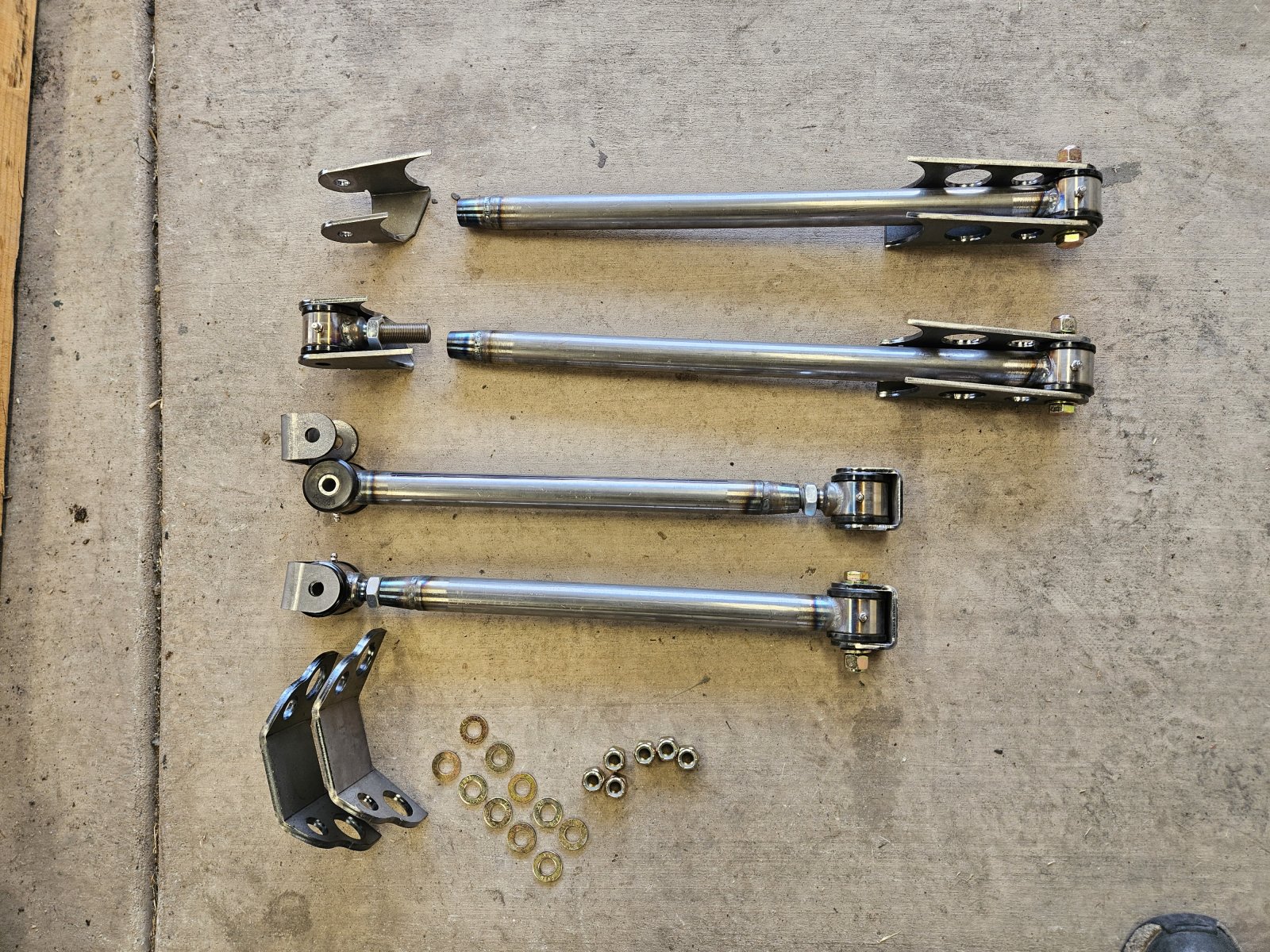

    I went with a triangulated 4 link setup from Gambino's Kustoms. I'm lucky that their shop is very local to me.

    It has been a real learning experience trying to figure out how to do a custom suspension. For me it all starts "by eye" and if it looks right, then I start taking measurements afterwards. Lot of reading on forums and watching videos on how to.


    Attached Files:

  2. Isn’t it going to settle when sitting on the springs?

    Franco51merc likes this.
  3. Franco51merc
    Joined: Oct 22, 2015
    Posts: 55

    Franco51merc
    Member

    Going with air suspension, so I've got a little leeway.

  4. pvfjr
    Joined: Apr 28, 2020
    Posts: 233

    pvfjr
    Member
    1. Hydro Tech

    Following. I love these cars, and am happy to see someone working on a more-door. I hope you do end up daily driving it, and can just have fun with it instead of getting caught up in a whirlwind of perfectionism that keeps you from getting it "done." I've got plenty of clapped out projects as well, and I personally find it more fun than having one perfect, shiny car.

  5. Jacksmith
    Joined: Sep 24, 2009
    Posts: 1,819

    Jacksmith
    ALLIANCE MEMBER
    from Aridzona

    Just transferred to this thread site...

    Gambino offers a nice rear suspension set up... That should eliminate the jelly roll ride of bags.
    Is there a panhard bar as well?

    SS327 likes this.
  6. In_The_Pink
    Joined: Jan 9, 2010
    Posts: 950

    In_The_Pink
    Member

    It looks great at that ride height.

    Is there enough clearance around the rear tire to remove it in case it goes flat? Maybe with the air suspension you can raise the suspension easily, though.

  7. CGkidd
    Joined: Mar 2, 2002
    Posts: 2,917

    CGkidd
    Member

    I had a 50 super with 4 link little lower than that and it was a nightmare to change the rear tires. Had to pull the shocks to drop enough to get tire out. Just an idea to watch for.

  8. Jacksmith
    Joined: Sep 24, 2009
    Posts: 1,819

    Jacksmith
    ALLIANCE MEMBER
    from Aridzona

    Standard procedure...
