Projects 31 Kustom Roadster (DIY duvall, tudor to roadster conversion)

Discussion in 'Traditional Hot Rods' started by Chevy28, Feb 13, 2020.

  1. GordonC
    Joined: Mar 6, 2006
    Posts: 3,452

    GordonC
    ALLIANCE MEMBER

    You sir are a hell of a fabricator!

  2. Spooky
    Joined: Mar 3, 2001
    Posts: 2,488

    Spooky
    Member

    Speechless!! It is 30 degrees outside and I still got chills looking at this amazing work!

    HelminenHotrods and Stogy like this.
  3. miguel.st
    Joined: Sep 4, 2012
    Posts: 68

    miguel.st
    Member
    from germany

    Your Skills are awesome! Everything was already said and I can only say that you‘re close to unreal.
    And as if it‘s nothing just restore a Vespa inbetween, pretty cool sir.
    How do you cut these thick metal sheets, or do you buy custom lasered parts?

    HelminenHotrods, Outback and Stogy like this.
  4. HelminenHotrods
    Joined: Jun 8, 2018
    Posts: 144

    HelminenHotrods
    Member
    from Finland

    Thank you all equally for kind comments !

    Not gonna lie, vespa build was suprisingly exhausting. Load of work in such small scoot. For you German folks @miguel.st it is painted in porsche ice green metallic !

    The 3mm thick c-notch plates i cutted diy-methods with angle grinder. Just using cardboard template. After cutting all 4, i clamped them all together and finish grinded them to be precise same size/shape.
    I did saved the templete to possible get them done with laser, or plasmacutter later on for 32 frame.

  5. sfowler
    Joined: Sep 14, 2011
    Posts: 75

    sfowler
    Member

    WOW ! Had places to go but couldn't stop watching the build . I've been building Hot Rods for 50 years and I now realize I might as well been using an old hatchet and a pipe wrench for tools ! WHAT AN ARTIST !

    BigRRR, Stogy and HelminenHotrods like this.
  6. patsurf
    Joined: Jan 18, 2018
    Posts: 2,099

    patsurf

    buddy--YOU don't need a laser--you are one!-nice!

    Stogy and HelminenHotrods like this.
  7. HelminenHotrods
    Joined: Jun 8, 2018
    Posts: 144

    HelminenHotrods
    Member
    from Finland

    Appreciate the kind words ! Thank you sir !

    Stogy likes this.
  8. HelminenHotrods
    Joined: Jun 8, 2018
    Posts: 144

    HelminenHotrods
    Member
    from Finland

    Frame is welded back together. Next thing im going to make is support plates, same kind like in front notch/sweep IMG_20231031_214826.jpg IMG_20231031_215113.jpg

    Deutscher, dwollam, Okie Pete and 5 others like this.
  9. HelminenHotrods
    Joined: Jun 8, 2018
    Posts: 144

    HelminenHotrods
    Member
    from Finland

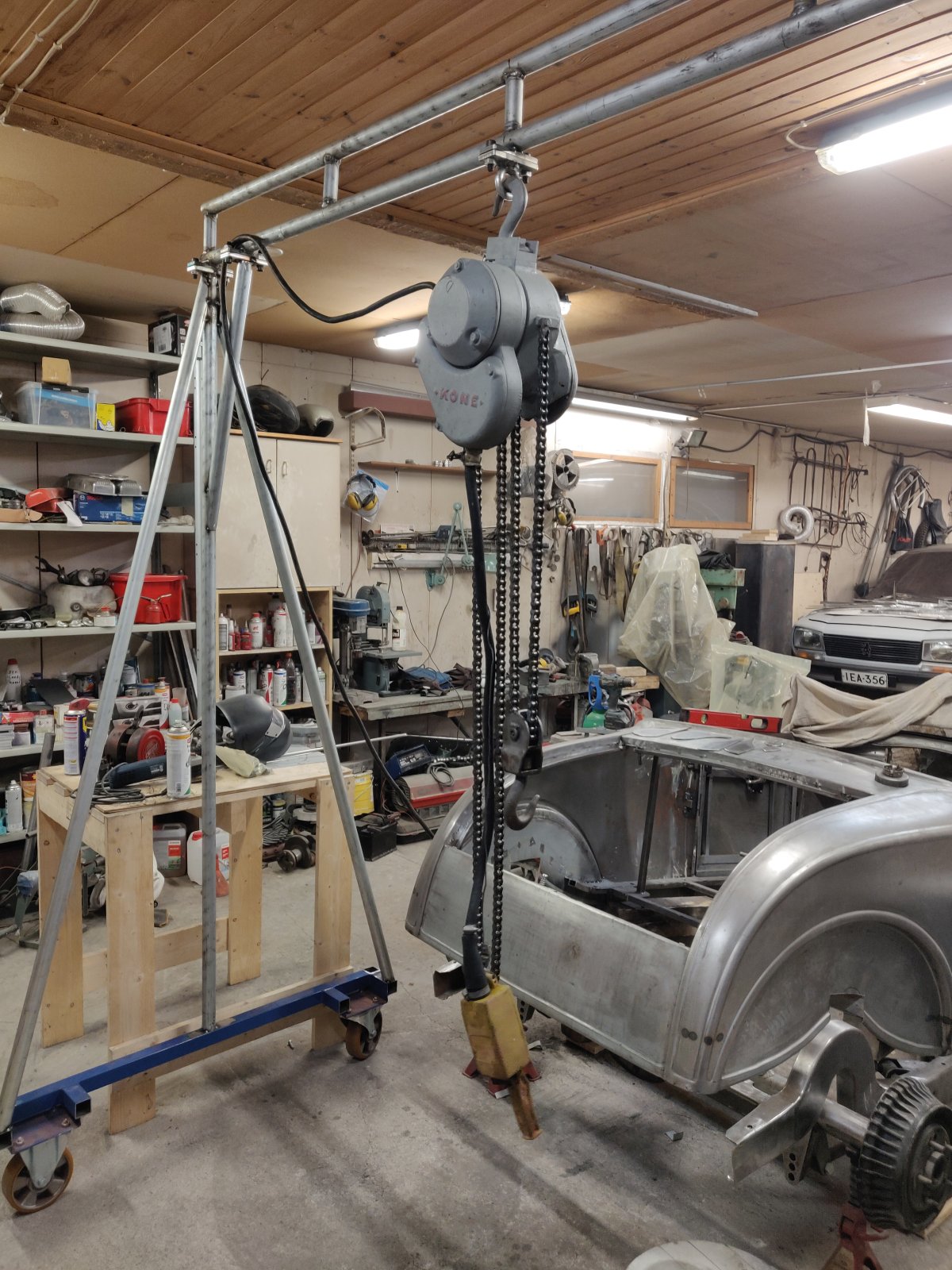

    Offtopic(ish) but for the build anyway ! Started building this gantry grane. Tack welded, needs couple strengtenin bars also.
    Old electric 500kg lifter.

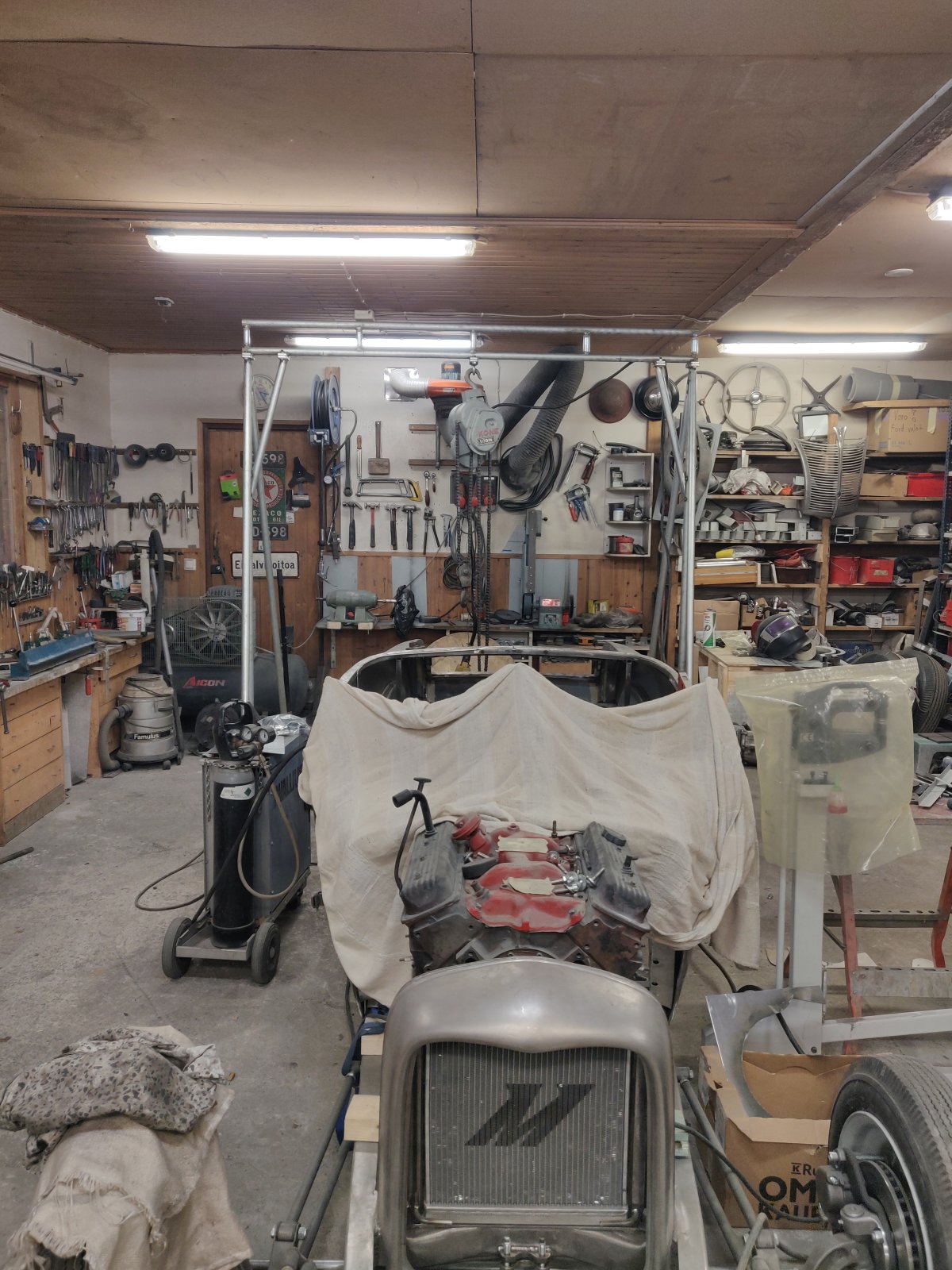

    Main reason to build this is because "regular" engine lifter won't fit under the low hotrod in many places, expecially in front end IMG_20231104_153340.jpg IMG_20231104_000039.jpg IMG_20231104_152315.jpg

    Deutscher, dwollam, Tim and 5 others like this.
  10. patsurf
    Joined: Jan 18, 2018
    Posts: 2,099

    patsurf

    beauty--next upgrade is the lateral trolley!!

    Stogy, HelminenHotrods and Outback like this.
  11. HelminenHotrods
    Joined: Jun 8, 2018
    Posts: 144

    HelminenHotrods
    Member
    from Finland

    New c-notch is now done.

    Made these 3mm support plates, similar to to the front : IMG_20231110_220147.jpg IMG_20231110_223616__01.jpg IMG_20231110_223511.jpg

    And these bump-stops + brackets :
    IMG_20231111_182716.jpg IMG_20231111_182612.jpg
    IMG_20231111_211540.jpg IMG_20231111_211606.jpg

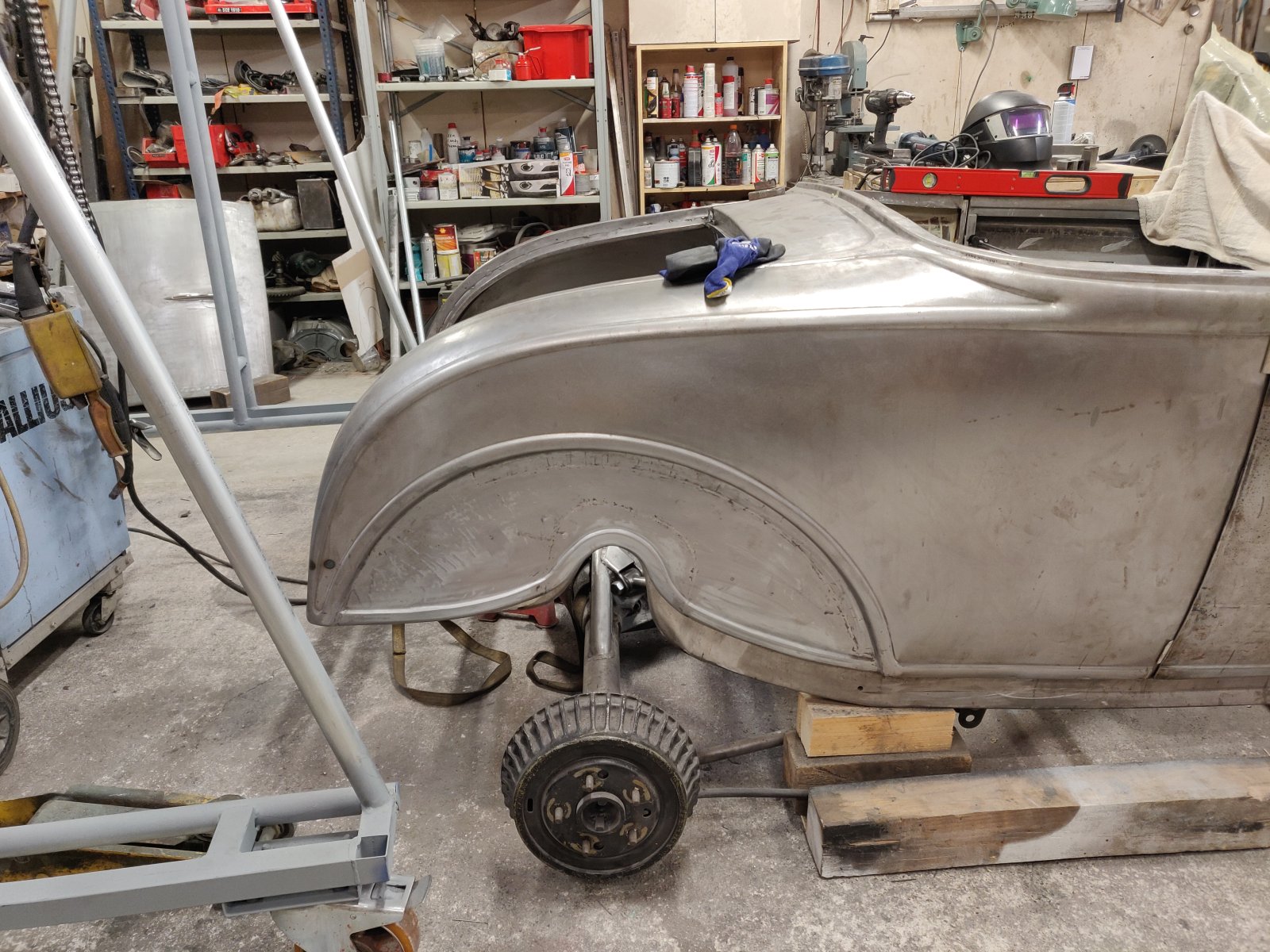

    Had to also re-do the wheel well axle opening. I likes the flow on the first version, so i tried to keep that flow going while going deeper: IMG_20231116_195628.jpg IMG_20231117_195740.jpg IMG_20231117_200933.jpg IMG_20231117_200953.jpg

    And finishing the job with subframe notch and "floor corners" :
    IMG_20231120_213653.jpg IMG_20231120_213720.jpg IMG_20231120_213739.jpg IMG_20231120_213635.jpg

    Ps. Changed the username to Helminenhotrods from the old chevy28 :D

  12. HelminenHotrods
    Joined: Jun 8, 2018
    Posts: 144

    HelminenHotrods
    Member
    from Finland

    Building new 4 bar mounts to frame.
    As the car sits so much lower the 4-bar angles were wrong. The upper bars are going to be quite high on the frame/floor.

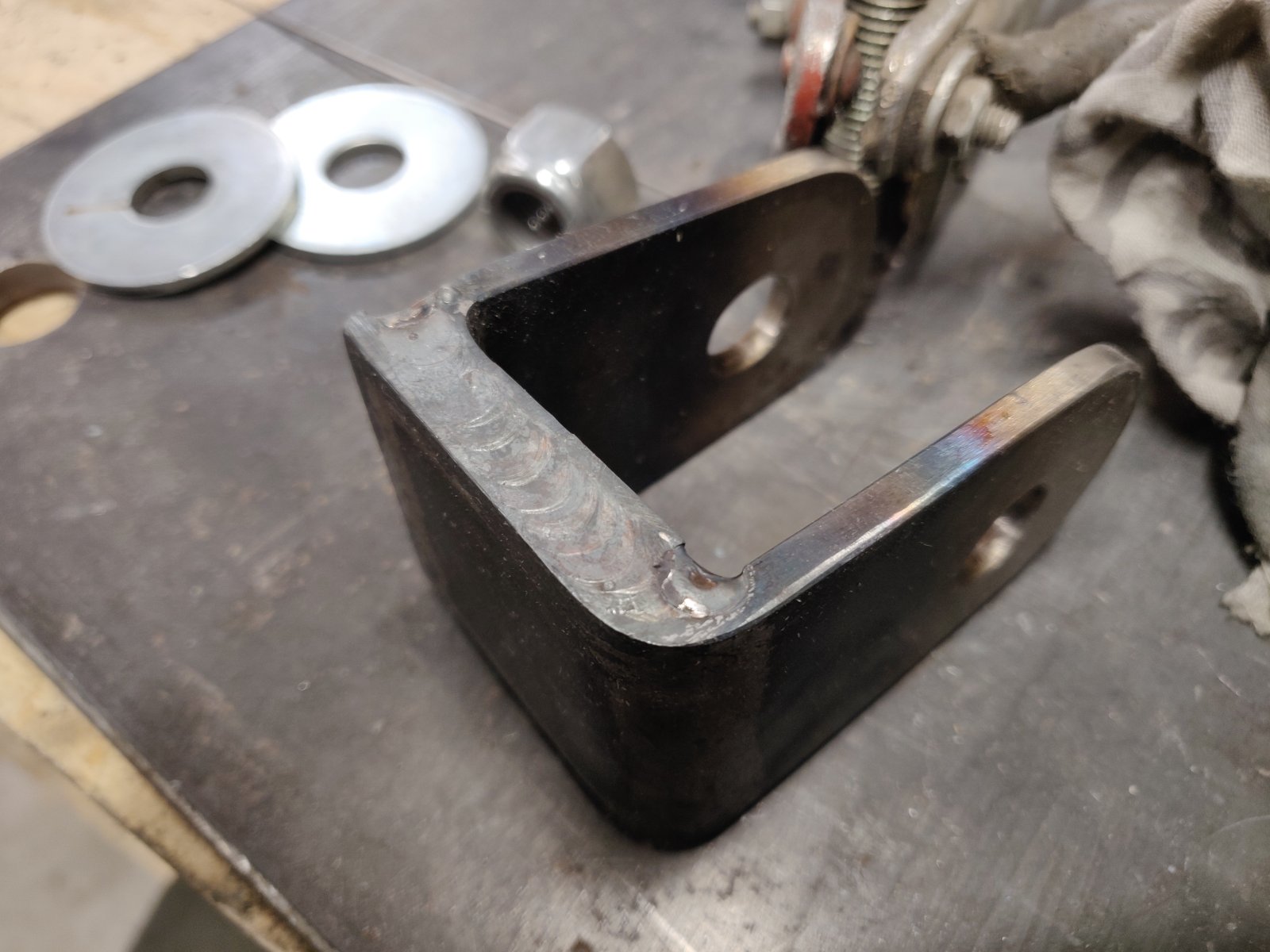

    IMG_20231124_213709.jpg IMG_20231130_193434.jpg IMG_20231130_193501.jpg IMG_20231130_193541.jpg IMG_20231130_193404.jpg IMG_20231130_194620.jpg

    dwollam, Okie Pete, NJ Don and 6 others like this.
  13. Tim
    Joined: Mar 2, 2001
    Posts: 19,561

    Tim
    Member
    from KCMO

    Looking good

    Stogy, HelminenHotrods and Outback like this.
  14. Outback
    Joined: Mar 4, 2005
    Posts: 3,161

    Outback
    ALLIANCE MEMBER
    from NE Vic

    Thanks for keeping us in the loop! That rear Notch looks great,

    Stogy and HelminenHotrods like this.
  15. Just incredible work!!
    Any concern that all this readjusting of the stance will change once the power train is installed?
    Would it be better to set the chassis up with the weight from the motor/tranny in it?

    Inspiring work Sir.
    Joe

    Stogy likes this.
  16. One of my all-time favorite builds on the HAMB . . . just love seeing your work. Now, when the car is done, bring it over to the States - as you have a lot of SiSu in this build. ;)

    Stogy and HelminenHotrods like this.
  17. HelminenHotrods
    Joined: Jun 8, 2018
    Posts: 144

    HelminenHotrods
    Member
    from Finland

    Thanks outback !

    Thanks Joel ! I did throw the engine at front and transmission, flywheel, couple big water canisters etc for weight in the car.

    Now when the car is in the stance i wanted, with weight on at front axle, i measured the needed amount of C-notch, then made the rear 4 bar angles right ( at the right stance )

    So now there is left to determine/know/guess the amount of preload to coilover shocks.
    Some internet calculator gave 1,5cm ( 0,6 inch) preload with that spring rate. So i made the coilover mounts to that height, with the preload added on to the lenght.

    This is kind of guessing game, at least for me, so hard to know the real weight of the car once everything is on and in driving condition.
    Good thing is there are 3 different height mounting holes for the coilover, now it is in the middle one. And the spring stiffnes adjustment on the coilover. Gives me little play on the true final ride height.

    Cheers ! Markus

    dwollam, Stogy, brEad and 2 others like this.
  18. GordonC
    Joined: Mar 6, 2006
    Posts: 3,452

    GordonC
    ALLIANCE MEMBER

    Great looking work!

    Stogy, HelminenHotrods and Outback like this.
  19. MMM1693
    Joined: Feb 8, 2009
    Posts: 1,473

    MMM1693
    ALLIANCE MEMBER

    Very nice craftmanship! Now I feel like such butcher!

    Stogy, HelminenHotrods and Outback like this.
  20. HelminenHotrods
    Joined: Jun 8, 2018
    Posts: 144

    HelminenHotrods
    Member
    from Finland

    That is definitely an dream for me ! Bringing the car to the states for GNRS !
    Thinking about selling bike, or an kidney to afford the shipping :D

    Stogy, Outback, 40two and 1 other person like this.
  21. HelminenHotrods
    Joined: Jun 8, 2018
    Posts: 144

    HelminenHotrods
    Member
    from Finland

    I needed to shorten the lower bars 20mm ( ~3/4 inch) because the frame X-member was getting in way. I made quick welding jig for the job.
    The little jig did its job great and the bars fitted right back in. IMG_20231201_221011.jpg IMG_20231201_221137.jpg IMG_20231201_221145.jpg IMG_20231201_222953.jpg IMG_20231201_223006.jpg IMG_20231201_234914.jpg IMG_20231201_234929.jpg

    For this low car i'm thinking ladderbars would have been better because the upper 4-link bars are way up there above floor. But they already are there, so i'll just make tunnels to the floorpan.

    Deutscher, dwollam, attitudor and 7 others like this.
  22. HelminenHotrods
    Joined: Jun 8, 2018
    Posts: 144

    HelminenHotrods
    Member
    from Finland

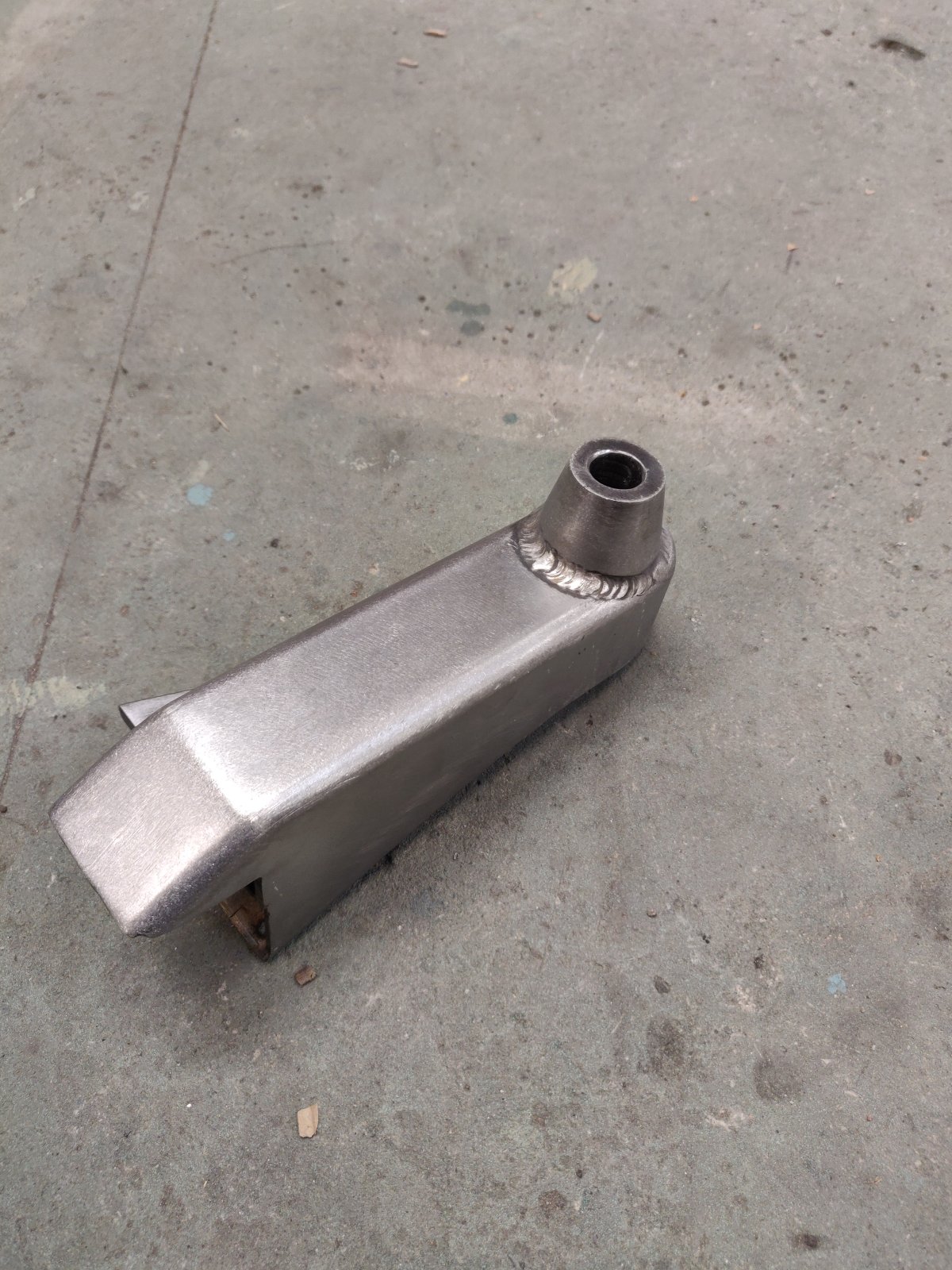

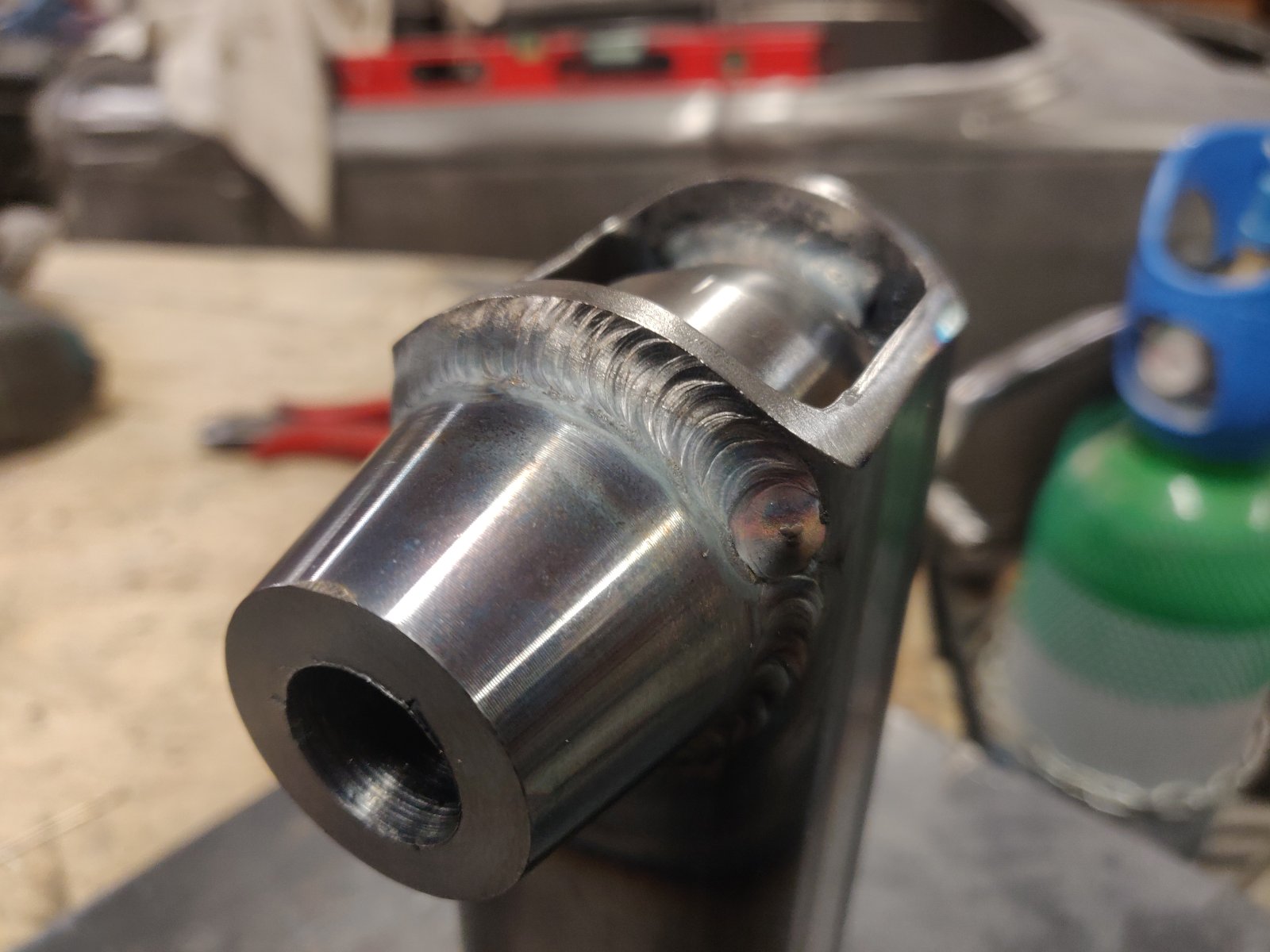

    Coilover mounts done for both sides, waiting to be welded to the frame IMG_20231206_184426.jpg IMG_20231206_184406.jpg IMG_20231207_204157.jpg IMG_20231207_204230.jpg IMG_20231208_222324.jpg IMG_20231209_000517.jpg IMG_20231209_000623.jpg IMG_20231209_000635.jpg IMG_20231209_000650.jpg IMG_20231208_222551.jpg IMG_20231209_001232.jpg IMG_20231209_001211.jpg

  23. Outback
    Joined: Mar 4, 2005
    Posts: 3,161

    Outback
    ALLIANCE MEMBER
    from NE Vic

    Lovely work, thanks for keeping us in the loop:D

    Stogy and HelminenHotrods like this.
  24. HelminenHotrods
    Joined: Jun 8, 2018
    Posts: 144

    HelminenHotrods
    Member
    from Finland

    Some videos and pics edit of the dashboard


    57tailgater, Okie Pete, rod1 and 4 others like this.
  25. Outback
    Joined: Mar 4, 2005
    Posts: 3,161

    Outback
    ALLIANCE MEMBER
    from NE Vic

    HelminenHotrods and Stogy like this.
  26. HelminenHotrods
    Joined: Jun 8, 2018
    Posts: 144

    HelminenHotrods
    Member
    from Finland

    Here is video of the stainless steel Kustom motor mounts i build

  27. AmishMike
    Joined: Mar 27, 2014
    Posts: 1,311

    AmishMike
    Member

    WOW, u want to make me a pair? You could sell copies, but, with your time & effort would cost a mint. Very nice work!

    HelminenHotrods likes this.
  28. HelminenHotrods
    Joined: Jun 8, 2018
    Posts: 144

    HelminenHotrods
    Member
    from Finland

    Pictures of the Kustom motor mounts build.

    Build out of 5mm ( 0.197 inch ) stainless steel. Mounts with M12 treaded tred, what is treaded and welded on to the motor mount.
    For these ones i made the base plate out of plain steel, but could be done fully with stainless steel, eliminating the two "extra" bolts. IMG_20240118_210431__01.jpg IMG_20240118_210449.jpg IMG_20240118_210516.jpg IMG_20240125_195613.jpg
    Before Welding. A nut holding it solid and straight during the weld. IMG_20240125_195628.jpg

    After welding it on a JIG and grinding the main shape IMG_20240126_212919.jpg IMG_20240126_214218.jpg

    Prushed finish IMG_20240127_160120.jpg

    And the final product IMG_20240127_180828.jpg IMG_20240127_181603.jpg IMG_20240127_180818.jpg IMG_20240127_181813.jpg IMG_20240127_181711.jpg

  29. HelminenHotrods
    Joined: Jun 8, 2018
    Posts: 144

    HelminenHotrods
    Member
    from Finland

    Thanks Mike !
    I have been thinking about building some for sale. I made that solid welding jig that purpose.
    The cost would come up from higher price of the stainless steel, cost of laser cutting, grinding and polishing material.
    BUT stainless steel doesn't need chroming, and that is huge saving. Atleast in Finland the high cost of the chroming would be almost same as the cost to build these
