Hot Rods 40s Ford Sub Axle Dimensions

Has anyone got the stub axle dimensions for the spindle please.

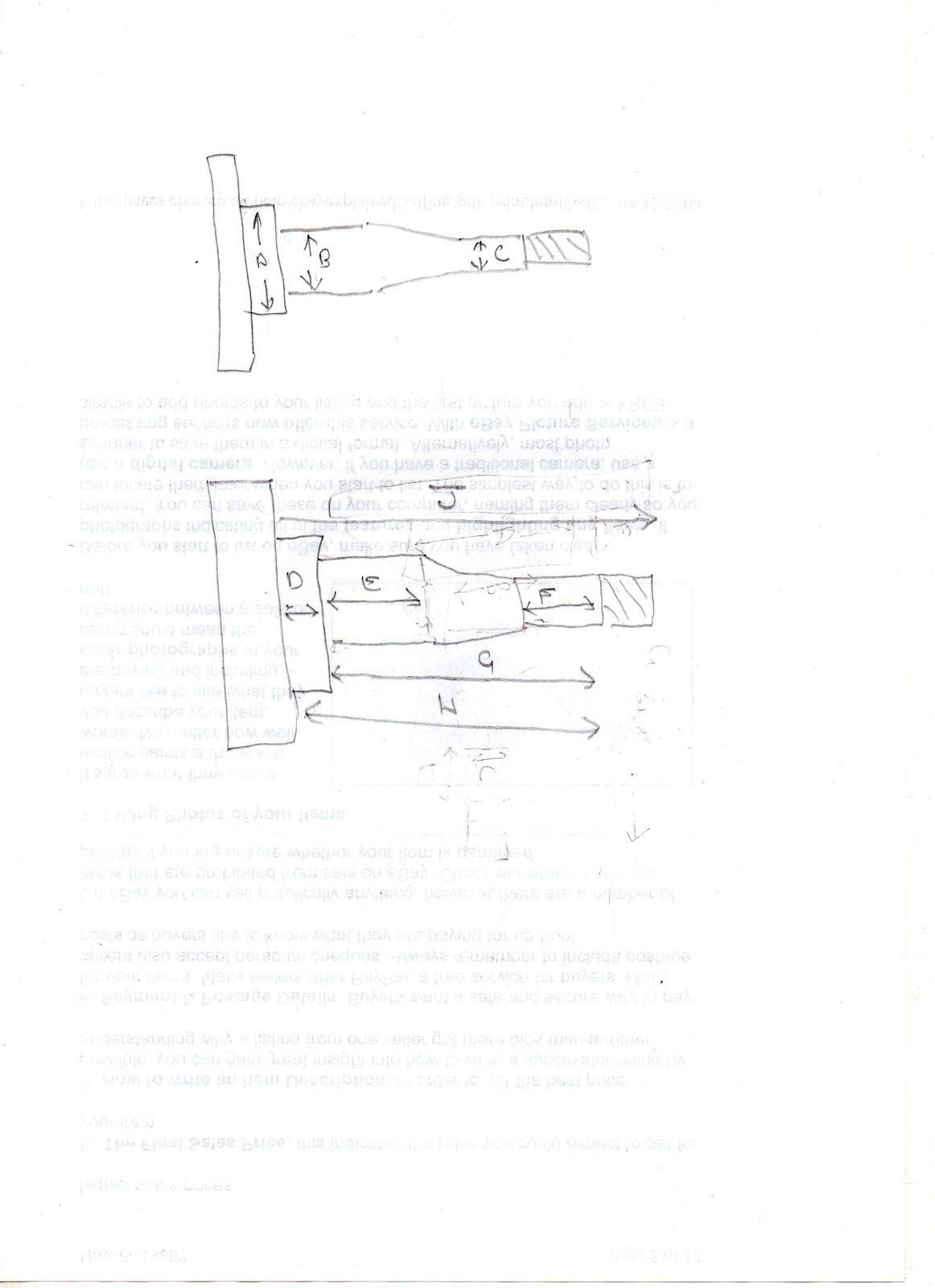

These are the measurement I am looking for.



Here are the dimensions, A-1.568, B-1.187, C--750, D-.639, E-858, F-806, G-3.875, H-4.514. These dimensions are in inches, not metric. I hope that this helps you. nick.



Nick did a nice job on the dimensions. I found this on the Speedway Motors sight. Thought I would just add it to the information stream.



That diagram is going to be in more than one guys keeper file before the day is over. Thanks for sharing it 39 Guy.



Thanks for that Nick, top class. Merry Christmas and a Happy New Year to you mate.



Thanks for that 39 Guy. I am sure you are spot on there 48Chev.

Merry Christmas and a Happy New to you Both
