Some things are better left to other people, this includes paint and upholstery. I would hate to ruin the car by doing an amateur paintjob myself or trying to stitch leather......I know my limitations.



Finished off the window garnish, but still need to fabricate a small piece on the right hand side to cover the part of the exposed door. The inside bend on the right will require a little bondo to get a smooth roundness, because I was unable to get it to make the small curve. All in all, I'm happy with the end result.

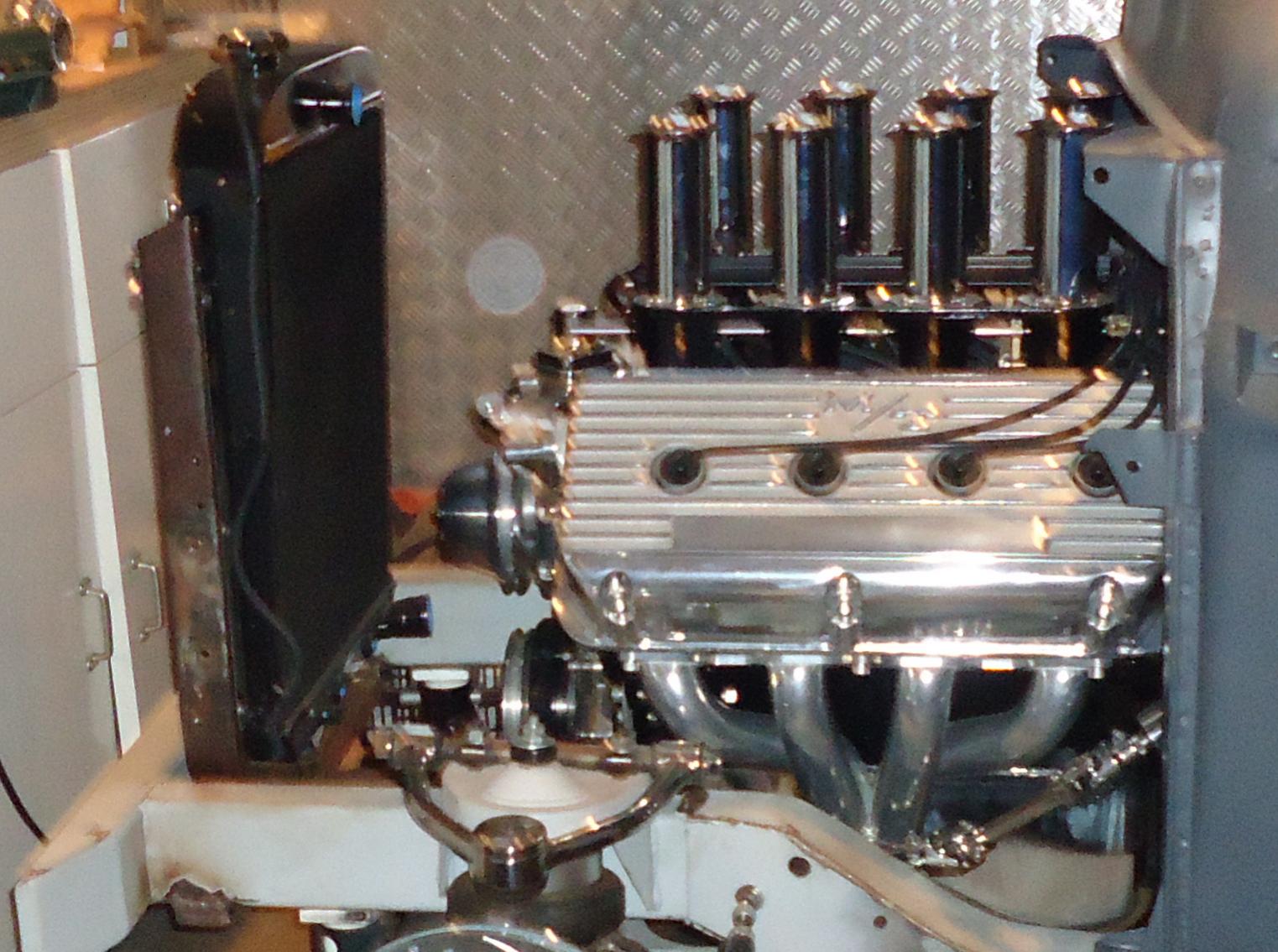

Mounted the radiator on its frame after re threading all the holes and getting ss bolts and nuts. The problem is the electric fan. It's not wide enough.(by an inch or so) Now I can mount it on its side, but then it's too wide. (and the overpressure flaps will be on the side......not pretty.) So it looks like I'll have to make a plastic frame which screws into the side lips of the radiator to which the fan can be mounted. Here are the pics of the radiator.
