    ok today i looked at this section of the build because im still measuring multiple times before i start to weld body mounts i want to make shore i know where everything sits

    i have the wheels centers so the spare fenders show me the rad will sit to close to the pulley's so i will have to relocate the motor and trans back 4-6" which to me is no big deal compared to installing this motor on my old chassis and then installing disk brake kit, power steering rack and four link so just moving the motor back a lil is less work for me i have allot of room to move the motor back as you can see in the pic
    i am reusing the stock 47 radiator as the front fenders bolts right to it and all i have to do is weld a square to across the chassis and drill two holes to mount it
    i cannot find the brand new box of body bushing i had so i will have to buy some again
    heres some pics so you see what i see
    i wont get much done for a few days moneys tight being laid off and all, my wife wants me to buy but im tring to hold out spending anything right now

    to give you an idea of how far i have to move back this is how you bolt the fender to the rad
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    i have allot of room (soda can for referance)
    [​IMG]

  2. Joel,
    I just read the whole thread. Man thats a s&*^$%#t load of work brother! I dont know what condition your rad is in but if its no good {like mine was } one that fit VERY nicely is a 73-74 ford pick-up with a 300 cid six cyl. Same core measurements and the advantage of nice big wide side mounting flanges to cut down for brackets. I dont know ny smog reg's, but toss the smog pump and you got NO lower hose issues.{at least, thats what it looks like to me. Great job cant wait too see it finished.

  3. 48dreams
    Joined: Sep 26, 2005
    Posts: 61

    48dreams
    Member
    from Queens

    If I go down to Marvs I'll call you so i can go buy if not we are meeting on sunday so we can talk then are you going to the meeting

  4. joel torres
    Joined: Mar 22, 2009
    Posts: 823

    joel torres
    Member

    having a really hard time with the body mounts i do not have the materials i need to get it done :( and im kinda stuck on one idea on what to do i im really bumbed out i think im going to take a break from it till i figure what to do today was a waste i welded two spot and dont have the body mounts to really play with i feel lost:confused: later

  5. plym49
    Joined: Aug 9, 2008
    Posts: 2,802

    plym49
    Member
    from Earth

    Sometimes you have to walk away from it. Take a break, a few hours or even a day or two, and it will all fall together like magic the next time you dive into it.

  6. Ford52PU
    Joined: Jan 31, 2007
    Posts: 520

    Ford52PU
    Member
    from PA

    Hey Joel,

    I'm subscribed to your post because you are doing such great work. Take a break, clear your head then kick ass, your doing a great job.

  7. joel torres
    Joined: Mar 22, 2009
    Posts: 823

    joel torres
    Member

    ok i put my big girl panties on lol and got to work :D
    (for the record i do not wear panties):eek:
    i started this at 7 p.m. and finished at 12
    ok i removed two brackets off the old chassis grinded and clean them up some
    i removed a section of u channel type brace off the donor car floor and cut two small section's out
    i welded the two small sections to the underside of the parallel square tubes

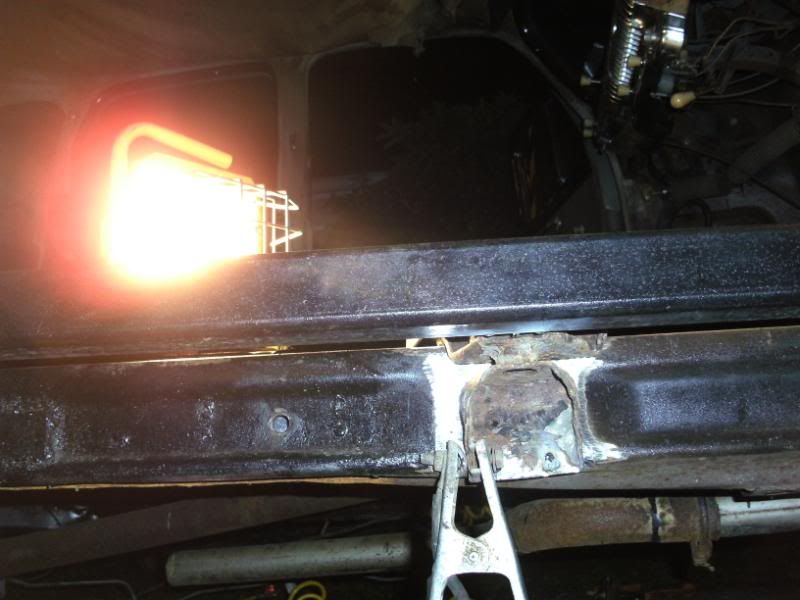

    and placed the brackets on the frame and tac welded them in place this will raise my boy off the frame the way i want it
    so far i have 4 body mounts done the next set i have the holes drilled in the frame with a bolt and bushing mounted but will rework it so the rubber has full contact ready for some pics cause im sleepy
    my anti mosquito hood
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  8. joel torres
    Joined: Mar 22, 2009
    Posts: 823

    joel torres
    Member

    i have the garage but its not wide where i can work with the doors open full on both sides plus i do not want to weld inside garage, the leaves are from my wifes tree :mad: i hate the tree she loves it, reminds us of her mom who passed away, neighbors are cool they know i am a good guy and i clean up every night and pack all my toys away when i am done playing :D

    i thought about the smog pump but i really want this motor to run efficient
    i have looked for photos of that radiator you mentioned but can't find any worst case senario ill move the motor back 6" its a small price to pay to have the fenders and all line up mint

    can't make the meeting i have a wedding to go to today but i really want to start going

    Ford52PU,plym49 thats the best advice for anyone building a car if you can't get it the first time walk away for awhile and it will smack ya like a ton of bricks
    i didn't even think about the car the whole day i was out with my son at birthday parties and when i got home as i walked passed the car the light bulb went on i knew what i had to do from start to finish

  9. joel torres
    Joined: Mar 22, 2009
    Posts: 823

    joel torres
    Member

    ok last night and today i did the rails for the trunk to get the shape and idea for floor pans and tank mounting
    first i welded angle iron to the sides of the inner fender wells and connected racthet straps and tugged them in to where i wanted them, then i reused those x braces that where in the car and welded them across to tie the side together
    then i made bent iron to shape the trunk to get some more room and then did the lower now i put the tank for mock up i do not like where the filler neck is is it possible to have it moved to the side like the factory tank was ?
    with the car dropped it still clears the tank and when raised its up there :D
    are you ready for more pics

    mock up of floor bracing
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  10. joel torres
    Joined: Mar 22, 2009
    Posts: 823

    joel torres
    Member

    [​IMG]
    [​IMG]
    [​IMG]
    47 tank for reference
    [​IMG]
    [​IMG]
    [​IMG]

  11. plym49
    Joined: Aug 9, 2008
    Posts: 2,802

    plym49
    Member
    from Earth

    You absolutely can move the filler neck on that gas tank. A radiator shop will do it for you. You can also do it yourself. If you braze or weld to a fuel tank, or use an open flame for soldering, run the exhaust of a car or diesel through the tank. The exhaust gas has no oxygen in it so you will not blow up, and the heat of the exhaust also dries the tank out.

  12. joel torres
    Joined: Mar 22, 2009
    Posts: 823

    joel torres
    Member

    i have been inspired by this thread home made metal shaping tools and Let's see some sheet metal shaping
    i am at the point of my project that i have to make a section in order to continue with my build it is the rear section of the trunk where it latches closed its so rusted i will attempt to make a new section
    i have allot of ideas and will start later today to get the tools in order here is what i have to start with it might look solid but its allll bondo
    [​IMG]
    [​IMG]

  13. joel torres
    Joined: Mar 22, 2009
    Posts: 823

    joel torres
    Member

    thanks man that takes a load off my shoulders
    i might want it on the side or trimed down and have it under the bumper shroud and make a little door to flap up if that make any sense

  14. plym49
    Joined: Aug 9, 2008
    Posts: 2,802

    plym49
    Member
    from Earth

    Yes, perfectly. Hey Bro, you can swap a frame; you will have no problem relocating that filler tube. :)

  15. joel torres
    Joined: Mar 22, 2009
    Posts: 823

    joel torres
    Member

    i was going to make it out of thick sheet metal but wanted something stronger so i to an angle iron and sliced a lot of cuts into it which makes it flexible i then took the extra floor i cut out of the black donor car flip it upside down and clamped the angle iron to it to get the shape and then i tac welded the slot so it would hold and im happy with my first try considering i started this at 9p.m to 11:30 i will have to get a small square tube and do the same to create the outer lip ( look at last photo for reference)
    next chance i get i will bolt the trunk back on and line the frame up square, once i know its perfect i will clean what i can and weld it in
    ready for more pic:D
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  16. joel torres
    Joined: Mar 22, 2009
    Posts: 823

    joel torres
    Member

    ok welded the beam in with an extra cross beam for strength
    i have to dry out the tank so i can cut the filler neck off so i can mount the tank for mock up once this is done im laying in the floors and weld up the sides with sheet metal
    the photos my son took :) for a 3 yr old he is good:cool:
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    i have two ways i could go with the filler neck
    1> have it relocated to the side so i can reuse the 47 factory filler hole and gas cap ( me likey this idea )
    2> slice it and extend it forward from the tank making it just below the bumper shroud (pan) and make a door to expose it
    [​IMG]

  17. resinjeff
    Joined: Aug 25, 2008
    Posts: 93

    resinjeff
    Member
    from detroit

    dang. i have a 47 2dr sedan thats in about the same shape yours was. i only hope i can get the same results as you. good job

  18. joel torres
    Joined: Mar 22, 2009
    Posts: 823

    joel torres
    Member

    thanks
    take some photos so we all can see they do sell patch panels for 2dr plymouths

  19. 48dreams
    Joined: Sep 26, 2005
    Posts: 61

    48dreams
    Member
    from Queens

    Joel you're sick my brother its lookin real good when youre finished come to my house and help me with my 48 lol.. Lots of food and beer in there...

  20. joel torres
    Joined: Mar 22, 2009
    Posts: 823

    joel torres
    Member

    i put water in the gas tank to clean it out and dry out but the water wont empty i stuck i stick down the filler nack it still will not empty the hoses on top are unpluged and it still wont empty i guess i have to plug the fuel pump in but i want to really dry it out so i can cut the filller neck off oh well im going to cut out my floor pans for mock up i cant weld them in till i have the tank in place
    il help ya ray once im done but then i have to start work on my 39 afterwards
    i need a job :( anyone local hiring ?

  21. plym49
    Joined: Aug 9, 2008
    Posts: 2,802

    plym49
    Member
    from Earth

    Joel, you are one clever son of a gun. I like the way that you formed the trunk lip out of notched angle iron.

    My vote is for the filler neck to come out in the stock position. BTW water is not a guarantee that you can weld that tank safely. It is a good first step but still use the exhaust trick.

    Wish I could help you with a job. I don't know how the economy is treating them but you might stop by at Pastorius Machine, right off the north service road.

  22. joel torres
    Joined: Mar 22, 2009
    Posts: 823

    joel torres
    Member

    ok i made some floor pans but i can not weld them in yet its nice they are almost done i will drill allot of holes around the edge and spot weld them to the angle iron then lay a strip for the vertical front section and shape the side ( little tricky )
    its late so il hammer dolly the tins flat tomorow can you believe i cut this all out with my shear man my hands are tired but i had a shit load of fun doing it :) and yes these are recycled shelves if its free its for me
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  23. bigtumtum
    Joined: Jul 2, 2008
    Posts: 658

    bigtumtum
    Member

    Cool Swap dude!!

  24. rodknocker
    Joined: Jan 31, 2006
    Posts: 2,265

    rodknocker

    Joel if that gas tank doesn't work out for you, you can use a 66 mustang gas tank, it lays flat in the trunk, all you have to do is make a simple frame for it and it sits right into it.[​IMG]

  25. rodknocker
    Joined: Jan 31, 2006
    Posts: 2,265

    rodknocker

  26. missysdad1
    Joined: Dec 9, 2008
    Posts: 3,307

    missysdad1
    Member

    Hey Joel!

    Just a quick note to let you know that I'm still lurking your thread. Your C-dan is coming along great! I'm sure glad that my coupe was pretty much solid...what a lot of work! But it will be worth it. The '46-'48 4-door Plymouth C-dan is perhaps the best looking 4-door ever. Keep up the great work! :)

  27. plym49
    Joined: Aug 9, 2008
    Posts: 2,802

    plym49
    Member
    from Earth

    Good point. Also, a 64 Chevy tank will fit right in on that parcel shelf over the rear axle. Always plenty of options!

  28. joel torres
    Joined: Mar 22, 2009
    Posts: 823

    joel torres
    Member

    i have good news for everyone i just got back from the union hall i go back to work monday!!!!!!!!!!!!! i dont feel stress out anymore :D im so freaking happy i hope everyone else laid off gets as lucky as i am

  29. joel torres
    Joined: Mar 22, 2009
    Posts: 823

    joel torres
    Member

    i will goto my friends house to help me open the tank safely
    i started making the panels for the trunk and something great hit me last night i saved the roof sheet metal from my donor car and i will go buy some oak tag paper make the templates and slice it out of the extra roof so i wont have to spend money :D heres some pics to give yoa an idea of how it will look when i start welding it in
    skinned roof from donor to make panels
    [​IMG]

    shaping the trunk panels to tie everything together
    [​IMG]
    [​IMG]
    life is good
    [​IMG]
    and i have rocket to help when i need him
    [​IMG]

  30. plym49
    Joined: Aug 9, 2008
    Posts: 2,802

    plym49
    Member
    from Earth

    Congratulations, brother! :)
