  1. George
    Joined: Jan 1, 2005
    Posts: 7,906

    George
    Member

    The spacer moves the pump out a bit so the eccentric hit the arm at the same place it would if in a 318.

  2. tankwilson
    Joined: Oct 12, 2004
    Posts: 1,161

    tankwilson
    Member

    Yea I figured that but look at the pic. The stock 318 arm is already shorter than the stock hemi. If I space it out it won't even touch the eccentric. :confused:

    Sent from my DROID device using the TJJ mobile app

  3. tankwilson
    Joined: Oct 12, 2004
    Posts: 1,161

    tankwilson
    Member

    Here is a pic of the inside of the timing cover. I drew around the stock pump and marked were the eccentric wears. Then I installed the 318 pump with spacer. I don't think it will even touch the eccentric when installed with the spacer.

    Sent from my DROID device using the TJJ mobile app


    Attached Files:

  4. tankwilson
    Joined: Oct 12, 2004
    Posts: 1,161

    tankwilson
    Member

    Here is the 318 pump with no spacer. Looks like it might work.

    Am I missing something?

    Sent from my DROID device using the TJJ mobile app

  5. tankwilson
    Joined: Oct 12, 2004
    Posts: 1,161

    tankwilson
    Member

    Sent from my DROID device using the TJJ mobile app


    Attached Files:

  6. ashhemi
    Joined: Sep 6, 2010
    Posts: 1

    ashhemi
    Member

    hi, it may have been mentioned earlier but have you thought of running a hiden electric pump and plumbing it through the standard fuel pump and just cut the arm of. i did this on my stock 354 hemi when having fuel pump problems.
    i take it your using the standard pump for looks as it isn't the most reliable of items. IMO
    Cheers
    Ash

  7. George
    Joined: Jan 1, 2005
    Posts: 7,906

    George
    Member

    give it a try then!

  8. tankwilson
    Joined: Oct 12, 2004
    Posts: 1,161

    tankwilson
    Member

    Changing directions on this thread for a few. I also wanted to redo and modify my frame and air ride setup. Since my last update I have pulled the body and cut off an 1" off the bottom of the frame so that the body will lay rockers. Here is a few pics.



    Sent from my DROID device using the TJJ mobile app


    Attached Files:

    Last edited: Jan 23, 2013
  9. tankwilson
    Joined: Oct 12, 2004
    Posts: 1,161

    tankwilson
    Member

    That should be low enough


    Sent from my DROID device using the TJJ mobile app


    Attached Files:

  10. tankwilson
    Joined: Oct 12, 2004
    Posts: 1,161

    tankwilson
    Member

    Ok will be done with the frame in a week or two. Hope to go get the block and heads so that i can make motor/trans mounts while waiting on pistons.

    Who makes the better trans mount for a 331/700R4 Wilcap or HHH?

  11. tankwilson
    Joined: Oct 12, 2004
    Posts: 1,161

    tankwilson
    Member

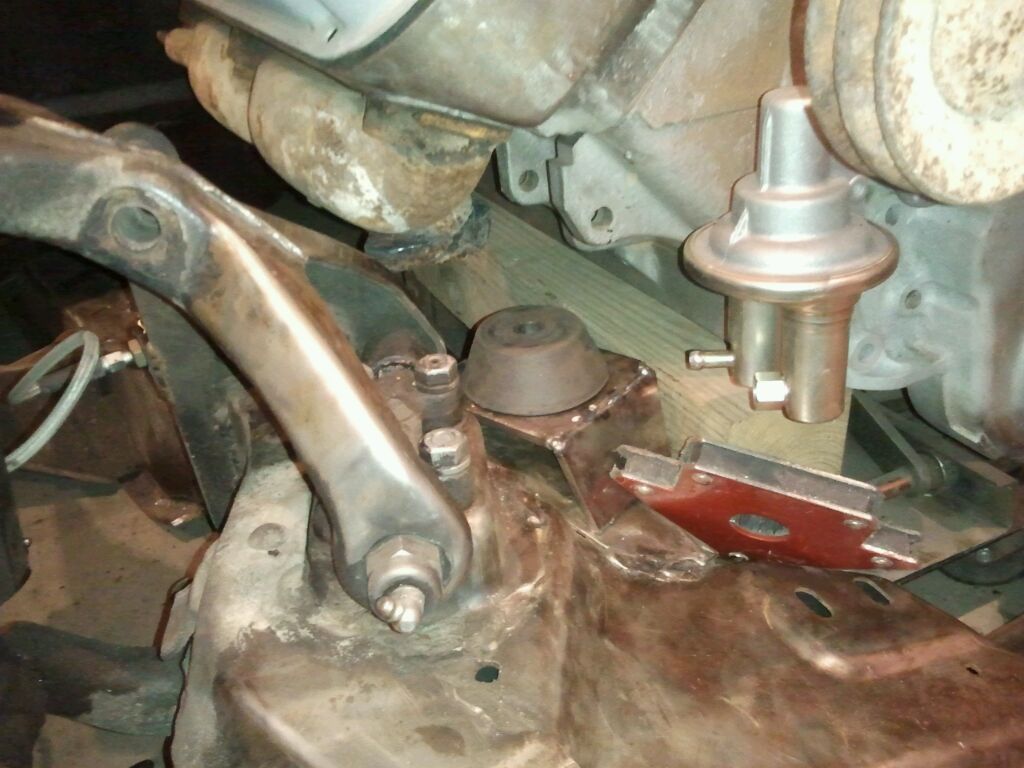

    Motor mount time. Here is my mock so far. Shes a lot higher than stock but bout have to to clear upper A arms. Will do some fine tuning tomorrow. Gonna bolt on fenders to see where im at before cutting.



    Sent from my DROID device using the TJJ mobile app


    Attached Files:

  12. tankwilson
    Joined: Oct 12, 2004
    Posts: 1,161

    tankwilson
    Member

    Its tight but I think it will fit. No cutting either. Will make new radiator mount. Very happy.




    Sent from my DROID device using the TJJ mobile app


    Attached Files:

  13. tankwilson
    Joined: Oct 12, 2004
    Posts: 1,161

    tankwilson
    Member

    So after a day and a half thinking and looking at motor mounts I have decided to use what I got. I changed the trans mounts on the ol flat 6 a few years ago. After some slight modifications I think I can make them work. Basically im building mounts that use the biscuit style mounts.



    Sent from my DROID device using the TJJ mobile app


    Attached Files:

  14. tankwilson
    Joined: Oct 12, 2004
    Posts: 1,161

    tankwilson
    Member

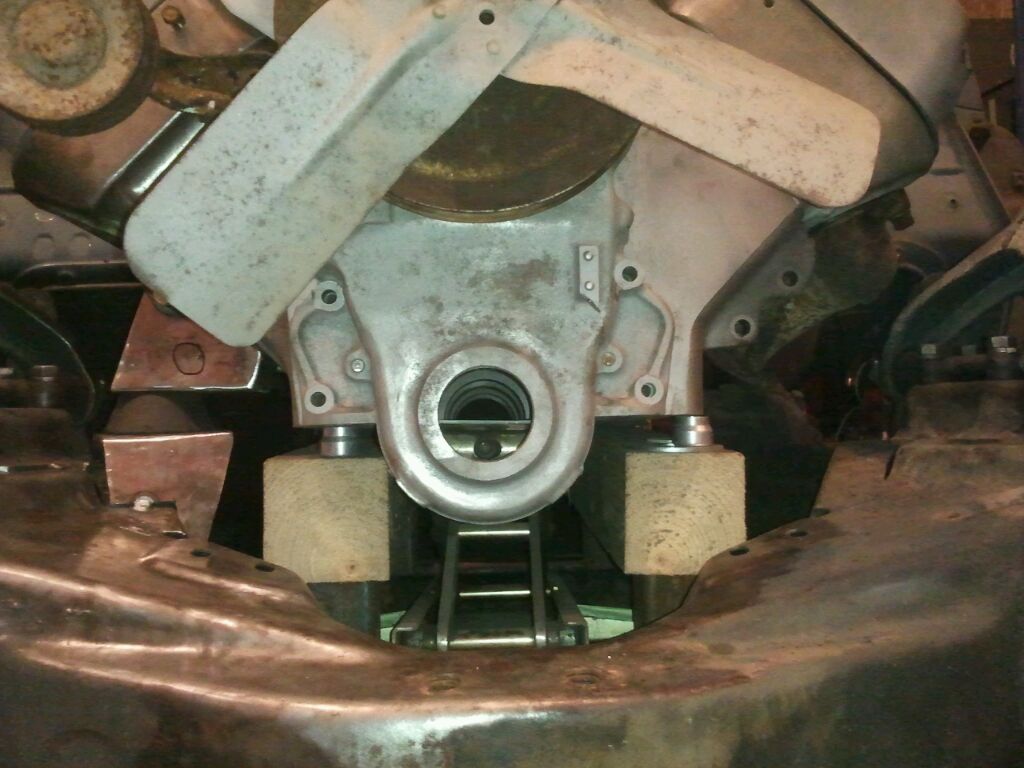

    Sitting on its own mounts. Left side is off a 1/4" will pull the body off tomorrow night and mount the trans and work on cross member and move left mount forward to square the motor in the frame. Had to off set the motor to the passenger side roughly 1/2". Once the motor/trans is mounted the I will move on to the driveshaft and exhaust. Stay tuned....



    Sent from my DROID device using the TJJ mobile app


    Attached Files:

  15. tankwilson
    Joined: Oct 12, 2004
    Posts: 1,161

    tankwilson
    Member

    During my mock up of the engine i noticed that my ARP Head studs are too long. Now i dont have any gaskets in place but the valve cover hits the studs not allowing me to bolt it on correctly. It says 392 on the box, but i think they only make one kit for all the early motors?? Do i need to cut them down??

    Thanks
    Matt

  16. TR Waters
    Joined: Nov 18, 2006
    Posts: 1,439

    TR Waters
    Member
    from Vermont
    1. Early Hemi Tech

    Yes, ARP head studs are too long for the stock valve covers. You will have to trim them, or use valve cover spacers.


    Attached Files:

  17. George
    Joined: Jan 1, 2005
    Posts: 7,906

    George
    Member

    One of my 331s has ARP studs & stock valve covers.

  18. 73RR
    Joined: Jan 29, 2007
    Posts: 7,342

    73RR
    Member

    ...be careful about which end you cut...

    .

  19. I had to trim mine a bit to fit stock covers.

    [​IMG]

  20. bostonhemi
    Joined: Dec 1, 2011
    Posts: 713

    bostonhemi
    ALLIANCE MEMBER

    Great build. Looking good. I believe my engine builder drilled and tapped the holes deeper to install my head studs.

  21. tankwilson
    Joined: Oct 12, 2004
    Posts: 1,161

    tankwilson
    Member

    I was hoping my header flanges would have been here this weekend but it wasn't ment to be. That's ok because I gotta lot of clean up and mods to finish on the frame. Just finished MC mount.



    Sent from my DROID device using the TJJ mobile app


    Attached Files:

    Last edited: Feb 22, 2013
  22. I scored one of these through a weird deal like four years ago!!! Traded it out... Wish I still had it!!!

  23. shtterbug8
    Joined: Jul 31, 2011
    Posts: 512

    shtterbug8
    Member

    just viewed all 8 pages. great build man! im working on a 354 myself right now!

  24. tankwilson
    Joined: Oct 12, 2004
    Posts: 1,161

    tankwilson
    Member

    Got my flanges today. Also when to the junk yard at work a yanked a later Mopar alternator. Was gonna go with the original generator but it covers up too much of the beauty of this motor. Did a search on the hemi pages and seen that someone used a later Mopar alt and mounted it somewhat out of the way. So after about 15 mins of some quick fab ( just to see if it will work). Here's what I have come up with. Should work. I even love that it is a double pulley. Who needs a belt tensioner?



    Sent from my DROID device using the TJJ mobile app


    Attached Files:

    coupe33 likes this.
  25. 1933t
    Joined: Jul 30, 2008
    Posts: 374

    1933t
    Member
    from Buffalo NY

    That is good advice Tom

  26. George
    Joined: Jan 1, 2005
    Posts: 7,906

    George
    Member

    That's about where my Alt is. A Claw Hammer looks better in a pic than a Sledge!

  27. TR Waters
    Joined: Nov 18, 2006
    Posts: 1,439

    TR Waters
    Member
    from Vermont
    1. Early Hemi Tech

    Kind of limited on where the Mopar alernator can be mounted.


    Attached Files:

  28. George
    Joined: Jan 1, 2005
    Posts: 7,906

    George
    Member

    Depends on hood clearance, or if you have a hood. On my avatar car my Alt is where the Gen used to be.

  29. tankwilson
    Joined: Oct 12, 2004
    Posts: 1,161

    tankwilson
    Member

    Anybody got a stock 1954 331 Chrysler fuel pump laying around? Egge makes a rebuild kit but i think mine is too far gone. I took a pump out of 56 desoto last night but no go.

    Thanks
    matt

  30. tankwilson
    Joined: Oct 12, 2004
    Posts: 1,161

    tankwilson
    Member

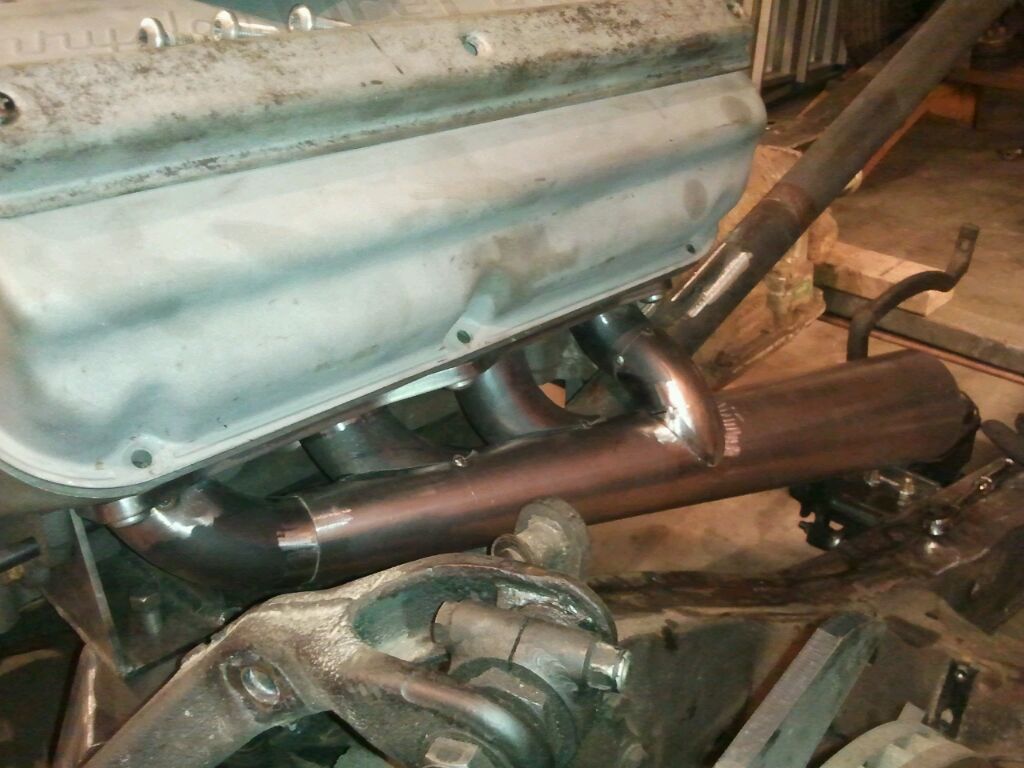

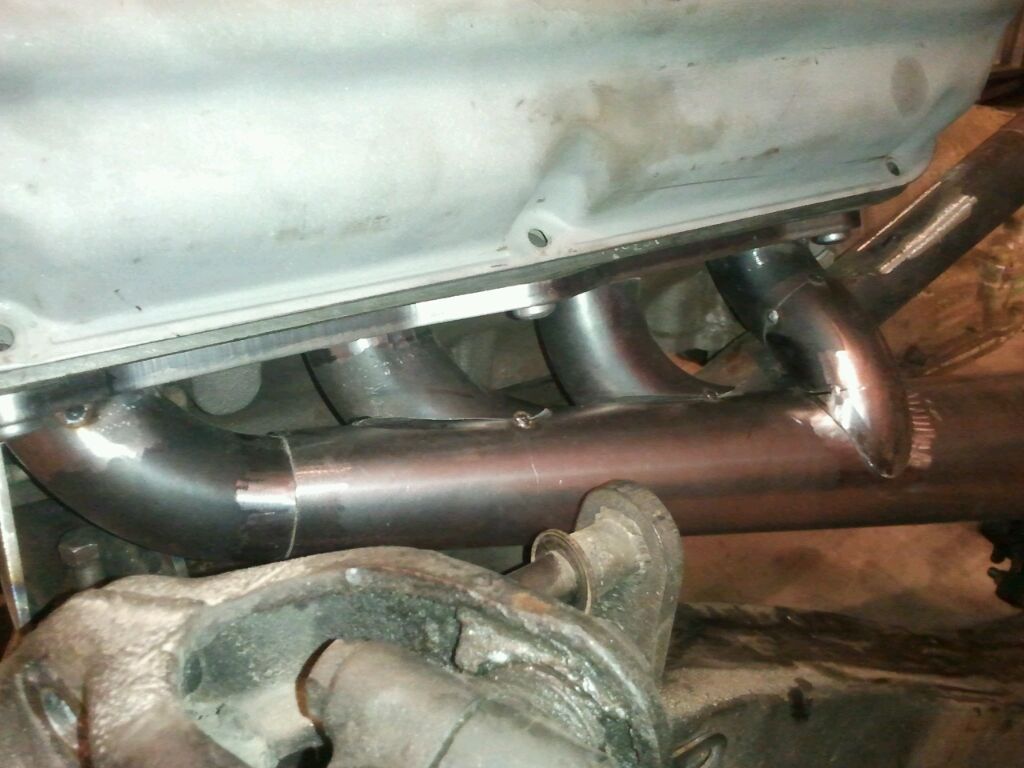

    The beginnings of my headers.




    Sent from my DROID device using the TJJ mobile app


    Attached Files:
