55 210 Wagon Progress

Discussion in 'Off Topic Hot Rods & Customs' started by MP&C, Mar 24, 2013.

  1. loudbang
    Joined: Jul 23, 2013
    Posts: 40,343

    loudbang
    Member

  2. lothiandon1940
    Joined: May 24, 2007
    Posts: 32,218

    lothiandon1940
    Member

    That green is looking great. I used to be a die-hard blue guy, but in recent years I've really come to appreciate the various greens. Can't wait to see this car when completed.

    OLSKOOL57, MP&C, Bowtie Coupe and 2 others like this.
  3. low budget
    Joined: Nov 15, 2006
    Posts: 5,566

    low budget
    Member
    from Central Ky

    Painted my 4 door 55 a 99 GM green and white 15 years ago, car long gone now 455.jpg

    rtp, jakespeed63, MP&C and 3 others like this.
  4. low budget
    Joined: Nov 15, 2006
    Posts: 5,566

    low budget
    Member
    from Central Ky

    Not trying to recommend the white, its just what I did, If the client is set on those colors, you still have a few options in my opinion, just using the Green, *Green with top and post silver (< dont think "I" would do that one)
    Green with only posts silver, Green with green posts and only very top silver.
    Might take this over to the photoshop thread to get a general idea of what you might do.

    D-Russ, jakespeed63, MP&C and 2 others like this.
  5. MP&C
    Joined: Jan 11, 2008
    Posts: 2,509

    MP&C
    Member

  6. 0NE BAD 51 MERC
    Joined: Nov 12, 2010
    Posts: 1,809

    0NE BAD 51 MERC
    Member

    In the booth pics it looks like green is darker and the top silver . Outside the green seems lighter and the top looks gray. Which way is it suppose to be. Just curious. Larry

    loudbang and rockable like this.
  7. MP&C
    Joined: Jan 11, 2008
    Posts: 2,509

    MP&C
    Member

    Larry, the top color is Galaxy Gray, the bottom is Organic Green Kandy Basecoat. The gray is darker due to the reflection and the sun being indirect. Inside the booth it was using an LED light aimed directly at the panel.. Here's the gray with a bit more direct sunlight, as it would see on the roof..


  8. MP&C
    Joined: Jan 11, 2008
    Posts: 2,509

    MP&C
    Member

    Here's a sneak peek at our speaker trim rings just back from DGM Chrome in Philly. Looks like we'll get a couple set up with the stainless mesh so we can show them off at this weekend's car show in Leonardtown..



    .

  9. rockable
    Joined: Dec 21, 2009
    Posts: 4,983

    rockable
    ALLIANCE MEMBER


    loudbang and MP&C like this.
  10. MP&C
    Joined: Jan 11, 2008
    Posts: 2,509

    MP&C
    Member

    This is back woods engineerin' so don't laugh too hard... I don't have the fancy alignment tool and didn't want to pull the third member, so perhaps this is the next best thing.. My theory is that once you weld the pads repeatedly it should introduce some shrinking along the bottom side which should also cause deflection to both the housing and also the shafts bolted into that housing. I feel this also will deflect the wheels/tires that they will be pulled in at the bottom of the housing, which is the results we noticed.


    [​IMG]


    With the axle housing fixed on top of jack stands, a bent axle SHAFT would cause run-out as you rotated the tire. So first off, rotate the tires to insure the wheels are straight, to insure the AXLE SHAFTS are straight, to give us a good starting point. Then remove jack stands and set the tires on top of milk crates, open end of the milk crate is facing upward to help keep things from moving... Then the axle housing is rotated around the axle shafts. The shrinking from welding on the pads causes a short side along the bottom, which pulls the wheels inward. This pull follows the bottom (pad) side of the housing as it is rotated around. So the dial indicator shows where these narrow and wide spots are. The heat was applied to the widest spot of runout per each side, and once cooled, re-test and repeat. This is by no means as accurate as the alignment tool, but it's what we had to work with..

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    The dial indicator "stand" was a piece of rusty thick wall pipe that didn't move much, so it was moved into place depending on the end we were on and checked for shimmy before proceeding. OK, let the laughter commence..

  11. belair
    Joined: Jul 10, 2006
    Posts: 9,036

    belair
    Member

    Never laugh at what works. Just have a helper hold your beer.

  12. rockable
    Joined: Dec 21, 2009
    Posts: 4,983

    rockable
    ALLIANCE MEMBER

    Thanks, Robert! I think that is brilliant. I have a couple,I need to check.

    lothiandon1940 and loudbang like this.
  13. MP&C
    Joined: Jan 11, 2008
    Posts: 2,509

    MP&C
    Member

    Since we got our freshly chromed speaker trim rings back from DGM Chrome in Philly, it only stands to reason that we need to put another sample together for the car show in Leonardtown on Sunday. So today I stopped by Norris Upholstery and picked up a scrap to cover one of the kick panels to make it more presentable. Fake upholstery, if you will..

    [​IMG]

    We planned on adding a plateau to the stainless speaker mesh rather than flat, so some pressing fixtures had been cut out on a water jet for us..

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Comparing the flat to the plateau....

    [​IMG]

    [​IMG]

    installed...

    [​IMG]

    [​IMG]

    [​IMG]



    This might even work.... looks a damn sight better than the plastic grills they come with..

  14. loudbang
    Joined: Jul 23, 2013
    Posts: 40,343

    loudbang
    Member

    Man you are one ingenious dude. Great thinking on both the axle housing and the bumped speaker cover inserts.

  15. lothiandon1940
    Joined: May 24, 2007
    Posts: 32,218

    lothiandon1940
    Member

    Outstanding! You guys are performing miracles down there, Robert. Loving the "plateau" effect on the speaker grilles. Amazing how a small change can make such a dramatic difference.

  16. MP&C
    Joined: Jan 11, 2008
    Posts: 2,509

    MP&C
    Member

    Thanks for the comments guys!

    On these grills, to clarify, the smaller (tweeters) use a smaller opening pattern (more holes per inch) than the midrange speaker next to them, so they would appear the same proportionally. McMaster Carr sells a sample kit of the mesh to help in picking out the size, p/n is 9231T11. For the sub we used 5 x 5 mesh (5 openings per inch) p/n 85385T31. For the midrange, 8 x 8 mesh, p/n 85385T42. For the tweeters, 10 x 10 mesh, p/n 85385T48. The grill for the sub will have multiple pressings, one to include a recessed crest emblem. That one will be the test..

  17. HOTRODPRIMER
    Joined: Jan 3, 2003
    Posts: 64,489

    HOTRODPRIMER
    ALLIANCE MEMBER

    Robert, as always your work is impeccable ( I'm running out of adjectives to describe your work ) the newest update on the speaker grilles are beautiful.

    BTW, I thought about you earlier today as I was having a cheeseburger at Arnold's, I sat in the same booth you , John Micheal and I sat last time you were here. HRP

    Last edited: Apr 24, 2019
    OLSKOOL57, lothiandon1940 and MP&C like this.
  18. MP&C
    Joined: Jan 11, 2008
    Posts: 2,509

    MP&C
    Member

    I was just down in SC last week, but closer to the coast in Fairfax.. Will have to swing by again sometime...

    lothiandon1940 and loudbang like this.
  19. The Ford axle housing you have is prone to warping, DAMHIKIJK...

    An easy test for housing straightness is to check to see how the axles go in/out. On a dead-straight housing with clean bearing bores, you can push/pull the axles in or out with your hands, maybe some LIGHT tapping may be needed. If you have to step up to a slide hammer to remove/install, two light-to-medium whacks should be all that's required; it's slightly warped, but still should be OK. If you need heavier/more whacks, the housing is bent enough that axle bearing life will become problematic. If it's bent that much, you'll probably have to have the ends cut off and re-welded with a fixture.

    And if you're planning on a rear sway bar, DO NOT use a bar that attaches to the housing with end links to the chassis; it WILL bend the housing and start eating axle bearings. Use a chassis-mount bar with the end links going to the axle. This is how Ford installed their bars on the leaf-spring cars. Art Morrison straightened my housing three times before we figured that out. That's also why I own a slide hammer...

    You can use a housing-mount rear bar IF you step up to the coil-spring housing as those are considerably beefier. Or use a late (late '60s up) truck housing as Ford did fit housing-mount sway bars to some of those.

    Last edited: Apr 24, 2019
  20. Jay71
    Joined: Sep 15, 2007
    Posts: 857

    Jay71
    Member

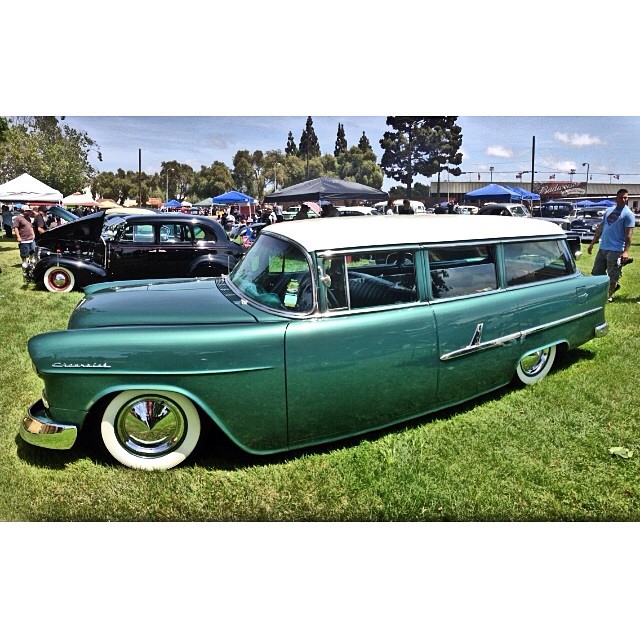

    The craftsmanship on this thread is mind blowing and hits very very 10388045_701925896532422_984279271_n@.jpg close to home for me! Heres my Green and Pearl White 210 55 for reference.

  21. MP&C
    Joined: Jan 11, 2008
    Posts: 2,509

    MP&C
    Member

    So last weekend I went to Ron Yeager's shop in Kingsville, MD for a metalshaping workshop. Reconnected with some old friends and made some new ones.. Thanks to Ron for opening his shop so we could all learn some new tricks and methods..

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Today I got another speaker trim ring put together.....this one for the sub in the cargo area of the wagon. We planned on a recessed crest in the stainless mesh, so the mesh was aligned in our aluminum plates and pressed in the Diacro press brake using flattening dies.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Video Version....



    .

    JUNK ROD, brEad, Bowtie Coupe and 7 others like this.
  22. lothiandon1940
    Joined: May 24, 2007
    Posts: 32,218

    lothiandon1940
    Member

  23. MP&C
    Joined: Jan 11, 2008
    Posts: 2,509

    MP&C
    Member

    Thanks Don!

    Spent last night getting an assembly line going to get the rest of the speaker grills assembled. Just say no to plastic speaker grills!

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Mtn Goat, fauj, D-Russ and 7 others like this.
  24. HOTRODPRIMER
    Joined: Jan 3, 2003
    Posts: 64,489

    HOTRODPRIMER
    ALLIANCE MEMBER

    Robert, the speaker covers look like jewellery, definitely thinking outside the box. HRP

  25. Blue One
    Joined: Feb 6, 2010
    Posts: 11,504

    Blue One
    ALLIANCE MEMBER
    from Alberta

    I think that if the bill for all the hours in this project were accurately calculated and invoiced we could call this the quarter million dollar 55 :D

    MP&C and loudbang like this.
  26. brEad
    Joined: Dec 23, 2016
    Posts: 2,039

    brEad
    Member

    Speaker grills look great!

    MP&C, Bowtie Coupe and loudbang like this.
  27. MP&C
    Joined: Jan 11, 2008
    Posts: 2,509

    MP&C
    Member

    Well it's been rather hectic around the home front as E is nearing graduation. Seems like yesterday she was showing me how to properly wet sand bare foot..

    [​IMG]

    For shop activity, Mike has been working on a sign for a "Drummer's Lounge", since we had the wire edging tool already made up for the Biederman, he used that to give the outside bands of the arrow the beaded look...

    [​IMG]

    CAD drawing:

    [​IMG]

    Parts is parts:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Video:



    Meanwhile, I've been block sanding, and priming.... here the rear kick panels are now ready for upholstery...

    [​IMG]

    I did break out the Meco torch again the other day to get the dust off....

    [​IMG]

    This first coupon shows how Peter Tommasini teaches tacking in gas welding. Tack a spot, then the next is placed where the HAZ (blue ring) touches the seam between the halves. And repeat. Note how this method leaves an almost perfect HAZ for minimal distortion..

    [​IMG]

    And we had a blowout. Don't stop, keep going and come back to it.. This is fusion welded, no filler, front side shown first, then back side

    [​IMG]

    [​IMG]

    [​IMG]

    Stephen has been mocking up the power windows in the front doors so we can side step all the components and find a good location for our speakers. No pictures yet, I'll get some this week...

  28. MP&C
    Joined: Jan 11, 2008
    Posts: 2,509

    MP&C
    Member

    We're making some speaker "adapter" rings to be able to mount the speakers in the door. We used some 18 ga CRS to form rings, the seam was gas welded.

    [​IMG]

    [​IMG]

    [​IMG]

    The outer flange is started on the Fasti-werks bead roller using the tipping die and the lower die we made last week.

    [​IMG]

    [​IMG]

    Once it started to resist the tipping (needs stretching of the flange) we changed to using the linear stretch dies in the Lennox TE250







    [​IMG]

    [​IMG]

    Originally we were looking at using the area below the power window motor, but in order to clear the power connector it would be too close to the bottom of the door...

    [​IMG]

    With not much else for room in the door, we opted to open a hole at the rear area of the inner hinge brace.

    [​IMG]

    With space above for the tweeter, this will closely mimic what we have in the rear kick panels..

    [​IMG]

    [​IMG]

    The rings will get TIG welded in place, but before that we'll add a bit of structure back in the hinge brace.

    [​IMG]

  29. rockable
    Joined: Dec 21, 2009
    Posts: 4,983

    rockable
    ALLIANCE MEMBER

    Very nice! How did you shrink the inner flange?

    JUNK ROD, loudbang and MP&C like this.
  30. MP&C
    Joined: Jan 11, 2008
    Posts: 2,509

    MP&C
    Member

    kick shrinker took it over to about 20-25 degrees, then used Vise grip tuckers and heat on the tucks, hammering on a 2" diameter slug of steel.
