55 210 Wagon Progress

Discussion in 'Off Topic Hot Rods & Customs' started by MP&C, Mar 24, 2013.

  1. Unbelievable craftsmanship all the way. Cannot wait to see the final product.

    Stogy, MP&C and lothiandon1940 like this.
  2. MP&C
    Joined: Jan 11, 2008
    Posts: 2,499

    MP&C
    Member

    Today we had a back up and punt moment. The nice chrome bezel on the gauges is far too large to fit in those corners of the instrument panel bezel from the outside. So we'll have to keep it on the backside, but that doesn't help us cover up the cut edge of the hole in the ribbed stainless..


    [​IMG]


    [​IMG]


    ......so let's make some stainless "eyelets" to both hold the ribbed stainless securely to the billet panel, as well as give us a finished edge around the cut hole.. First a punch and die will be needed to press one side of our eyelet.


    [​IMG]


    [​IMG]

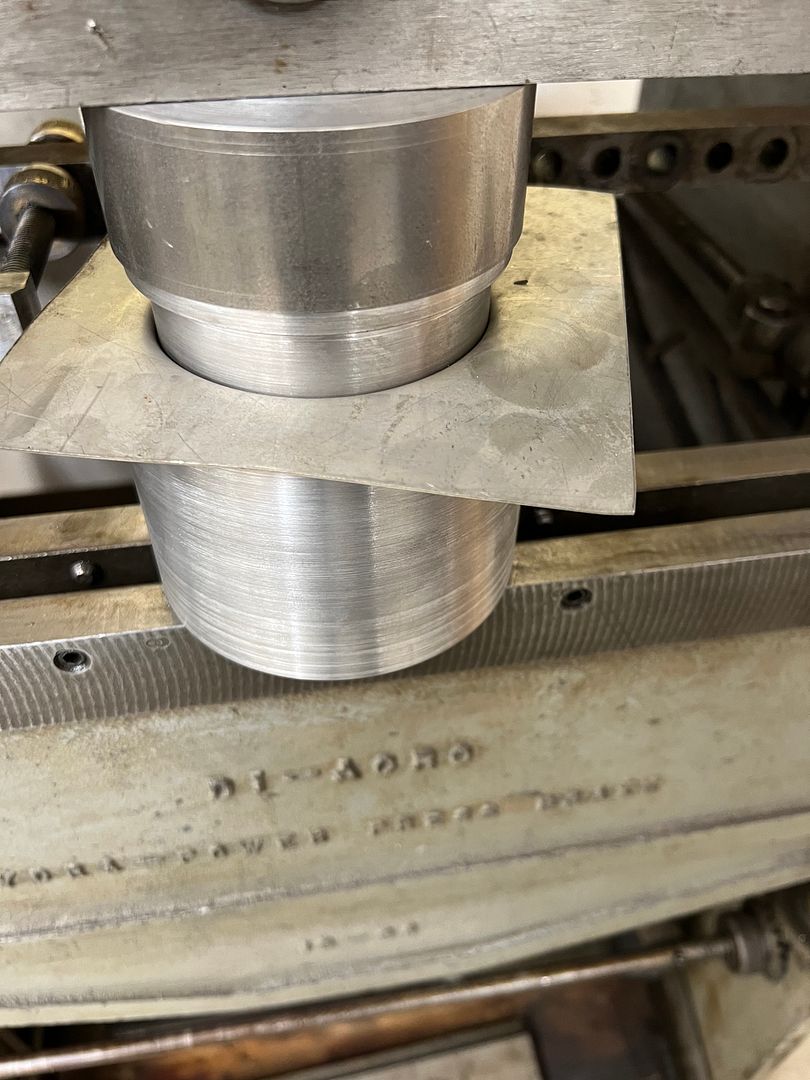

    and we added a 1/2 x 1/2 tang to hold the punch in the press brake...


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]

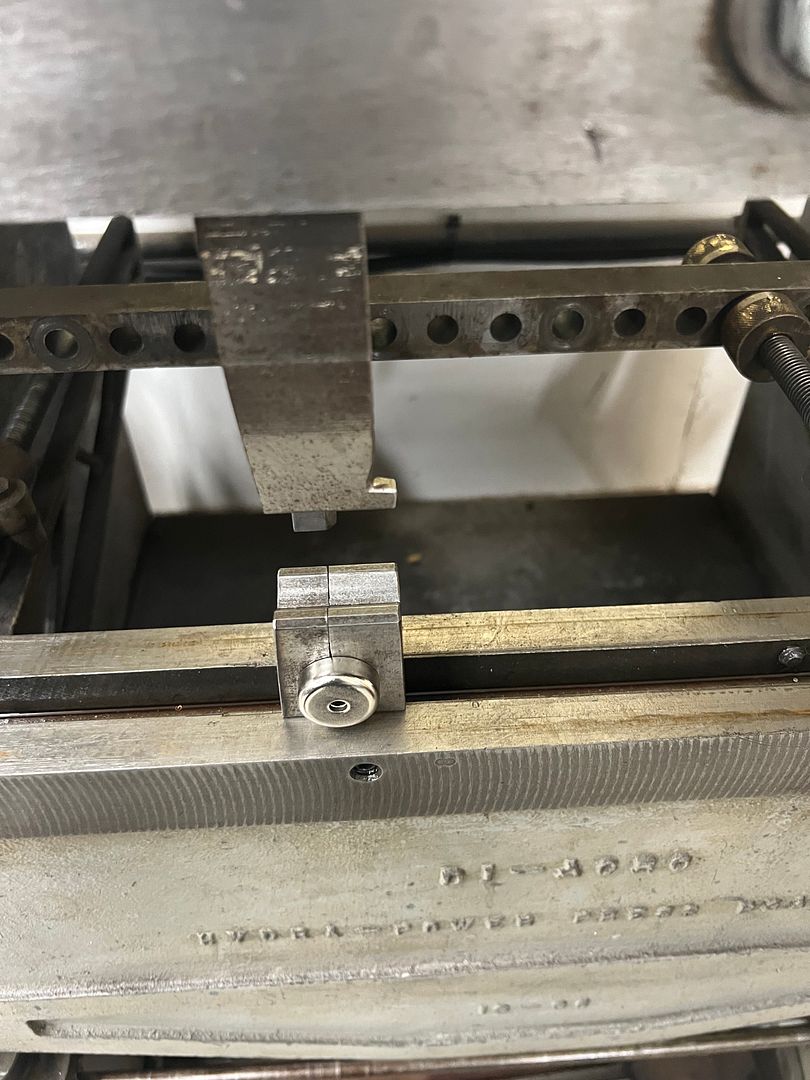

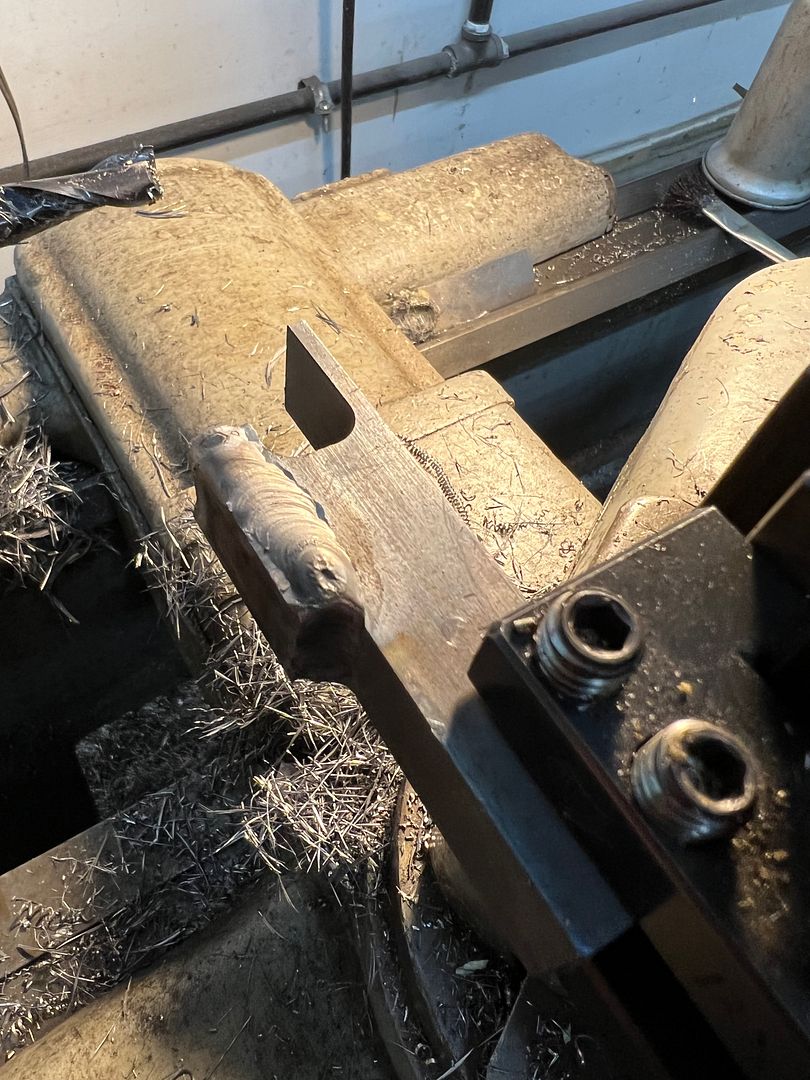

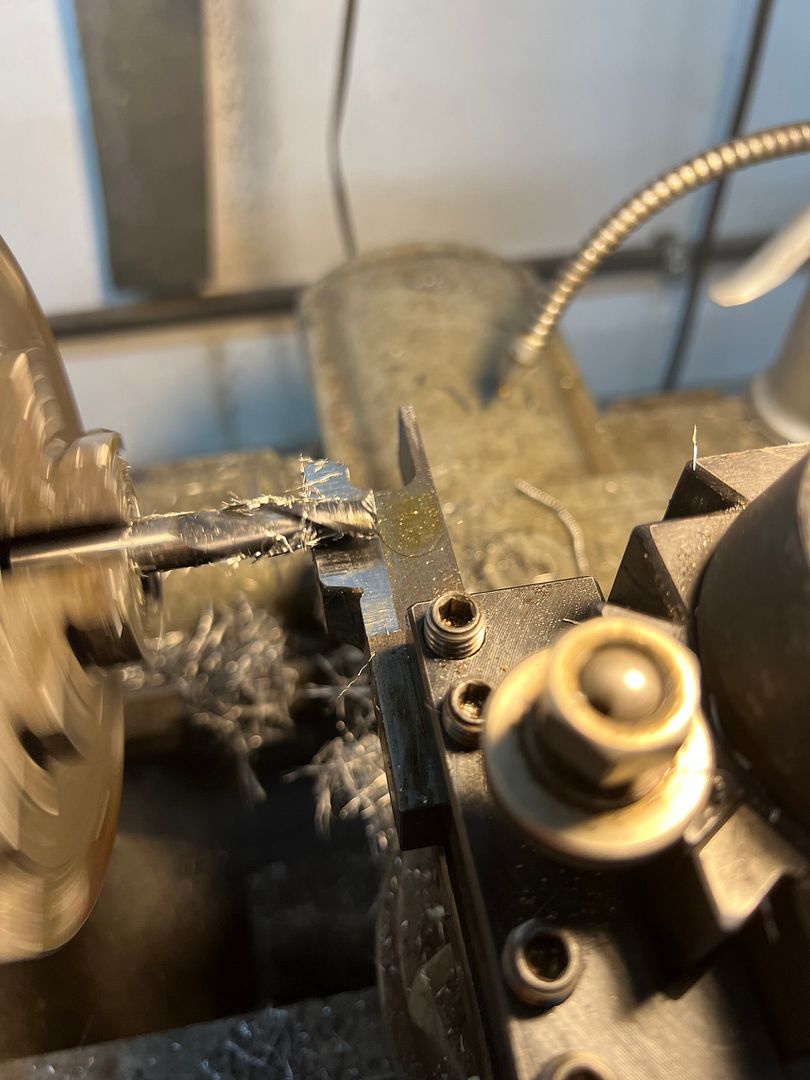

    Back to the south bend to cut out our flange lip.. The punch was snug after the press operation, so it was used as a holding fixture for the trimming operation.


    [​IMG]


    [​IMG]

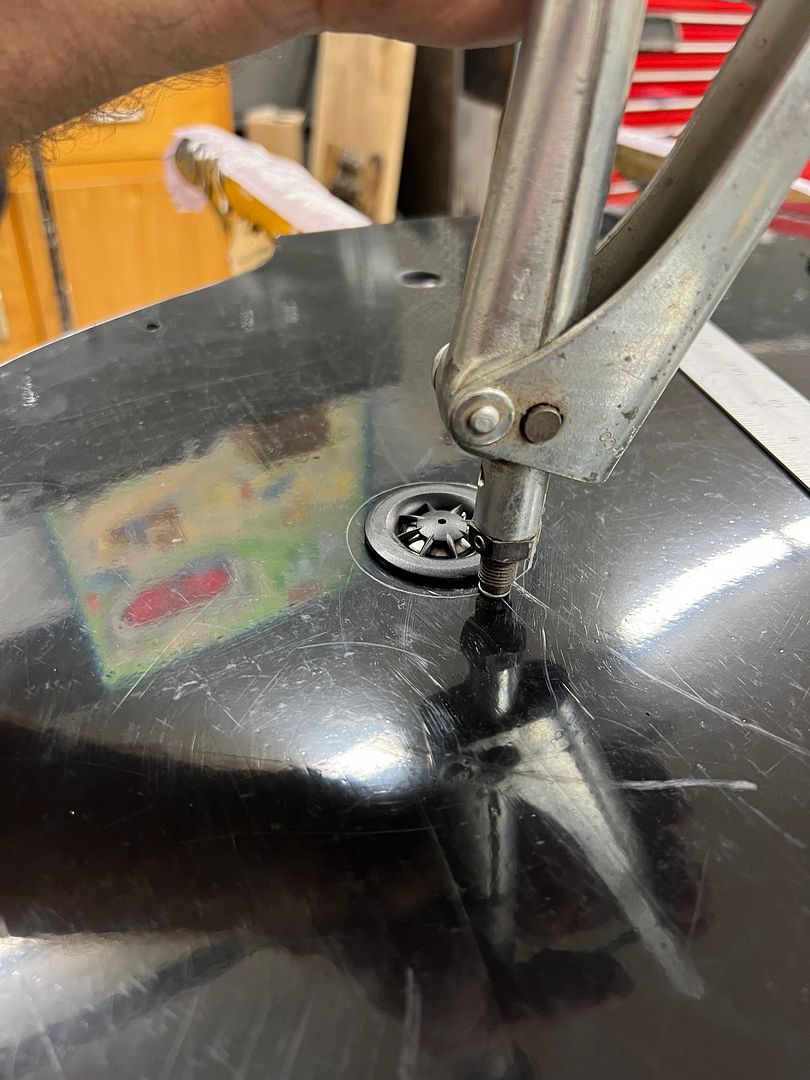

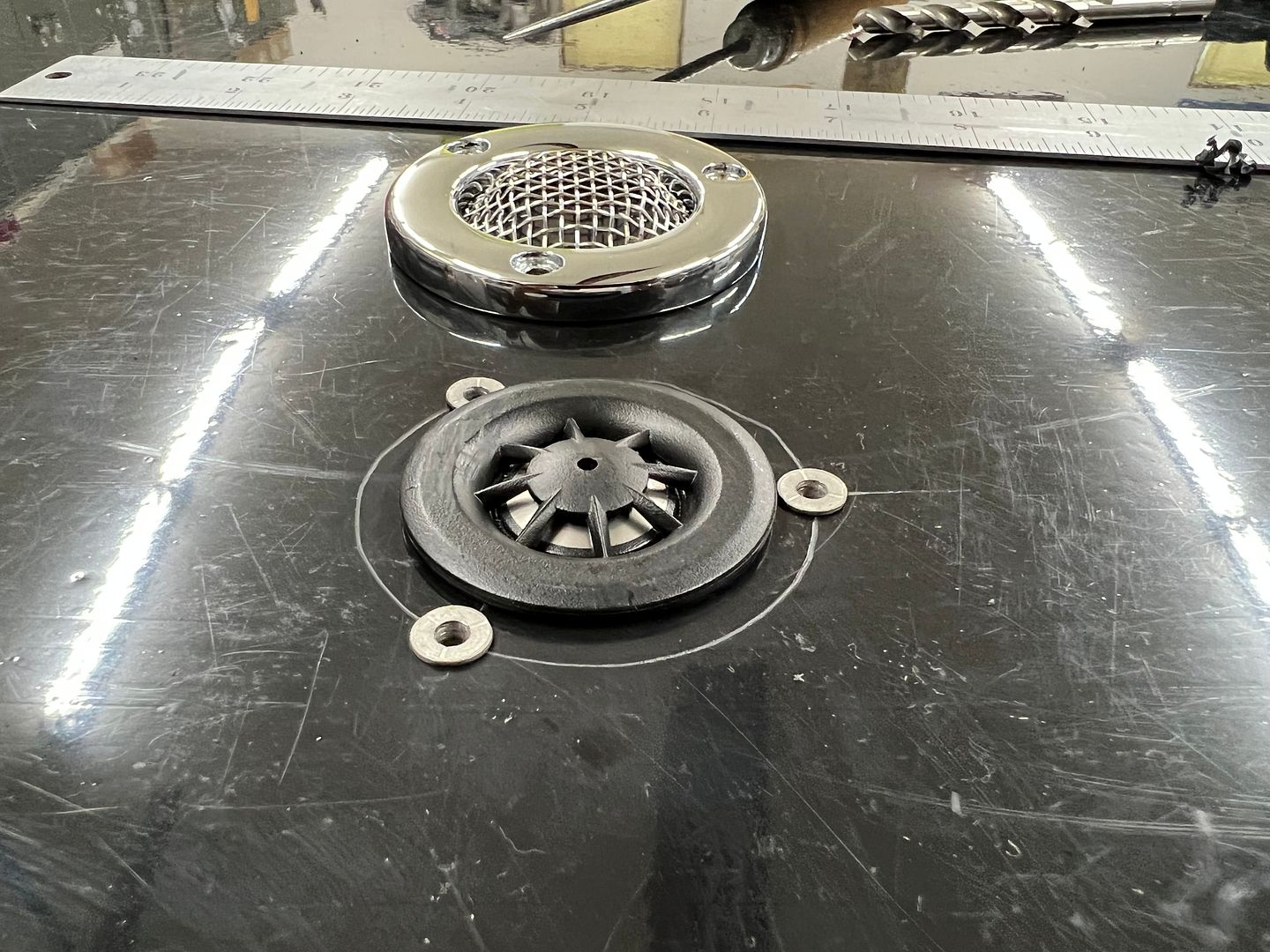

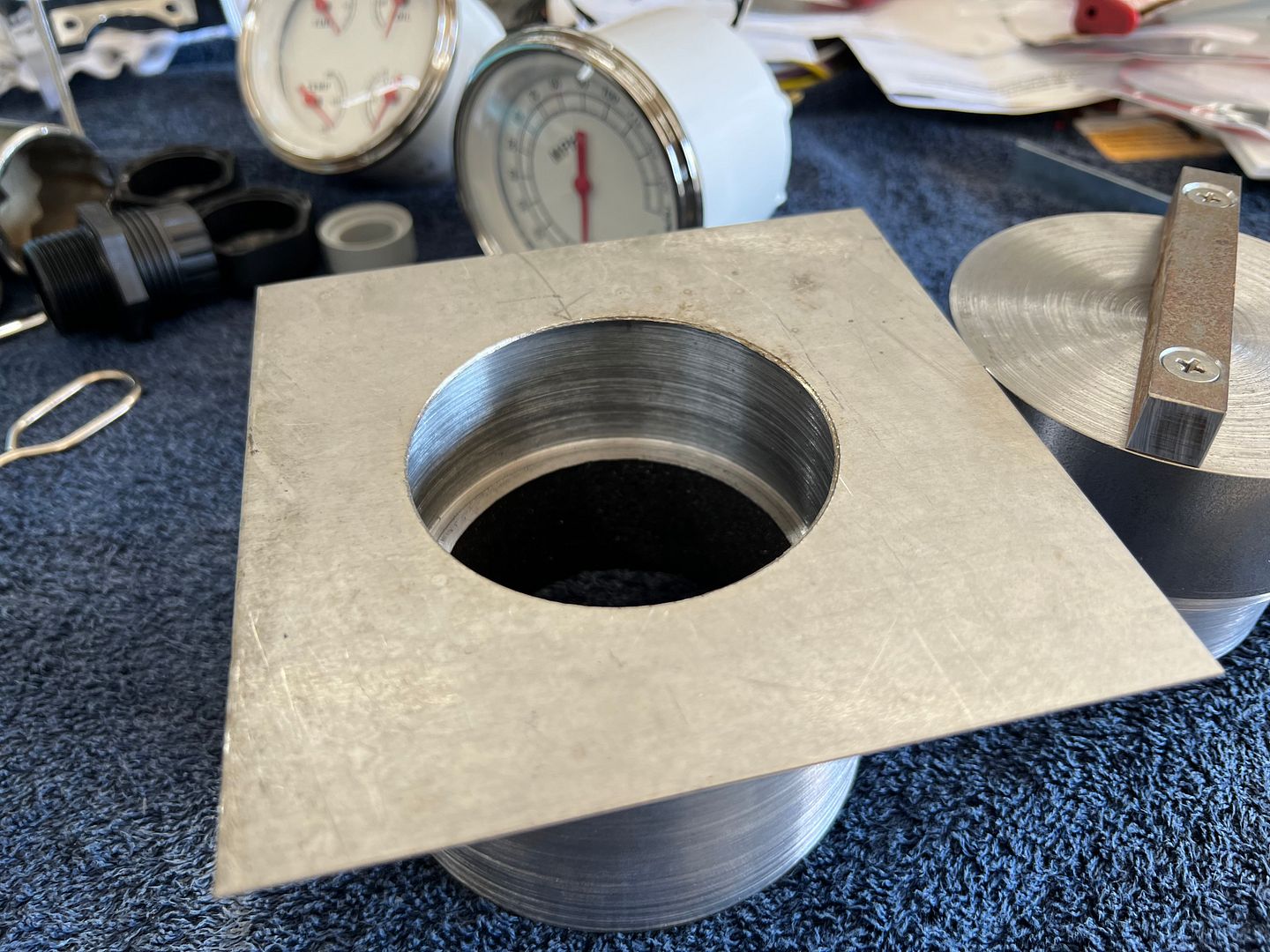

    A holesaw in the drill press started the holes for the gauges and then we used our Jigsaw with cruise control to fine tune the openings.


    [​IMG]


    A sheet of phenolic gives us a non-marring surface to pound on, the Snap-on linear stretch hammer swages the flange over and a 1/2" diameter round makes a good punch to flatten out the rest.


    [​IMG]


    [​IMG]


    [​IMG]

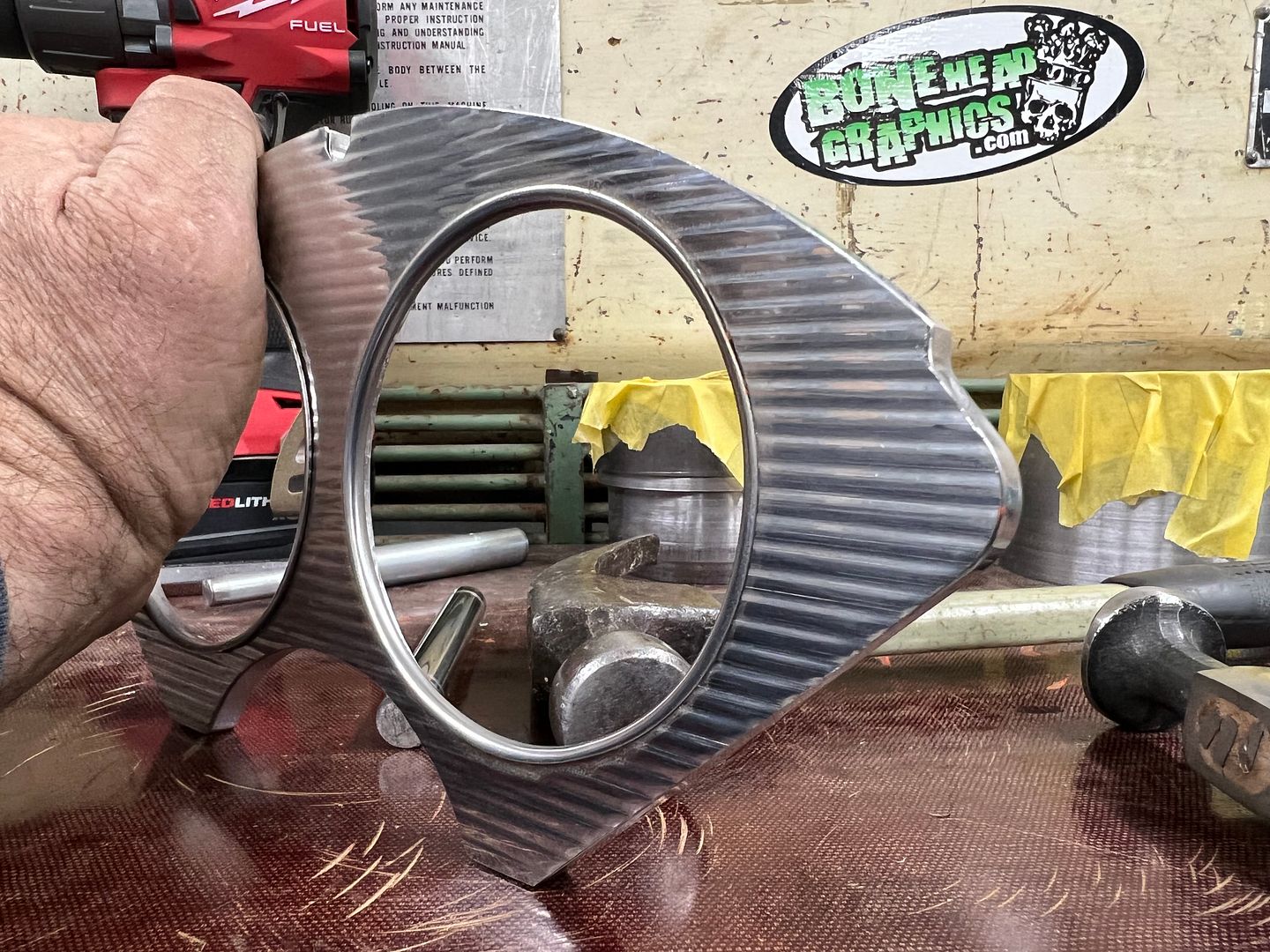

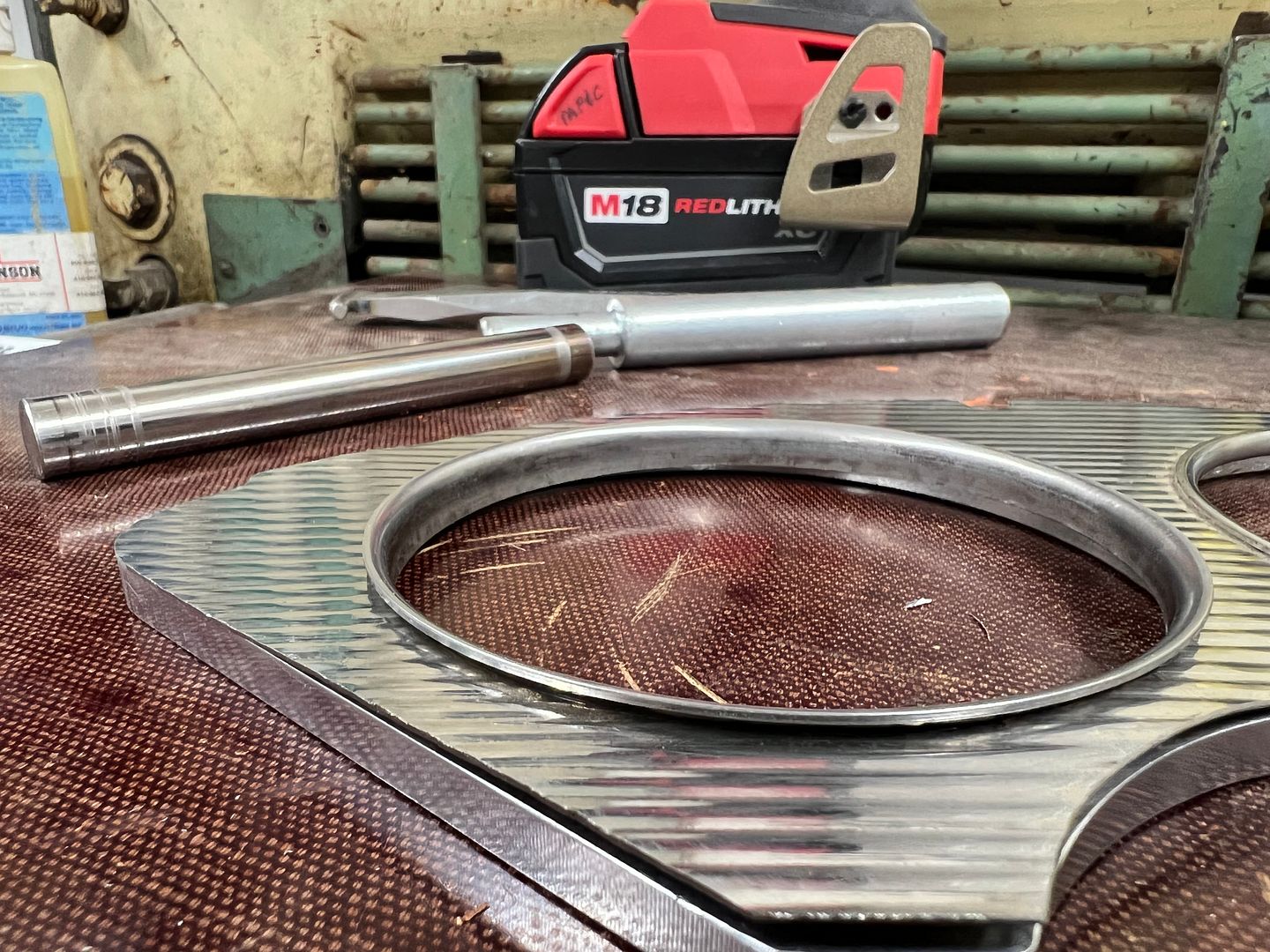

    Finished "eyelets"


    [​IMG]


    [​IMG]


    Still have to install the indicator lights, but since I need to pack up for the local car show tomorrow in Leonardtown, we'll finish that up this coming week.



  3. Bruce A Lyke
    Joined: Jun 21, 2009
    Posts: 2,527

    Bruce A Lyke
    Member

    Very nice work on your "plan B"!

    Stogy and MP&C like this.
  4. MP&C
    Joined: Jan 11, 2008
    Posts: 2,499

    MP&C
    Member

    Thanks Bruce!!


    We did a test fit of the instrument panel in the car to see what it looked like with the green backdrop...


    [​IMG]


    This stainless will be the same material used in the dash insert "band" that goes from side to side, as well as the insert for the console. Should add some pizazz to the interior... Here's the view with our Alpinetech indicator lights added....

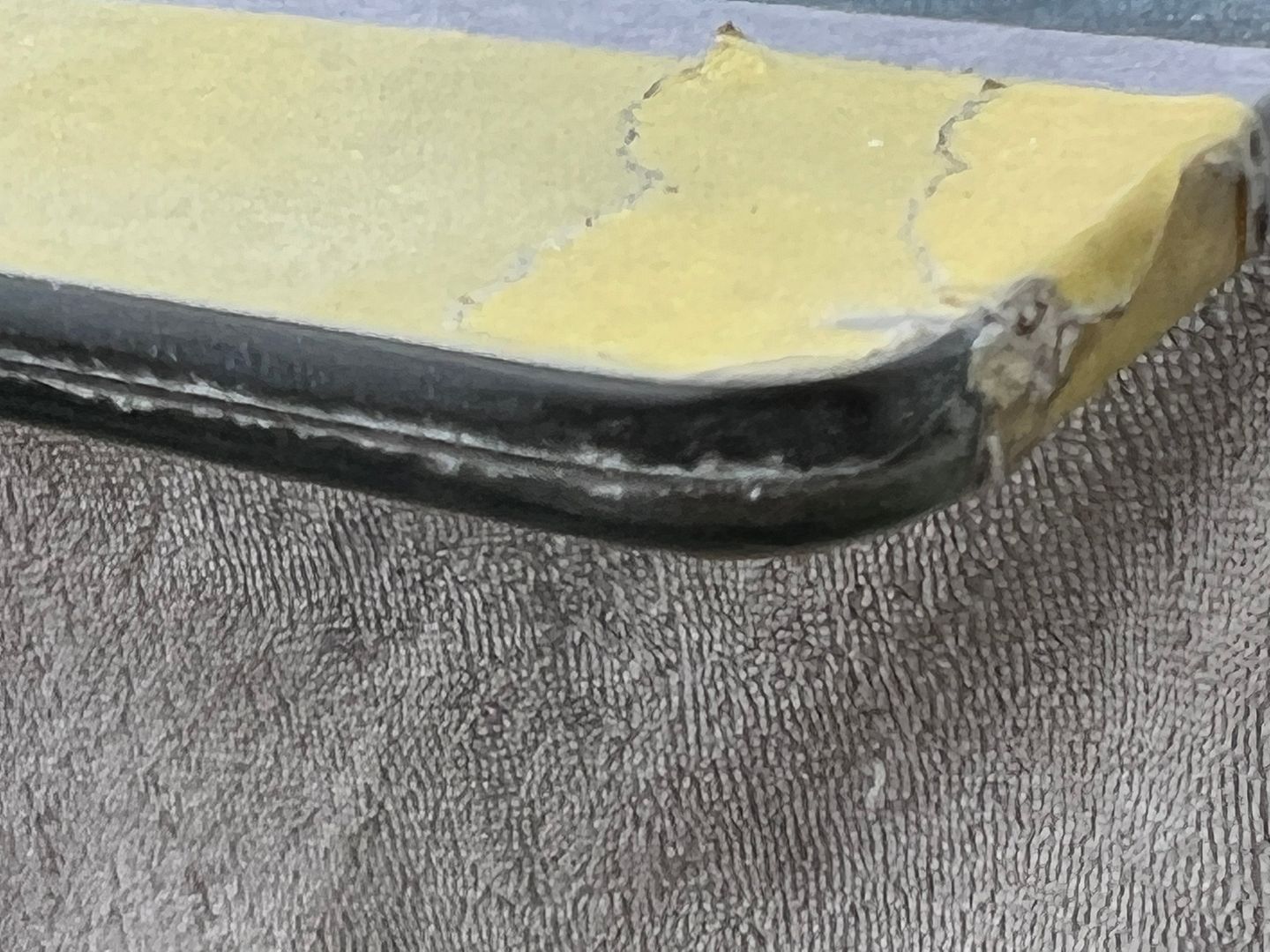

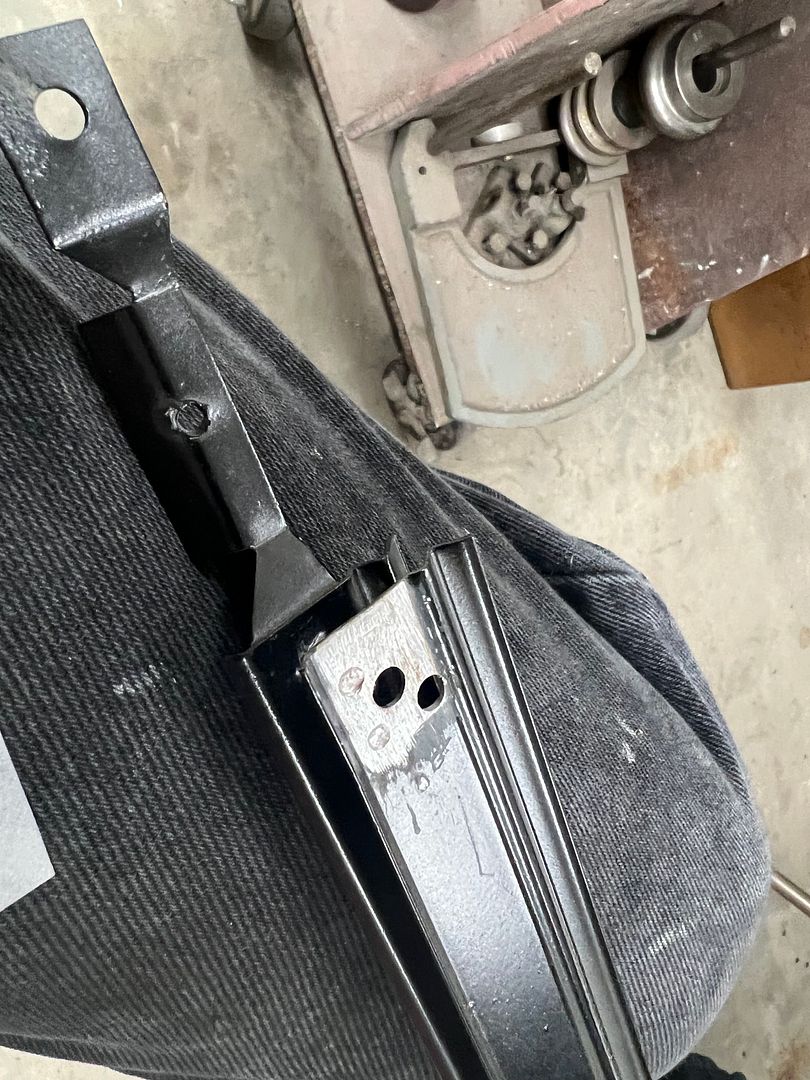

    Our OEM retainers for the bottom of the curved side glass had one piece with a bracket broken off. These brackets serve as a place to screw/attach the garnish moldings.


    [​IMG]


    [​IMG]


    The broken piece was removed and the spot welds ground smooth...


    [​IMG]


    A new piece was cut out of some 19 ga steel and the Diacro press brake made short work of repeating 45* bends.


    [​IMG]

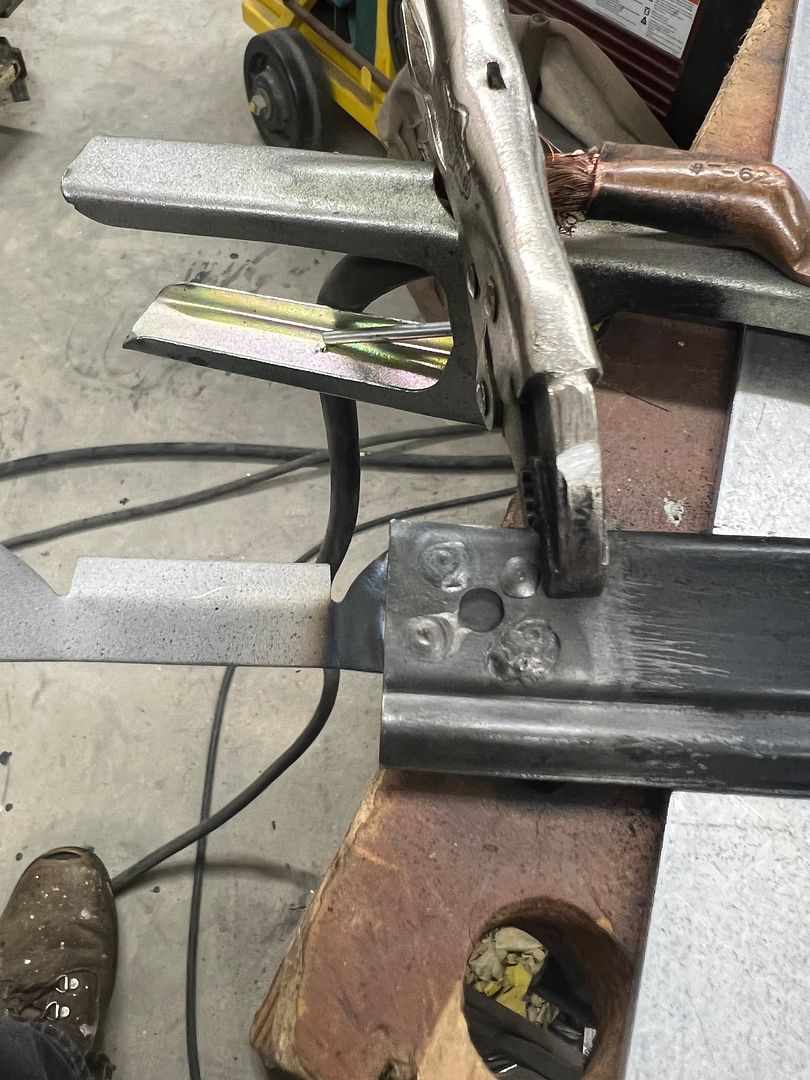

    The new part was media blasted, TIG welder used to plug weld things back together, more media blasting and some epoxy mixed up and brushed on using an acid brush.


    [​IMG]


    [​IMG]


    [​IMG]

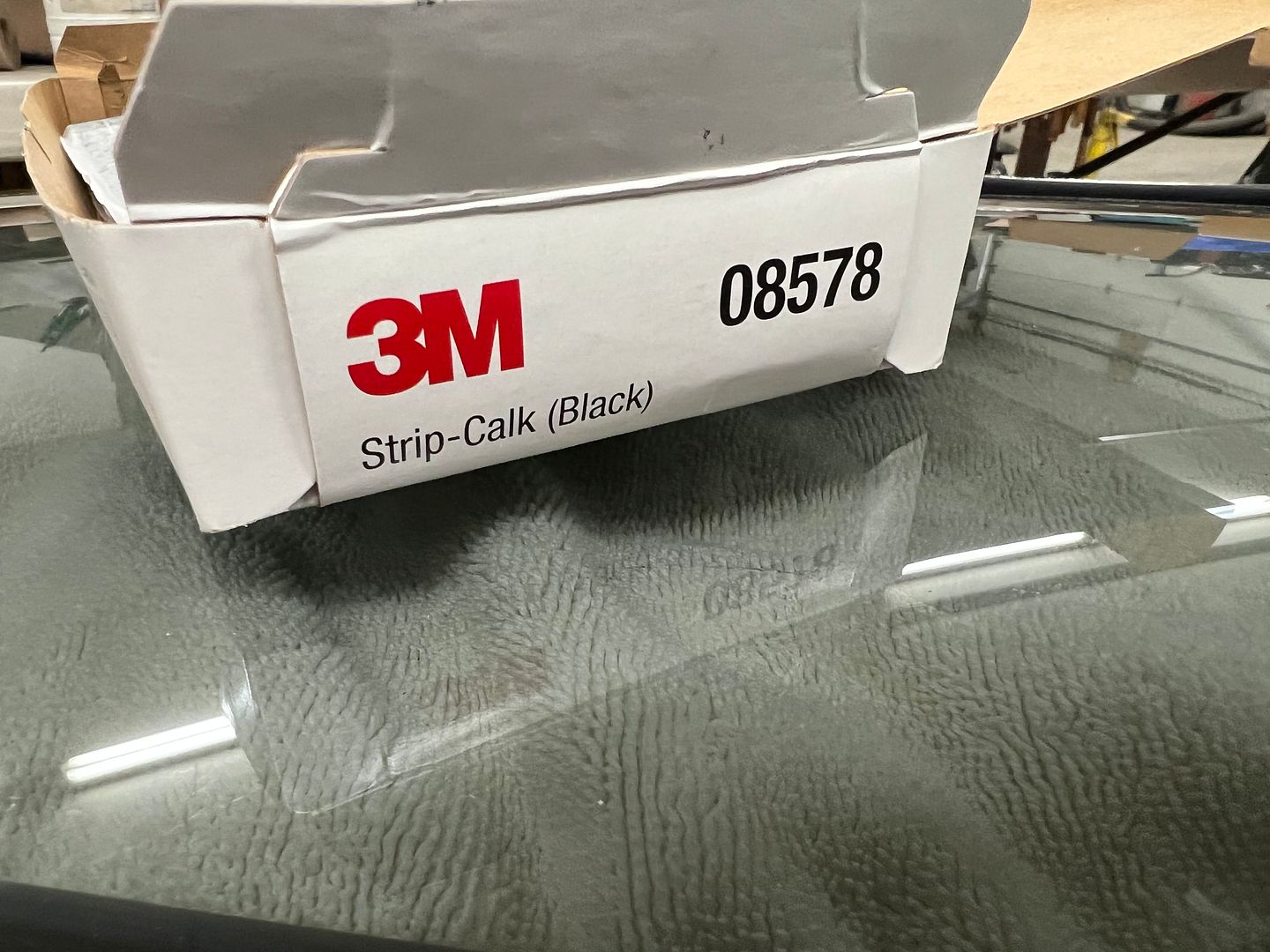

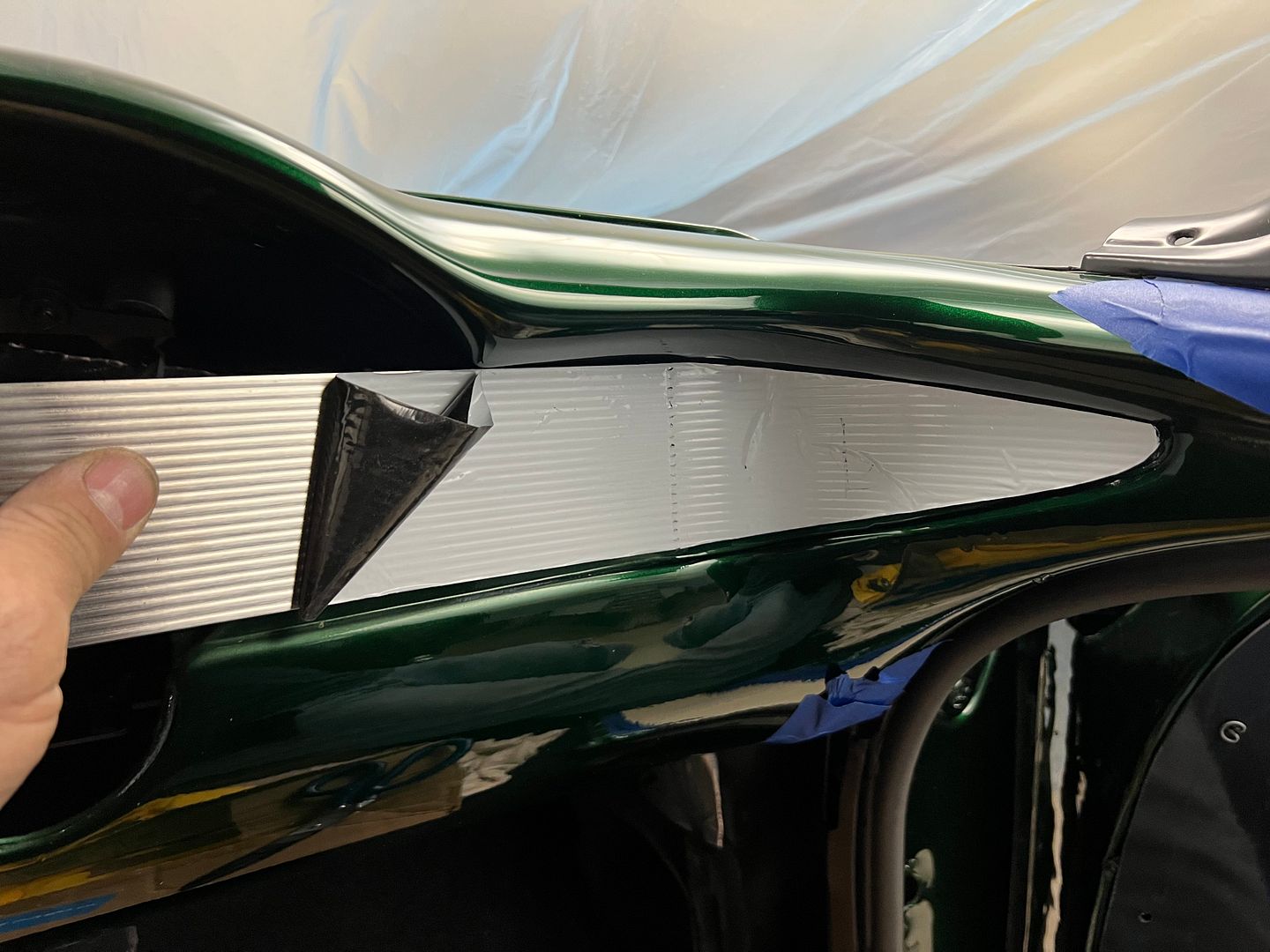

    On to our glass installation, we had picked up some 3M strip-calk to seal the rubber to the glass.


    [​IMG]


    [​IMG]

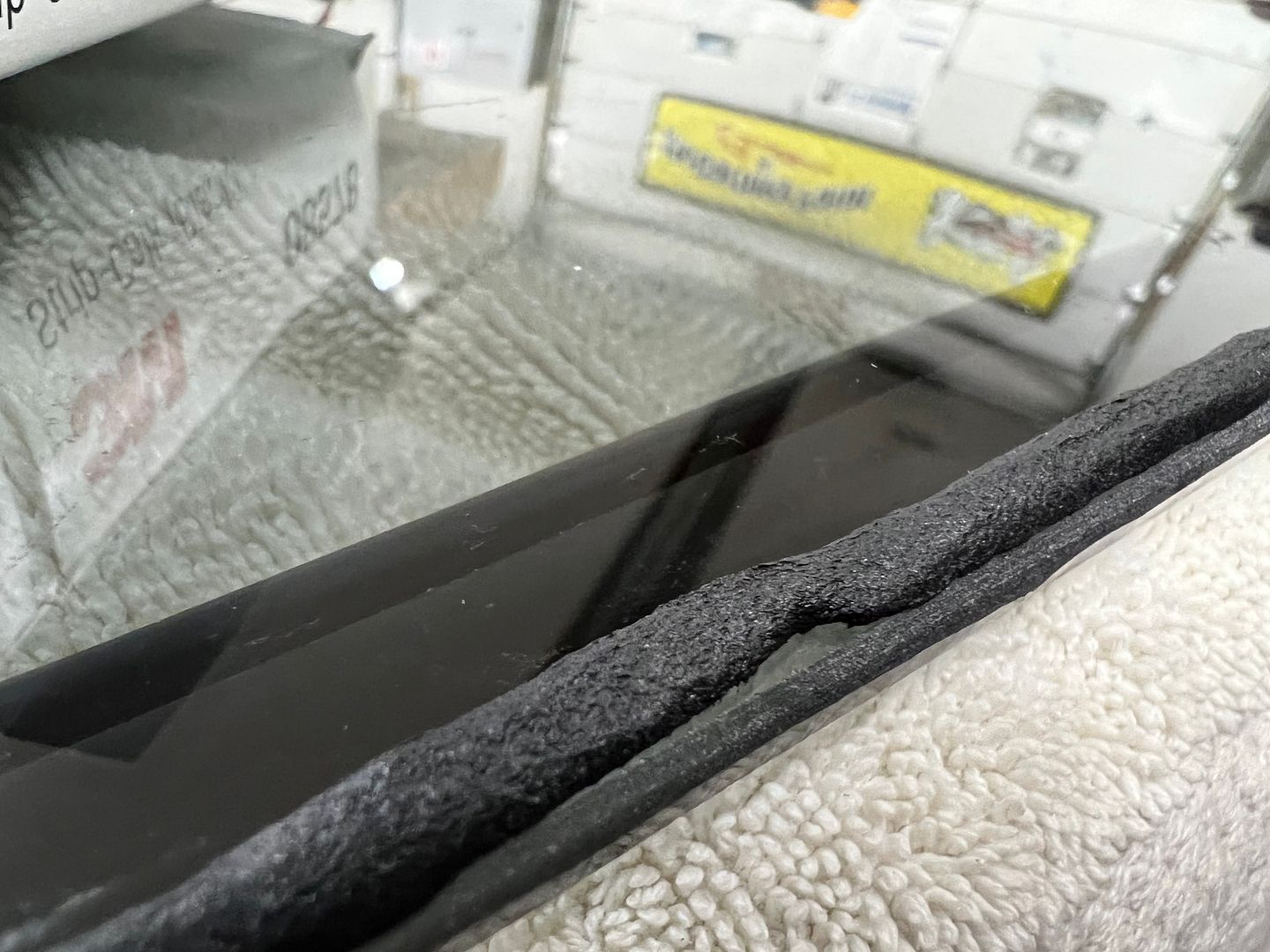

    We found that the full width strip provided a bit too much and some oozage ensued... First is always the messy one, right?


    [​IMG]


    [​IMG]


    [​IMG]


    So we laid the following ones on the glass and cut down the middle for a more narrow strip.. More better....


    [​IMG]


    So then a person gets cocky and needs a reality check on the driver's side....


    [​IMG]


    Eh, good a stopping point as any..

    40FORDPU, Stogy, Bandit Billy and 6 others like this.
  5. Robert, I hope that broken glass is flat!

    As always your work is impressive, the broken glass proves you have a lot in common with the rest of us! HRP

    Stogy, fauj and MP&C like this.
  6. MP&C
    Joined: Jan 11, 2008
    Posts: 2,499

    MP&C
    Member

    It was the curved side glass on back drivers side

  7. Rand Man
    Joined: Aug 23, 2004
    Posts: 5,078

    Rand Man
    Member

    Slick work you’re doing there.

    Stogy and MP&C like this.
  8. MP&C
    Joined: Jan 11, 2008
    Posts: 2,499

    MP&C
    Member

    Thanks much!!


    OK, long overdue for an update..


    Playing some more with our dash insert, this should look good..



    [​IMG]



    We attempted different processes for folding the hemmed edge trim, but alas none gave a good consistent finish.



    [​IMG]



    So some stainless strips were dropped off at Triton metals, a local machine shop we have used before... They will get much better results, still waiting on completion.

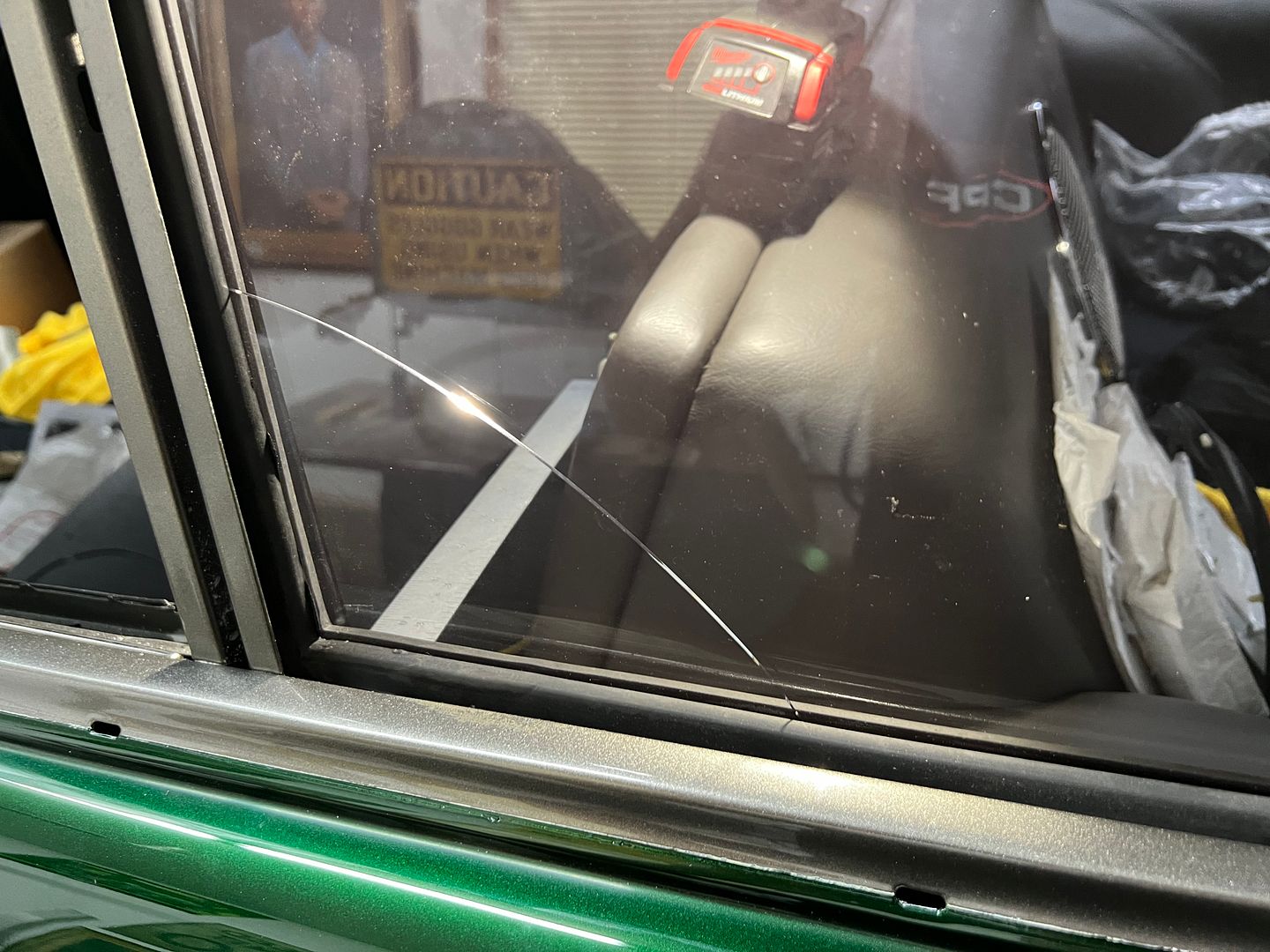

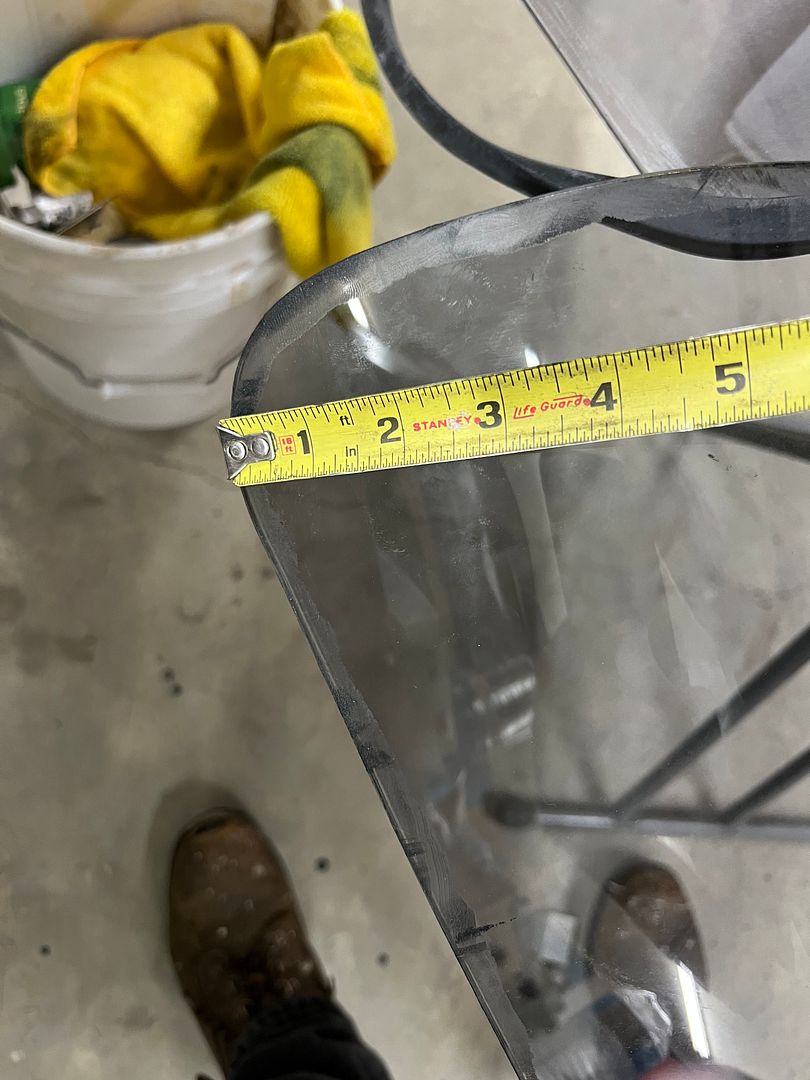

    Back to our problem child of a window, this crack occurred as I slightly pried rearward with a metal rule. Exactly where I pried.



    [​IMG]



    To limit the excess squeezed out of the seals on our next glass, we took the 3M strip-calk in its original form and sliced right down the middle..



    [​IMG]



    [​IMG]



    Here's a video showing installation of the strip-calk, and another with installation of the seal over the strip-calk.



    https://youtube.com/shorts/41FgeNHBBa0?feature=share



    https://youtube.com/shorts/hQxR2nUTVSs?feature=share



    Installing window #2, we had a slight tight area and I asked Jared to push outward and that's when we had a repeat of Groundhog Day..



    [​IMG]



    So, maybe the pry the first time was not the only issue. Fast forward so we can look back, last night we did a dry fit of the garnish moldings around these windows and found that the tack strips holding the headliner were far too thick and pushed the moldings down so far that the back side would be visible through the glass. In addition, this was also pushing downward on the window and seal while we were attempting the installation. When we had installed the quarter panel previously, we used plug welds inside this window opening and some had a slight proud. Nothing that I was concerned with at the time and considering had the tack strip been the correct thickness it likely wouldn't have been an issue now. But with the headliner pushing downward, the seal was hanging up on one of the plug welds as Jared was pushing outward on the corner, which made a perfect fulcrum effect for crack #2. Since we aren't pulling a headliner out, we went ahead and cleaned up the plug welds. This meant taping off all the nice pretty paint on the outside and the interior as well..



    [​IMG]



    [​IMG]

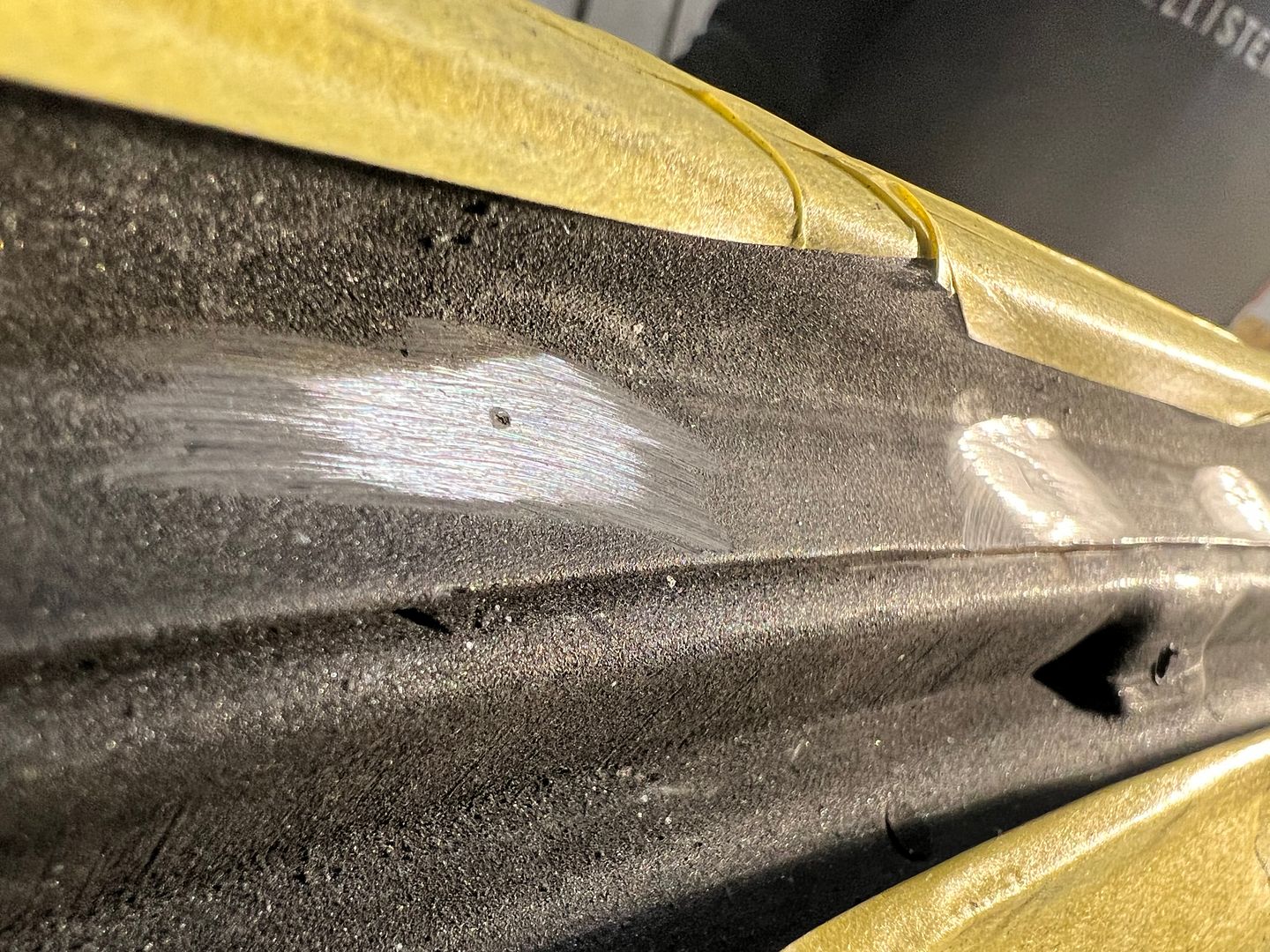

    All of the welds cleaned up, we mixed up some SPI epoxy and used a small brush to add three coats on the bare areas. And to counter the effect of the garnish molding hanging too low, we will now need to make some one-off upper clips that are half height of the ones we just ordered (and have been waiting 4 months to arrive), in order to get the molding up and out of sight when looking through the glass. Story of my life..



    Window #3!! We had length issues from the last replacement, let's check this one as well. Hooking our tape measure on the apex of the pointy end, the original ordered with the rest of the glass set shows to be 40-1/16 in length. The new replacement, like the last one (#2), was 40-5/16. So we have a 1/4" to remove.



    [​IMG]



    [​IMG]



    [​IMG]



    [​IMG]



    [​IMG]



    [​IMG]



    So we consulted my glass expert John Glenn the last time we did this, and got the rundown of the various methods we could possibly use. Since I'm more of a go slow and sneak up on the end goal, I opted for using Cubitron belts on our Dynabride sander. It did a better job of taking down corners so we followed the process discussed in the next video. Then when we had reached the size needed (three hours later), a 320 grit disc on the DA gave a more polished appearance.







    [​IMG]



    [​IMG]



    Our installation last night went in relatively painless and crack free. Now to make some upper clips..




    Last edited: Jun 4, 2022
    Stogy, rod1, brEad and 2 others like this.
  9. rockable
    Joined: Dec 21, 2009
    Posts: 4,674

    rockable
    ALLIANCE MEMBER

    Great final outcome, Robert. My Buick is trying to keep me from finishing but I'm stubborn and will prevail in the end, as will you!

    Stogy and MP&C like this.
  10. Sakke
    Joined: Mar 12, 2011
    Posts: 285

    Sakke
    Member
    from Finland

    Great work !!! Installing that glass must have been a nightmare. With Your skills You have a success.

    Stogy and MP&C like this.
  11. MP&C
    Joined: Jan 11, 2008
    Posts: 2,499

    MP&C
    Member

    Thanks guys!!

    One expensive lesson we learned from installing a window three times, the tack strip that the owner bought was too thick for the headliner, and as a side effect cramped the glass going in. This also meant the upper window clips, which also serve to "position" the garnish molding, pushed the molding down far enough that the back side was visible through the glass.


    [​IMG]


    In order to remedy that view through the glass, we need to fabricate new clips that allow the trim to position higher on the glass. We start with a set of dies for the Lennox so we can make a run of the needed shape, and then cut them individually to size. This should give us the best consistency on size. Our first set of dies will take a folded 90* shape and form it into a "U" shape. We used the Southbend "milling machine" to provide a relief for the long side flange of the clip.






    Additional reliefs and some roloc sander action and we have the lower die ready for the shortened clip.


    [​IMG]

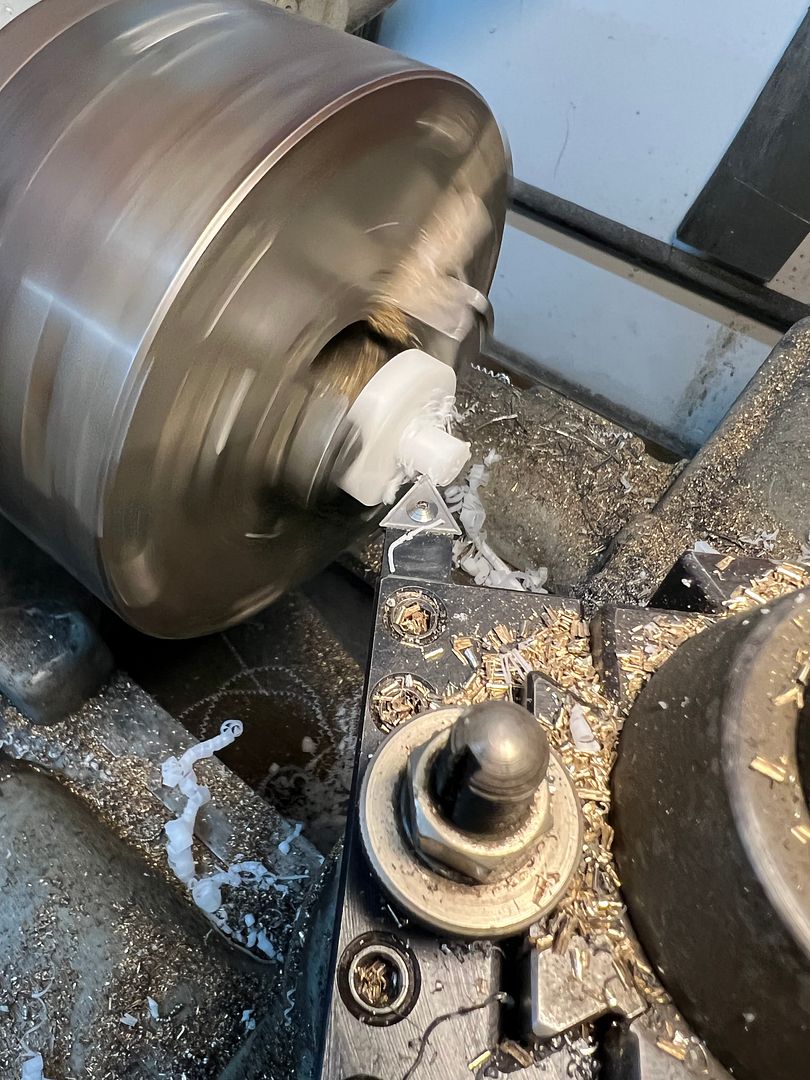

    Then our 3/8 end mill is brought in from the end to form a matching profile.


    [​IMG]


    A piece of 1018 is welded onto the side to give us more "meat" to make the folding ramp, and then machined to clean up the weld.


    [​IMG]


    [​IMG]


    Using the pneumatic belt sander and a cone shaped die grinder we add the ramp to the upper die and then run a profile through..


    [​IMG]

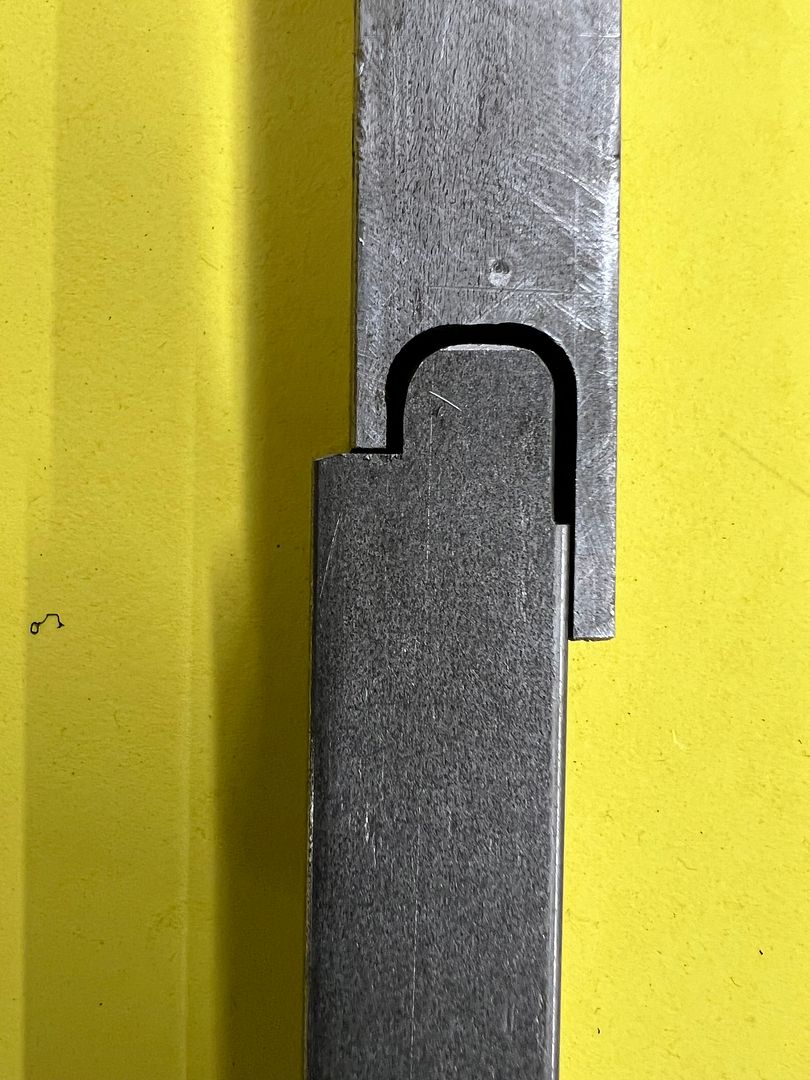

    Our next set of dies for the wrap around fold....


    [​IMG]





    Clips cut to length and mounting holes drilled


    [​IMG]


    Next on the list was to install the new wiper washer nozzles on my daily, since the old ones couldn't stand the heat under the hood with a turbo. The barb fitting had broken free of the nozzle and we no longer had windshield cleaning service. Upon removal, I found that one of the barb couplings had disintegrated as well. And here we were one hour after the auto parts stores had closed. Here's a still intact sample:


    [​IMG]

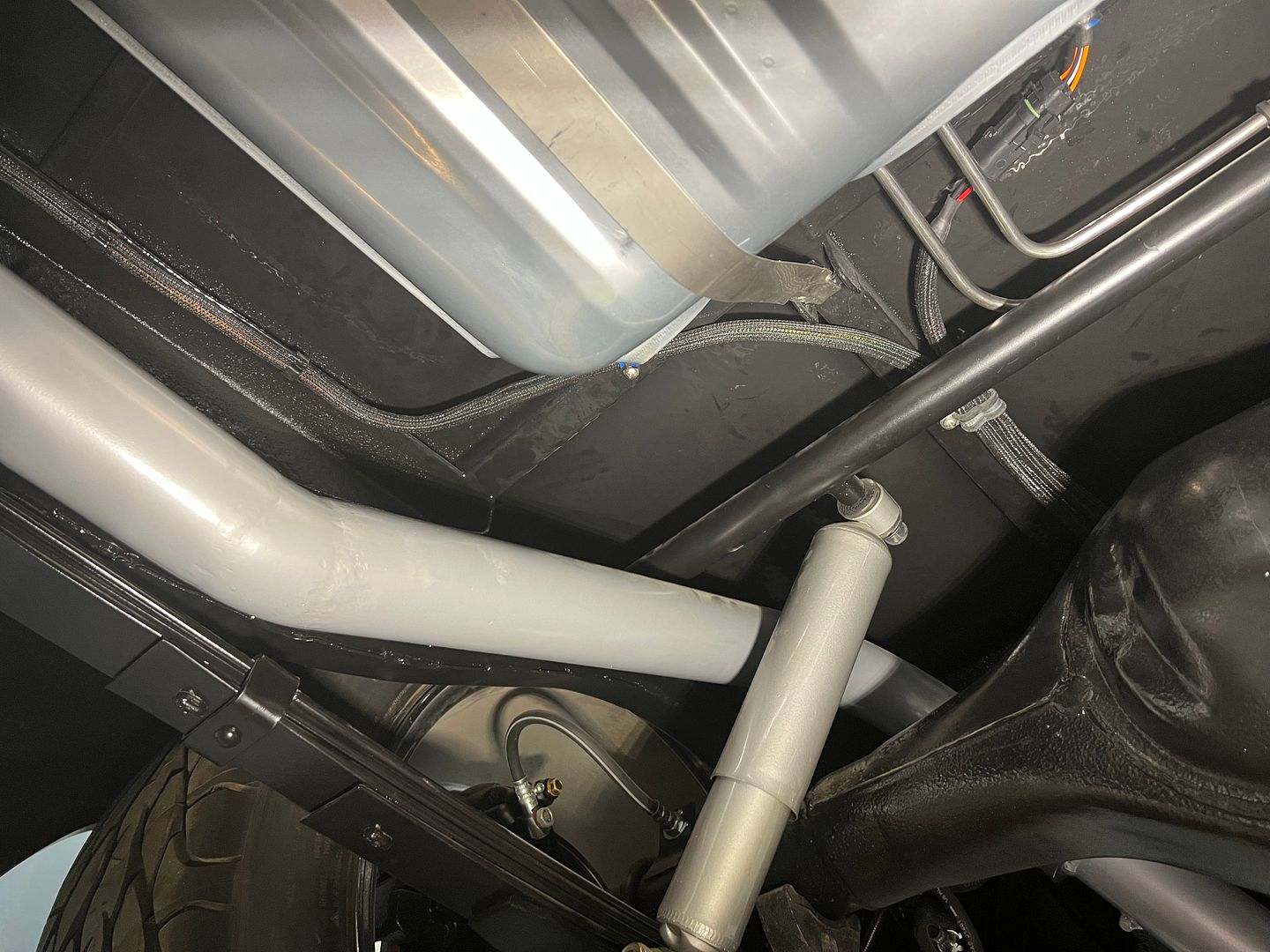

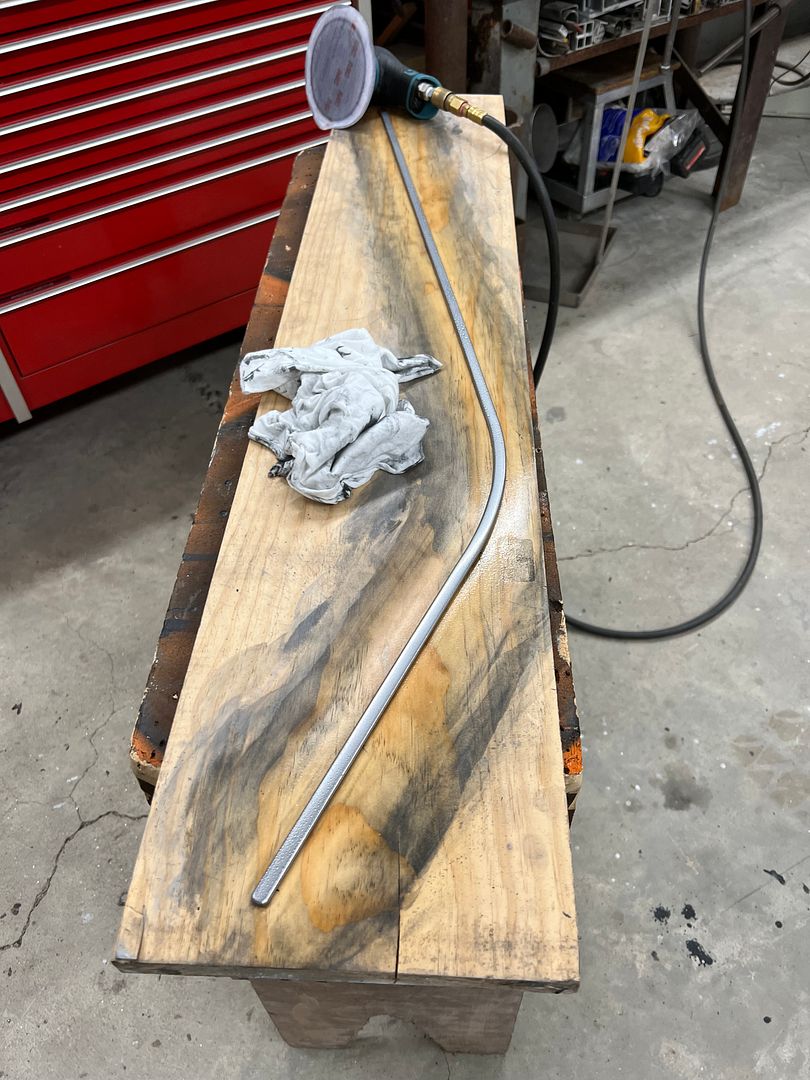

    Since we had some stainless brake line left over from the wagon, lets make some lemonade...


    [​IMG]


    [​IMG]


    [​IMG]


    Back in business.. And the artist has made some progress on the Lennox....


    [​IMG]

    Last edited: Jun 21, 2022
    fauj, Stogy, charleyw and 5 others like this.
  12. MP&C
    Joined: Jan 11, 2008
    Posts: 2,499

    MP&C
    Member

    Back to some progress on the wagon. Finally got the correct clips for the beltline molding...


    [​IMG]


    [​IMG]


    [​IMG]


    We had been attempting to polish up some of the stainless trim but always seems to find 67 years worth of scratches difficult to remove. So we opted to give Trizact a try, starting with 1500, then 3000, 5000, and finally 8000.. The edge of the 3000 and up seemed to bear the brunt of the polishing duties, and wore off much sooner than the center. In an effort to get more life out of the trizact pads, we purchased a 5" Dynabrade where we could cut the outer (worn) portion off the pads and continue to use.. The Trizact did well on the stainless, a much easier task at the polishing stage...


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]


    We also have been working on the wiring, and getting it run inside some protective loom. To keep things tidy and knot free, we opted for some heat shrink tubing spaced at regular intervals.. Where I've seen electrical tape used in similar situations, the tape seems to turn into a sticky mess in short order so we'll give this a try. Jared has some re-wiring to do on his 39 coupe so this is good practice (learning curve) for him.. This section is from the fuse box to the rear of the body, the tan wire pulled out is for the fuel sending unit.


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]


    These clips are just about the right size for this harness "portion", we got them to run along the frame rail behind the rear axle, but found use for them in a couple other locations. Corvette part.


    [​IMG]


    [​IMG]


    [​IMG]


    Here Jared made a protective channel where the wire passes under the rear seat frame.


    [​IMG]

    fauj, Stogy, TFoch and 6 others like this.
  13. rod1
    Joined: Jan 18, 2009
    Posts: 1,377

    rod1
    ALLIANCE MEMBER

    Details. Amazing Details.

    fauj, Stogy and MP&C like this.
  14. MP&C
    Joined: Jan 11, 2008
    Posts: 2,499

    MP&C
    Member

    More progress on the wagon, we're getting some of our wiring run to the back of the car...


    [​IMG]


    In cutting out door panels our upholsterer cut out the speakers a bit too large for how we were mounting them. I don't think I had conveyed those details as I had planned on doing the speaker cutouts portion.. So to keep him from having to do that work over again, we offered to cut them out this time around.


    [​IMG]


    6-32 Riv-nuts used to hold the tweeter grill in place...


    [​IMG]


    [​IMG]


    [​IMG]


    8-32 machine screws were sharpened to transfer the hole pattern onto the panel, then our speaker spacers matched to those for cutting out the center hole.


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]


    Next, holes drilled for our stainless trim that we had welded the impaling pins on prior....


    [​IMG]


    [​IMG]


    The stainless trim would be needed for upholstery, so we got to polishing.. A board was drilled to accept the impaling pins and better hold the trim piece for our prep stage of removing 67 years worth of scratches. Also worked well in holding things steady at the buffer..


    [​IMG]


    [​IMG]


    We used 3M Trizact on the DA, starting with 1500 grit and finishing with 8000 grit. This process cuts out the first two buffing stages, and seems to polish out nicer. Buffing process was using green rouge on sewn wheel and final was grey rouge on loose wheel.





    This is after 3000 Trizact:

    [​IMG]


    This is after 8000 Trizact:

    [​IMG]


    This is after buffing:

    [​IMG]


    That'll do pig, that'll do.

    fauj, safetythird, Stogy and 8 others like this.
  15. Nice and shiny!

    Stogy, lothiandon1940 and MP&C like this.
  16. MP&C
    Joined: Jan 11, 2008
    Posts: 2,499

    MP&C
    Member

    I spent a week in Tennessee just south of Nashville, attending a metalshaping workshop and delivering the Pullmax there for Mike Abbott of Steel Rose Metal Co in Memphis TN. We had a good time learning tips and tricks, meeting old friends and making new ones.



    Jesse Harris, who lives about 15 minutes from me, travelled out as well, and gave an awesome demo on using the bead roller with a focus on artwork.



    [​IMG]




    [​IMG]



    A leading demo on an aluminum Rolls Royce door...



    [​IMG]



    One of the attendees lives just north of Nashville, and a few of us travelled one evening to check out his shop, Ace Chassis. He has been building pulling tractors for about 20 years now and has quite the setup for machining, welding, and sheet metal fabrication.



    [​IMG]



    Upon return from TN, Jared brought over his 39 Ford so we could install a new wiring harness in place of the convoluted mess that was there.







    He had some issues and a local fella that wires boats or something had made some repairs. This is his mainstay, I'd never seen the stuff and now having seen his work, I have my doubts about anyone who would use it on a regular basis.



    [​IMG]



    Here's some before pictures to highlight both his repairs and what was done before he got there. For some reason he decided that two separate runs of 12V power from the same source needed a resettable circuit breaker between them.



    [​IMG]



    Personally, I'm confused. But that's not the half of it. This is a "ground" cable that was attached to the frame.



    [​IMG]



    under the dash...



    [​IMG]

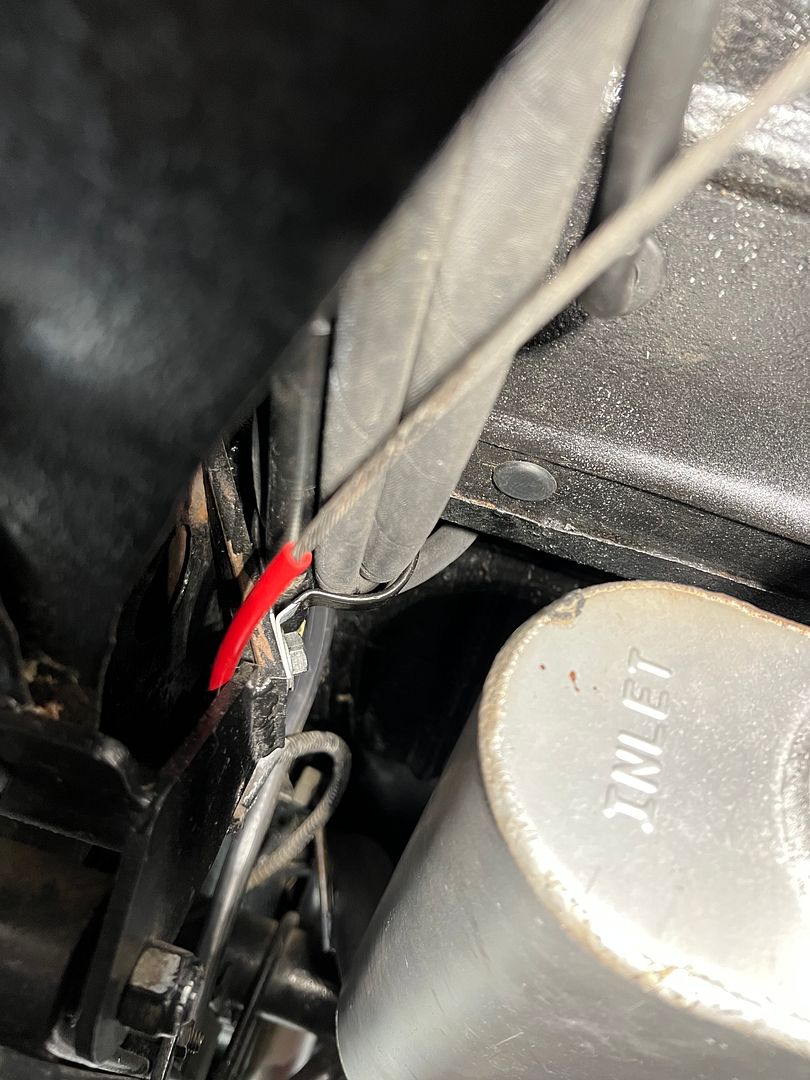

    This is in the passenger front floor area, there is a fusebox in there somewhere..



    [​IMG]



    The battery was located behind the passenger seat, and here is the cable routing beneath the car...



    [​IMG]

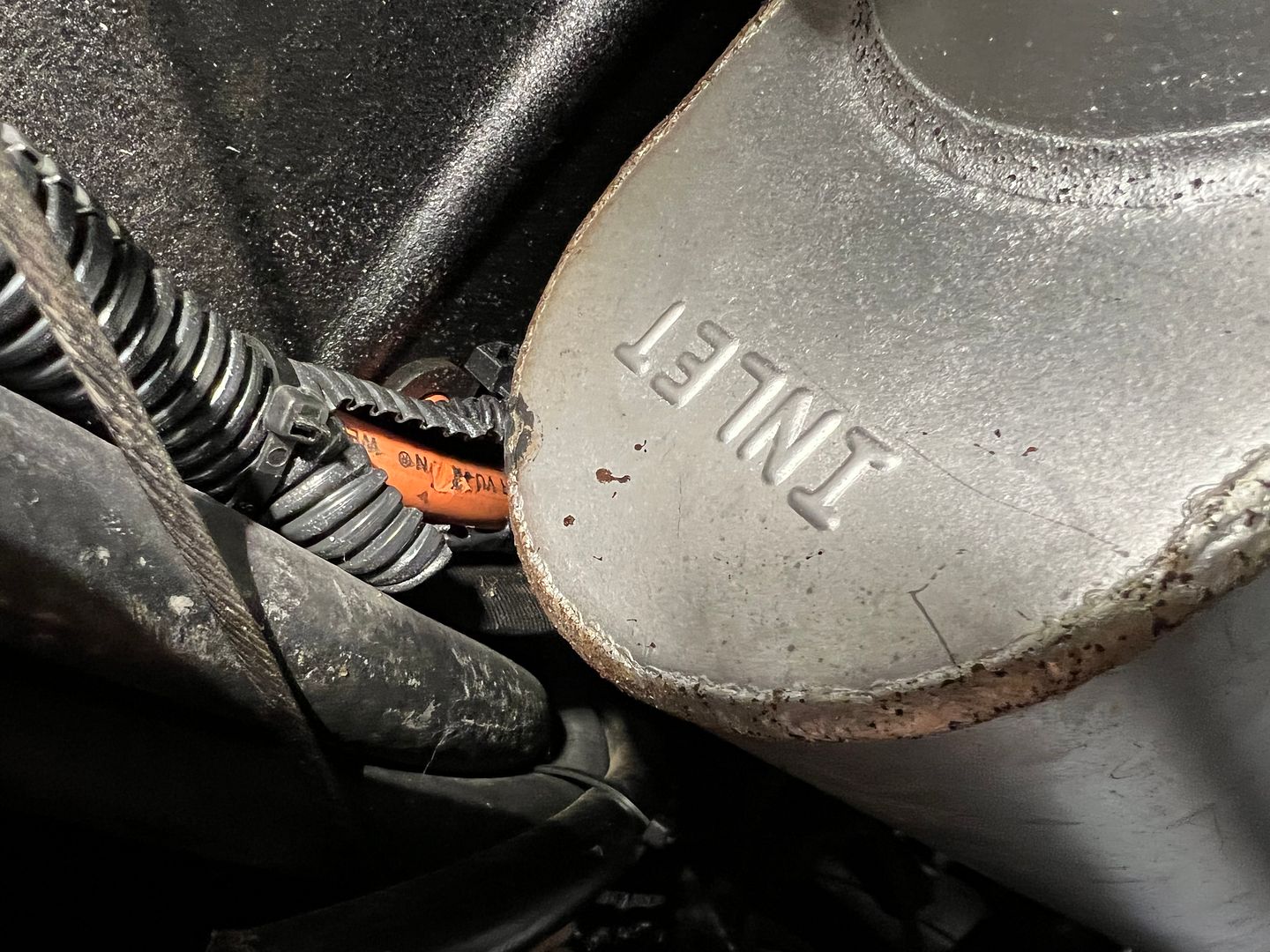

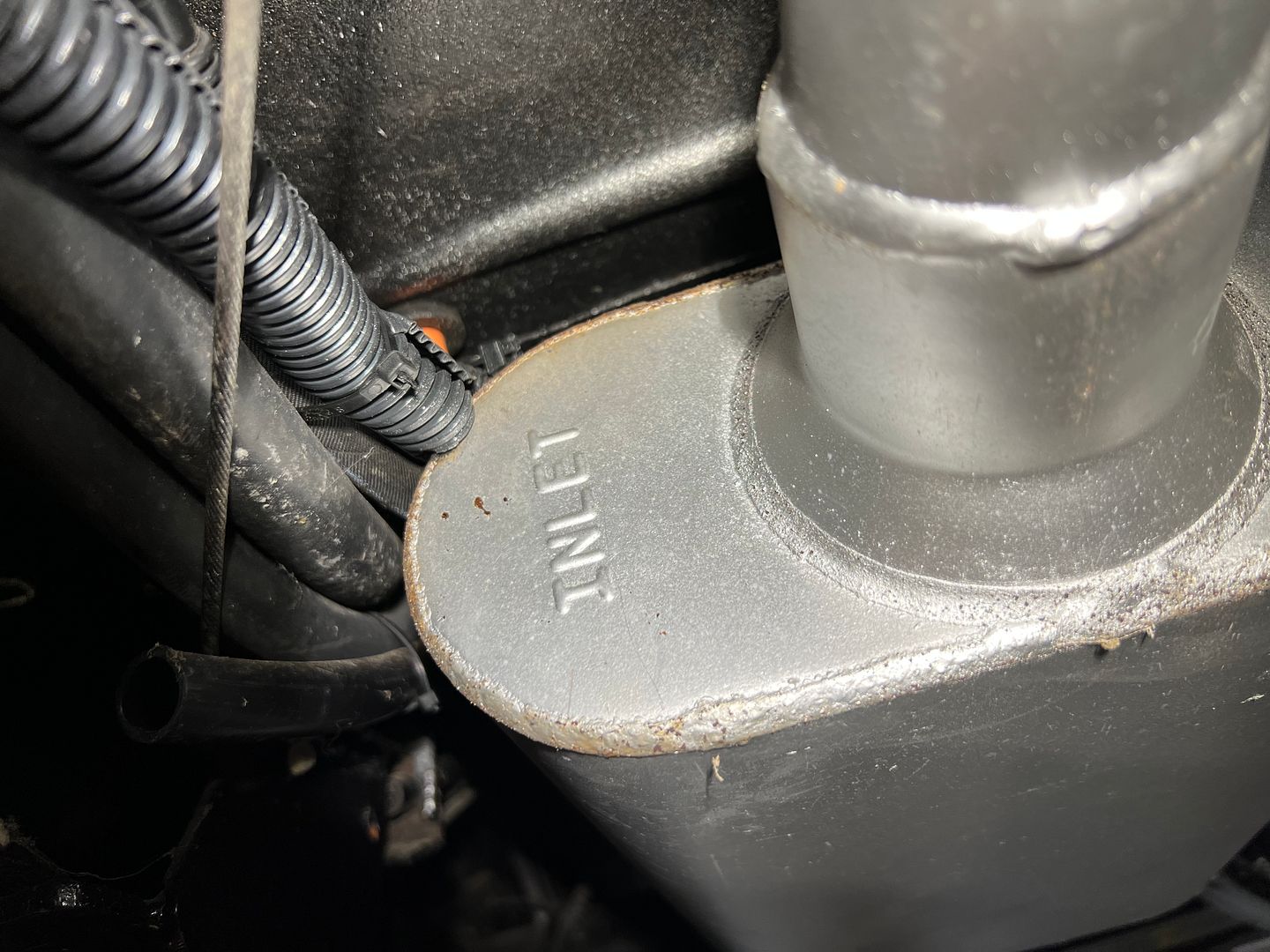

    Yes, that's the positive battery cable against the muffler.....



    [​IMG]

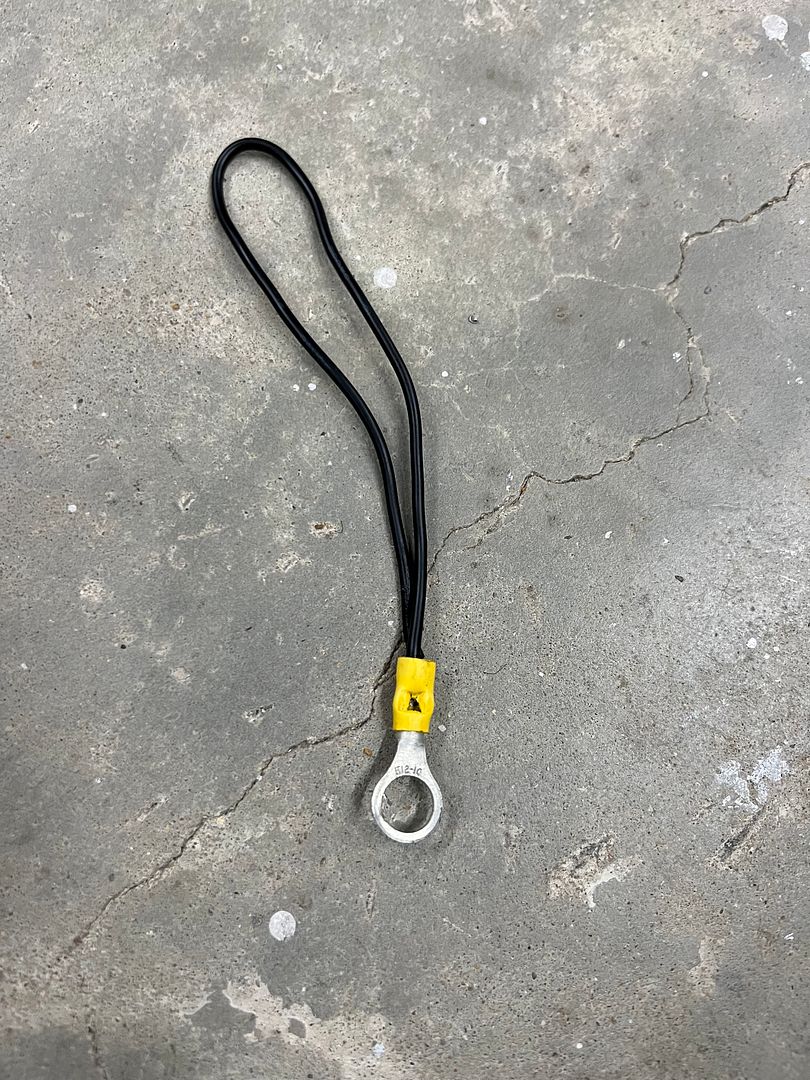

    With all this we found our best option was to remove the battery and start cutting out ALL the wiring.



    [​IMG]



    First order of business was to fabricate a mounting plate for the new fuse panel to get it out of the floor...



    [​IMG]



    Having removed the most splices I have ever seen under a dash board, our goal was to have as few splices as possible, and make direct runs where we could. W crimps were used throughout, adding glue lined heat shrink in place of the previously favored liquid tape.. Tail light wiring was plenty long so new contact buttons eliminated the typical splicing of pigtails..



    [​IMG]



    Tach and Speedometer connected...



    [​IMG]



    Headlight switch...



    [​IMG]



    For routing purposes, and to keep from drilling the firewall, we made some cable management using rare earth magnets and cable saddles..



    [​IMG]



    [​IMG]



    more to come......

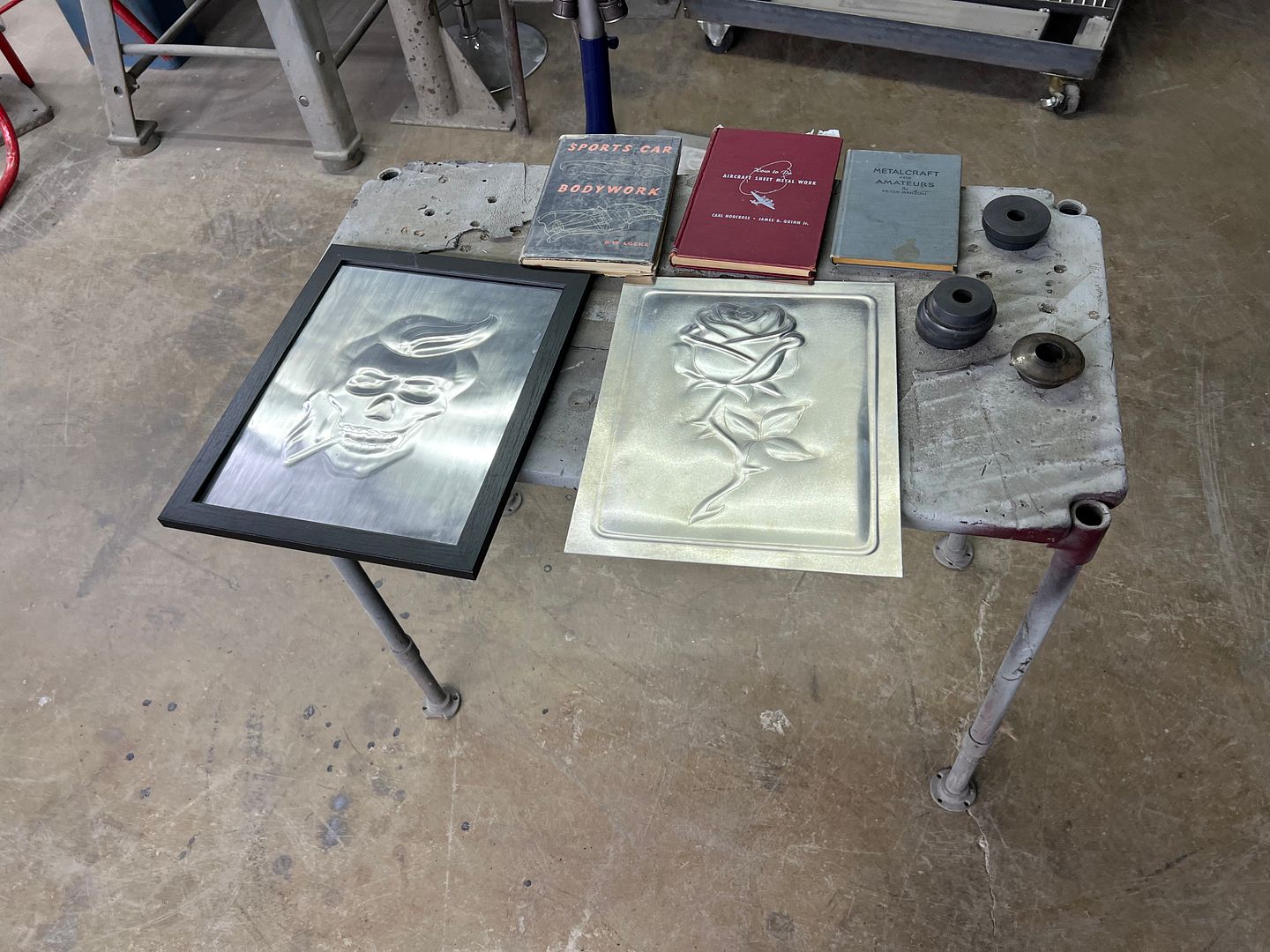

  17. Who knew........Art by bead roller.:D

    Hamtown Al, MP&C and Stogy like this.
  18. Stogy
    Joined: Feb 10, 2007
    Posts: 26,446

    Stogy
    ALLIANCE MEMBER

    Incredible craftsmanship here...A high bar indeed with a mind that finds a way...and patience is commendable with the setbacks...although there isn't a sound track...:D...but those were hard to like...and actually I've done the same and it wasn't my car either...man did I feel an ass...:oops:

    lothiandon1940 and MP&C like this.
  19. rockable
    Joined: Dec 21, 2009
    Posts: 4,674

    rockable
    ALLIANCE MEMBER

    I enjoyed the meet, as well and enjoyed meeting you, Jesse and the others. There as a lot of talent there and Jesse DID do a fabulous job with the bead roller art demo.

    Last edited: Sep 8, 2022
    MP&C likes this.
  20. MP&C
    Joined: Jan 11, 2008
    Posts: 2,499

    MP&C
    Member

    Progress on the 39's wiring, let's show this with a before and after sequence..


    This car has the battery mounted behind the passenger seat, and the orange cable shown is the positive cable. (ground cable hidden above muffler) Both cables exit directly above muffler with not quite enough room for a good bend radius, as shown by the melted insulation.

    [​IMG]


    The other hoses shown are the heat and AC lines as that is also located behind the driver's seat. We relocated the battery cable entry points to in front of the muffler. The heat and AC lines were re-dressed and loop clamped to get them farther away from the muffler.. Rubber plugs were used to fill the old holes.


    [​IMG]


    [​IMG]


    This is the previous location of the fuse box (it's in there someplace)


    [​IMG]


    With the fuse box relocated under the dash, the floor area is cleared up with less chance of stepping on wires. The radio and antenna cabling will be routed into the glove box, the radio location.


    [​IMG]


    Previous underdash:


    [​IMG]


    Fabricated plate for mounting fuse box up under the dash..


    [​IMG]


    [​IMG]

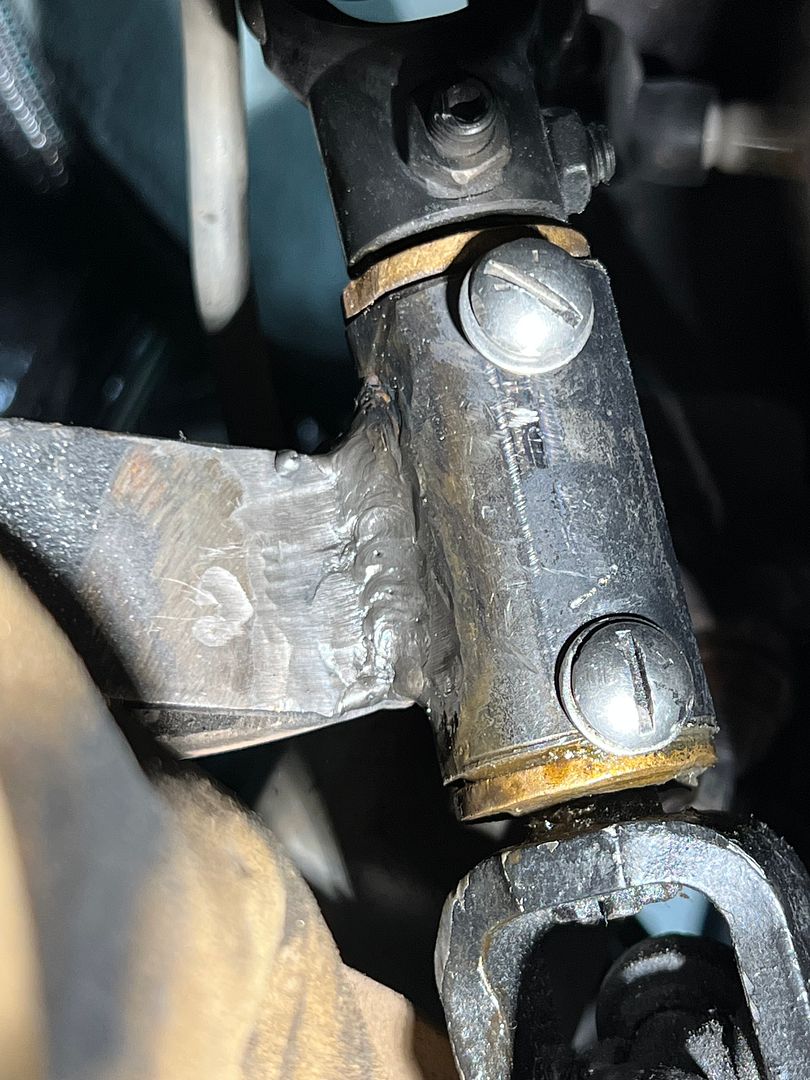

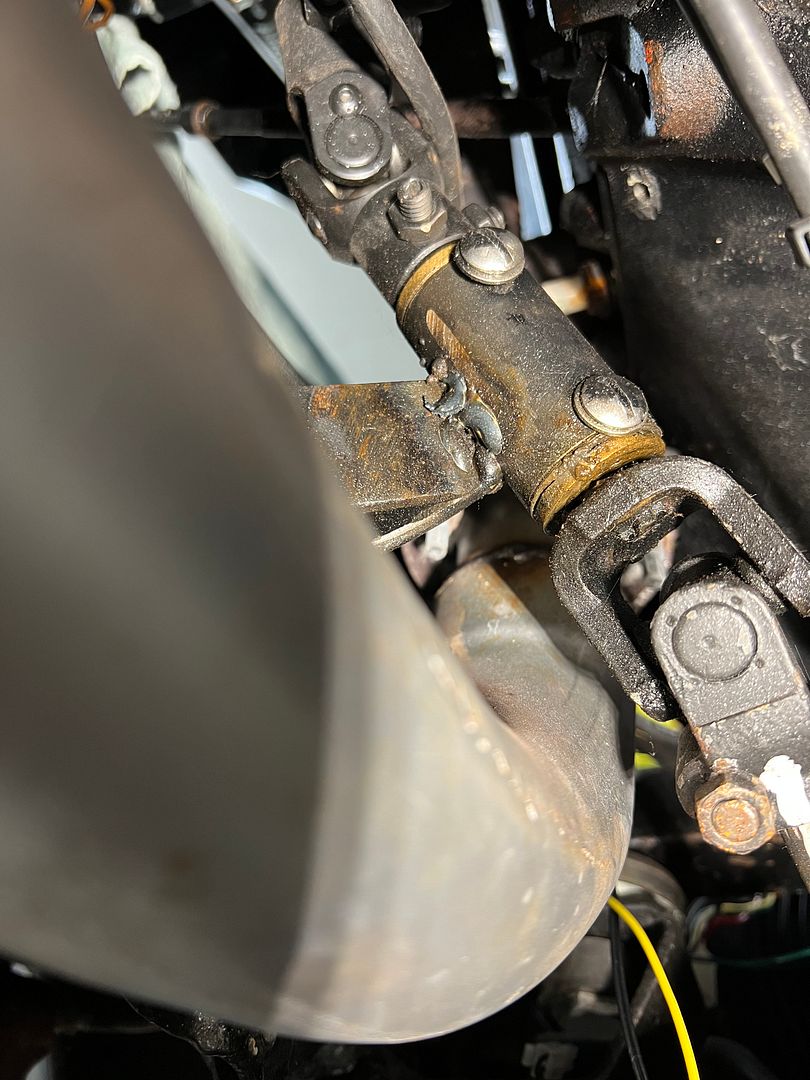

    Steering knuckle sleeve weld...


    [​IMG]

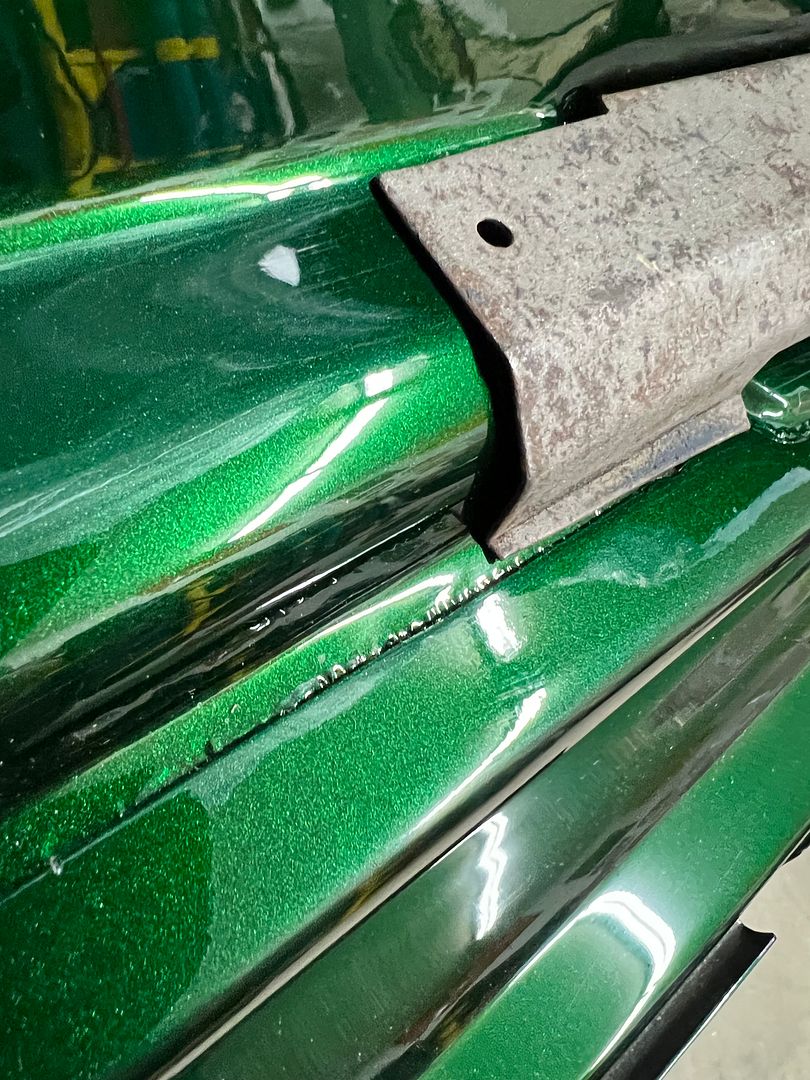

    Despite grinding out the mud dauber's nest and wiping multiple times with acetone, we still got a pin hole in the weld. To limit damage (shrinking) from excessive heat we left it with the pin hole. Still much better than what was there prior.


    [​IMG]


    The links for the front sway bar as well as the radius arms had little left for bushings. The local auto parts store was not much help for replacement parts, so some delrin round stock was used to fabricate bushings.


    [​IMG]


    [​IMG]


    [​IMG]

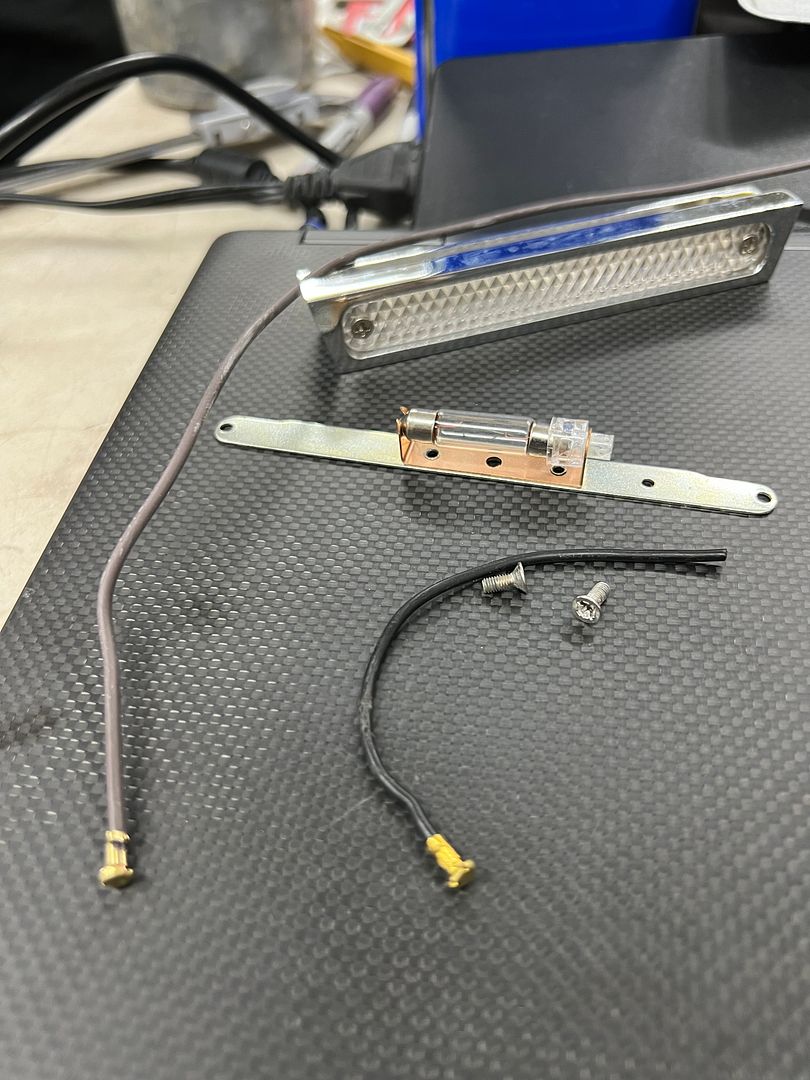

    The tag light insulator was hard plastic and brittle, so our attempts to install a longer wire for the light resulted in a broken insulator. More delrin to the rescue..


    [​IMG]


    [​IMG]


    [​IMG]




    Left to do is the front end/engine compartment and re-assembly.

    LOST ANGEL, TFoch, rockable and 3 others like this.
  21. Lot of work to make that old hot rod much safer.

    MP&C and fauj like this.
  22. MP&C
    Joined: Jan 11, 2008
    Posts: 2,499

    MP&C
    Member

    A recent find of some metalshaping tools, finally found a stake plate and stake anvils... Along with some dolly's I didn't have..







    The wiring harness installed, here's our first test start of the 39....







    Lighting tests:







    https://www.youtube.com/shorts/bBfAGzQnuL8



    With that, the 39 has left the building... Here's the test drive taking it home. Also found out the easy way of opening the ash tray...




    fauj, brEad, TFoch and 4 others like this.
  23. WOW Robert, that's quite a haul of new tools to play with. Have fun. Great job on the '39. Love that car and now it's a much safer car. Thanks for posting the videos.....Don.

    MP&C likes this.
  24. rockable
    Joined: Dec 21, 2009
    Posts: 4,674

    rockable
    ALLIANCE MEMBER

    Dang! Nice score! How do you find these old tools? I am excited over getting a Beverly B2 from a local liquidation auction.

    MP&C likes this.
  25. belair
    Joined: Jul 10, 2006
    Posts: 9,020

    belair
    Member

    So your next post will be about how to perfectly fix broken glass, I bet.
    Seriously, this is a master class in solving problems and craftsmanship. Thanks for taking the time to show us how the magic happens. Total commitment to excellence.

    MP&C likes this.
  26. So... when do we get to hear the wagon fire up?

    MP&C likes this.
  27. Robert, was John any help of figuring out the glass problem, I did see that the third time was the charm. HRP

    MP&C likes this.
  28. MP&C
    Joined: Jan 11, 2008
    Posts: 2,499

    MP&C
    Member

    Danny, John is always good help. He told me what they would do then we modified the plan to fit the tools I had to work with.

    brEad and lothiandon1940 like this.
  29. MP&C
    Joined: Jan 11, 2008
    Posts: 2,499

    MP&C
    Member

    The hinge covers for the wagon is one of the many loose ends we have left to address, quite a bit of rust...



    [​IMG]

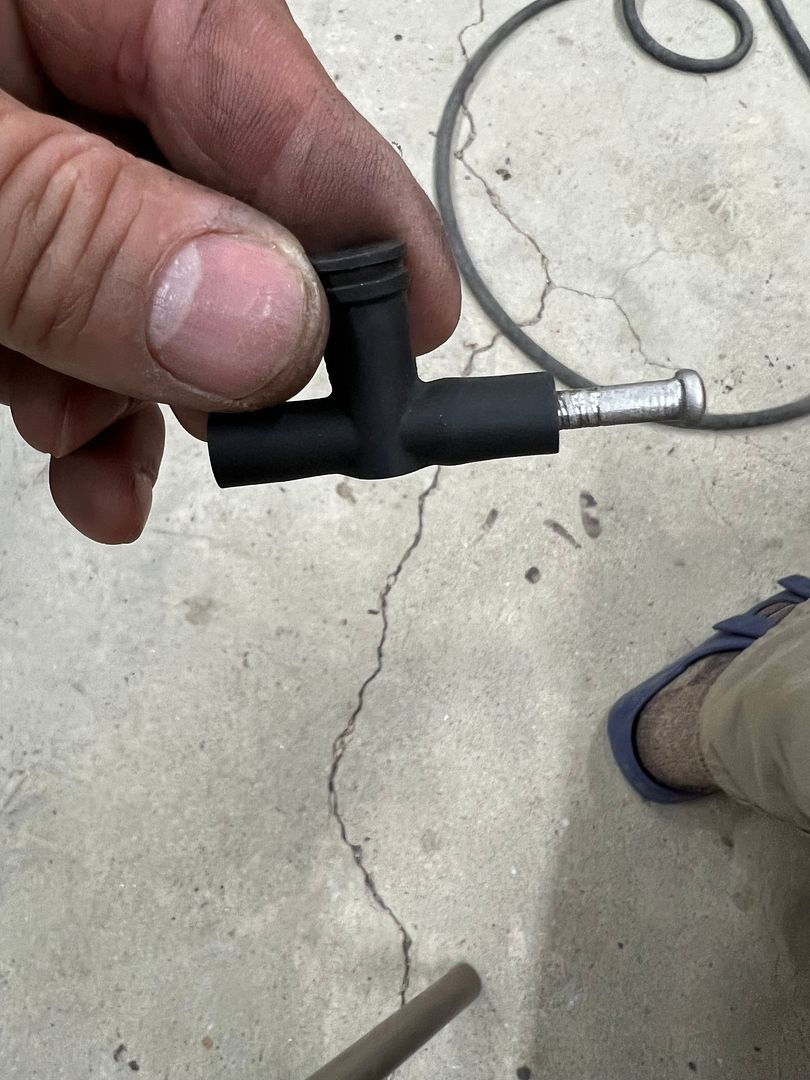

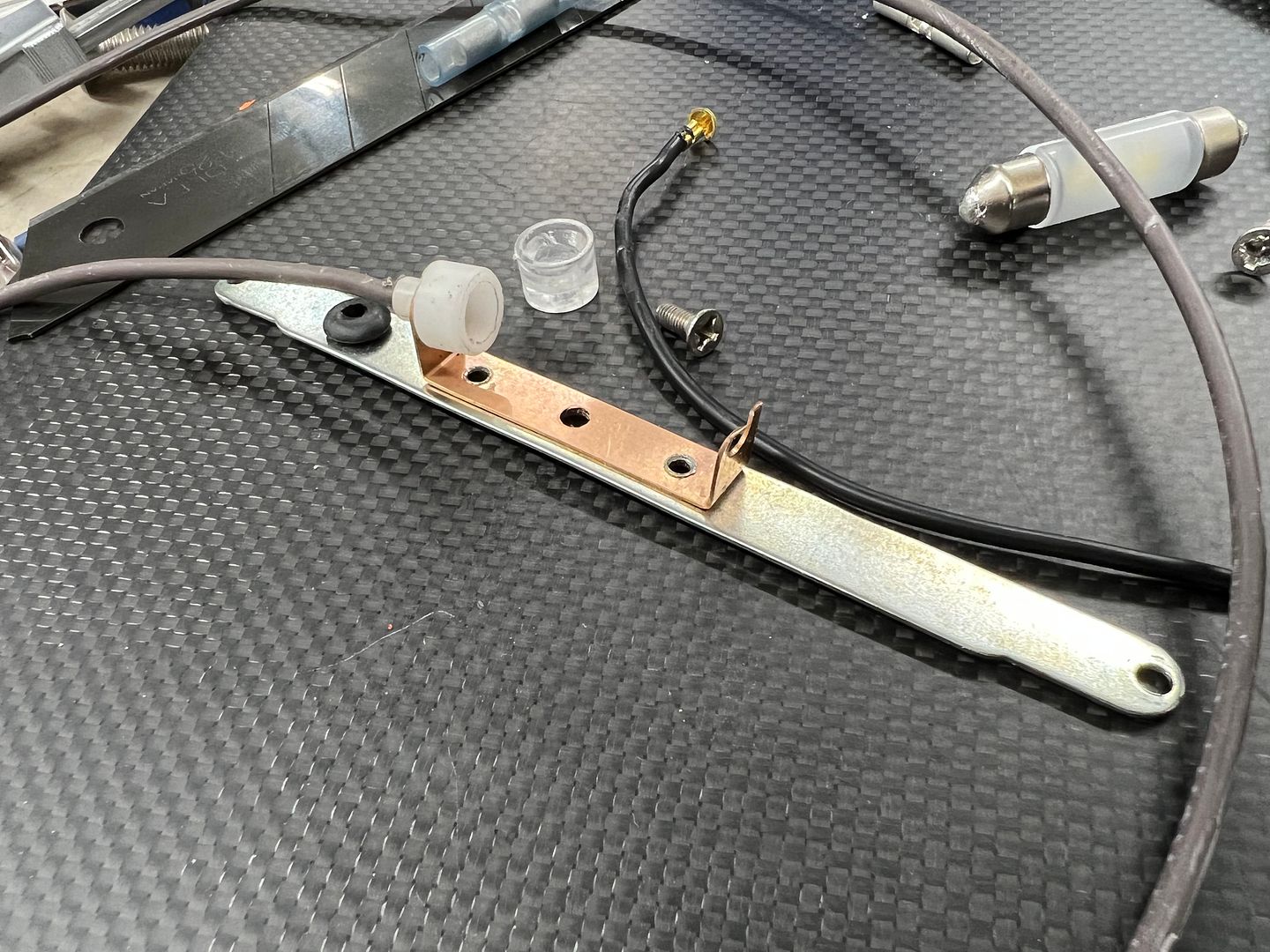

    A quick test fit before we go off fabricating anything shows these factory original parts are no better than many of the reproduction parts you get today.. I had planned on fabrication work, didn't know we needed a redesign.



    [​IMG]



    [​IMG]



    [​IMG]



    We ordered a piece of round stock to match the radius to use on the Magnetic brake, that should arrive Tuesday.


    Next, we need to fold a hem for our stainless edge trim we plan on using for the ribbed stainless dash insert. The magnetic brake leaves a bit to be desired in having balls enough to hem a short return flange, so we packed up our sheet metal strips we had cut to size and went to another local metalshaper's shop to make use of his apron brake.



    [​IMG]



    [​IMG]



    A piece of .030 aluminum acted as a spacer to maintain our hem gap. The brake worked well but the parts needed a bit more flatness to provide nice crisp details. Since he also had a powered Mittler Bros. bead roller, we used some flat dies and ran through all the bent pieces.

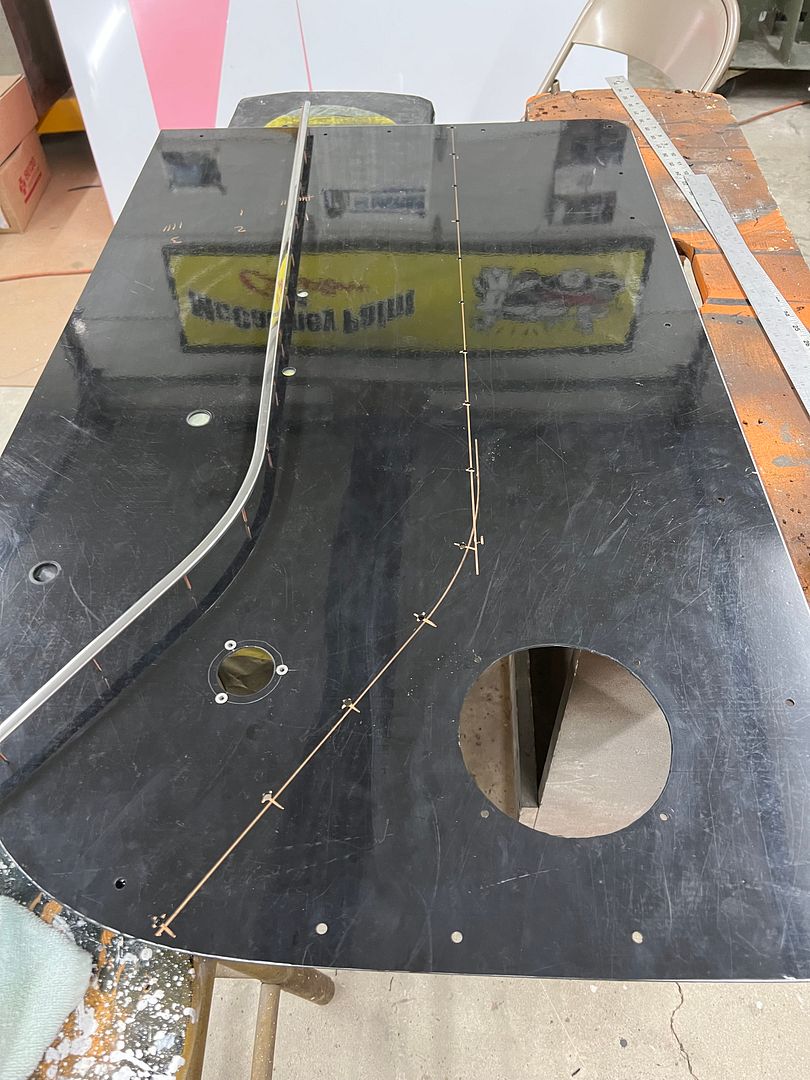

    test fit of the ribbed stainless....



    [​IMG]



    [​IMG]



    And for a teaser of how it will look after polishing....




    brEad, tb33anda3rd, rockable and 2 others like this.
  30. Beautiful work as usual!

    MP&C likes this.

Share This Page

Register now to get rid of these ads!

Archive

Copyright © 1995-2021 The Jalopy Journal: Steal our stuff, we'll kick your teeth in. Terms of Service. Privacy Policy.

Atomic Industry
Forum software by XenForo™ ©2010-2014 XenForo Ltd.
