'63 Falcon wiper motor wiring

Discussion in 'The Hokey Ass Message Board' started by 1971BB427, Jun 5, 2013.

  1. 1971BB427
    Joined: Mar 6, 2010
    Posts: 9,700

    1971BB427
    Member
    from Oregon

    Beginning to rewire my Falcon, and using a new harness. My '63 has electric wiper motor, and I'd like to reuse it, but I need to figure out what the various wires on the plug do.
    Does anyone happen to know, or have a diagram for the wiring of this wiper motor?

  2. hoop98
    Joined: Jan 23, 2013
    Posts: 1,362

    hoop98
    Member
    from Texas

  3. 1971BB427
    Joined: Mar 6, 2010
    Posts: 9,700

    1971BB427
    Member
    from Oregon

    Thanks for the link. Hope I can figure out the wiring, as the diagram doesn't really tell me what each lead does. Just shows ground to black, and white ties to ground through what I assume is a breaker or something? Then org-blk, blk, and blu to the motor.
    Guess I'll set up a test to tie grd to the black and test the other leads to see what's high and low speeds.

  4. 24riverview
    Joined: Jan 13, 2008
    Posts: 1,117

    24riverview
    Member

    Connections on the wiper motor plug-
    Blue-Ignition switch switched 12 volt (power for "park")
    Black-wiper switch switched 12 volt
    Orange/black stripe-connection to ground through wiper switch (when off) for "park"

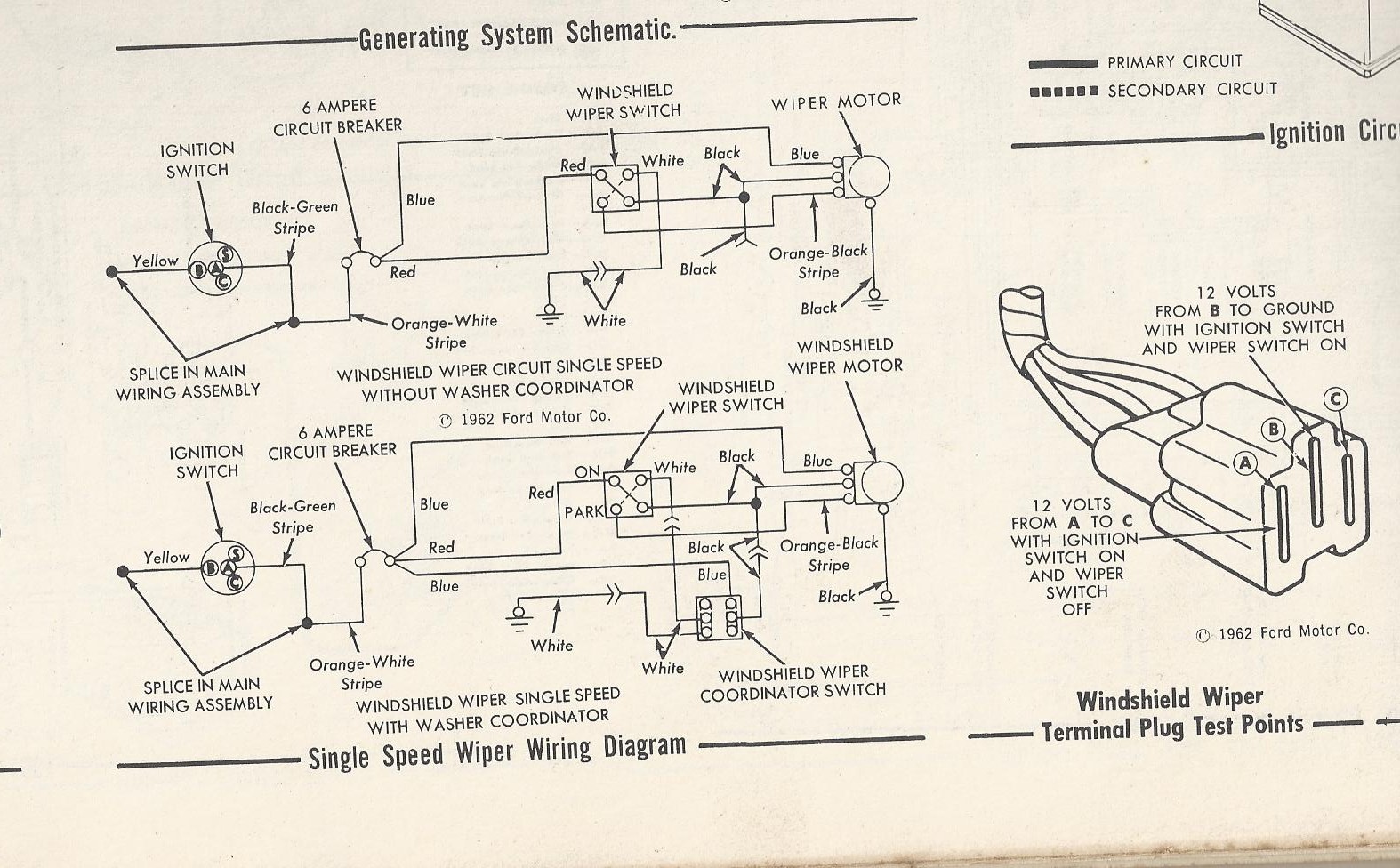

    Attached Files:

    Last edited: Jun 6, 2013
  5. Veach
    Joined: Jun 1, 2012
    Posts: 1,081

    Veach
    Member

    Thanks for the Info

  6. 1971BB427
    Joined: Mar 6, 2010
    Posts: 9,700

    1971BB427
    Member
    from Oregon

    Pefect! Thanks a lot!
