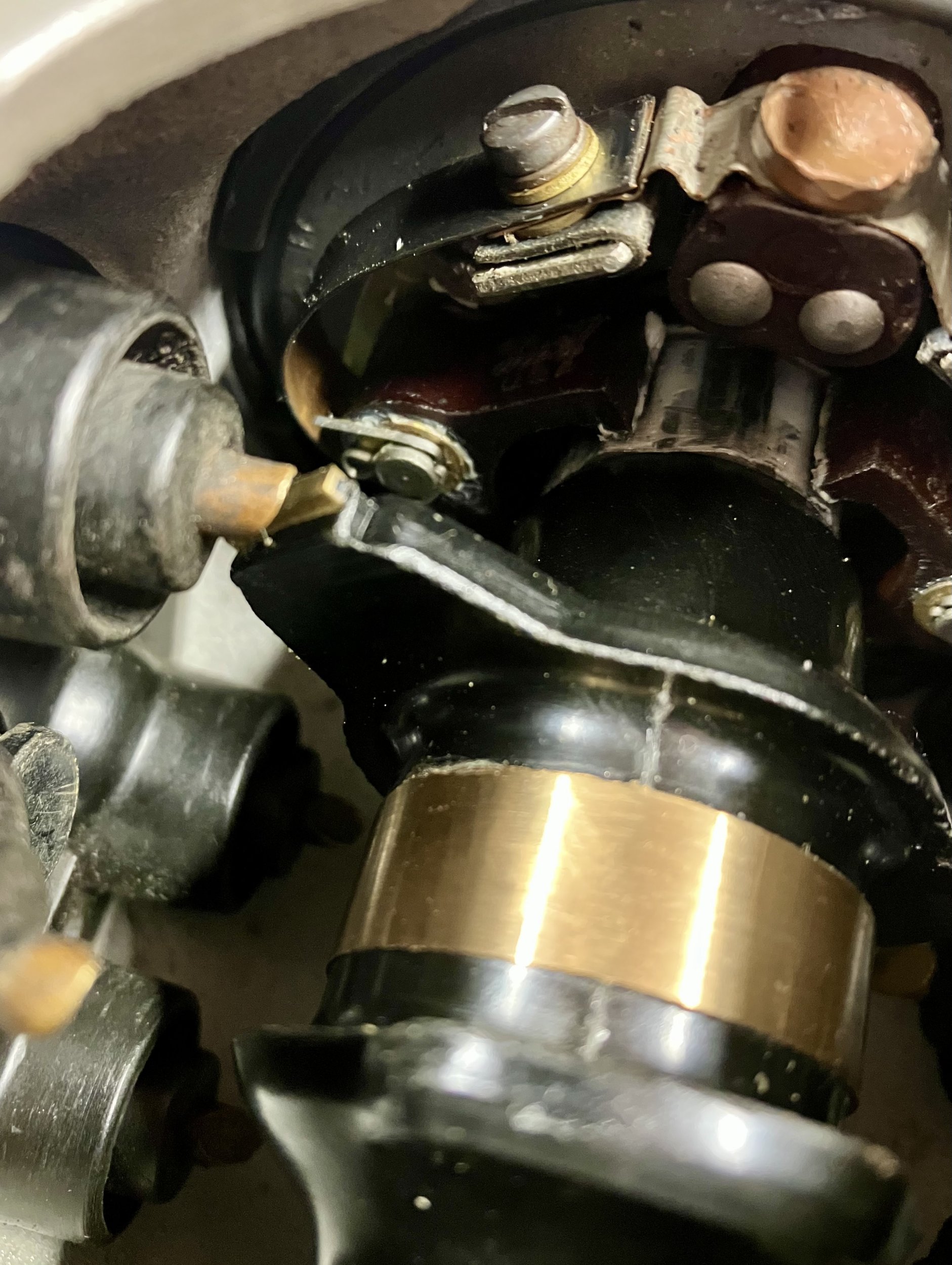

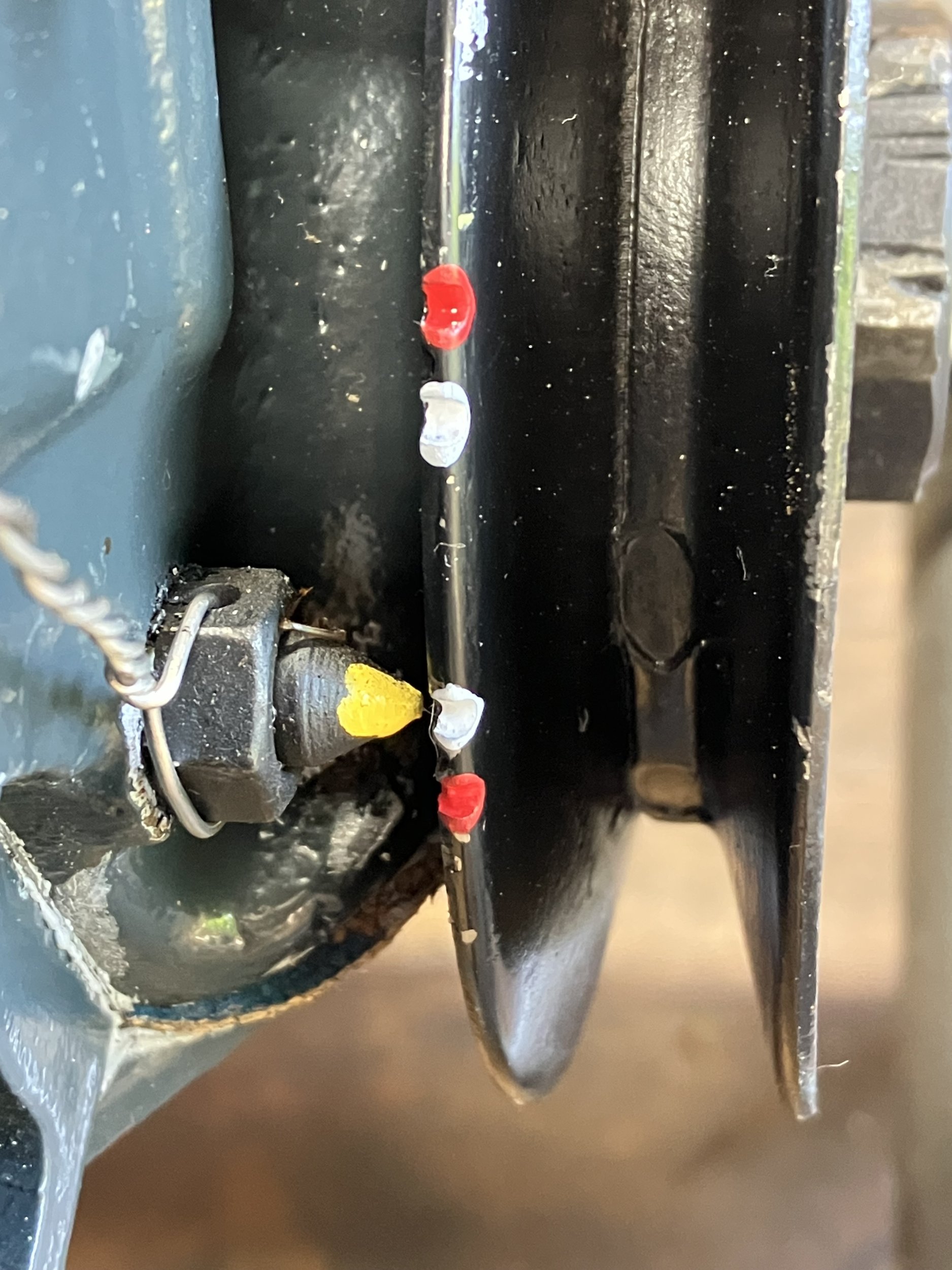

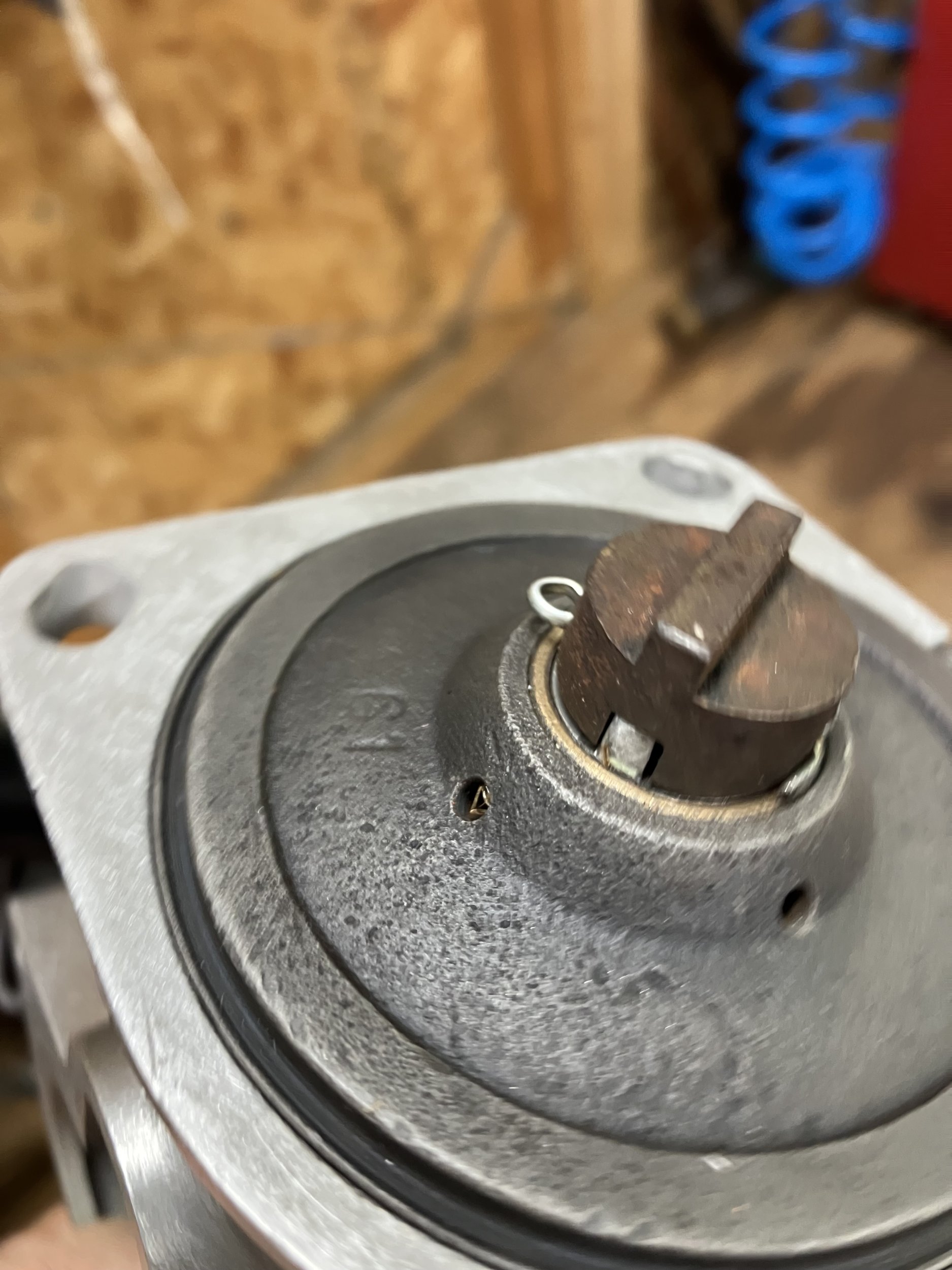

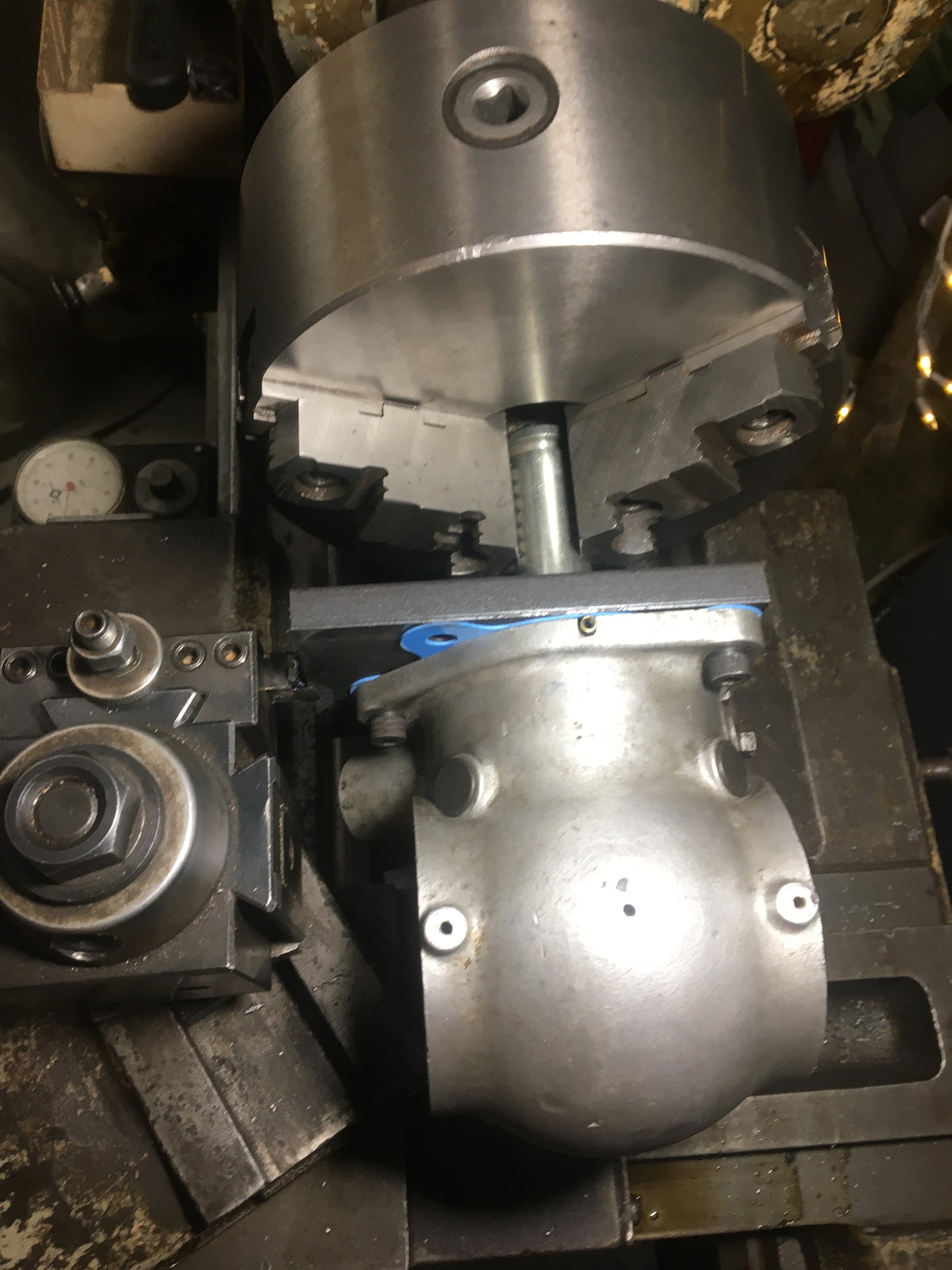

Projects A/V8 speedster ‘Sat Nite Spcl’

Discussion in 'Traditional Hot Rods' started by Oldtmtech, Jul 28, 2022.

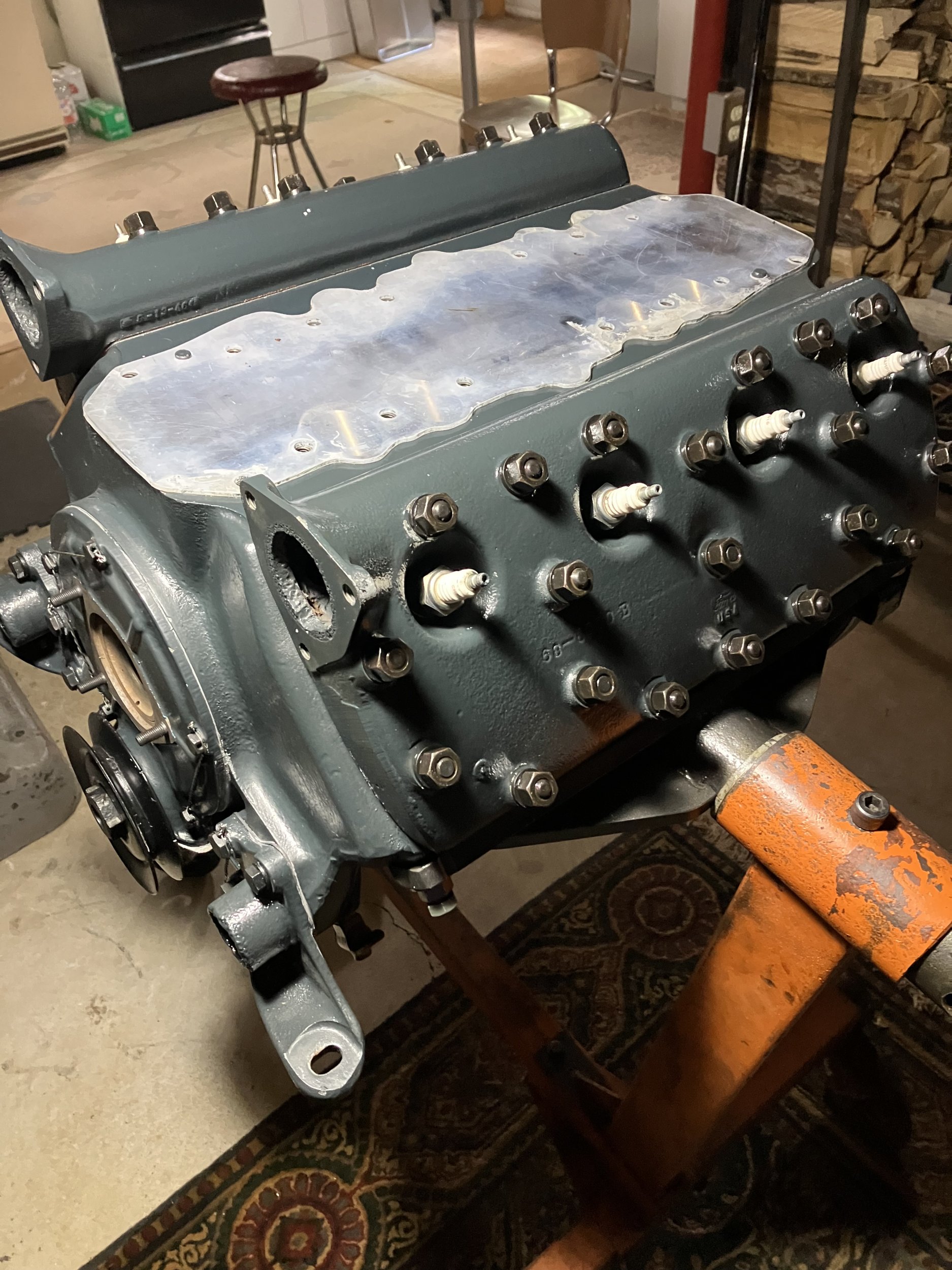

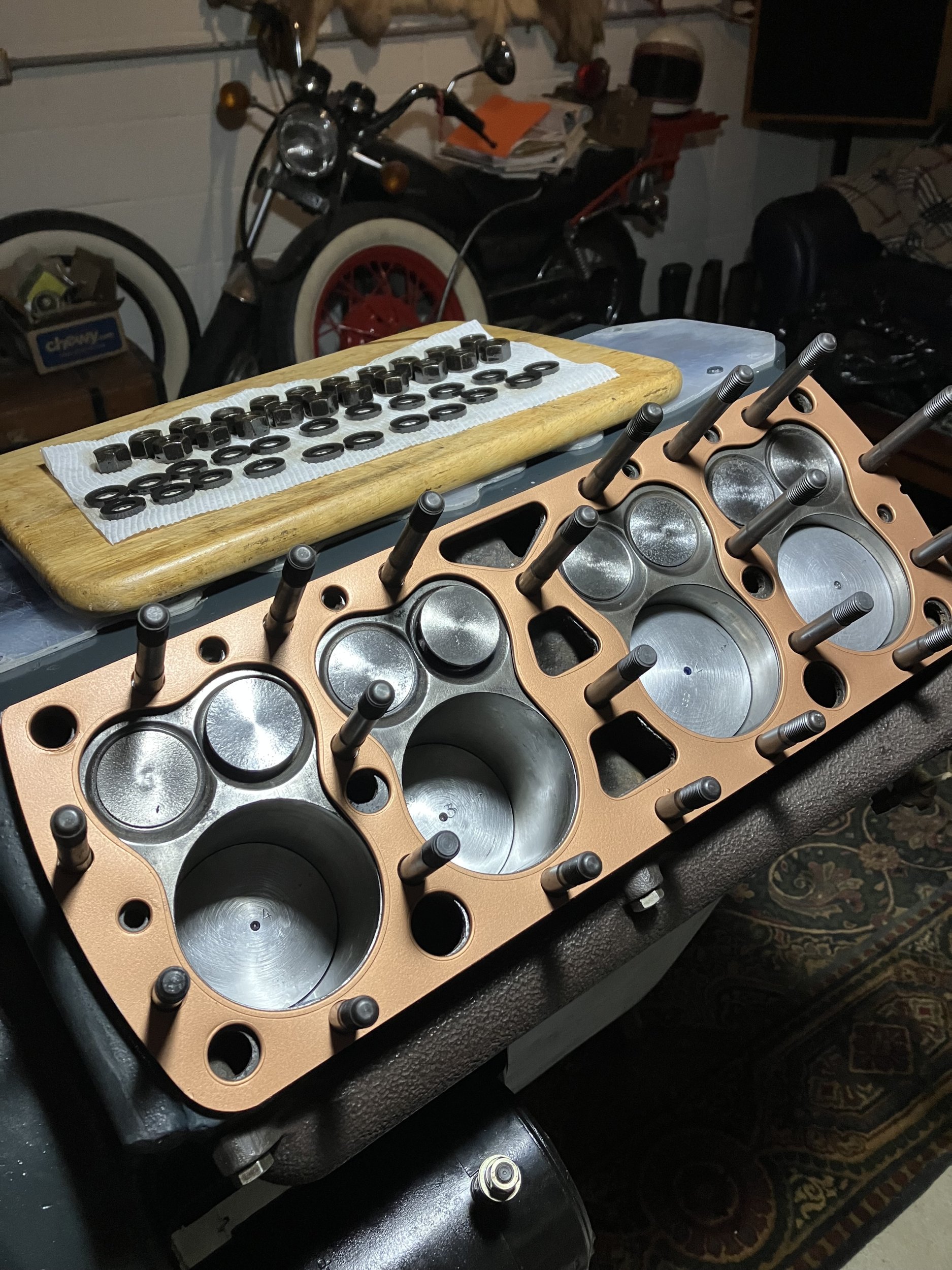

  1. IMG_6046.jpeg Heads are installed

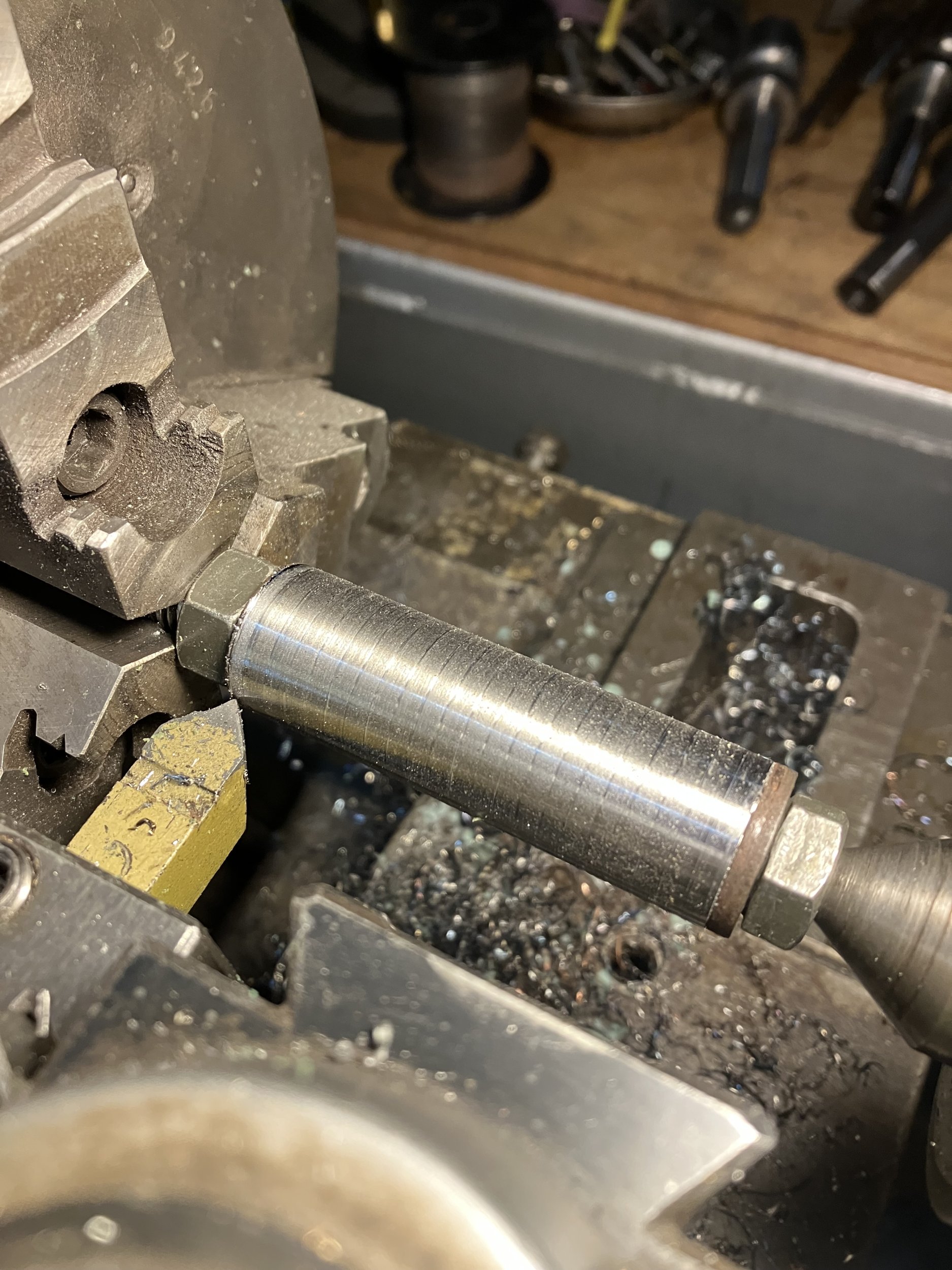

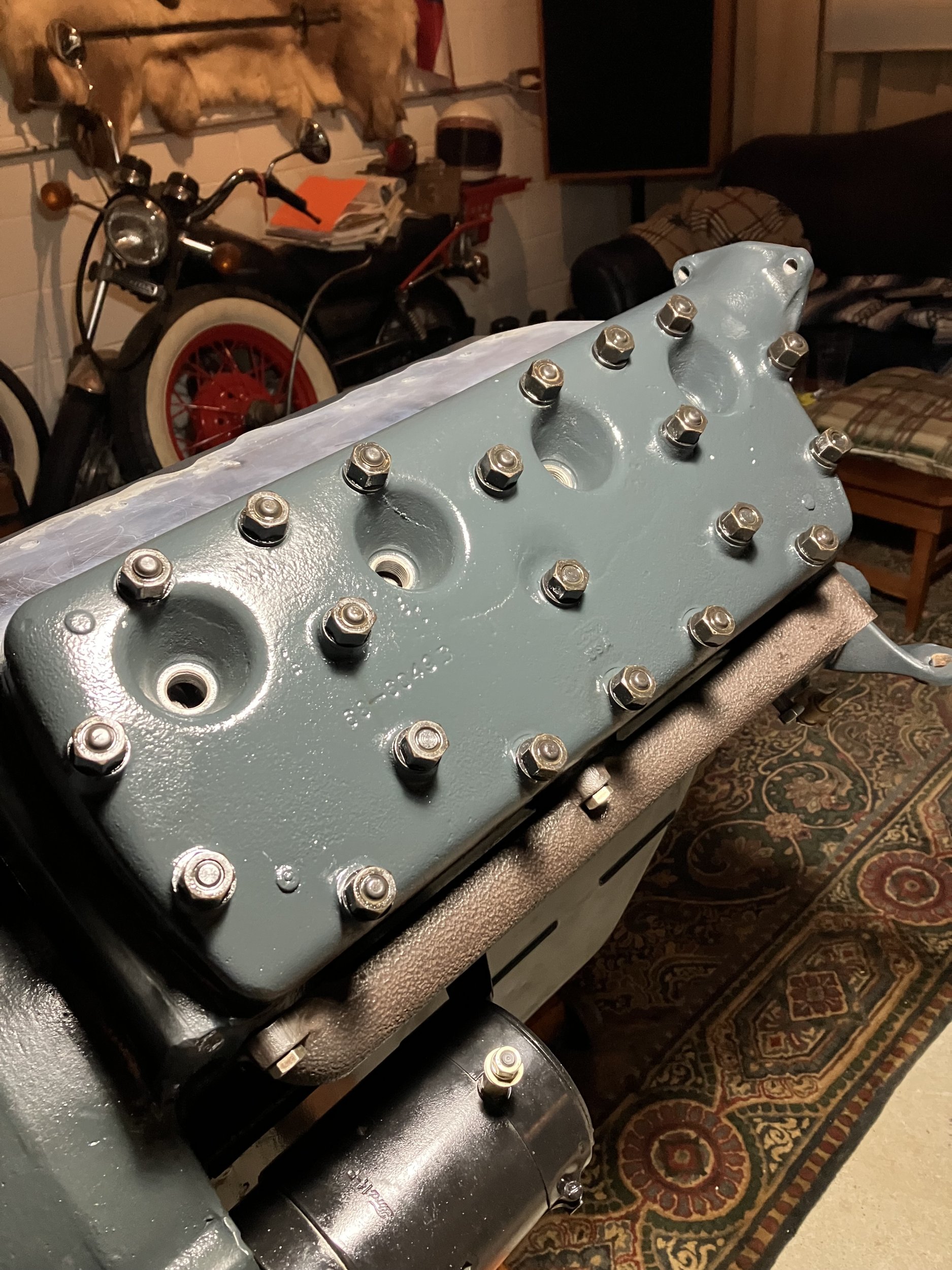

    Didn’t have a full set of the factory washers and the washers that I had bought with the new studs and nuts were not as thick as the originals so I purchased these and then cut the OD down to match IMG_6056.jpeg IMG_6025.jpeg used spray copper gasket IMG_6041.jpeg IMG_6042.jpeg also needed to space the spark plugs

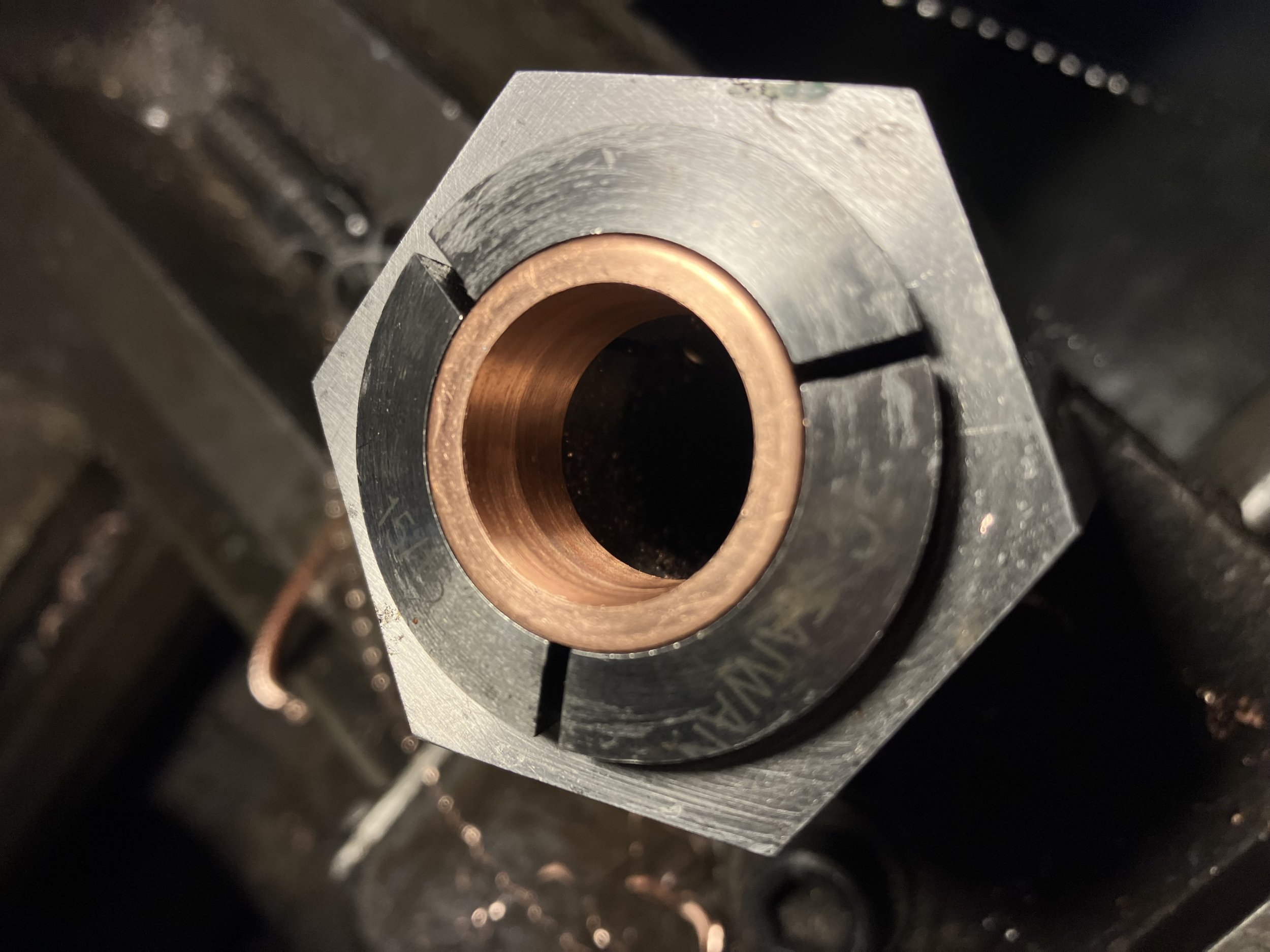

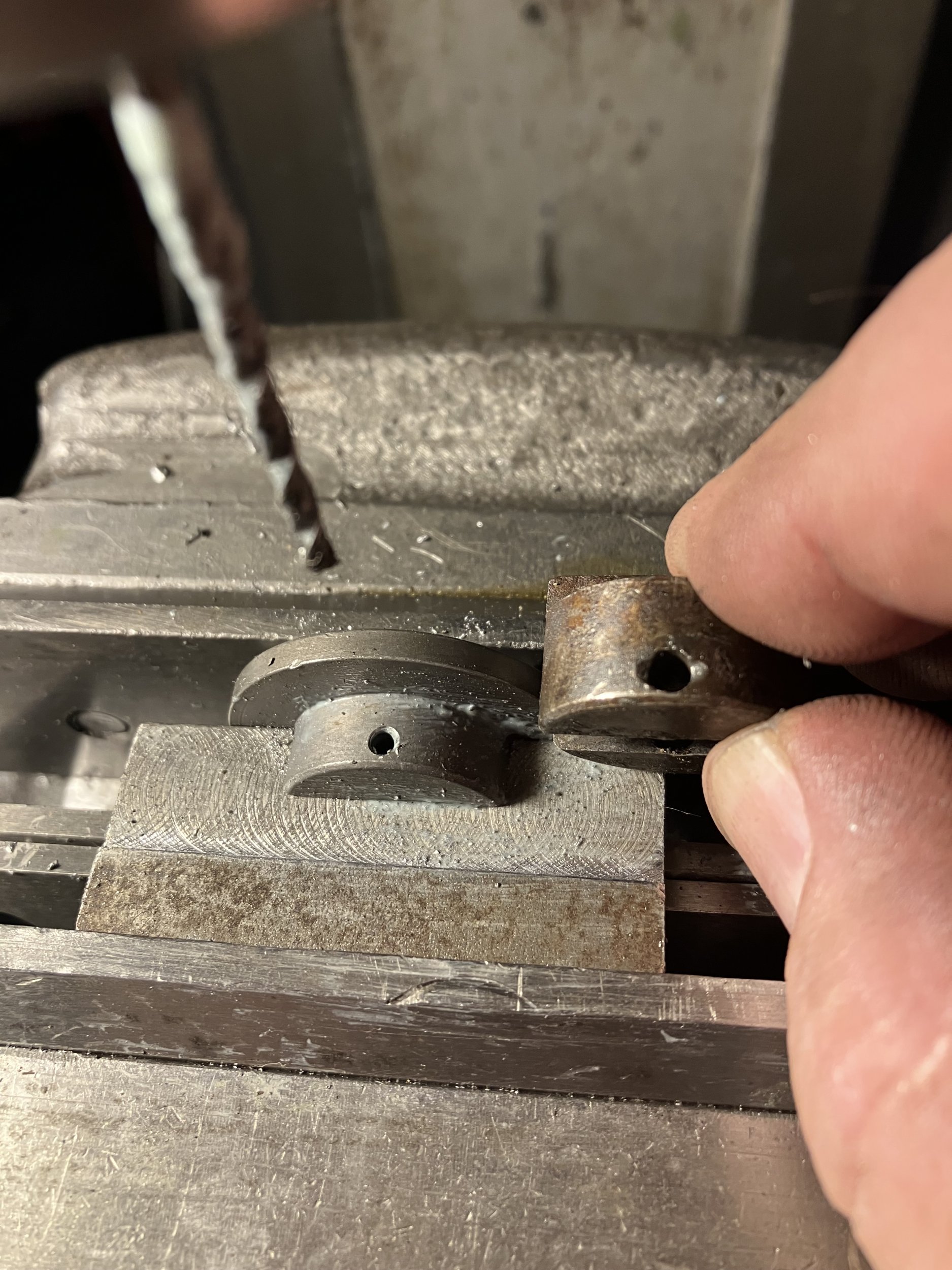

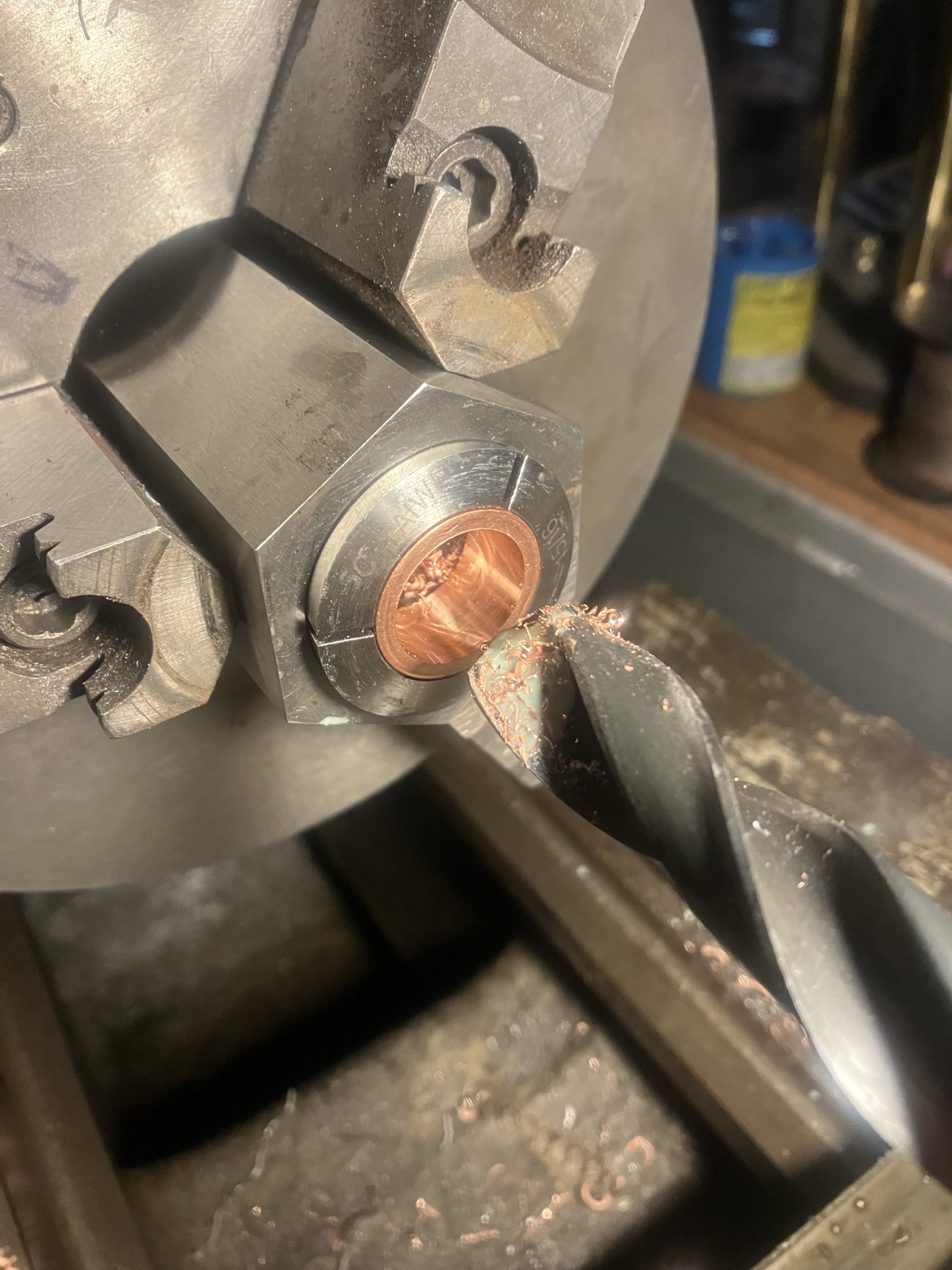

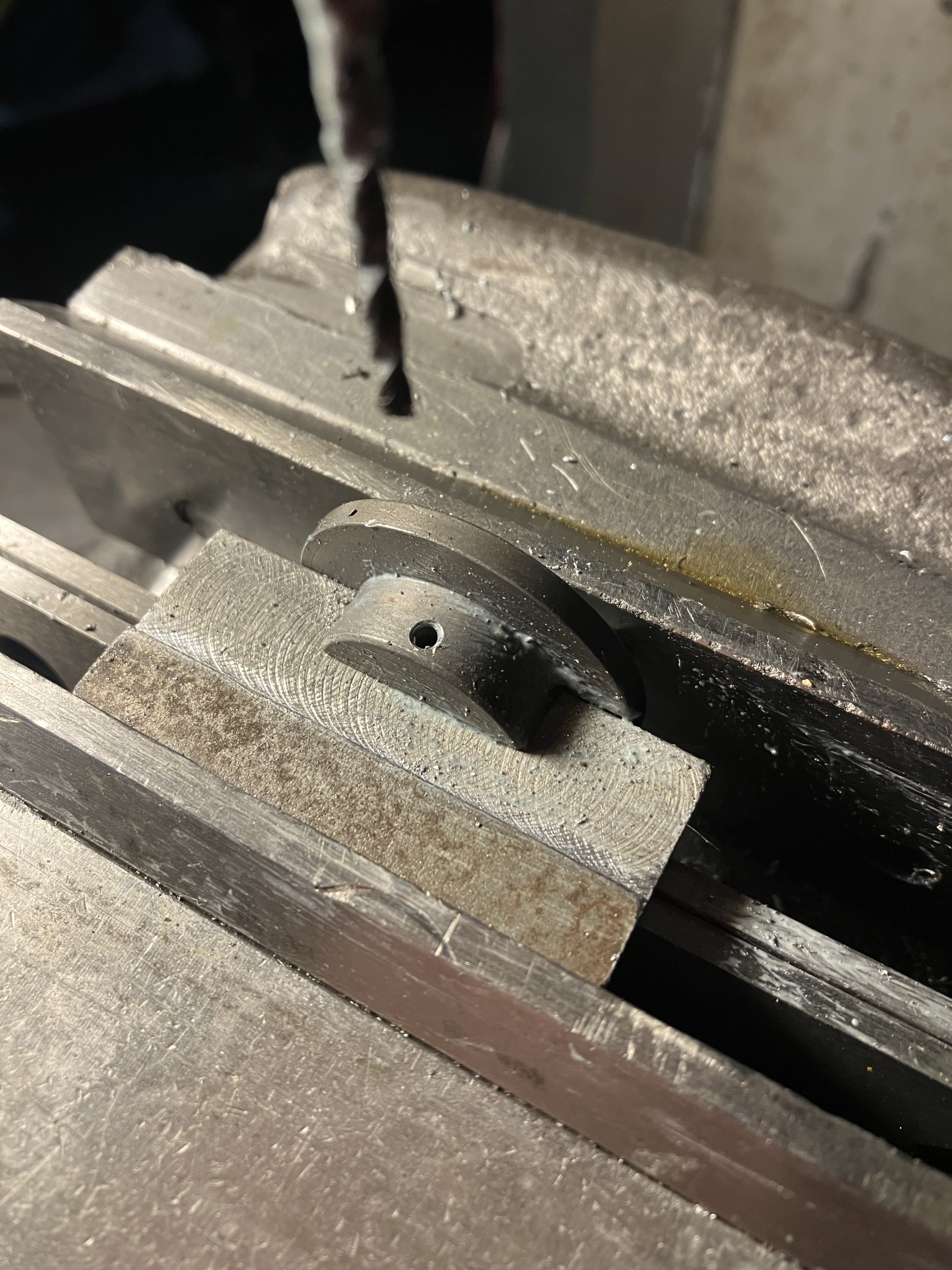

    Never had luck drilling copper washers but I had sealing washers from a kit and put them in a collet together and then drilled them out

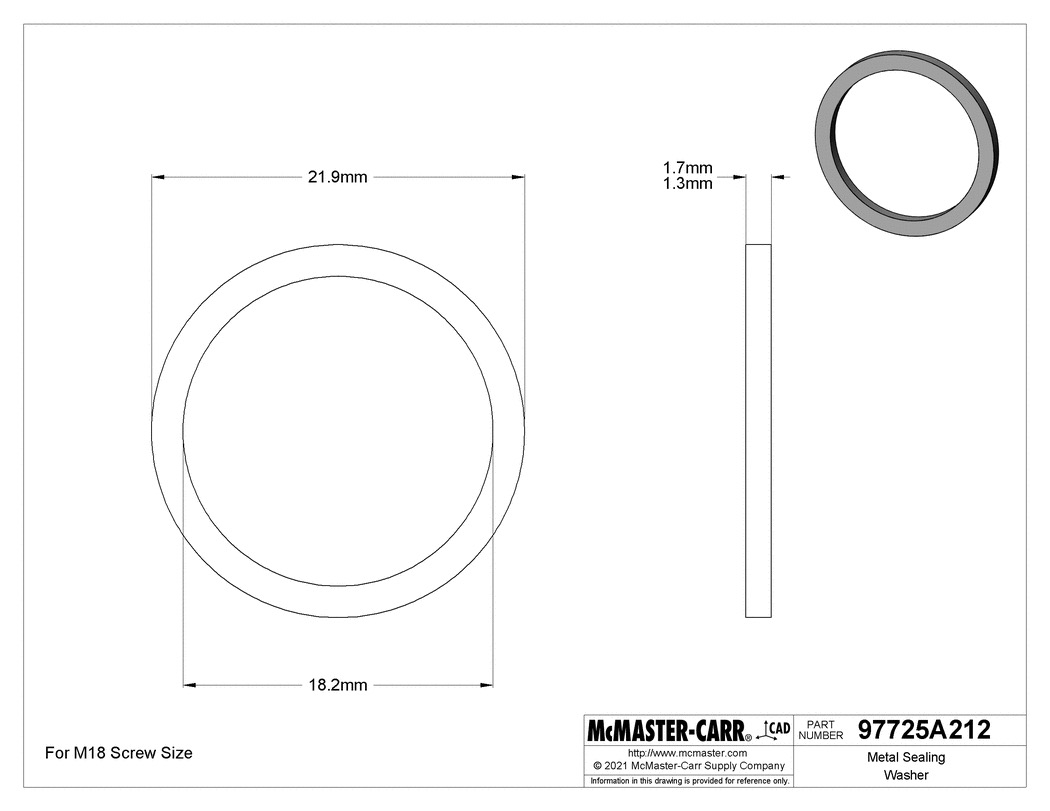

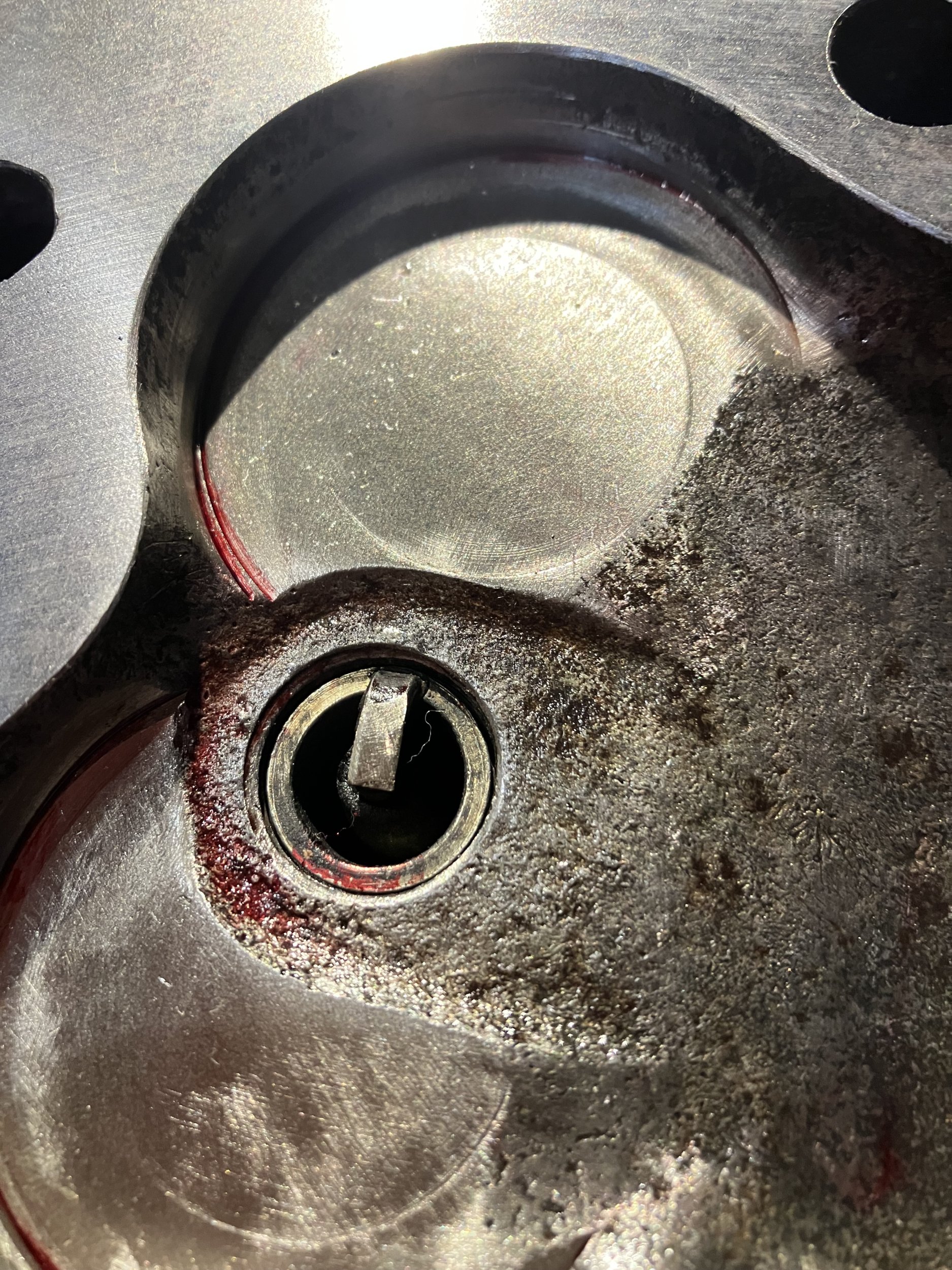

    Worked great they are.055” thick IMG_6012.jpeg IMG_6013.jpeg IMG_6014.jpeg IMG_6015.jpeg I also bought some of these IMG_6057.jpeg took the fuel pumps that I had bought at the swap meet and installed new diaphragms that are supposed to be ethanol compatible

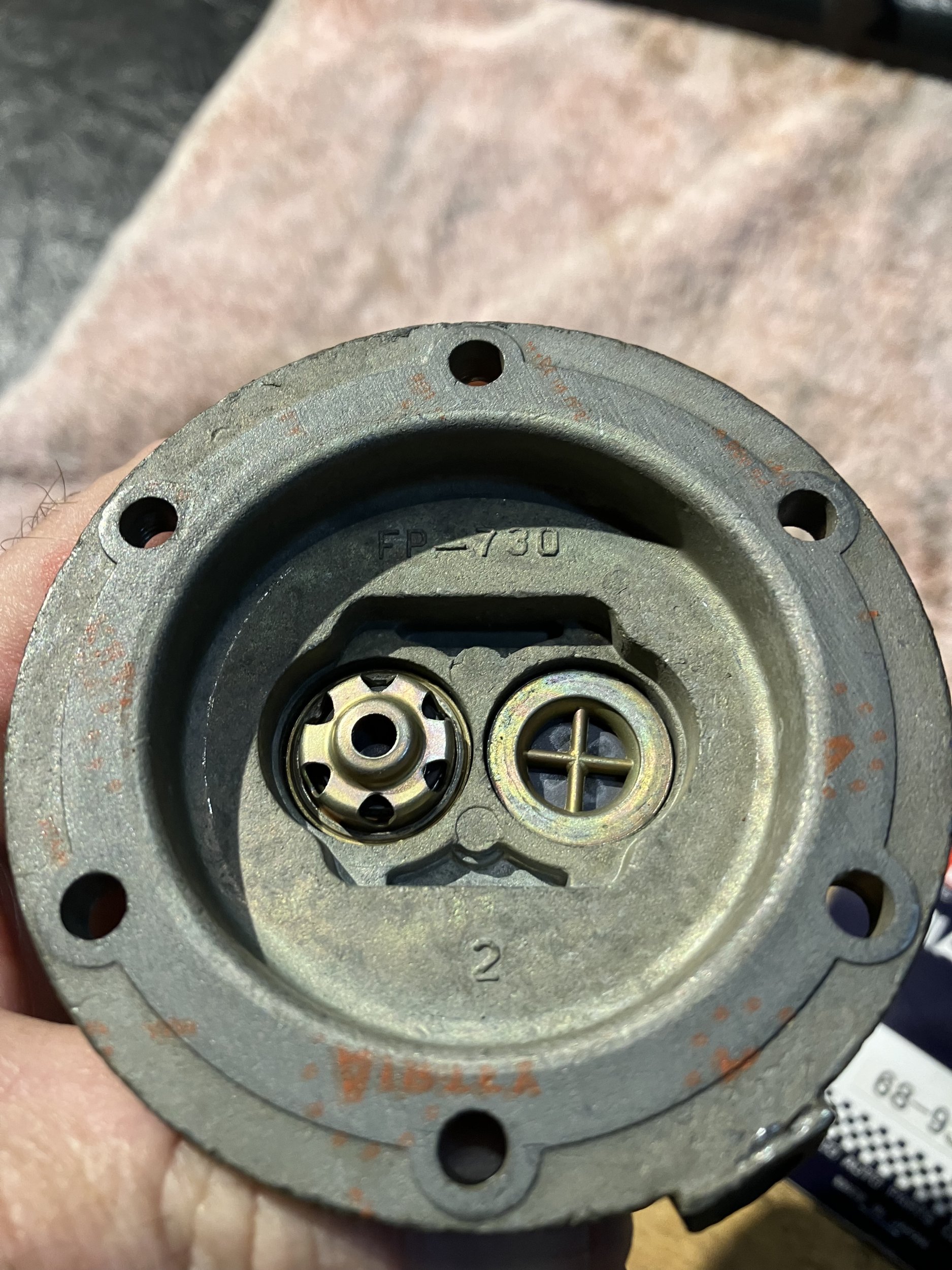

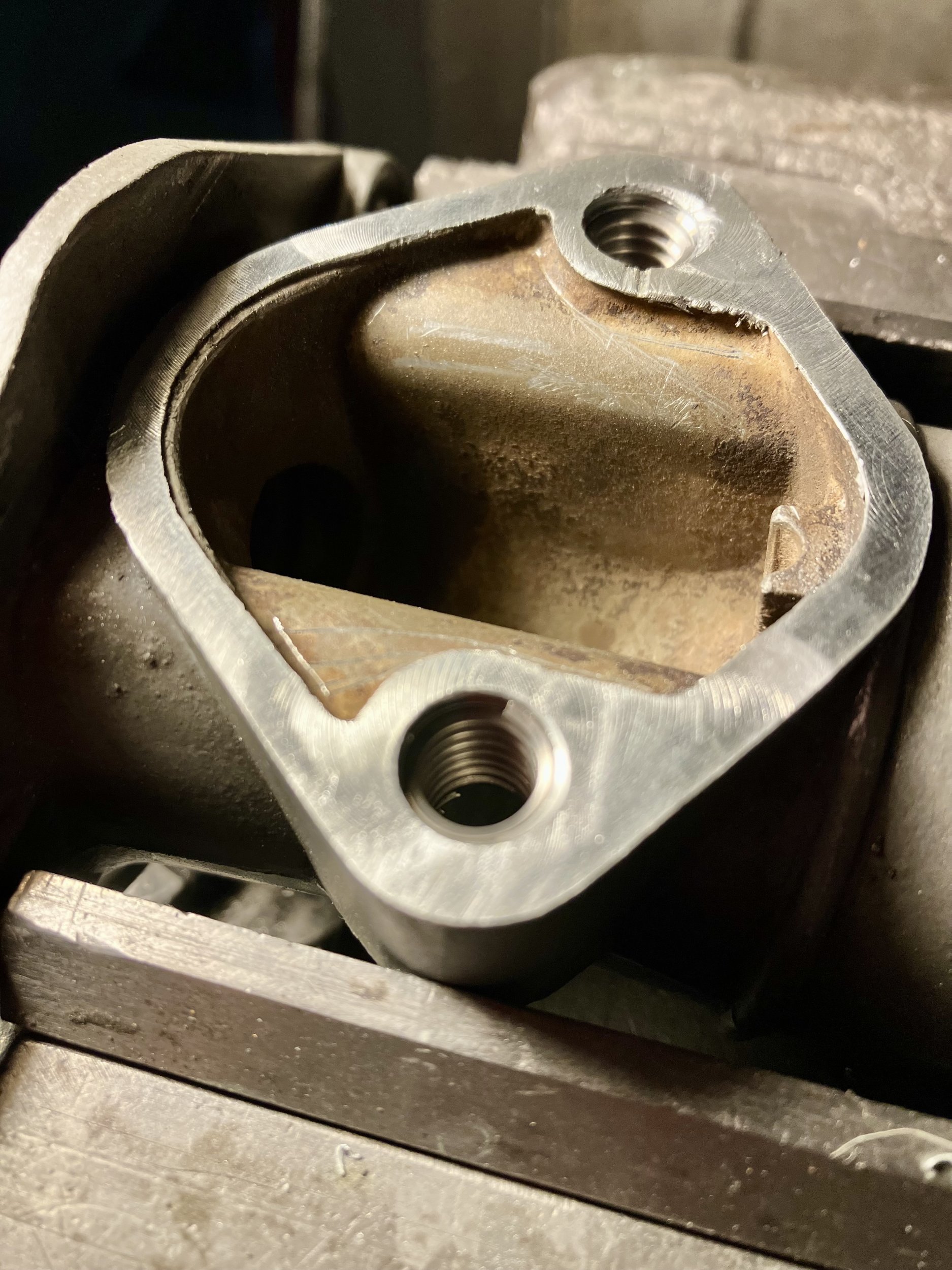

    The fuel pumps were brand new on the inside IMG_6001.jpeg IMG_6002.jpeg Hot humid summer weather has settled in so I may keep the engine in the climate controlled basement for a while until I am totally ready to get it running on the run stand
    May switch my efforts to exploring the’35 motor

    Bigcheese327, rwrj and fatassbuick like this.
  2. Started some disassembly on the’35
    I am determined to do this in a nondestructive fashion
    Took 3 hours to get the first head off only hour and a half for the second

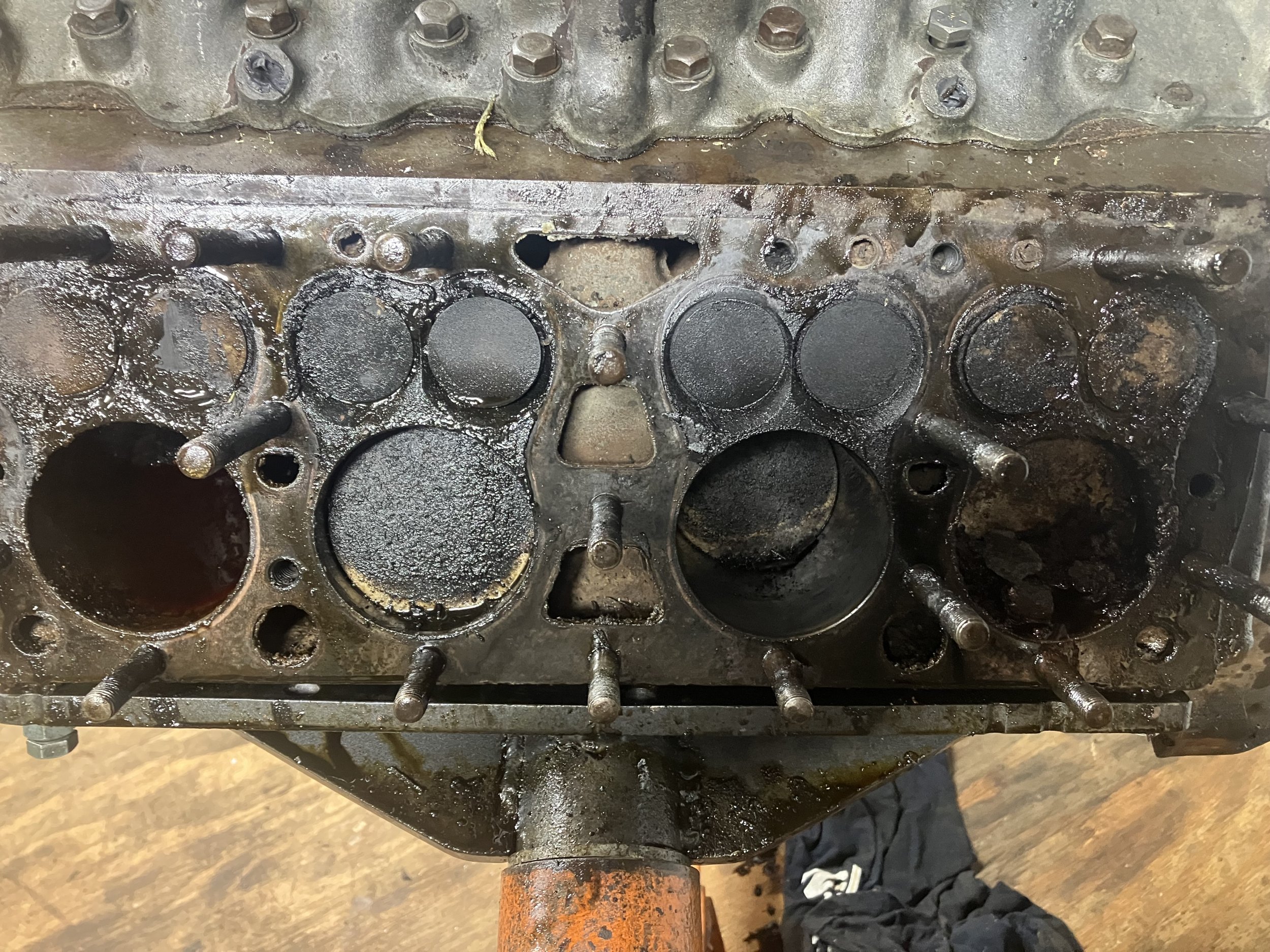

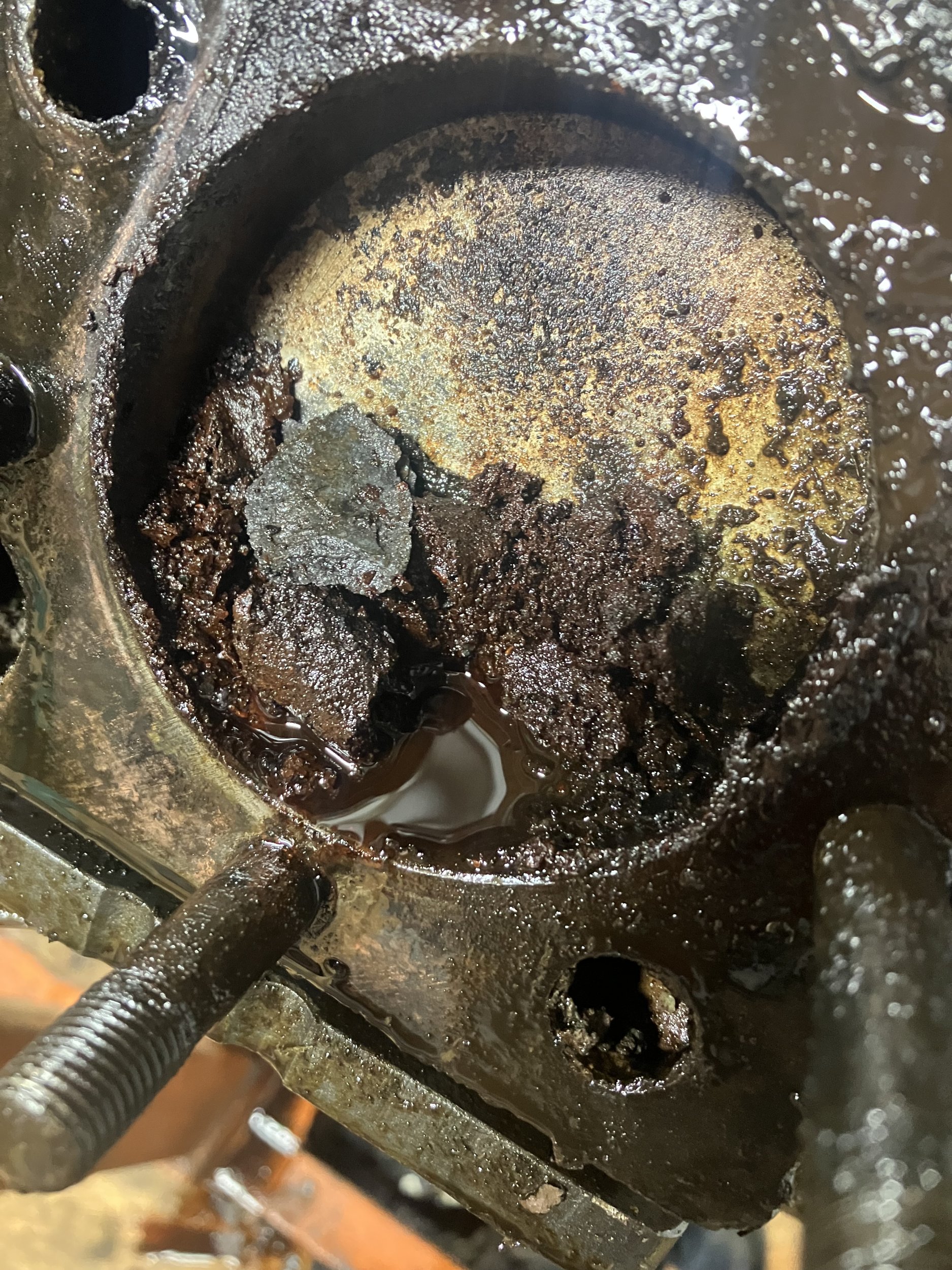

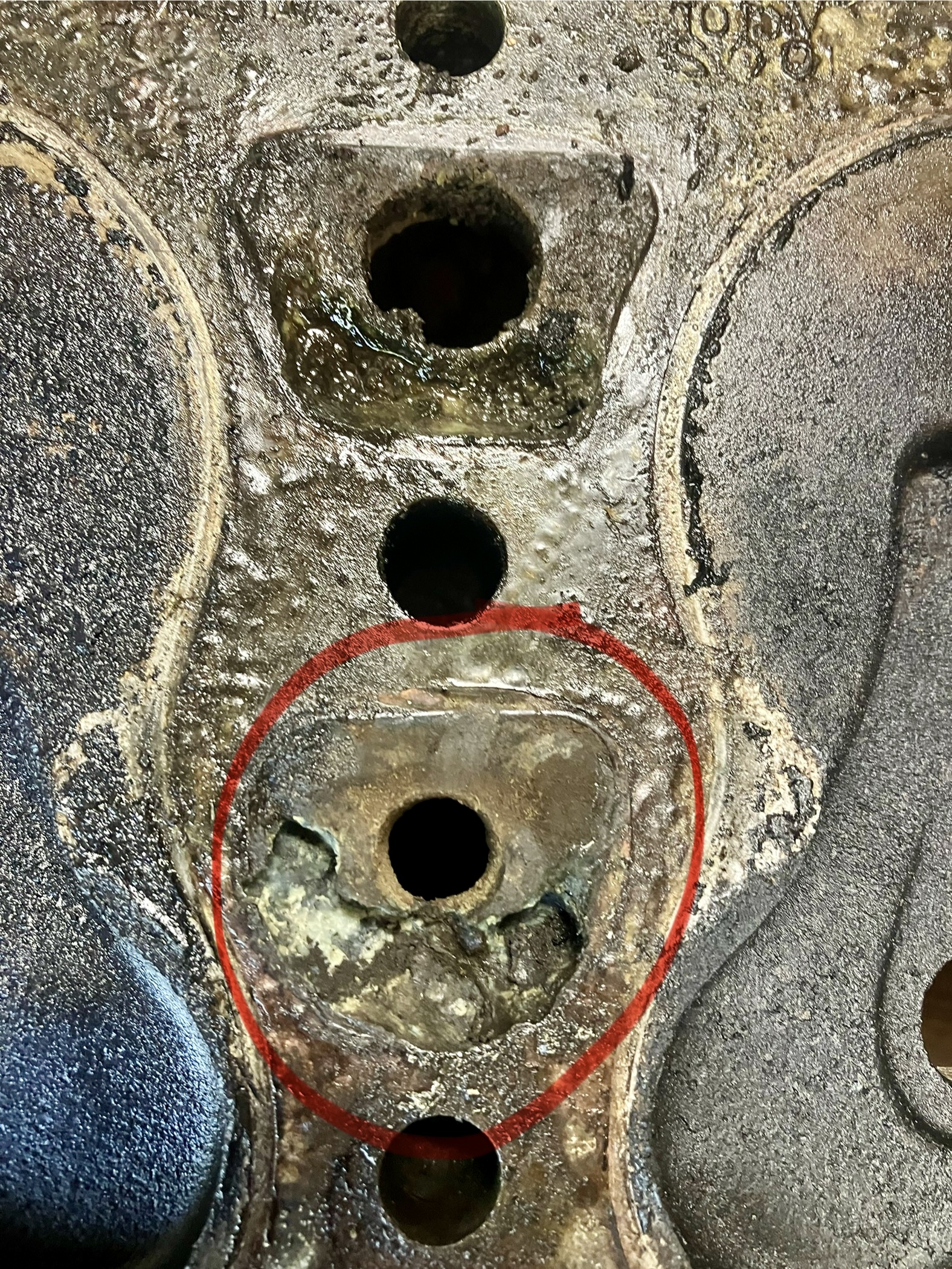

    First look IMG_6061.jpeg IMG_6060.jpeg to be expected the aluminum heads have deep corrosion IMG_6080.jpeg IMG_6079.jpeg I am thinking for a running exhibit I can fill the corrosion holes with aluminum epoxy and mill flat
    If I want a road worthy engine I actually have a good set of flat top cast iron heads I had bought for the’34 before I switched to the dome pistons
    Determined that I had three stuck pistons and one stuck valve
    Worked on the valve first
    It was stuck open so was able to rotate the valve and work it loose
    Some how during working on it or maybe it was already I broke the valve spring
    Tried hitting the valve guide with one of those c shaped tools that go around the valve head to remove the valve guide but it appears to be super tight
    I think I can put in a valve spring the way it is

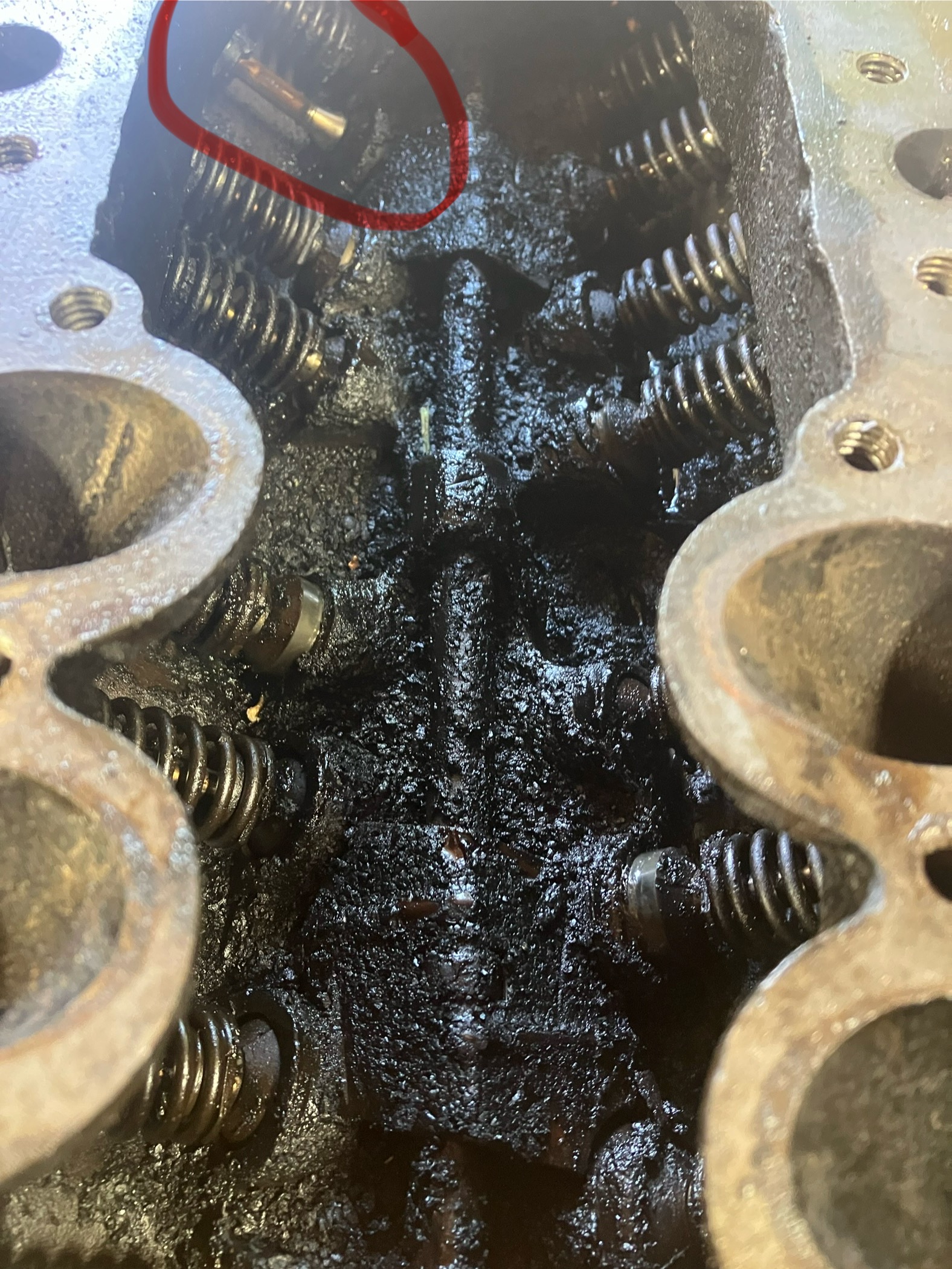

    I know I removed valve springs when I was disassembling the’34 IMG_6082.jpeg as for the stuck pistons I just started hammering the tops of the pistons with a piece of oak and also hammering on a wrench on a grade 8 bolt that I had in the end of the crank also used a cylinder hone to clean up the walls
    After about 2 hours I have a free turning motor with all the valves going up and down
    Just as a side note I was getting a noise every 2nd revolution determined that because I am missing one valve spring you get backlash in the cam gear
    Then removed the oil pan
    At this point it needs a good cleaning but I have done a quick examination

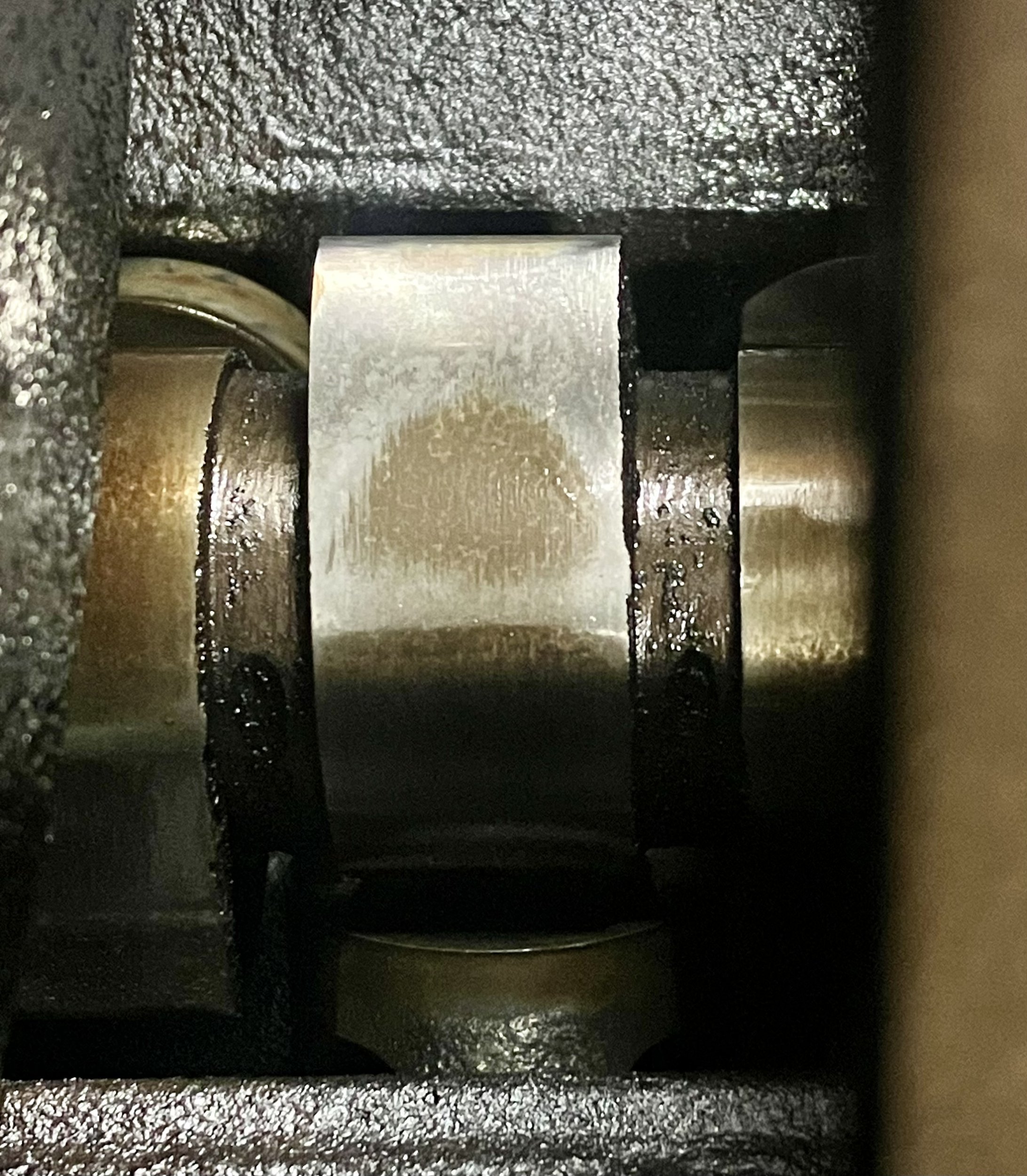

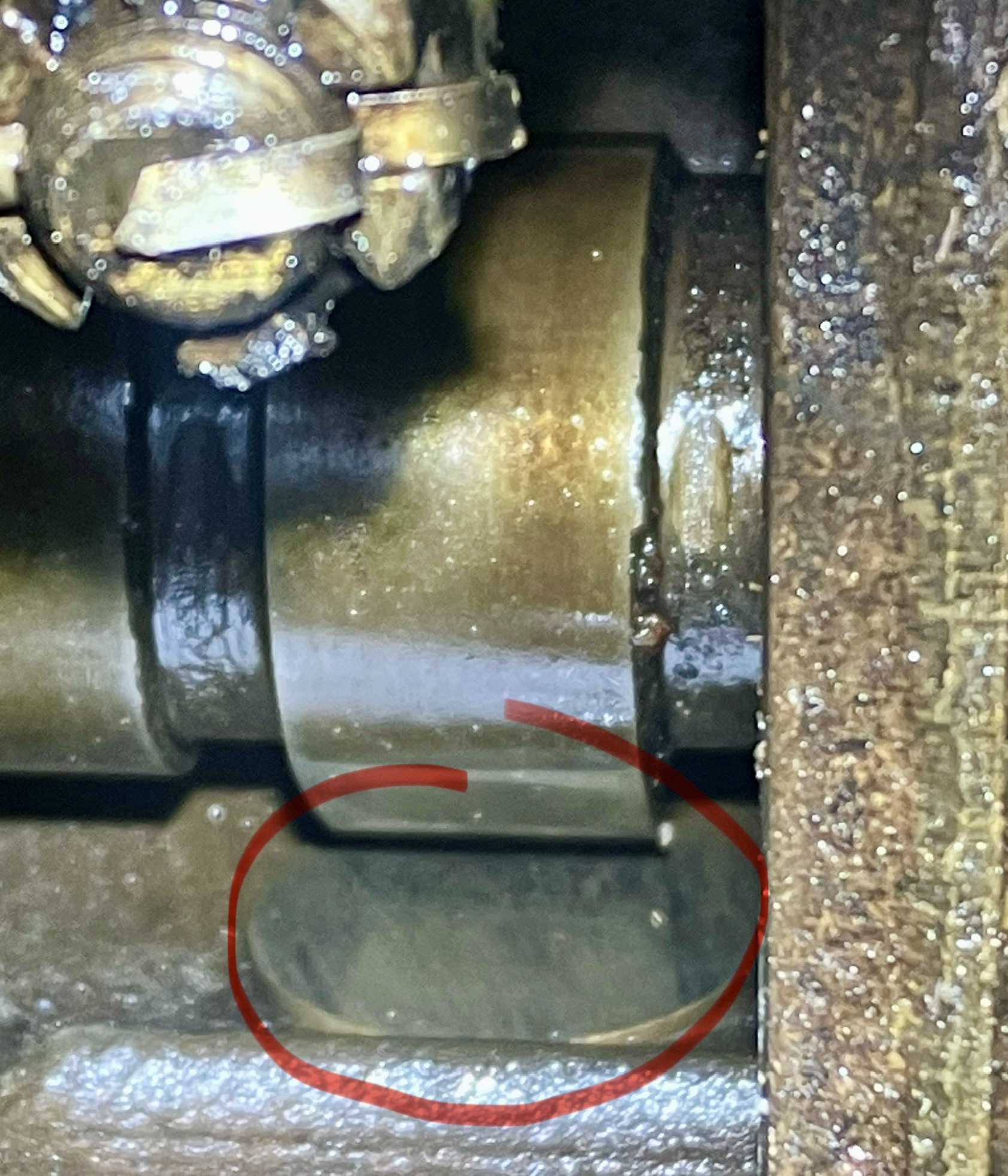

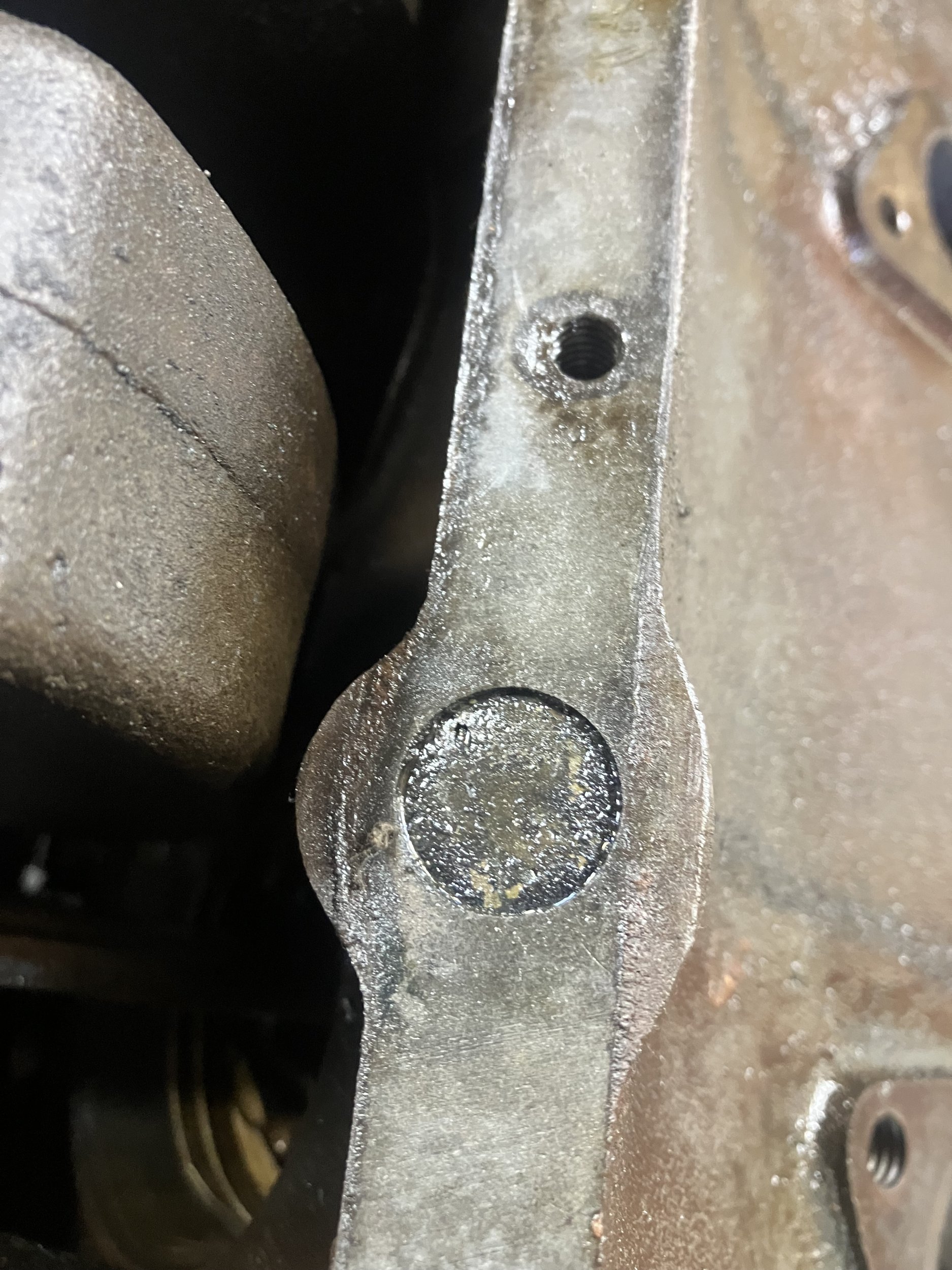

    The camshaft looks excellent IMG_6089.jpeg as do the lifters IMG_6094.jpeg the core plugs in the pan rail look excellent IMG_6095.jpeg the connecting rods have no witness marks no punch marks no number stamps nothing
    It’s like it’s a new motor except there is about 3 inches of sludge in the bottom of the pan
    The oil pump seems to be stuck in place but I did remove the suction screen and end plate the gears look excellent
    I wish these motors could talk cause now we get to the pistons

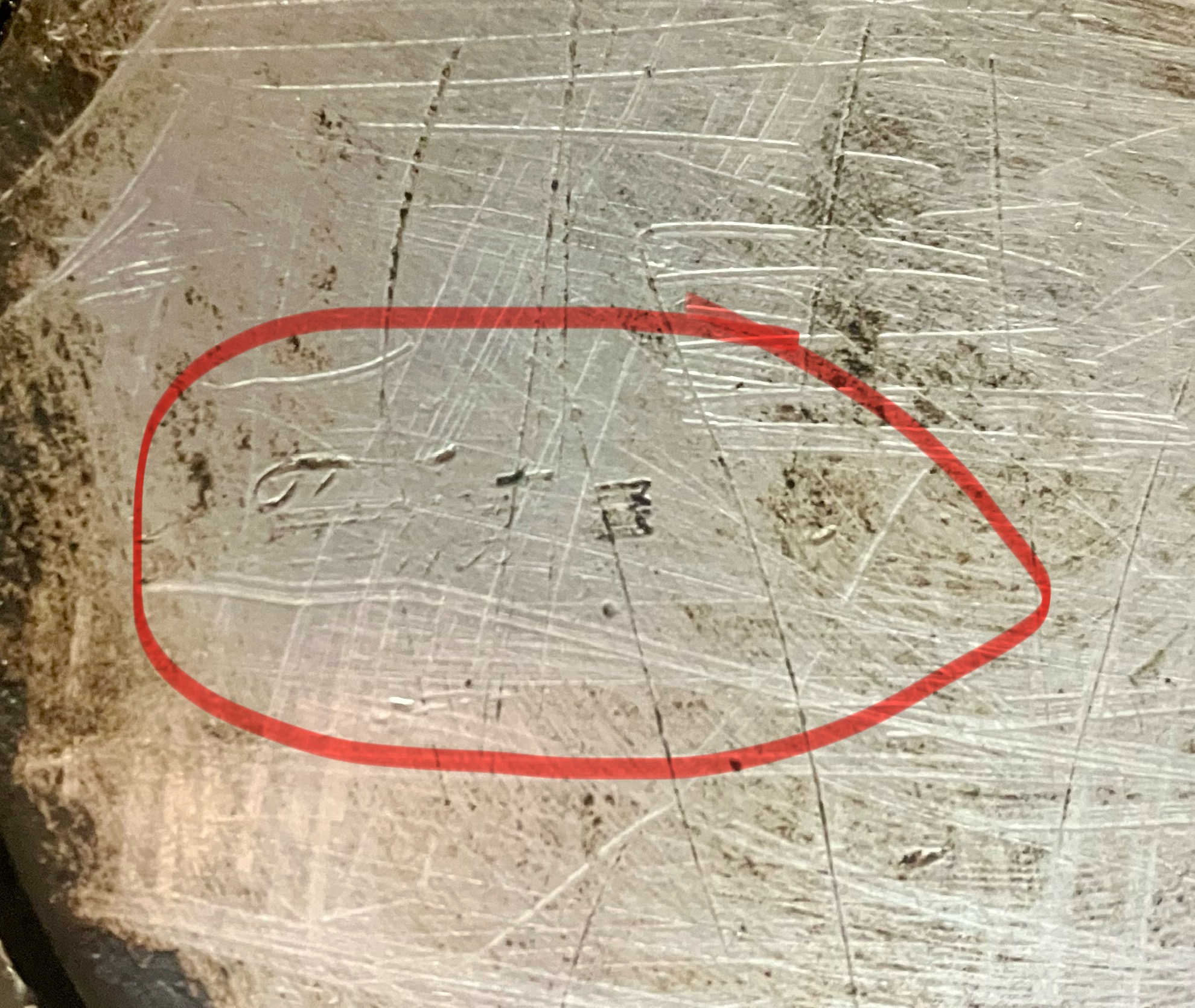

    The pistons don’t have any markings other than a faint ford script IMG_6078.jpeg so okay you figure factory piston must be standard size

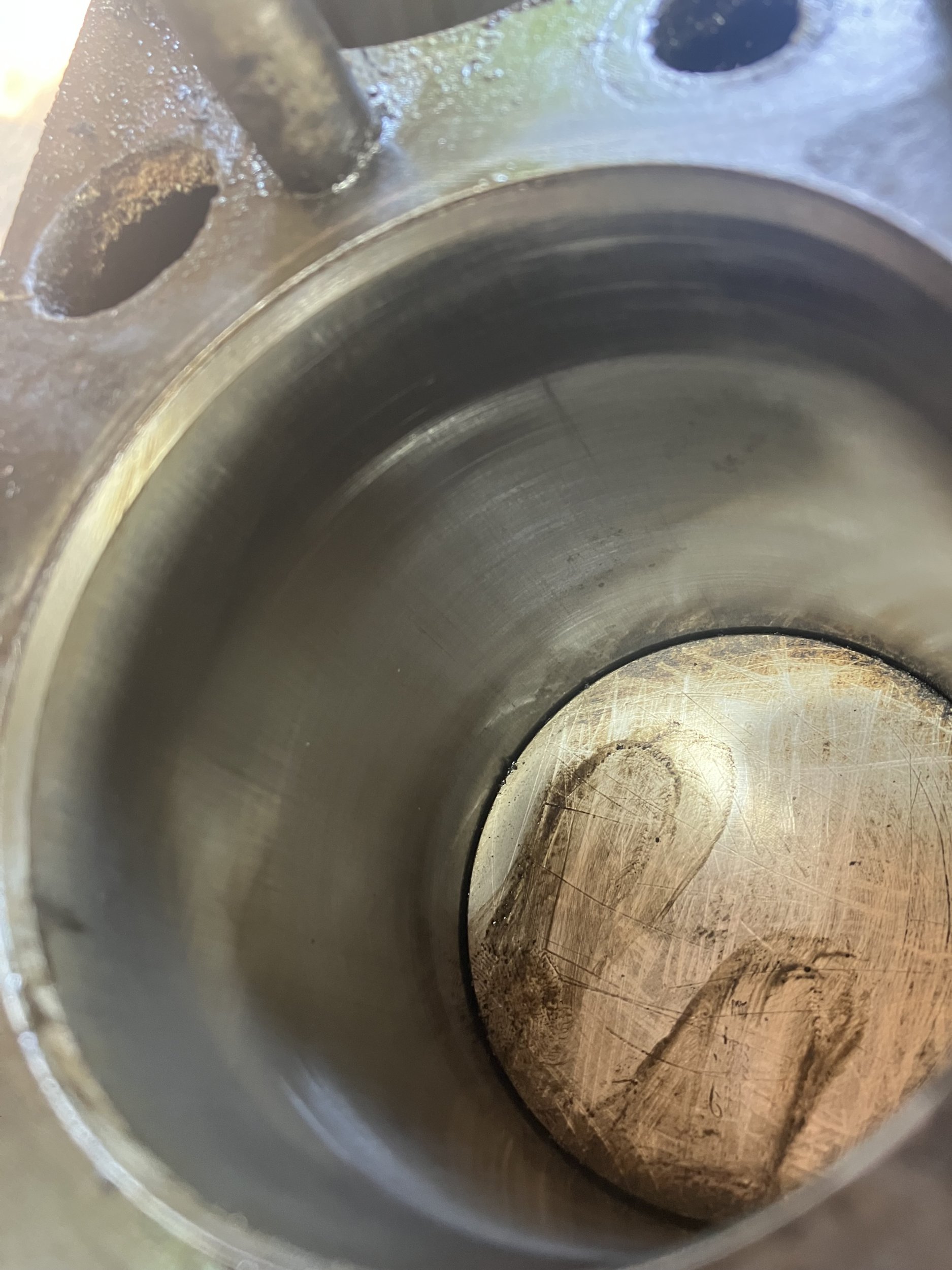

    The bore is measuring.010” oversize above the ring groove at the top of the bore and at the bottom of the bore and a big taper in between with clean wear pattern IMG_6081.jpeg this motor sure looks like it has never been apart before but here is the real mystery IMG_6090.jpeg it has the piston expanders
    Was this a reject motor that they put.010” over pistons with the spring expanders?
    My plans are to clean up the motor
    Remove 2 rods so I can measure the crank
    Look at one of the main bearings
    Remove one piston to measure and look at the rings
    Take notes for future reference and then put it back together with a new gasket set

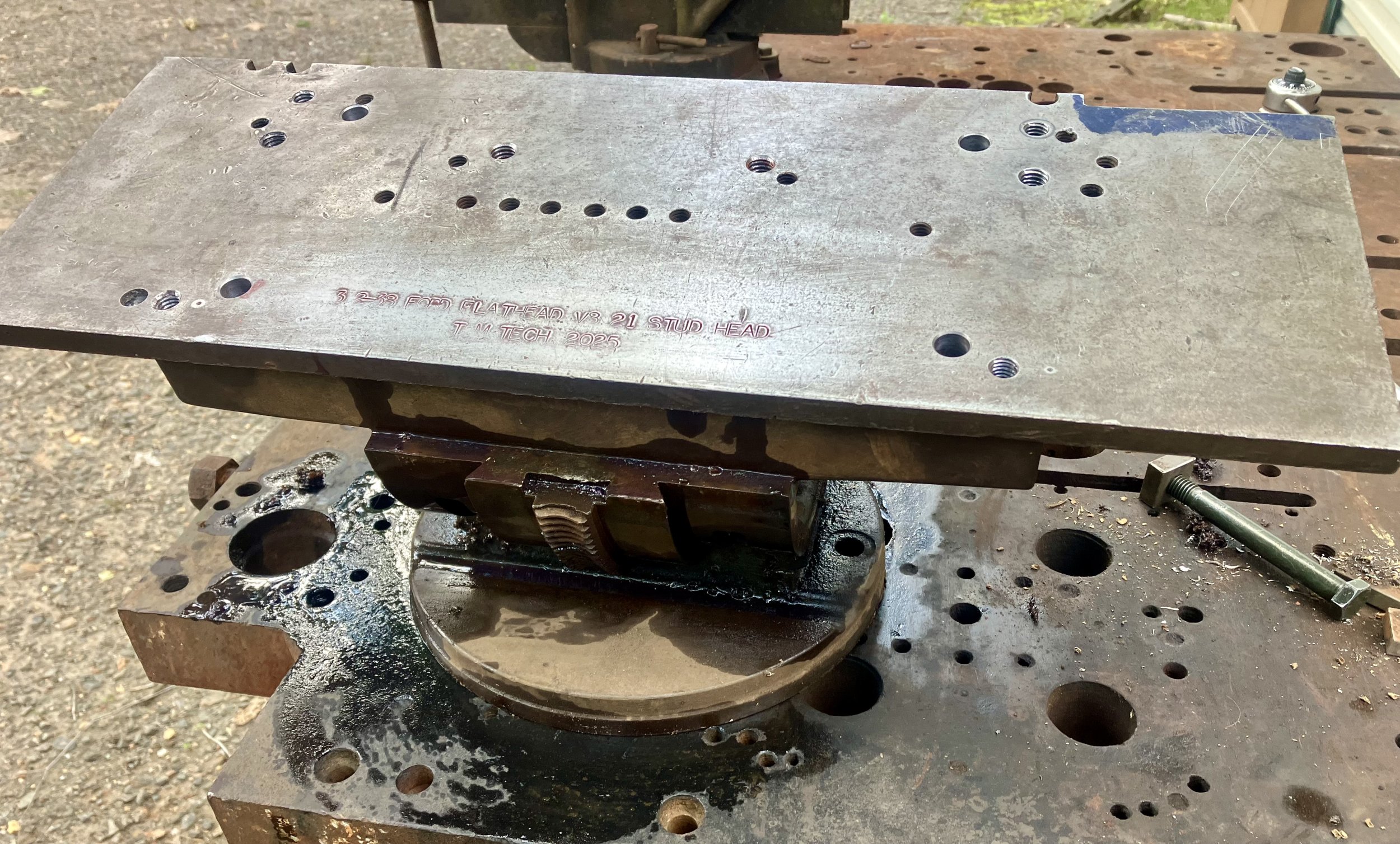

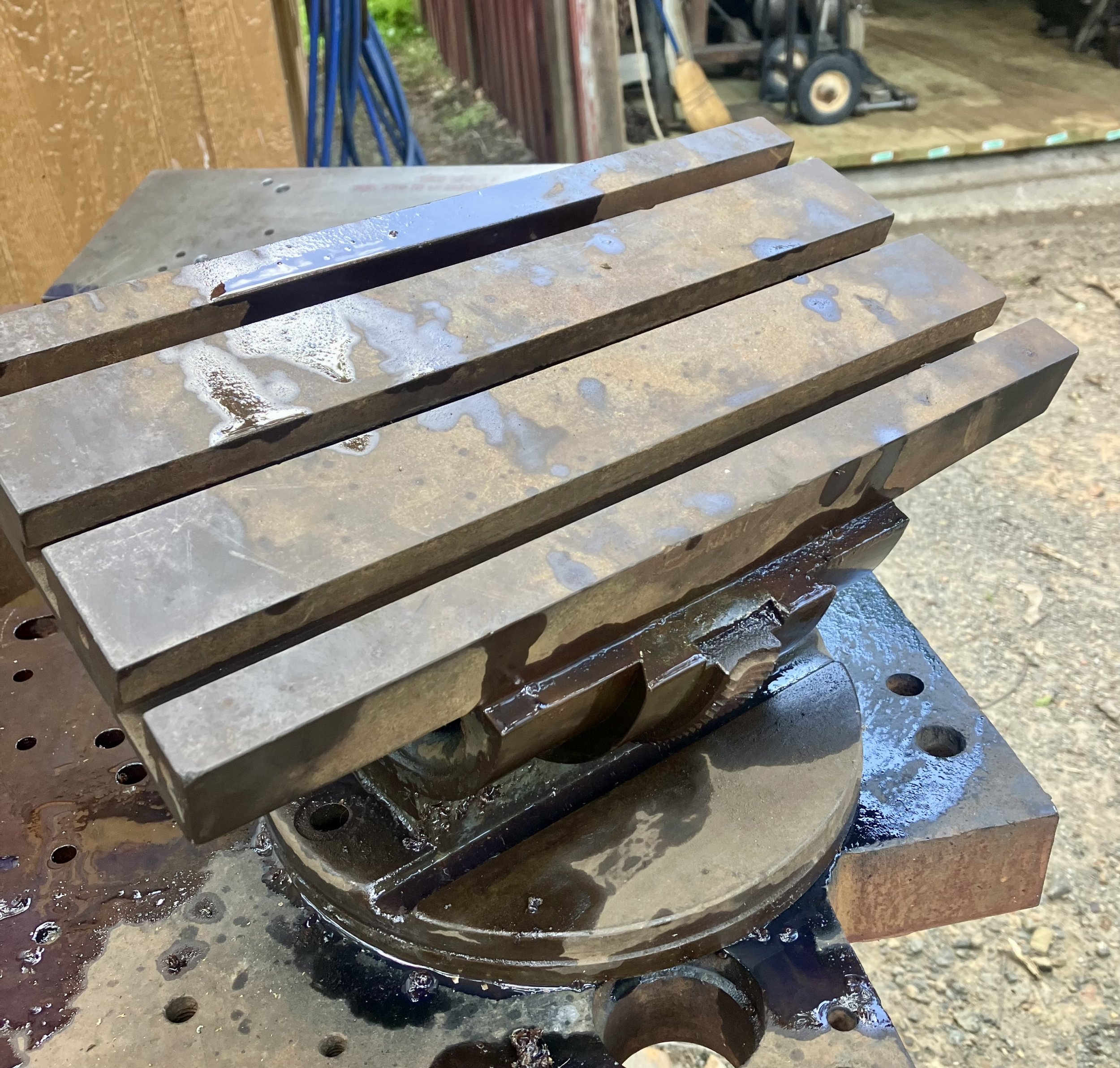

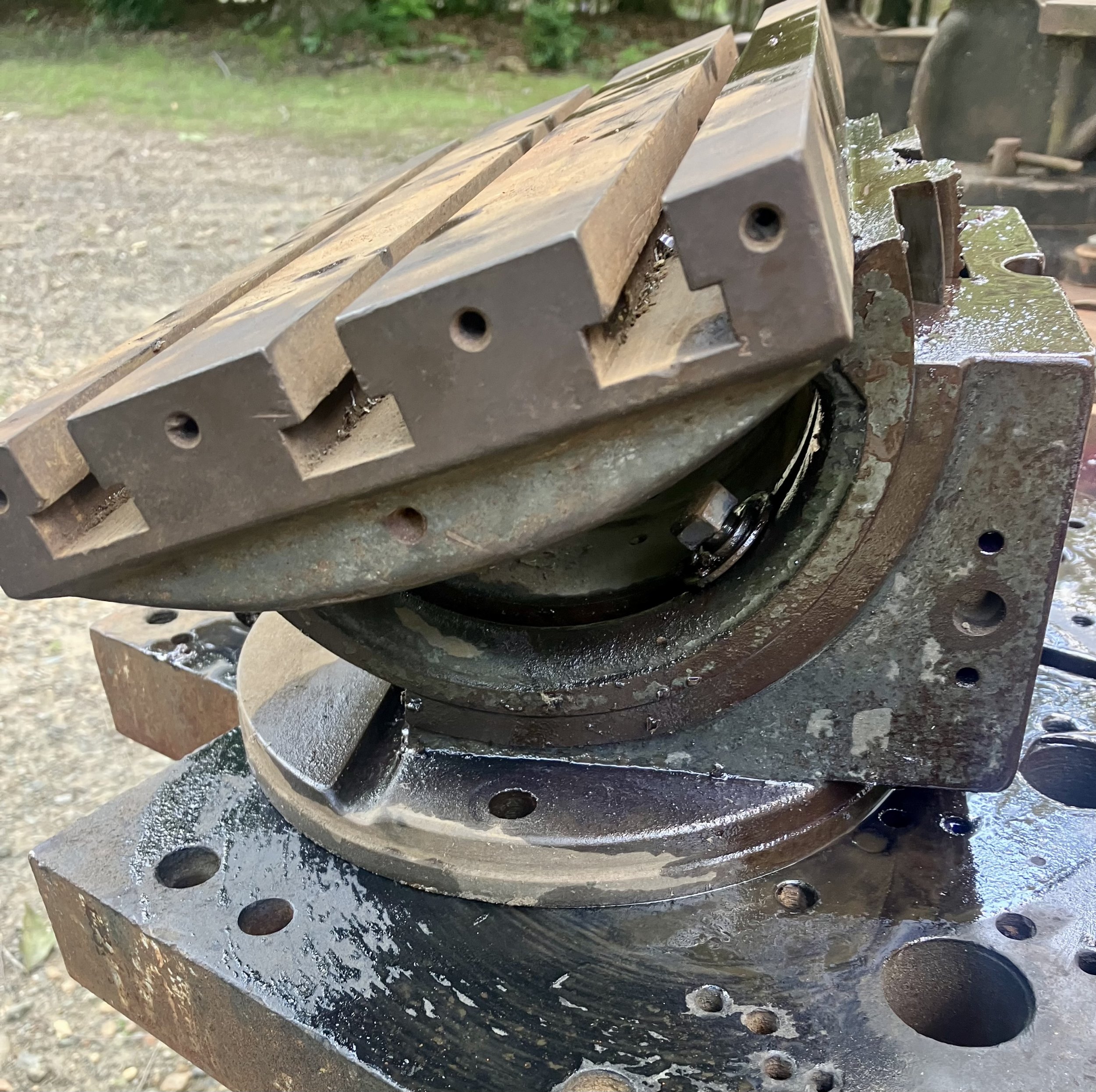

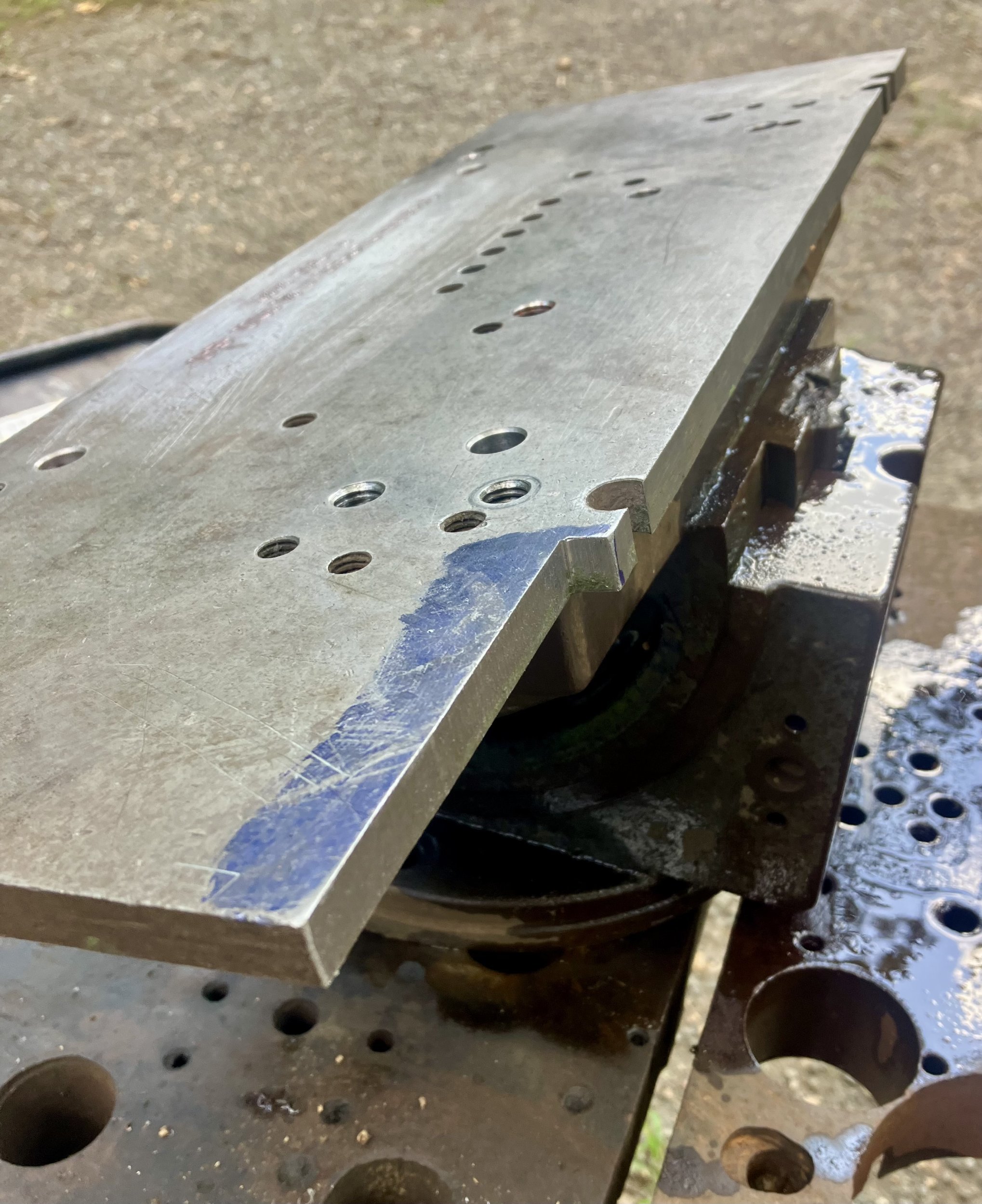

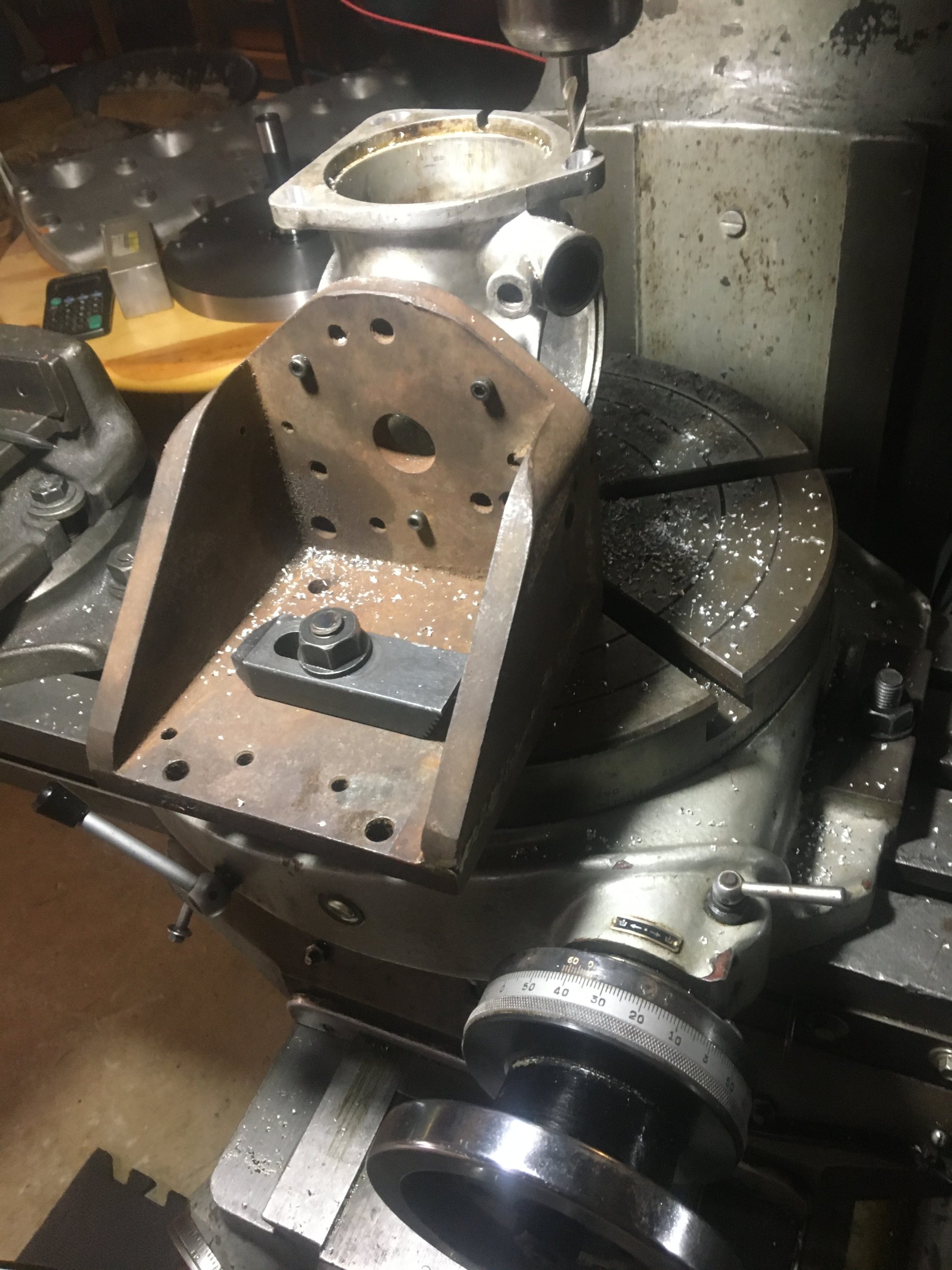

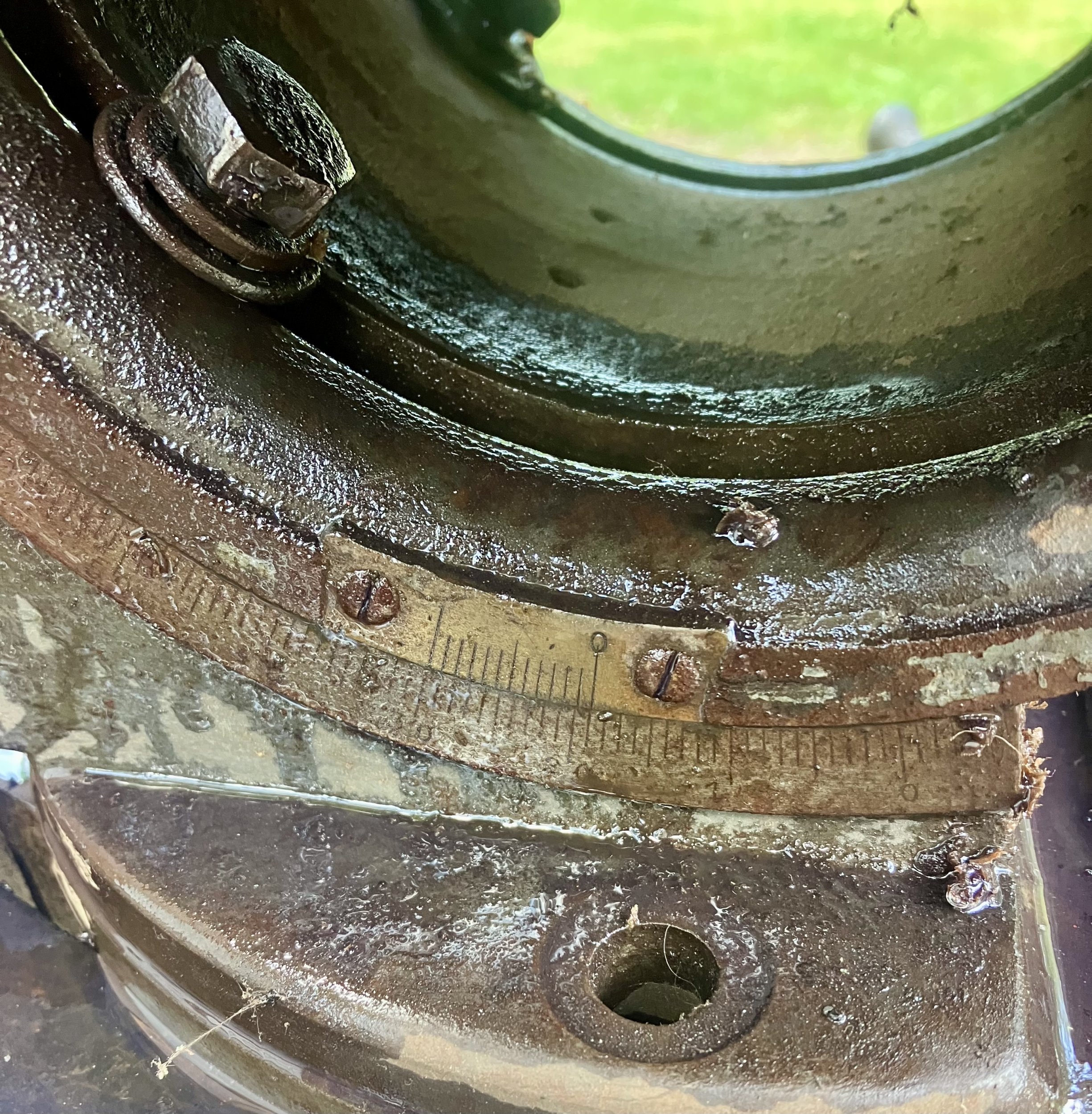

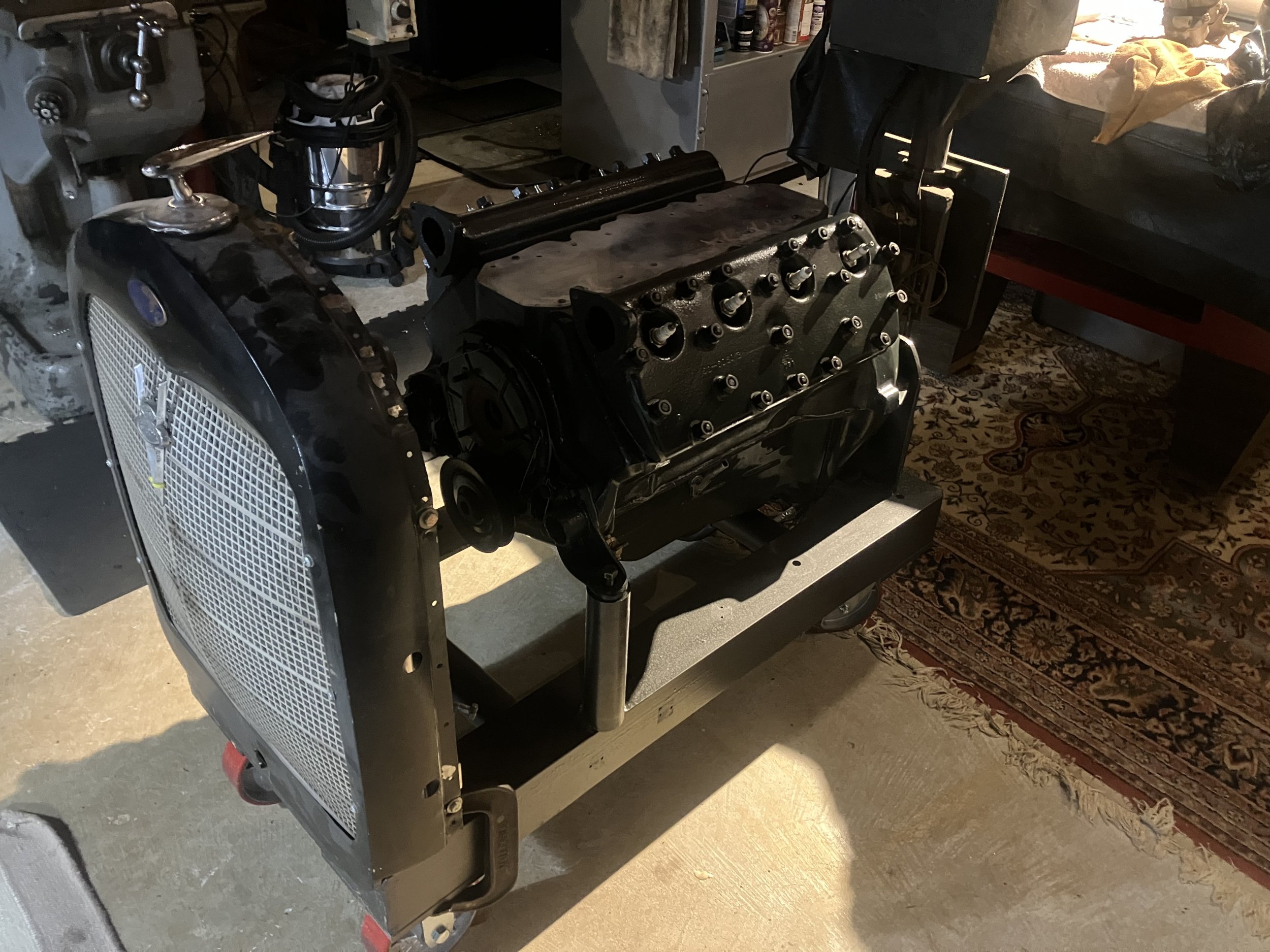

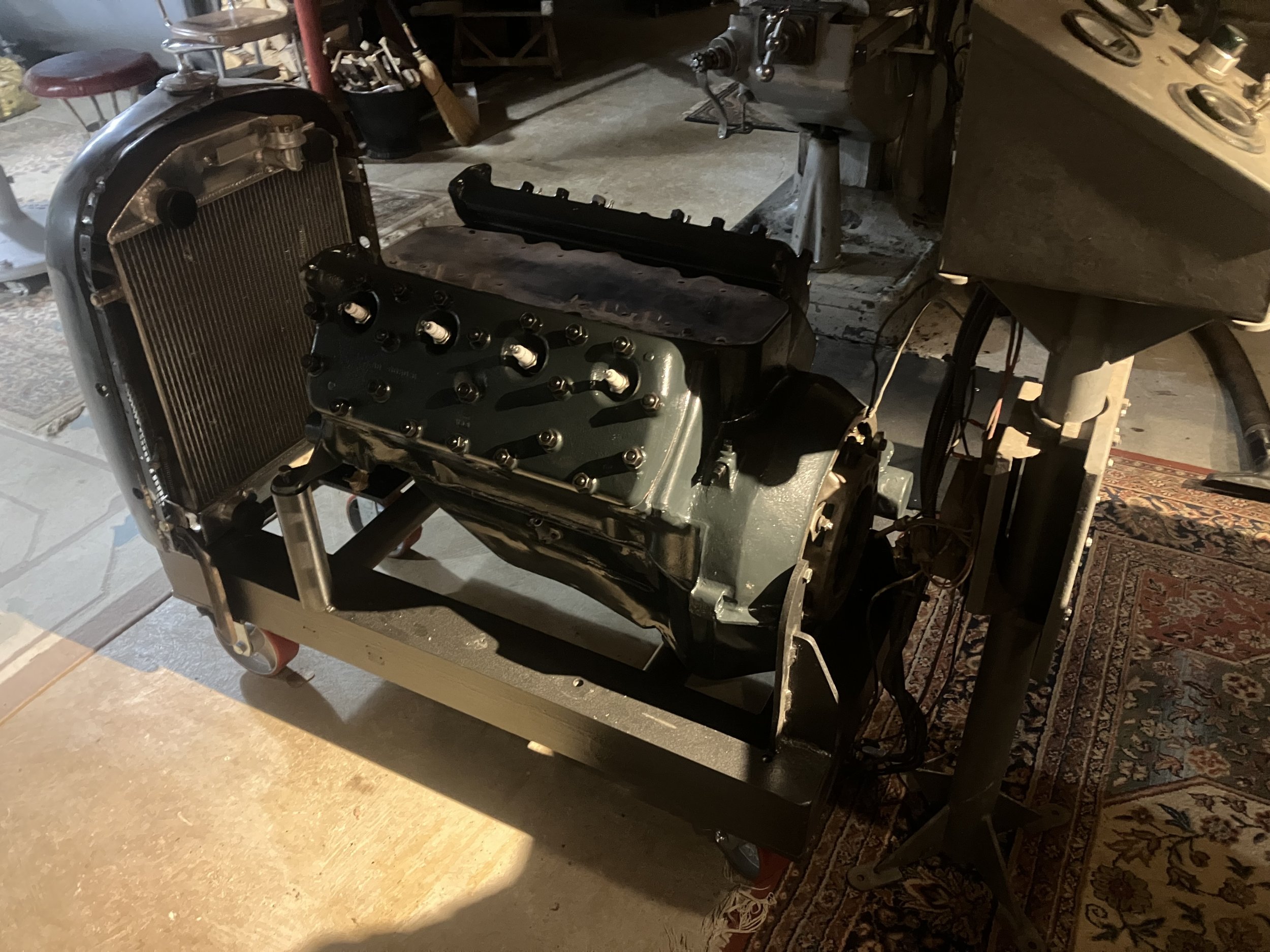

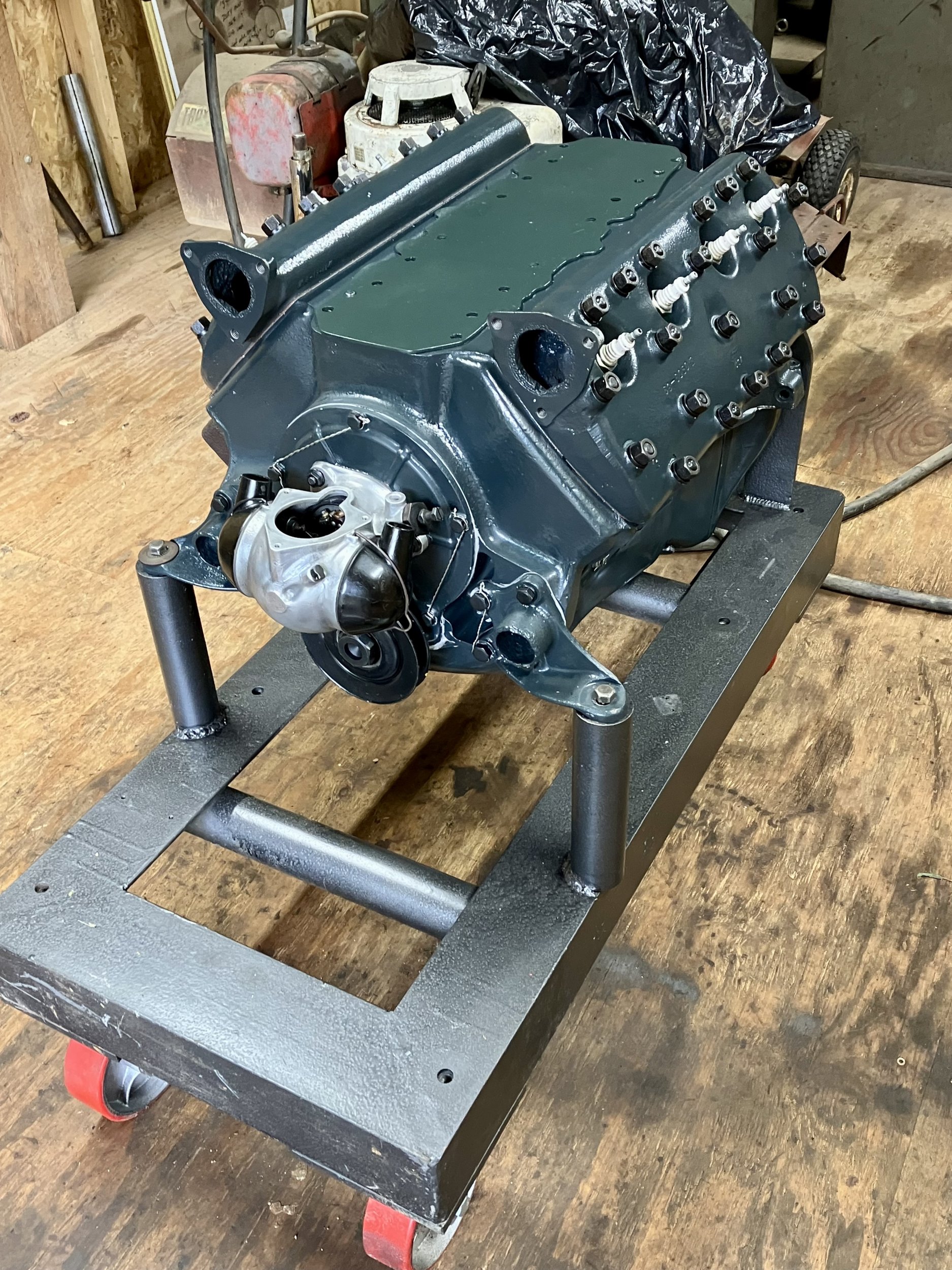

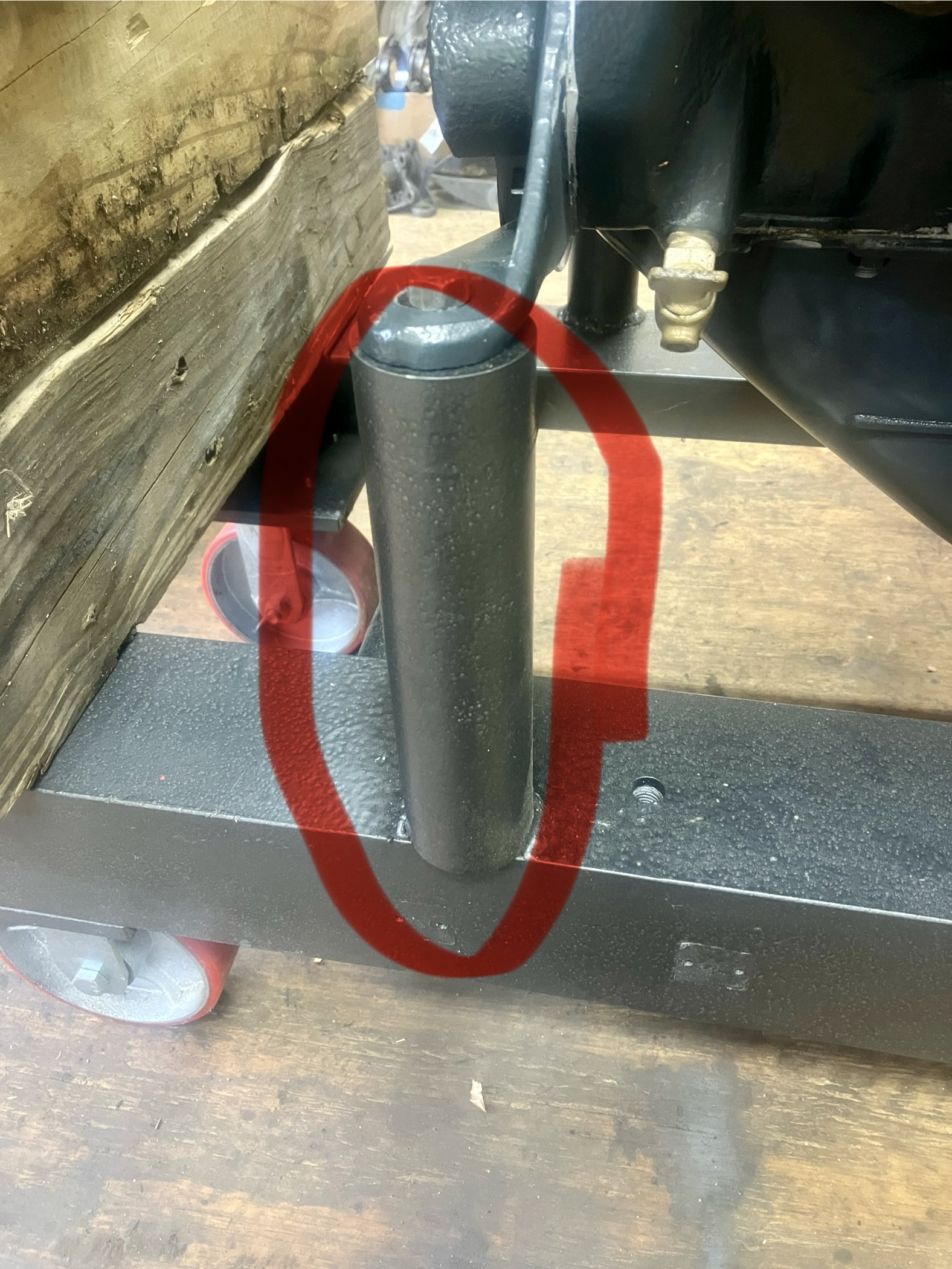

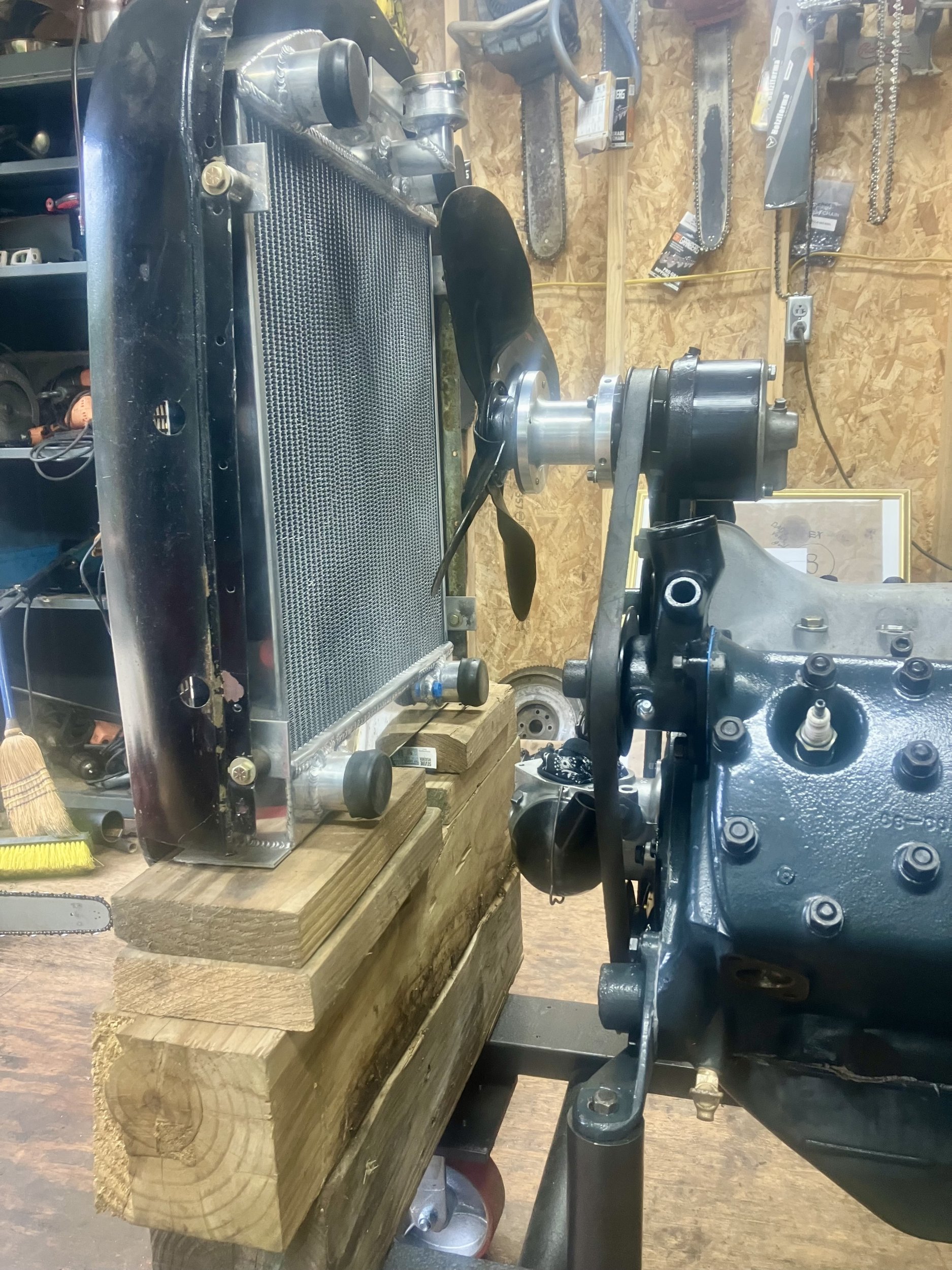

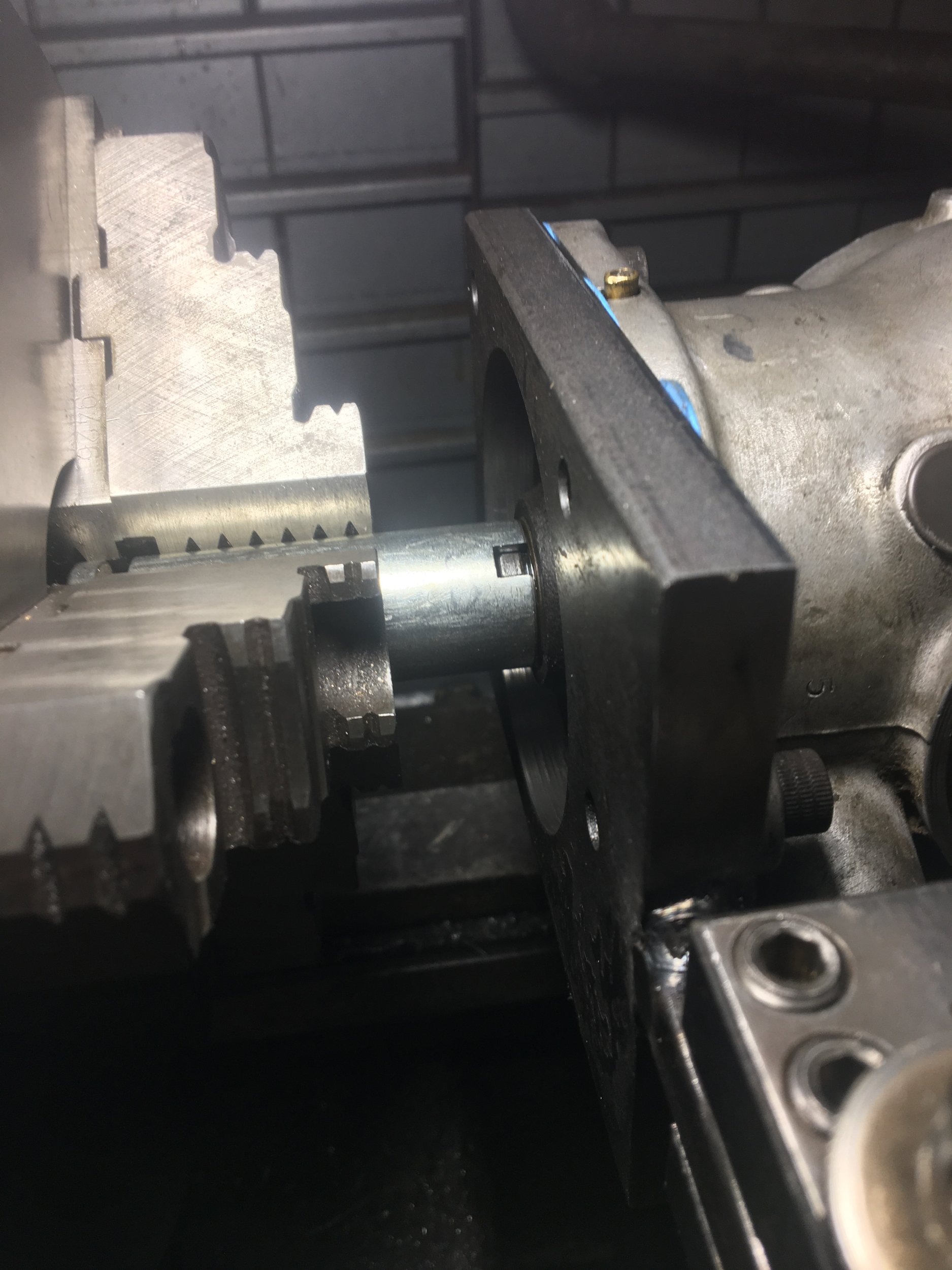

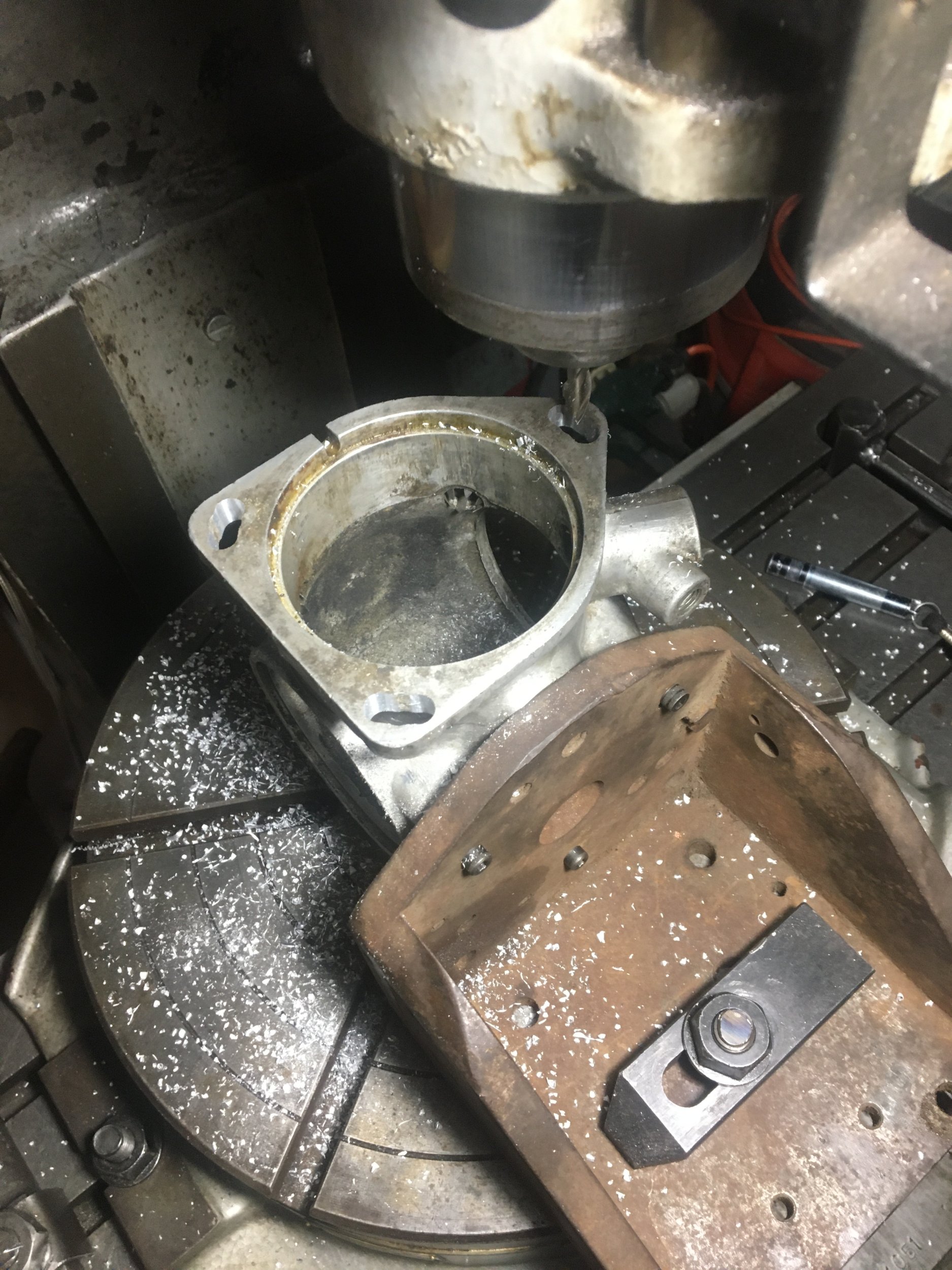

    Also in cleaning out the old shop I found this IMG_6083.jpeg IMG_6084.jpeg IMG_6085.jpeg I’m thinking I can mount my head fixture to this to get my valve pocket angles on the milling machine IMG_6086.jpeg IMG_6087.jpeg also doing some mockup on the’34 for run in stand IMG_6058.jpeg IMG_6059.jpeg

    rwrj likes this.
  3. What a beautiful morning
    Just got back from a motorcycle ride it’s been over a year since I’ve had the bike out been neglecting some of my other toys
    Someday hope to have the speedster out on a Sunday morning
    Back to the’35
    Used 4 cans of oven cleaner and the motor cleaned up good

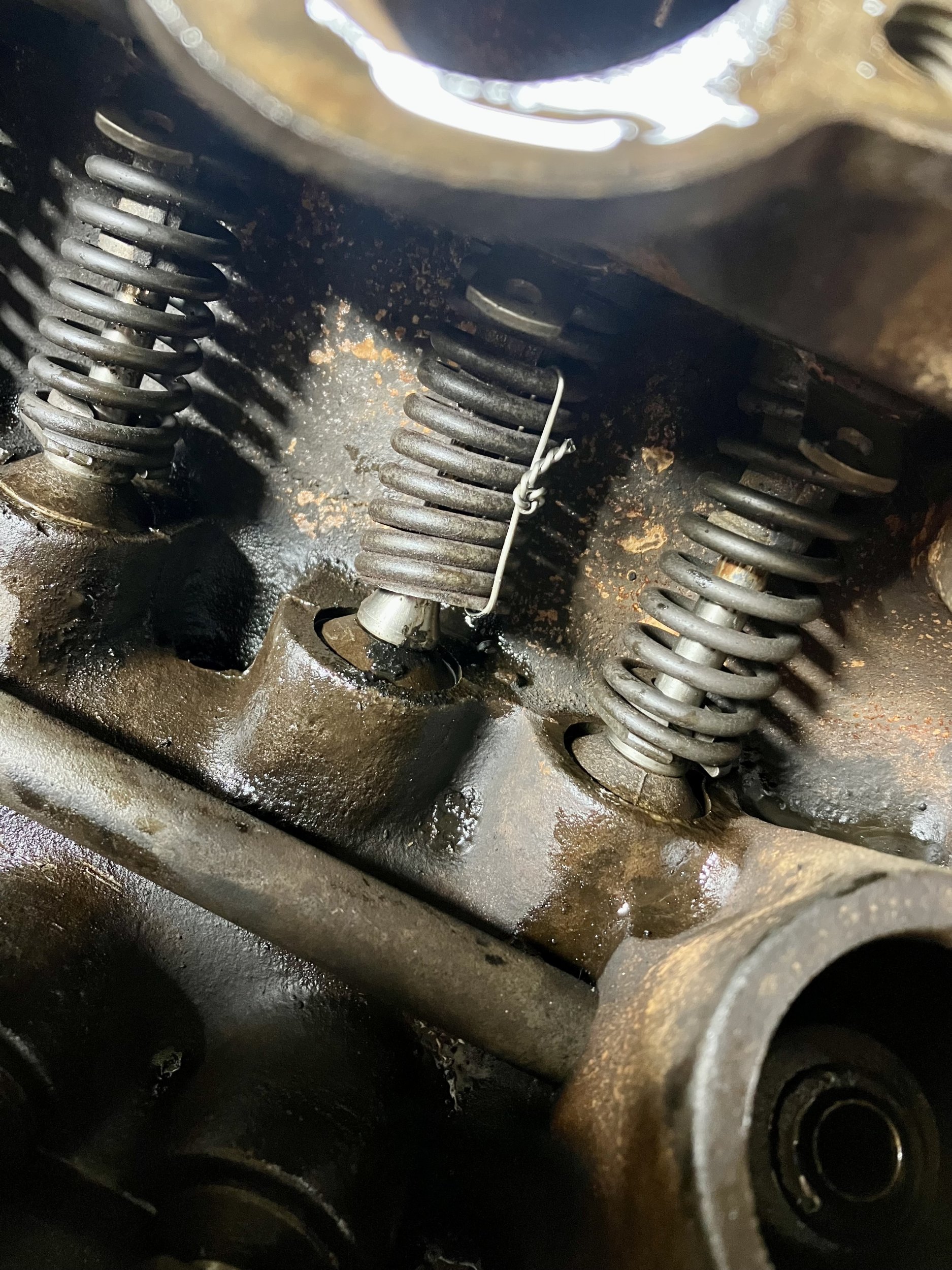

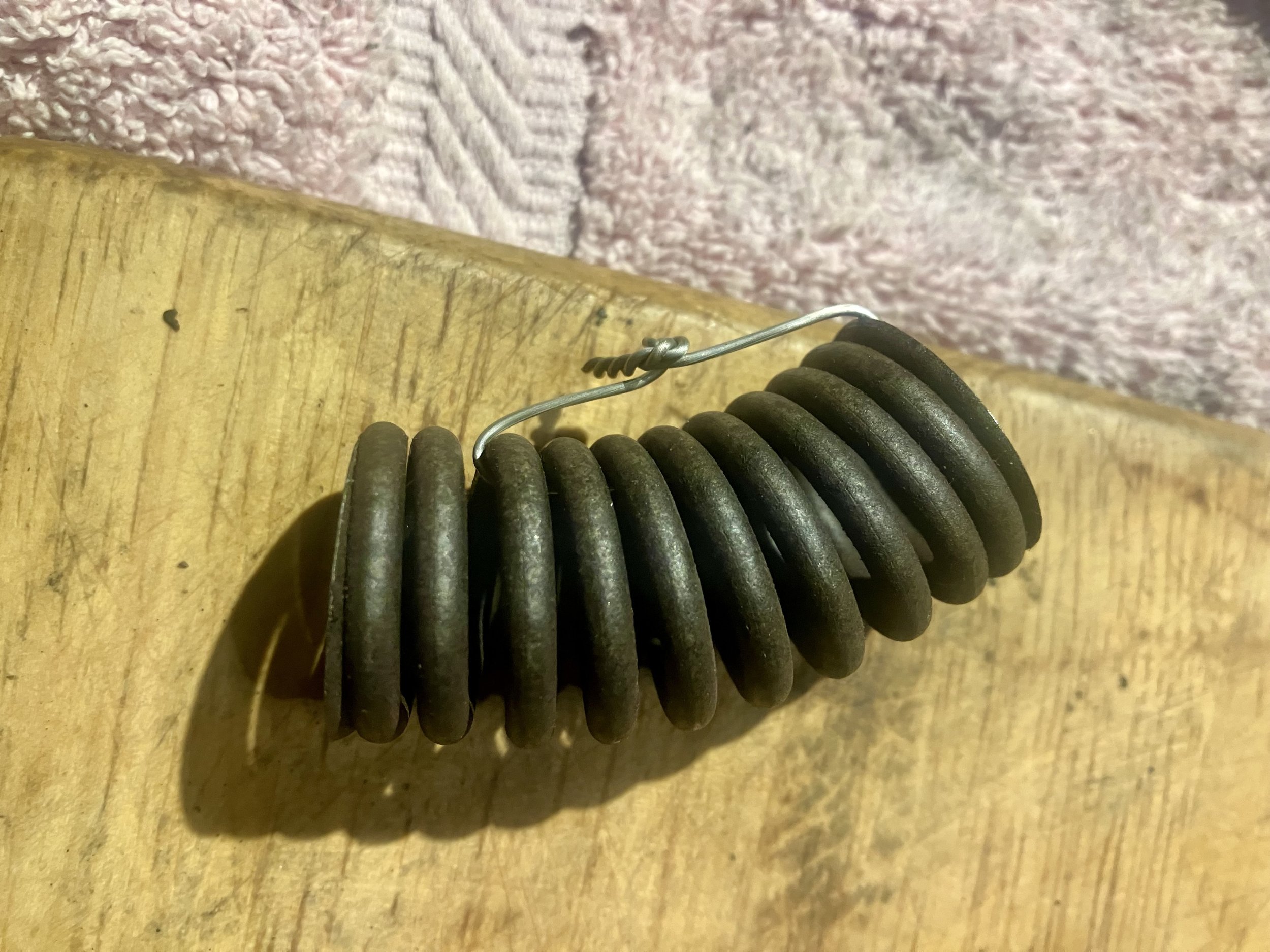

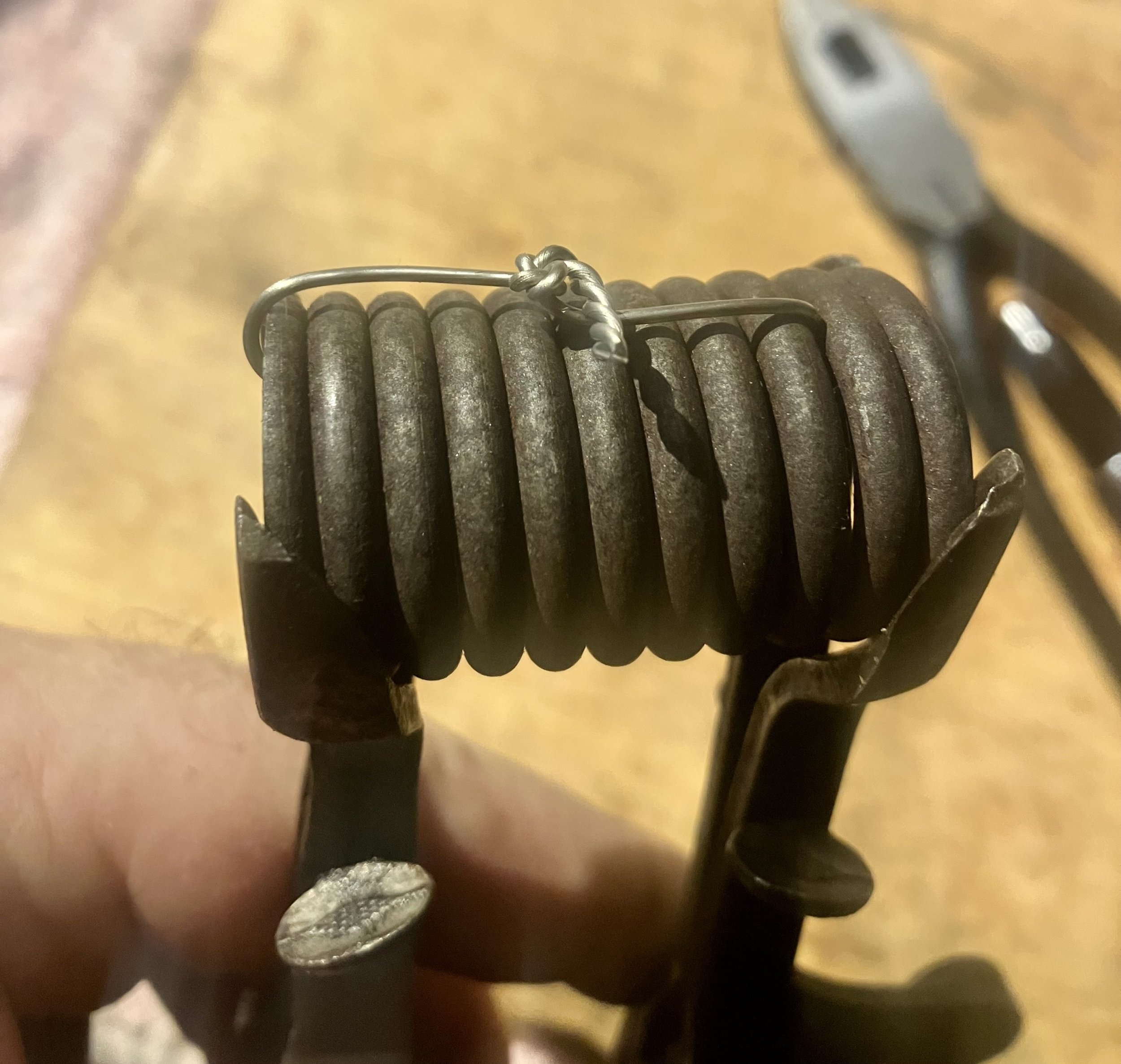

    Got the valve spring installed IMG_6106.jpeg IMG_6107.jpeg IMG_6108.jpeg IMG_6110.jpeg Was able to get it in fairly easily
    This spring has more coils than the others but at this point a valve spring is a valve spring
    Noticed one bent valve and that may have been my doing when I was prying the head off
    I just used a brass punch and beat it down into the seat and then checked it with a.0015” feeler gauge looks like it was sealing
    Checked valve lash
    All between.013”-.015”
    Noticed when turning engine over that the lifters are even rotating excellent
    So the valve train looks good next week we will start working on the bottom end
    Found a couple of surprises so check in next week

    Bigcheese327 and boxerdog like this.
  4. Like to start off by saying thank you for the likes
    It lets me know that there is interest in what I am doing and I see some new names so welcome
    Start today’s lesson with video

    we left off starting to look at the bottom end
    Removed one piston

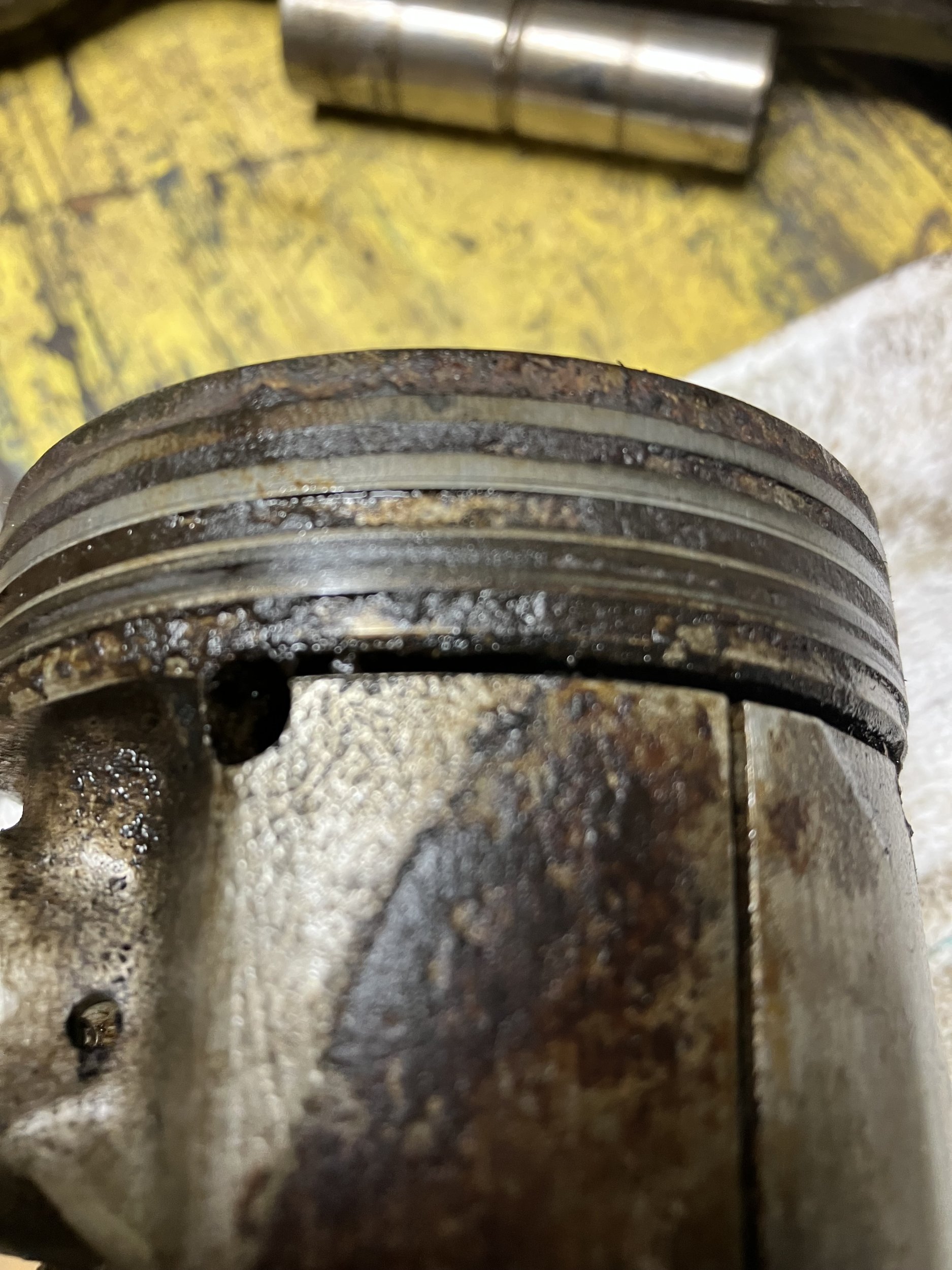

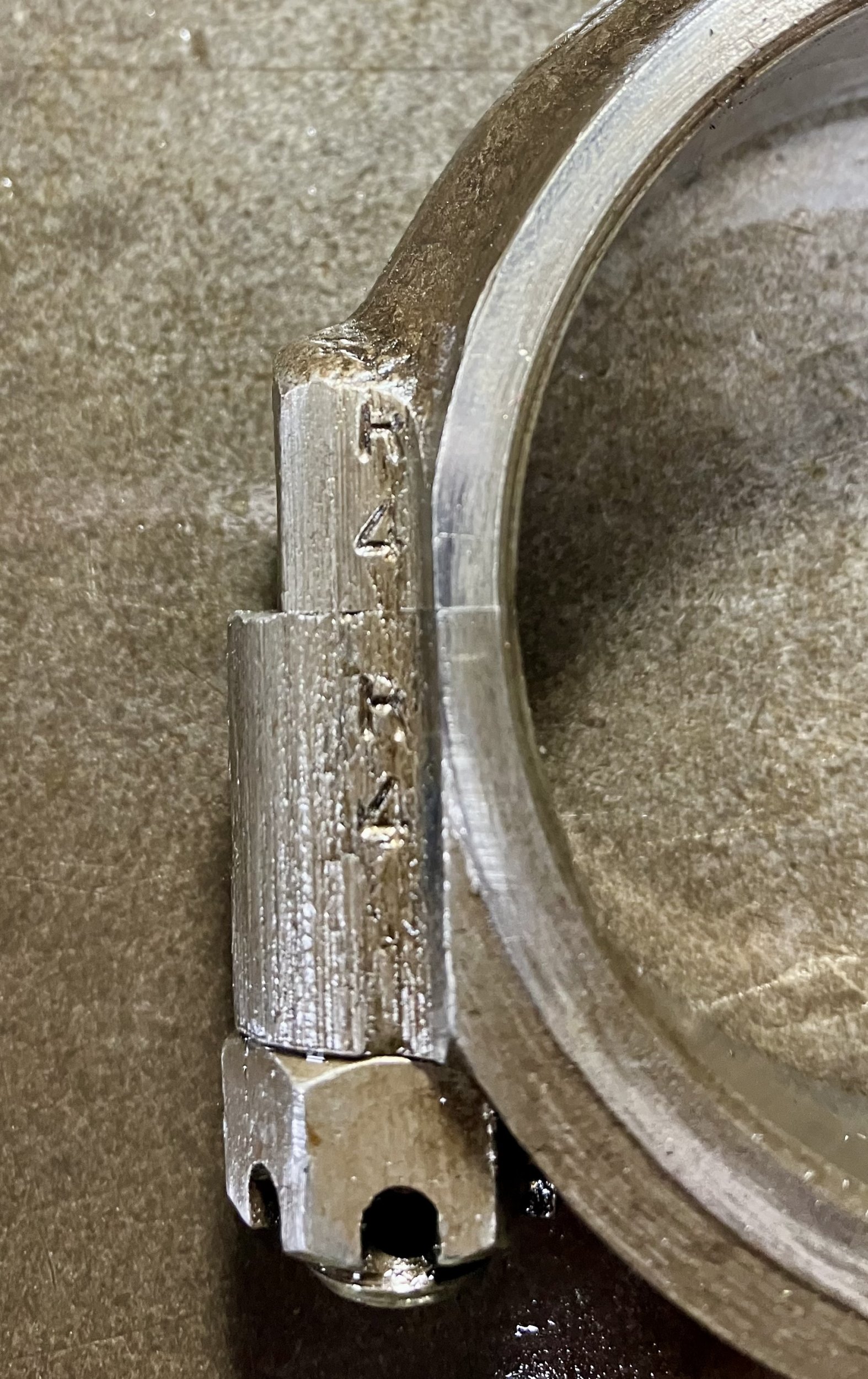

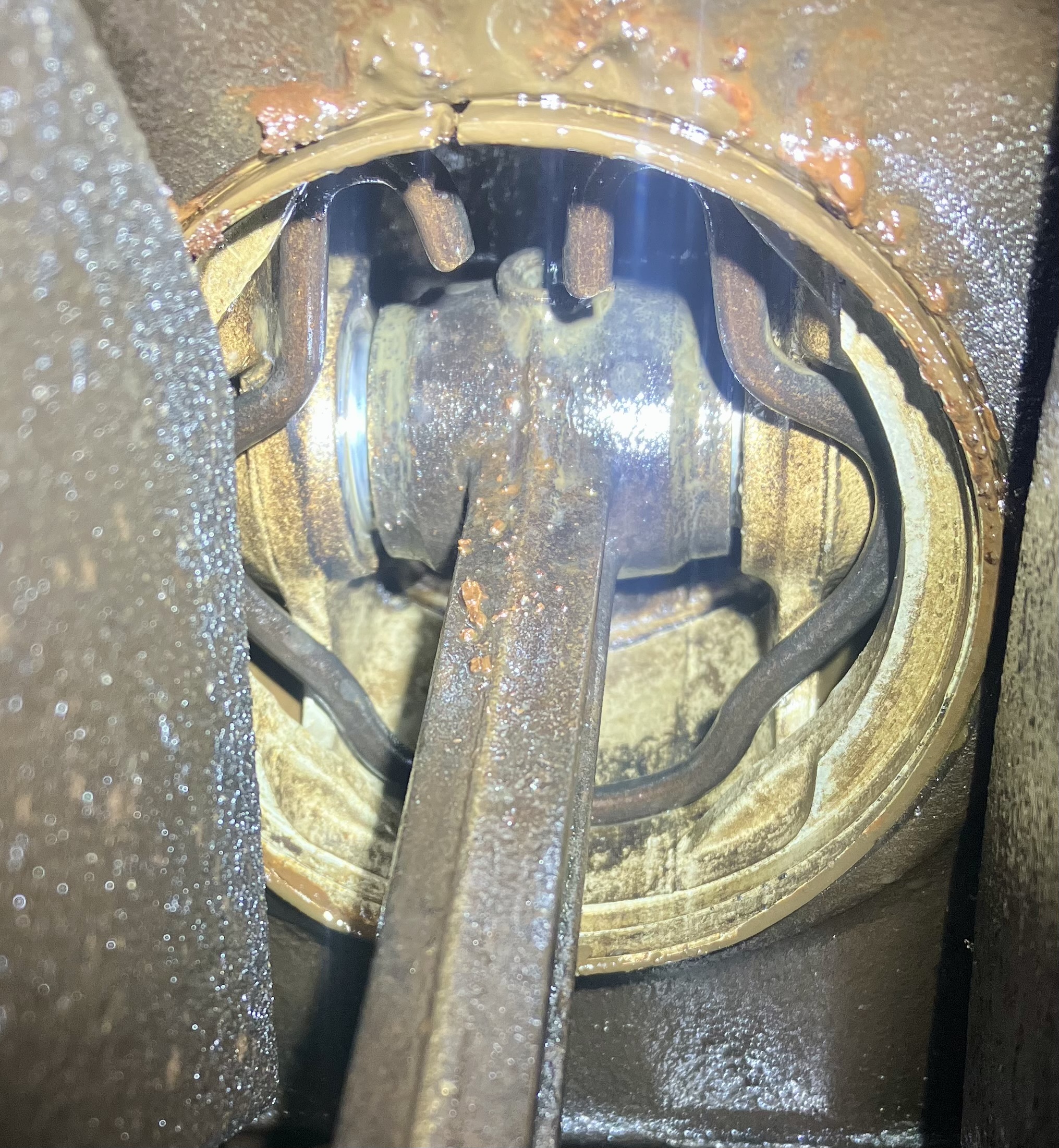

    The rings are all seized IMG_6116.jpeg did find the factory rod stampings they’re on the side of the rod IMG_6131.jpeg at this point I was thinking about how far I want to go
    Clean everything up and reinstall
    New rings
    Would require removing all 8 pistons
    Then with closer inspection noticed this IMG_6115.jpeg piston measures as standard size so decision is made new standard pistons and rings
    Removed piston from rod

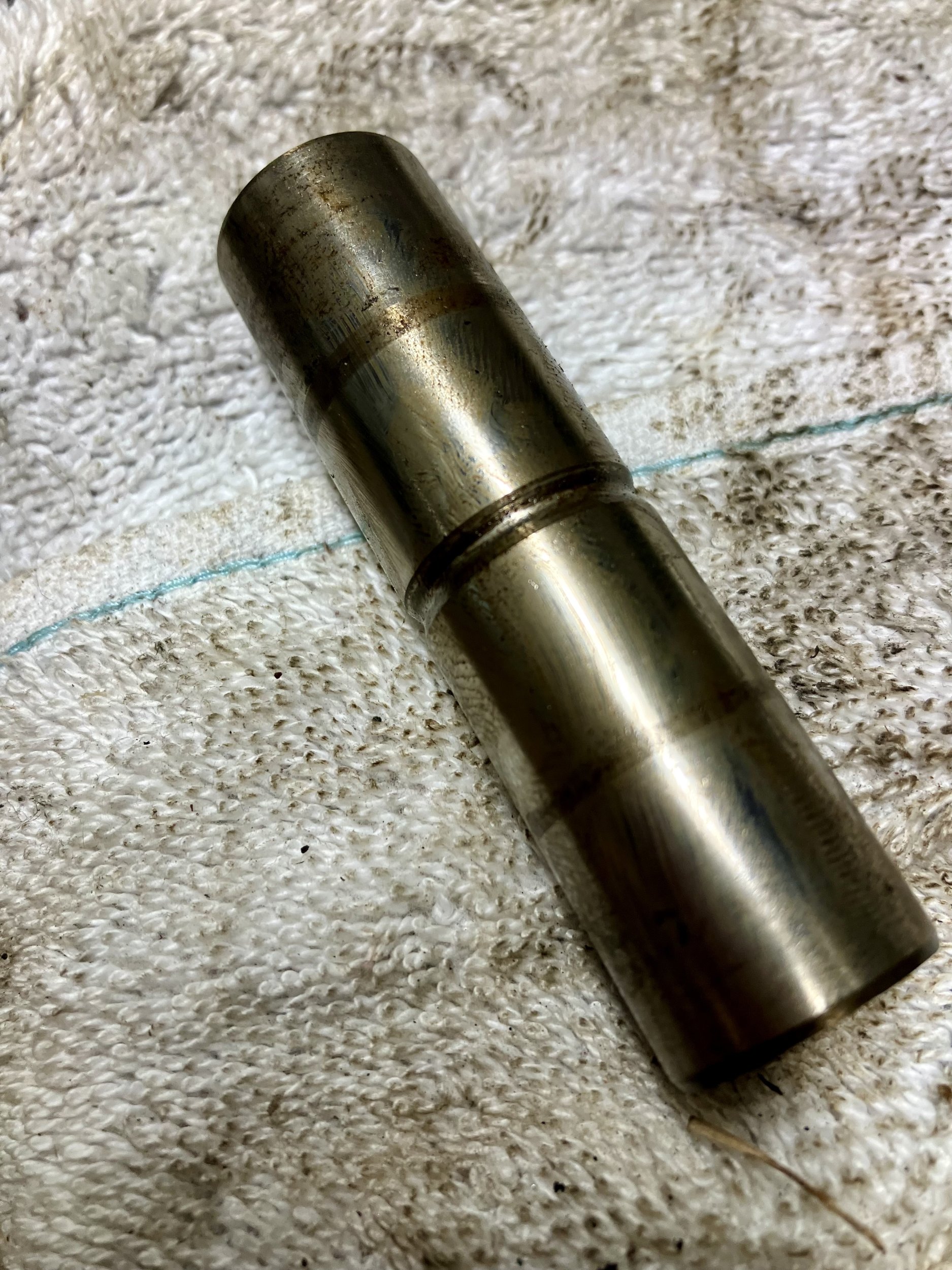

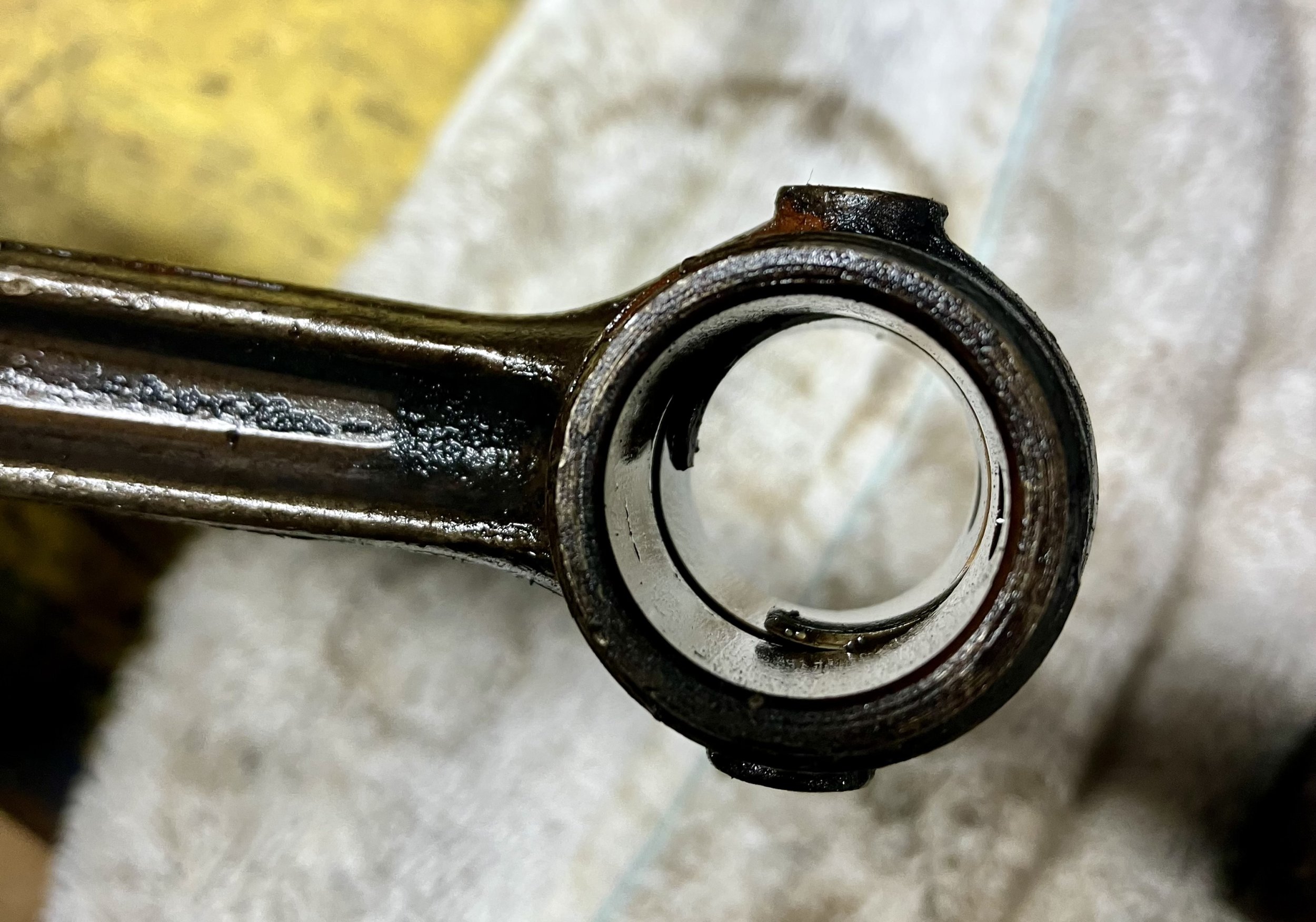

    No c-clips so just gently pressed wrist pin out and discovered what I am guessing is original factory pins held in by a ring in the middle IMG_6112.jpeg IMG_6113.jpeg the broken piston was the only one that was missing the expander was wondering where it went

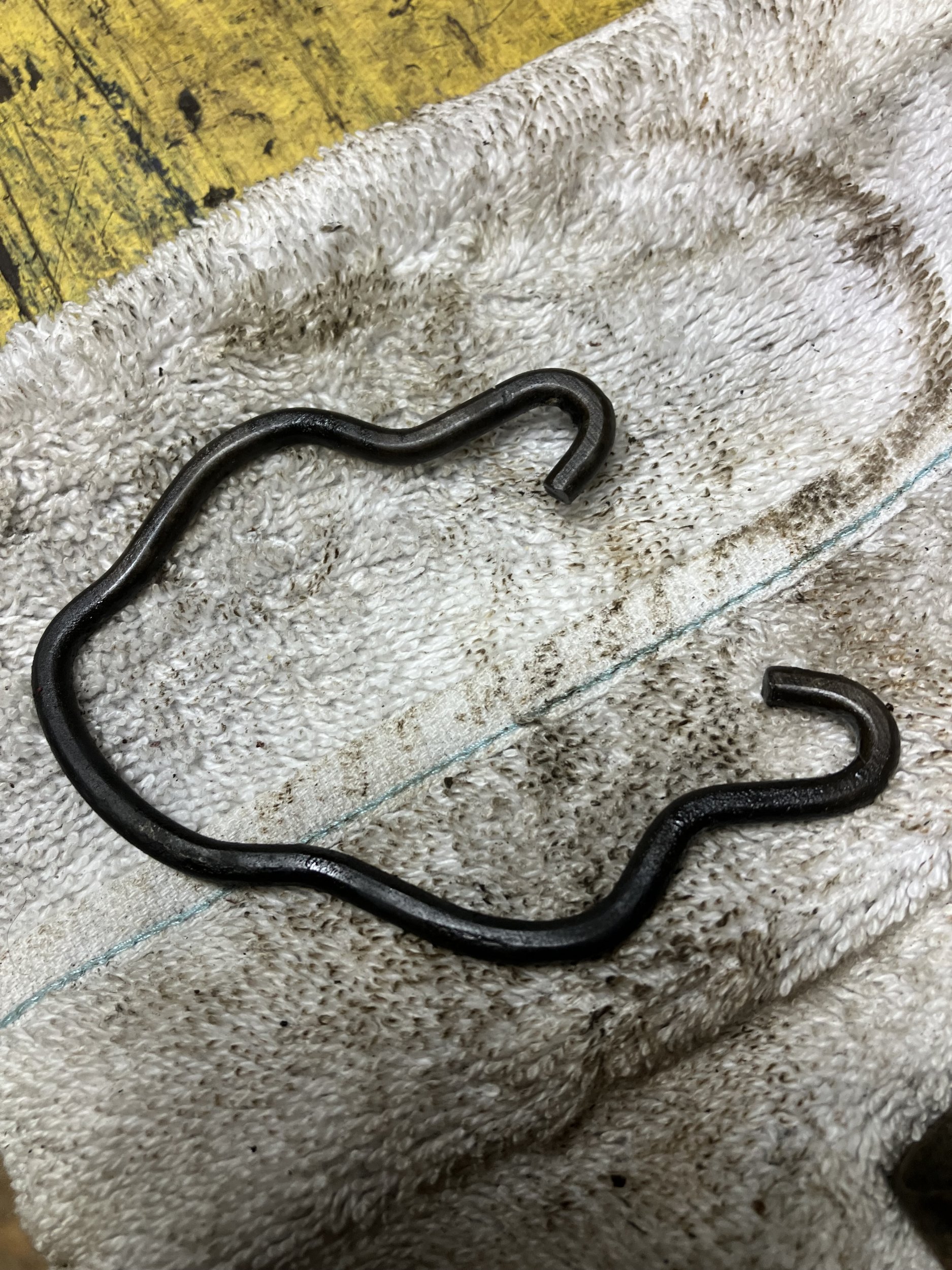

    Went out in the woods where I had scrapped out the gunk from the bottom of the pan and discovered this IMG_6114.jpeg just a little bit distorted
    Maybe the cause of the engine being parked?
    Like I said if this engine could talk
    Removed crank from block IMG_6140.jpeg eveything measures as standard
    Conclusion
    Untouched original 1935 motor
    Low miles

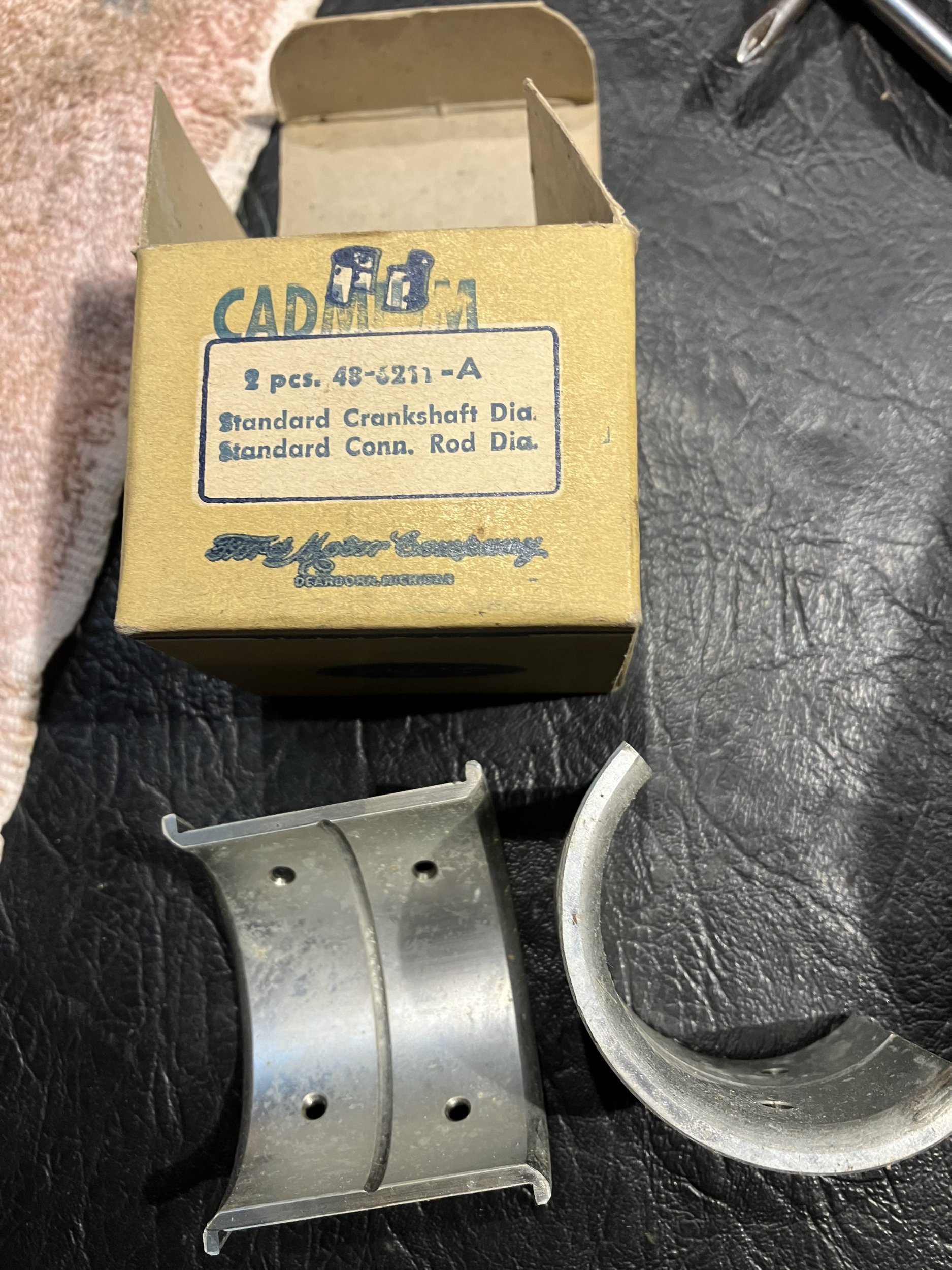

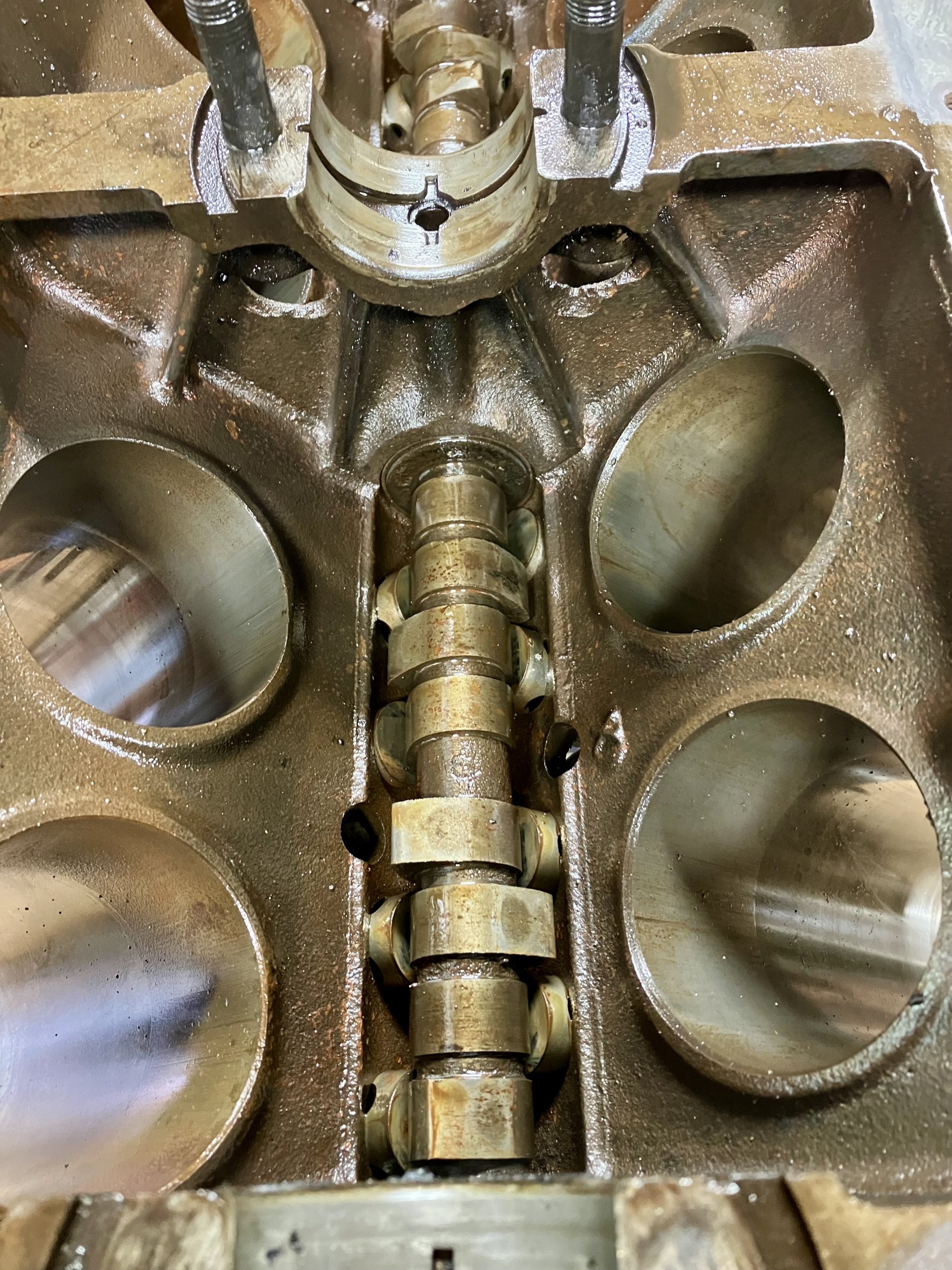

    And from my research the major problem with these early motors was the piston and cylinder bores IMG_6139.jpeg got in some new rod bearings IMG_6142.jpeg so next what I will do is hone the cylinder bores do a cleaning

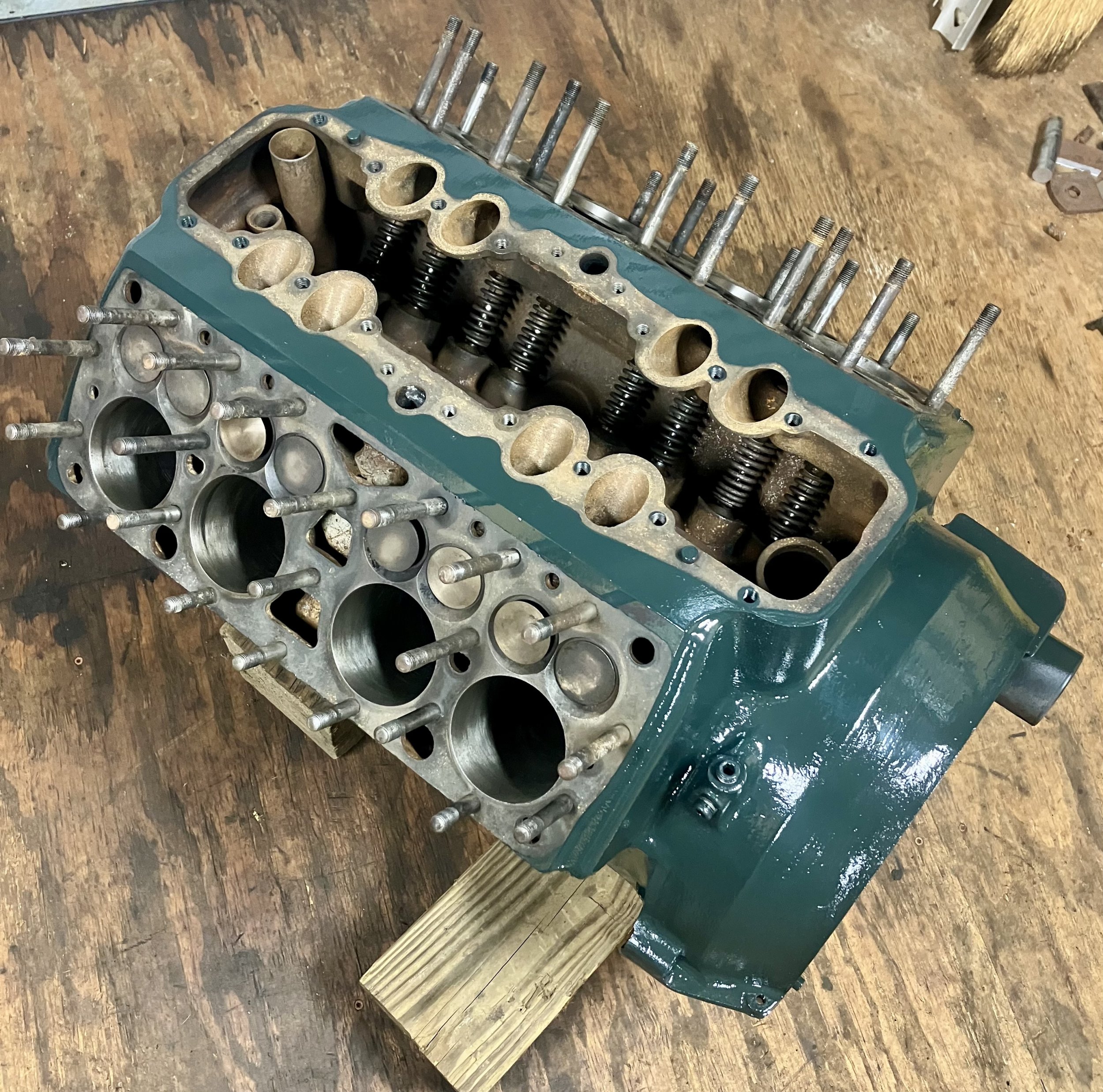

    Spray some paint on the block
    Then do a swap with the’34

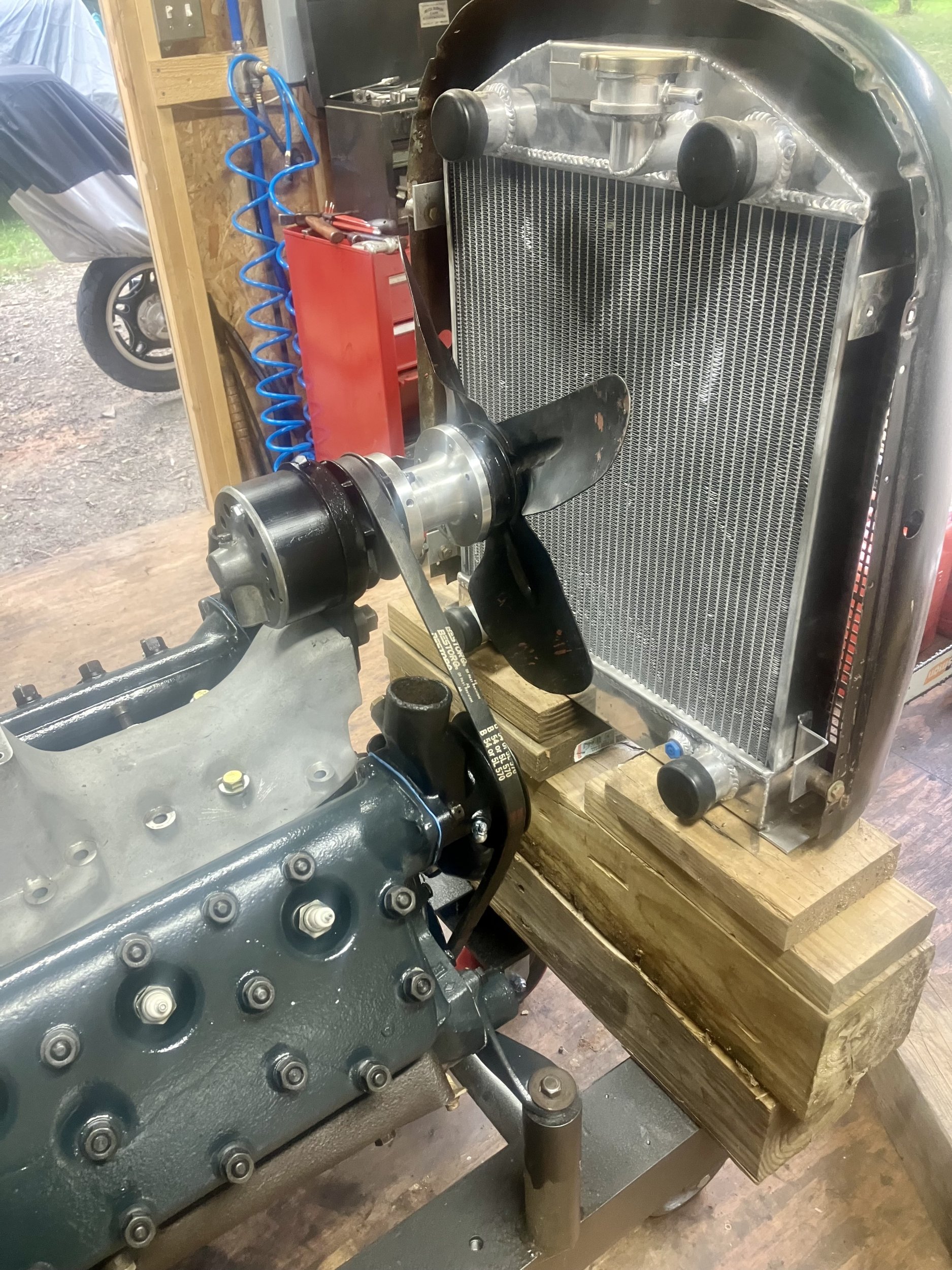

    Bring the’34 on the run stand out of the basement to the shop then take the’35 to the engine assembly room (the basement)
    Put the crank shaft in the lathe for a quick polish
    Then reassemble with new pistons rings and con rod bearings

    a look at the crankcase ventilation system

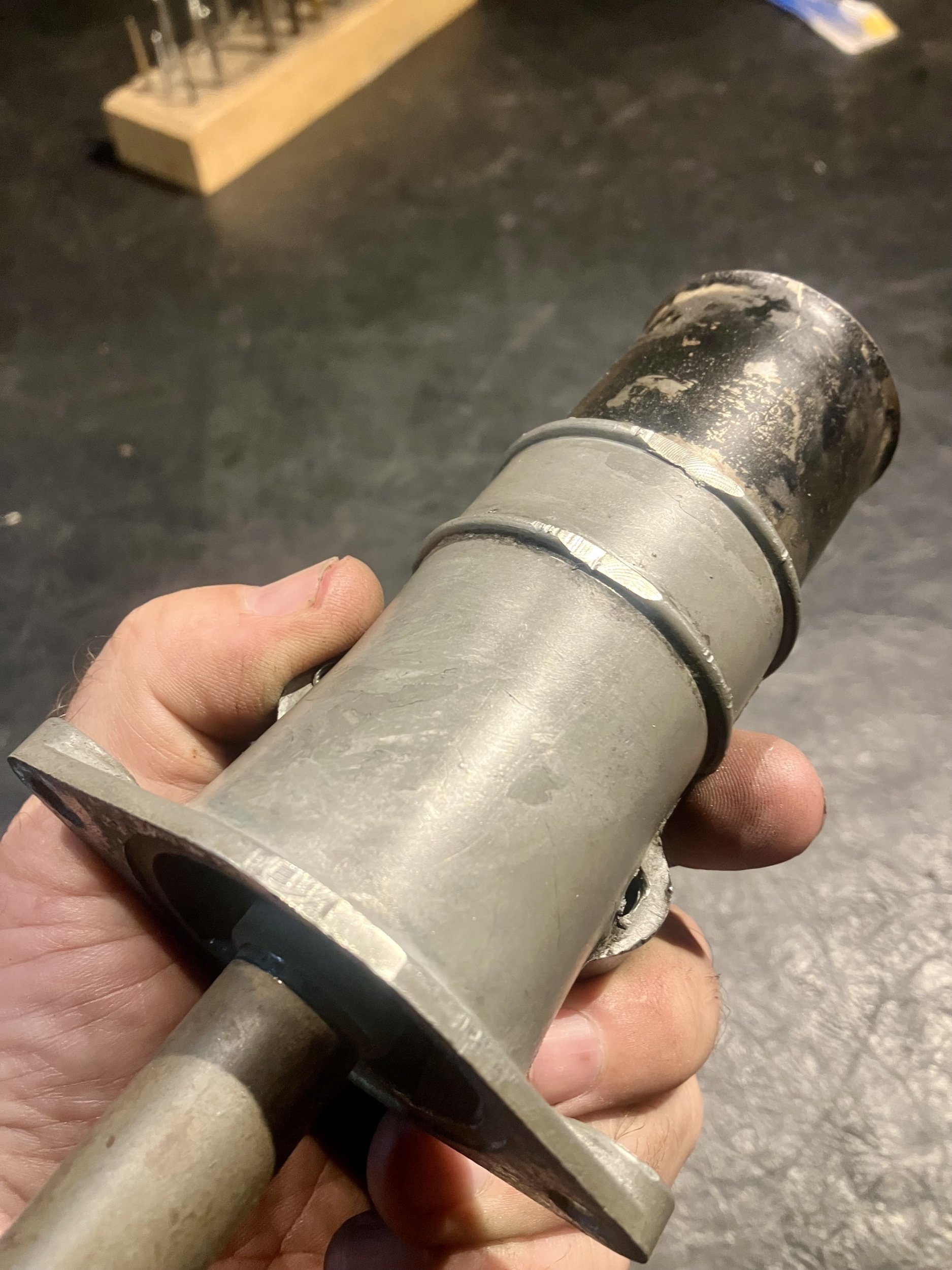

    Air comes in at the back through the oil filler

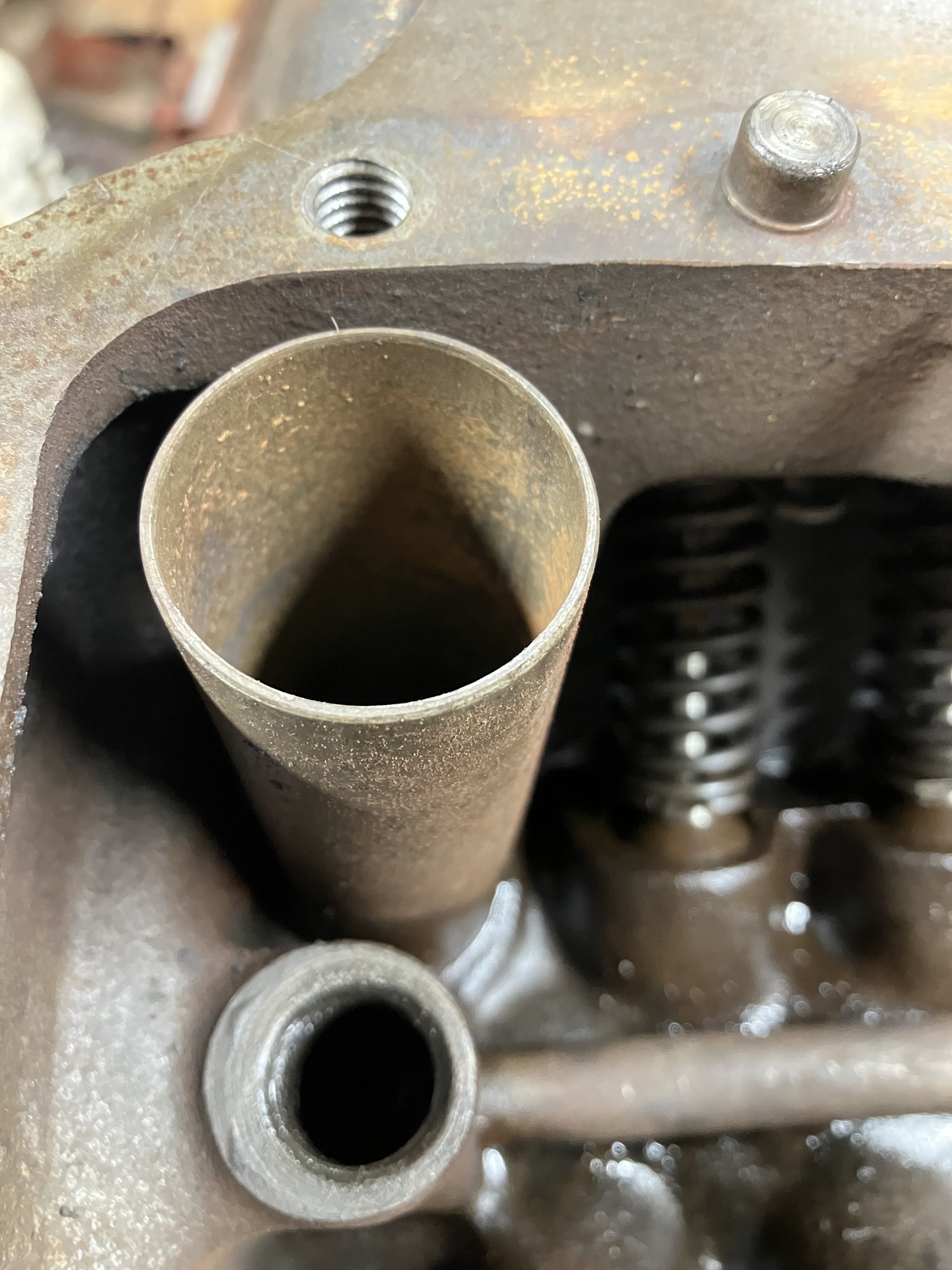

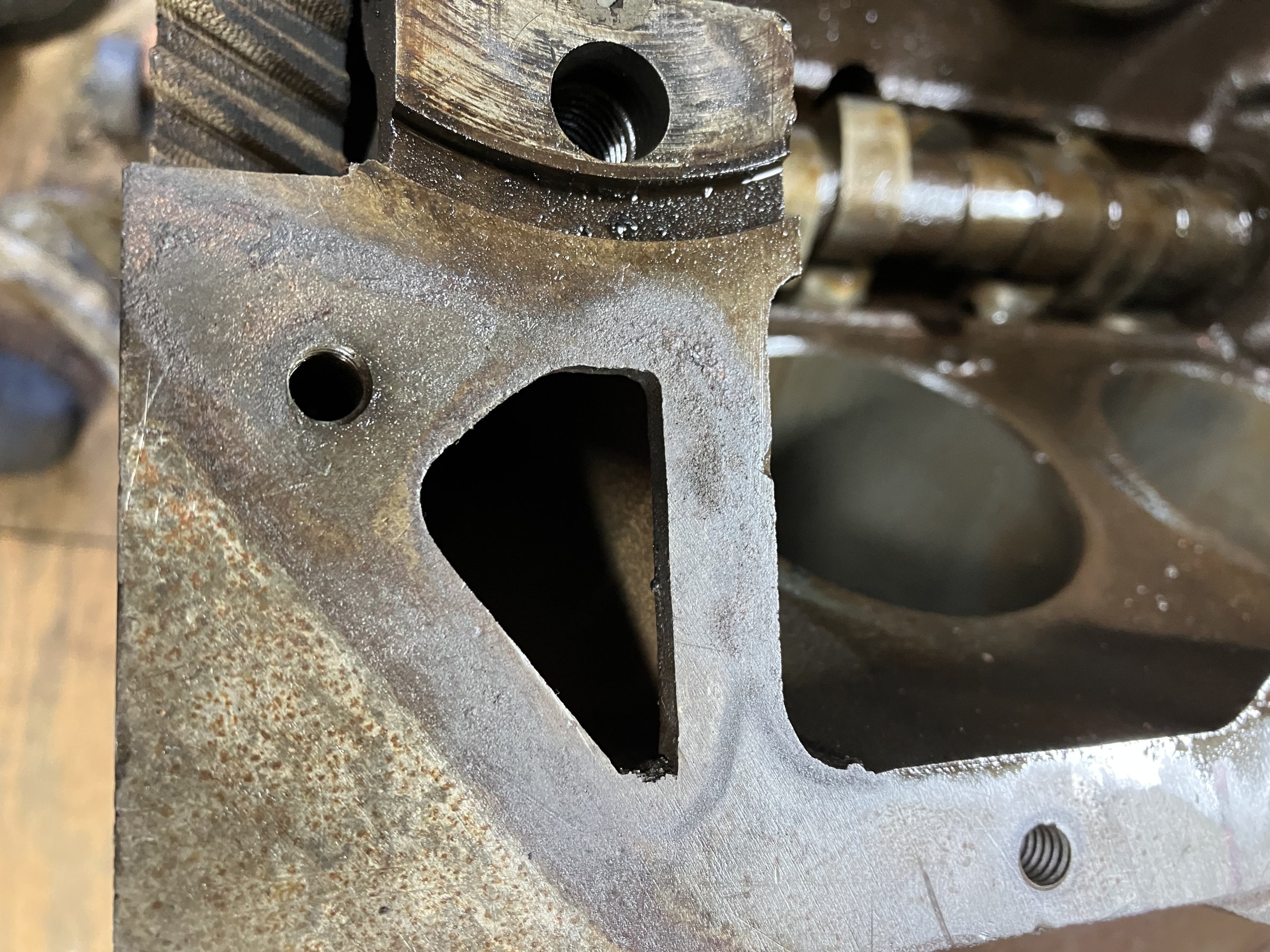

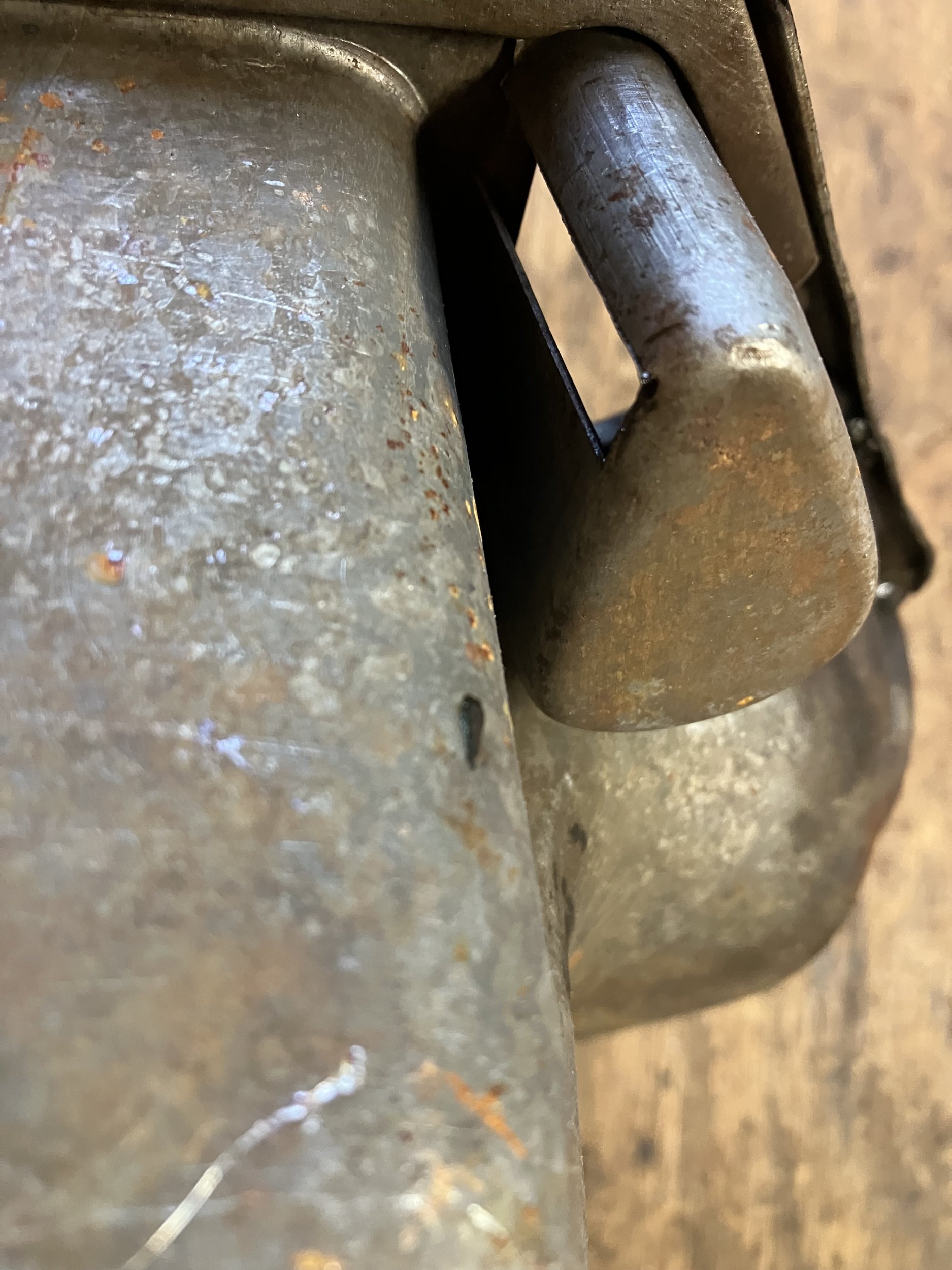

    Then in front of the block there is a tube IMG_6135.jpeg with the passage way coming out the bottom of the block IMG_6136.jpeg and then the pan has a separate chamber IMG_6137.jpeg that is open to allow air to escape IMG_6138.jpeg other thoughts and observations

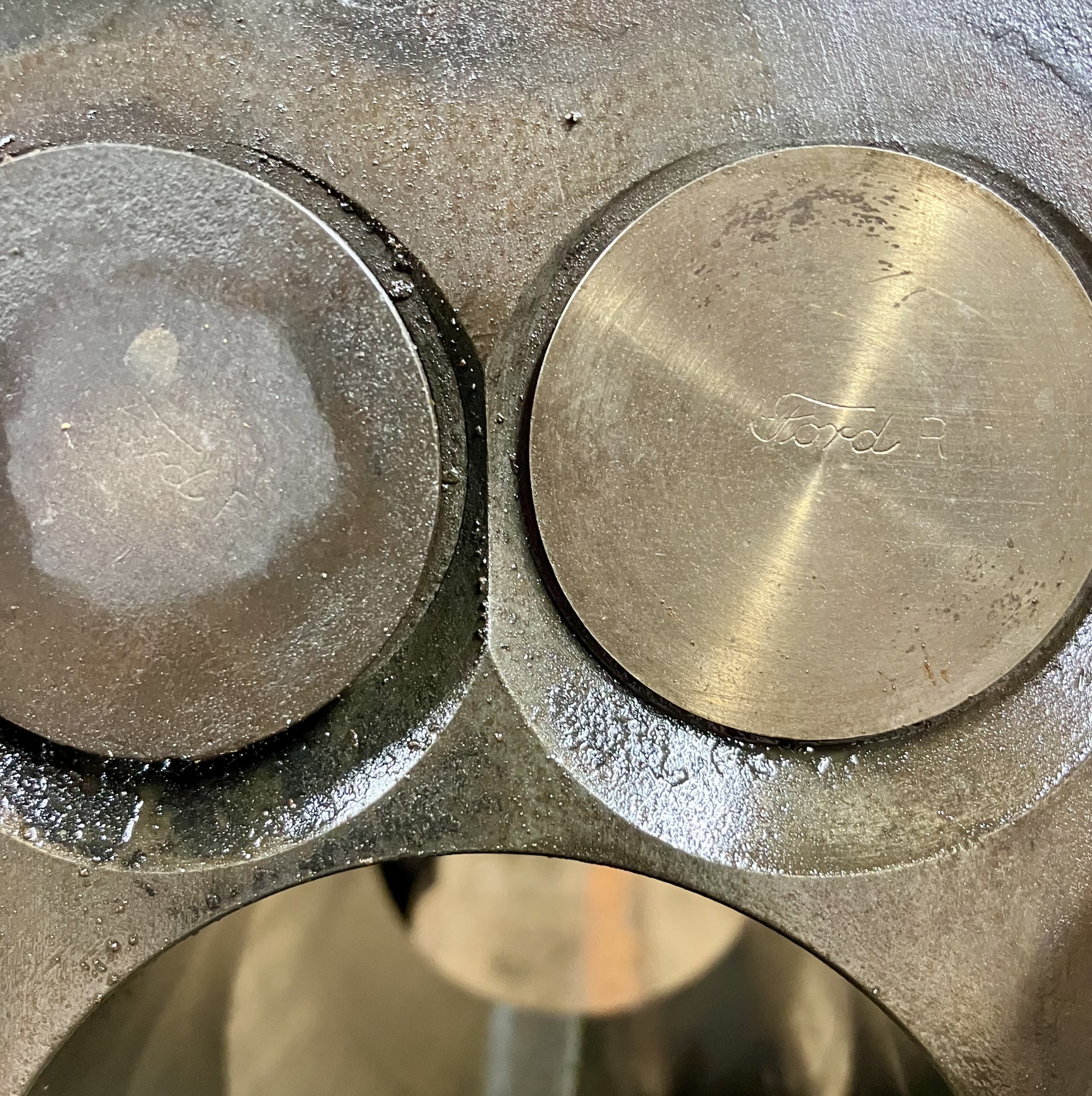

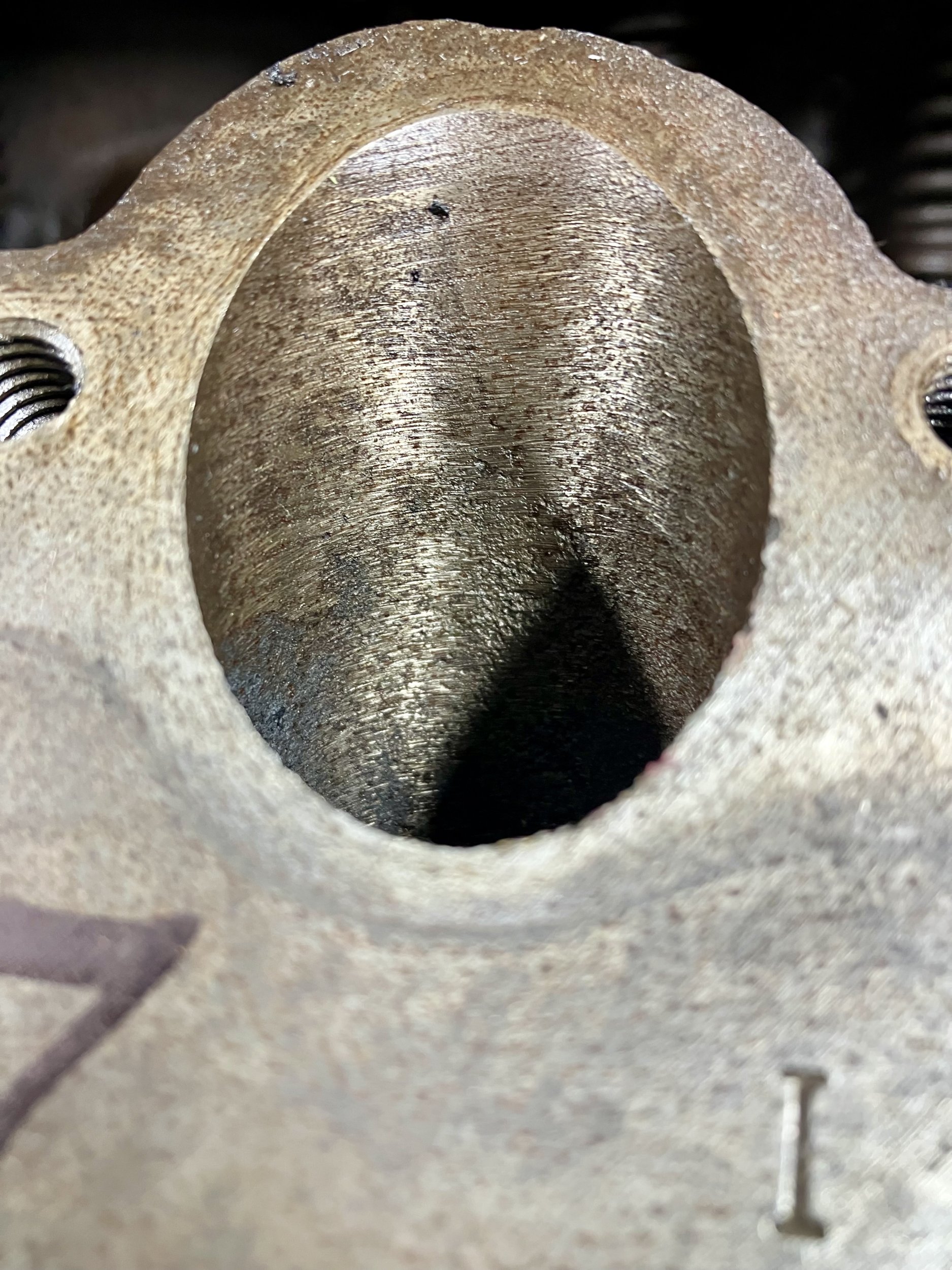

    the valves look just outstanding IMG_6132.jpeg the intake runners have grinding marks like they were matched to the gasket IMG_6133.jpeg the oil pump idler gear bearing is perfect

    the head studs go in to the water jackets where the’34 are blind holes

    I’m glad I didn’t have this motor laying around when I was assembling the’34 cause I would have stolen alot of parts
    Till next time

    rwrj likes this.
  5. rwrj
    Joined: Jan 30, 2009
    Posts: 805

    rwrj
    Member
    from SW Ga

    When I rebuilt my 1928 Model A engine, I discovered that same circlip arrangement in the rods. I had trouble re-assembling them. The squared end of the wrist pen would butt up against the circlip and stop, and I didn't want to force it, so I turned a little round-nosed bullet out of bar stock. One end was just a few thousandths smaller than the wrist pin, and it tapered slightly to smooth round shoulder. The whole thing wasn't but an inch or so long. I just pushed it through ahead of the pin and it expanded those clips nicely. Hearing them pop into the grooves is quite satisfying. I really like your thread, and your knowledge and work habits make me feel inadequate. Haha.

    AmishMike likes this.
  6. Some amazing tech here. Please keep the updates and detailed photos coming. You are helping alot of people.

  7. continentaljohn
    Joined: Jul 24, 2002
    Posts: 5,799

    continentaljohn
    Member

    Great information and thank you for sharing your knowledge

  8. Thanks for the heads up
    I hope to reuse the pins with the new pistons so that may save me some frustration on reassembly

  9. As often happens when you are buying old parts off of the internet and really no ones fault, the pistons that I got in can’t all be used
    The problem that has come up is that standard size pistons are hard to find
    I had found 7 pistons that were hand labeled as standard but were not stamped on the piston top, turned out they were .025” oversized
    I’ll just add these to my inventory of parts that haven’t worked out I’ll be able to have my own booth at a swap meet someday
    Had also gotten one piston by itself and that one is good so we are back to just replacing the broken piston and reusing the rest

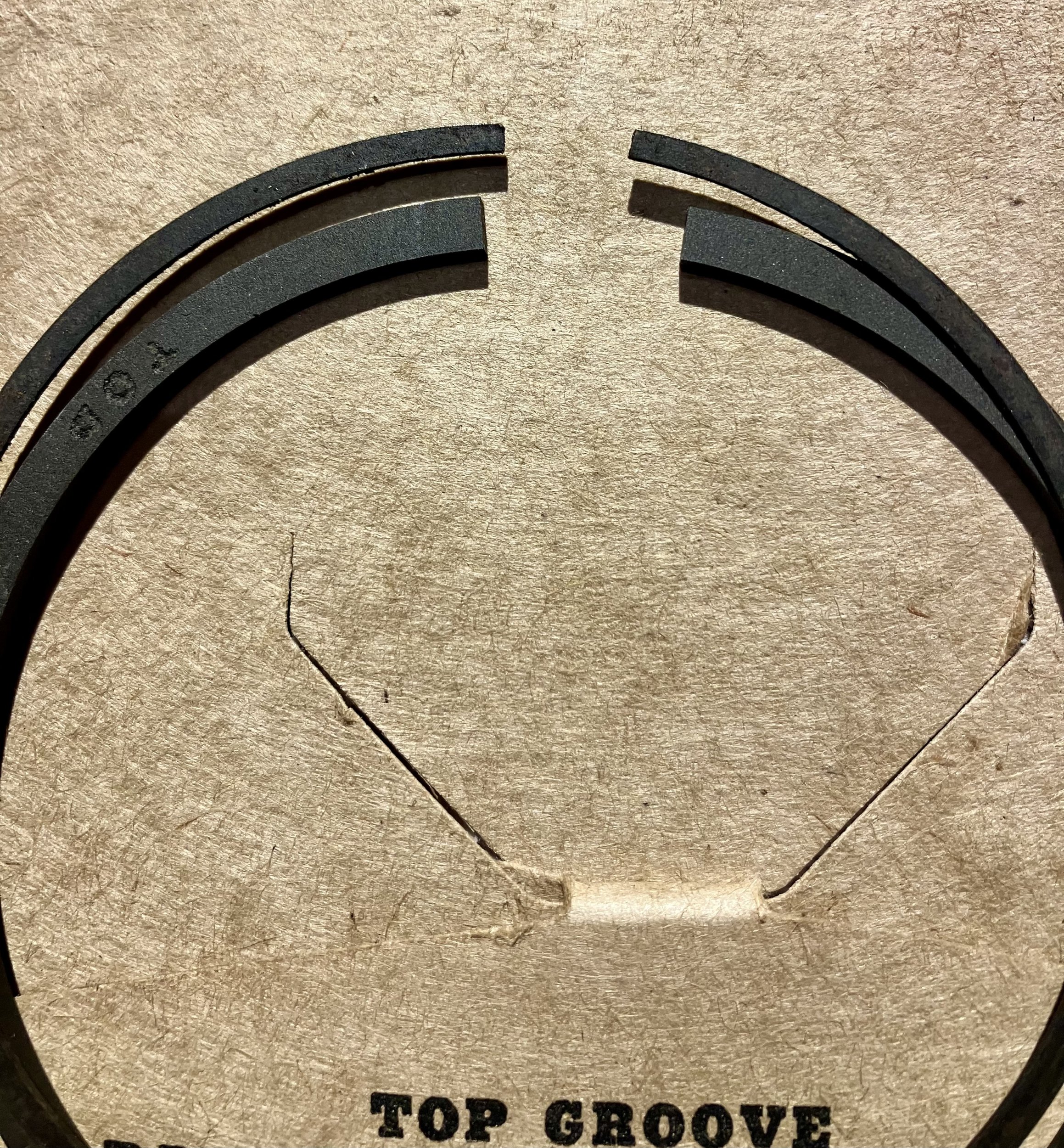

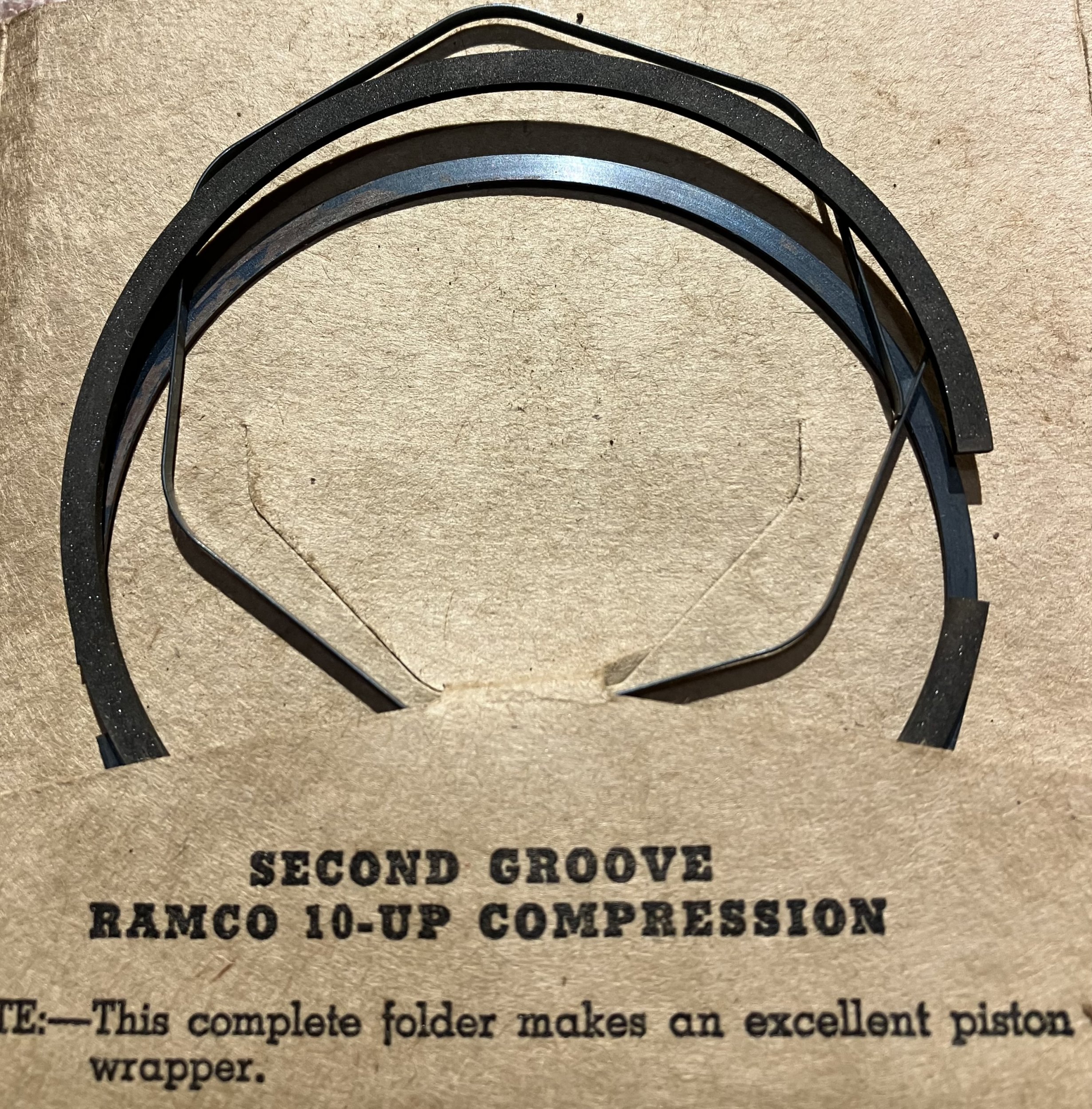

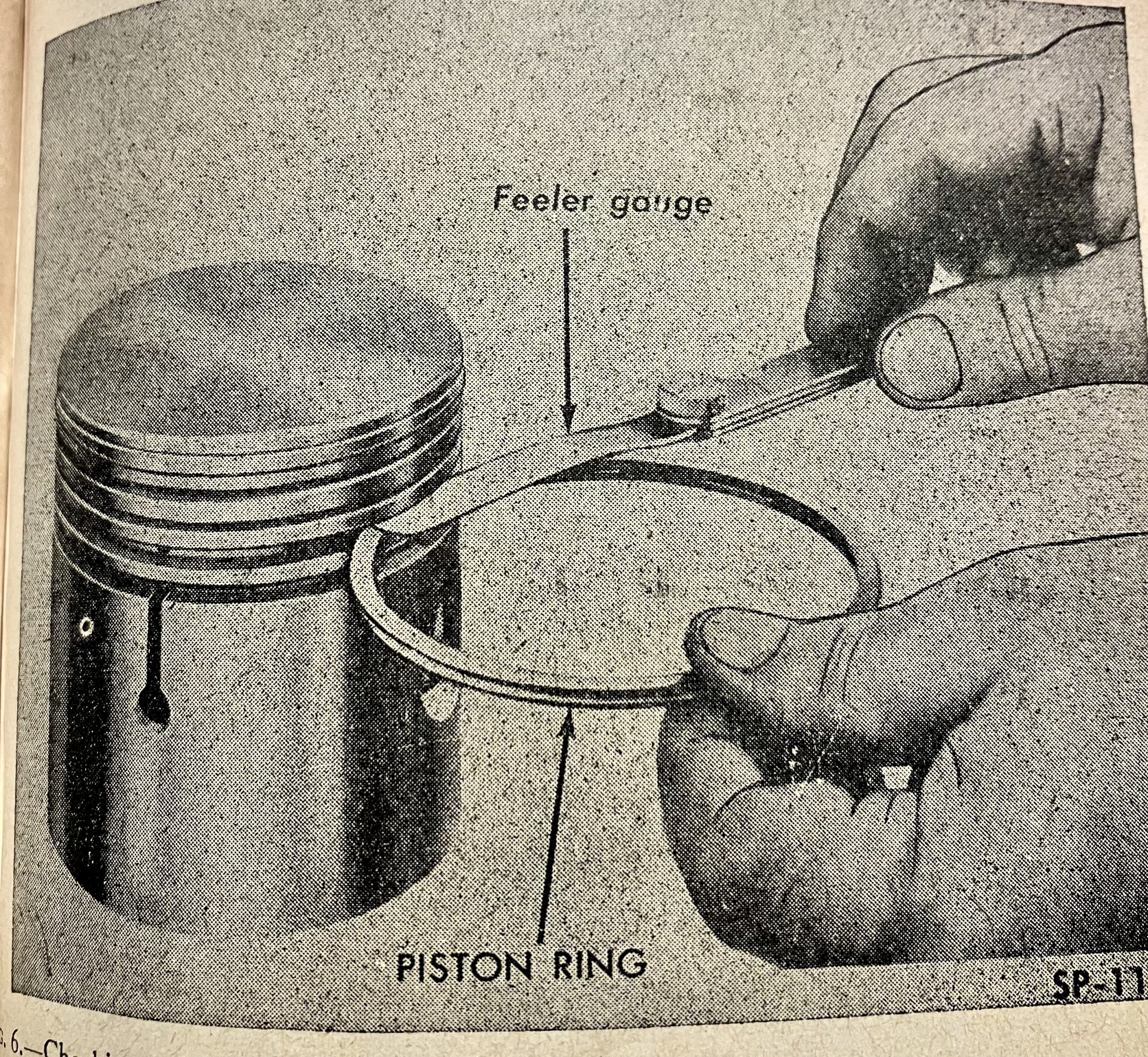

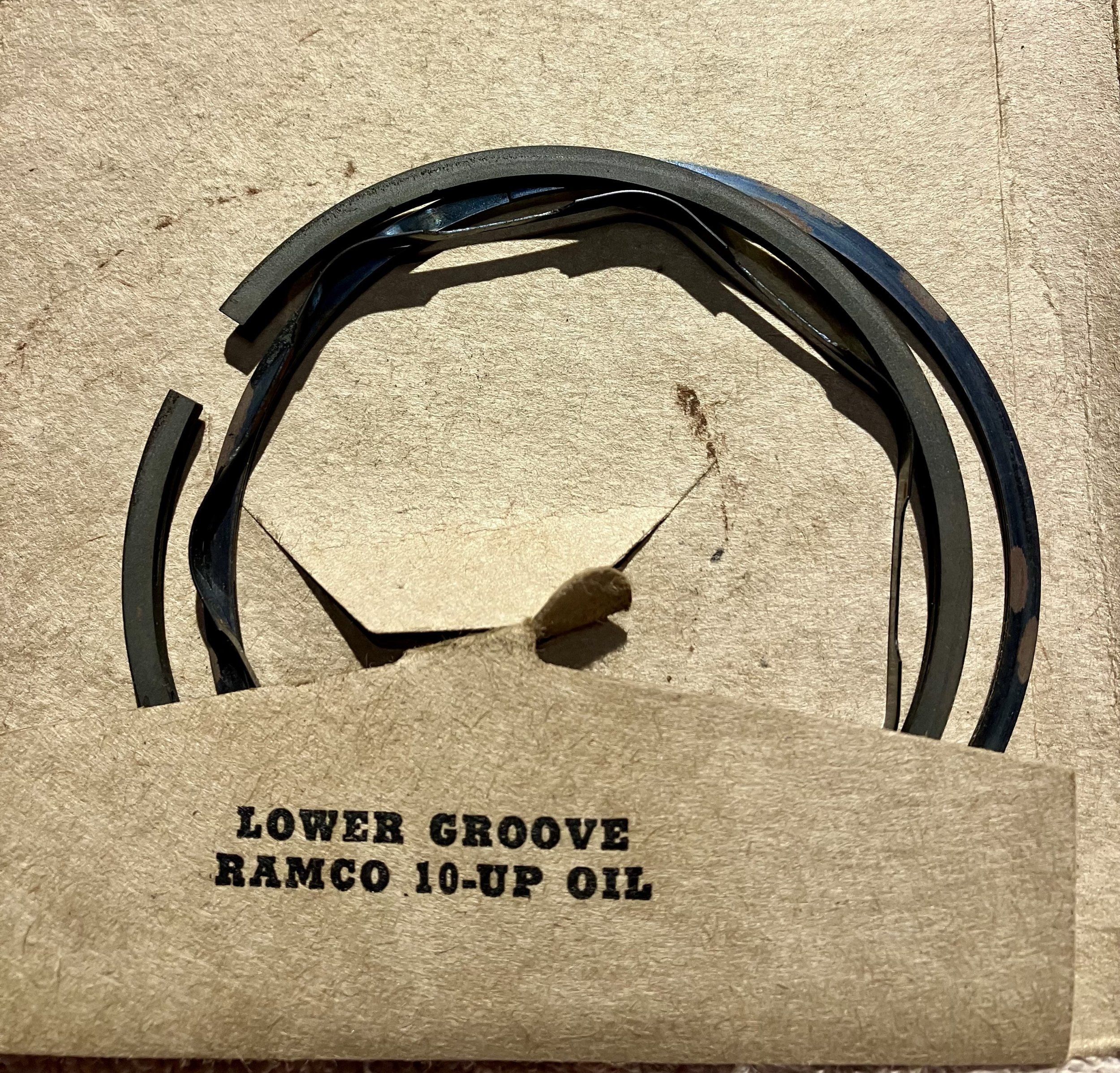

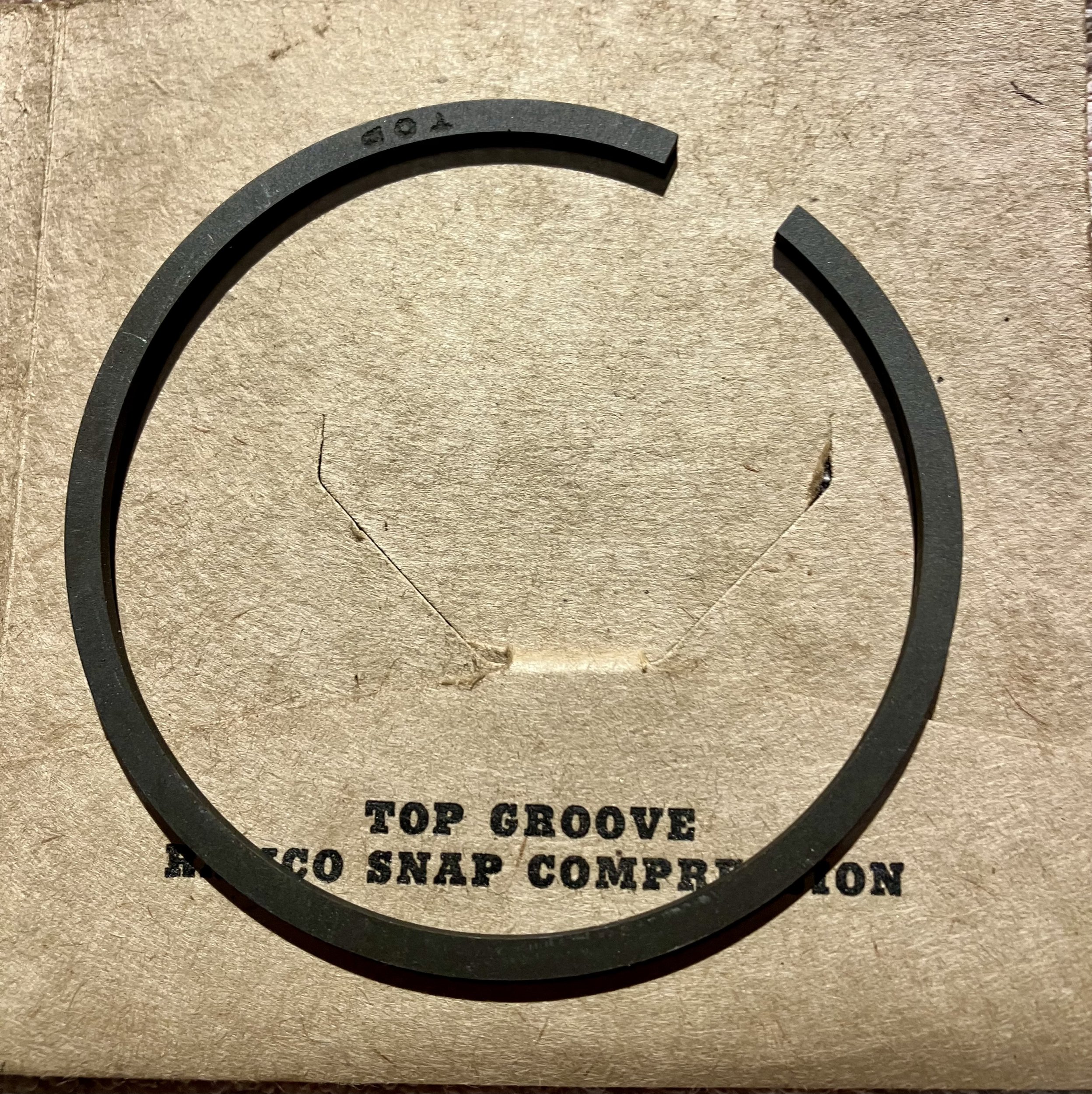

    Looking at the rings these have a one piece top ring three piece second ring and four piece oil ring which is actually the same as the old rings IMG_6160.jpeg IMG_6165.jpeg IMG_6164.jpeg IMG_6163.jpeg Got out one of my old books IMG_6169.jpeg IMG_6171.jpeg IMG_6172.jpeg Measured top compression ring at.006” actually alot better than I expected

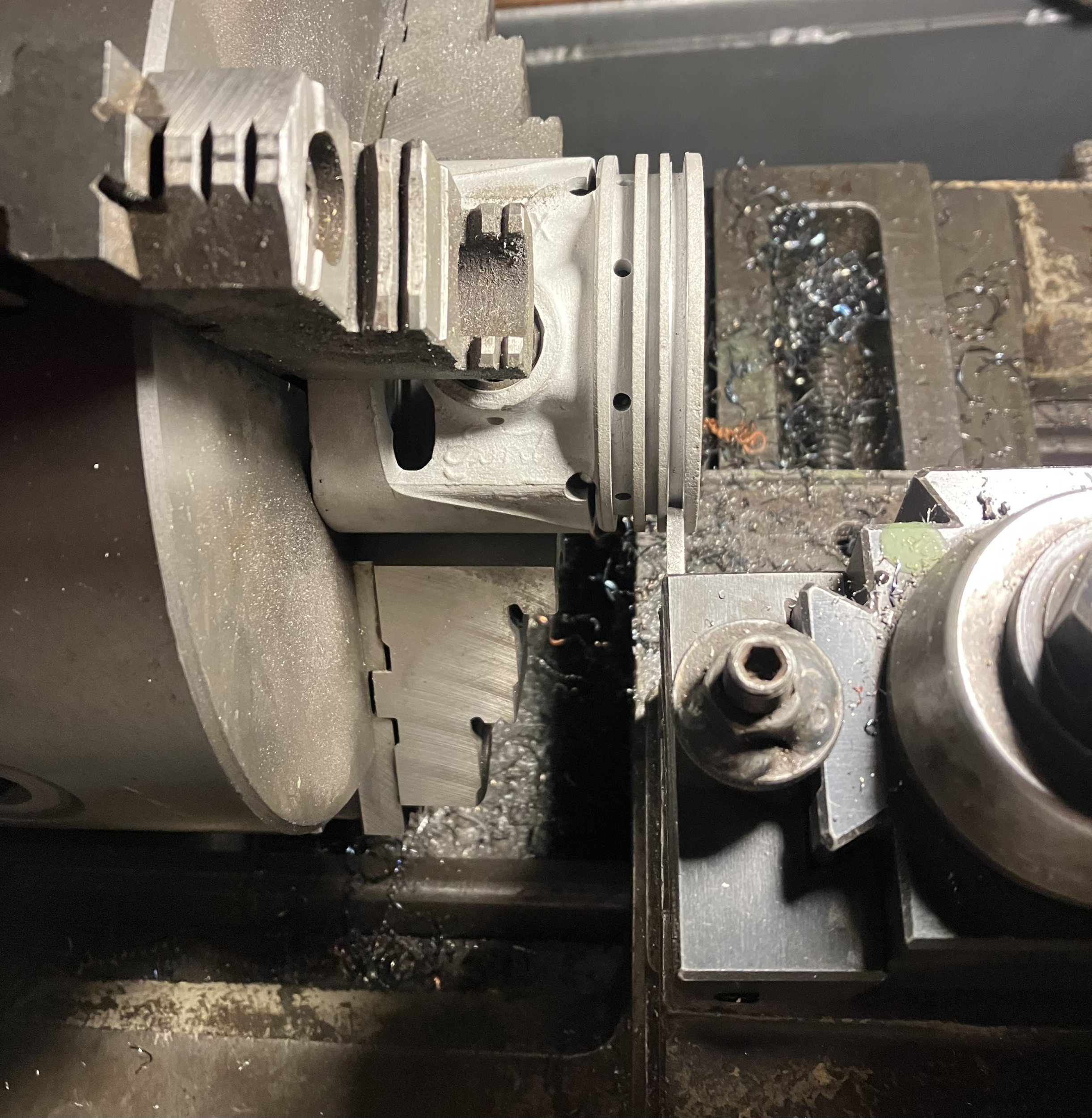

    This got me thinking about when I was in my early twenties and my mentor at the time what I had seen him do and that was to recut the ring groove and install a spacer just like the ones that had come out of the old piston IMG_6168.jpeg IMG_6166.jpeg would have 2 problems with doing this
    1 the old spacers are worn to narrow so there would not be enough support for the compression ring
    2 my parting tool is 1/8” so would have to modify it for smaller size (.118” new ring.094”+.024” spacer)

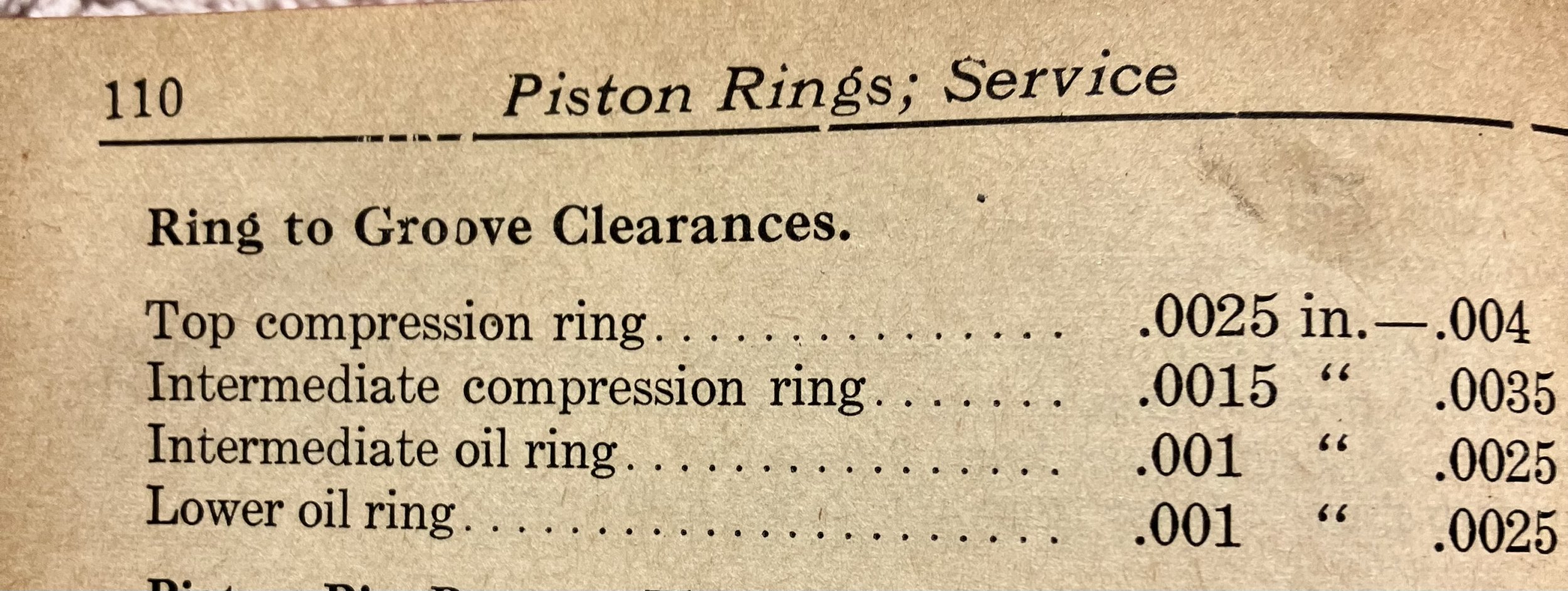

    The old book says to recut the ring groove to the next fractional size
    In this case going from 3/32” to 1/8” which would be easy if I had 1/8” rings
    But we will learn later that all of this is irrelevant
    Also have to keep in mind the mission and not suffer from mission creep
    I will next have to clean each piston and check for any other damage
    In the event that I do need another piston I still have the.030” over flat top pistons that came out of the’34
    I do know that pistons are not machined round because of expansion but I feel I could machine a.030”over piston down to fit inside one of these worn cylinder bores (got to keep in mind the mission unless I can find another standard size)

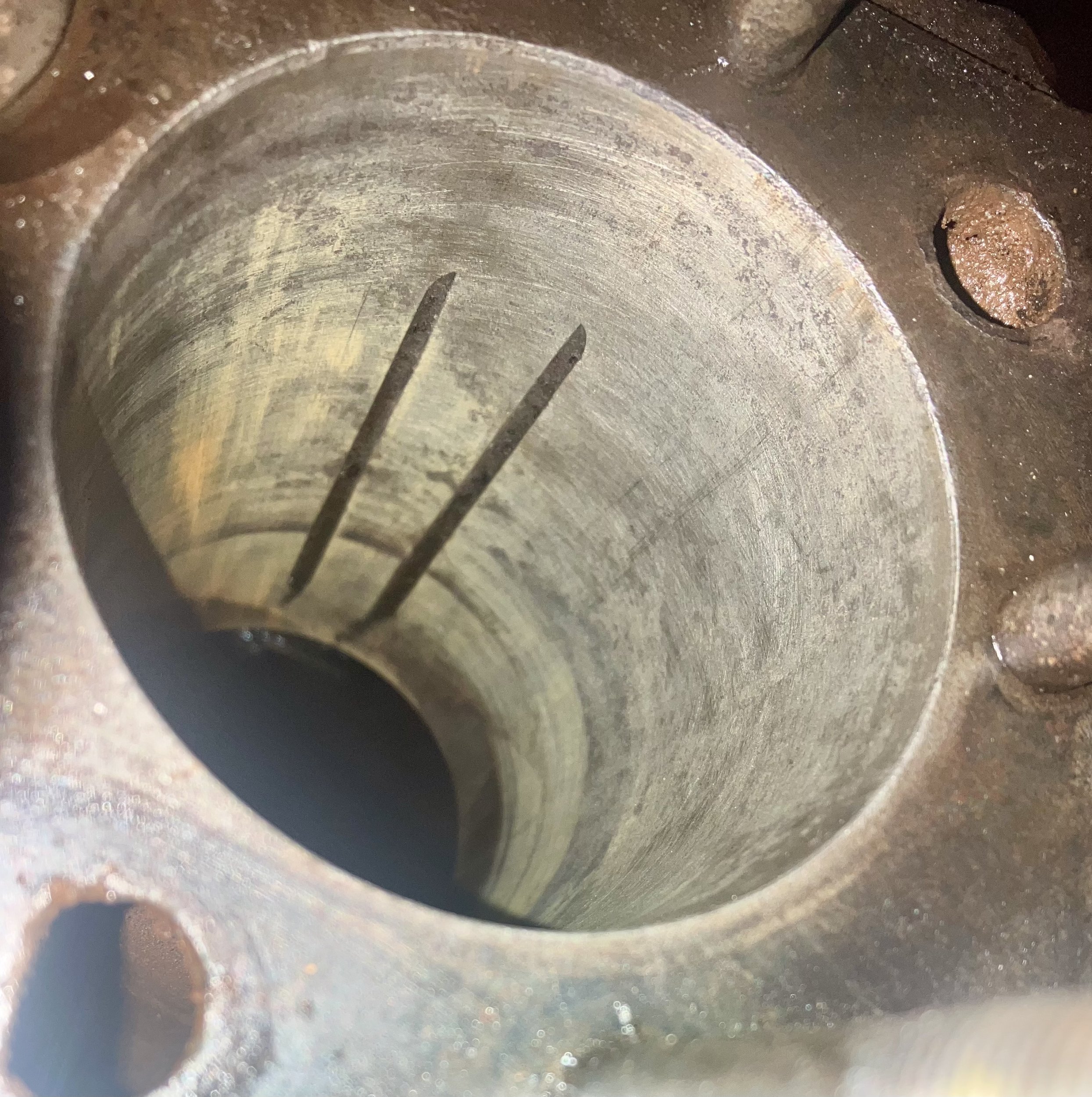

    Now to what makes most of the above irrelevant IMG_6150.jpeg IMG_6152.jpeg
    Although when disassembled the wrist pin was centered obviously sometime it was not (original assembly?)
    So you think that is why the broken piston
    Wrong different hole
    Although they share a crank journal (#4 and #8 cylinders)
    So this new development really doesn’t change anything
    It would require a overbore regardless for a proper rebuild just maybe now going with.050” over bore or a sleeve
    So again keeping the mission statement in mind just going to put a piston back in the hole
    Now let’s start talking about changes from’34 to’35

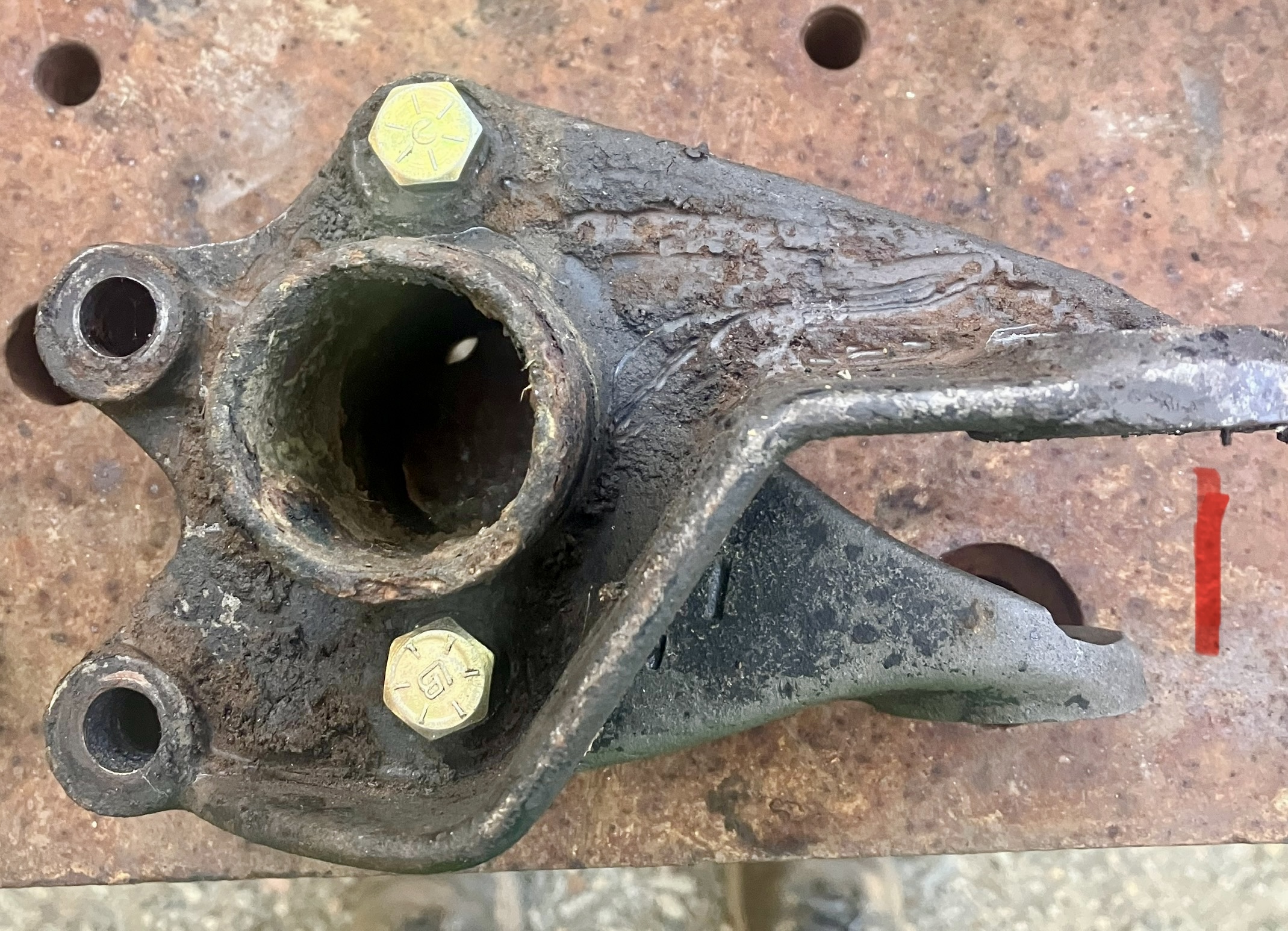

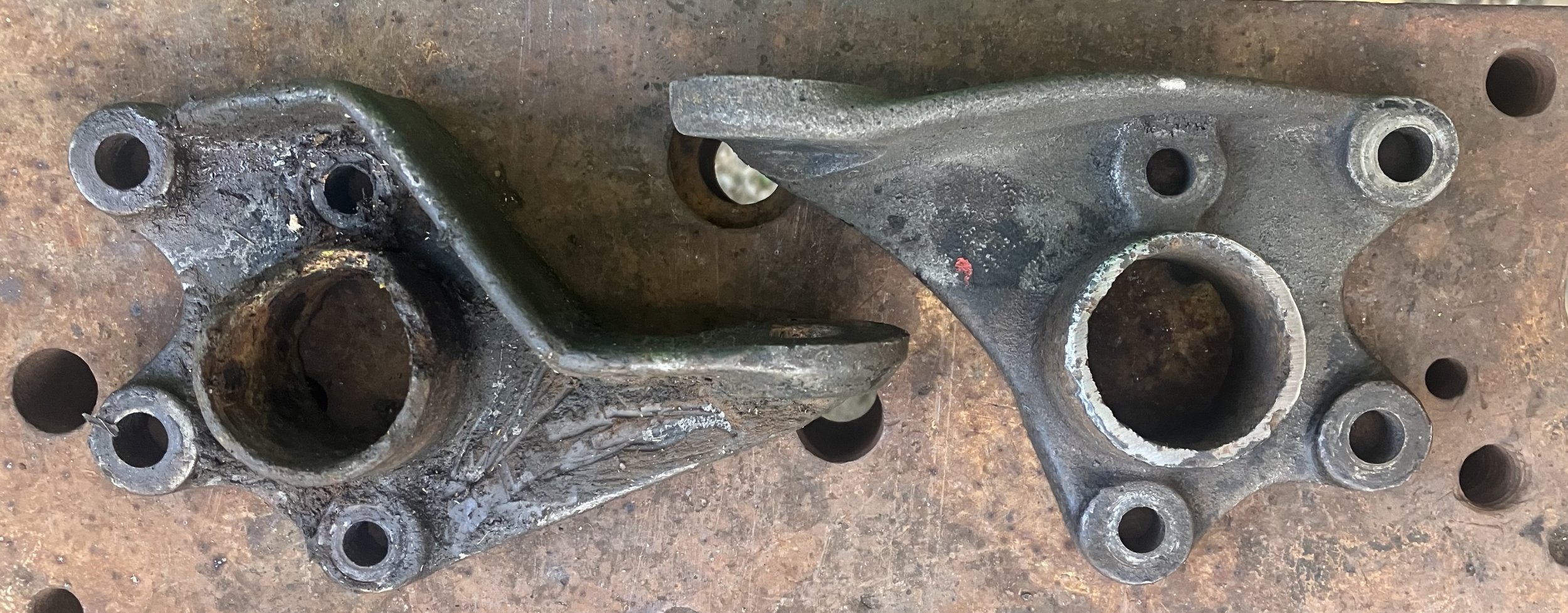

    If you go way way back to the beginning when I was putting in the motor mounts in the A chassis I talked about the motor mounts sitting lower IMG_6148.jpeg IMG_6149.jpeg ‘35 on left
    1 5/8” difference between’34 and’35
    One of the’35 mounts needed repair but I was able to find a reasonable price pair of’34 mounts so now both motors will be the same
