Another wheel ID thread

Discussion in 'The Hokey Ass Message Board' started by ABONES, Apr 12, 2009.

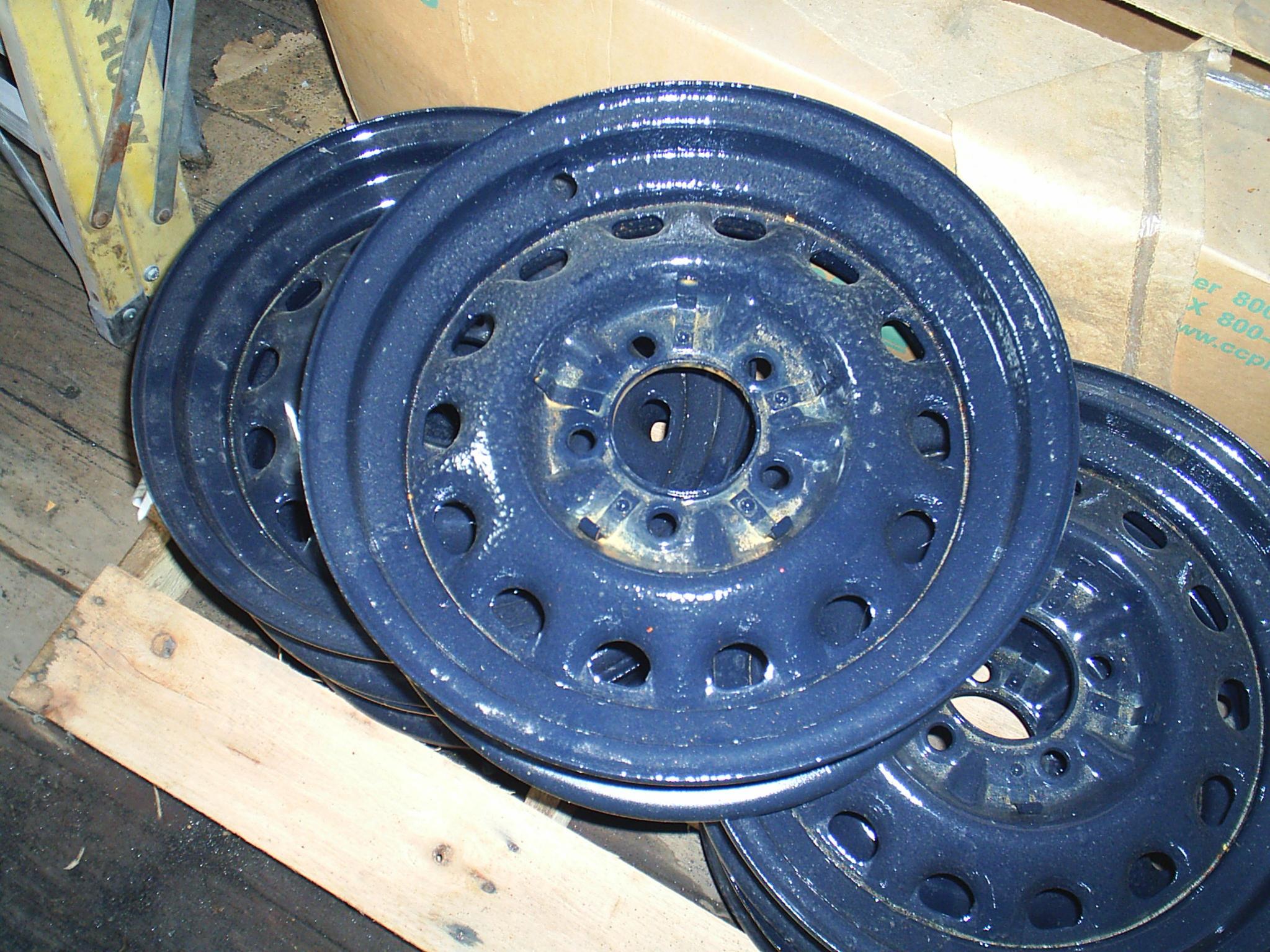

  1. 16 inch with 4 3/4" bolt pattern. Was told these were for a Chevy. Are these artillery wheels and are they worth anything ?


    Attached Files:

  2. povertyflats
    Joined: Jan 8, 2007
    Posts: 8,283

    povertyflats
    Member
    from Missouri

    Can you double check the bolt pattern? They appear to be Mopar and usually Plymouth from the mid 30's. Same 5 on 4.5 inch bolt pattern as many Fords and very popular and worth good money.

  3. I can double check the bolt pattern this week. A guy I used to work for sandblasted and painted them for a customer a couple years ago. I can get all five for 180.00

  4. jonathan
    Joined: Feb 12, 2007
    Posts: 389

    jonathan
    Member
    from Phoenix,AZ

  5. Squablow
    Joined: Apr 26, 2005
    Posts: 18,251

    Squablow
    Member

    Those really, really look like 17" 1935 Plymouth wheels which would have a 4 1/2" bolt pattern. Did you measure them? Or are the measurements just what the guy told you? Because I'd bet a dollar that's what they are.

    I don't know of a single vehicle produced before 1949 that had a 5 on 4 3/4" bolt pattern. Keep in mind that Chevrolet used 6 lug on all of their cars through 1948, and by 1949 pretty much everyone was using 15" rims and tires.

  6. FoMoCoPower
    Joined: Feb 2, 2007
    Posts: 2,493

    FoMoCoPower
    Member

    You may not be measuring the bolt pattern correctly as 95% of every seems to not know how to do so for some reason.

    I love arguing with old men at swap meets who complain that everyone keeps selling them the wrong wheels...lol.

    Measure from the outside edge of any hole,to the center of either hole directly across from it.

  7. I'm going to check them tommorrow but now I'm thinking they are a 5" bolt pattern now that you tell me how to measure them. I measured from center to center on the hole directly across.

  8. rumblegutz
    Joined: Aug 29, 2008
    Posts: 678

    rumblegutz
    Member

    I want to thank you for sharing the correct method of measuring bolt patterns. I’ve tried a couple of times but I am dense enough that I just couldn’t figure it out. When I read your post I went right out and measured several different wheels. Works for me.

    Thanks I do appreciate the education and it’s of value to me.:)

  9. mike hamel
    Joined: Nov 24, 2005
    Posts: 1,590

    mike hamel
    Member

    Hi, That is a mid 1930's Oldsmobile 16" artillery wheel. 5x4 3/4" bolt pattern. That is a very good deal for those. Dont see them all the time. They are not dodge or plymouth. If you need any more help. let me know. Thanks, Mike

  10. Bolt circle is 5 inch . Center hole measures about 3 3/8.

  11. wheelkid
    Joined: May 25, 2006
    Posts: 1,263

    wheelkid
    Alliance Vendor
    from Fresno, CA


    They are mid 30s olds, I think he just made a mistake on the bp

  12. pasadenahotrod
    Joined: Feb 13, 2007
    Posts: 11,775

    pasadenahotrod
    Member
    from Texas

    Chevy used a 5-bolt wheel on Standard model 33-35 Cars which I believe was 5 on 4 3/4". Curse me if I am wrong.

  13. wheelkid
    Joined: May 25, 2006
    Posts: 1,263

    wheelkid
    Alliance Vendor
    from Fresno, CA

    It was 5x4 1/4" and 33-36

  14. wheelkid
    Joined: May 25, 2006
    Posts: 1,263

    wheelkid
    Alliance Vendor
    from Fresno, CA

    sss

  15. mike hamel
    Joined: Nov 24, 2005
    Posts: 1,590

    mike hamel
    Member

    Jimmy is exactly correct!
