I am trying to get ready to mount the body but new ideas keep getting in the way...this is why it has taken me 5 years so far to build this car. I am mounting the battery in the trunk on this car so I have a lot of cable to run and I don't want to see it...anywhere. Taking advantage of the natural surroundings, namely the body mounts I welded to the frame to take the channel drop out of my body, I figured it would be a great place to make a couple of big cable runs.

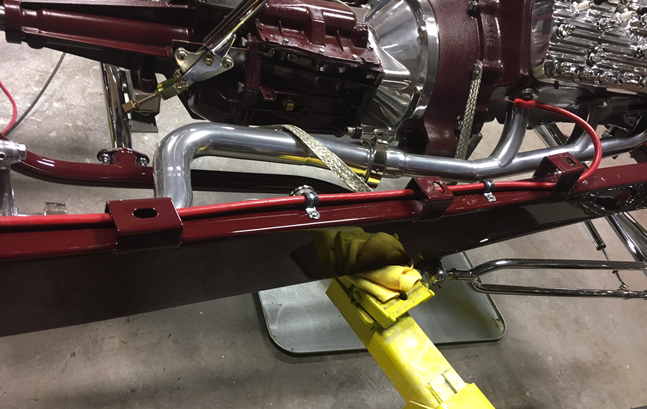

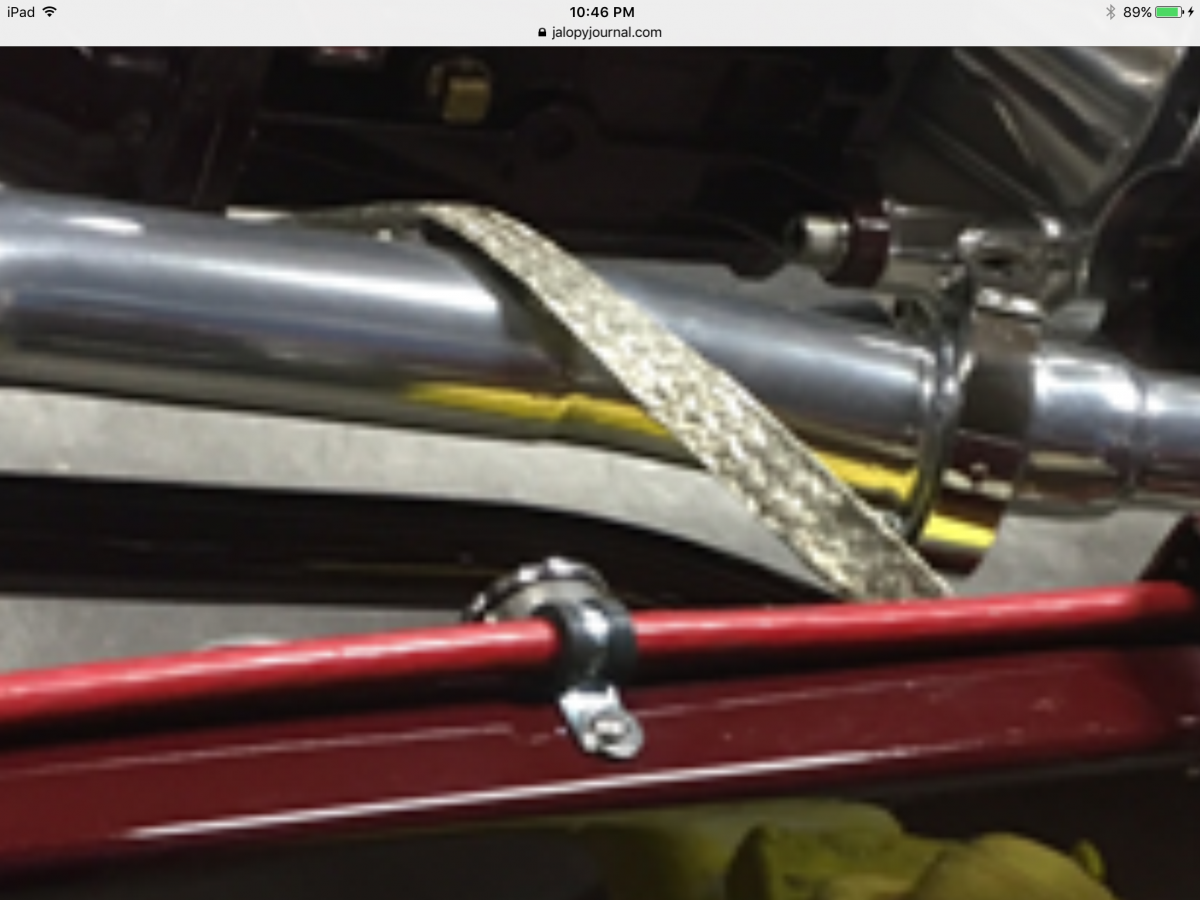

Right side is the #1 cable that will power the starter only when cranking, a ford solenoid in the trunk will regulate that. This is a big cable and all anyone will see is a foot of it that connects to the starter. It is also clamped to the top of the rail to make sure it doesn't chafe. This cable will make a move into the body after the door, into the cavity in the body and then back to the battery which I am mounting on the right side. The negative cable will go to the frame using the body mount bolt in the last trestle. No, that ground strap isn't staying there, it would chafe my willy.

On the left side a #4 cable comes off the PowerGen alternator and makes a run to the battery kill switch located in the trunk and accessed under the rear of the body over the tank. I covered the section that is exposed with cloth covering that happens to be black with maroon chasers. Like the other cable, it will route into the car just after the drivers door and finish it's run to the kill switch and then to the battery.

These channeled Speed 33 bodies have an interior trough to run the harness through and past the doors. On the right I have already added a #6 cable to power my ceramic heater which was too much pull for a fuse box, it has it's own feed and a dedicated circuit breaker. On the left interior channel is another #6 that is connected to the kill switch and runs forward to power the Coach Works fuse box.

One more step completed. Next is the completion of the brake lines. A roll of .28 3/16 stainless showed up today so it's go time...or is that stop time?



Billy I gotta ask::
This build is outstanding !
You've done extensive things to make it easy to work on !

So here's the question -
How are you going to get to these little screwed on trinkets with the body on should the need arise?



What he said!



8 bolts. That is all that holds the body to the frame. Well that and a 2 post lift. Fuel line is a quick disconnect, the wiring harness will be. That fuel line had to run up and over the frame tubing, no other alternative. Not really any different that my 442, you have to lift the body to change the steel lines on her too.

Seriously, a "what he said" joke? Dude!

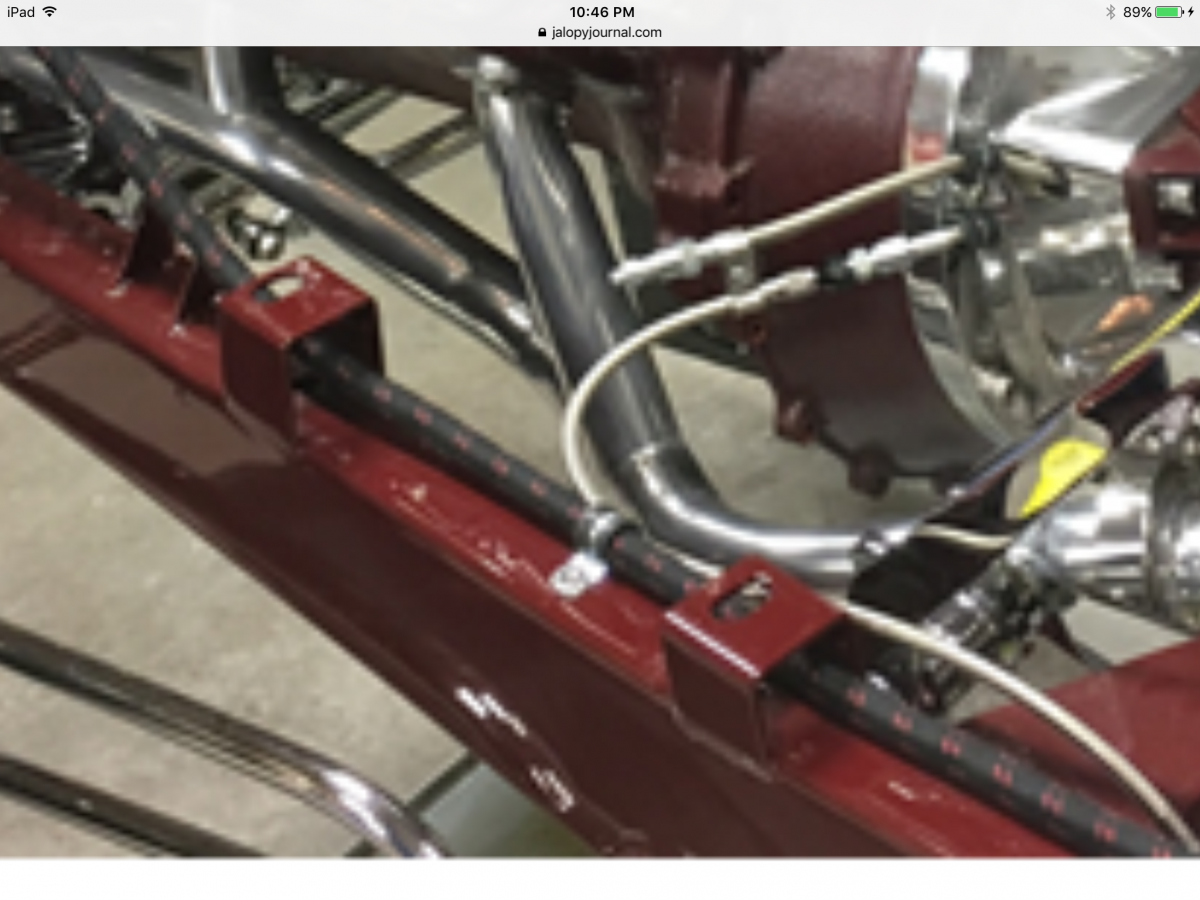

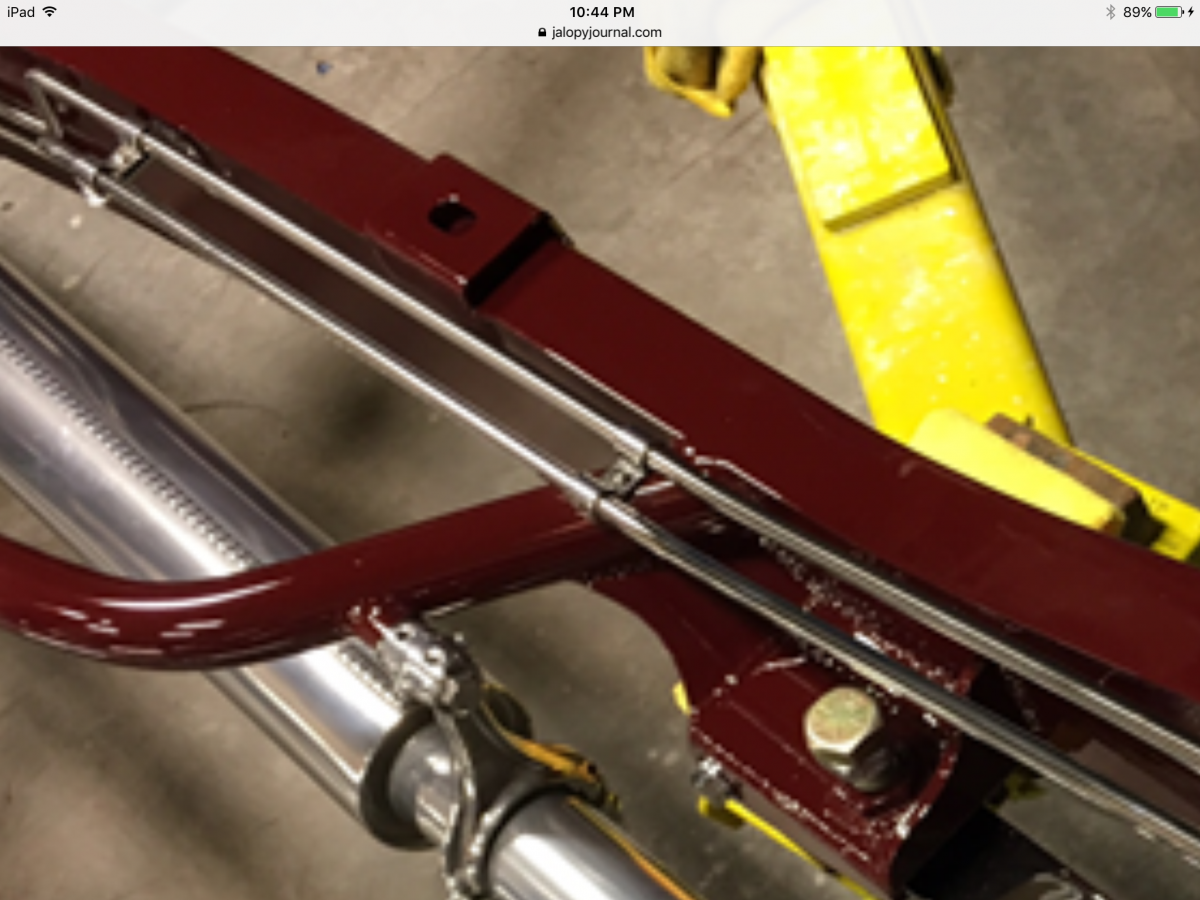

This is interesting, I used a couple of stainless 3/16 frame brackets and bolted them together to tie the clutch lines together. It was just an exercise but it worked, look close and you can see I lined the adapter holes with rubber hose to insolate the lines and I bracketed them to the bell housing/adapter as well. Bleeder on top. I still may make an another bracket to secure them but on the right track. With the lines out of the way I have ample room to pull the pedals out of the floor if necessary.

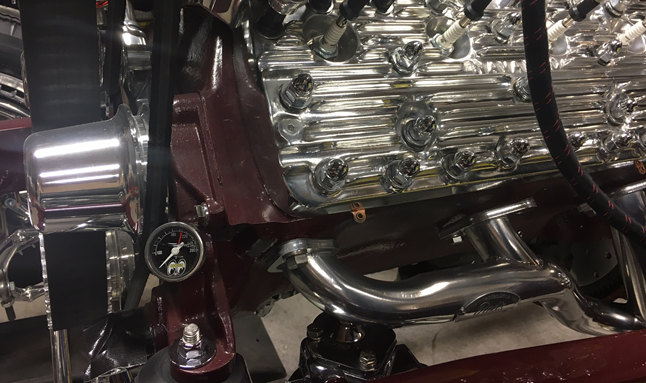

This one is just kinda dumb. I had purchased a moon eyes water temp gauge to attach to one of the heads. I changed my mind and decided to run dual temp gauges on the dash and thus a temp sender in each head. So what to do with an extra gauge? Stick it in a water pump. Beats lying in a drawer.



Speaking of kinda dumb, well, that would be me for failing to fire on all the paint questions you had and to come and visit. Believe me, the work load and problems related are getting to me a bit. Still hope to visit though.Sooner rather than later, hopefully....



No worries buddy. If memory serves you were doing the Ireland gig at the time. I look forward to having you back over and seeing what you think of this thing.



Hi, enjoying your build thread, lots of neat details, and thought out solutions, top stuff.

As a side, I'm noting your brake lines, and placement etc, as I'm preparing to layout and run mine, so your thread is timely for me, but noted the way you positioned the rear axle lines, from the housing just prior to entering the slave cylinder. Just going through the motions of sorts, noting the notch in the rail, and respective clearances to the axle tubes, but do you have some form of bump stop, and if so, should the suspension compress if you hit a pot hole etc, will it prevent that brake line getting hit as the suspension does it's thing?
I expect it's just the angle of the photo, but thought I'd ask in case.

Again, enjoying this thread, and appreciate the details demonstrated, as it's both inspiring, and informative.

Cheers,

Drewfus



Thank you for the kind words. With regard to the suspension, I played with it a bit when the springs were being plated, the shocks bottomed out before the notch in the frame impacted the dummy lines I built (I make soft lines that I can hand form prior to knocking them out in stainless). I did not add a bump stop for that reason though a little insurance does go a long way.



Tonight, while I was waiting for the primer to dry at 42 degrees F on my oil pan, I unboxed my new flare tool and got acquainted. I started playing with scrap 3/16 steel and then tackled my first stainless steel brake line. This is the line that runs between the front frame mounts. You can see it lying across the handle. All I got to say is "You have got to get one of these!"

You clamp your line in the correct die (3/16 in this case), A little light oil is a good idea, rotate that dial to OP1 3/16 and pull the handle. Then rotate the dial to OP2 3/16 and give the handle another pull. Done! This dial is for 45 degree flares. I also got the 37 degree AN dial which just pops on so you can do army/navy flares.

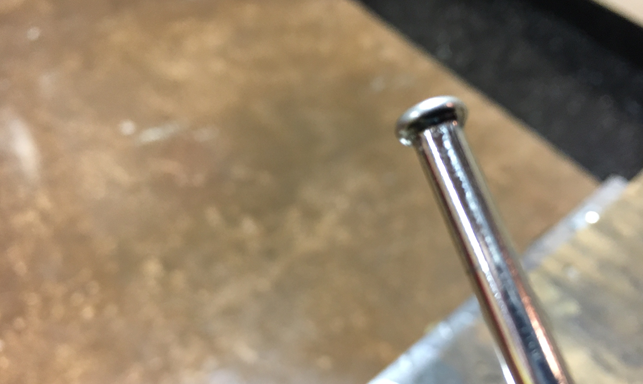

Check out the close up of the double flare. I kid you not, it takes 2 minutes tops to create these flares.

Another angle to the dangle. The only thing I regret is that my vice is mounted to a work bench I fabricated years ago...on casters. A vice that doesn't roll around the garage would make the job even easier. And notice, no marking of the tube from the clamp.

This stainless will work your upper body a bit, better than a bowflex cuz you get bitchin lines for the effort. And yes, I used stainless nuts and polished the bejeeveese out it. If it's worth doing, it's worth more shiney!
