Hot Rods Cadillac guru identify my rockers

Discussion in 'The Hokey Ass Message Board' started by Swapmeat1981, Dec 21, 2015.

  1. Swapmeat1981
    Joined: Dec 20, 2015
    Posts: 8

    Swapmeat1981

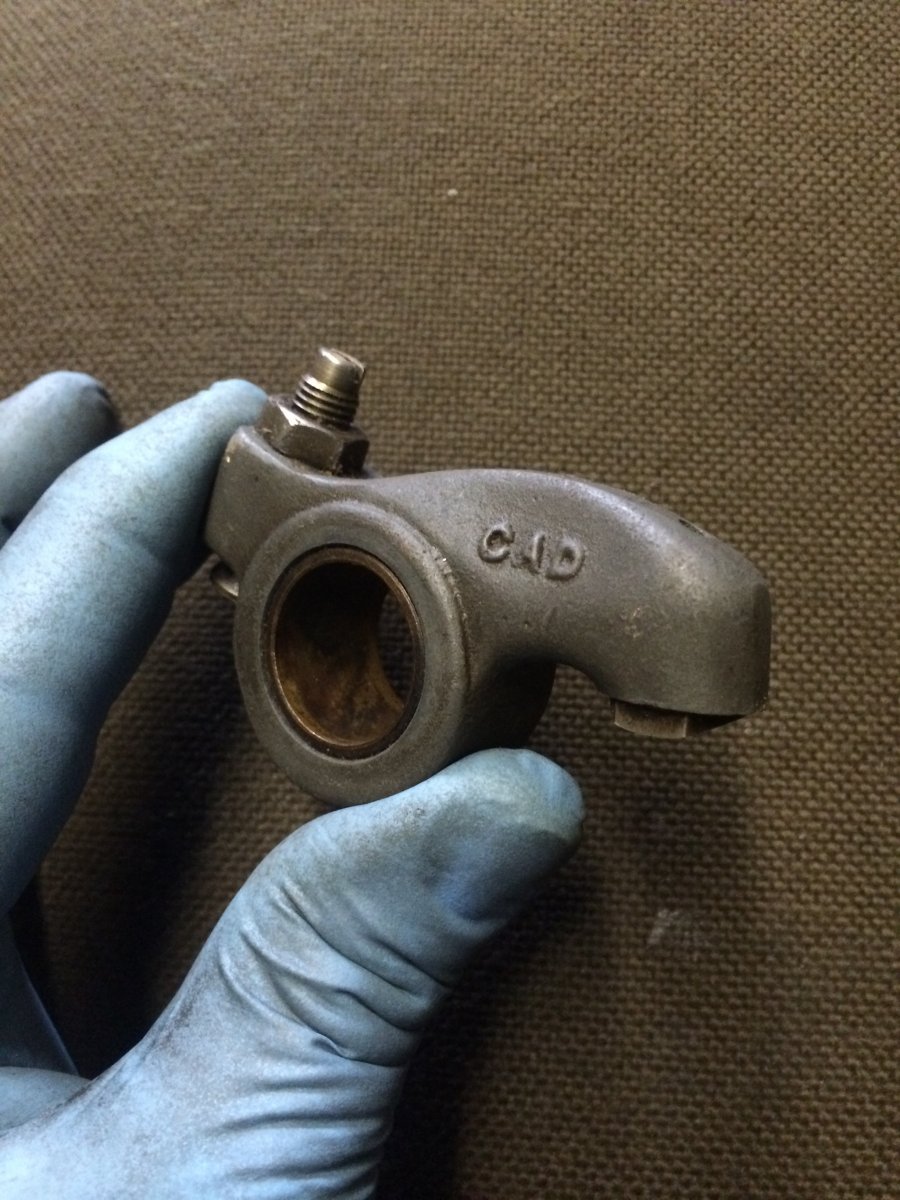

    image.jpg Please help identify these rockers. Thanks jesse


    Attached Files:

    Last edited: Dec 21, 2015
  2. Swapmeat1981
    Joined: Dec 20, 2015
    Posts: 8

    Swapmeat1981

  3. falcongeorge
    Joined: Aug 26, 2010
    Posts: 18,339

    falcongeorge
    Member
    from BC

    Those look similar in design to the Thomas rockers I have for my olds, but they have "THOMAS" cast on them. Are they magnesium?

  4. Swapmeat1981
    Joined: Dec 20, 2015
    Posts: 8

    Swapmeat1981

    I don't know for a FACT but yes my best guess would be magnesium

  5. falcongeorge
    Joined: Aug 26, 2010
    Posts: 18,339

    falcongeorge
    Member
    from BC

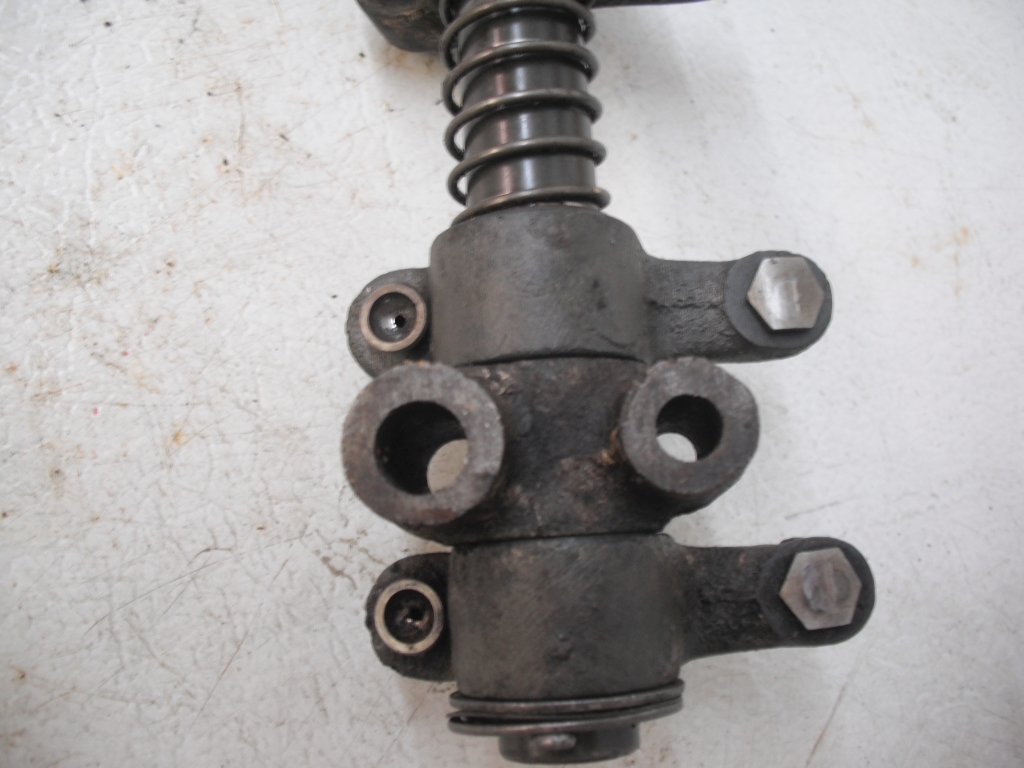

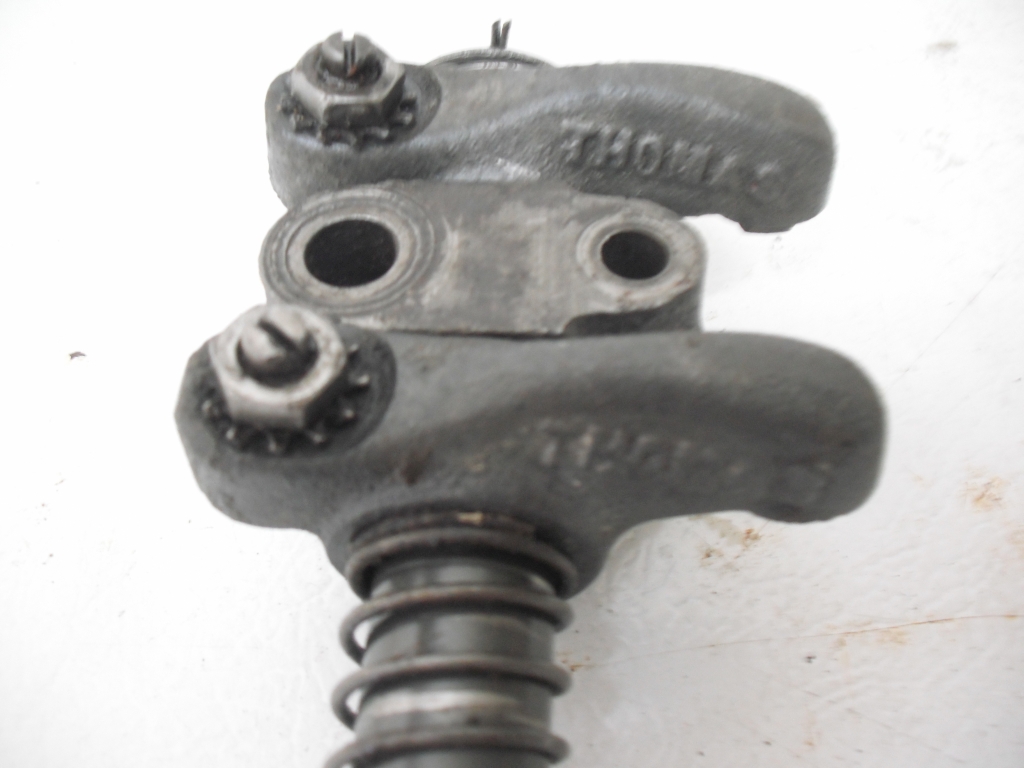

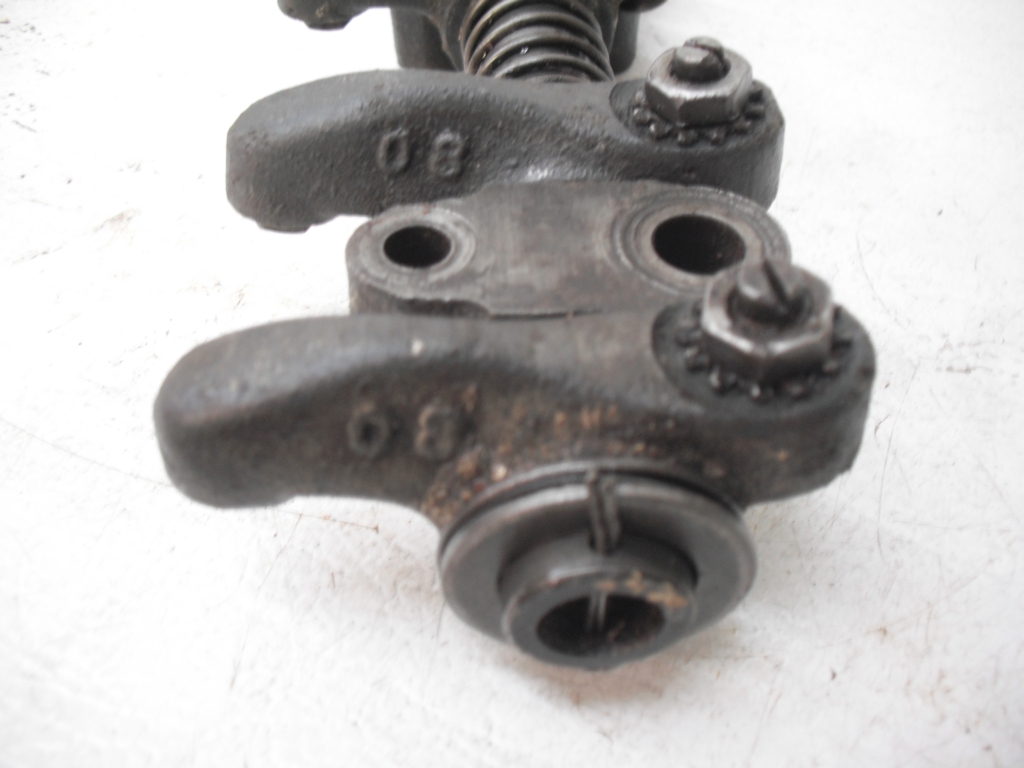

    Heres pics of my Thomas Olds rockers, as you can see they have pretty much the same features, cupped adjustment screws with lock-nuts, and separate wear pads on the tip but they have "THOMAS" cast into the rockers.
    DSCF0067[1].jpg DSCF0068[1].jpg DSCF0069[1].jpg
    I have looked at pics of Gothas and McGurks online, they all appear different than what you have. Give you a bump, maybe someone else will be able to provide more insight.

  6. Swapmeat1981
    Joined: Dec 20, 2015
    Posts: 8

    Swapmeat1981

    Appreciate the insight. I've seen the Thomas before. Those and studebaker are all I ever come up with when searching adjustable or magnesium for the cadillac. Hopefully someone else chimes in. Maybe mine are early in the production Thomas? Before they cast their name in them? Idk

  7. falcongeorge
    Joined: Aug 26, 2010
    Posts: 18,339

    falcongeorge
    Member
    from BC

    Im pretty sure any mag rocker will have the separate wear pad, but not all will have the cup style adjustment screw, several that I looked at used a ball adjustment screw, and some that I saw used an interference thread instead of a lock-nut.

  8. Swapmeat1981
    Joined: Dec 20, 2015
    Posts: 8

    Swapmeat1981

    Rebirth.... any new insight
