Nice job on the blower. Glad to see you're progressing and I hope Beth is healing and soon will be back on the "T". Looks like it won't be too long and you'll be done and ready for some fun.



Boy that was a lot of material hanging off the chuck with so little grab---even with light cuts



don't pressurize it Tim I wouldn't want the problems with seals



Tim that blower must have oil pressure there are no bearings in it it has to have pressurized oil to it or it will seize up in about 3 seconds lol it's like a crank in an engine it has to have oil pressure or it will lock up so it needs to be pressurized and also will have to have a drain on both ends of the blower back in the engine



I stand corrected listen to Randy..............



WOW never seen a GMC blower without bearings ! Both plates should have good bearings in them and need very little oil to keep them lubed . A small amount of oil up to the bottom of the bearing usually works very well....



All the 71 and 92 series blowers do have bearings but the 53series is a different breed the only 53 series that has bearings is the 8v-53 the 2,3,4, and 6v-53 has the pressurized style the famous 144 blowers that b&m and weiand and others sell are patterned after the 4-53 that blower will work just fine I ran one on a 283 Chevy and it worked very well it's very important to keep the engine oil changed properly



Beth is still healing so I'm doing most of the work on the car till her neck heals all the way, She wants to do the work on her T still so it's on the back burner

Yeah, Bruce looking at the pics again makes me relize that was pretty dumb , Could have gotten what little brains I have hurt again, don't heal as fast as I used to

Randy how high up the plates should the oil drains be

That's right Carl Randy's done a bunch of theses type blowers, 71 type are alot less headache to set up,But where's the fun in that

Yeah Jim Randy's right no bearings in this type 4-53, , How have you been doing, Back all healed up? Tim Jones



Start of the swing arm idler bracket



Tim the drains can be low from the factory the were at the bottom you already plugged them so it doesn't matter Also how thick of material are you using to build your idler bracket looks to be 1/2" if so you should make it at least 1" thick I've bought and run thinner ones and they always broke or been real hard to keep straight just a thought anyway keep up the good work



Yes Tim back is doing ok. Sold my Fuel Injection shop and closed it last Sept. Doing just ignition now , still pretty busy though....



Thanks for the info Randy, I think before I shitcan this bracket I'll try adding a backbone to it ,I have a triangle piece left from cutting this out I'll weld to the backside, Plus I don't think I have any 1 inch thick pieces left, but I'll check just incase

As long as your upright and busy all is good ,,,,,,,,, more pics from the work today



Many years ago my brother built a 4/53 blower, he made new endplates that used bearings, and seals like a 6/71 does.



Tim, Buy cutting away the material at the pinch bolt, you will never get it to hold tight enough because the material wants to bend/pivot in the corner, would have been better to drill and tap into the material and counter bore using an allen bolt for the pinch. also the bore must be pretty much perfect to the dia of the snout (tap on) otherwise there will only be 3 points of contact after you tighten it .



Thanks Ken , if this thing works OK I'll do that in the future

Dug around the shop and found a piece of 1 inch thick Alum, I guess this ones getting hung on the wall

Thanks for the info Bruce, I'm starting over with a 1 inch thick piece, I'll do the pinch bolt the way you said, any recomendation on bolt size,,, Man for just one guy I sure make alot of scrap alum, LOL



nothing wrong with scrap Tim, just melt it down and re-purpose it
give me a call at 916-300-6779 when ya get a chance please

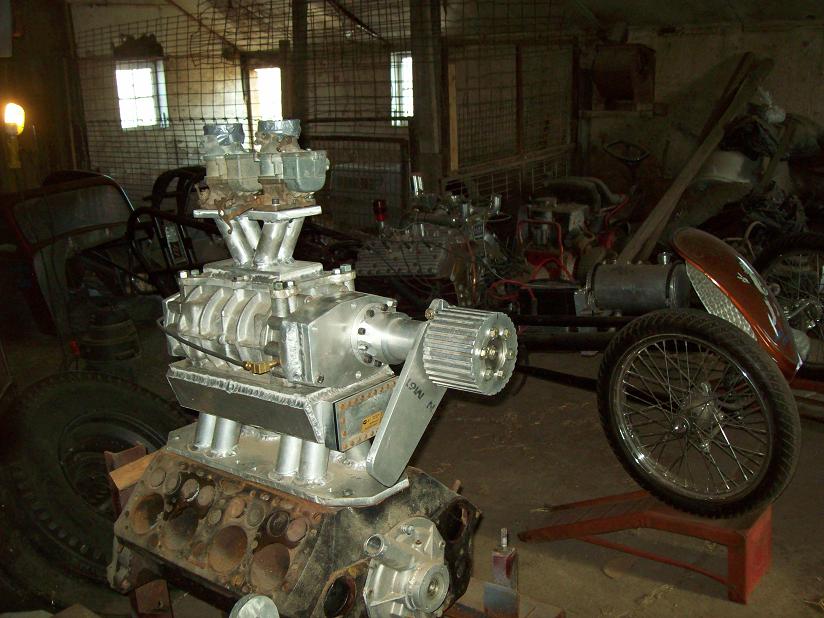

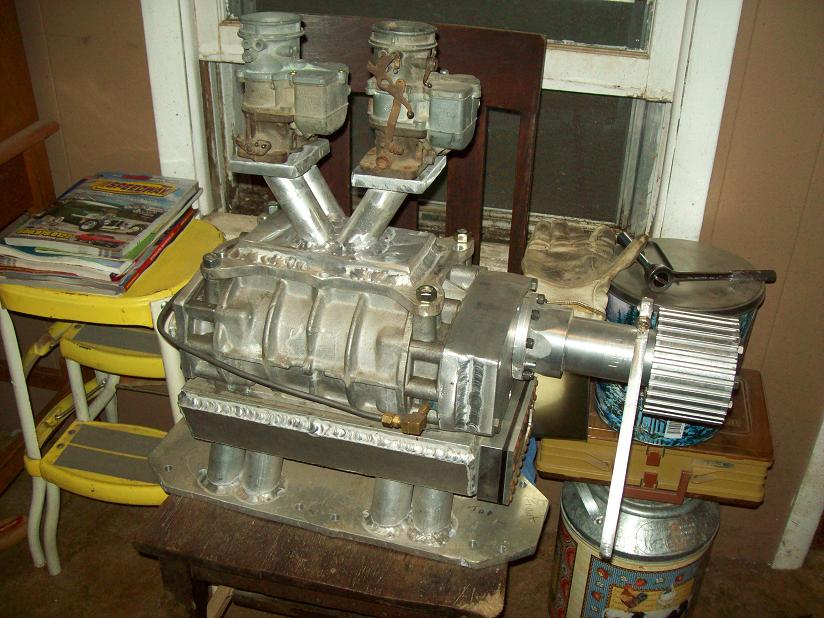

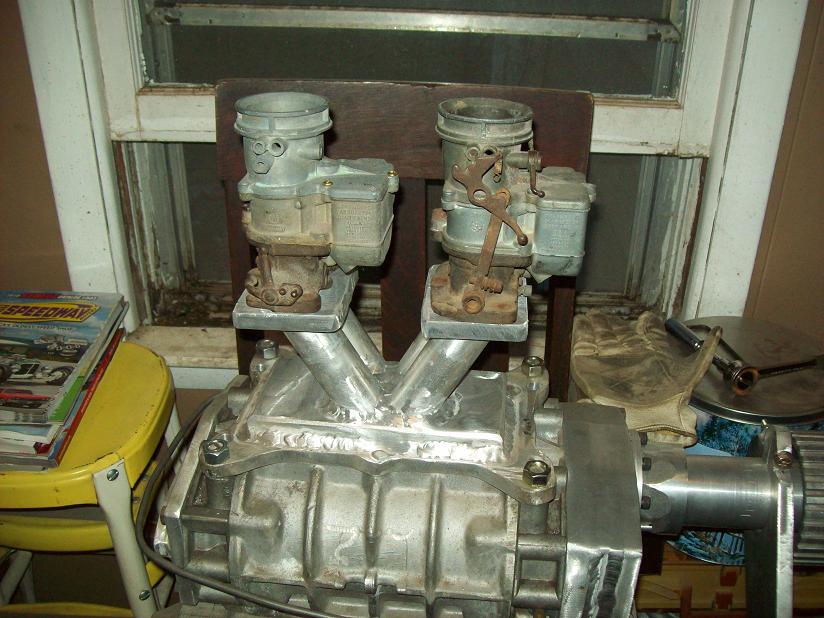

Worked on my Y adapter for the dual carbs, pay no attention to my shitty welds, an hours worth of die grinder time on the inside of the runners an some epoxy, ready to roll, still might put some port lines on it ,have to see how it runs, My Buddy Roseville Carl sent me out one of his ibler brackets to see if I could use it before building another swing arm one, Doing some rewireing for the new style starter today
