Custom frame thread, pics please!

thanks justin. i have been following your build on streetsource
heres some more pics



Almost forgot to upload these.. I took them at Sema....


~Dustin



hello, can you tell me what stops the rear axle rolling forward and back
-is it the watts link?

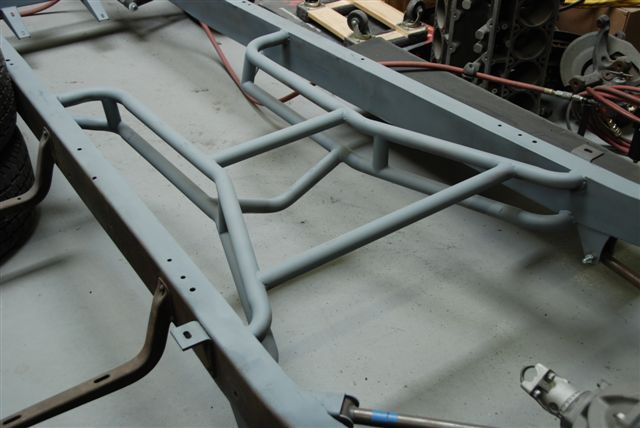

Here is the frame under my 41 ford truck - It's a 46 car frame , model a rear crossmember - custom front - shortened - boxing plates welded in place - holes from inner frame extended to outter frame & sleved - recesses for radius rod munts -


and here is a closer look of the recess

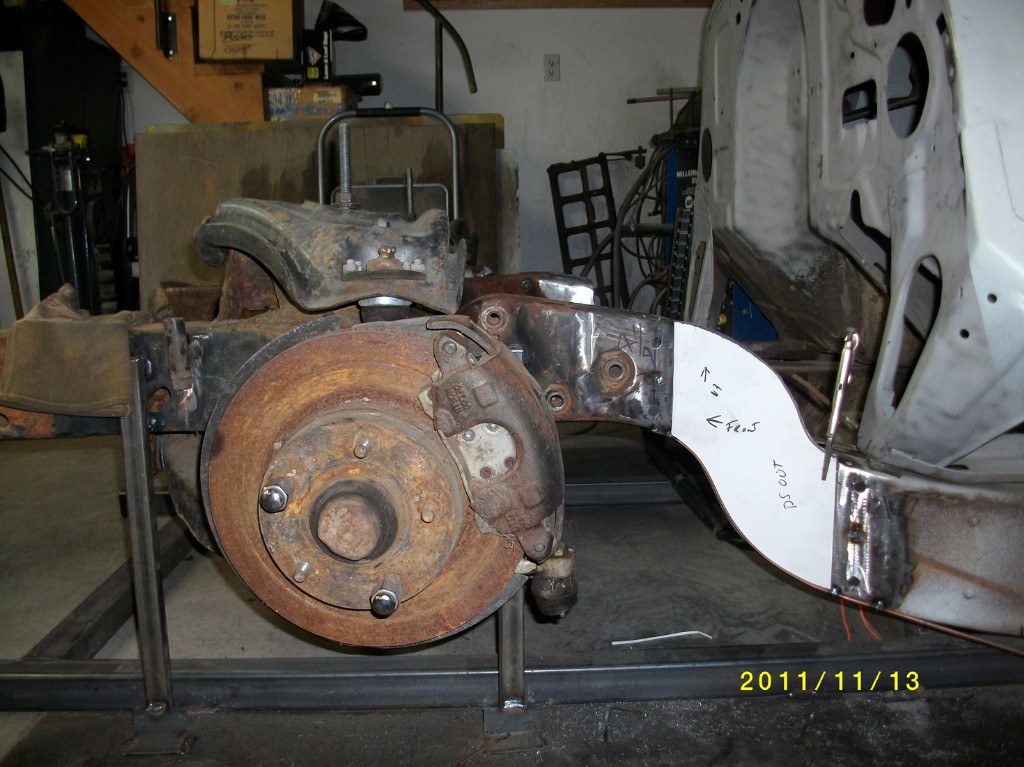

Nova clip on my 49 pontiac



some of my 30-31 a pickup jag rear 3 drop axle



Nice stuff, keep them coming!



Its got a two link, like a truck arm suspension. Axle is bolted to the lower link. The watts link keep the axle centered side to side.

Justin



Here's some from my '32 Chevy.



My thoughts exactly.... Thanks


~Dustin



btt. I wanna see more.



x2!



Btt.
More pics!



Here's a 60 Mercury Monterey frame modified for air ride w/ Camaro front suspension and 9" Ford fabricated housing. This thing was a real labor of love!!!!



Btt



Here's more pictures of my 41's frame- It's just about ready, just lacks shocks - fuel tank - fuel and brake lines - battery box-
There has been another modification for brake / clutck setup but no good pictures of it!



The chassis I built for my 26 RPU. Starting with 2x6x1/8" tubing and some 2x3x1/8" for the rear kickup.

Bought the front axle and using an 8" rear from a Maverick. Fabricated everything else.



After I fabbed the bed and more or less how she sits right now.
