Projects Digger Idea

Discussion in 'The Hokey Ass Message Board' started by Randy Bickerdike, Nov 30, 2018.

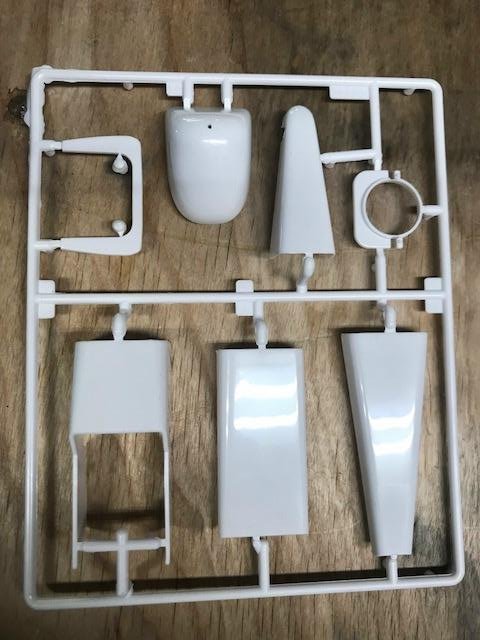

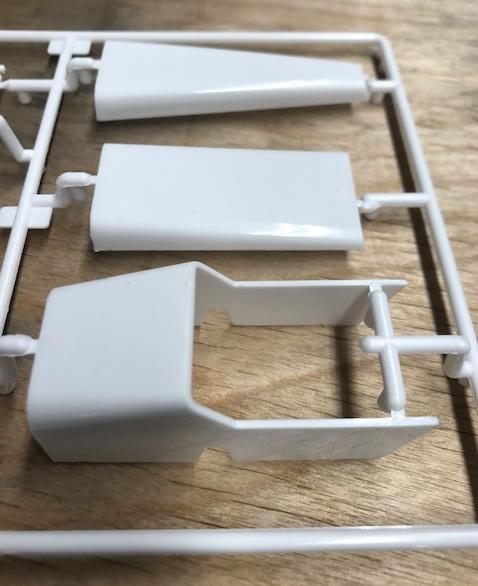

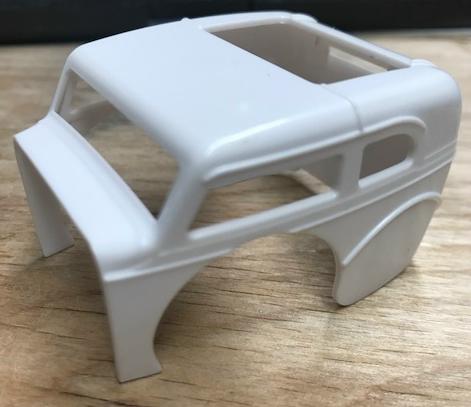

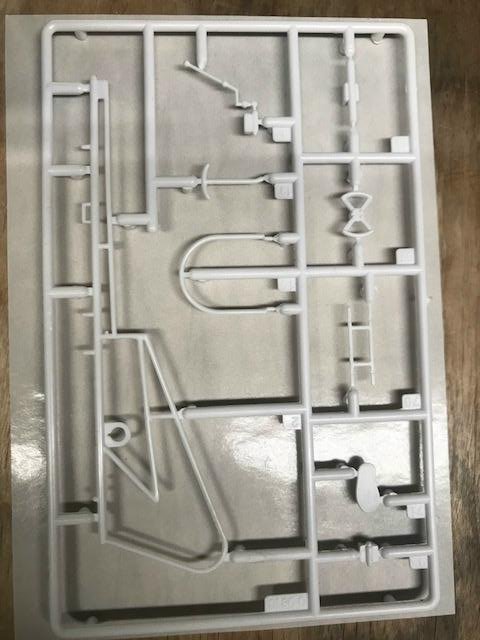

  1. I had this crazy idea of taking a 1:25 scale model and building a vintage style digger. Measuring the parts and multiplying by the scale it's close to true dimensions.


    Attached Files:

    Deuces, Stogy and chryslerfan55 like this.
  2. AHotRod
    Joined: Jul 27, 2001
    Posts: 12,290

    AHotRod
    Member

    I've seen crazier ideas made that worked.

    Deuces, lothiandon1940 and Stogy like this.
  3. aircap
    Joined: Mar 10, 2011
    Posts: 1,809

    aircap
    Member

    I built the models in that box so many ways when I was a kid.

    Deuces and Stogy like this.
  4. Stogy
    Joined: Feb 10, 2007
    Posts: 26,905

    Stogy
    ALLIANCE MEMBER

    First off have you been watching old movies Phoenix?...:D Would this be a full scale model or a running driving clone/racer

    Both would be great challenges...

    If your building a functional clone there is obvious things that you will have to alter from a very simplified model format.

    One more thing this is and I'm sure your aware not a new thing. I featured some work of one of these individuals whose handiwork still exists as part of his legacy...I will post a link when I find it.

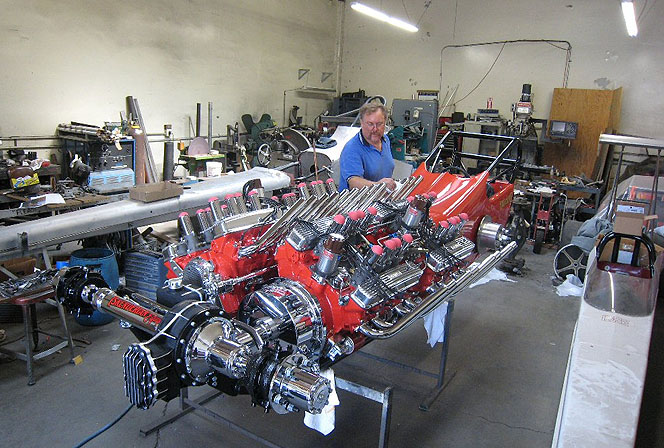

    The Late Fred Schritt
    Remembered in a thread by @OLDSMAN

    https://www.jalopyjournal.com/forum/threads/another-good-one-left-us.1007134/#post-11366491

    Credit to Photographer, Owner


    Last edited: Dec 1, 2018
    harpo1313, Deuces and lothiandon1940 like this.
  5. Stogy
    Joined: Feb 10, 2007
    Posts: 26,905

    Stogy
    ALLIANCE MEMBER

    There are also some Hambers who have built around an artwork with dramatic results. Perhaps this could be called building to a model box cover.

    An Inspired Weesner pickup comes to mind...

    Built by quite an extraordinary metal shaper Hamber @Jimmy Hervatin...

    Showcased in a thread below by Hamber @193257

    https://www.jalopyjournal.com/forum/threads/another-weesner-inspired-hot-rod-lit-up.549162/

    While you are poking through the thread above there is a link to another art inspired creation equally stunning...

    I guess my thoughts to you are have fun and go for it whichever way you see fit...;)

    Last edited: Dec 1, 2018
    Deuces and lothiandon1940 like this.
  6. ..........That's not surprising. Those model-makers went to great lengths to make their products true to "full-size" dimensions. It always amazed me at just how complicated the task is of creating a scale model kit. The licensing thing aside, it's no wonder model kits cost so much these days. Not that I like it mind you, when you consider most of the one's I built back in my youth were $1.39! Good luck with your project. Keep us in the loop.

    Deuces, Randy Bickerdike and loudbang like this.
  7. oldolds
    Joined: Oct 18, 2010
    Posts: 3,584

    oldolds
    Member

    They just copied a full size car and scaled it down, so I imagine you could just scale it back up. For the most part model manufacturers did a good job scaling down things. Some things sometimes seem to be off scale. Some of the small things like antennas, and maybe tie rods seem to be a bit heavy.

    Deuces and Randy Bickerdike like this.
  8. oj
    Joined: Jul 27, 2008
    Posts: 6,575

    oj
    Member

    Thats gonna take a LOT of glue!

  9. Rough layout of model chassis dimensions on shop floor. Just to see if they are realistic. Believe it or not they are close to the Chassis Research drawing. The Chassis Research drawing calls for 130 degree angle on the hoop. Model was a 115 degree angle. Also laid out the body lines. The plan is to build wood bucks and form aluminum body to fit model chassis. I know it's been done many times. Just a fun fun project.


    Attached Files:

    Deuces and AHotRod like this.
  10. rgdavid
    Joined: Feb 3, 2014
    Posts: 346

    rgdavid
    Member

    Is that drawing with the 115 degree or 130 degree angles ?
    On faceboook theres a chassis research group.
    Here on the hamb there are dimensioned drawings somewhere,

  11. jnaki
    Joined: Jan 1, 2015
    Posts: 10,975

    jnaki


    Hello,

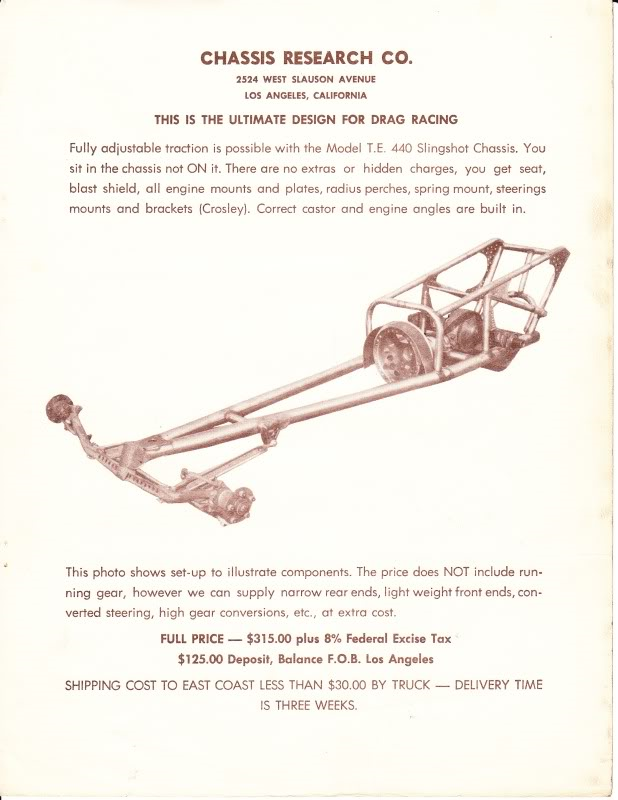

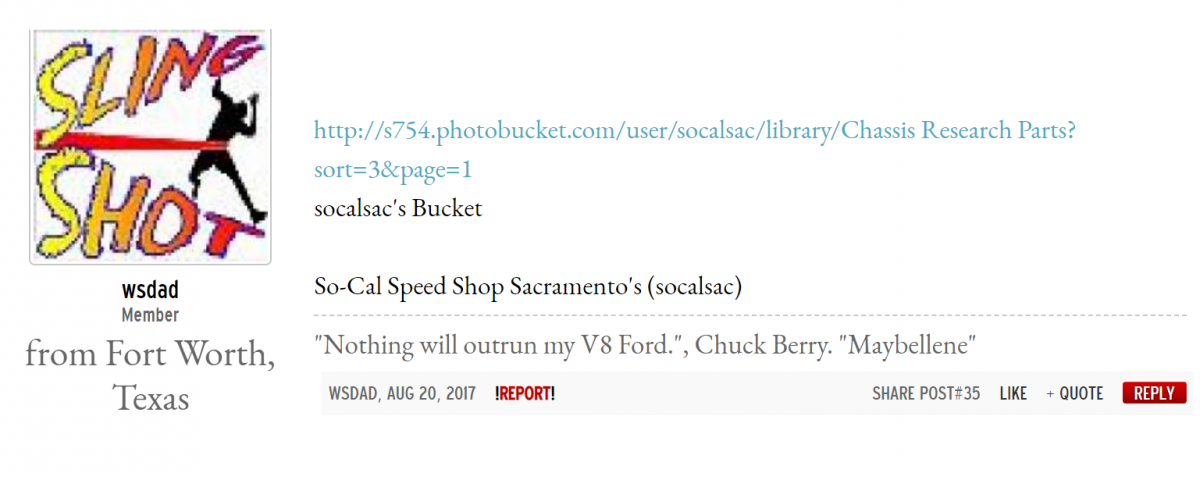

    Those Chassis Research dragsters were very popular when they first came out in the West Coast. In my research, here is a link to an extensive grouping of catalog measurement pages from Chassis Research as provided by @wsdad from the HAMB.

    GREAT JOB ON THE CATALOG FIND...wsdad...

    Jnaki


  12. dreracecar
    Joined: Aug 27, 2009
    Posts: 3,476

    dreracecar
    Member
    from so-cal

    Not so "Crazy"
    upload_2018-12-4_7-32-9.jpeg Showboat2Assembly2.jpg


    Attached Files:

  13. jaw22w
    Joined: Mar 2, 2013
    Posts: 1,698

    jaw22w
    Member
    from Indiana

    Deuces likes this.
  14. Roothawg
    Joined: Mar 14, 2001
    Posts: 25,781

    Roothawg
    Member

    I think it could be done. I can't even keep full size junk running....

    Randy Bickerdike and Deuces like this.
  15. Deuces
    Joined: Nov 3, 2009
    Posts: 26,386

    Deuces

    Ditto on the prices of model kits..... :( It's not a kid's hobby anymore.... It's for old guys like us trying to re-live our youth...

  16. ...............So true.
