Hot Rods Dimension help on a 1934 Ford 5-Window coupe

Discussion in 'The Hokey Ass Message Board' started by Robdski, Jun 16, 2025.

  1. Robdski
    Joined: Jun 28, 2024
    Posts: 124

    Robdski
    Member

    I’m looking for some help with some dimensions on my Henry steel bodied 5-Window.
    At some point in the life of this body, it has been chopped, but I don’t think it was cross braced before or during the chop.

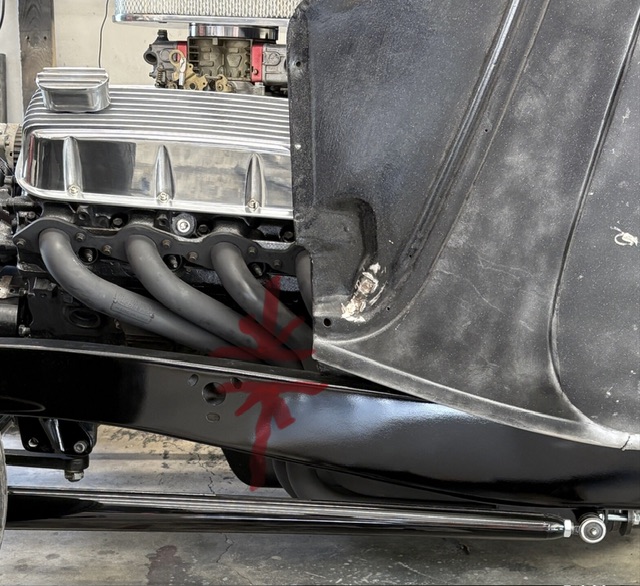

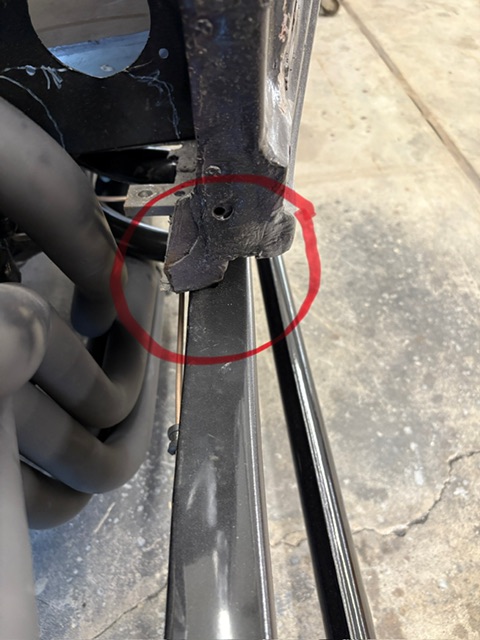

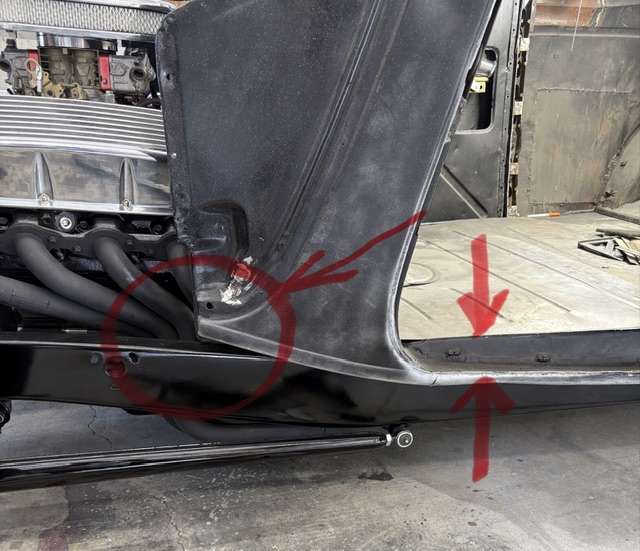

    The cowl sweep that meets the frame appears to be uncut, but the space seems large, is this correct?

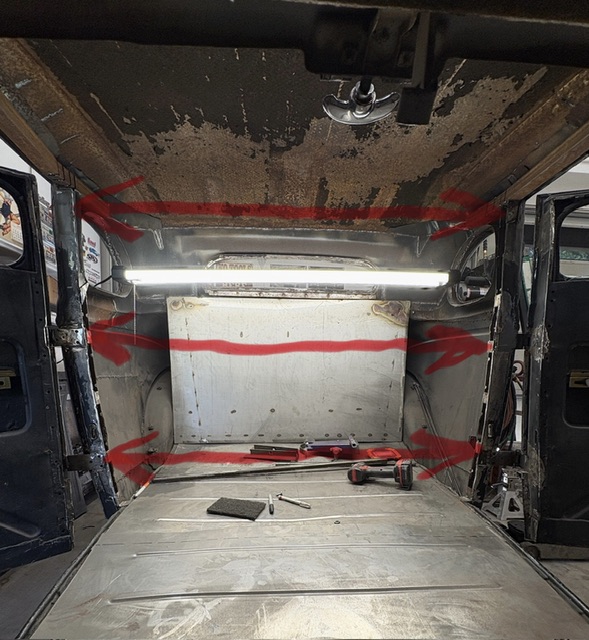

    Also dimensions from side to side at the hinge locations would help me tell how far off it is.
    Any and all help would be appreciated. IMG_3803.jpeg IMG_3807.jpeg IMG_3805.jpeg IMG_3806.jpeg

  2. TCTND
    Joined: Dec 27, 2019
    Posts: 709

    TCTND
    Member

    A chop, even a very bad one shouldn't have any effect on the area you're showing. My '33 5w looks just like that.

    19Eddy30 and Robdski like this.
  3. flamedabone
    Joined: Aug 3, 2001
    Posts: 5,697

    flamedabone
    ALLIANCE MEMBER

    That is pretty much what they look like. Once you put the fender apron on it will kind of make sense. Gimme a minute, I'll run out and take a pic.

    -Abone.

    Robdski likes this.
  4. Robdski
    Joined: Jun 28, 2024
    Posts: 124

    Robdski
    Member

    Thanks for the reply.
    The cowl and firewall are not affected by the chop at all. I just wasn’t sure about the spacing.

  5. flamedabone
    Joined: Aug 3, 2001
    Posts: 5,697

    flamedabone
    ALLIANCE MEMBER

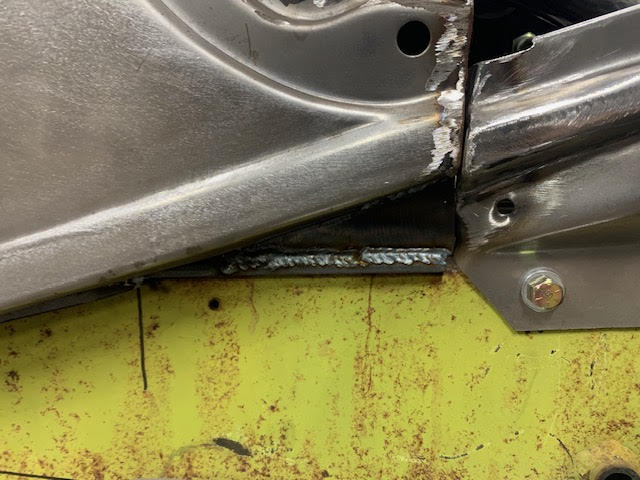

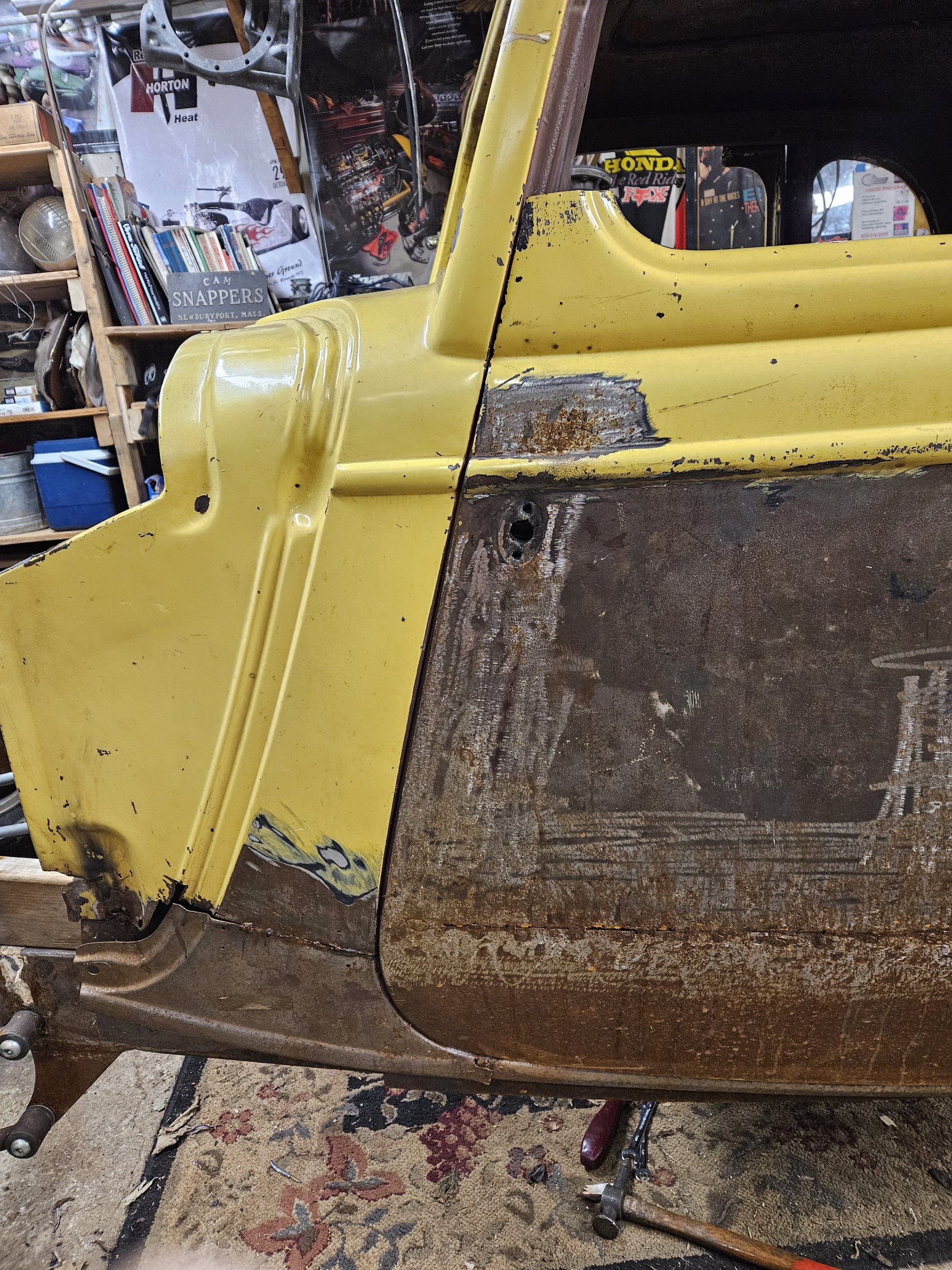

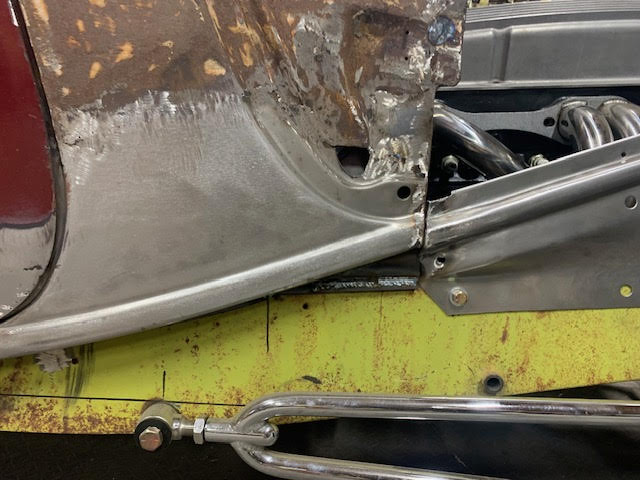

    I made all my inner structure, and it isn't done yet in these pics. When the car is done, you will see this little spot, so it will get metal finished and ground before bodywork.



    Your cowl is a '33 by the way as you don't have a hole for the rearmost hood handle.

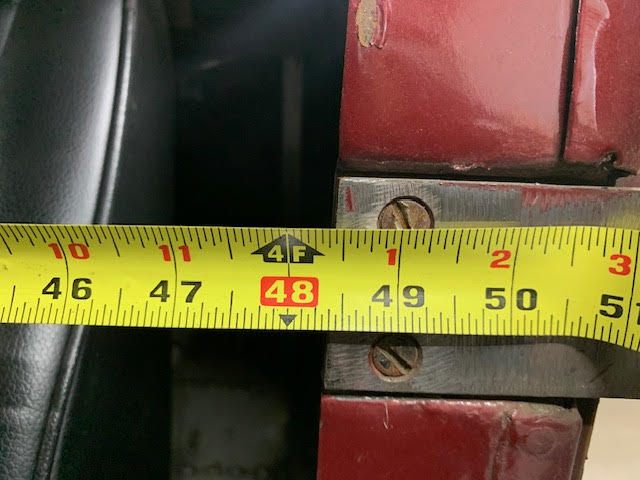

    Here is inside hinge to inside hinge. Don't get too hung up on the measurement, if the door works and the gaps are good, don't sweat it.


    If you need any more stock pics, let me know before this weekend, I'm about to chop this bitch.

    -Abone.

  6. flamedabone
    Joined: Aug 3, 2001
    Posts: 5,697

    flamedabone
    ALLIANCE MEMBER

    And, here is the inside for reference. I built almost all of this area, so it is no where near dead nuts factory, but it gives you the basic idea.


    -Abone.

    warhorseracing, Robdski and Xman like this.
  7. Robdski
    Joined: Jun 28, 2024
    Posts: 124

    Robdski
    Member

    Interesting note about the cowl being a 33. It came with a full hood and grill, both’34.
    Thanks for letting me know.

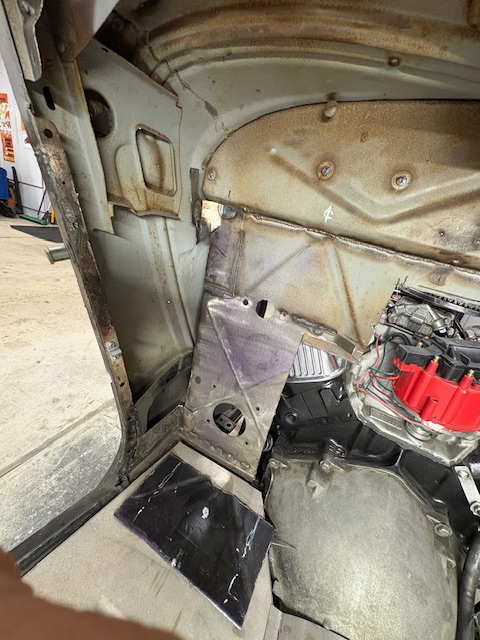

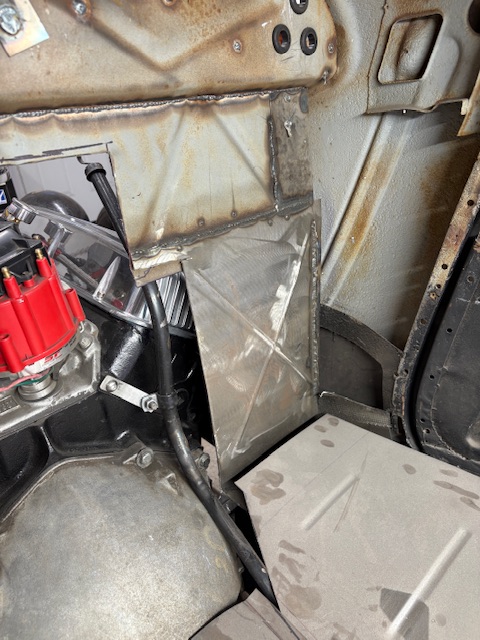

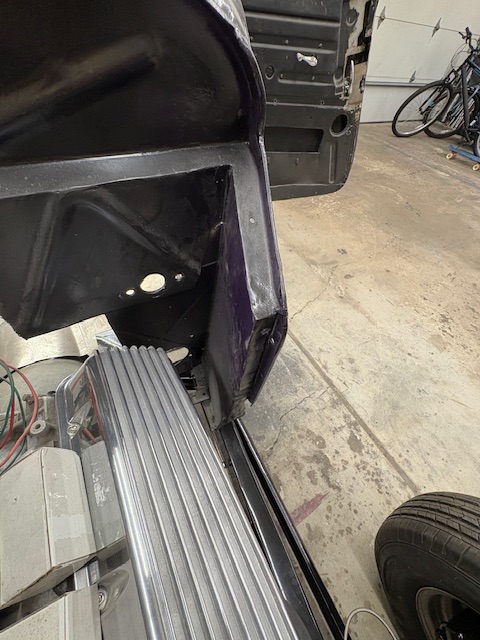

    I haven’t gotten to the engine side of the cowl yet, some un needed sheet metal was added at some point in its life. I don’t know what I’ll find behind it.
    IMG_3809.jpeg IMG_3810.jpeg
    I’m still dissecting, to get back to original sheet metal.
    It looks like the firewall has been butchered together, but it will get corrected.
    Door gaps are bad, again, will get corrected.
    Thank you very much for your advice and dims. It will give me a starting point.
    When I sight the rear window through the windshield, it looks like it is sagging on the left side.
    This body is rough, but all there and all workable.
    I look forward to your chop and wish you mucho success!

  8. 19Eddy30
    Joined: Mar 27, 2011
    Posts: 3,370

    19Eddy30
    Member
    from VA

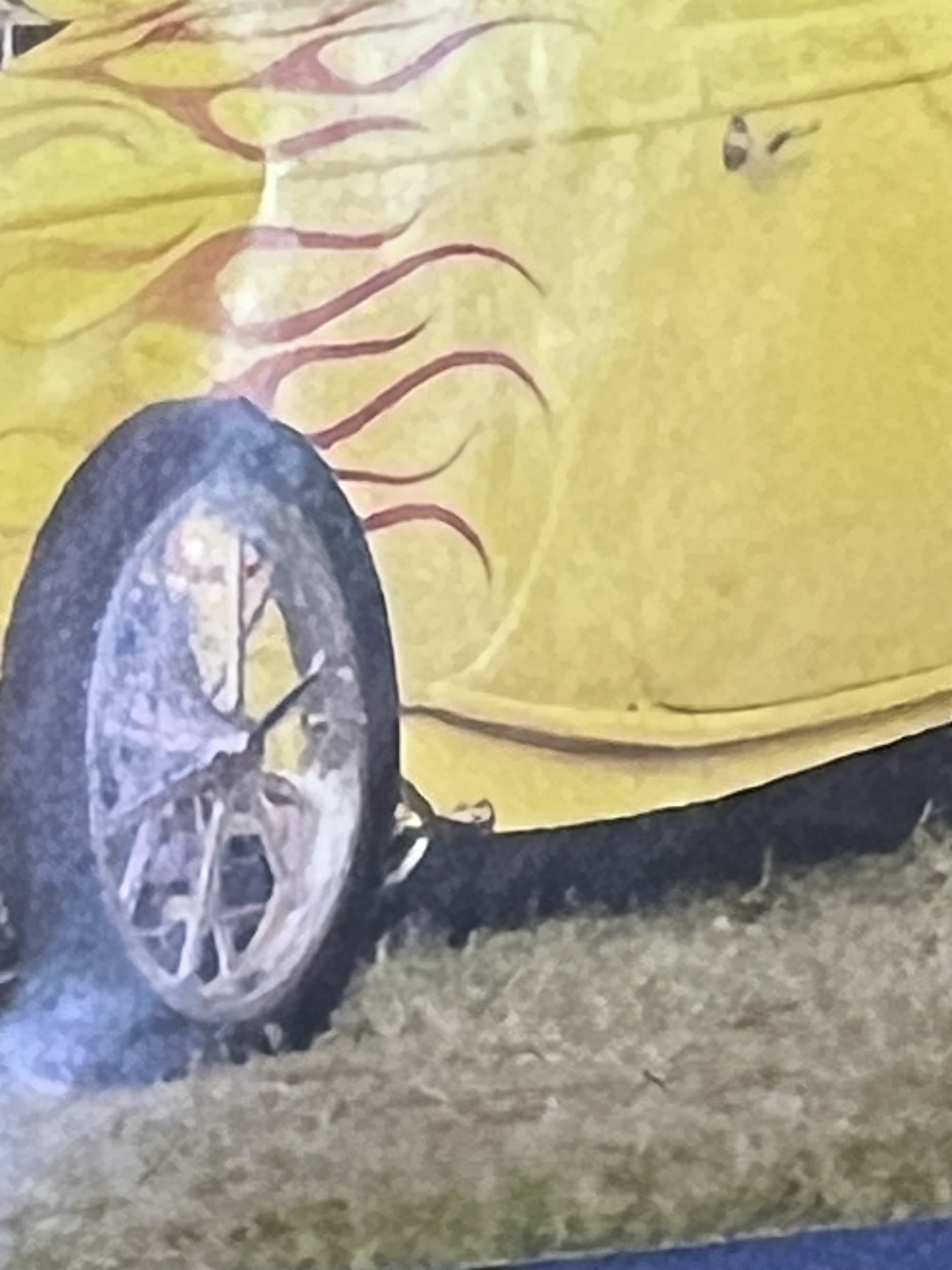

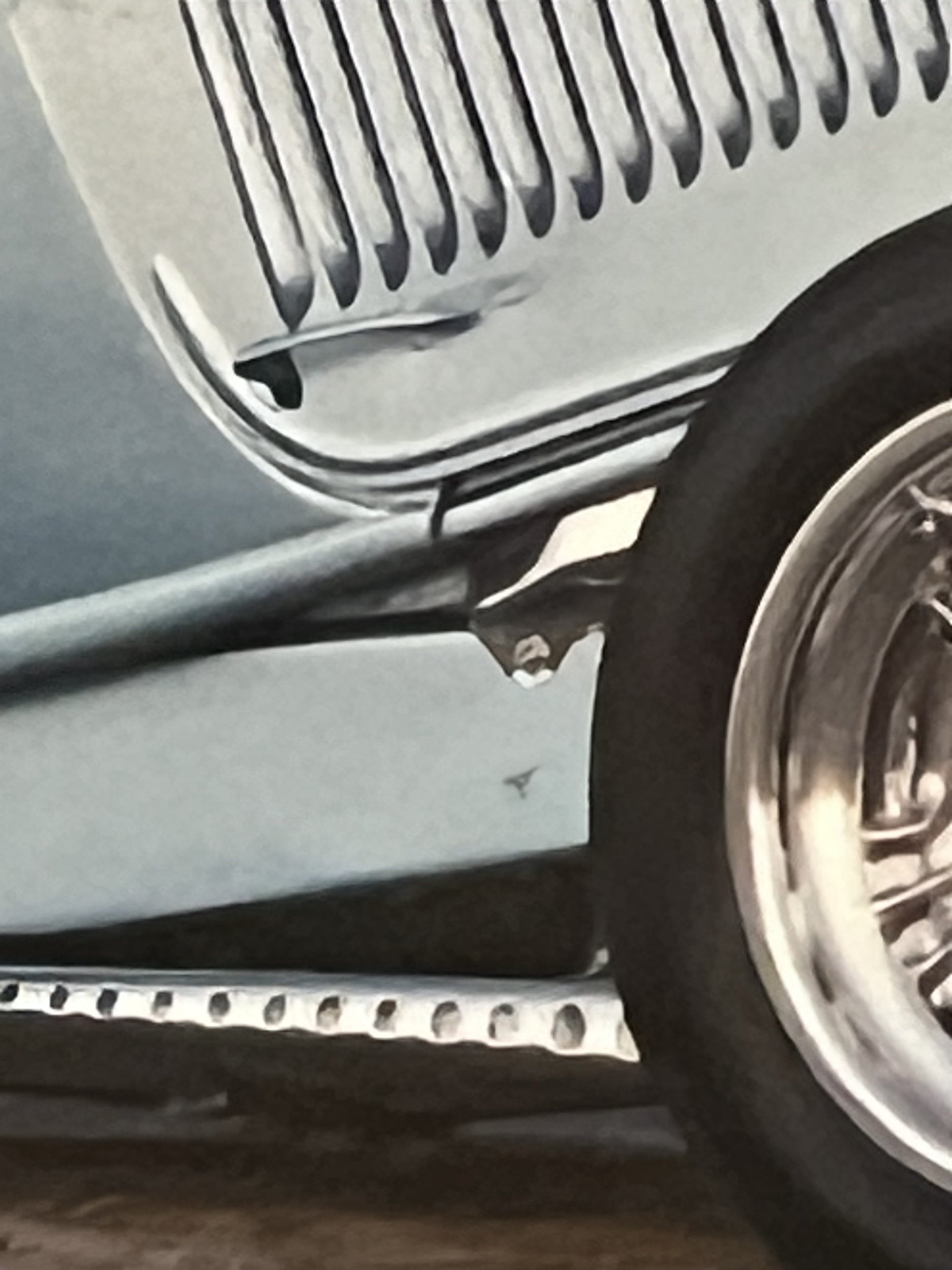

    It's a Common mod to frame in that Area is to kick up frame when
    FendersLess ,
    Some Do , Some Not IMG_3474.jpeg IMG_3475.jpeg

  9. wheeldog57
    Joined: Dec 6, 2013
    Posts: 3,759

    wheeldog57
    ALLIANCE MEMBER

    @Robdski squaring up and lining up a body that has been cut up is not easy.
    Measuring from a centerline helped me.

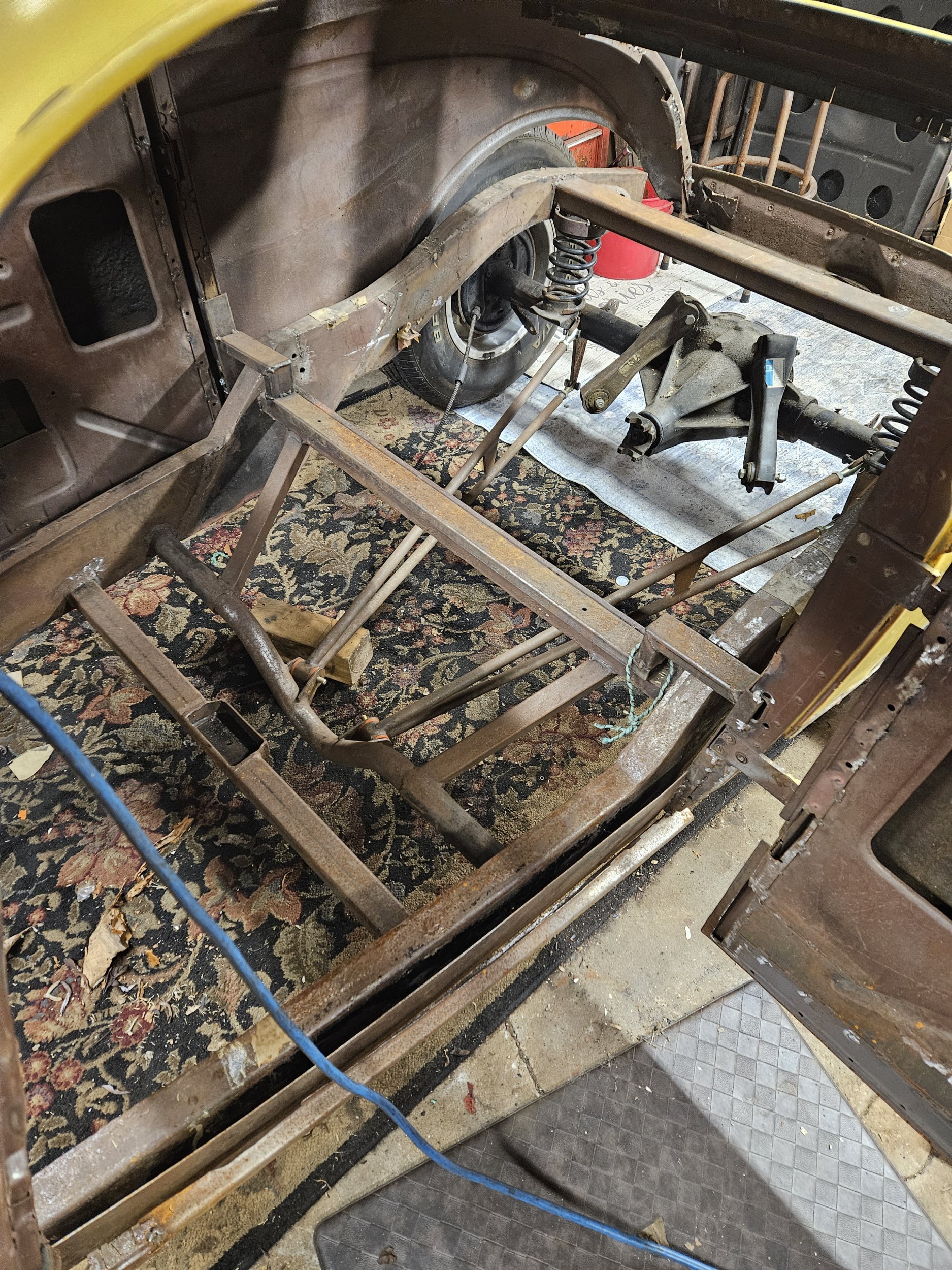

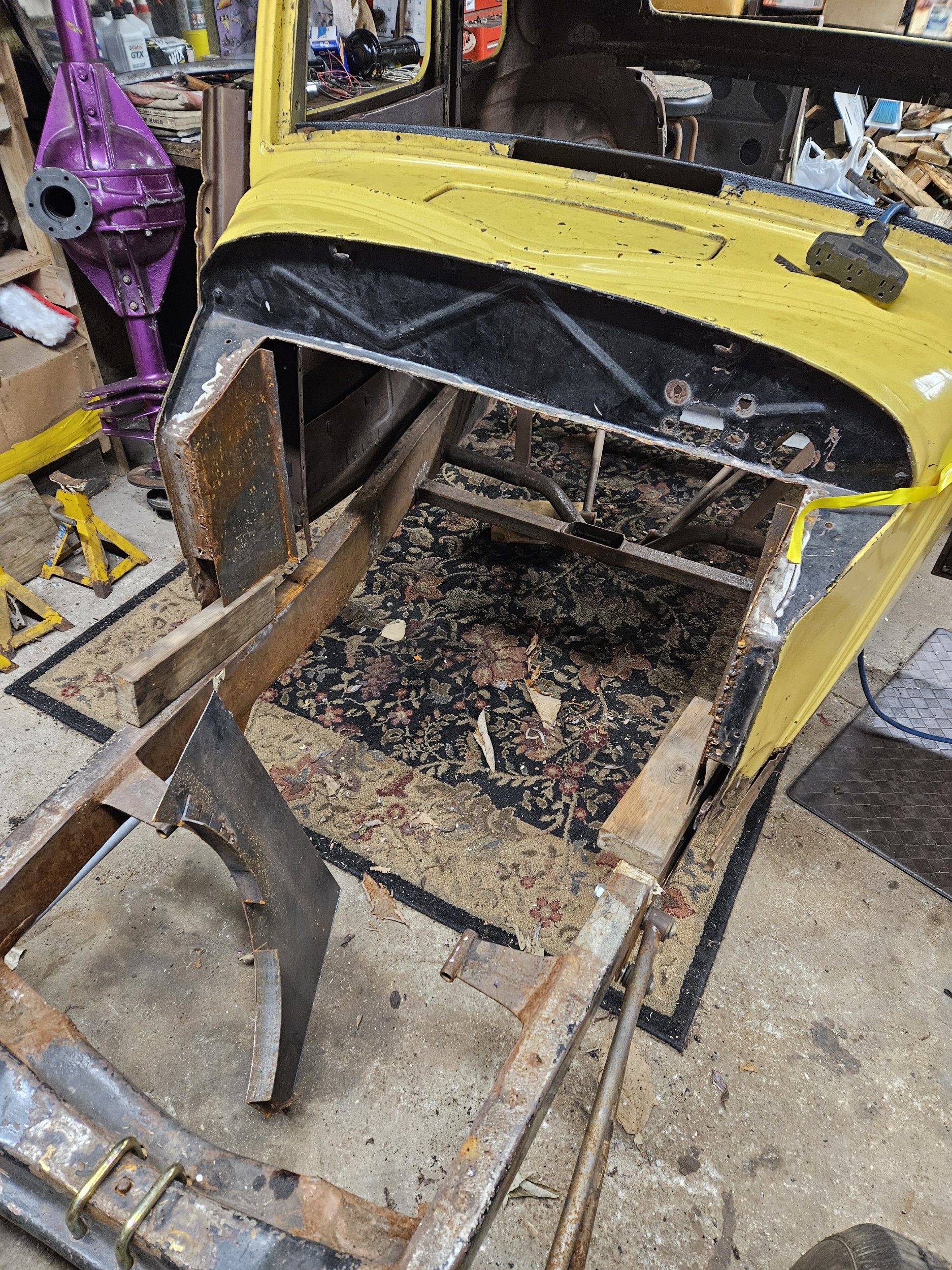

    Also welding the doors shut then Bracing A and B pillars helped line up the body.
    Mine had no floor or sub rails and I couldn't do anything until I got the door openings secured. 20241013_191738.jpg 20241013_191758.jpg 20241013_193513.jpg
    Mine is channeled so cowl height is modified

    Robdski likes this.
  10. Robdski
    Joined: Jun 28, 2024
    Posts: 124

    Robdski
    Member

    I considered a slight kick up to the frame when I built it, but I live in a state with pot holes the size of some states. I didn’t want to push my luck, by going to low.
    I may still decide to do a slight channel when I get to that point.
    Thanks for the photos and advice.

  11. Robdski
    Joined: Jun 28, 2024
    Posts: 124

    Robdski
    Member

    Great advice and very much appreciated!
    I will be using a laser for center vertical and horizontal measurement, it’s a great tool for me.

    wheeldog57 likes this.
  12. Robdski
    Joined: Jun 28, 2024
    Posts: 124

    Robdski
    Member

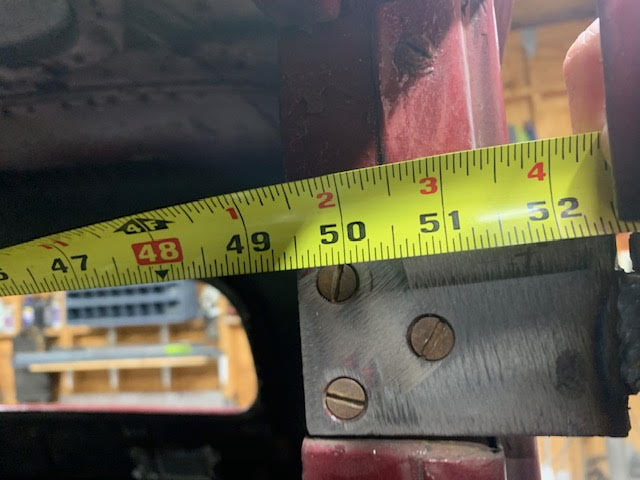

    @flamedabone do you have time to get the center hinge dimension, from side to side?

  13. flamedabone
    Joined: Aug 3, 2001
    Posts: 5,697

    flamedabone
    ALLIANCE MEMBER

    This little car was held together only by the roof skin when I got it, so don't consider this gospel.


    -Abone.

    RICH B and Robdski like this.
  14. Robdski
    Joined: Jun 28, 2024
    Posts: 124

    Robdski
    Member

    Thank you so much for taking the time to get this for me. It is very much appreciated.
    I owe you a cool beverage!
    Good luck on your chop, I look forward to seeing it.
