Technical Early Ford Quick Change Banjo Build

I finally took the plunge and purchased a quick change kit for the banjo rear end I had set aside for my next project. I always wanted a quick change and decided to make this the first official start of my next build. My plan is to build a 27T modified style hot rod and the rear end on those cars is always a major focal point. So I contacted Bruce here on the HAMB (@GearheadsQCE ) to discuss some options. I ultimately decided on the Winters Early Ford V8 Center Kit. This kit works with 1936 and up banjo rear ends and retains most of the original parts. The build was fairly straightforward and very similar to a normal banjo rear end rebuild. I figured I'd do a build thread as I don't think there are any build threads on the HAMB for this particular style quick change. I would certainly recommend this to anyone considering a quick change. It is a pretty affordable option all things considered - especially if you have a good banjo rear already. Here is a picture from Winter's catalog of what the kit comes with.



So the only unused parts from your original banjo are the center section, and the ring and pinion gears. You can sell those off and consider it a discount on the quick change kit! The kit comes with one carrier bearing (no race), a full shim set (many more than the two pictured, and a pair of quick change gears. I went with the torque tube option as I plan on running a shortened torque tube on my project. I also opted for helical cut quick change gears and the special shim set needed when using helical quick change gears.

The first step was getting all the parts from my banjo cleaned up and ready to ***emble. It took me collecting a few banjos to get together a set of parts that were in great shape. Here is a link to a thread I did when trying to find the best axle shafts.

https://www.jalopyjournal.com/forum/threads/banjo-axle-question-where-there’s-wear.1133539/

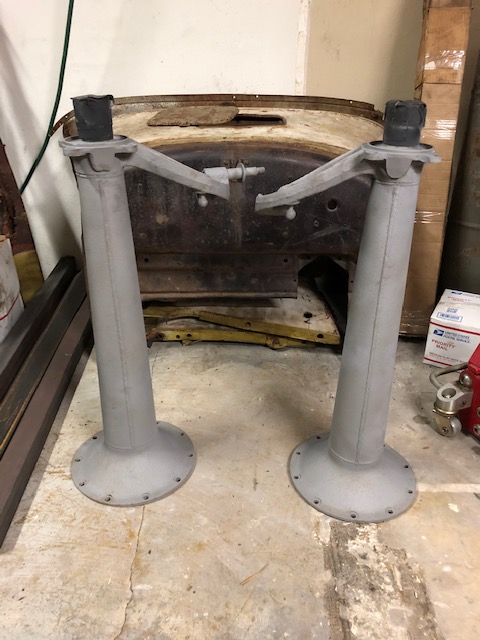

I had the banjo tubes sand blasted, used some filler primer, and shot some rustoleum on them.





I then cleaned out the tubes really well with some engine degreaser and a pressure washer (probably should have done that before painting and blasting but it worked out fine). I highly recommend building some sort of stand like you see in the picture below to use when you are just working on the housings. Mine is nothing special at all but allowed me to hold the housing up on its small end. As you will see in later posts, I used an engine stand when ***embling the entire rear end.

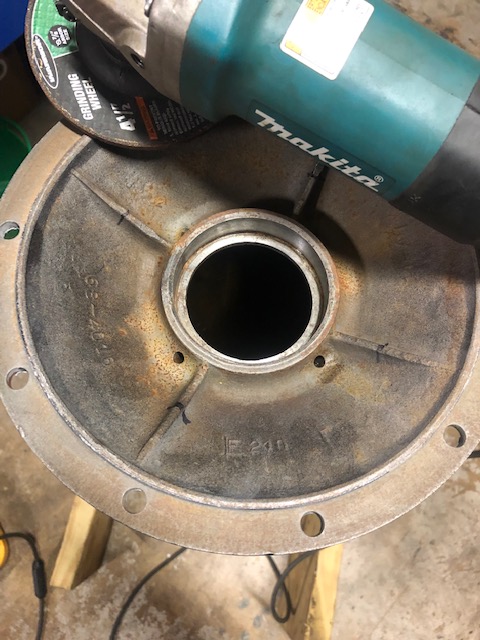

Next, the driver's side housing needs to be clearanced on the inside a bit to make sure the nuts on the ring gear don't hit the webbing. This is all covered in the ***embly instructions that come with the quick change kit. I can try to scan those and post them for those of you who might want to check out the procedure before undertaking this project.

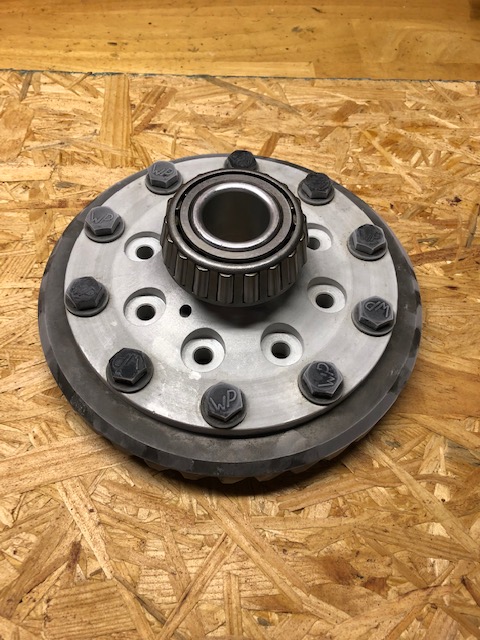

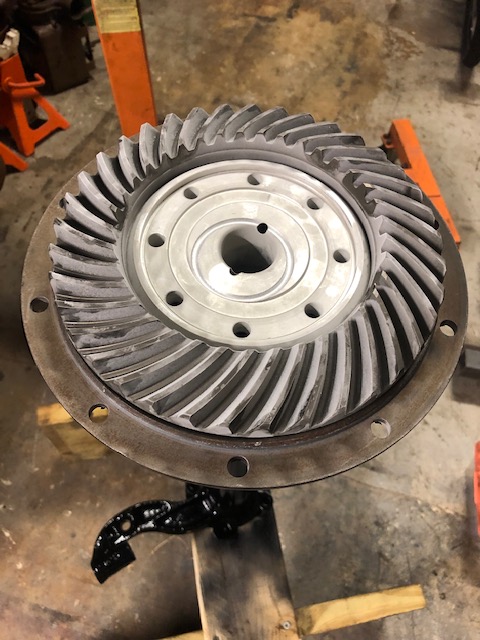

I then pressed the new bearing on the ring gear, installed a new race in the housing, and test fit the gear on the driver's housing to make sure there was good clearance. You can see some condensation on the ring gear as I had that in the freezer to shrink it a bit and I gently heated the bearing in my ultrasonic cleaner.



In my next post we'll move on to the axle prep and the bearing preload and backlash adjustments via the gaskets of varying thicknesses. Stay tuned for more...



Boy the finish turned out nice on those axle housings!
Was that rattle can Rustoleum or spray gun?



Thanks Denny. I used regular rattle can rustoleum.



What a great idea. Thanks for taking the time to give us a step by step.
When it comes to rear ends I’ve always became shy to try it.
We need more techie posts here. Haven’t had many as of late.
Thanks in advance. PJ



I'm staying tuned in to this thread, looking forward to your updates... thanks



I wanna see!



I'm tuned in!

What ever happened to Tech Week(s)?

Chris



Great post idea. Looking forward to the rest


Sent from my iPhone using H.A.M.B.



Thanks for the feedback, everyone.

Moving on to the axles, I decided to lap them with the hubs to make sure the taper is as snug as possible. I mixed and matched axles and hubs a bit so it is especially important to do this in my situation. Even if you are using the same axles and hubs that were originally there, lapping them is good insurance. I used a lapping compound I got at Autozone and went to work.



After brushing some compound on the taper, I slid the hub on the axle, lining up the key way with the slot in the hub. I then rotated the hub back and forth about a quarter turn each way while pushing the hub into the taper.



I repeated this a bunch of times with fresh lapping compound. I was surprised how well it worked. You'll know it's on there good when you get nice uniform marks on the taper. You also won't be able to just pull off the hub after pushing it hard onto the taper. You'll need to tap it off with a rubber mallet. I repeated this on both sides and then made sure to mark which hub goes with which axle.

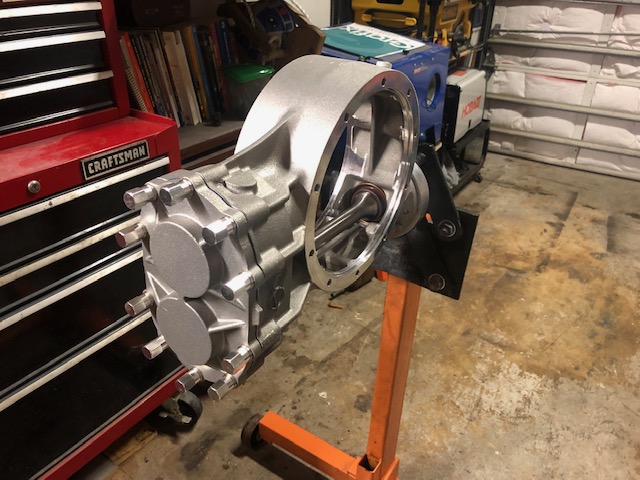

In my first post I mentioned using an engine stand to ***emble the rear axle. This made the process incredibly easy. I can't take credit for the idea, as I saw a few others do it on various banjo threads here on the HAMB. But it makes the whole process so much easier and enjoyable. And the quick change center section looks so nice hanging out there on the stand



Note that the axle I am using was a 1948 model, so it's a little wider than the earlier axles. that meant that I could not rotate the full axle to a completely vertical position. That was not an issue, though, as i would slide the axle/differential ***embly in and out with the center section at an approximate 45 degree angle. This worked fine. Don't mind the grease on the gasket surface. This picture was from final ***embly. I decided not to use any sealant and just rely on the gaskets to do their job as my mating surfaces were really nice. Hopefully I don't have any leaks!



In my next post, I'll cover the bearing preload and backlash settings.



Thanks for posting this build, look forward to learning about setting something like this up.



I have one of the Spadaro kits for my 36. I plan to put it together this winter. I think I will have to use different side bearings.



Subscribed. Love seeing a well done tech article.



Brad, the rear is looking really good. Wonder what happened to all those extra banjo parts?



great thread,Thanks!!



You guys are correct. This is definitely a Spadaro unit. The instructions are ***led that way and I imagine written by him.



Thanks, Joe. I think you have at least 50% of the unused parts . Glad they didn't go to waste!



In this post I’ll cover the process of setting the proper carrier bearing preload and the pinon gear/ring gear backlash. These are set using the set of gaskets of varying and specific thicknesses shown below. I did not take pictures during this process, unfortunately, but I do have final ***embly pictures showing how it all goes together. I will post those later once I’ve gone through the rest of the process.

The kit comes with one gasket set, but I ended up buying another set because I was worried about ruining the gaskets during the ***embly and dis***embly. The whole process involves putting the axle together and taking it a part many times, so it can be a bit tedious. Below is a picture of the gasket set that comes with the kit.

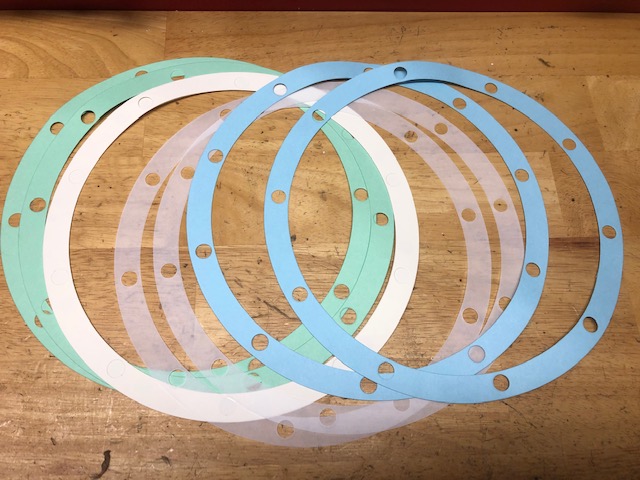

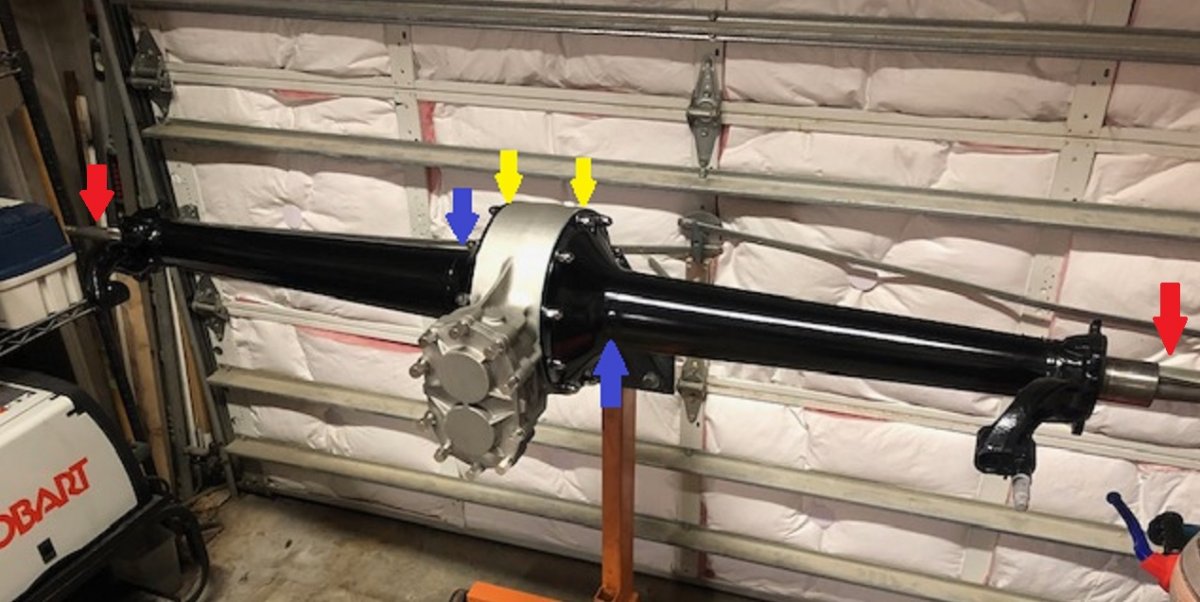

The blue gaskets are .009” thick, the green ones are .007”, the beige are .005”, and the almost translucent ones are .003”. The idea is that by spacing out the axle housings from the center section by using gaskets (see the yellow arrows in the picture below), you create more or less squeeze (preload) on the carrier bearings (see the blue arrows).

I started with a blue gasket on each side. Me and a buddy then stood on each end of the axle and grabbed the axle end shown with the red arrows. We both attempted to spin the axle in the same direction. If it spins easily, you need more preload (less gaskets). If it does not turn, or turns REALLY difficultly, you need less preload (more gaskets). Whatever total gasket thickness you end up with, you need to maintain this total thickness when you start swapping gaskets from side to side to adjust backlash. This is discussed more below.

I initially thought I needed two blue gaskets on each side for the right preload. Obviously, without hubs on the axle ends, you don’t have much leverage to spin the axle. But that is part of the deal and key to getting the right feel. Here is an important note about getting the right feel. I did not have any axle seals in when I did my test fitting. Those are the seals that are pressed into the outboard ends of the axle housings. I didn’t want to mess them up during all the test fitting. When these seals are not in, the axle can move around in the axle housing slightly and the axle tends to sag down a bit in the housing. When you are turning the ends with your buddy, be sure to slightly lift the axle to center it in the housing. This will simulate the final ***embly position better. I ended up adjusting my preload setting once I figured this out.

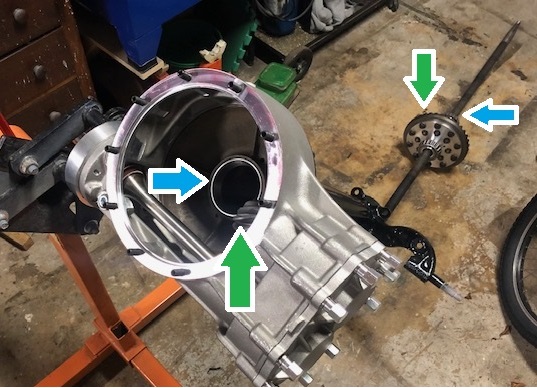

Now that you have the carrier bearing preload set, you need to get the backlash right between the ring gear and the pinion gear. Hopefully this picture below can help you visualize what you need to do. When the p***enger side housing is installed with a given size gasket, and the carrier bearing is resting on the race (blue arrows), the ring gear is at a certain distance from the pinon (green arrows). If you increase the size of the gasket on the p***enger side, the bearing race moves farther away from the pinon gear, and in turn, the ring gear moves closer to the pinion gear. That will create less backlash. If you decrease the size of the gasket, you move the bearing race closer to the pinion, and the ring gear farther away from the pinion, which increases backlash. Hope that makes sense. I got this turned around in my head a bunch of times during the ***embly .
