    Notice the rear bearings are in a steel plate, the plate floats a little very good idea.As most damage is in the cover where the bearings are located on all other designs

    volvobrynk likes this.
  4. bone31
    Joined: Oct 24, 2006
    Posts: 121

    bone31
    ALLIANCE MEMBER
    from oregon

    These are the machines used
    IMG_1026.JPG IMG_1024.JPG IMG_1025.JPG

  5. bone31
    Joined: Oct 24, 2006
    Posts: 121

    bone31
    ALLIANCE MEMBER
    from oregon

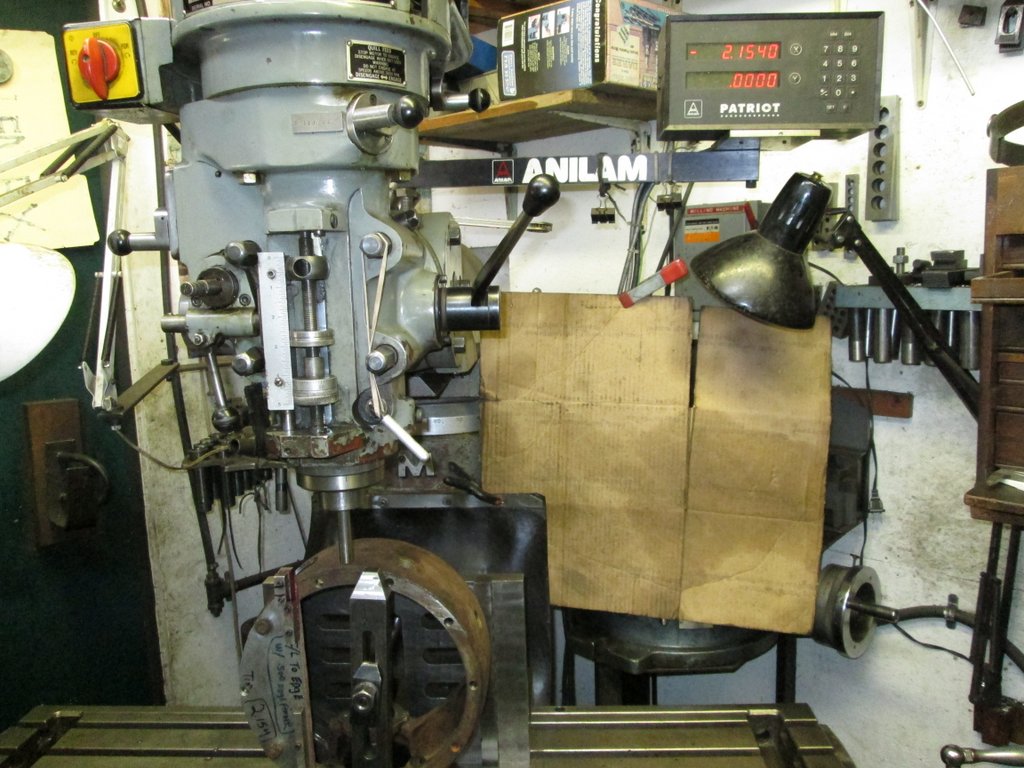

    Milling machine with digital readout,precision 10x12 ground angle plate,16x48 leblond lathe,surface grinder

    volvobrynk likes this.
  6. Great stuff Mike! Keep it coming.

  7. bone31
    Joined: Oct 24, 2006
    Posts: 121

    bone31
    ALLIANCE MEMBER
    from oregon

    will start boring the holes in housing tomorrow

  8. bone31
    Joined: Oct 24, 2006
    Posts: 121

    bone31
    ALLIANCE MEMBER
    from oregon

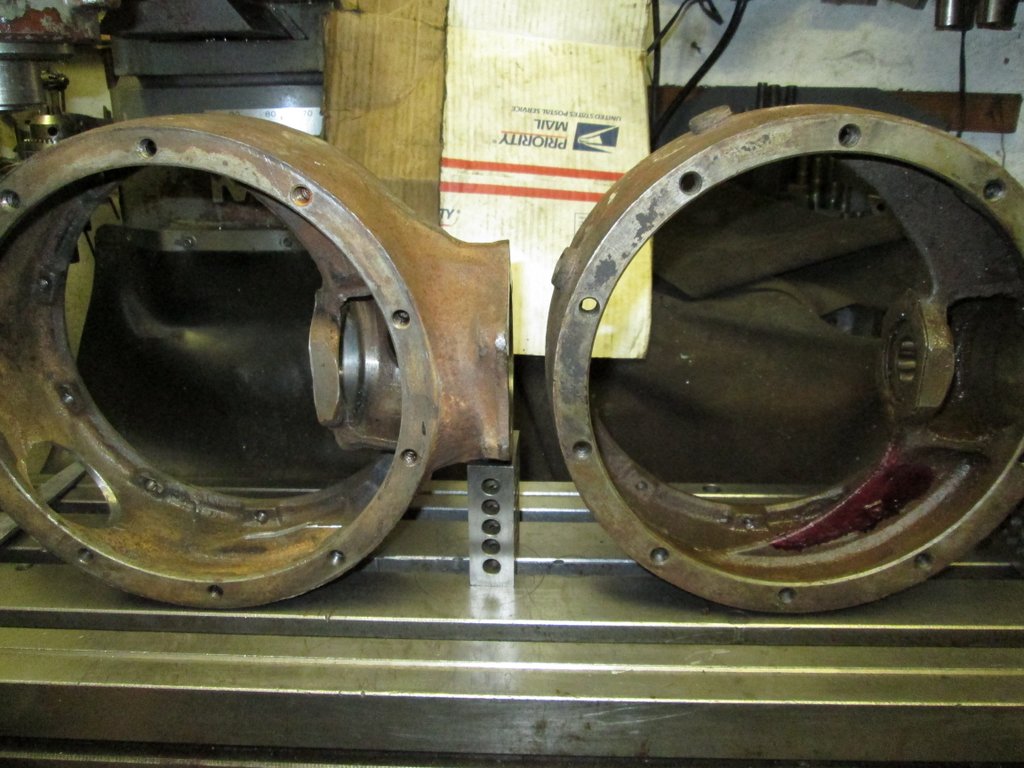

    The center section must be turned end for end so now the old front end is now facing to the rear. And flipped over so the ring gear still goes in from the drivers side. And the drain plugs are now on top.This is correct,if it were end for ended and not flipped and the drain plugs still on the bottom you would have three speed in reverse and one speed forward.

    volvobrynk and mctim64 like this.
  9. Blue One
    Joined: Feb 6, 2010
    Posts: 11,476

    Blue One
    ALLIANCE MEMBER
    from Alberta

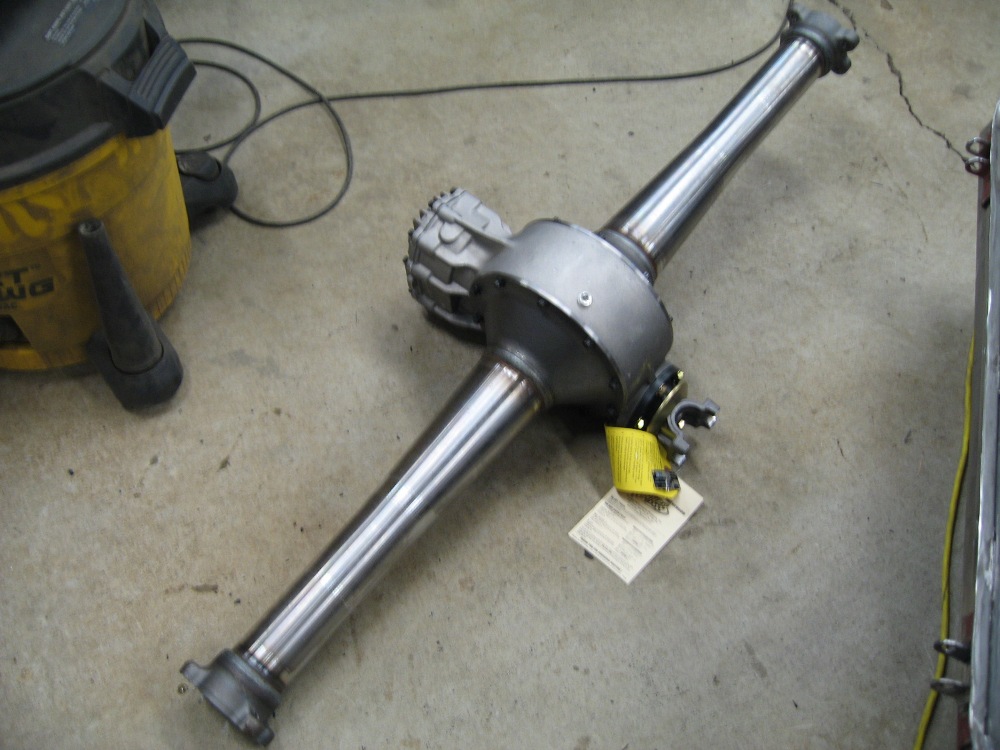

    Look what finally arrived last night Tim :)
    Larry
    winters qc 001 (2).jpg winters qc 002 (2).jpg winters qc 006 (2).jpg

  10. What a piece of fine jewelry... Man is that beautiful!

    Blue One likes this.
  11. Very nice Larry!

    Blue One likes this.
  12. bone31
    Joined: Oct 24, 2006
    Posts: 121

    bone31
    ALLIANCE MEMBER
    from oregon

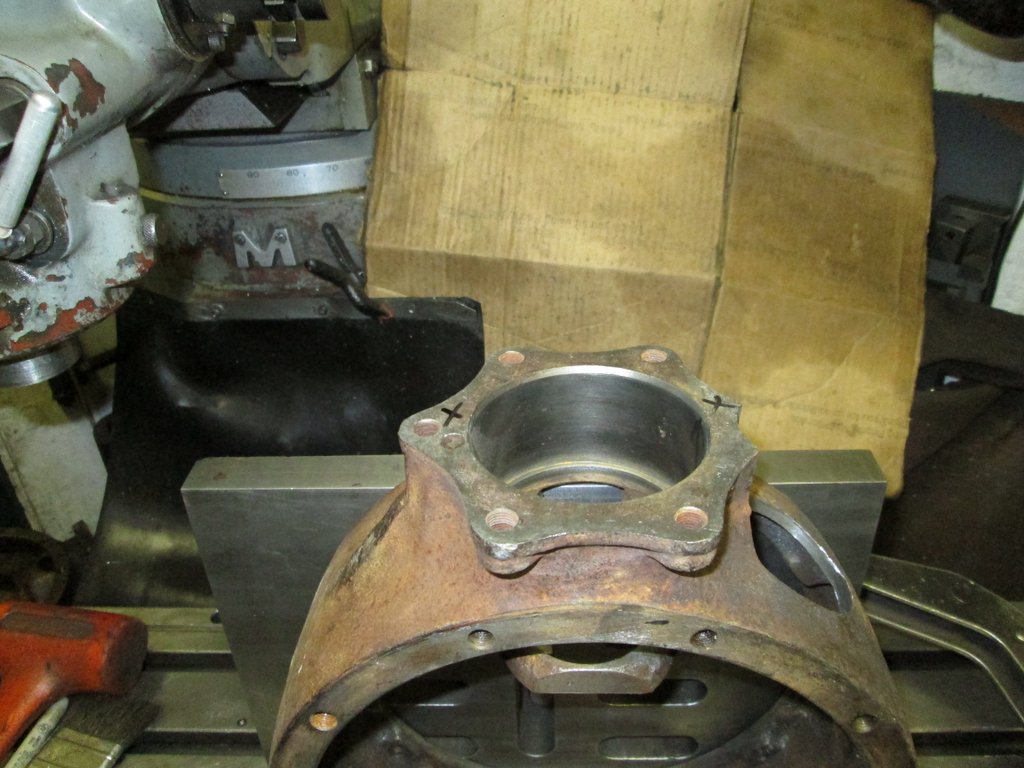

    First thing the rib must be cut off as the lower shaft goes there, remove red area with end mill.

    chryslerfan55 likes this.
  13. bone31
    Joined: Oct 24, 2006
    Posts: 121

    bone31
    ALLIANCE MEMBER
    from oregon

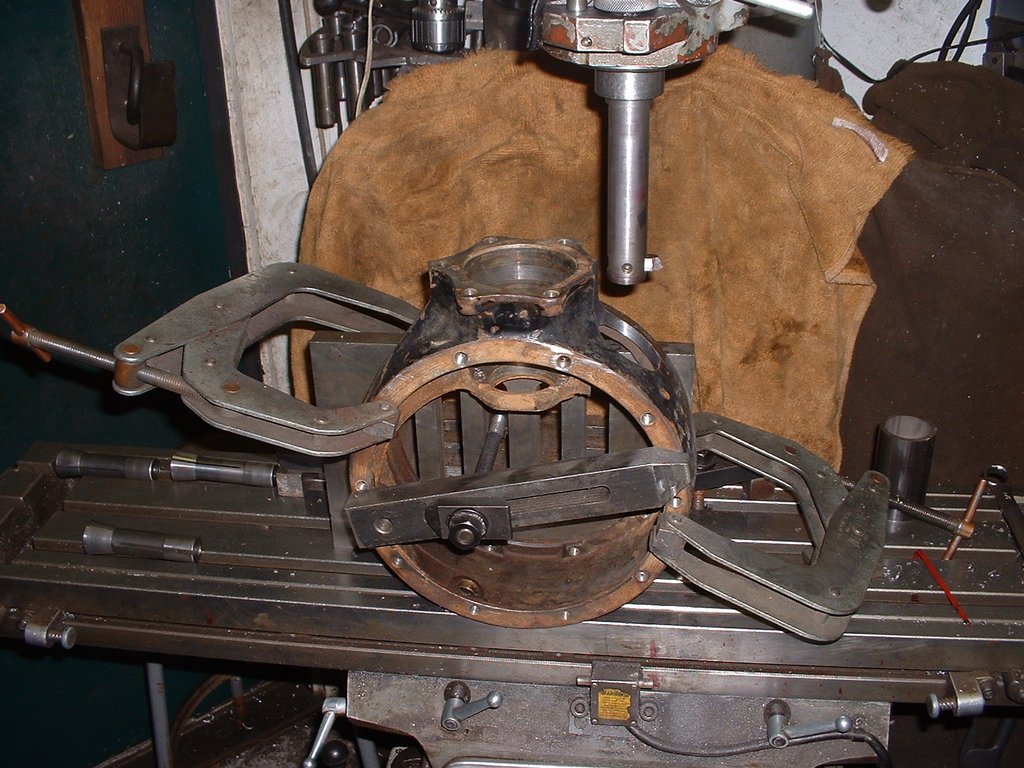

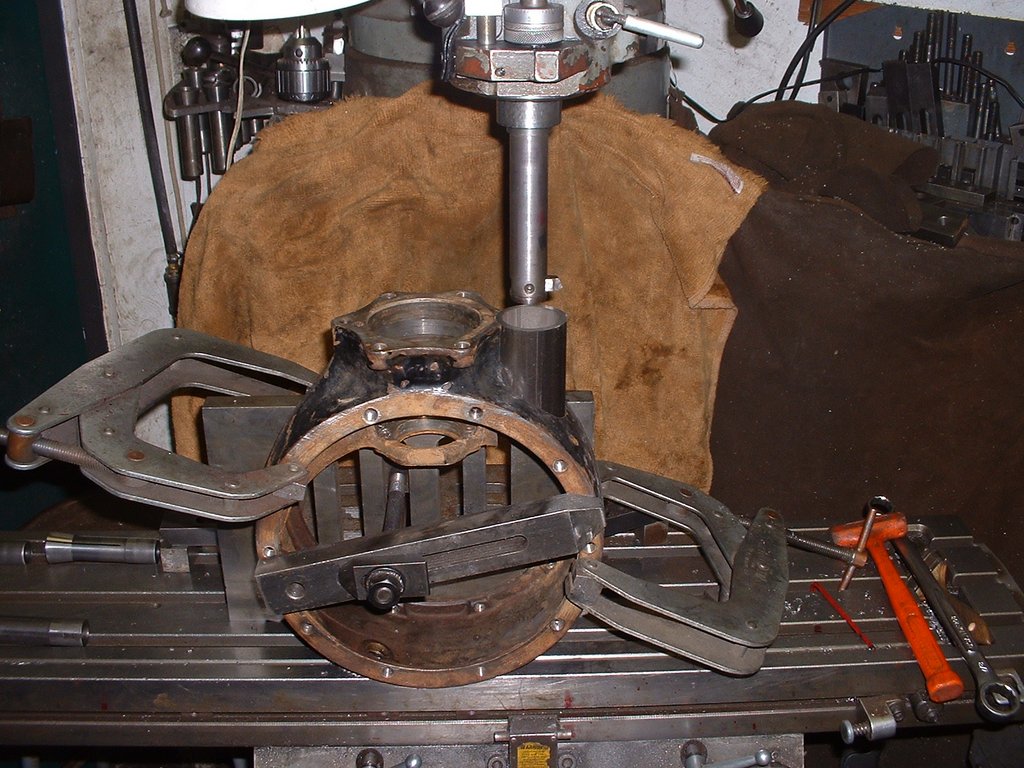

    The top of the housing must be indicated square to the table and the center to the machine spindle, move over 3.000 to the new shaft location,bore to 2.000.
    IMG_1022.JPG DSCF0002.JPG DSCF0004.JPG

  14. JoeyP.
    Joined: May 19, 2013
    Posts: 160

    JoeyP.
    Member

    Very nice how to! Keep it up mctim64 and bone31

  15. JoeyP.
    Joined: May 19, 2013
    Posts: 160

    JoeyP.
    Member

    I'm suscribing to this one.

  16. TBone69
    Joined: Aug 21, 2007
    Posts: 850

    TBone69
    Member
    from NJ

    Subscribing



    Posted using the Full Custom H.A.M.B. App!

  17. bobo1
    Joined: Dec 18, 2008
    Posts: 504

    bobo1
    Member
    from France

  18. bone31
    Joined: Oct 24, 2006
    Posts: 121

    bone31
    ALLIANCE MEMBER
    from oregon

    volvobrynk and dana barlow like this.
  19. alchemy
    Joined: Sep 27, 2002
    Posts: 21,376

    alchemy
    Member

    Why don't you bore all the way through with the 2" tool and stick one piece of tube in, then weld? Then cut the center out after welding. Wouldn't that be stiffer and prevent some warping? Or is the tool too short?

  20. bone31
    Joined: Oct 24, 2006
    Posts: 121

    bone31
    ALLIANCE MEMBER
    from oregon

    Only 5" travel on the quill,plus you would need a 13" long boring bar,way to much chatter,plus guaranteed the bottom hole would not be 3.000 from center.You do all the welding at the same time.

    volvobrynk likes this.
  21. bone31
    Joined: Oct 24, 2006
    Posts: 121

    bone31
    ALLIANCE MEMBER
    from oregon

    Stay tuned and see how the other hole is put in exactly 3.000 from center.

  22. bone31
    Joined: Oct 24, 2006
    Posts: 121

    bone31
    ALLIANCE MEMBER
    from oregon

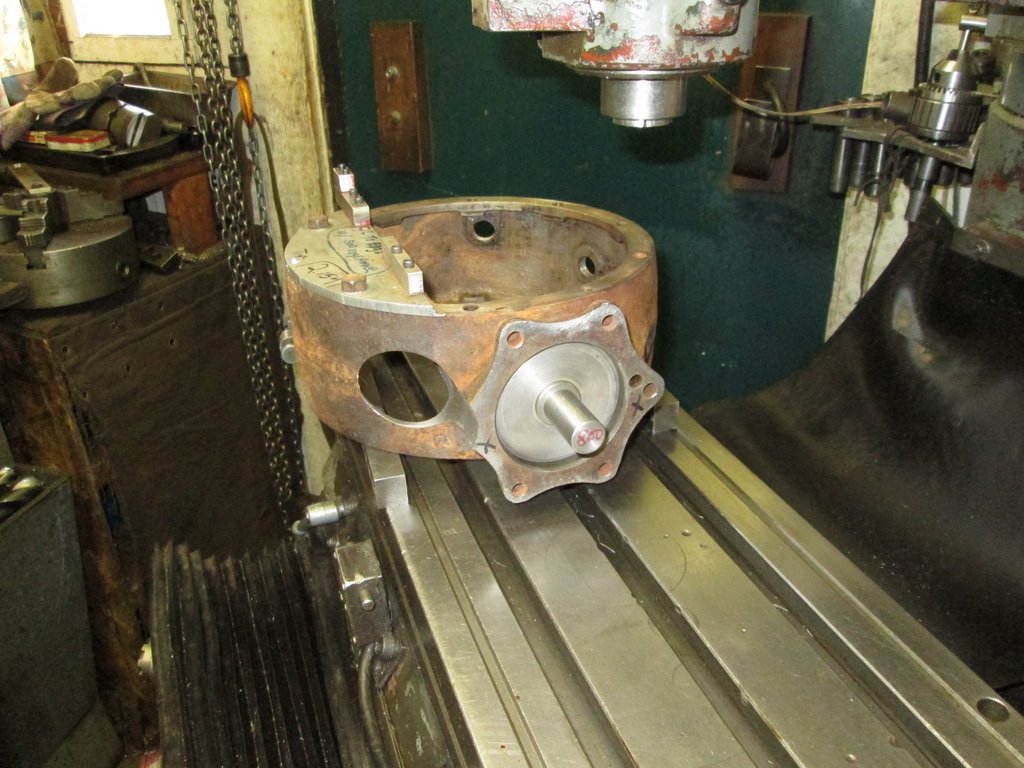

    The center section is not bolted down is just for showing how the setup works.The old flange is squared to the table and a fixture is inserted in the bearing bore,then the center is found with a edge finder and moved to the center and the readout is set on zero.The alu. fixture bolted to the center section,then a cut is taken on the alu. block on the end the highest one.So now the edge finder to is touched to the new cut taken on the alu. block and recorded.
    IMG_1030.JPG IMG_1031.JPG


    Attached Files:

  23. THIS thread is B A D ass.

    volvobrynk likes this.
  24. bone31
    Joined: Oct 24, 2006
    Posts: 121

    bone31
    ALLIANCE MEMBER
    from oregon

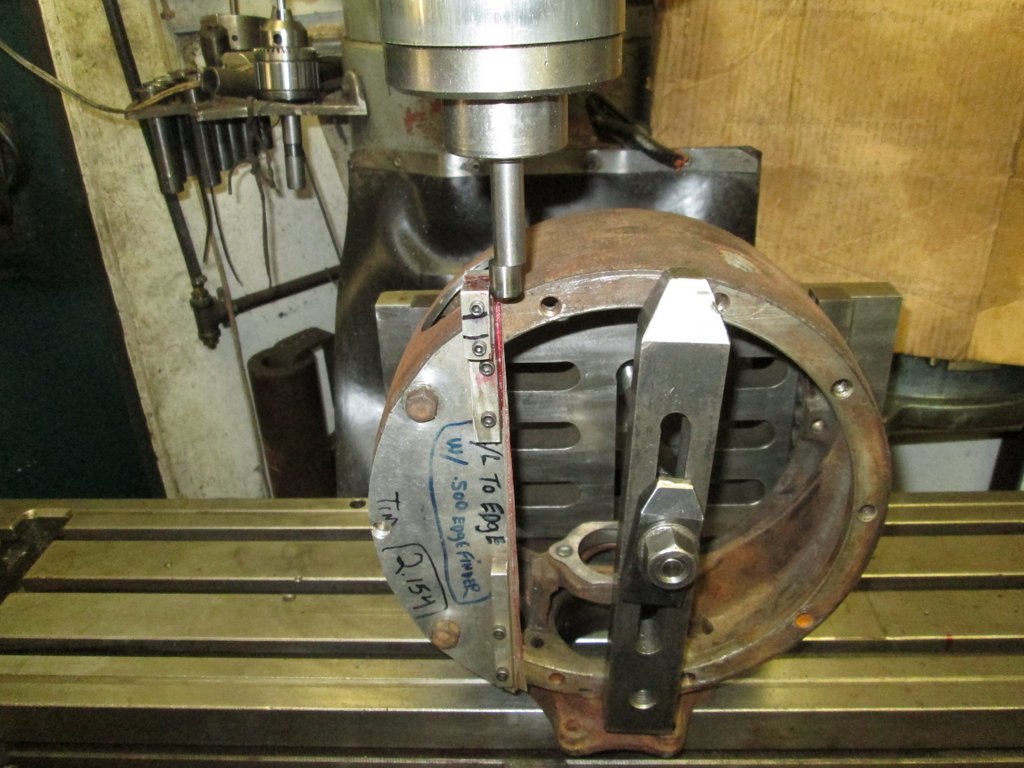

    IMG_1036.JPG Now the flange is square to the table,touch with the edge finder.

    chryslerfan55 and volvobrynk like this.
  25. bone31
    Joined: Oct 24, 2006
    Posts: 121

    bone31
    ALLIANCE MEMBER
    from oregon

    IMG_1037.JPG now the edge finder has found the edge move away 2.154 set to zero

    chryslerfan55 and volvobrynk like this.
  26. bone31
    Joined: Oct 24, 2006
    Posts: 121

    bone31
    ALLIANCE MEMBER
    from oregon

  27. bone31
    Joined: Oct 24, 2006
    Posts: 121

    bone31
    ALLIANCE MEMBER
    from oregon

    IMG_1040.JPG now move to 3.000 to the new shaft location and bore hole to 2.000 also center the housing front to back.This hole was already bored but this is how we got there.

  28. bone31
    Joined: Oct 24, 2006
    Posts: 121

    bone31
    ALLIANCE MEMBER
    from oregon

    The next thing is to start making some parts, 3/4 " x 6"x 9" back plate it is made from HOT ROLLED steel, very important not cold rolled steel.Also it is low carbon steel,hot rolled steel will not warp as bad as cold roll and a lot less stress after welding, a secret of old time gage makers it will stay stable after welding, make all parts from hot roll.Never make steel parts that will be welded from unknown steel.If you were to use high carbon steel not knowing it would probably be unmachineable, and might break under use.There are over 3000 types of steel, we would never make a die part out of just a piece of steel, air hardening,oil hardening,water hardening ?

    kiwijeff, volvobrynk and mctim64 like this.
  29. Marty Strode
    Joined: Apr 28, 2011
    Posts: 9,346

    Marty Strode
    Member

    Thanks for the tutorial Mike, you make it look a whole lot easier than it really is. See you around.

  30. bone31
    Joined: Oct 24, 2006
    Posts: 121

    bone31
    ALLIANCE MEMBER
    from oregon

    The center section is made from cast steel very high grade good for welding, Henry made very good steel.Marty hope to get up to your place before summer.Once you retire you have no time sounds dumb but true.
