Art & Inspiration Flathead Picture Thread

No 4 cylinders yet? Here's my only functional flathead right now. I'll dig out some V8 pics later.

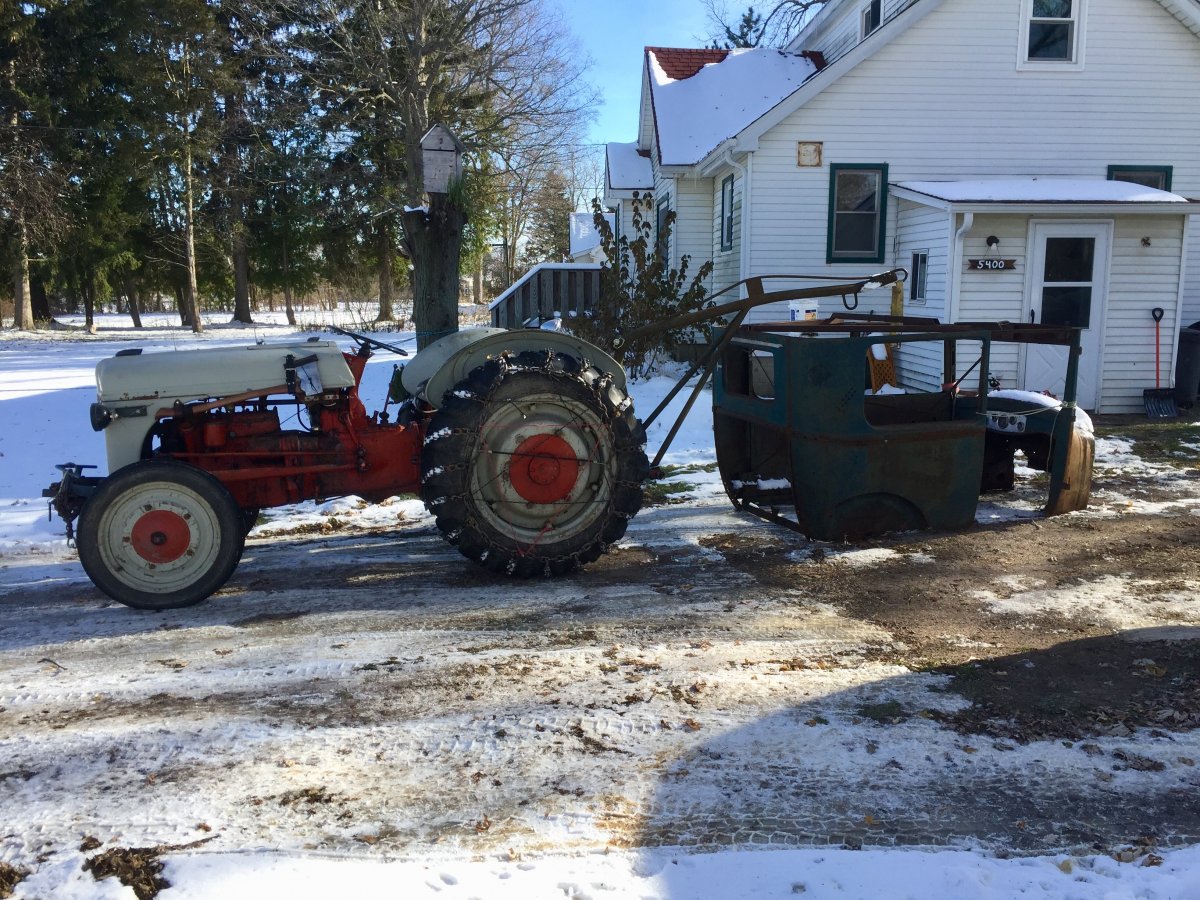

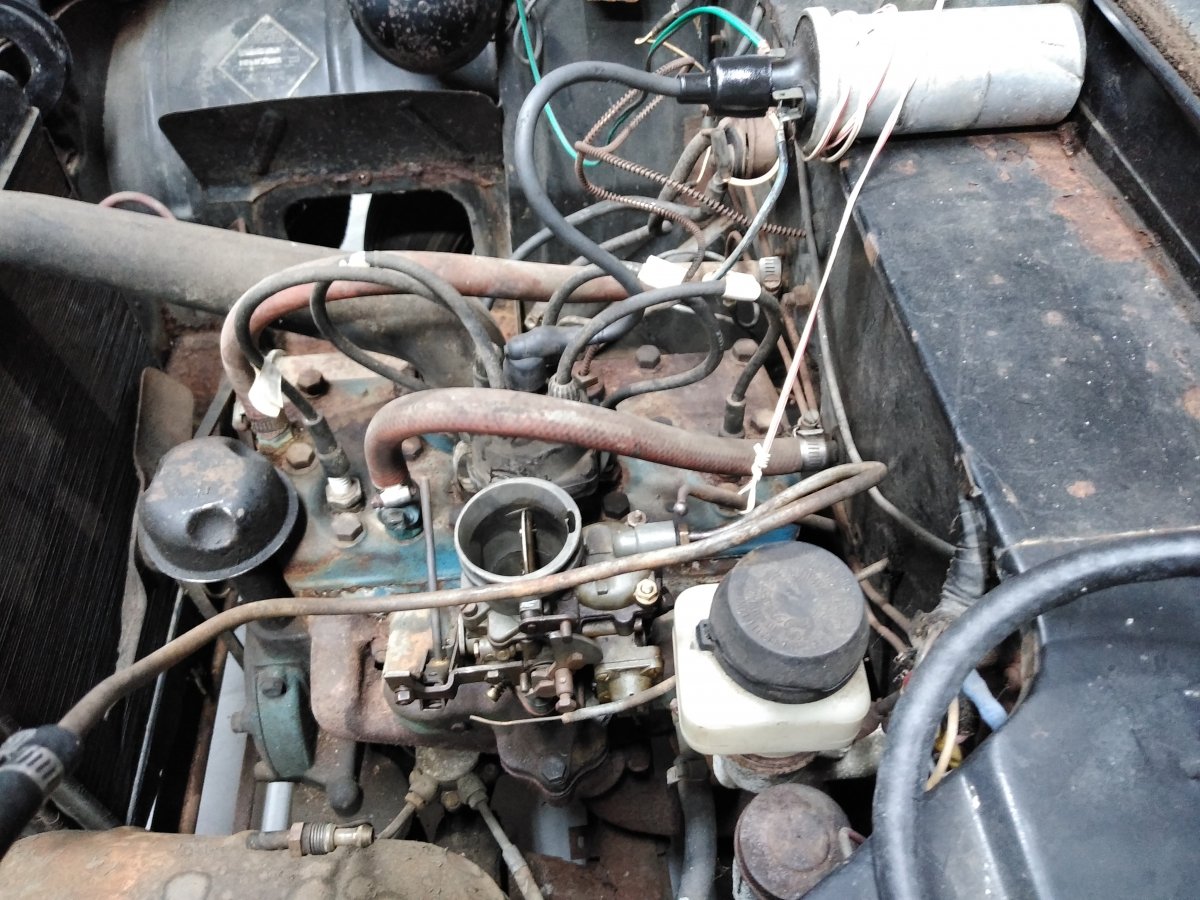

Here is a 4 cylinder. Fooling around getting it started for the first time in probably 28+ years. I have a '52 8n too. It's too far and cold for a pic though. Mike



8Hp ? I have one but missing starter & Flywheel.



100E. My starter was beat. I used an MG Midget starter with the Ford drive. Works great. Mike

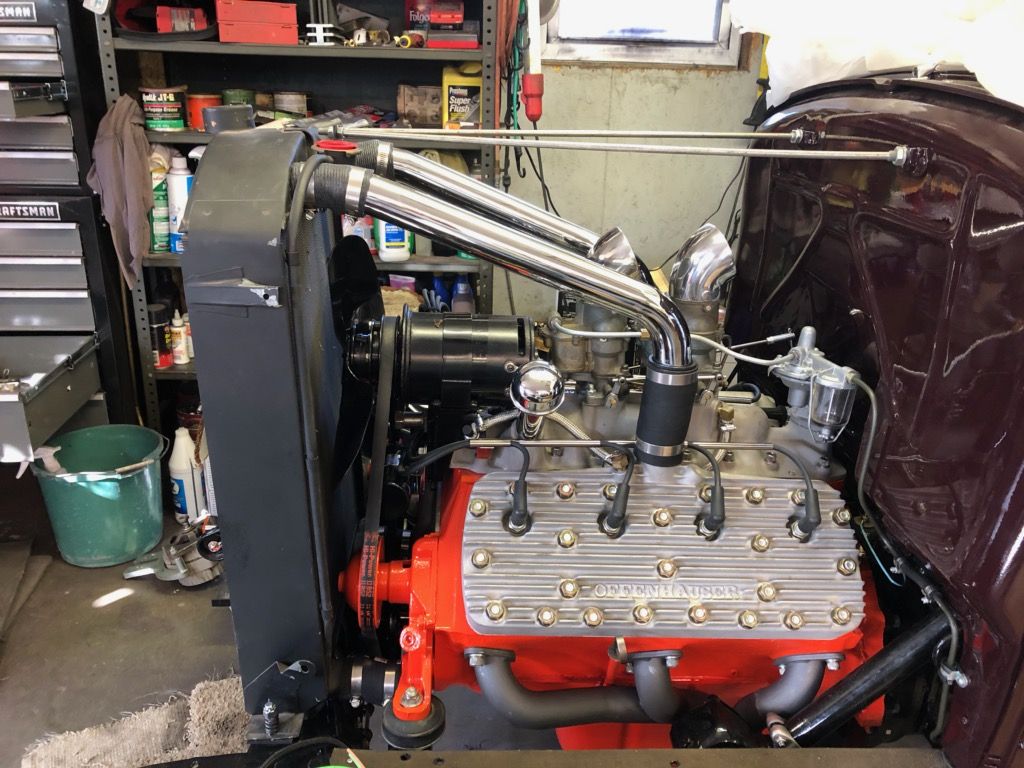

Here is my 38 - 24 stud version in my 36 Pickup/Fenton headers w/straight pipes

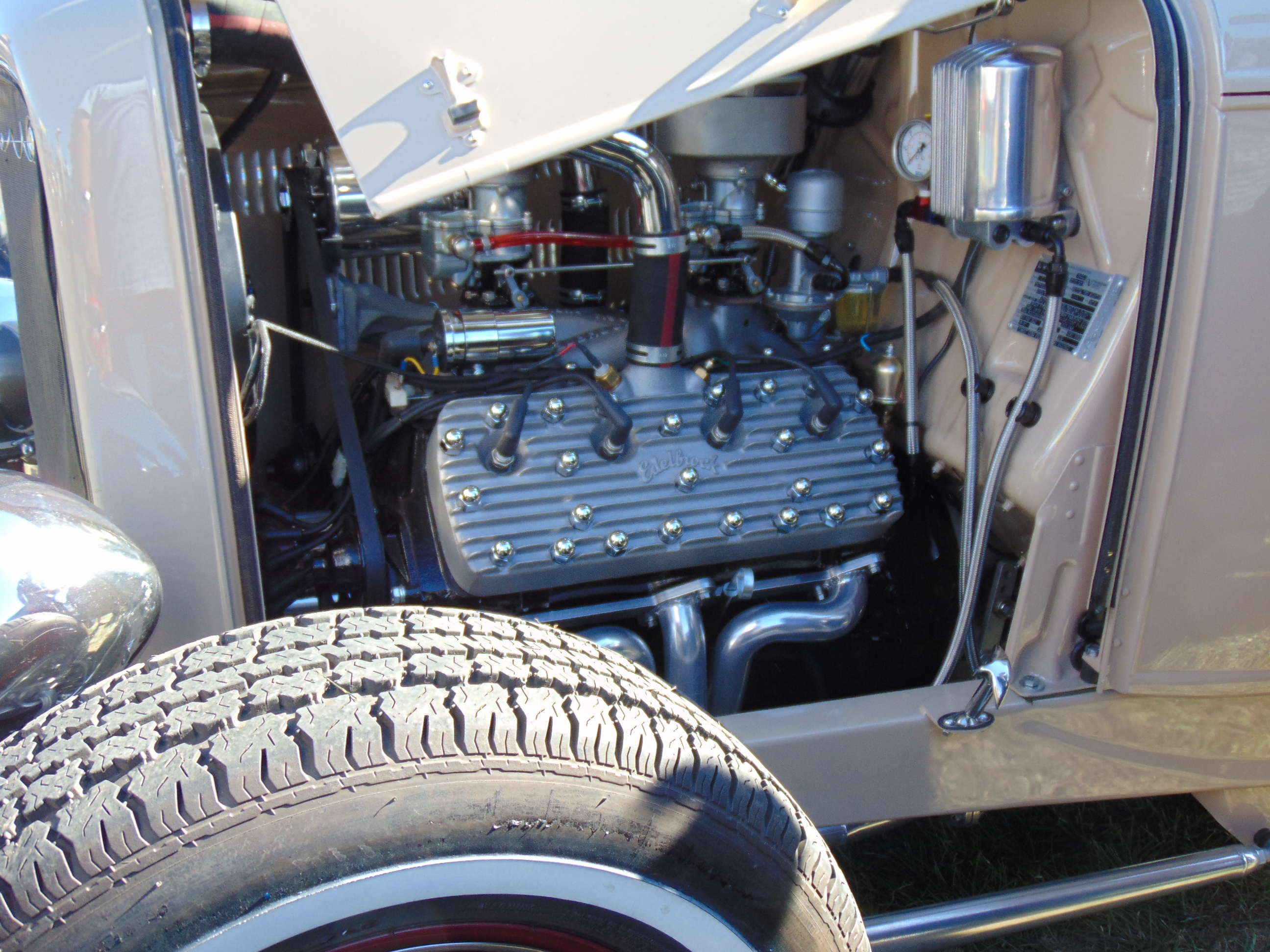

A couple shots of the 59A in my ‘46 coupe.


Sent from my iPhone using H.A.M.B.



full credit to the person that created this great picture



Outstanding


Sent from my iPhone using H.A.M.B.



I knew I had forgotten something else to make! Right on!

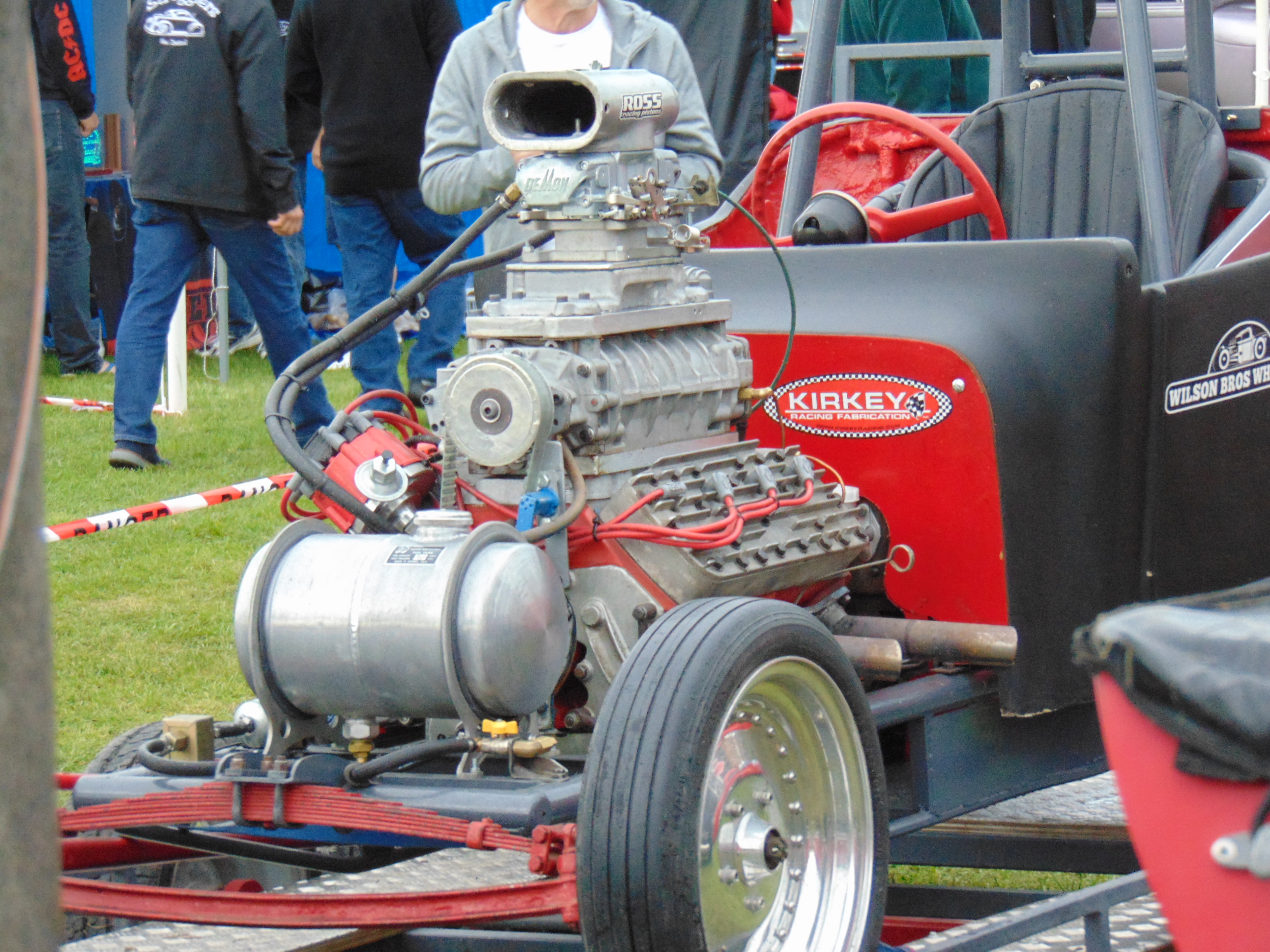

Some from my camera. JW



Simca. JW

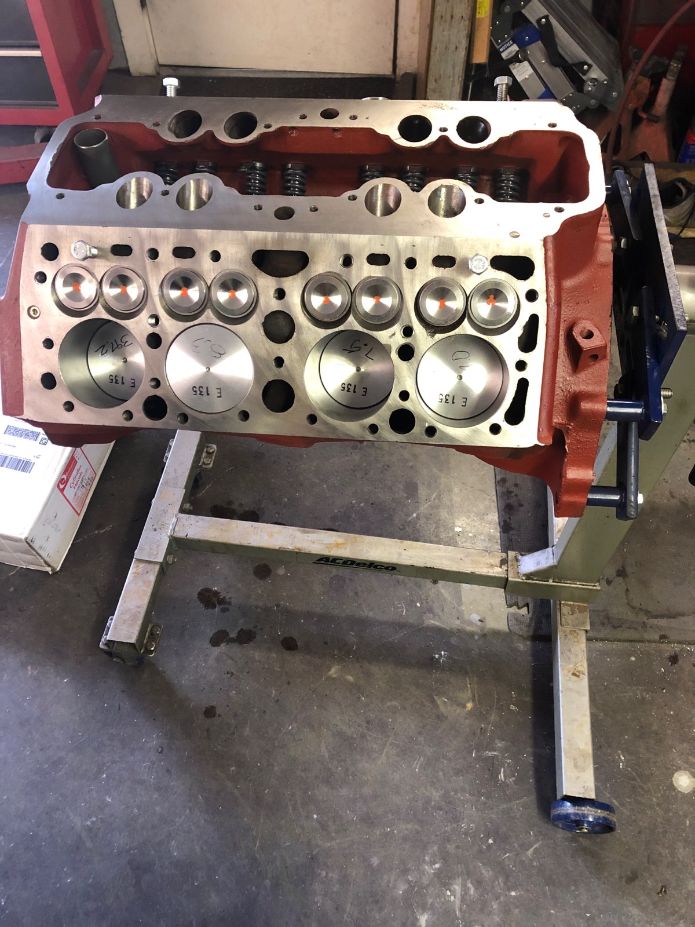

Awesome thread. Mine is still baking but should be ready soon.



Can u explain to me what the blue head is? What motor & all those bolt/nuts cover. And those black covers. Plugs seem high & only 2... Got me confused what looking at

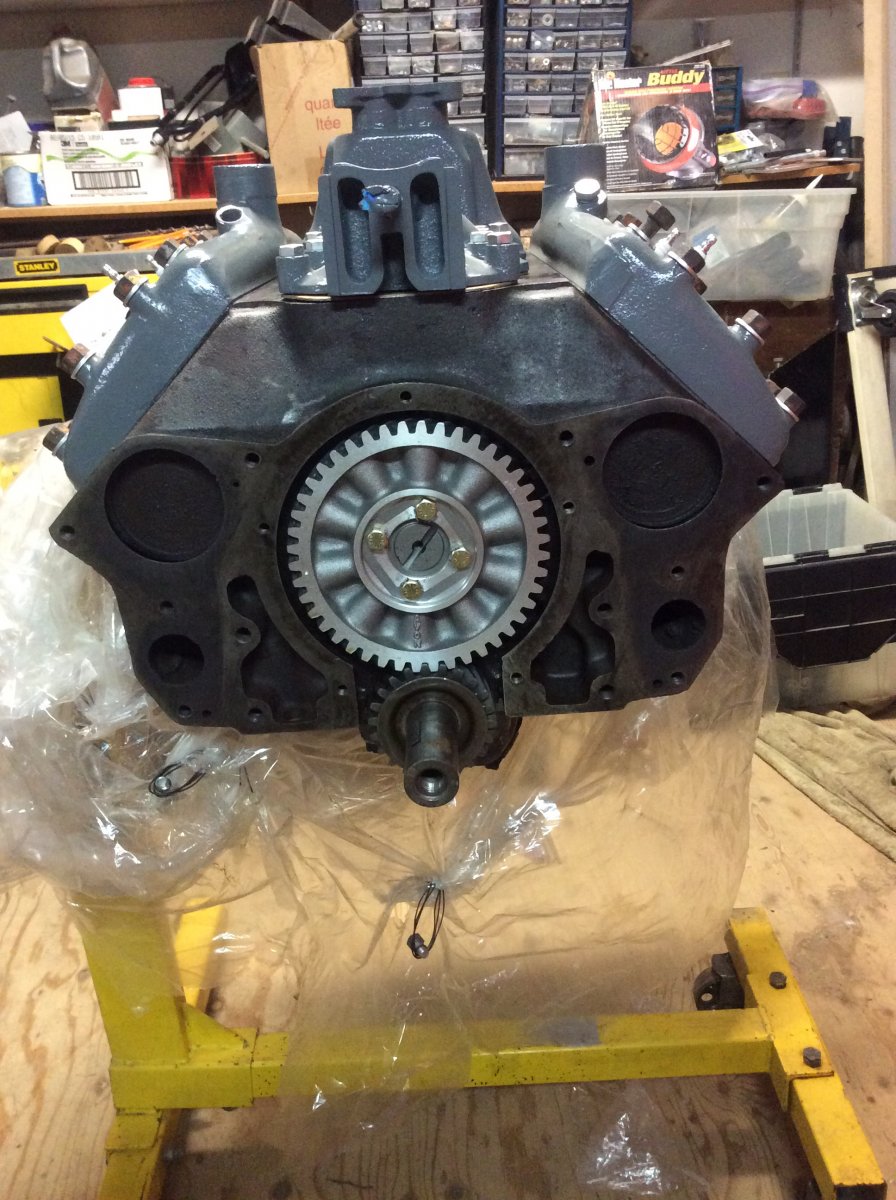

This is the mill that will be going in my '29 Roadster!

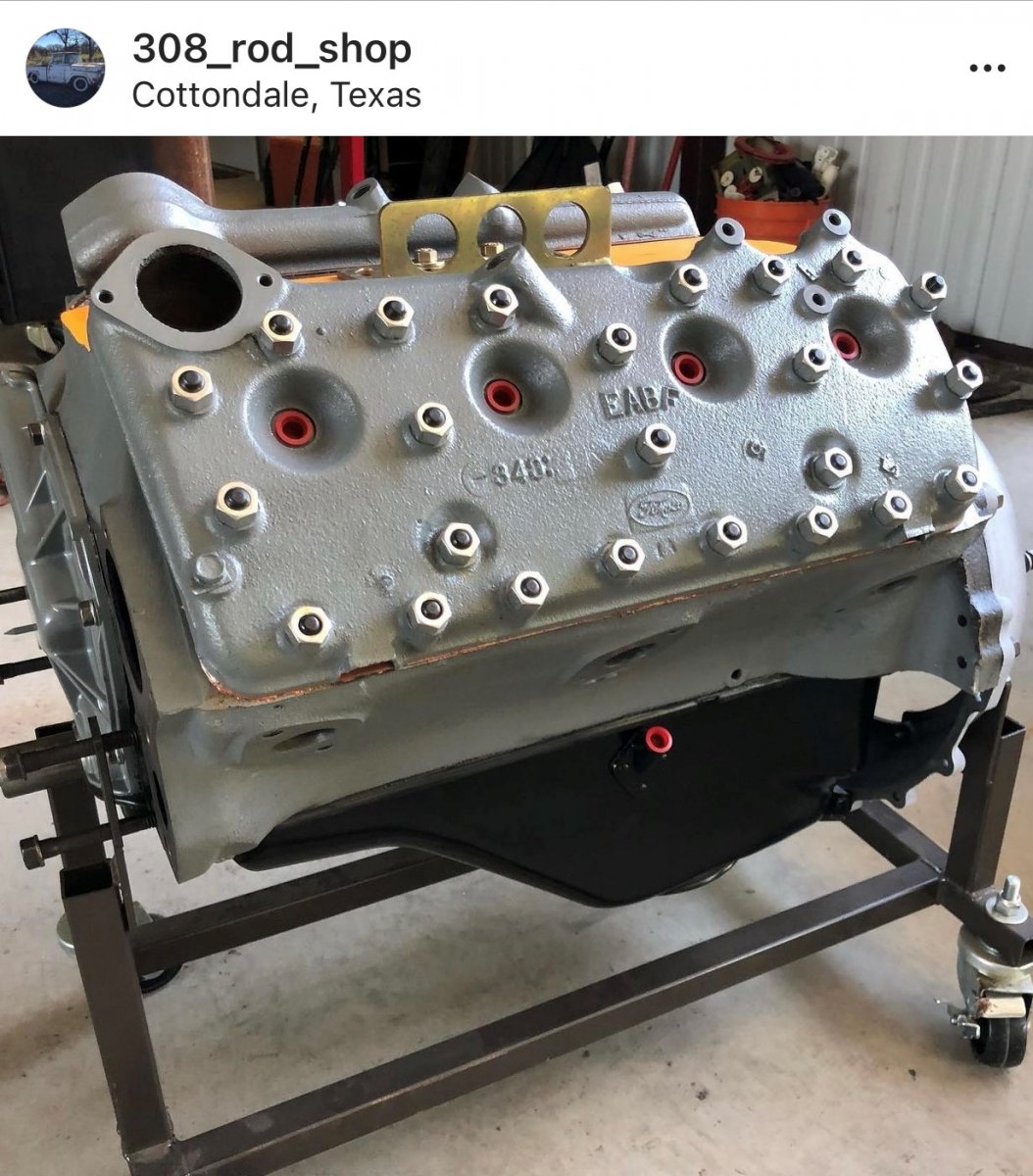

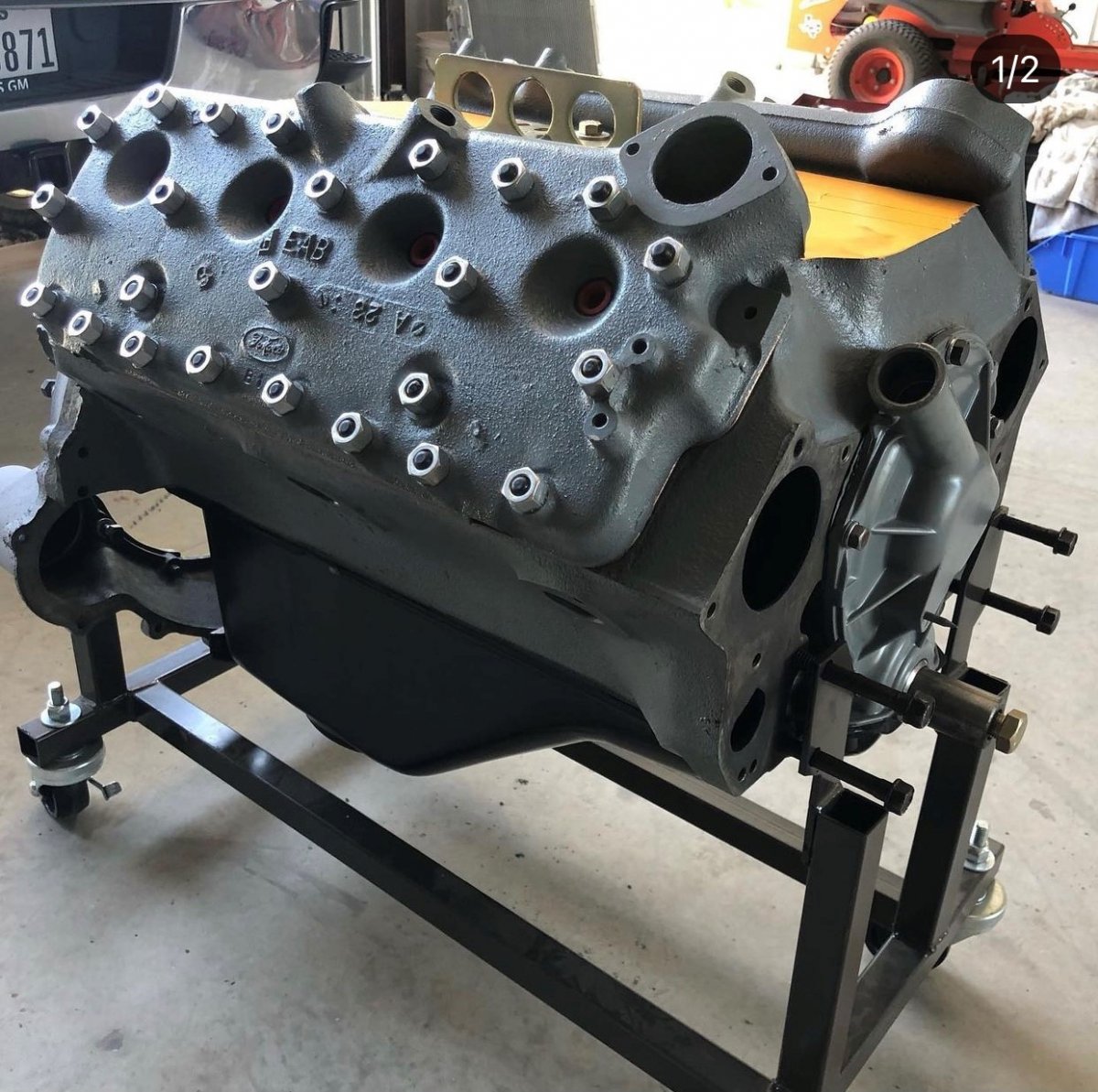

I have made it a habit to grind/smooth off the sharp casting edges at the rear. Here i have used the pics of @Low-Blow as an example of what i remove.. Also two of my engines.
