Flatheads....... lets see 'em!

39Truck.... sounds and looks *****in!!!!



If this thread doesn't make your mouth water I seriously doubt your claim of being a hot rodder. I'm sure there are more out there so keep posting flathead owners/fans.

Frank

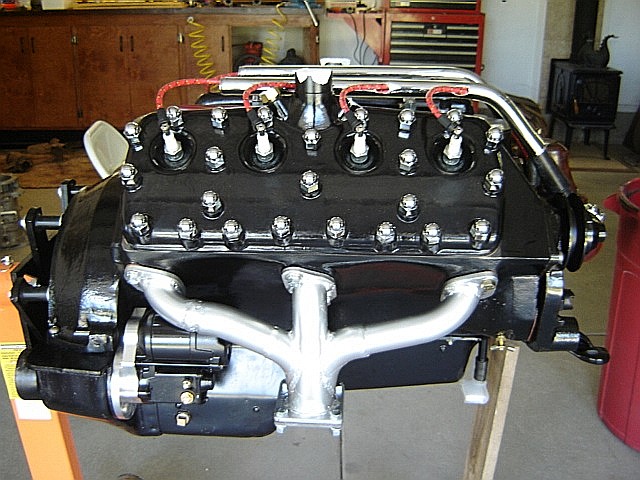

Here's mine, original engine, hot rodded to a full house 276 in 1953, rebuilt in 2010. Now is 281 cubes, bored .145. 4 inch stroke, Isky springs, Manley valves, johnson lifters, Egge pistons, Potvin super 3/4, Edelbrock Heads and intake, Speedway and Melling pumps. Sounds good.

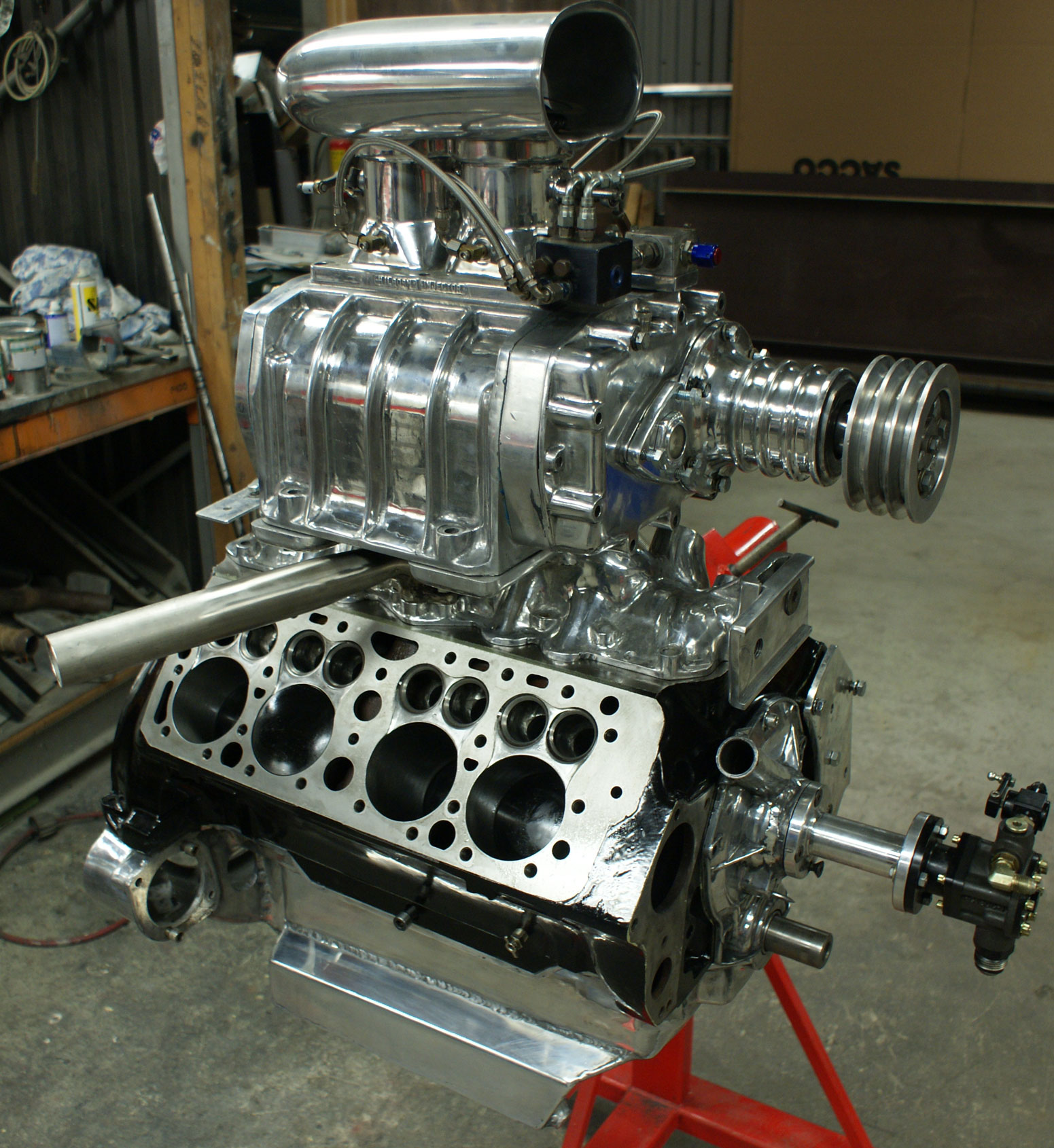

Heres a Falthead supercharged running on the test stand.



http://www.youtube.com/watch?v=RSH459SijQs



V12 out of a zephyr side job I Painted



Thank you roseville carl



Looks and sounds nice

Can i ask how high ignition you can drive with on your supercharged flathead engine ?



Nice thread!

Two of mine.....

..............................
Taildragger&fenderless



Here is my '53 8BA with my Grandpa's old intake setup:



the same intake on his '29 A-bone in 1951:





...and my reliable ol' T motor



I like the carburator cut MrmodelT ,very nice



Thanks! ..yeah, that was Grandpa's handy work. I am in the process (a**** other projects ) of building a duplicate of his A-bone and when I have these carbs rebuilt for the project.....the cut off tops will stay for sure

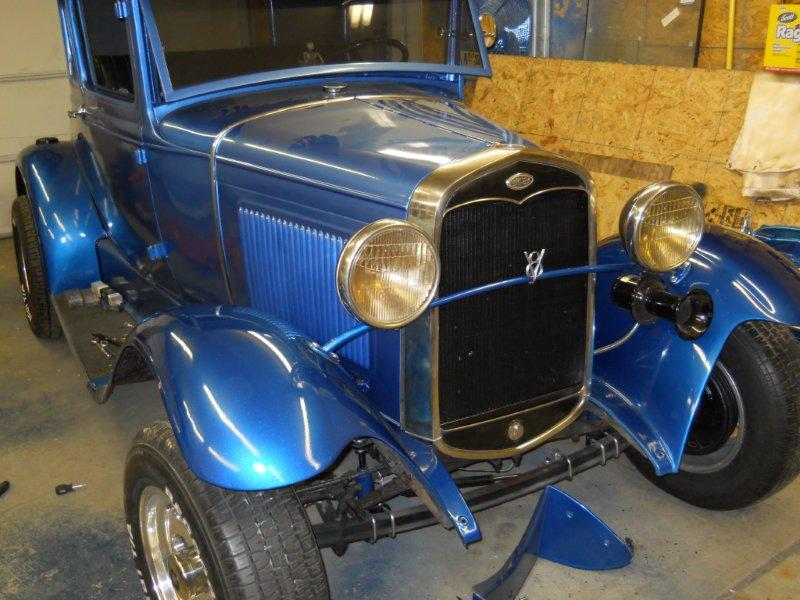

my av8 '31 coupe.



Heres a few of my V8s. The ones that presently run that is......
The one with milled and chromed heads is a Merc engine, Isky Cam, Edelbrock 452 intake and Rochester 4G carb. Very strong running engine!

The one in my coupe is a '46 59L with an unknown cam. Presently otherwise stock, but reliable as hell!

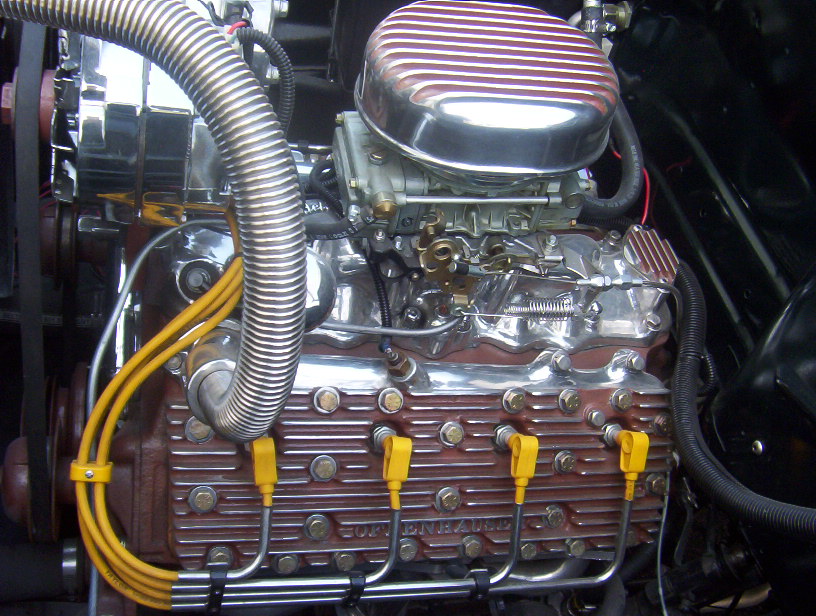

Here is my C8BA hooked up to a c4 automatic with speedwaymotors adapter engine is 4" merc crank with 3 3/8 pistons. Edmunds heads 4 barrel holley 390 cfm carb.Runs great drive it everywere. Darrell



Hey Kjell we need to see more pics of your AV8.........

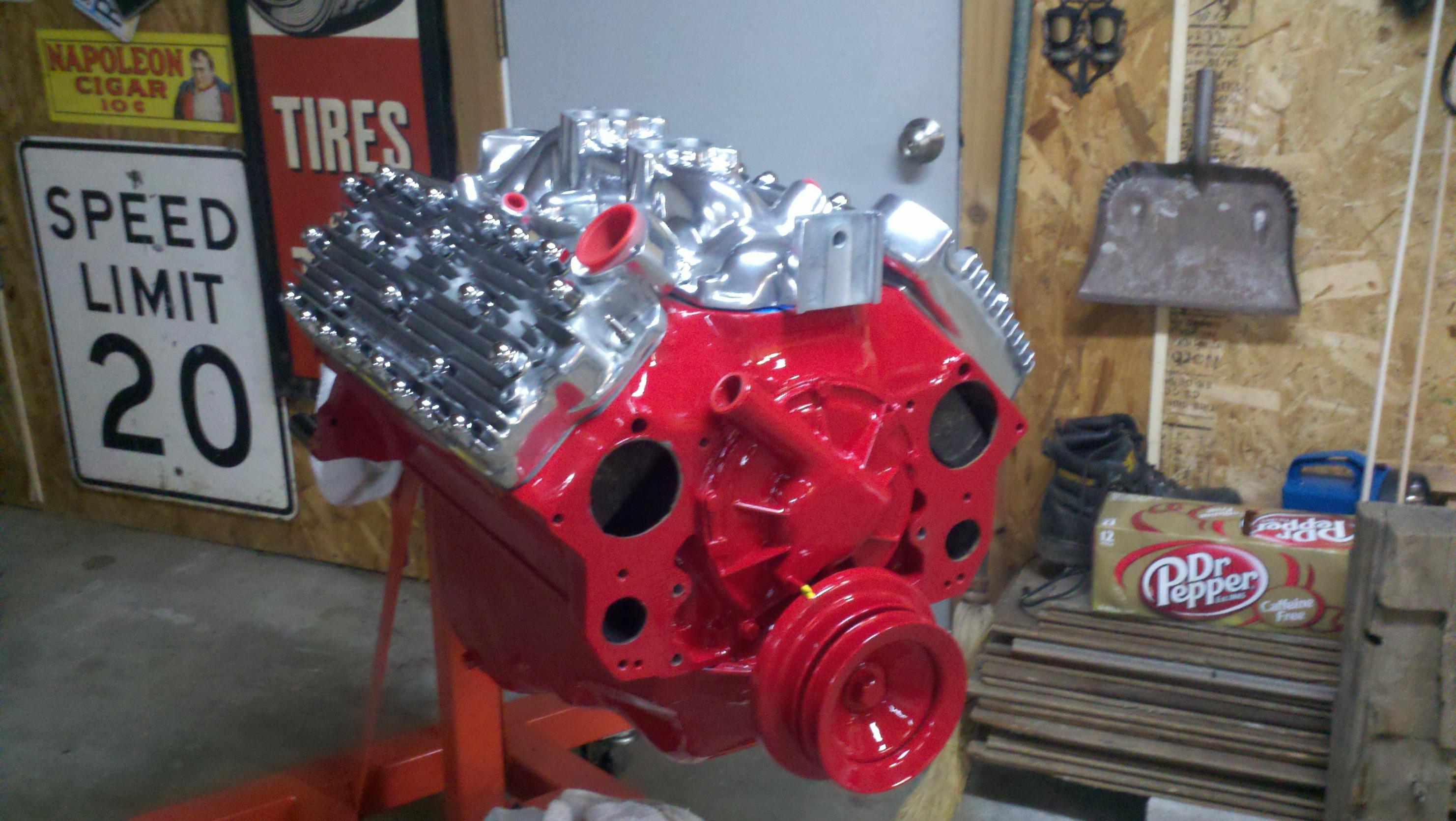

Does this still count as a flathead?



Or this one? God my friend has too much money.



Uh No ............



x2.



Here's mine. 290 cubic inch, Potvin eliminator cam, Austin intake, etc.



Thanks Carl

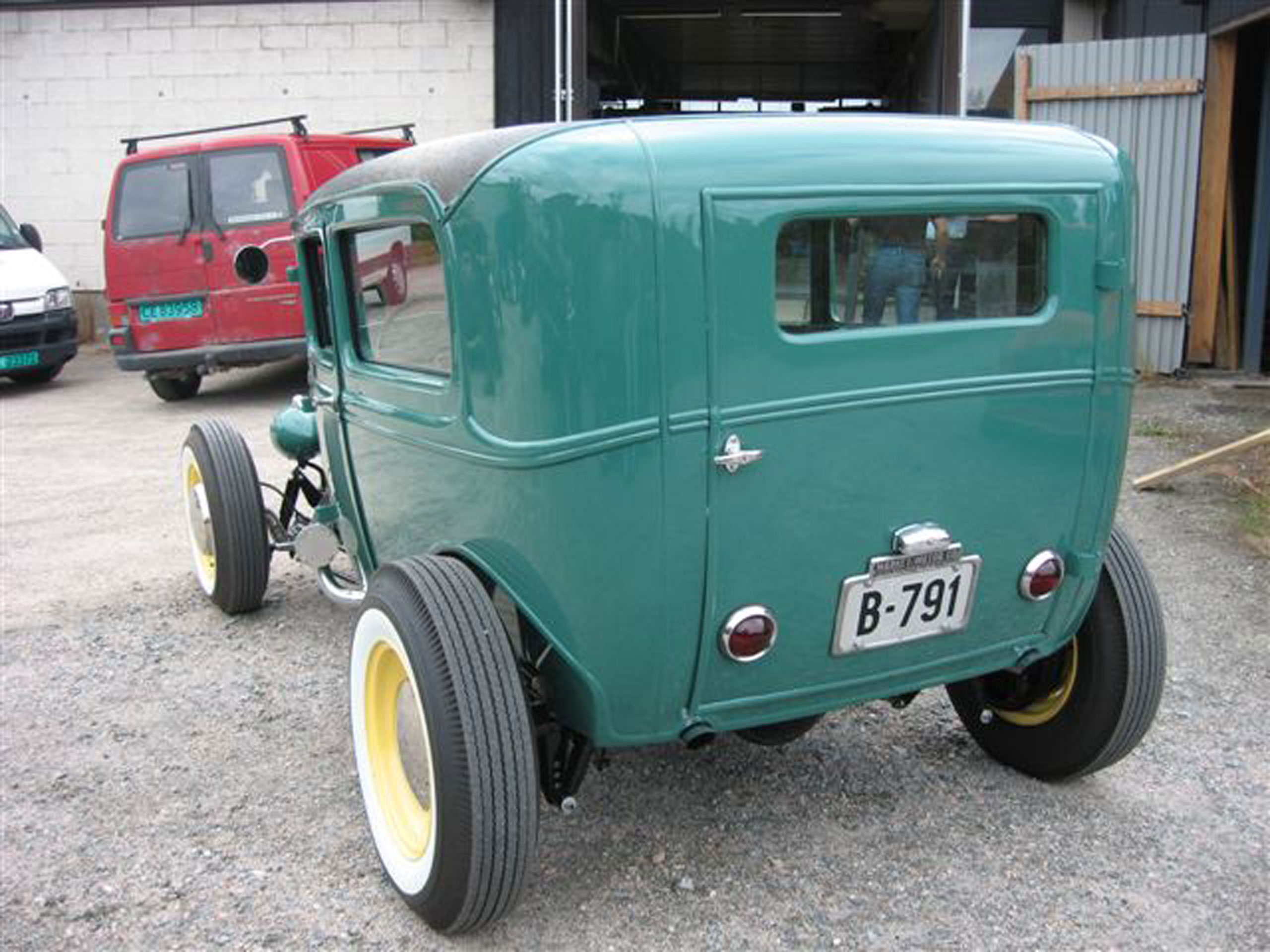

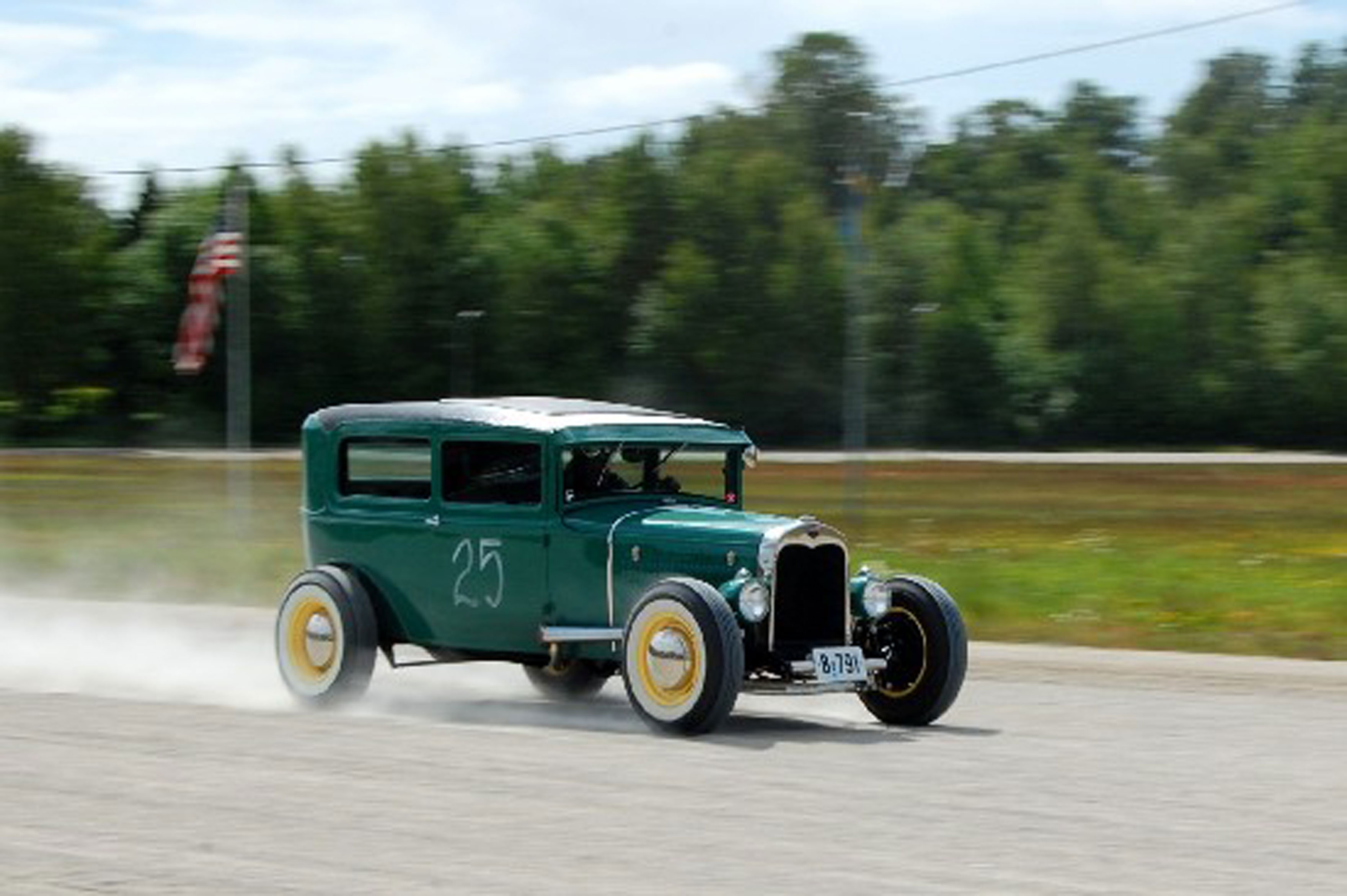

Here ya go,
Pictures taken some years ago...
Now she sit on 4 brand new 16" black solids with blackwalls, so much better. Didn't like the old rims and tires.

Br
Kjell



Very very nice Kjell



8ba, .30 over, 4" Merc, Isky 400, Offy Heads and Intake, lot's of machine work



Thanks Carl
Here is a video of it;
http://www.youtube.com/watch?v=geCTPCM1CAs

It's a 276 cid, with a 400 jr. cam, fully ported with a partiallly relive.
Left a small edge toward the piston. Just wanted to try out something else!

Br
Kjell


..............................
Taildragger&fenderless



sounds great Kjell............



Here's mine in my 51 F1. It's ported relieved 20 over 3/4 motor city cam merc crank.

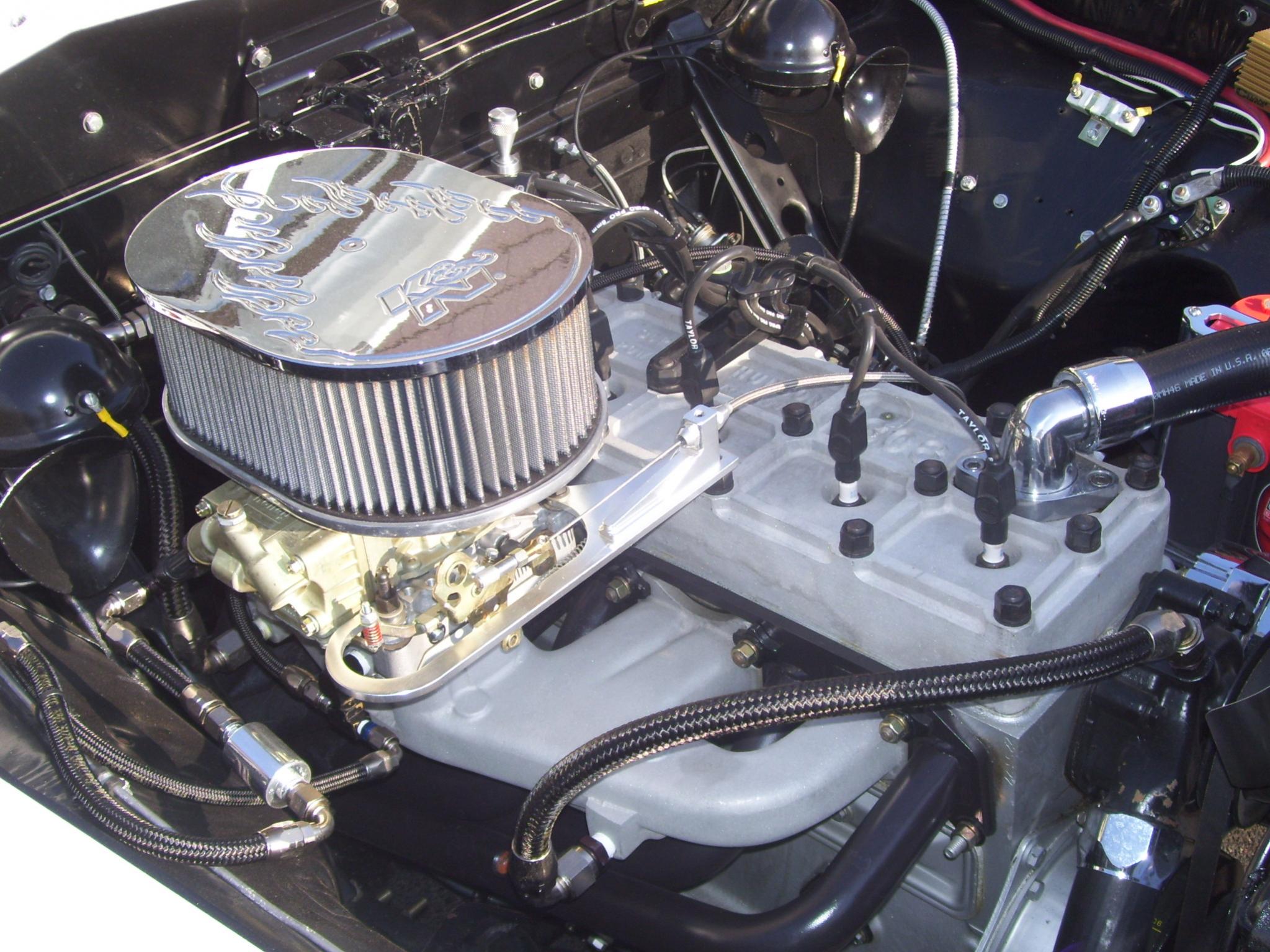

Here are some. The first is a 256 '53 Merc converted with a ARDUN OHV conversion kit. The Hudson's are all 308 Twin Hornet sixes.
Normbc9



Here are a few. .



my french Flatheads



here's mine a driver underconstruction.
rich
