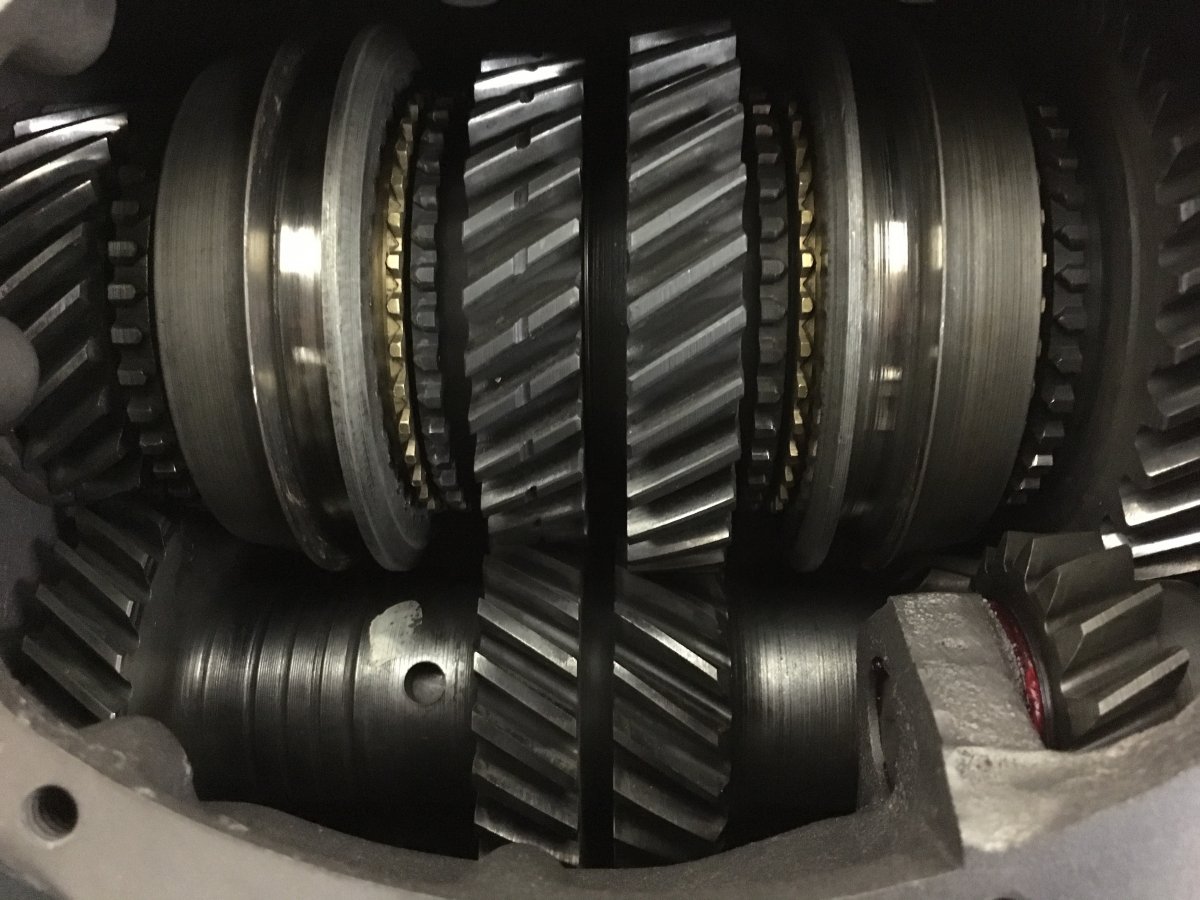

For sale is a wide ratio T10 four speed for a Ford. From what I can gather this transmission was originally out of a 1963 Falcon. This transmission has the early four hole case. This trans can be used in a later application, but you would have to have a bell housing that accommodates the early style case. Overall I would say this transmission is in pretty good condition for something that is a hair over 50 years old. The engagement teeth on the gears show pretty typical wear for something this age. They aren’t brand new by any means, but they are quite useable. The same goes for the input bearing, main support bearing, and synchro rings. The parts are all used, but still in serviceable condition. The bearings spun over smooth, and the synchro rings grabbed onto the cones of each gear as they should. This transmission was completely disassembled, cleaned, and then reassembled with new gaskets, seals, and tail housing bushing. All of the case parts were media blasted, and cast iron parts painted. The info on the trans is as follows: Main Case- T10B-1 (H233) Assembly Code- J533 Side Cover- 7-26-63 Tail Housing- T10H-7A This trans can most likely be used in other applications, however the original use was in an early Falcon. Please research whether or not this trans can be used in your vehicle. Feel free to call, text, or email with any and all questions. My numbers is (Seven Six Zero)803-7240. My name is Mike. If I do not answer please leave a message and I will return as soon as possible.
