Post'em if ya got'em... Here's one..



It's a beauty!

not like the one I had...

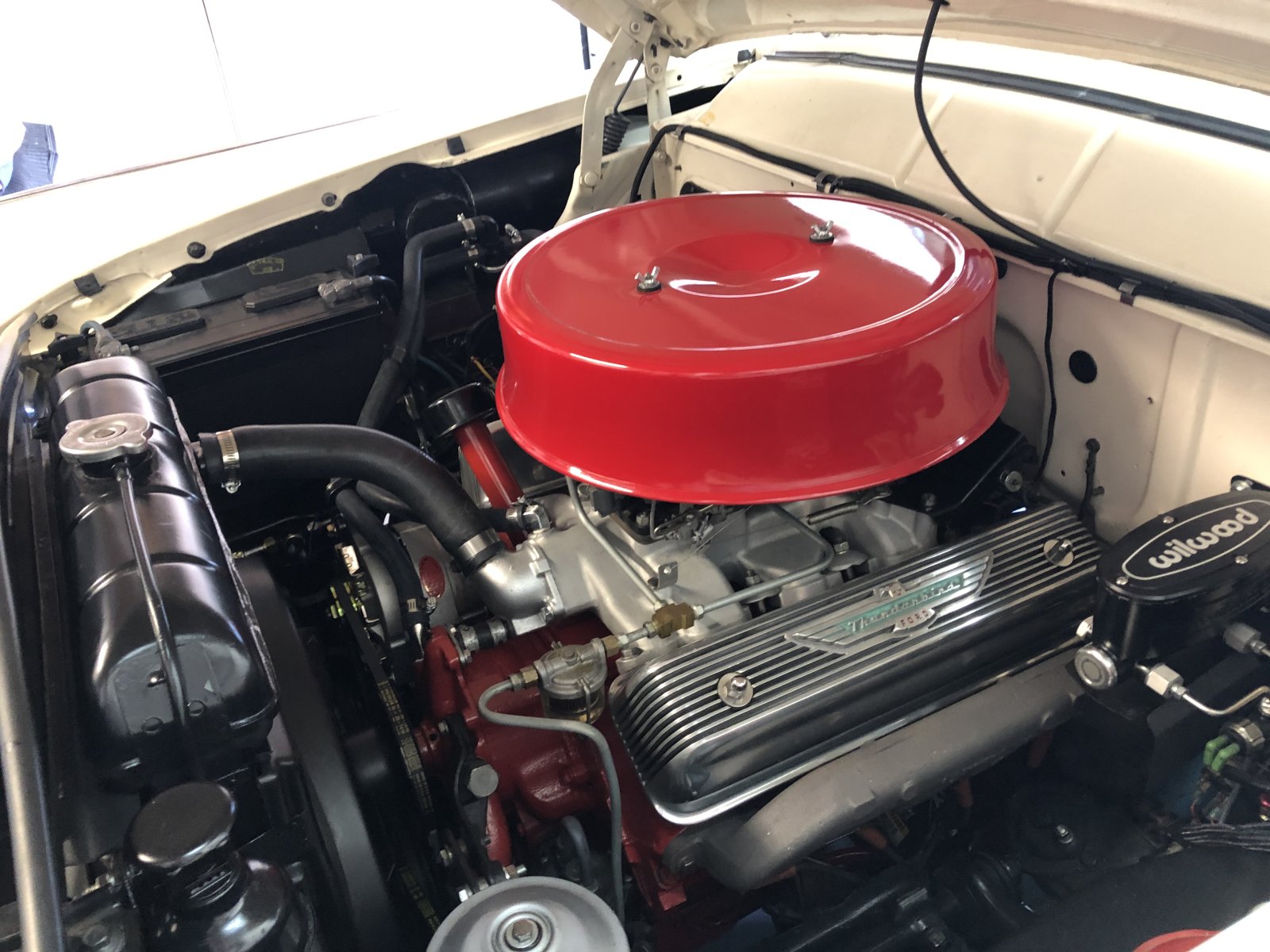

In my 57 bird--292 bored and stroked to 312

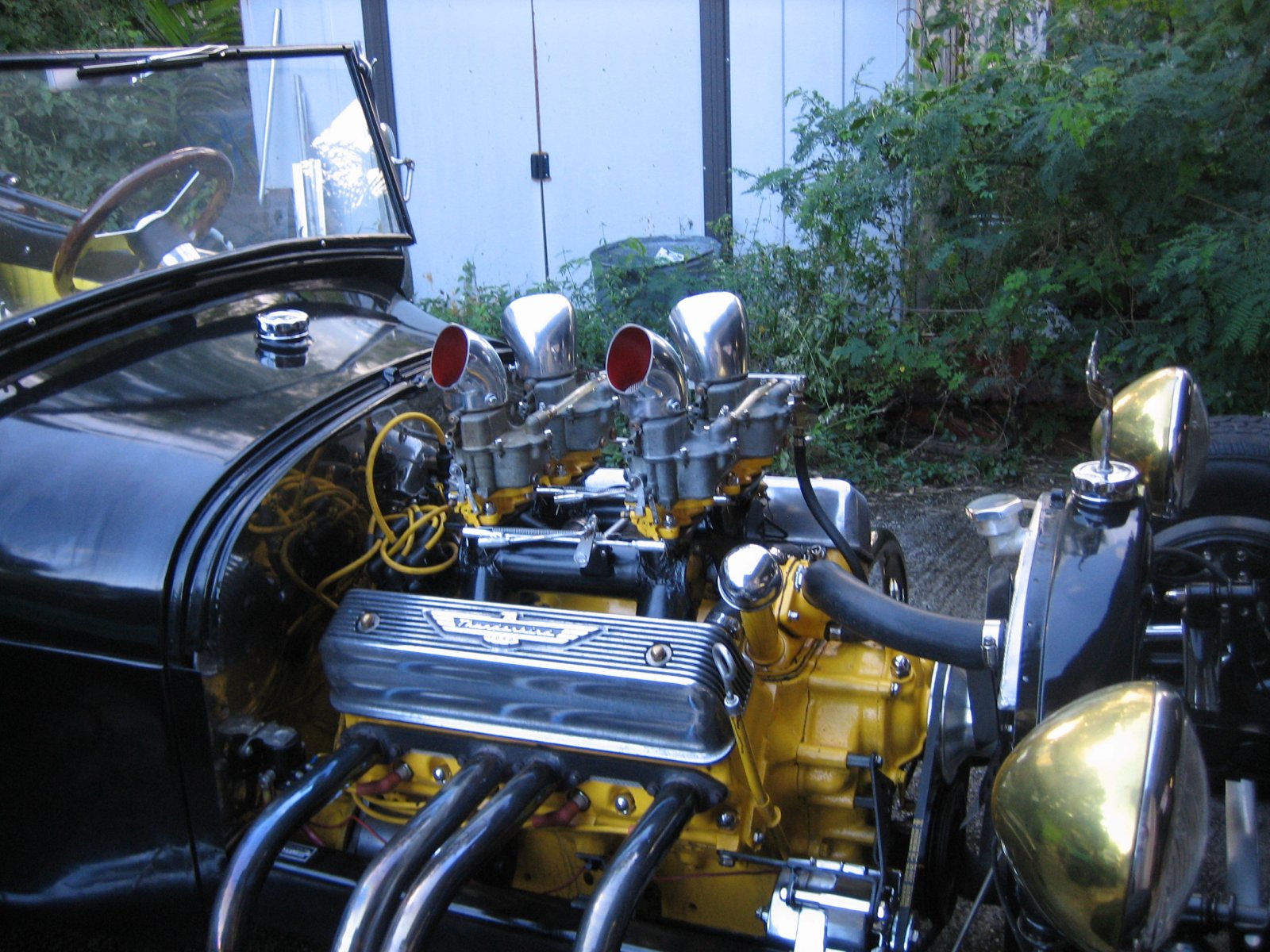

In 1959,I was lucky I thought,to get a 1955 Thunderbird 292 engine n 3 speed out of a crash.. I had been looking for some time for any OHV V8 for as close to free as pos. Like the rest of my hotrod build,much more time hunting parts and then clean up an use. The "Y" was the last big part ,to now add to my Bobtailed 28A Roadster> as its old body had been crashed in the backend pretty bad/ so just cut off what I could not fix[ as a teen]. It was my sr high school ride,I liked it ,so kept it still*. Made my own speed stuff mostly,later got some Ford alum "T" covers,an homemade 4x2 intake from cutting up a drive shaft.
Now days,I use a Alt. vs the old gen. an update to alum rad.



Aspirational but inching along.

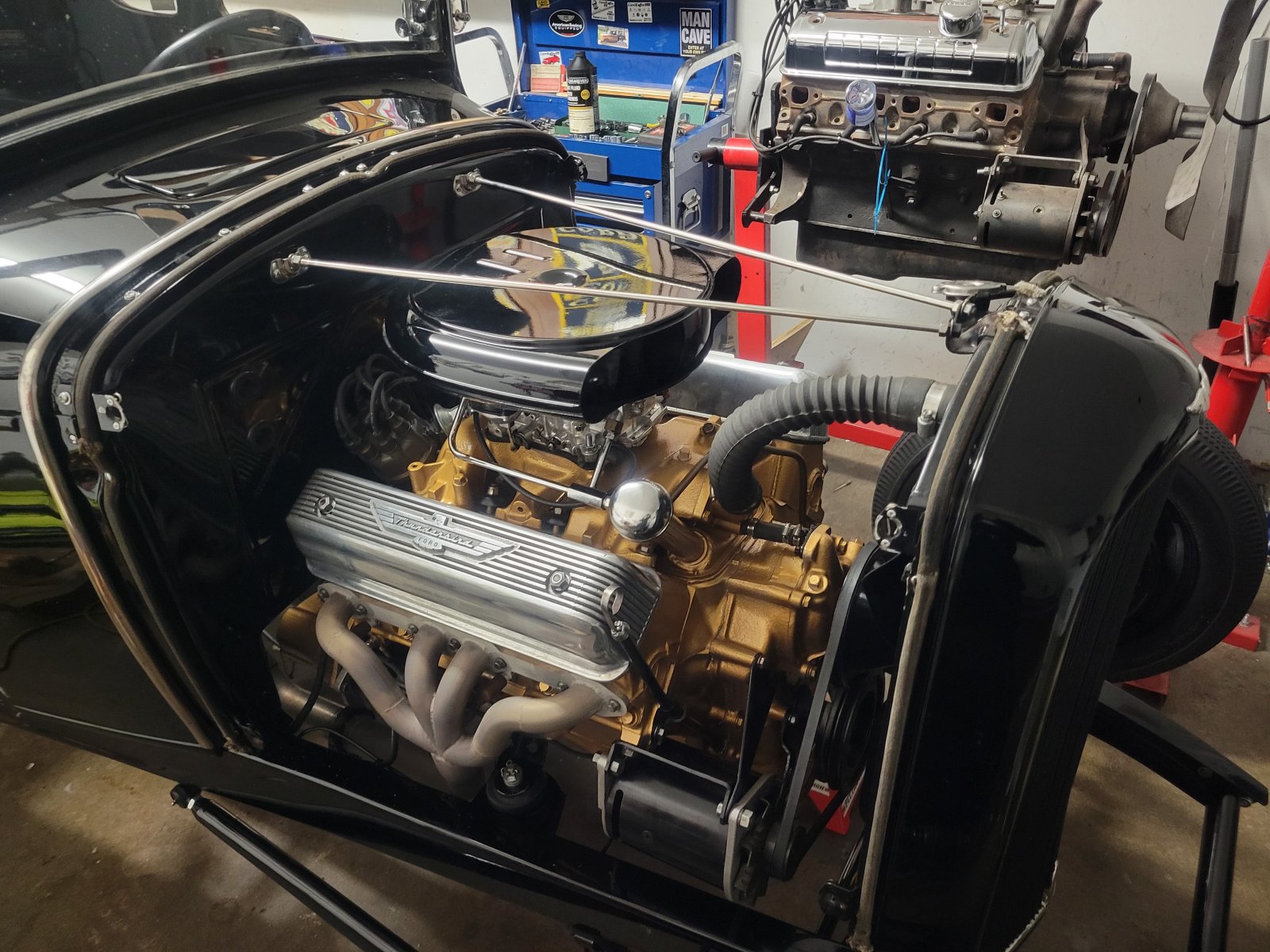

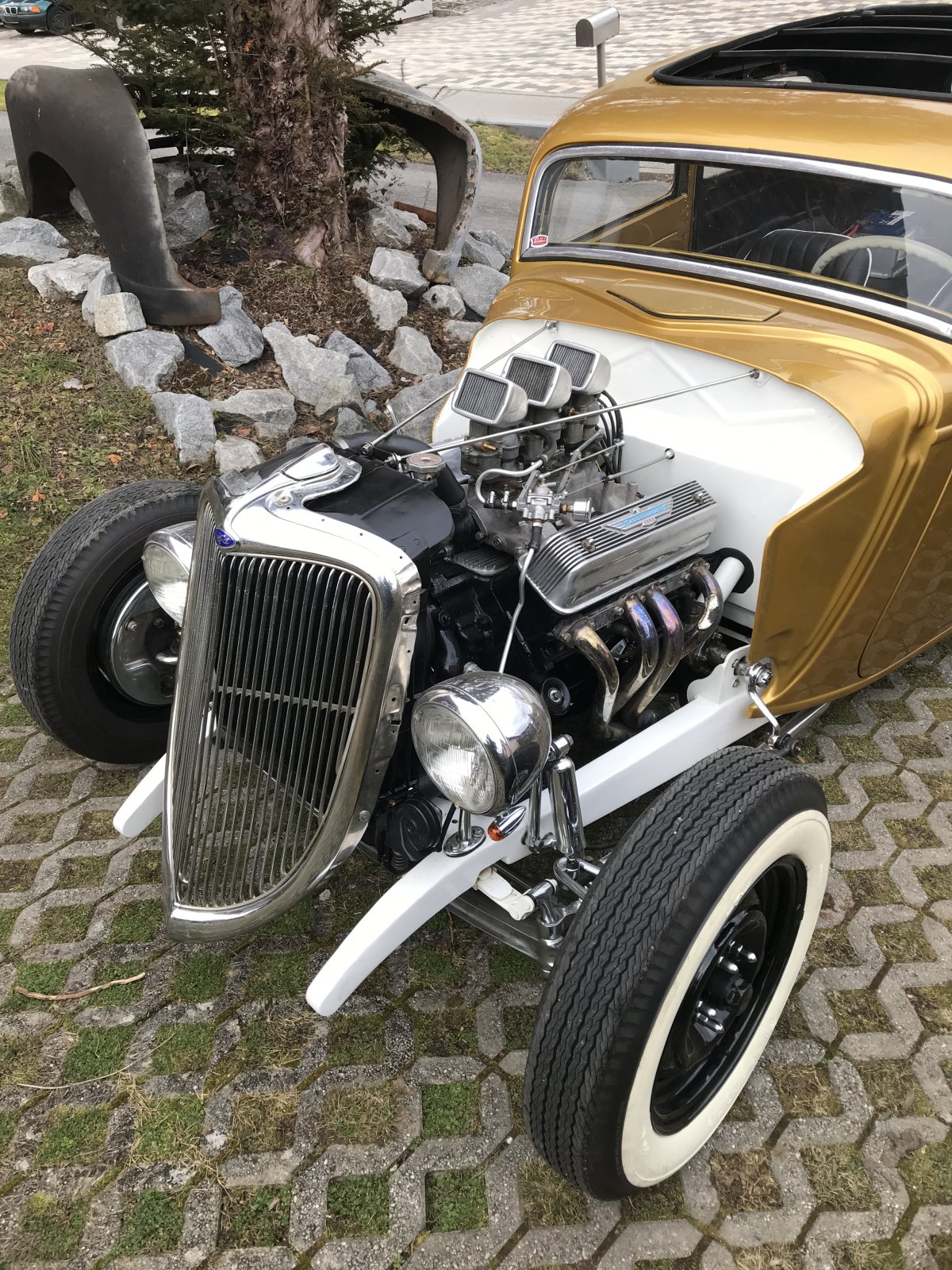

32 Ford and 55 bird



I have a question what is that link from the wishbone to axle bolt that goes to the steering arm



Not sure I understand the question so here goes: 1) the steering arm is disconnected from the pitman arm and is laying on the floor beneath the steering box making that look funky 2) the wishbone-axle bolts have a goose neck bend towards the backing plate. By the look of the picture angle, that appears to meld into the tie rod but not so. Just an illusion.
Please let me know if I answered or missed your question.



Mine! Thank you… lucky, to be the first one posted.

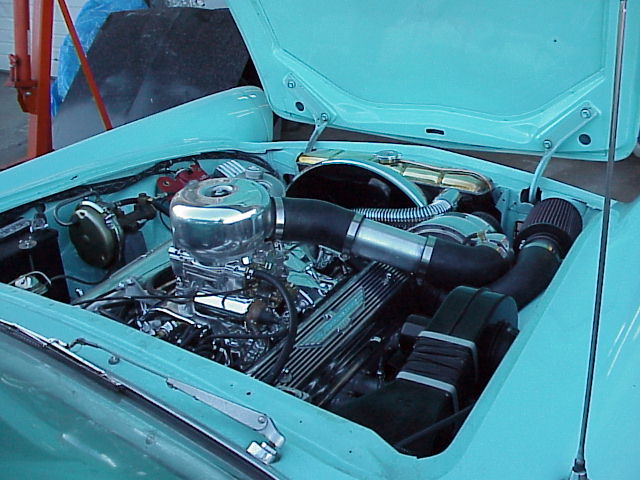

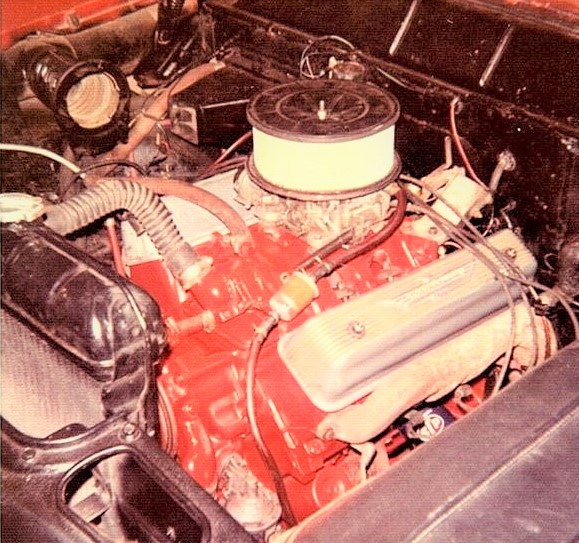

Now with the NASCAR 1956 mandated air cleaner.

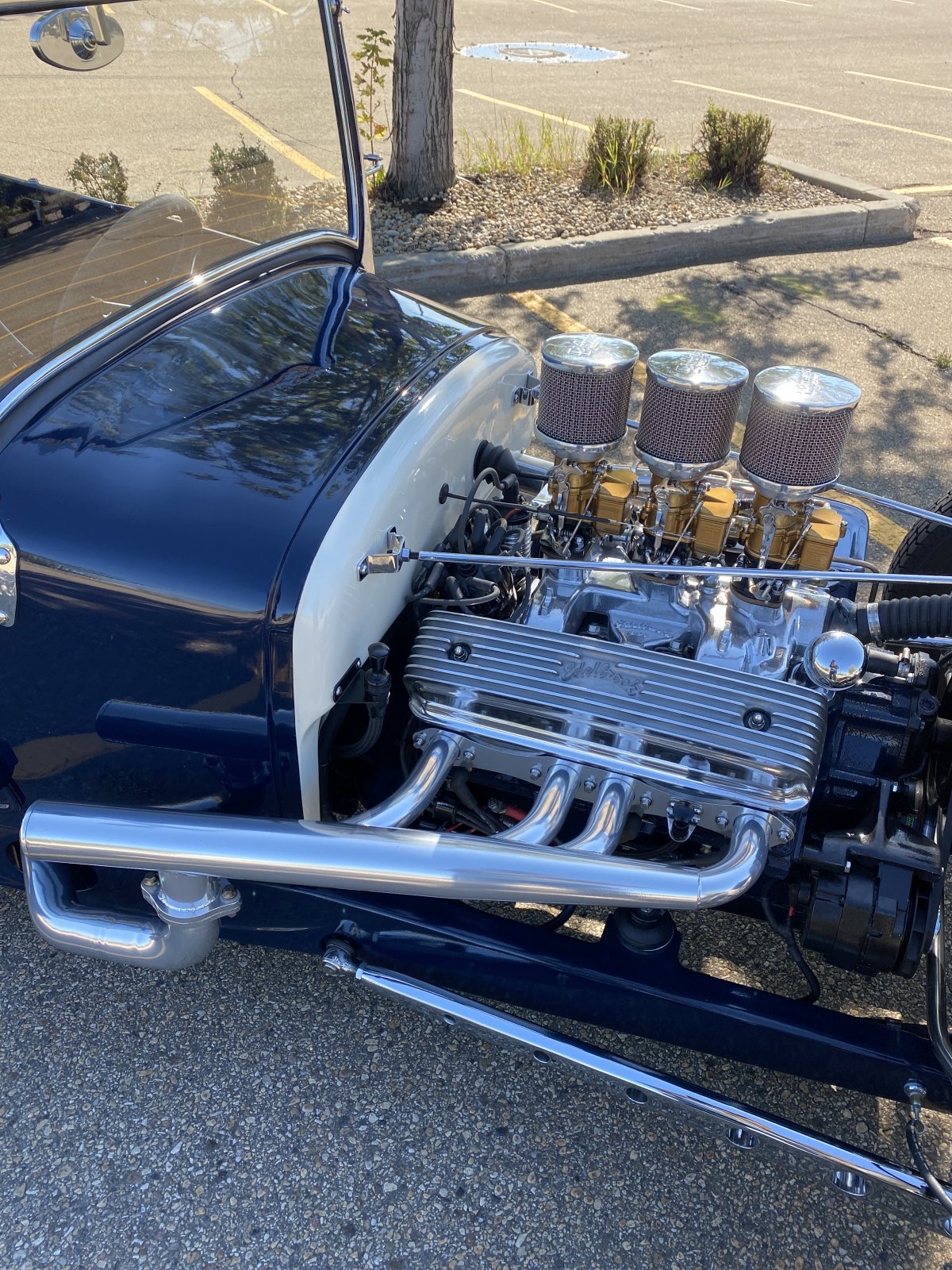

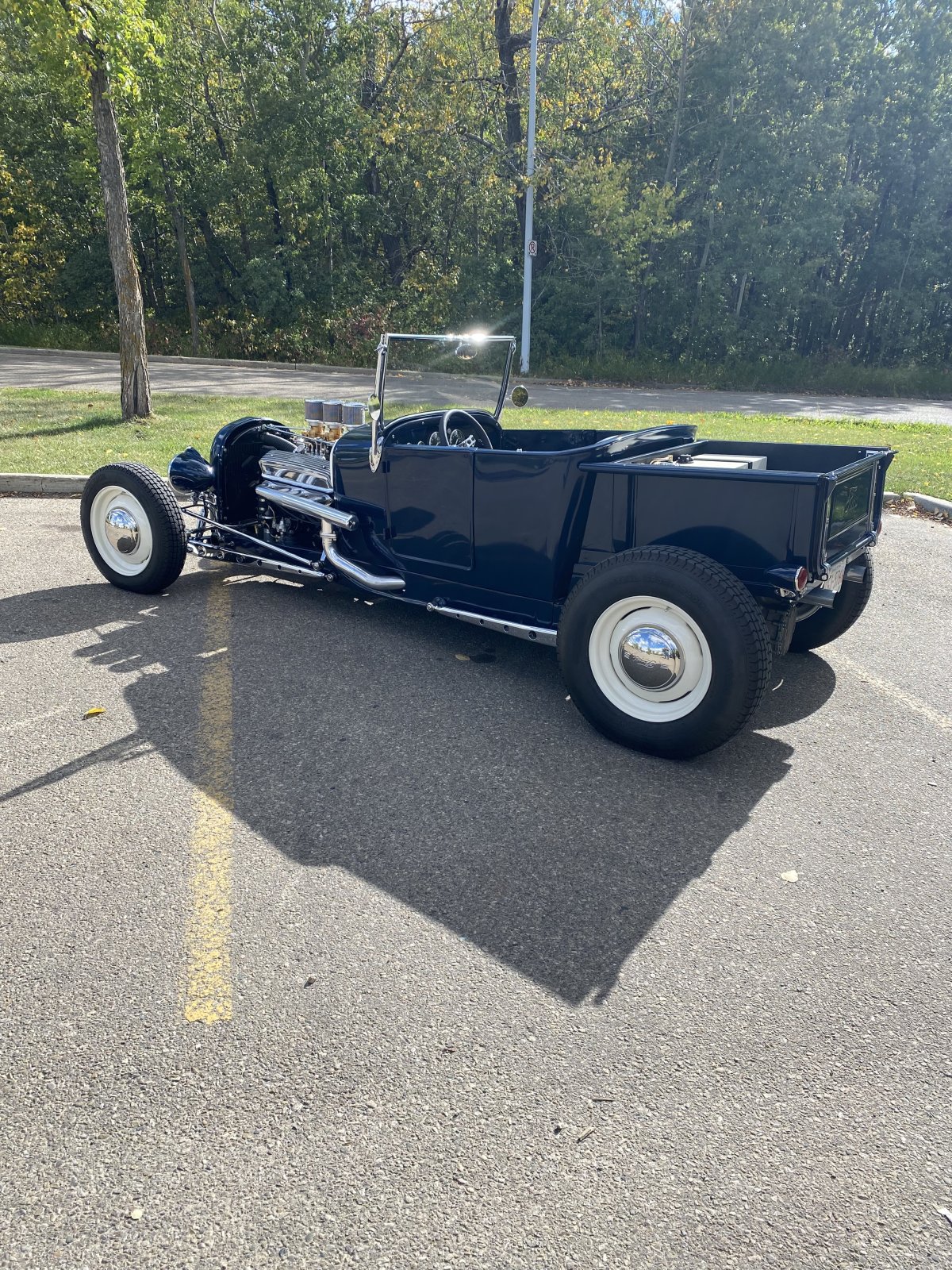

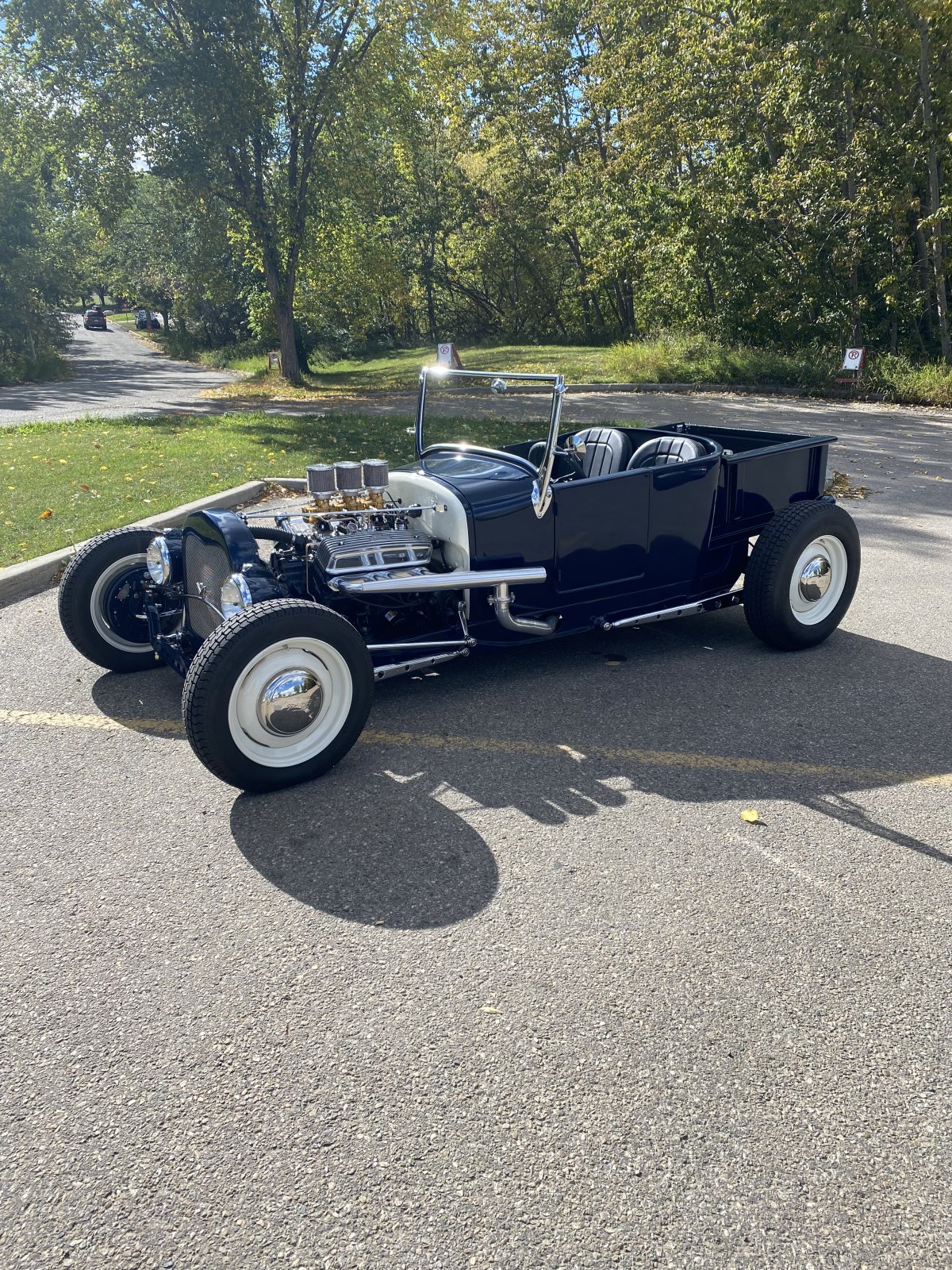

My 26 RPU. Tim Mcmaster built 309 inch, 292 block with a 312 crank etc etc.



stuff I work on



11 pages of Y blocks for your entertainment

https://www.jalopyjournal.com/forum/threads/the-all-inclusive-almighty-y-block-thread.1221157/



Hey L.B. Guess I should have looked before posting this thread.... My bad!.....
I'll leave it up to the mods to delete this one if they want... Sorry..



https://www.jalopyjournal.com/forum/threads/y-block-photo-thread.990531/



Yes it looked like the there was a link that would have locked the wheel in the straight position



Nice mostly original 31k mile 292 in my’56 Fairlane.



I’ll play...the last one I messed with was a 57 312.

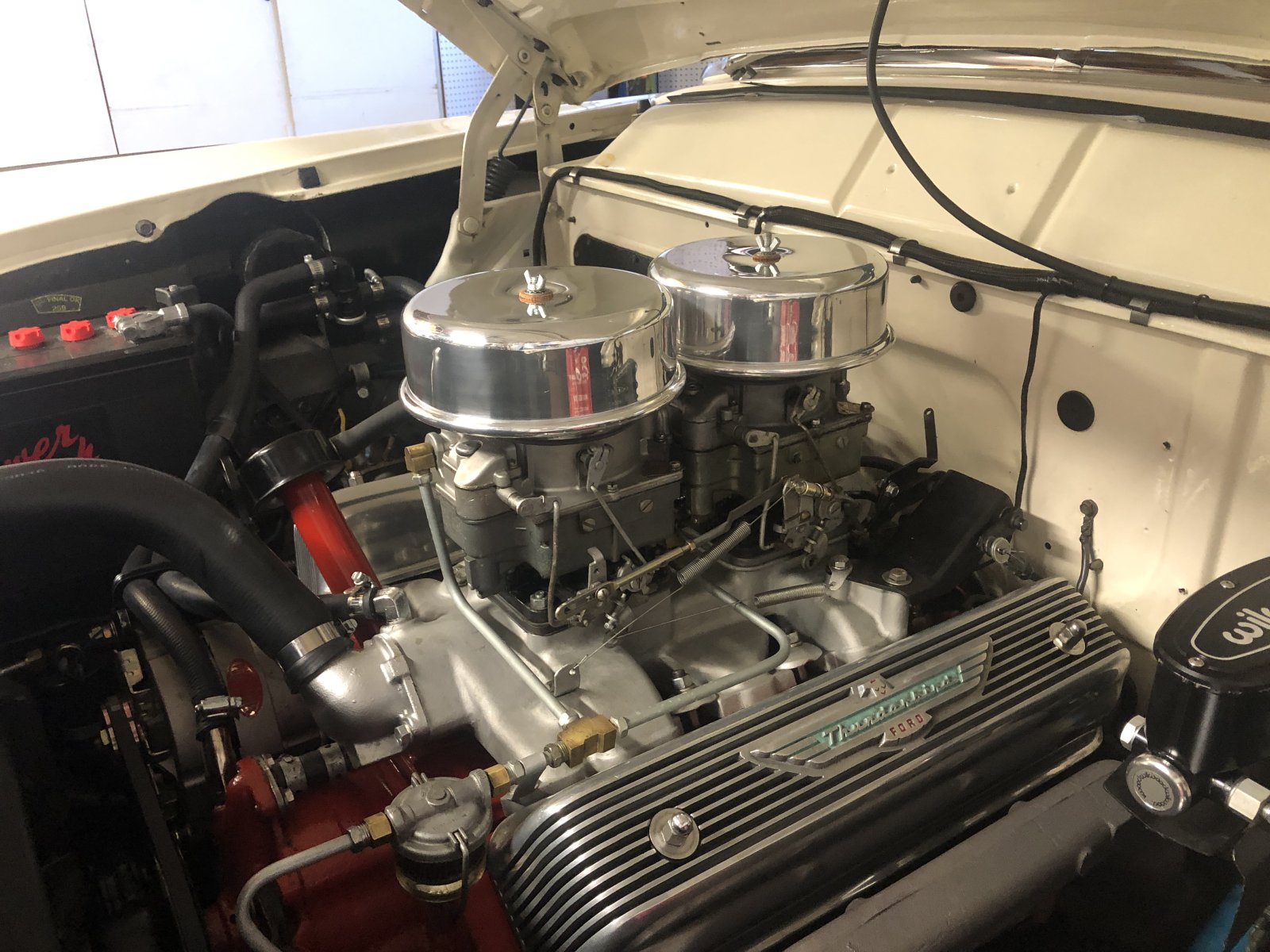

Here's the 312 in my '57 Custom 300:


And the 292 in my old '60 F100:



My ex-312, going in a 40 Ford at the Moment.



My brother's '32 with a 292:

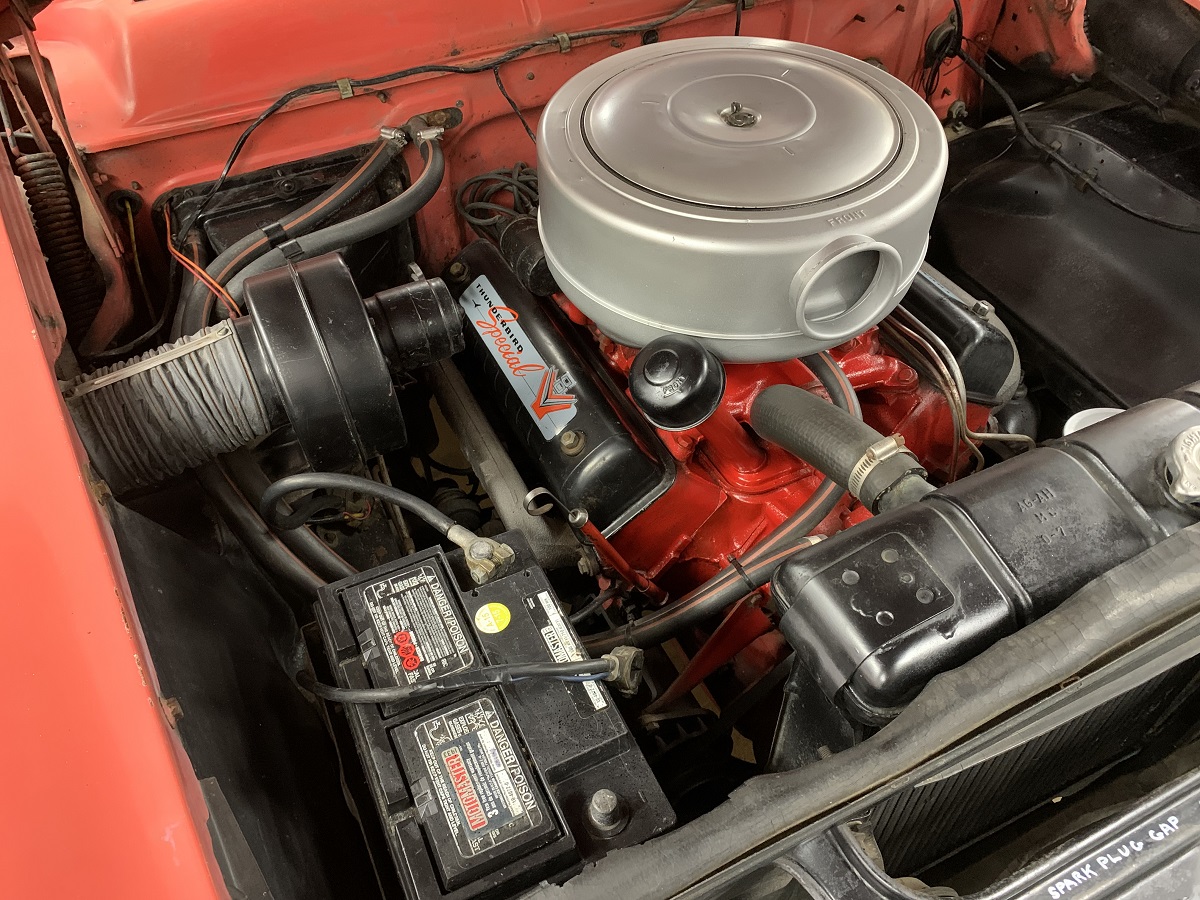

And the P code 312 in my '56 Sunliner:


-Dave



Thanks Guys. Now you got me wanting a Y.



A really old, grainy picture of one I had in a '56 Ford 2 door wagon. 292 bored .125 which gave it 312 cu. in., Jahns 12-1 pistons, Isky or Weber cam, polished and ported "G" heads with lightened valves and a -B intake running a large AVS carb from a Lincoln. Backed up by a T-10. Not as nice appearing as the ones posted above, but it was a fast car in it's day...

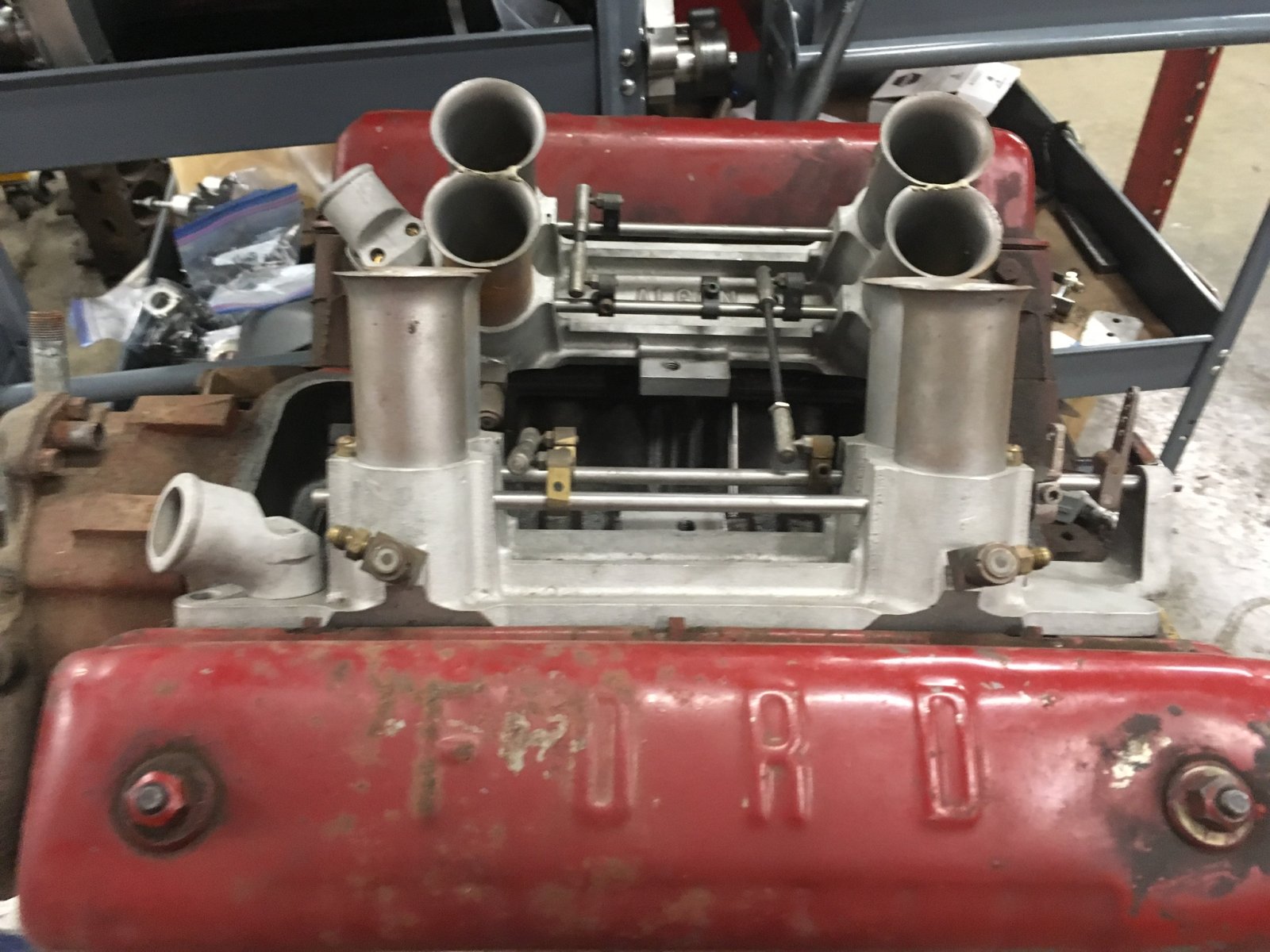

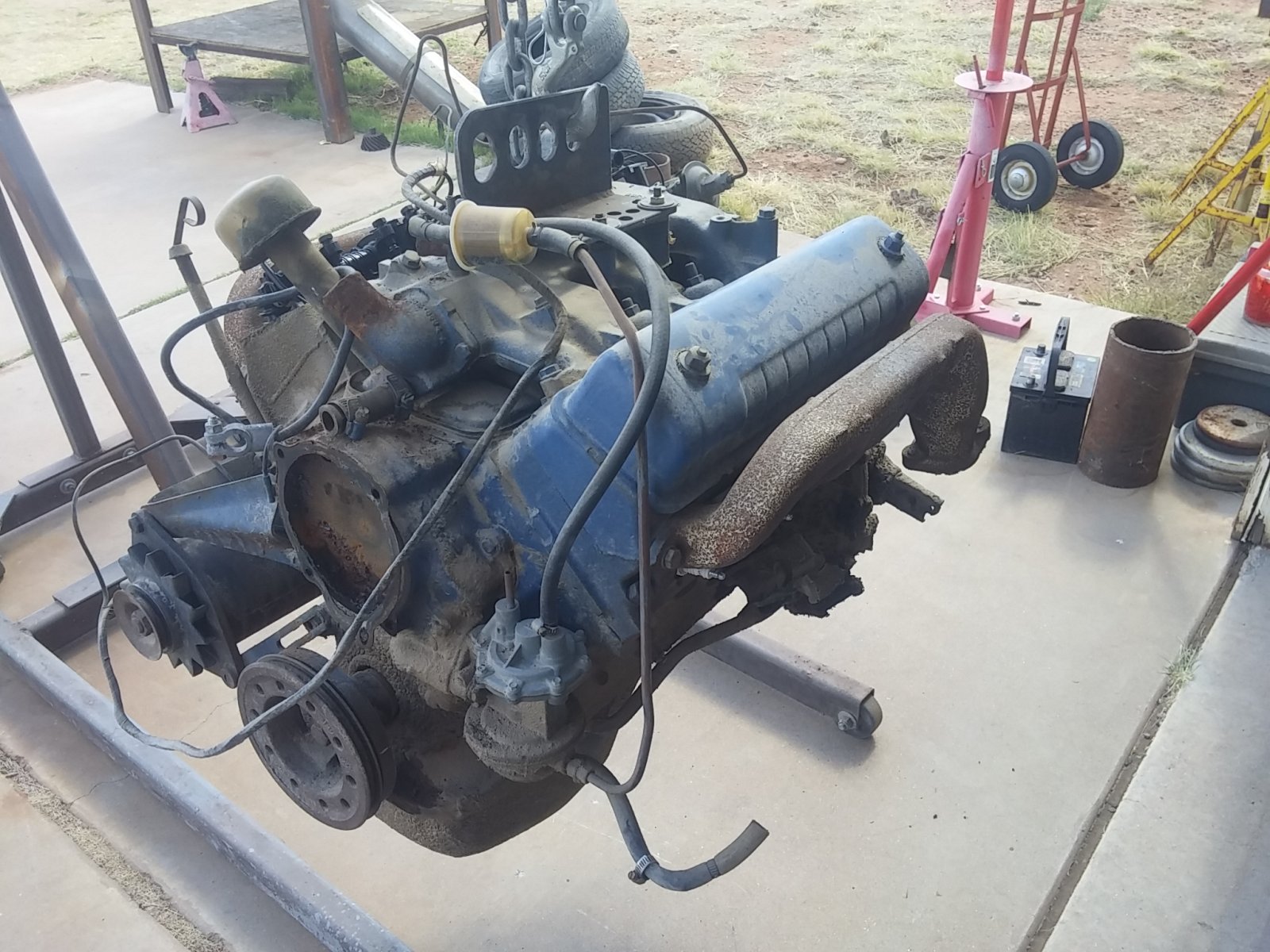

Not pretty, just a mock up on a core motor I have. Leading me to realize I didn’t have the technical or financial means to make it work on the street. “The things dreams are made off”

Sorry about the double picture.



Doable with SBC’s…..engines are just air pumps and constant flow injectors don’t know what they are on.



Bump...'....



Here's a couple of mine for the club a 292 and a 312



At least you didn't have that front crossover pipe like I did, burned the crap out of myself more than once!
