History Grille I.D.

Discussion in 'Traditional Customs' started by Charlie Chops 1940, Jun 21, 2025.

  1. A friend has this grille. We are trying to identify it. Amy thoughts?


    Okie Pete likes this.
  2. squirrel
    Joined: Sep 23, 2004
    Posts: 59,236

    squirrel
    Member

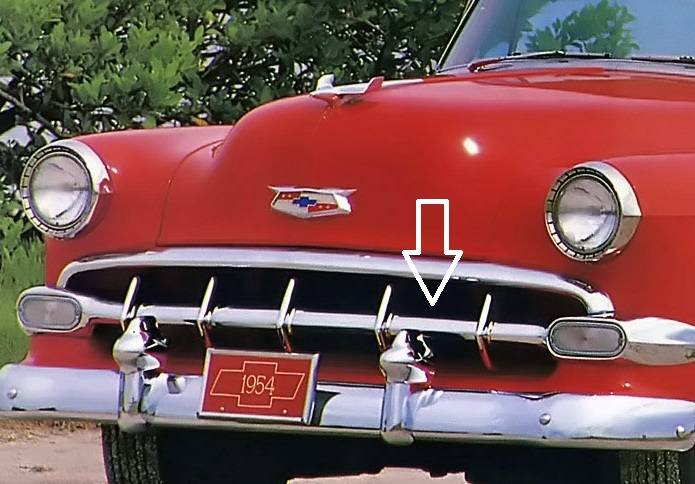

    and it's not a 54 Chevy grill? too many teeth? did you look at the back and see if it's been worked on?

    Moriarity likes this.
  3. 270ci
    Joined: May 17, 2010
    Posts: 478

    270ci
    Member

    My Amy thought is, it's a shortened 54 Chevy center piece with a couple of additional holes.
    Let's see the back side.

    NoSurf and Just Gary like this.
  4. Black Panther
    Joined: Jan 6, 2010
    Posts: 2,344

    Black Panther
    Member
    from SoCal

    1955 DeSoto without the teeth? Possibly cut down?

  5. squirrel
    Joined: Sep 23, 2004
    Posts: 59,236

    squirrel
    Member

    The 55 Desoto park lights are not the same shape...close, but no cigar.

    55 desoto.jpg

  6. Moriarity
    Joined: Apr 11, 2001
    Posts: 36,098

    Moriarity
    SUPER MODERATOR
    Staff Member

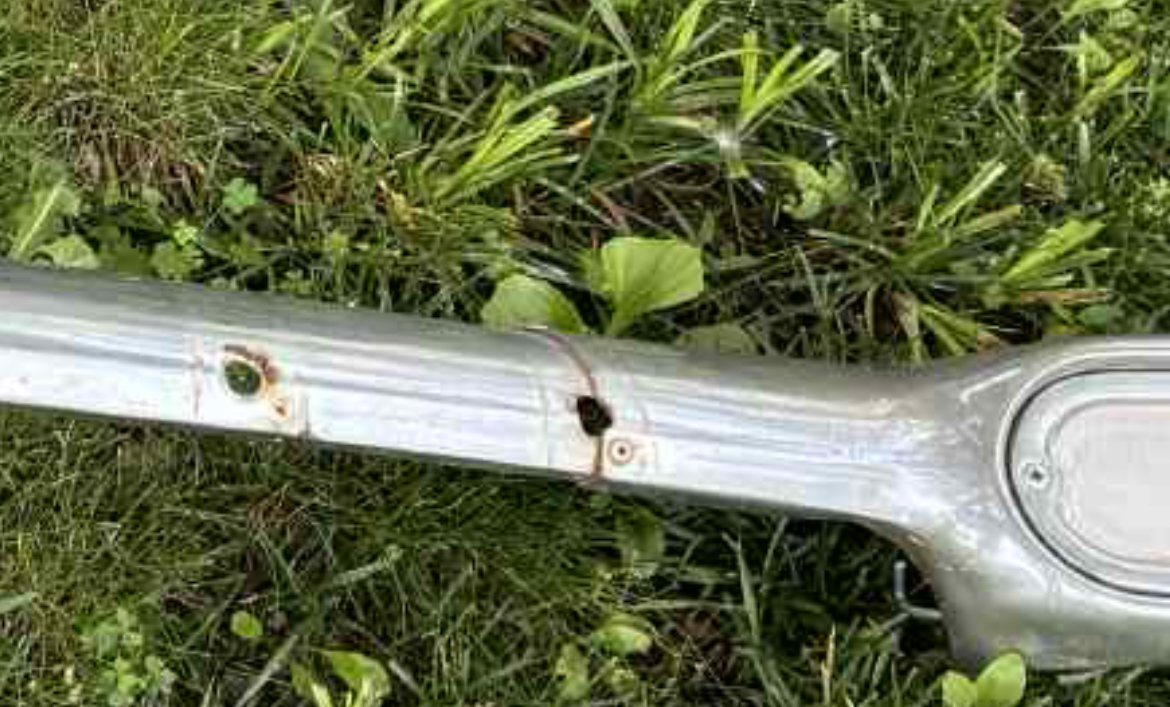

    Yup, modified shortened 54 Chevy . See the rivet? IMG_4351.jpeg

  7. Thanks guys, I think you are right on ‘54 Chevy, but I believe the end of the light portion may be cut off. I do not have it in my hands. I will have to ask the owner’s widow in Kansas for a side picture. That would be the real identifier…and maybe the width.

  8. Moriarity
    Joined: Apr 11, 2001
    Posts: 36,098

    Moriarity
    SUPER MODERATOR
    Staff Member

    yup, the ends where it used to wrap around the fender on a 54 chev look like they have been trimmed off. Hard to say what kind of car they had that in. surely will not fit a 54 chev anymore

  9. Thanks guys, yes it is a ‘54 Chevy with the end sides cut off..

  10. Many '54 Chevy grilles were adapted to use in '55 Fords.

  11. lostn51
    Joined: Jan 24, 2008
    Posts: 2,904

    lostn51
    ALLIANCE MEMBER
    from Tennessee

    Maybe a 49-50 Merc opening????

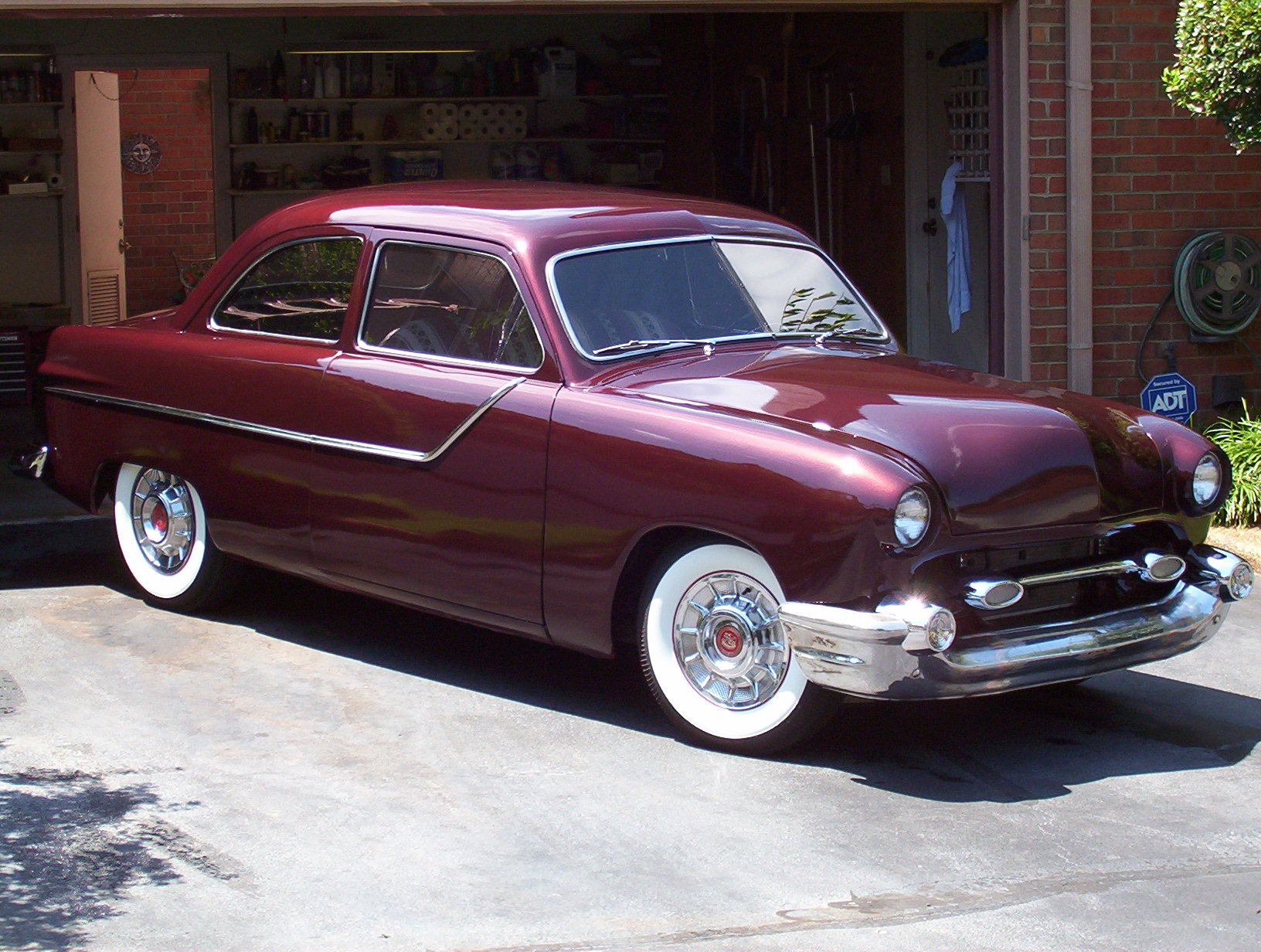

    I cut up one from a ‘55 Oldsmobile and made a floating grille out of it

    Budget36 likes this.
  12. Got any pictures? I'm looking for ideas for my '56 Fairlane.

  13. Budget36
    Joined: Nov 29, 2014
    Posts: 15,033

    Budget36
    Member

    Can you let us know how you did that? (Floating), I’d like to remove the “teeth” on my ‘57 Chevy PU, then float the center.
    Hopefully can be done without welding, as the grill has good chrome.

  14. lostn51
    Joined: Jan 24, 2008
    Posts: 2,904

    lostn51
    ALLIANCE MEMBER
    from Tennessee

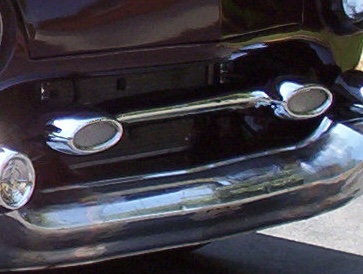

    I lol have to see if I can find the pictures of it close up but I cut 4” out of the back of the grill and 6” there abouts out of the length (side to side) and added parking lights to the ends. I made the brackets out of stainless flat bar and welded them up afterwards and had it chromed. Word to the wise do not use stainless steel wire to rig weld the grill up or you will pay a lot more for the chrome because the process is more intense. I bolted it to the studs I welded to the radiator brackets ( I installed a cross flow radiator so the supports were wider than stock) and bolted it in. 000_0241.jpeg

    X-cpe and Budget36 like this.
  15. lostn51
    Joined: Jan 24, 2008
    Posts: 2,904

    lostn51
    ALLIANCE MEMBER
    from Tennessee
