How do you prevent pinching door wires?

Discussion in 'The Hokey Ass Message Board' started by dccd, Jul 6, 2011.

  1. dccd
    Joined: Nov 1, 2009
    Posts: 156

    dccd
    Member
    from Missouri

    Running wires in the 48 plymouth and realize I don't know the best way to protect them to the doors for my windows, locks, etc. Went to a salvage yard to pickup a pair of the black wire boots in modern car's door jambs, but found out these won't work. Where newer cars open up to about 90 degrees from the door jamb and frame, my doors open up and almost slide forward toward the fender. Difficult to explain in writing, so I may need to snap a picture to show you guys what I mean, but there is very little room in the door jamb. Figure someone knows what I'm talking about and came up with a good idea to protect their wires. Any thoughts?

  2. 39 All Ford
    Joined: Sep 15, 2008
    Posts: 1,530

    39 All Ford
    Member
    from Benton AR

    Running the wires inside of stainless springs works pretty well....

    I used some fiberglass loom on a late model a few days back, it worked well also.

  3. Fat47
    Joined: Nov 10, 2007
    Posts: 1,562

    Fat47
    Member

    Do a search. There was a good discussion on this a couple of months back. As noted therein, I used some one inch stainless tubing that I curved to match the door swing. Others used braded hose.

    Atwater Mike likes this.
  4. metal man
    Joined: Dec 4, 2005
    Posts: 2,955

    metal man
    Member

    Windows and locks need wires?:rolleyes:

    Bandit Billy and lothiandon1940 like this.
  5. Fenders
    Joined: Sep 8, 2007
    Posts: 3,921

    Fenders
    Member

    Or don't use wires... use those contact things on the door and jamb that make contact when the door is closed.

    lothiandon1940 likes this.
  6. Salty
    Joined: Jul 24, 2006
    Posts: 2,258

    Salty
    Member
    from Florida

    what coupe said....cheap and obtuse...IE all you see is a few brass contacts when the door is open.....no wires....

    lothiandon1940 likes this.
  7. henry's57bbwagon
    Joined: Sep 12, 2008
    Posts: 680

    henry's57bbwagon
    Member

    Here is what I did on my 57 wagon. I milled out the bottom of both front doors and welded a cover onto the hinge to support the wires.
    [​IMG]
    [​IMG]
    [​IMG]

  8. Engine man
    Joined: Jan 30, 2011
    Posts: 3,480

    Engine man
    Member
    from Wisconsin


    Sweet:cool:

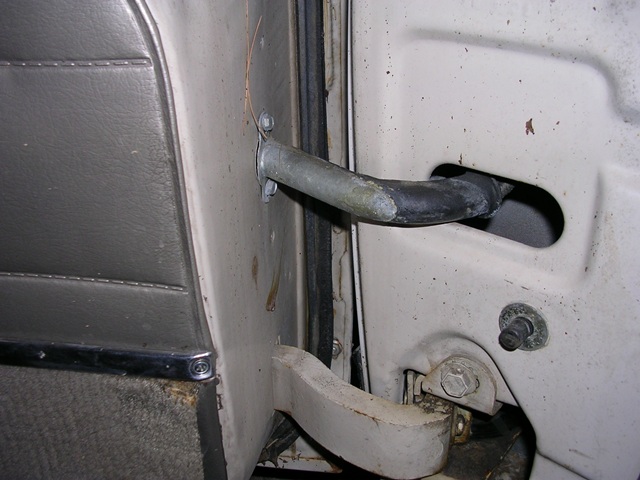

  9. Early 60's Fords and Mercury's with courtesy lights in the door and power windows use a curved steel C channel bolted to the door that the wires run through. There are small tabs bent up to hold the wires. Not sure if it will work on your jamb style but figured I'd shoot a pic of it.


    Attached Files:

    Last edited: Jul 7, 2011
  10. terrarodder
    Joined: Sep 9, 2005
    Posts: 1,101

    terrarodder
    Member
    from EASTERN PA

    I put mine in plastic tubeing and fasten it to the hinge.

  11. Dane
    Joined: May 6, 2010
    Posts: 1,351

    Dane
    Member
    from Soquel, CA

    Slick!

  12. 1950ChevySuburban
    Joined: Dec 20, 2006
    Posts: 6,185

    1950ChevySuburban
    Member Emeritus
    from Tucson AZ

    Use the stainless springs like mentioned before. I keep the jamb end anchored and let the door end glide. Keeps wires from being pinched as well as broken from flexing. Finish it off with appropriate grommets and you're done. Add extra wires, in case you add extra components later. Don't forget a ground wire.

  13. bonez
    Joined: Jul 16, 2007
    Posts: 3,487

    bonez
    Member
    from Slow lane

    [​IMG]

    This is super nice and mighty clever, but i'd use the brass contact method.

  14. 51custom
    Joined: Feb 15, 2011
    Posts: 102

    51custom
    Member

    X2 ..with coupe..I used them on my '51 I used the 4 contact unit, works very well and adjustable
    Jim

  15. fatabone
    Joined: Nov 3, 2003
    Posts: 1,435

    fatabone
    Member

  16. Kripfink
    Joined: Sep 30, 2008
    Posts: 2,040

    Kripfink
    Member Emeritus

    X however many on the brass doorjamb contacts!I've used them no problem for a couple of years now (he said, automatically jinxing himself).

    Paul

  17. bonez
    Joined: Jul 16, 2007
    Posts: 3,487

    bonez
    Member
    from Slow lane

    ^^^ ahaha, how true! ^^^

  18. You can use these,they are not traditional but power windows and locks ain't ether,,,:rolleyes: HRP

    [​IMG]

    Bandit Billy and lothiandon1940 like this.
  19. Big T
    Joined: Aug 29, 2006
    Posts: 638

    Big T
    Member
    from Florida

    Did you say, OBTUSE?

    [​IMG]

  20. Kripfink
    Joined: Sep 30, 2008
    Posts: 2,040

    Kripfink
    Member Emeritus

    Yeah,them's the fellas! Maybe not traditional, but not ugly and all Disco looking either.
    Paul

  21. henry's57bbwagon
    Joined: Sep 12, 2008
    Posts: 680

    henry's57bbwagon
    Member

    I have the contacts on my tailgate for the 3rd brake light. I went to the hinge wiring so the electric windows and door lights would work when open.

  22. 40StudeDude
    Joined: Sep 19, 2002
    Posts: 9,562

    40StudeDude
    Member


    This is prolly the slickest solution I've ever seen...and I think it's hilarious that there are HAMBers here that find the solution by buying some brass contacts...most of the time, you'd get hammered by telling someone to BUY a "street rod" part and to me, those contacts are a "street rod" part...the point is: where's all the "build it don't buy it" HAMBers?

    R-

    cretin likes this.
  23. Johnny Gee
    Joined: Dec 3, 2009
    Posts: 14,023

    Johnny Gee
    Member
    from Downey, Ca

    Till the first time you want to roll up the windows while outside the car. Or open the doors and the music cuts out.

  24. banginona40
    Joined: Mar 5, 2007
    Posts: 778

    banginona40
    Member



    Same here

  25. Kripfink
    Joined: Sep 30, 2008
    Posts: 2,040

    Kripfink
    Member Emeritus

    You make a valid point Roger, but the way I look at it is this;are they are Street Rod part?-Probably yes.
    Do people notice them when I'm driving along like other Street Rod parts for example Billet wheels?-No
    do people notice them when I open the door?-No, they're probably too busy wondering how my doors apparently opened by themselves with no handles and me 20 feet away.
    And if that's too Street Rod, I can live with that:D
    Paul

  26. 40StudeDude
    Joined: Sep 19, 2002
    Posts: 9,562

    40StudeDude
    Member

    Agreed Paul. On my Cadillac, I have a remote to roll the stock electic powered driver's window down from the outside...people are astounded that I can roll it up or down from 50 feet away in order to get in the car...and then again, Paul, I have a tilt wheel in my car as well...and to hear it, that's too "street rod" too.

    R-

    Last edited: Jul 7, 2011
  27. Kripfink
    Joined: Sep 30, 2008
    Posts: 2,040

    Kripfink
    Member Emeritus

    Yeah man,X2 on the tilt column;)

  28. _ogre
    Joined: Dec 21, 2009
    Posts: 127

    _ogre
    Member
    from Motown

    i made these for my 58 truk
    i ran 2-14ga speaker wires, 2-16ga window wires, 2-14ga door solenoid wires
    and a 3/16'' bicycle brake cable in sheath for a safety unlatch.

    [​IMG]

    [​IMG]

    and here is the geometry of the hinge
    [​IMG]

    everything came from home depot.
    i had purchased a set of springs and found out that only half (3) my wires would fit in the 7/16 diameter hole.
    and they really didn't fit the hinge geometry.

    pushing 400 watts thru 20ga speaker wire didn't appeal to me either...

  29. Crystal Blue
    Joined: Nov 18, 2008
    Posts: 609

    Crystal Blue
    Member

    I like that red hinge. Creative and home made.

    Two thumbs up !

  30. henry's57bbwagon
    Joined: Sep 12, 2008
    Posts: 680

    henry's57bbwagon
    Member

    Ogre, that is slick, have to add that to my list as a possible do for the rear doors.
