Technical Identify 1956 F250 steering box

Discussion in 'The Hokey Ass Message Board' started by Hotrodjohn71, May 22, 2023.

  1. Hotrodjohn71
    Joined: Feb 25, 2018
    Posts: 130

    Hotrodjohn71

    Our '56 F250 steering box has a bit of slop and I'm thinking about rebuilding it.
    I've been looking at our box and the kits available.
    They make a kit with a long steering shaft (with worm gear attached). The rod is long, going from the box to the steering wheel (through the column) and steering wheel attaches to the other end.
    Our box has a short shaft with a rag joint attached right at the steering box to provide for a later model steering column.
    Was there a short shaft box available on the 56 F250?


    Attached Files:

  2. Sounds like it's been modified. Should be integral with the column. F250 box is the same as an F100.
    Post a pic of the box/column under the hood

    4ever18 and Hotrodjohn71 like this.
  3. Hotrodjohn71
    Joined: Feb 25, 2018
    Posts: 130

    Hotrodjohn71

    Here are some photos. The box is a 3CC03.


    Attached Files:

  4. That is the factory F100/250 steering box, someone cut down the shaft to fit a different column.
    All of the standard repair/rebuild parts will work except the steering shaft will need to be cut down again or buy the worm gear separate and use your short shaft.

    Hotrodjohn71 likes this.
  5. Johnny Gee
    Joined: Dec 3, 2009
    Posts: 14,022

    Johnny Gee
    Member
    from Downey, Ca

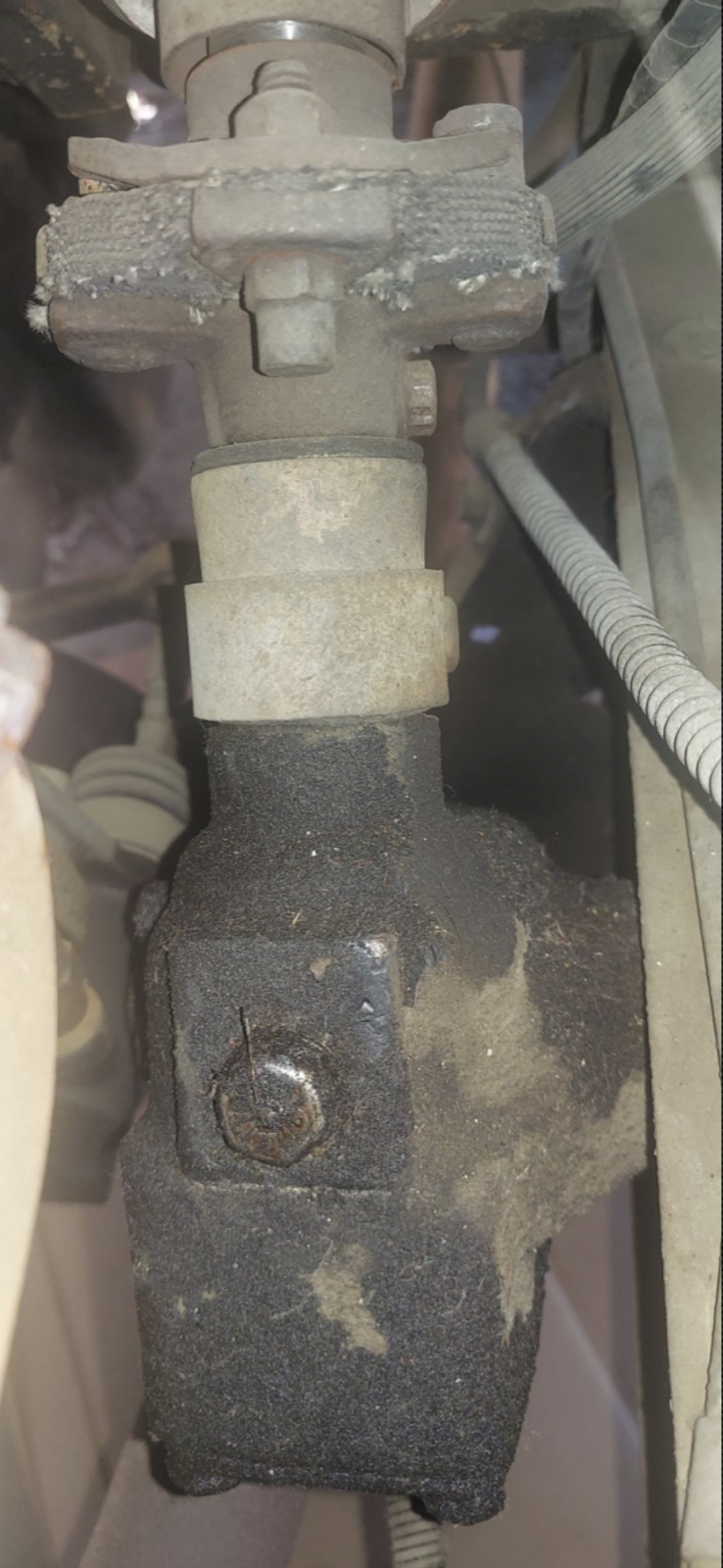

    When you pull it apart show us how the shaft was addressed to work with rag joint. CD109445-96E5-478A-B4AD-C473DBE340CD.png

    Hotrodjohn71 likes this.
  6. Hotrodjohn71
    Joined: Feb 25, 2018
    Posts: 130

    Hotrodjohn71

    Will do.
    Quick question, is the worm gear pressed onto the main shaft, and is it splined?
    Thank you

  7. Johnny Gee
    Joined: Dec 3, 2009
    Posts: 14,022

    Johnny Gee
    Member
    from Downey, Ca

    I only know from reading is that it’s a press fit. I’m just curious because I do know that the shaft is hollow.

    Hotrodjohn71 likes this.
  8. Yes they are splined and pressed on with a very tight interference fit.

    Hotrodjohn71 likes this.
  9. Hotrodjohn71
    Joined: Feb 25, 2018
    Posts: 130

    Hotrodjohn71

    Heres how the rag joint was adapted to the shaft.


    Attached Files:

  10. Johnny Gee
    Joined: Dec 3, 2009
    Posts: 14,022

    Johnny Gee
    Member
    from Downey, Ca

  11. alchemy
    Joined: Sep 27, 2002
    Posts: 22,266

    alchemy
    Member

    A few hand scraped splines, and a shallow clamp bolt groove. You are lucky the thing didn’t swerve all over the road.

    Hotrodjohn71 likes this.
  12. rusty valley
    Joined: Oct 25, 2014
    Posts: 4,195

    rusty valley
    Member

    I doubt they wore it out that bad, it must have been a junk box that they did all that work to and then it never did drive good.

    Hotrodjohn71 likes this.
