Art & Inspiration In dash dwell gauge

Discussion in 'The Hokey Ass Message Board' started by Moriarity, Mar 16, 2022.

  1. 427 sleeper
    Joined: Mar 8, 2017
    Posts: 3,244

    427 sleeper
    ALLIANCE MEMBER

    Niehoff maybe?

    OG lil E and Moriarity like this.
  2. Hook up the toggle. It’ll probably make the gauge wiggle some.

    no one would know the difference

  3. Paul
    Joined: Aug 29, 2002
    Posts: 16,763

    Paul
    Editor

    Interupt the lead between coil and point set
    creating open circuit, same as slipping a piece of paper between the points.

    sunbeam, OG lil E and alanp561 like this.
  4. Ebbsspeed
    Joined: Nov 11, 2005
    Posts: 6,406

    Ebbsspeed
    ALLIANCE MEMBER

    In it's simplest form, a dwell meter is just a voltmeter with a capacitor in parallel and a resistor in series with it. The resistor is sized to limit the voltage based on the deflection of the meter movement, and the capacitor buffers the pulses of voltage from the coil when the points are open so the meter doesn't bounce with each opening of the points, and "averages" the voltage pulses into a fairly steady value. Maybe a zener diode in parallel also to provide a bit of meter protection from excessive voltage spikes.

    Ignore the stuff behind the red X in the diagram below. Those are components for the tach portion of the circuit.


    ekimneirbo, Toms Dogs, winr and 4 others like this.
  5. Ebbsspeed
    Joined: Nov 11, 2005
    Posts: 6,406

    Ebbsspeed
    ALLIANCE MEMBER

    ...which would require both sets of points to have separate conductors coming out of the body of the distributor. That's not how they are built, but I suppose you could modify a dual point distributor to be that way if desired. I am including an image of a dual point distributor so you can see how they are typically wired. Dual Point.jpg

    VANDENPLAS, OG lil E and dana barlow like this.
  6. Paul
    Joined: Aug 29, 2002
    Posts: 16,763

    Paul
    Editor

    Forgive my caveman scribbling,
    But yes you would need to move some wires around and have a specific type of switch but this in it's simplest form is what I envision


  7. 31Apickup
    Joined: Nov 8, 2005
    Posts: 3,547

    31Apickup
    Member

    Looks like it could be the same make. Don’t have anything currently running with points to try it out, although I’m sure there is other ways to test it. I grabbed it because it was unique, plus the Hollywood panel has a lot of gauges and I needed something else to fill one spot.

  8. Moriarity
    Joined: Apr 11, 2001
    Posts: 34,778

    Moriarity
    SUPER MODERATOR
    Staff Member

  9. 49ratfink
    Joined: Feb 8, 2004
    Posts: 20,057

    49ratfink
    Member
    from California

    that gauge does not exist or we would find another one in Google Images. must be photoshop. if I were at my home computer I could make it into a fart meter in about 10 seconds

  10. arkiehotrods
    Joined: Mar 9, 2006
    Posts: 6,802

    arkiehotrods
    Member

    That would be just the thing for my car. I could point to the gauge and say to my passenger, "Look what you just did!"

    alanp561, SS327 and 49ratfink like this.
  11. tommyd
    Joined: Dec 10, 2010
    Posts: 11,997

    tommyd
    Member
    from South Indy

    We need to see that.

    alanp561, swervyjoe and 49ratfink like this.
  12. A tach/dwell meter is the same instrument with different settings so seems like a small tach could be re-faced and set up for a dwell meter.

  13. Bob Lowry
    Joined: Jan 19, 2020
    Posts: 1,576

    Bob Lowry

    While looking for gauge images, came across this panel used on a boat that I thought was pretty cool
    for a hot rod. Under $100 on ebay....

    gauge3 (2).jpg

    Okie Pete, jimmy six, winr and 4 others like this.
  14. 31Apickup
    Joined: Nov 8, 2005
    Posts: 3,547

    31Apickup
    Member

    If I were to go to the trouble to photoshop it, it would have been a “Fun Meter”.

    Tman, Moriarity, Budget36 and 2 others like this.
  15. Budget36
    Joined: Nov 29, 2014
    Posts: 14,855

    Budget36
    Member

    I kinda learned it’s good to read all the replies in a thread before stating an opinion;)

    Gasser 57 likes this.
  16. Rickybop
    Joined: May 23, 2008
    Posts: 10,192

    Rickybop
    Member

    Oh good. I just knew there must be a couple more I hadn't thought of.


    Okie Pete, fauj, Bob Lowry and 11 others like this.
  17. Moriarity
    Joined: Apr 11, 2001
    Posts: 34,778

    Moriarity
    SUPER MODERATOR
    Staff Member

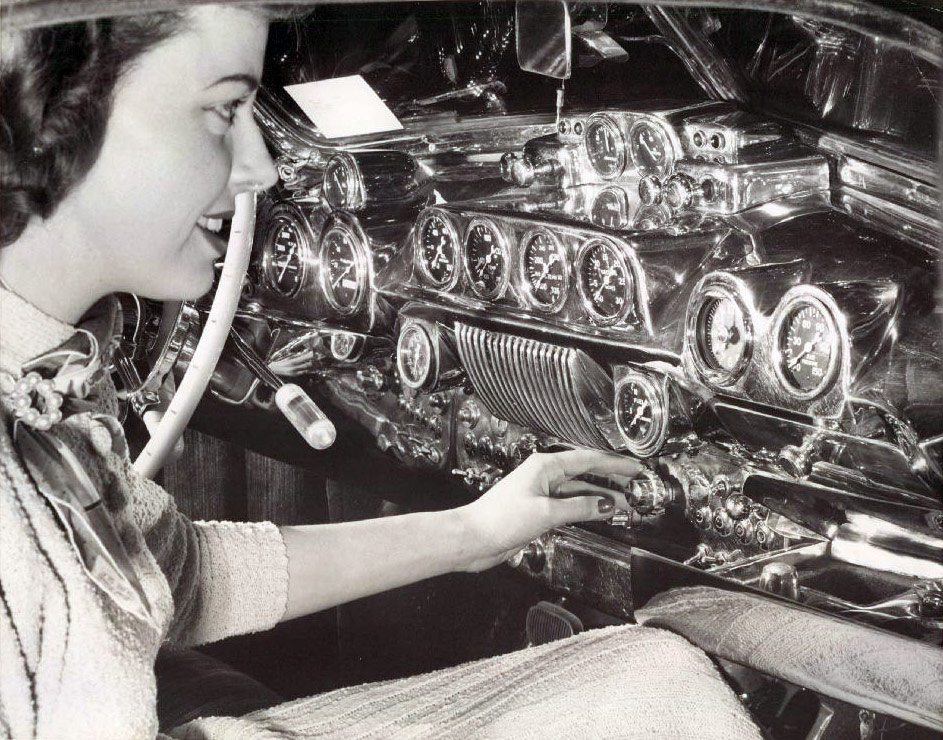

    If I am not mistaken that is the dashboard of Joe Bailon's 1942 Chev custom "miss elegance"

  18. Rickybop
    Joined: May 23, 2008
    Posts: 10,192

    Rickybop
    Member

    You know it, Mark.
    No other dashboard quite like it in the whole world. I wonder if it has a dwell meter.

    Moriarity likes this.
  19. akoutlaw
    Joined: May 13, 2010
    Posts: 1,443

    akoutlaw
    Member


  20. BJR
    Joined: Mar 11, 2005
    Posts: 10,801

    BJR
    Member

    Driving a custom just got very complicated!:eek:

  21. saltflats
    Joined: Aug 14, 2007
    Posts: 13,059

    saltflats
    Member
    from Missouri

    I separated the points lead added another condenser then a switch by the shifter, used it for high gear retard.

  22. moparboy440
    Joined: Sep 30, 2011
    Posts: 1,124

    moparboy440
    Member
    from Finland

    [​IMG]
    Here's one made by Sun.

    jaracer and 47chevycoupe like this.
  23. Bob Lowry
    Joined: Jan 19, 2020
    Posts: 1,576

    Bob Lowry

    This must have been a Driver's Ed training car for high school kids, or an early United airlines pilot training
    cockpit.....wow! Pretty impressive...

  24. I asked Moriarty if this was what he was looking for...apparently not (I missed April 1 by a few days :D).

    Dwell Meter.png

    osage orange, Okie Pete, fauj and 6 others like this.
  25. BJR
    Joined: Mar 11, 2005
    Posts: 10,801

    BJR
    Member

    Is this last one real or photoshop

    Moriarity likes this.
  26. Computer trickery...pretty sure SW wouldn't measure "Degrees or Something". ;)

    Last edited: Apr 6, 2022
    fauj, SS327, egads and 2 others like this.
  27. 34 5W Paul
    Joined: Mar 27, 2020
    Posts: 369

    34 5W Paul
    Member
    from Fresno CA

    Is it just me or did Anthony Myrick get almost a dozen serious replies to a joke question?

  28. i7083
    Joined: Jan 3, 2021
    Posts: 206

    i7083
    ALLIANCE MEMBER

    Or was it a joke question?
    You'd know if you had a BULLSHIT METER!! :D:cool:

    34 5W Paul and 427 sleeper like this.
  29. I need a gauge like this to show me if my wipers are working. :confused:
    Maybe two. :eek:

    anothercarguy likes this.
