Technical *** June 2015 Banger Meet - Cruising Time ***

Here is the banger link list .

For the HAMB banger newbies, here are some links to a lot of banger info:

Flat Ernie maintains the monthly link list. Every month is listed:

http://www.jalopyjournal.com/forum/s...d.php?t=161498

Banger basics. another info link list:

http://www.fordgarage.com/

http://www.plucks329s.org/index.htm

http://www.jalopyjournal.com/forum/s...d.php?t=251717

http://www.jalopyjournal.com/forum/s...ad.php?t=42480

Post #105 of link below shows flywheel lightening dimensions
http://www.jalopyjournal.com/forum/showthread.php?t=470853&page=6

Model B rod bearing insert numbers
http://www.jalopyjournal.com/forum/showthread.php?p=6992484#post6992484


Engine tuning with a Vacuum gauge
http://www.centuryperformance.com/tuning-with-a-vacuum-gauge-spg-148.html

Adjusting dual Strombergs:
http://www.jalopyjournal.com/forum/showthread.php?p=6638461#post6638461

Helpful Model A tools and tips:

http://www.maurer-markus.ch/ford_a/tipps.index.en.html

Gary in MN's late model Malory distributor conversion for A/B engine:

http://www.jalopyjournal.com/forum/showpost.php?p=9147025&postcount=109

Elrod's stuck head tech:

http://www.jalopyjournal.com/forum/showthread.php?t=218487

Model A generator to alternator conversion:

http://ejwhitneyco.com/automotive.html

Gear ratio / speed and RPM calculator:

http://www.accuautoparts.com/calculator.php


Model A master cylinder mounting bracket ideas:

http://www.jalopyjournal.com/forum/s...73#post4953173

Go here to read the 1931 edition of Harry Ricardo's book "The High Speed Internal Combustion Engine"

http://www.scribd.com/full/40610101?access_key=key-w2bcjicdancrnxypd05


Chevy Banger Stuff

http://www.jalopyjournal.com/forum/s...d.php?t=463465

http://www.scribd.com/doc/22469332/The-High-Speed-Internal-Combustion-Engine-Ricardo-1931

Post 198 starts a great discussion of the shape of a flat head combustion chamber

http://www.jalopyjournal.com/forum/showthread.php?t=470853&page=10

T-5 5 speed in a Torque Tube:
http://www.jalopyjournal.com/forum/showthread.php?t=256226



Schools out FOREVER

even in Poland!



Thanks for the link.

Nothing new from me. Car still broken. Placed in storage until time allows repair.



Daddy o. Anymore pictures or details of that car. I have a 27 touring body that wants that look. Hopefully picking up a running a chassis to put it on soon. Your car has the look from the front



Know the feeling! Have broken 2 rears now, this was the last...

Too bad, #TheOleHenry was starting to run really well, outran Craig's coupe (mine with fenders!) at this years Trackdays:

Last race, up against en german in a '31 coupe with sbc, it leaped off the starting line, and then no more... But the never-backing-down-no-matter-the-odds-attitude gave me the golden special pick... should have bought that damn trophy instead!

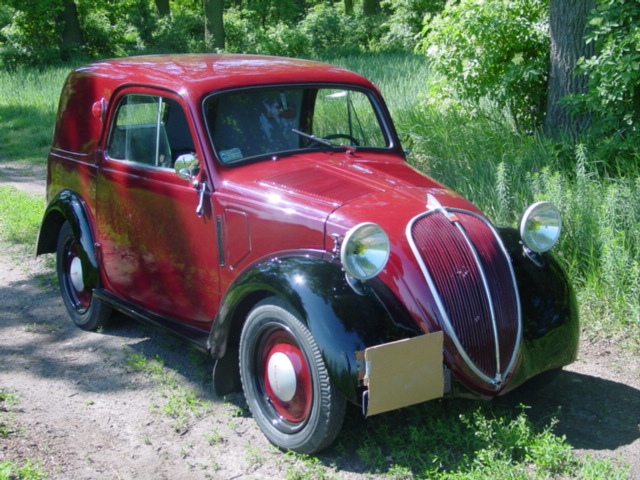

Everything we have is stored. Anyone have a good brake master for a 1947 Simca?



Plenty here:

http://www.jalopyjournal.com/forum/media/albums/my-build.1338/?page=14

.



Checking in!

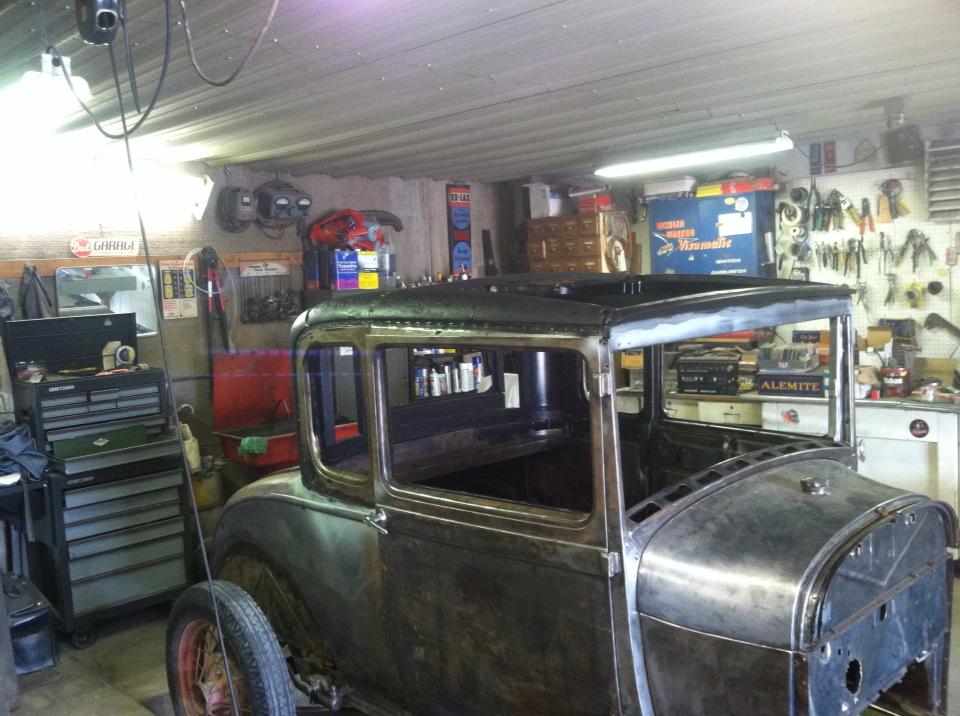

I was able to get the tins installed above the doors on my coupe project this weekend. Not too much left until I should be able to drive this thing. Still looking for a clutch to work with my T-5 and a stock A bell housing. This clutch is the last piece of this puzzle. Been talking to some fellow banger guys and hope to have one built before the Hotrod Hill Climb in August.



Please check out my build thread.



Happy summer to all!



Getting the Zipper ready for the dirt drags at Monte Vista on the 12th.



Picked this up at an auction a couple weeks ago. Hopefully get it tore down soon.

Posted using the Full Custom H.A.M.B. App!



Anybody else really stoked about this month? Hell we have El Mirage in a couple weeks followed up by LARS and then the best of all we have the Antique Nats at the end of the month. Anyways here is to kicking off the summer



jimski , I love your ca



Simca 1000 - Brake Master Cylinder
Item# FL-613239
Regular price: $134.95
Sale price: $98.96
Availability: Usually ships the same business day

jimski , is this the mc you need ......



1947 Simca 1 inch bore.

It's actually Zofia's



Sorry Jim, I think the last Simca car I SAW was in 1956! I guess you've already asked our friends in France?



New cylinders are available from France, along with many other parts for Simca 5 and others.

Société 4A - Z.A. RN89 - Sortie 7 - 33750 BEYCHAC ET CAILLAU - FRANCE
Tel : +33 (0)5.56.72.47.11 - Fax : +33 (0)5.56.72.46.61 - RCS B324 832 963



I see in another post you mentioned 1" bore, that was the size for Simca 6, I think your Simca 5 originally had a 19mm ( 3/4 ) bore master cylinder . Both are available , 19mm= 105 Euros 25.4mm bore 130 Euros.


F230 MAITRE CYLINDRE DE FREIN O 19 mm RACCORD O 10 pas 125 P 105,00 E

F319 MAITRE CYLINDRE DE FREIN O 25.4 mm RACCORD O 12.5 pas 125 bride desaxée P 130,00 E


How is THAT for Banger Tech??



OOps forgot to list their website
http://www.auto4a.com
to see thecatalog, pricing and exploded diagrams you must view the French Language website...



jimski , you have a good friend there . awesome info ........ "97" you are a good guy !



Hope the Tortoise doesn't leave another puddle at ElMo this month, week n a 1/2 to go!

J



Thank you for the info. I have a factory parts book and manual. I mentioned 1 inch because I have modified/upgraded the front brakes to Fiat Topolino C ....... these are larger than Simca and have a 1 inch wheel cylinders. I didn't want the peddle go to the floor before working

The pins and bushings were worn-out and it wouldn't pass inspection. Plus the plan is to build a C engine for this and the stock brakes are a bad joke

I've looked at this website before, They are a bit more expensive than I like

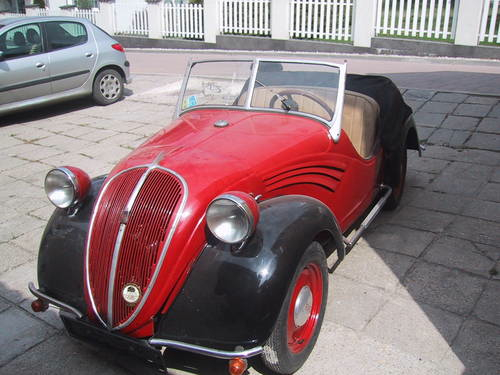

I'm going for a 1 inch Peugeot ...... this has a straight up bolt where the Topo is offset. I still need a Topo for the Fiat NSU roadster


This gets a warmed over C engine most of the stuff you guys here do but with itty-bitty speed parts



So.......What's the deal the Overhead they ask? Tech Director approved, we are ready to start the Three-Day Sugar Valley Rally in SW Nebrasks-SE Wyoming. (OHV, pre-1948 Carbs, Electronic Ignition, and Overdrive allowed.)
Great people and a load of fun!!

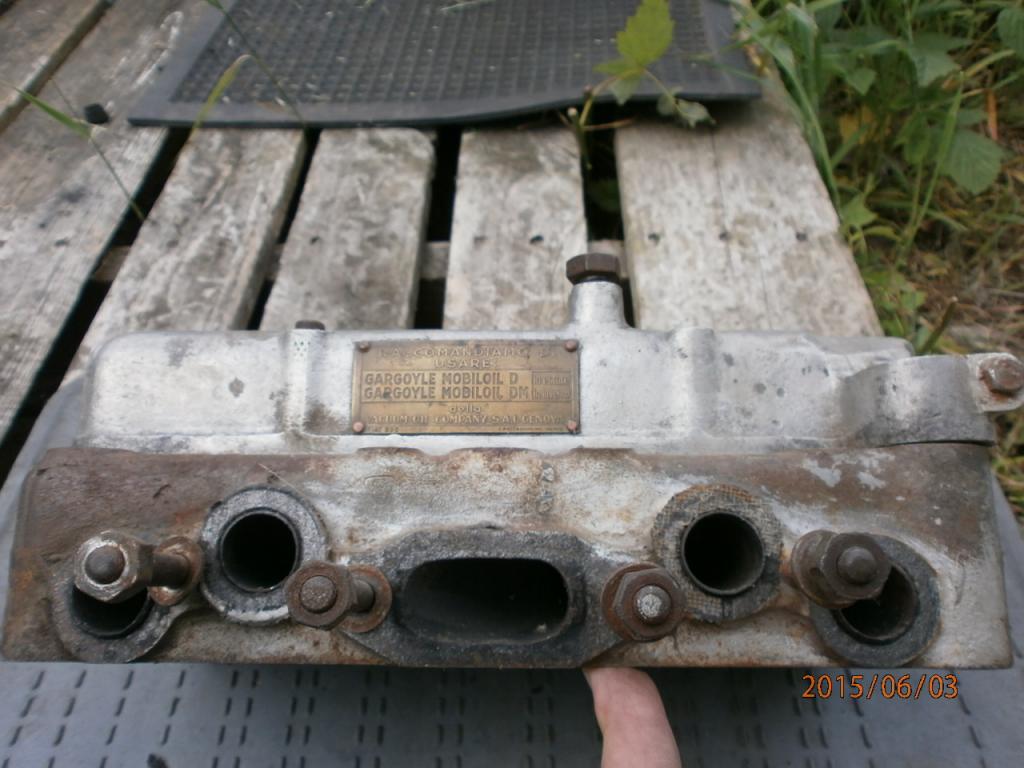

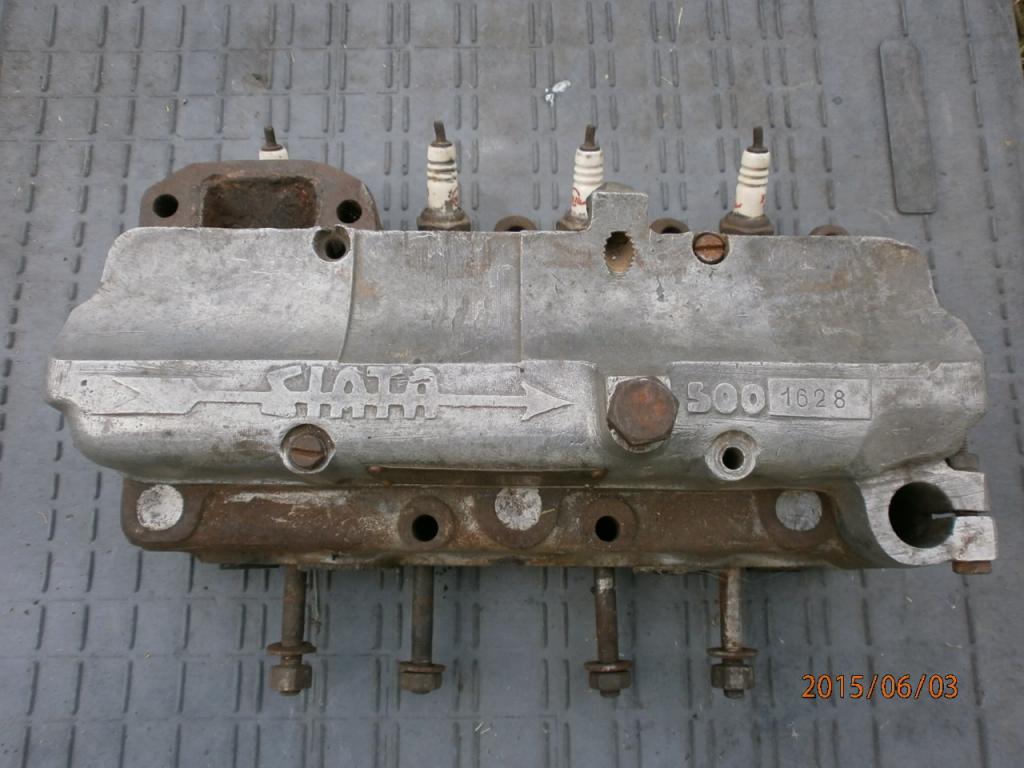

Today I found a Pre War OHV Conversion head for a flat head Topolino A

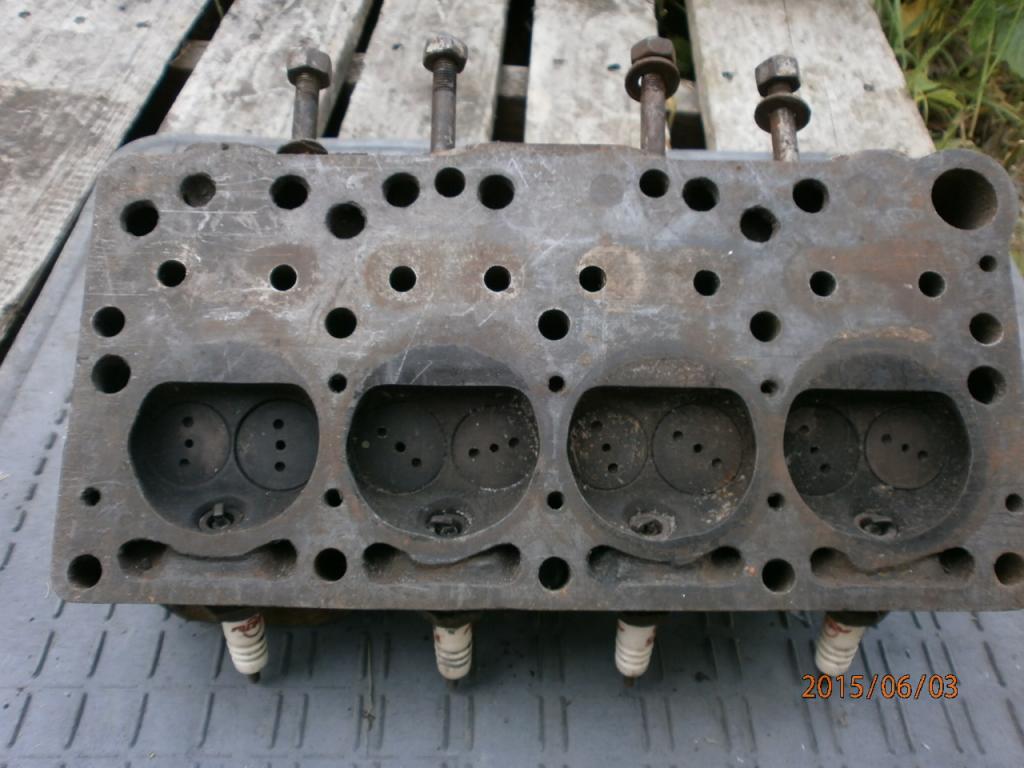

This is the size of a shoe box The combustion chambers measure a little over 2 inches across.
I'm a happy old man.



Very cool find, Jim!!!



Hey guys. Got the pan off my 30 model a motor. Cleaned all the sludge out and I'm ready to go back together. I thought I'd ask if I should take this screen off and clean it first.



yes !!!!!!!!!!!! also if you haven't , take the dipper tray out & clean under it . usually they come out by turning the pan upside down & slam it against a hard flat surface ..........



so what is my easy to do best set up for a transmission to a Diamond B block? everything from flywheel and bell housing back and where to I get the stuff ?



I'd pull the pump and work on it on the bench.
I am guessing that you just want a good performing stock Model A oil pump.
You can take the bottom plate off and pull the screen to clean
Check the gear to plate clearance. The closer the clearance and the flatter the plate, the less oil bypass and 'higher' the oil pressure.
I have a flat metal bench and lap the bottom plate back flat again using 360 grit wet/dry sand paper that I oil up like a 'wet stone' to keep the abrasive from filling up with metal. You can flip the plate over and use the back side if it hasn't been done before. The lapping process takes some time but pays dividends.
I usually forget the paper gasket and use Loctite 5699 grey high performance gasket maker.
If you pull the sheet metal outer housing make sure that you get it sealed back up. If it leaks air past where it fastens to the pump body the pump won't pump. If you study it you can see the oil enters through the bottom of the housing and is pulled into the screen to the pump inlet. The pump won't have the suction to lift the oil to the pump inlet if the housing isn't sealed. Again, I use the 5699.

Good luck

Larry



Is it going in an A?
If you have all the A stuff all you have to do is trim the B pan, all the stuff off the back.



Great thanks guys. Yea I pulled the tray out. Cleaned it up and the bottom of the pan. I'll pull the pump apart tomorrow and clean it up as well.
