History Let's See Some Blown/ Supercharged Flatheads

Going off of the most beautiful flathead manifold thread i saw a couple supercharged flatheads. So i did a quick search and didn't find much so how about a supercharged flathead thread. Frenzel, McCulloch, Judson, S.C.o.T,GMC show us what you've got.



I'll be first, not finished yet, but close

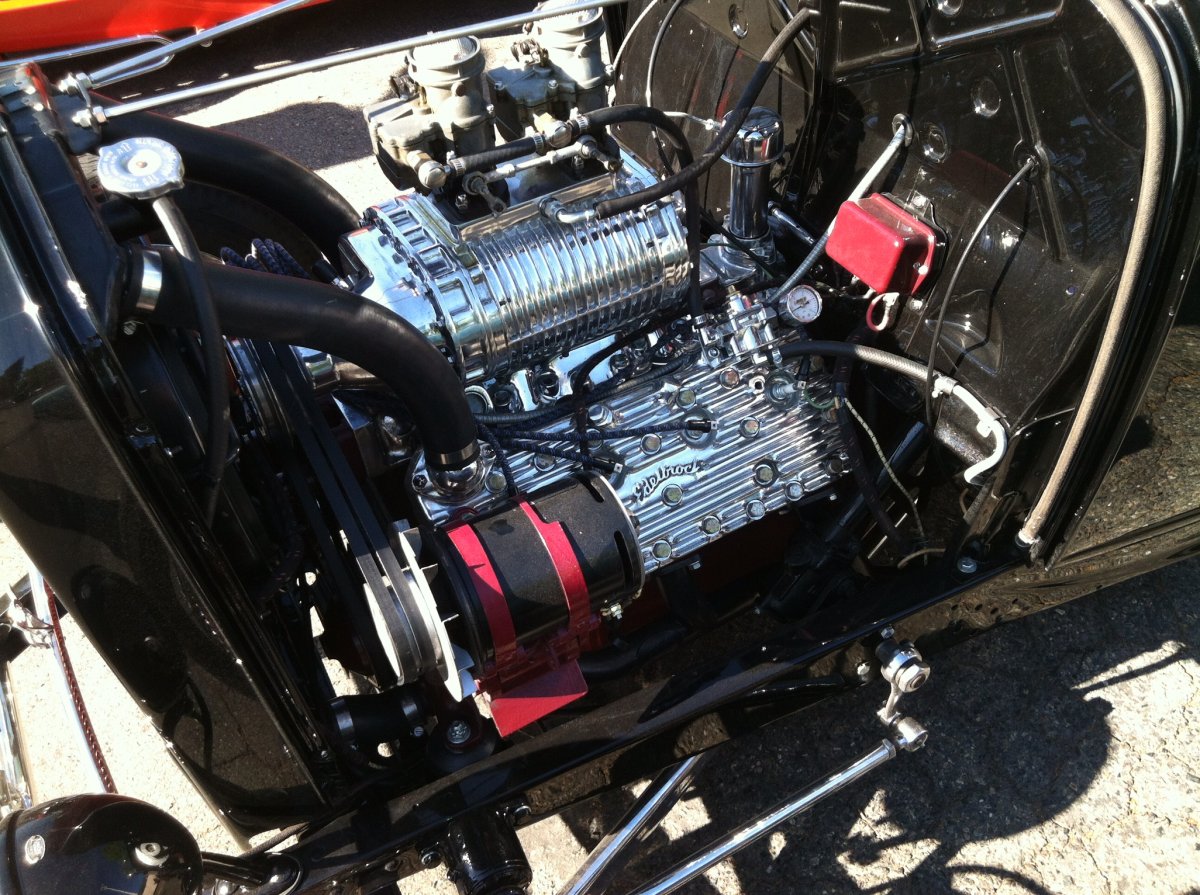

My 276 with Joe Abbin blower set up



OP zorro4153
Nice set up

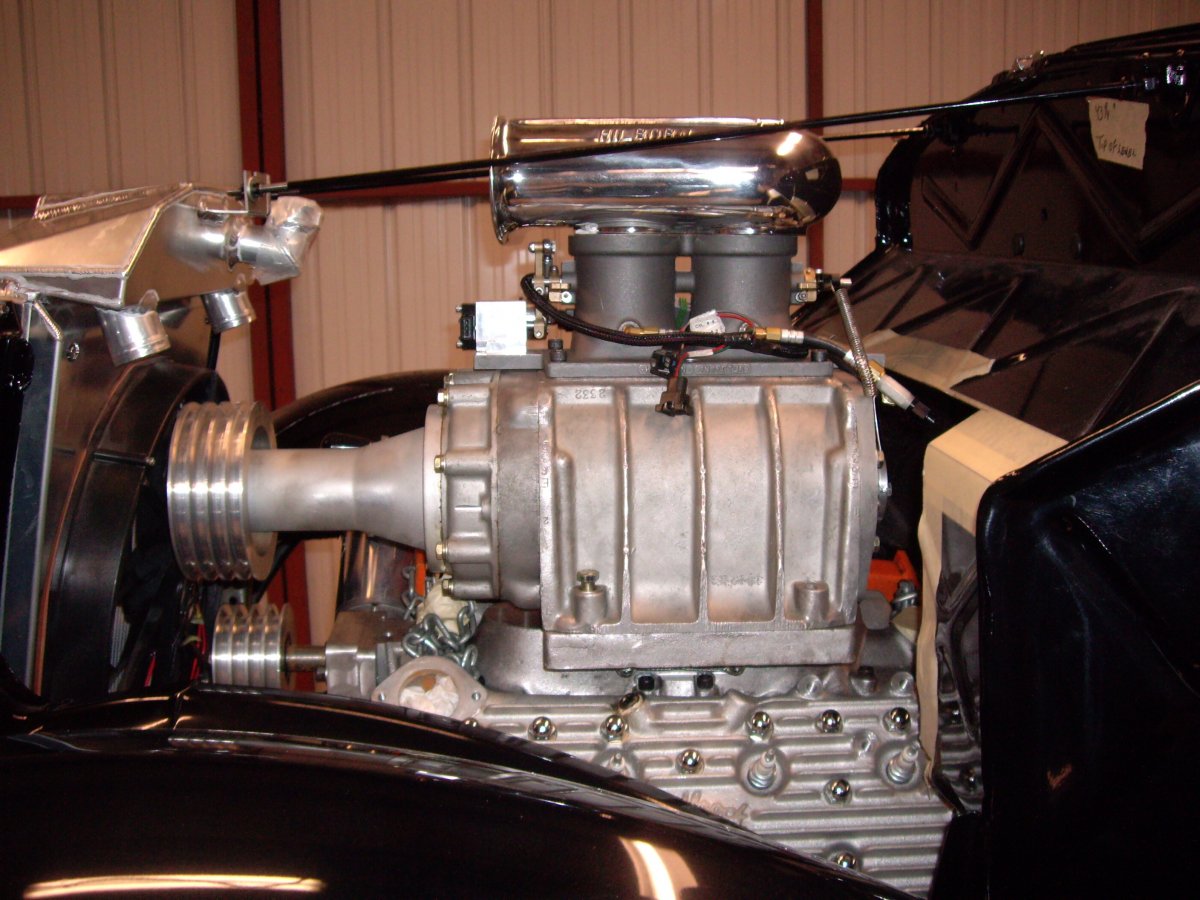

My blower set up on the coupe



Another I did for my friend Franck



Is this a 153 series? Who made the frontal snout? Also the upper intake for the dual carbs?
Looks like it was made for a flathead.



here's a couple of a gas roadster at el mirage.



Nice roadster.....



Here's a game I get to play. My under construction Speed 33 roadster

Huffin and a puffin 8BA, merc crank, ross racing pistons, Navarro heads and intake, 471, 97's, built to the letter of the good book of Abbin, down to the chapter and verse. Break in was last month, sounds mean, coming to a drag strip near you.



Hi Mike

Yes my supercharger is a 453. Front snout is modified from an eaton blower. All machining including blower adaptor to manifold, manifold machining, carby inlet adaptor, pullies, rear blower plate and front snout all machined by my good friend Phil Pavicich of Magic Metals in Perth Western Australia.

Its going in my 1932 Pickup. Pickup is not on the road yet but the motor is running, fully rebuilt and sounds strong.



Billy. That 33 is just outstanding!



The machinist in me wants to see pictures!



Thanks for the kind words mad mikey, with a lot of work and a little luck it will be done enough to drive next summer. The blown flathead sounds ridiculous!



Next to Frenzell, a Scott blown Ardun



Jiggler heads! Twin plug


Lincoln V12


Sadly NOT mine



Here's a rare Frenzel,similar to a Potvin and a McCulloch, Scott & Frenzell

Potvin powered



I would think that Arduns are no longer a Flathead but an Overhead !! JW



The green, blown V12 won't be getting get much boost with the limited belt wrap on that top pulley.



Judson supercharged
http://www.ebay.com/itm/Rare-Judson...ash=item1ebc181334:g:RlgAAOSw8w1X8WFO&vxp=mtr



The following engines are all down in New Zealand.



OK, I give up. What kind of engine is in the first picture?



Looks like possibly a flathead Alexander ohv setup


Sent from my iPhone using The H.A.M.B. mobile app
