Let's see your custom or odd air cleaners

Here's the one I'm gonna run on my truck..need a filter



Made mine out of an old hubcap and the base is from a ford diesel pick up. I cut the snorkel off and put to windows in the back. I was trying to get the oil bath look.



Very cool pics guys it's always fun to see what different people come up with



Saw this one at a show a while ago....



Ok mine is a little dirty and its not a cake cover.

This is actually the air cleaner cover from a Denver's Screw compressor. For some reason they decided to replace the stainless one with a painted cover.

I have seen fellas do them with pots and bowls from Wally World before and they look about the same. Damn the luck.



Original bat wings are a little pricey at around the $3000.00 range, so I thought I would build my own version.



http://www.creativecastingco.com/

i can't believe i forgot the link.rookie mistake..



Here's mine, not as cool as some , but better than off the shelf



can you post a pic of how you did the base?

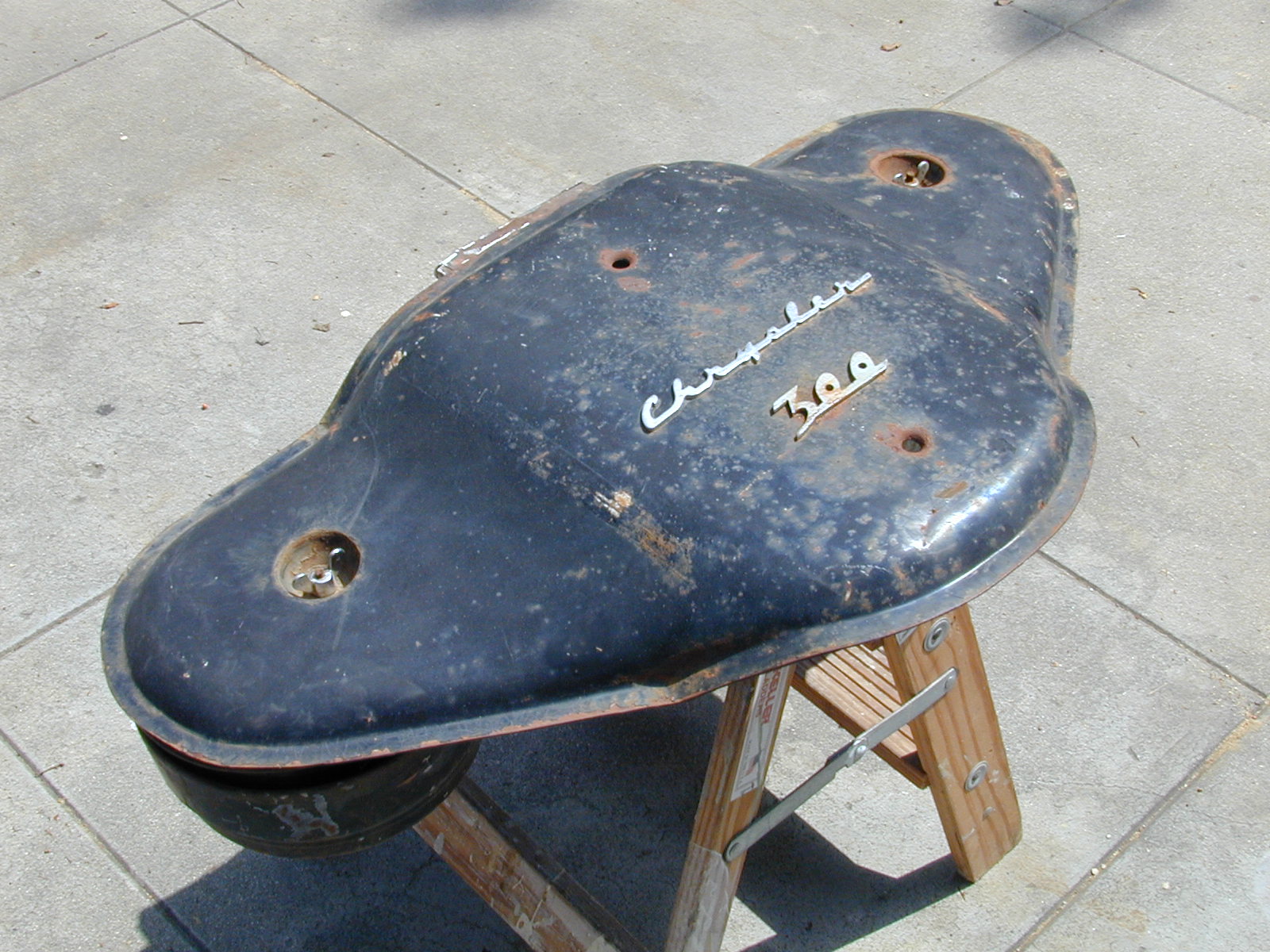

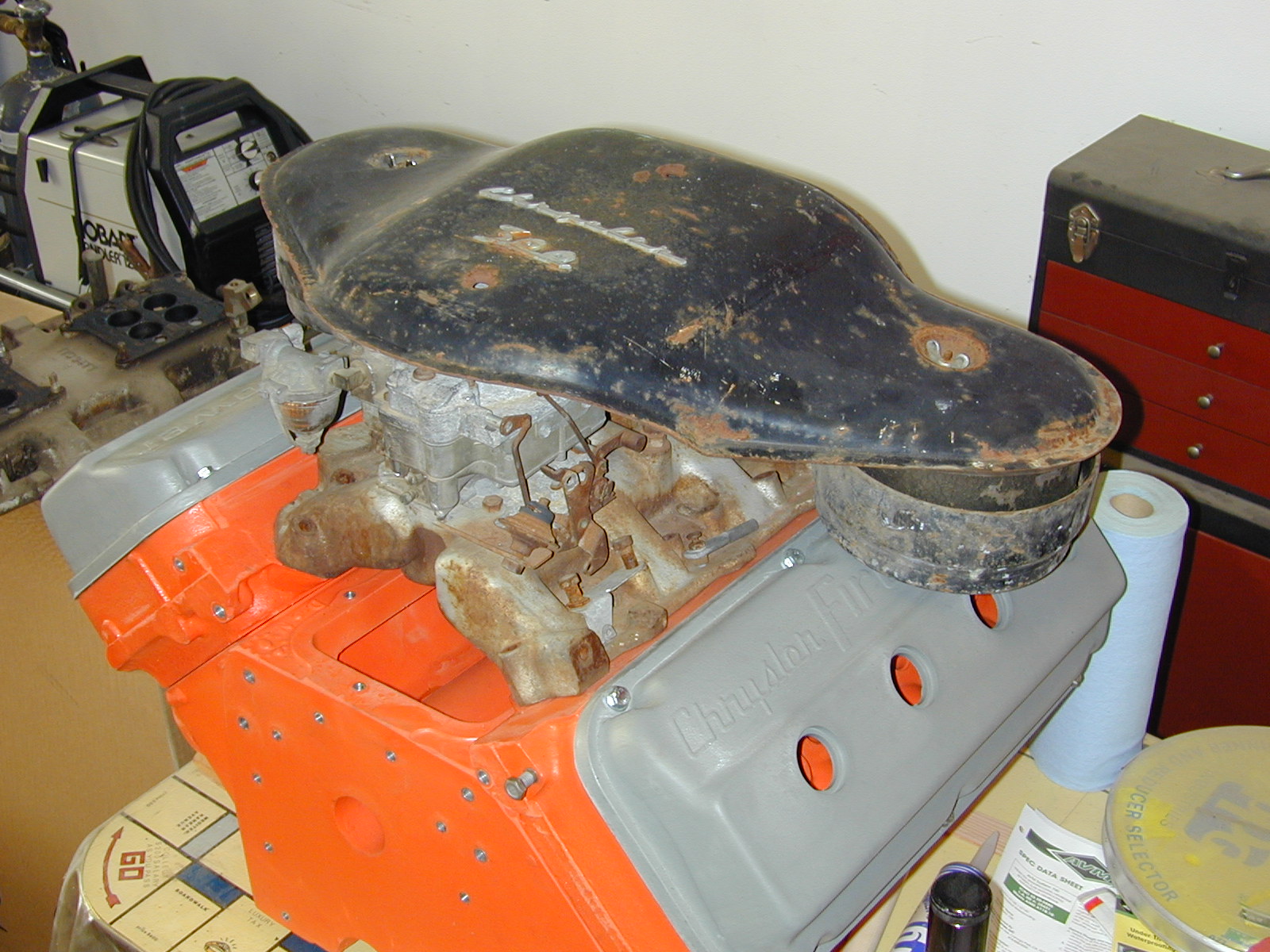

How 'bout this one.
Factory made by Chrysler to fit the hemi powered Facel Vega in '57.
I sold it to a guy in Sweden who was restoring one.



Heres one of my favorites. These are on a very early New Zealand hot rod.



Some nice stuff here.
LOVE THE MINNOW BUCKET !!
Cheers...........



I don't think I have a picture, but back in HS, we would take two Pie Tins, eat the pies, cut the bottom for the air horn and just center punch a hole for the wing nut. A regular store bought pie will use a Buick 231 V-6 stock air cleaner element. The best ones were made with an embossed Poppin Fresh Pies brand tin....Still have one or two of them in reserve if I ever build something.



i was going to use mom's old stainless cake cover. looks pretty darn cool. changed to two carbs. now it wont fit!



Air Cleaner I made for my model A.
Sorry about the pics.



Cool tread, great looking air cleaners. I dig it.



There cool!!!!



here's a couple. the one on the merc is still in primmer. cant make up my mind what color to go with.



Hey Alphabet, hunt down some kitchen storage containers.

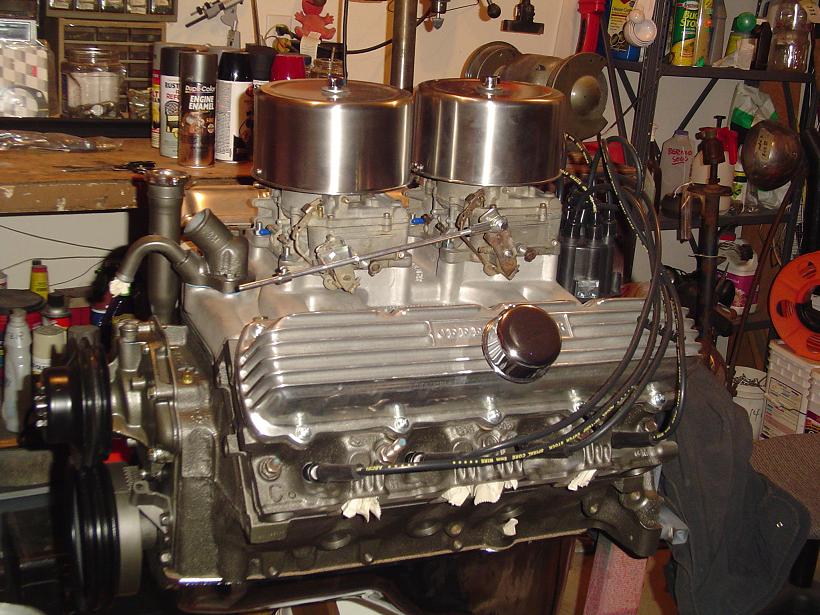

These are on a couple of AFBs, Olds 455 going on an A coupe.



I loved the big gumball oil bath that came stock on my car and hated to see it go when I dropped in the SBF, so I gutted it and made it work with my 4 barrel carb.



I went to the parts store and found a filter that fit with adequate clearance and cut down a larger base to fit. Sorry I dont have any pics of the base.



Yes they do! I used a small edelbrock aircleaner top and base. I think a 10" one if i remember correctly.... I used an air filter that fits a '79 Chevy C-10. The whole thing fits inside with about a 1/2" of clearance all the way around. All I did was use a long stud and bolted the actual filter assembly down to the carb, i put a spacer on top of that, then put my cake-cover on top of that! I like it myself. Nobody else seems to know what it is!



...I call them 'half beehives' to knowledgable car guys. The response is always "I never knew they made them".....then I say, "They didn't....."
In actual fact they are are pair of cast aluminum candle holders that I found at the local Goodwill Store. Total cost $2.99 (pair) and bought without any purpose or reason two years ago before I had the Flattie. Fit perfectly and I only had to drill a hole for the securement bolts.....

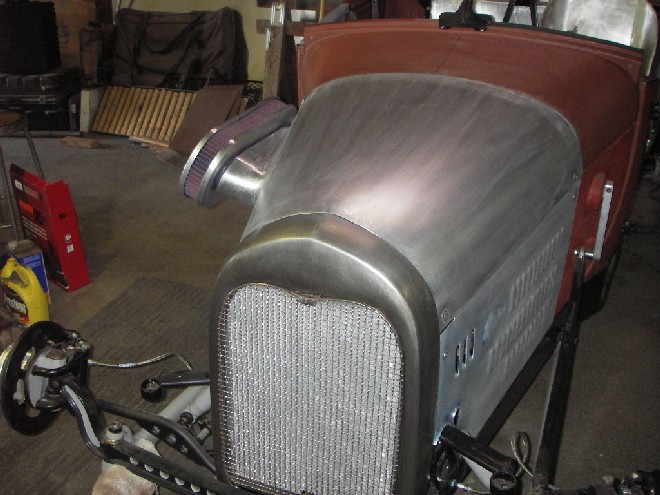

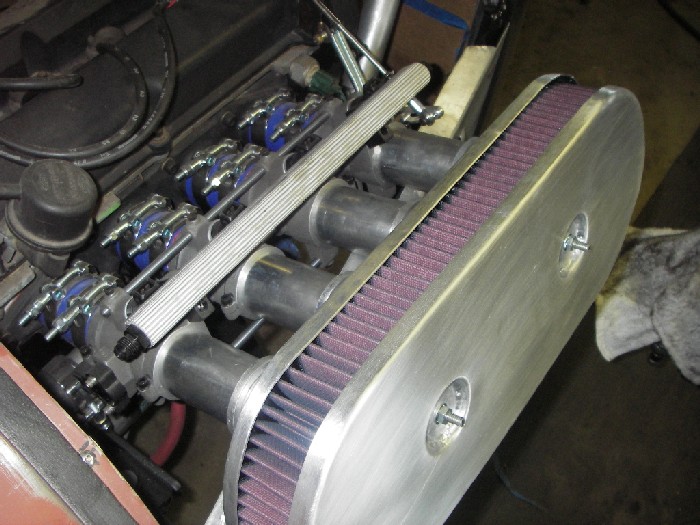

Some aluminum sheet, some MDF and a couple of hours and I made this for my Hilborn injected 2 liter Ford 4 cyl. Element is a K&N.

Rex



Great Post,

This indie-vidualley-tee IS WHAT makes this hobby Great !
Buuti-full

Ole' Smokem', If U Got'um............



yeah man - cool thread

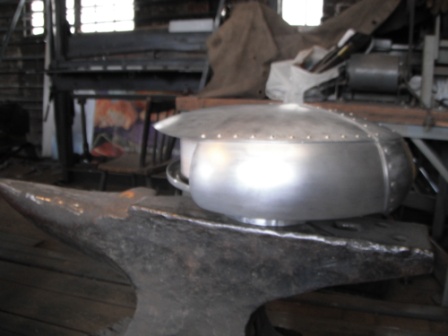

Here is one i made from sheet metal and a scrap bit of alloy but i'm not done yet.



This one turned out damn classy, looks factory. COOL!




QUOTE=greenone;7466828]Made mine out of an old hubcap and the base is from a ford diesel pick up. I cut the snorkel off and put to windows in the back. I was trying to get the oil bath look.[/QUOTE]



Station stuff has my favorite one yet . Anybody else have something cool?
