Hot Rods Let's see your headers. Custom built only

Discussion in 'The Hokey Ass Message Board' started by Frames, Jul 19, 2024.

  1. Frames
    Joined: Apr 24, 2012
    Posts: 5,122

    Frames
    Member

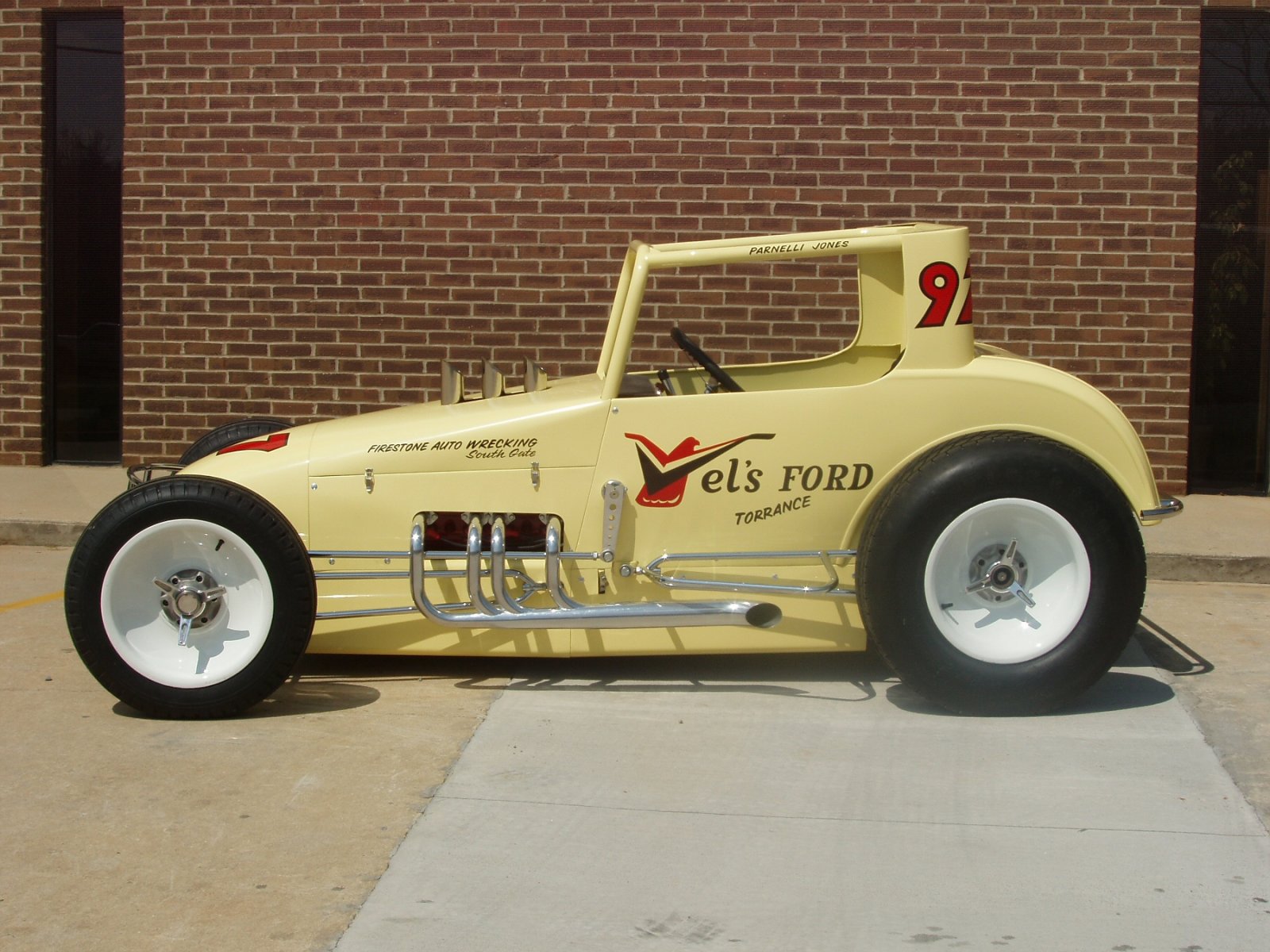

    I build headers using U bends, not kits. p1010176_0020_020_0044 - Copy.jpg p1010182_0007_007_0055.jpg

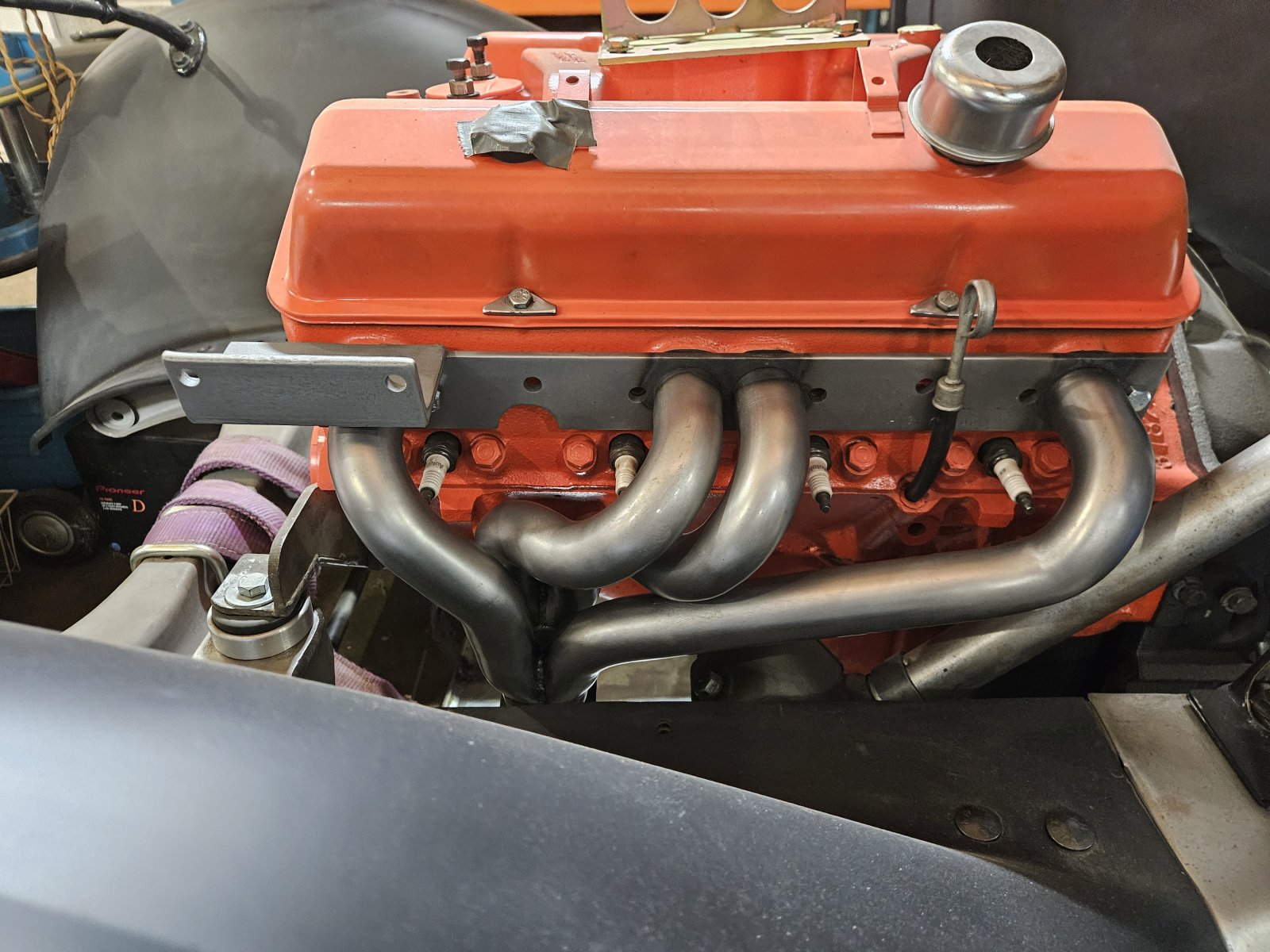

  2. ALLDONE
    Joined: May 16, 2023
    Posts: 1,599

    ALLDONE
    Member

  3. Flatrod17
    Joined: Apr 25, 2017
    Posts: 577

    Flatrod17
    Member

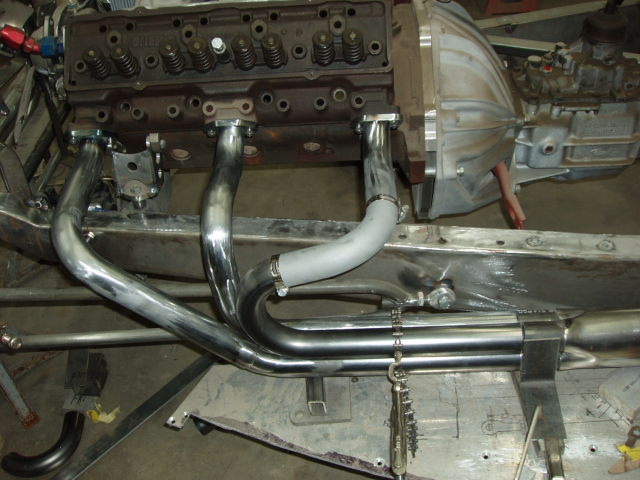

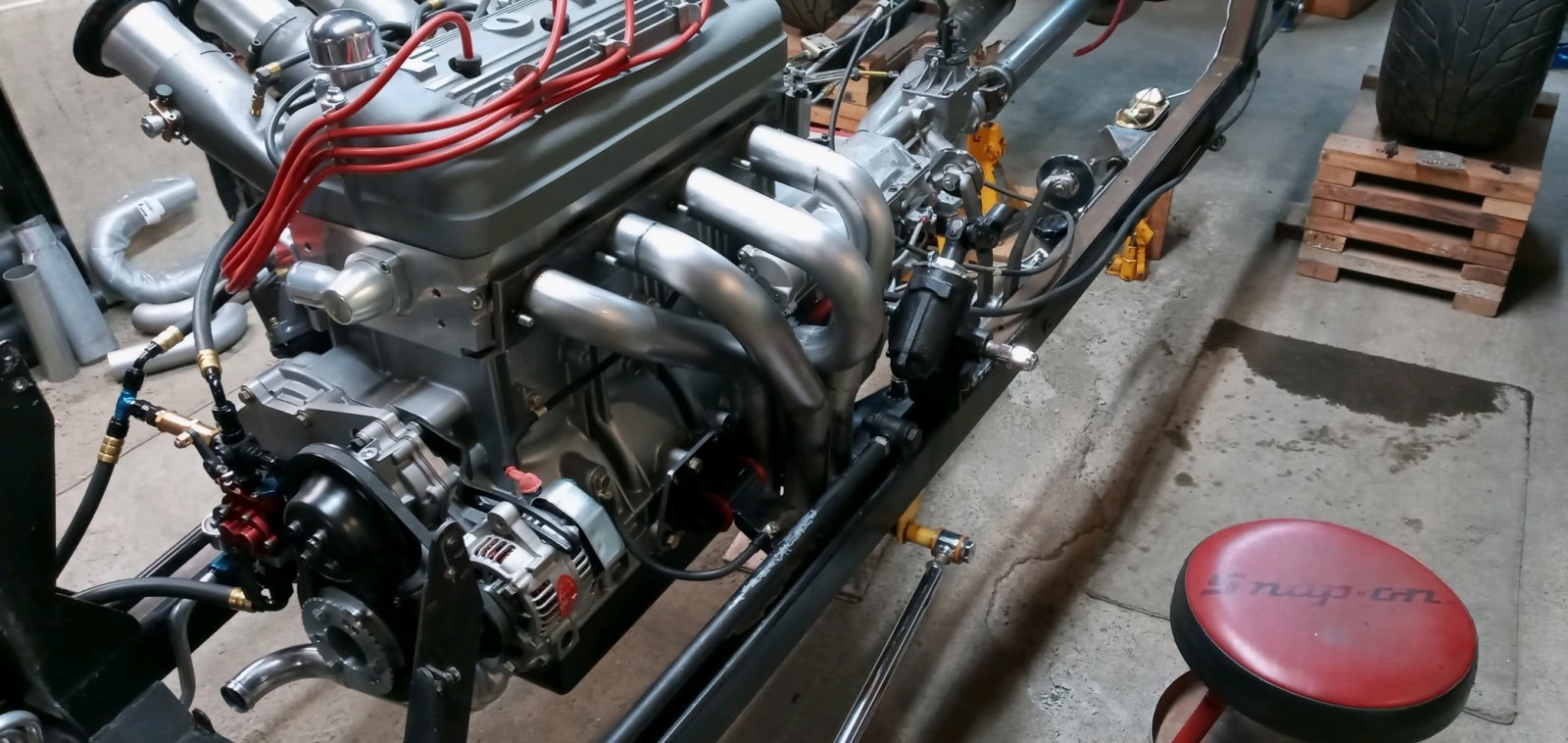

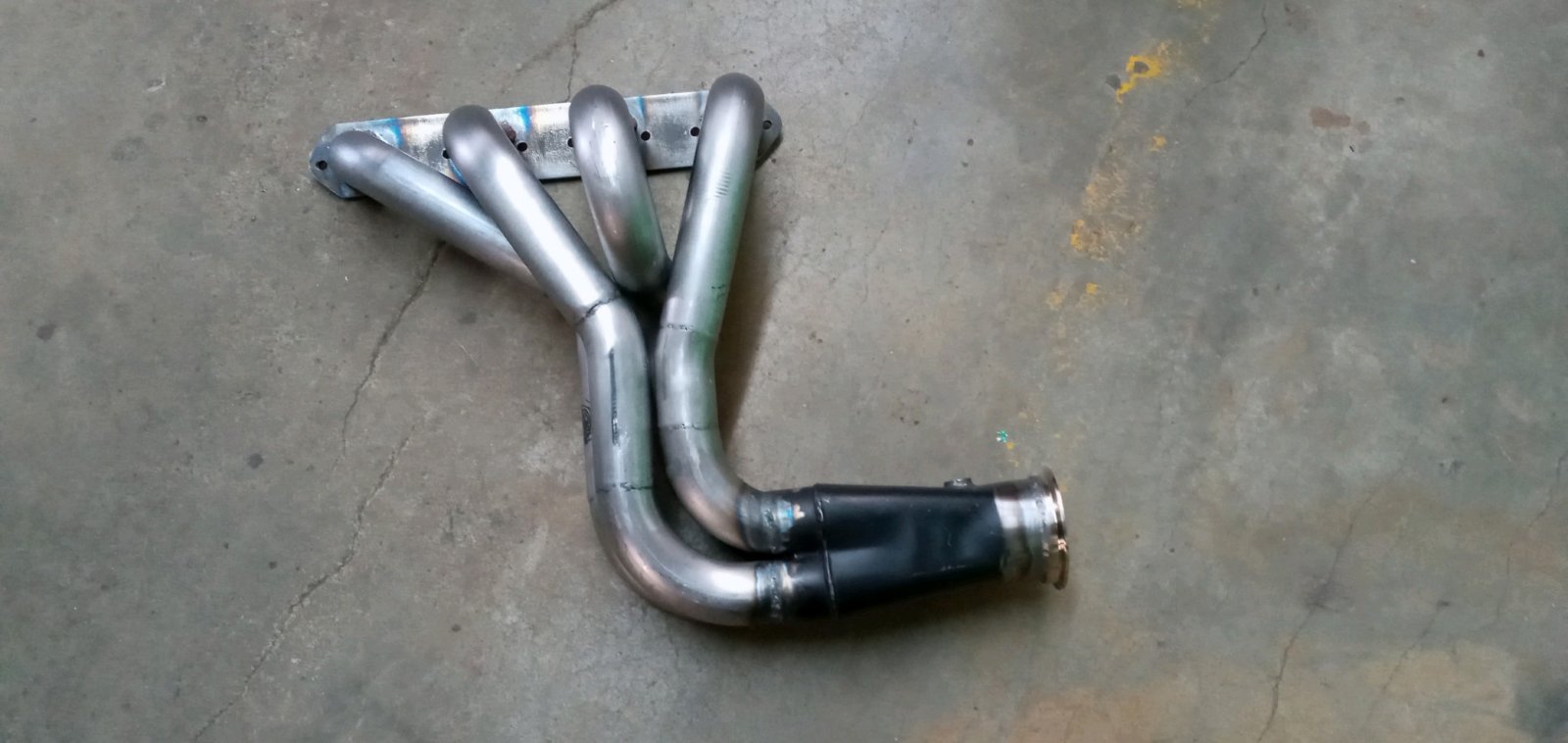

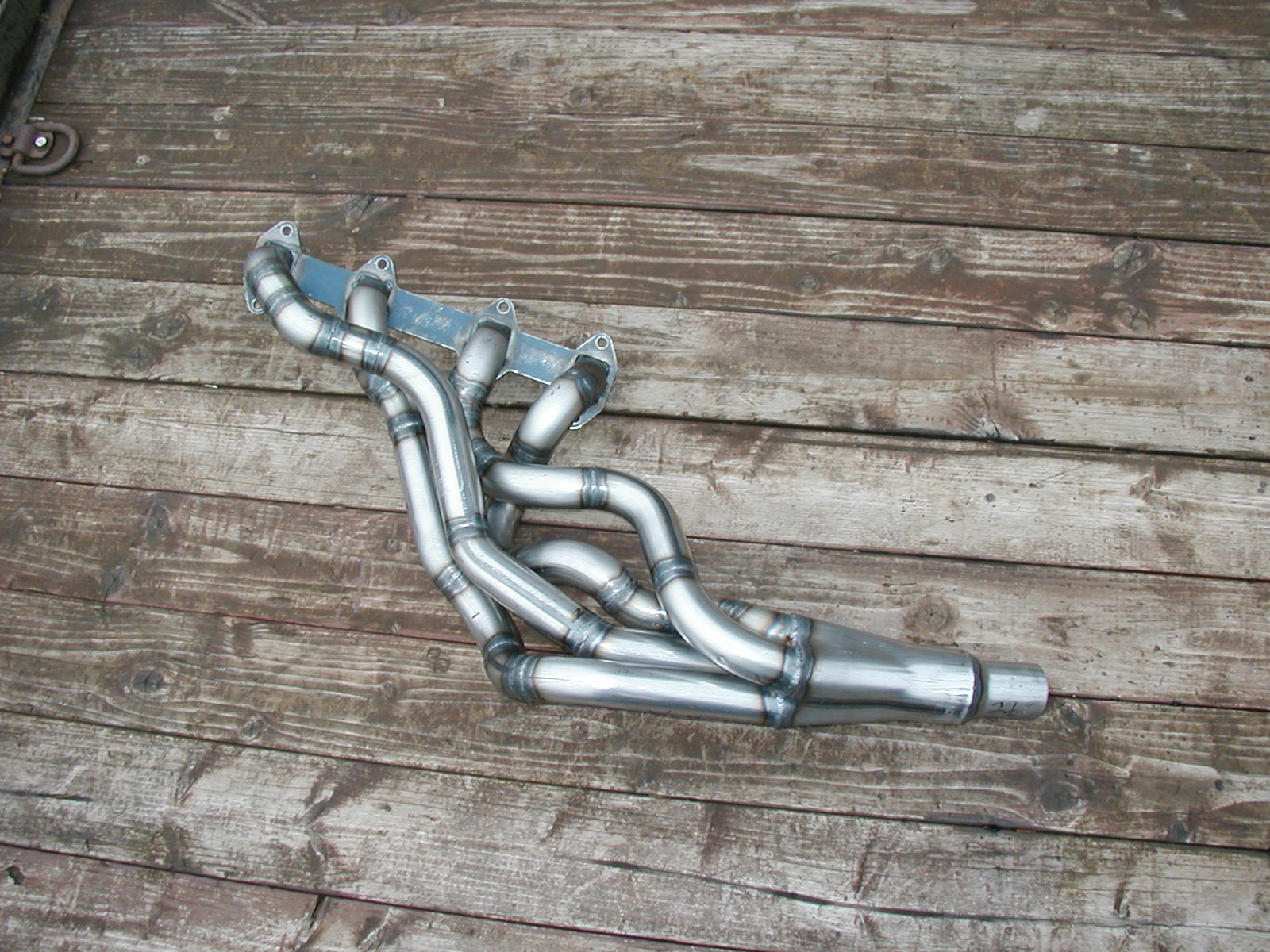

    My home made for my 4 banger. Still being made in these pictures, I then had it ceramic coated. header1.jpg


    jet996, flyin-t, 402BOSSMAN and 15 others like this.
  4. Moriarity
    Joined: Apr 11, 2001
    Posts: 33,566

    Moriarity
    SUPER MODERATOR
    Staff Member

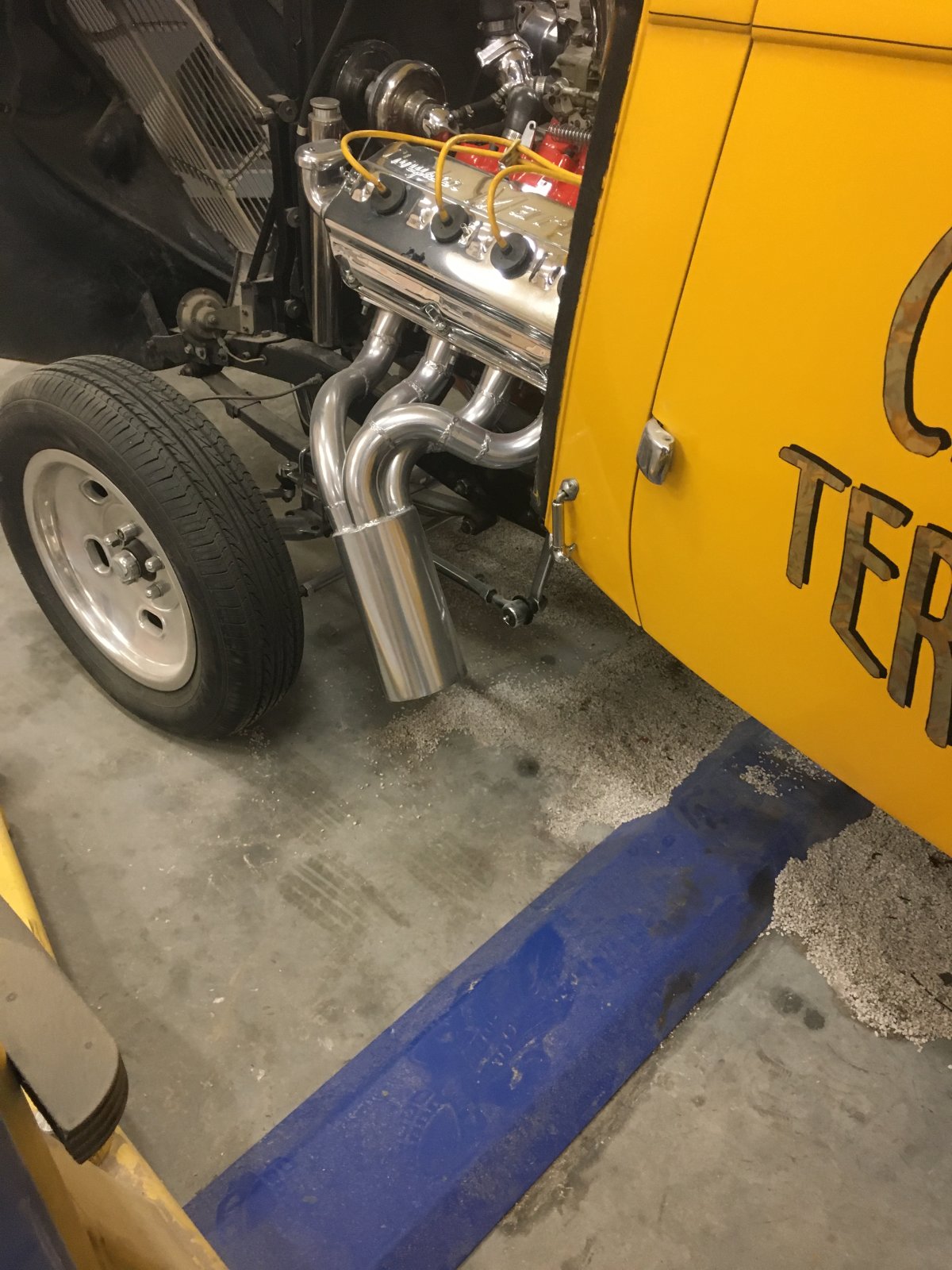

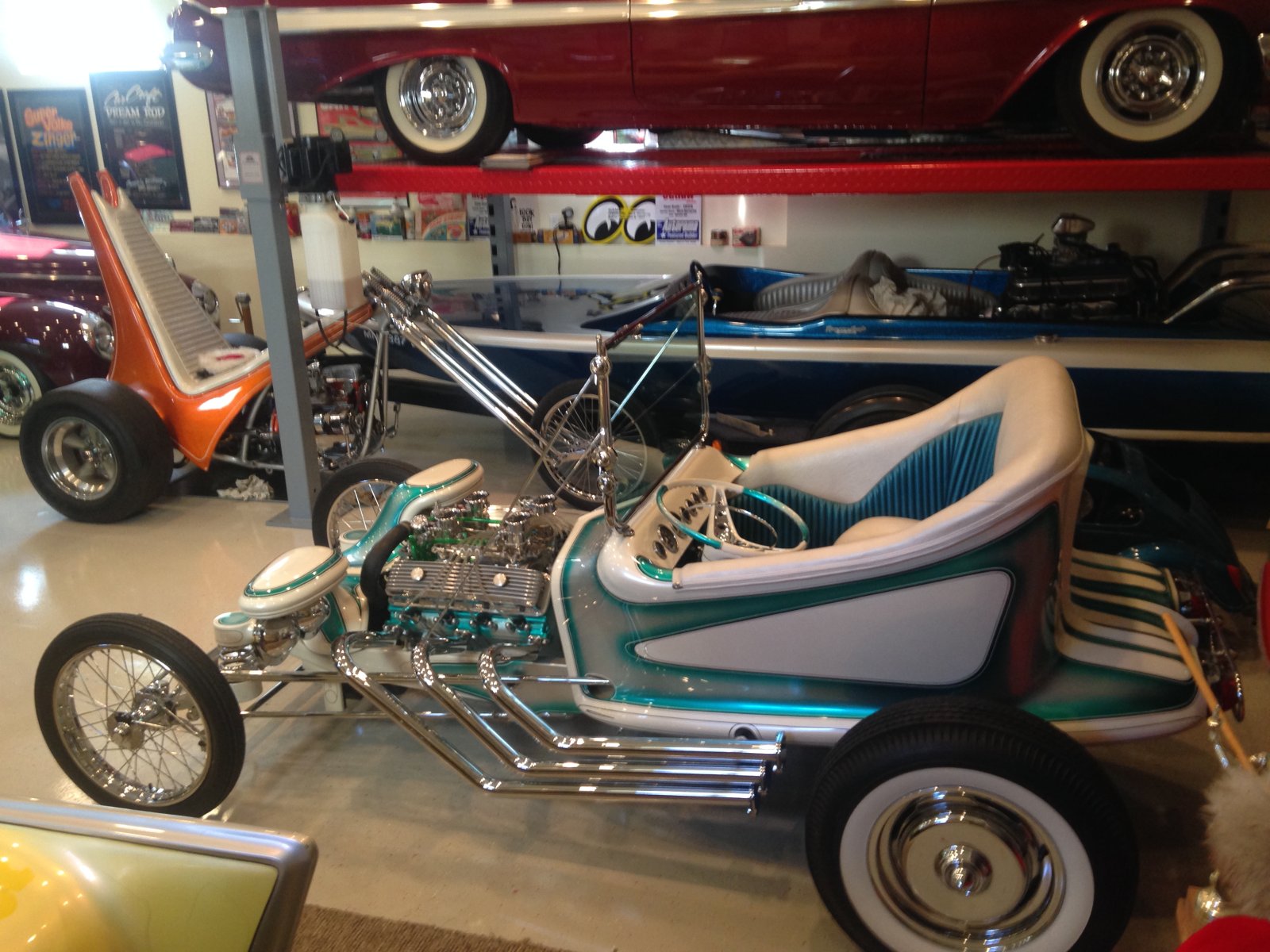

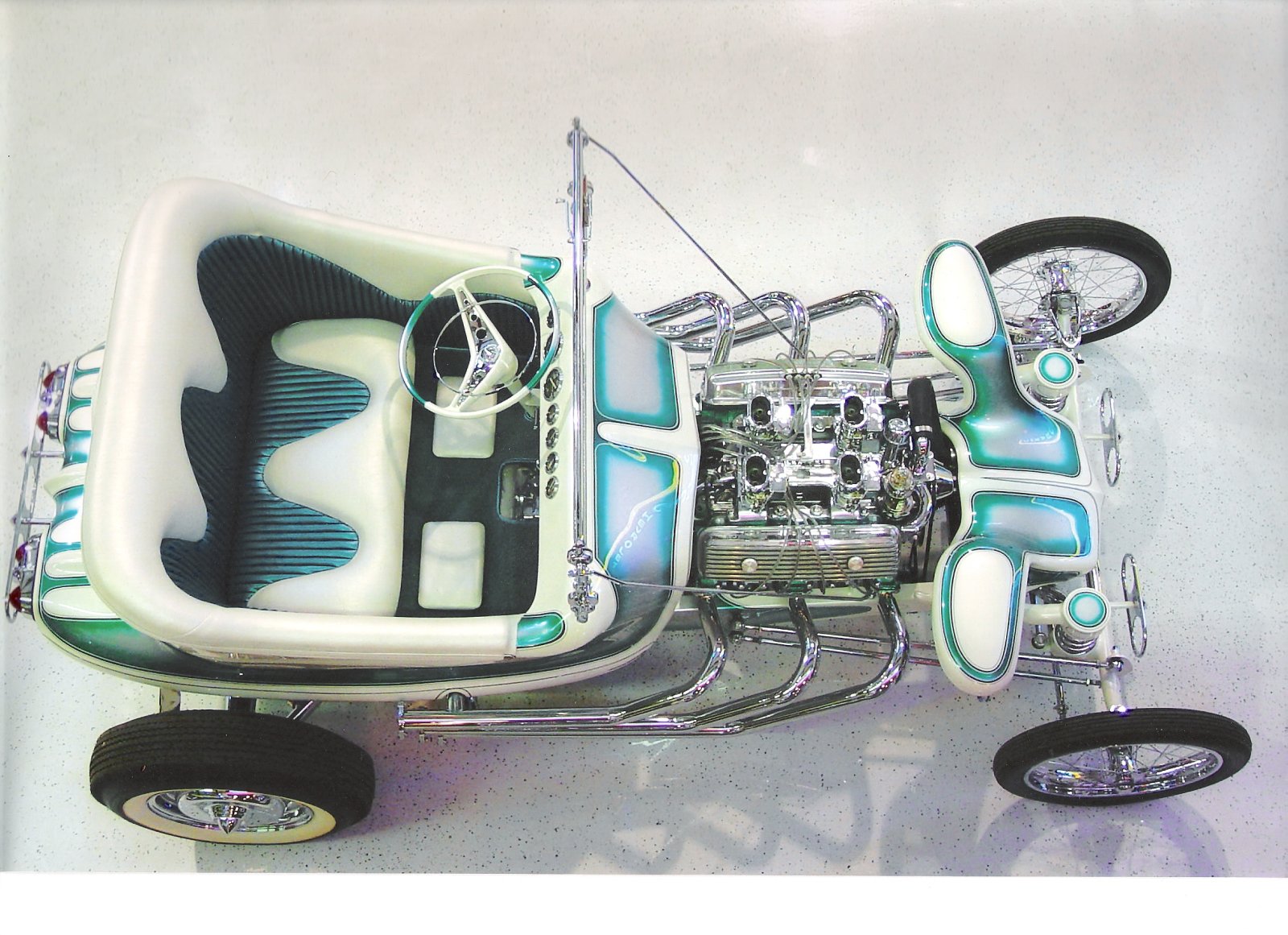

    I built the headers for my outlaw clone from u bends. Tig welded and metal finished before chrome plating. I also did the pre plating polishing

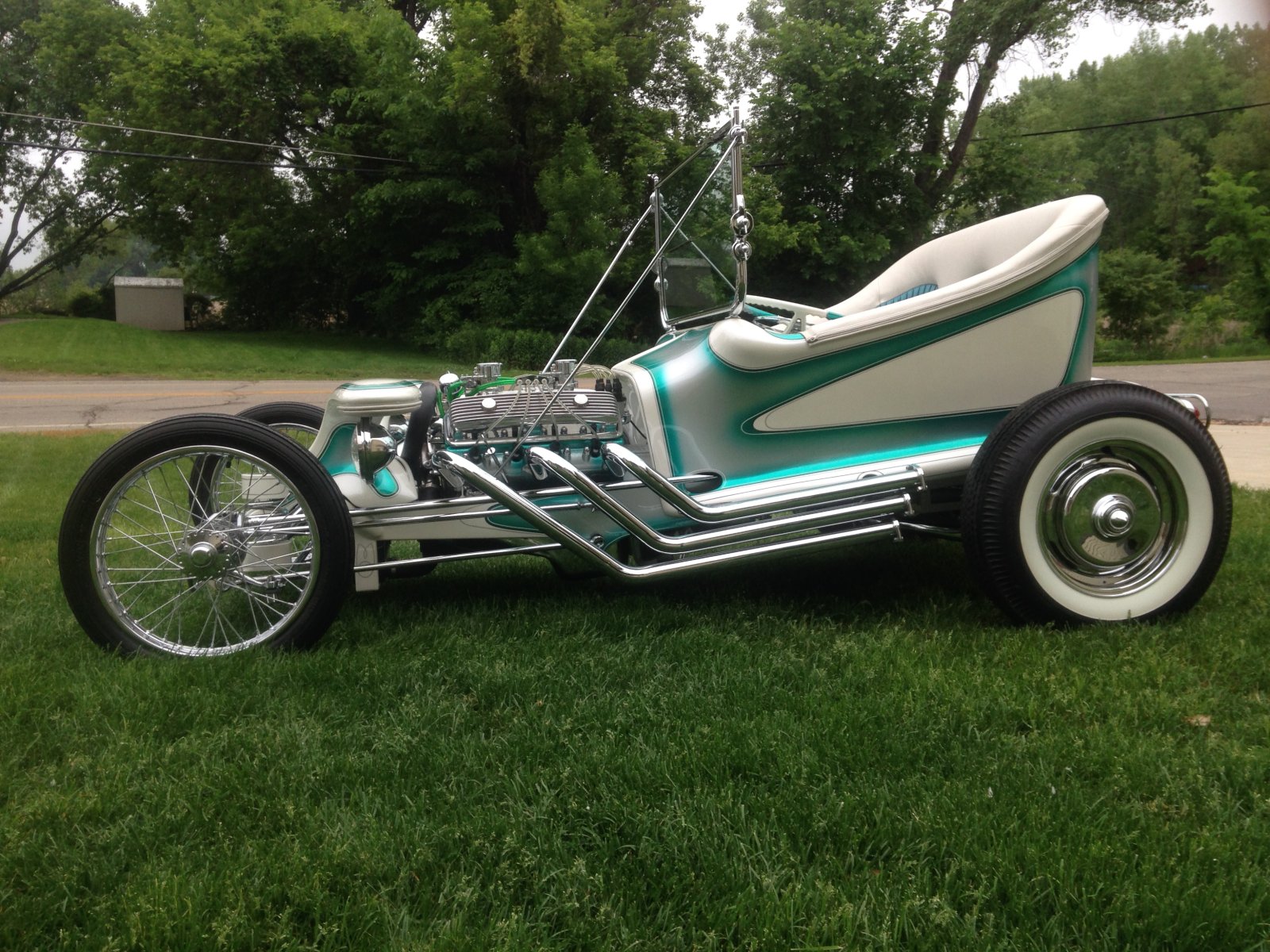

    IMG_2013.jpeg IMG_2007.jpeg IMG_0068.jpeg

  5.

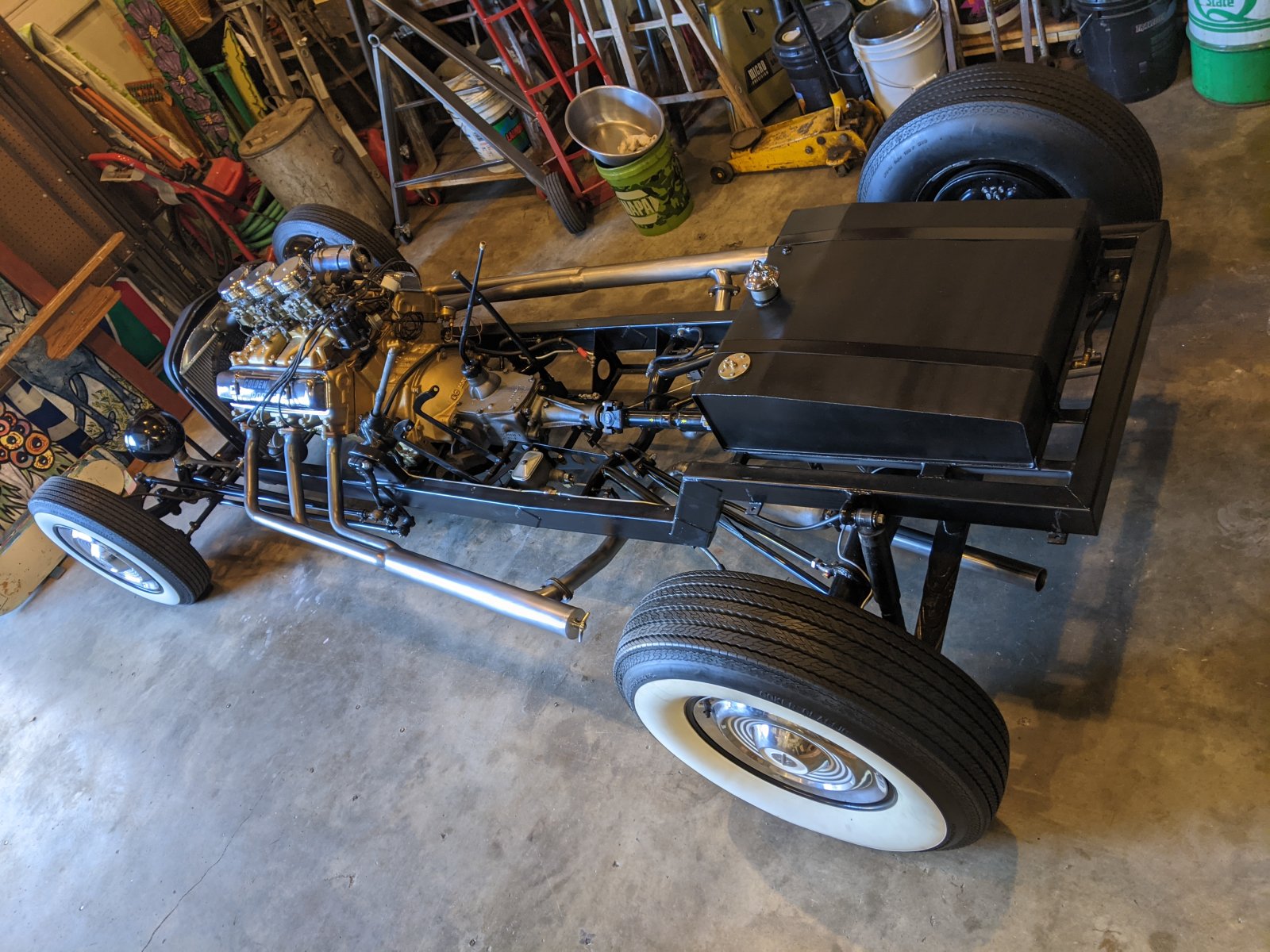

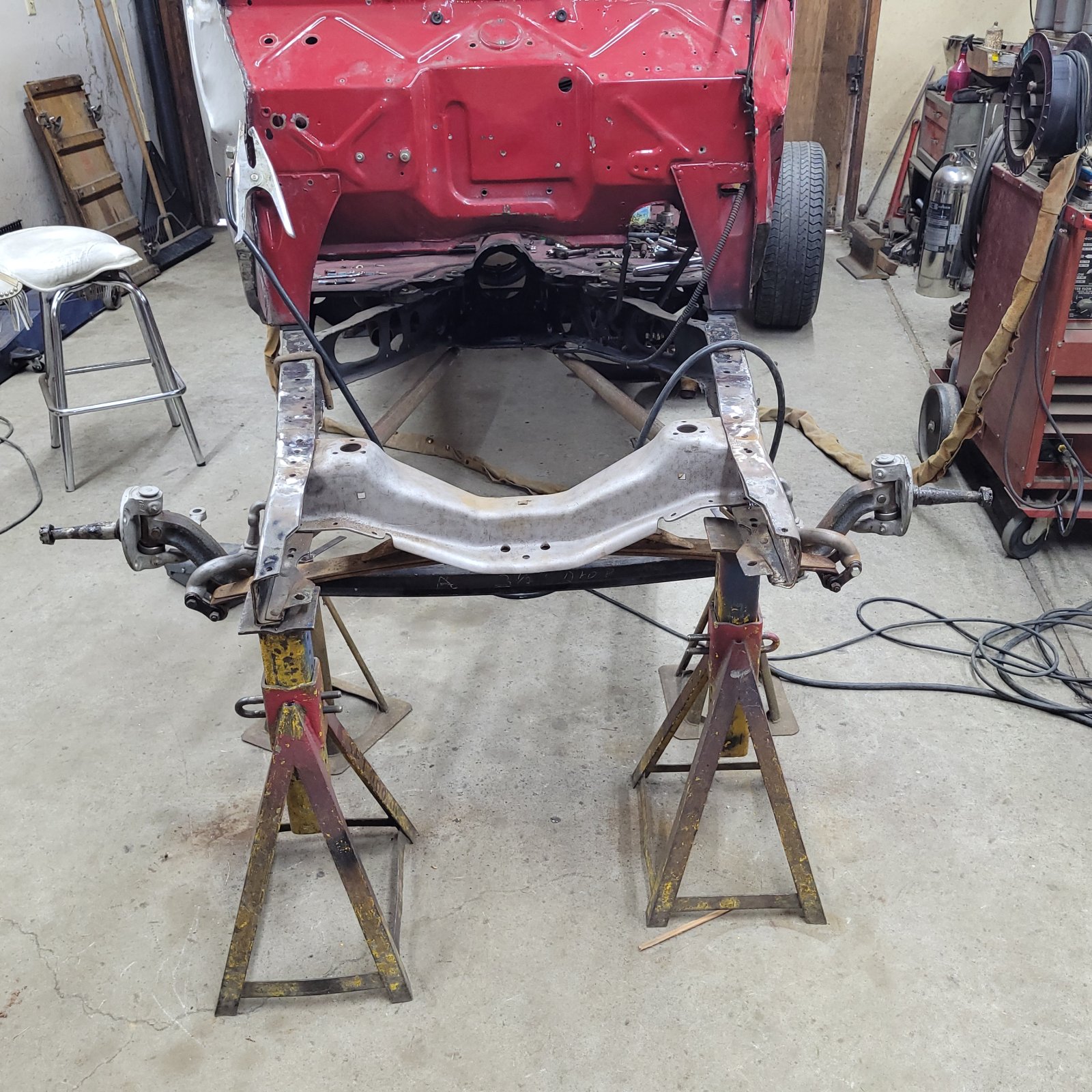

  6. My next little project is building a set for this thing and keeping them inside the stock fender panels.
    Yes it's an I-Beam axle and stock 40 steering column. Prymarys are 2.125 and must squeeze between the wishbone and frame rails and go around the steering box. Why make it easy? Stay tuned.

    slayer, jet996, neilswheels and 14 others like this.

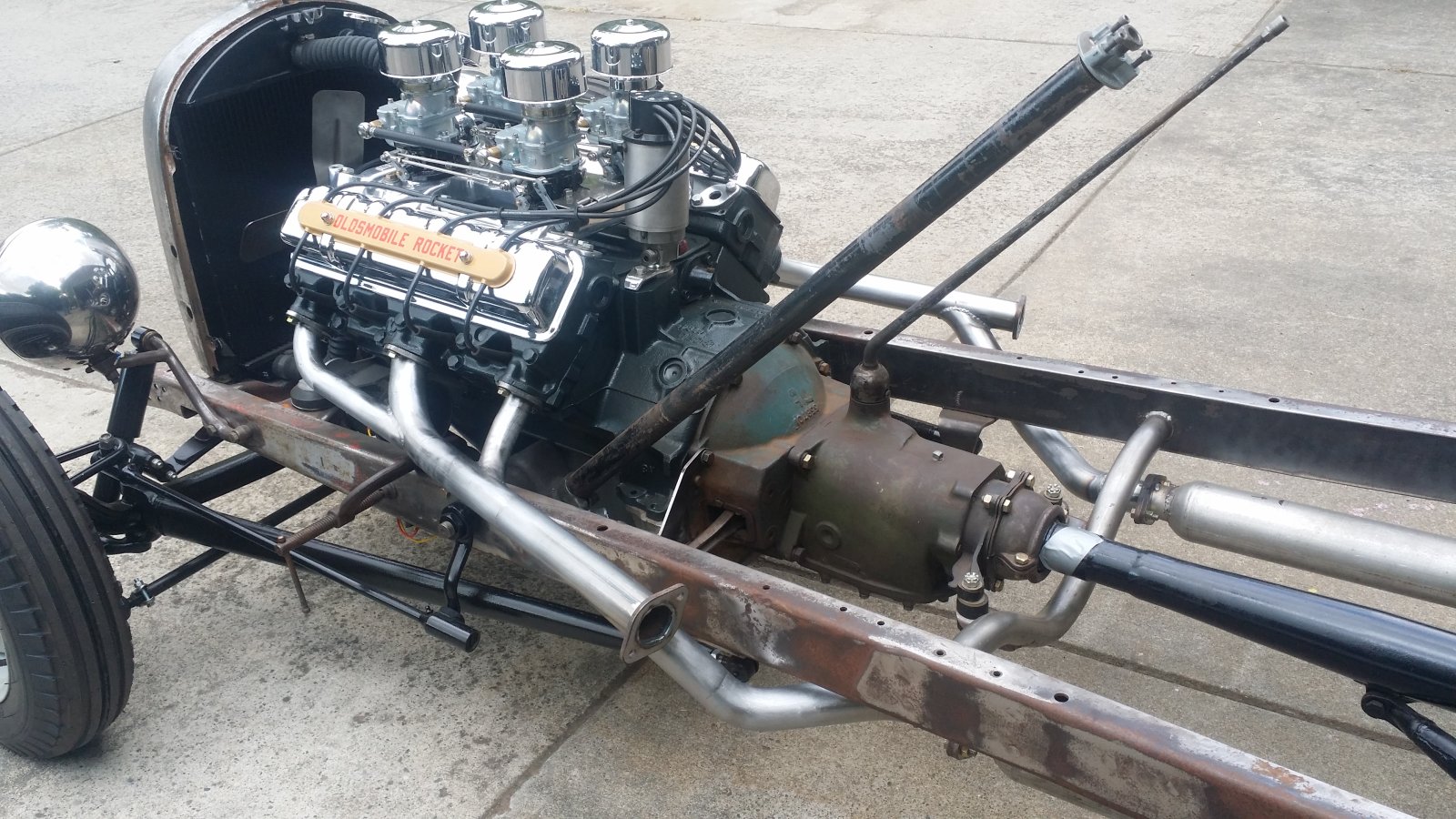

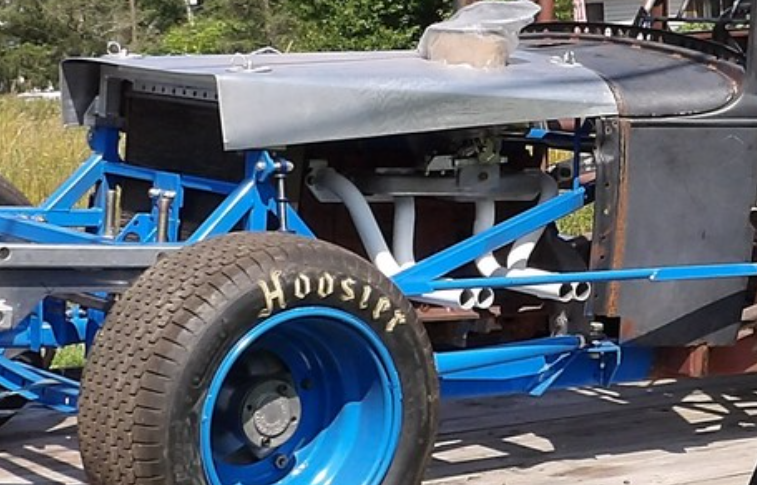

  7. I made these last winter, good at the drag strip but to loud on the street. With my blown mill, they set off all the car alarms in town.:eek::) WIN_20240517_17_37_17_Pro.jpg WIN_20240517_17_39_59_Pro.jpg

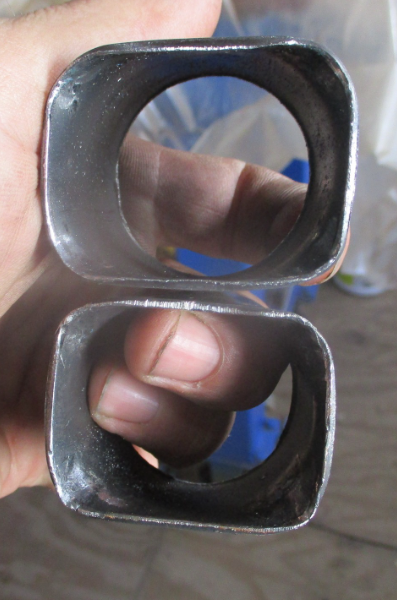

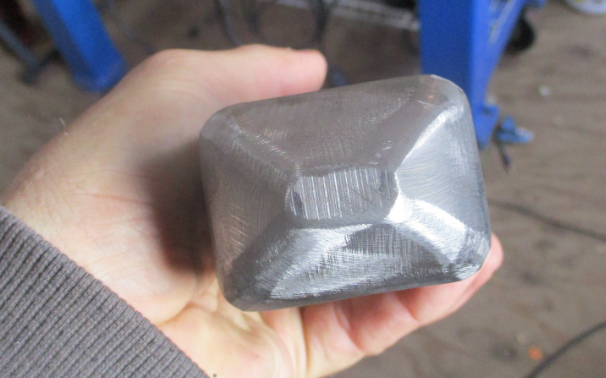

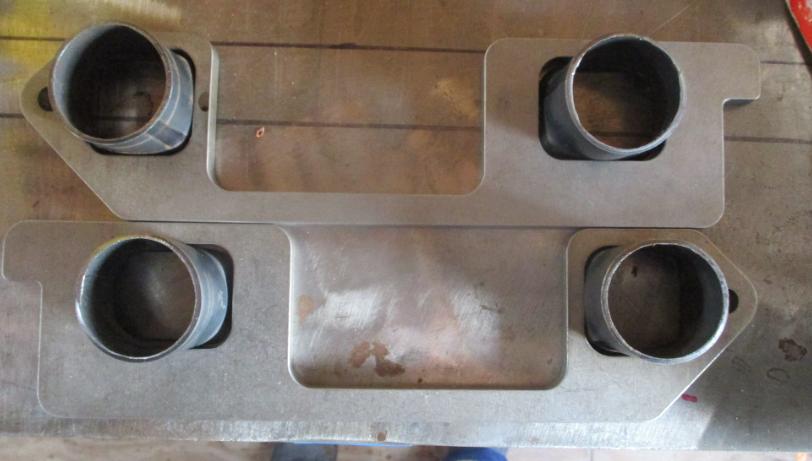

  8. Had to build the swedges too! Hell's Gate Hot Rods flanges.

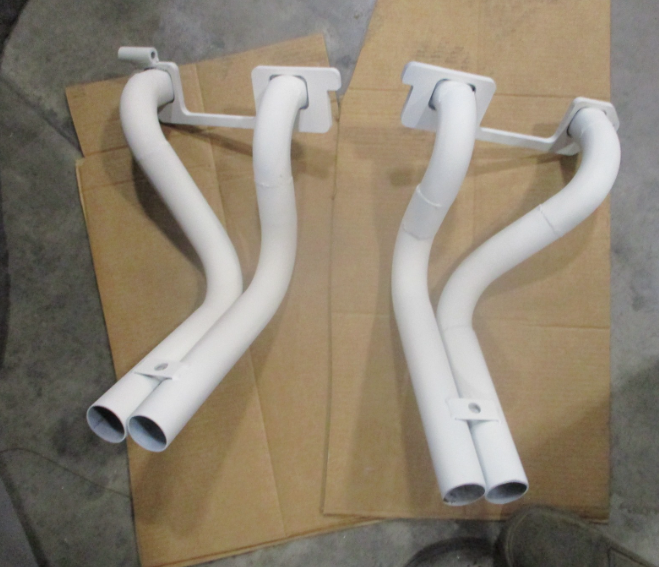

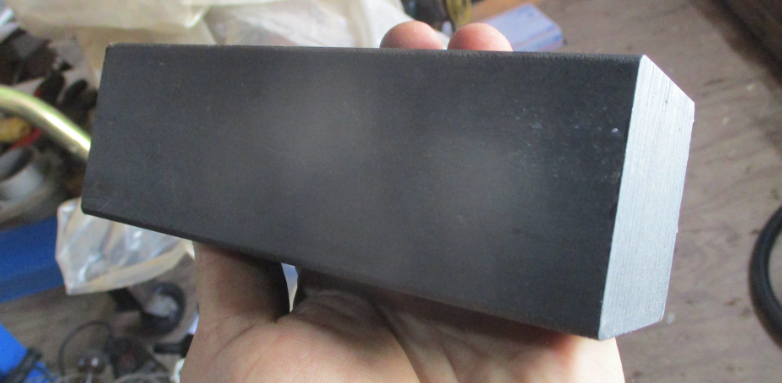

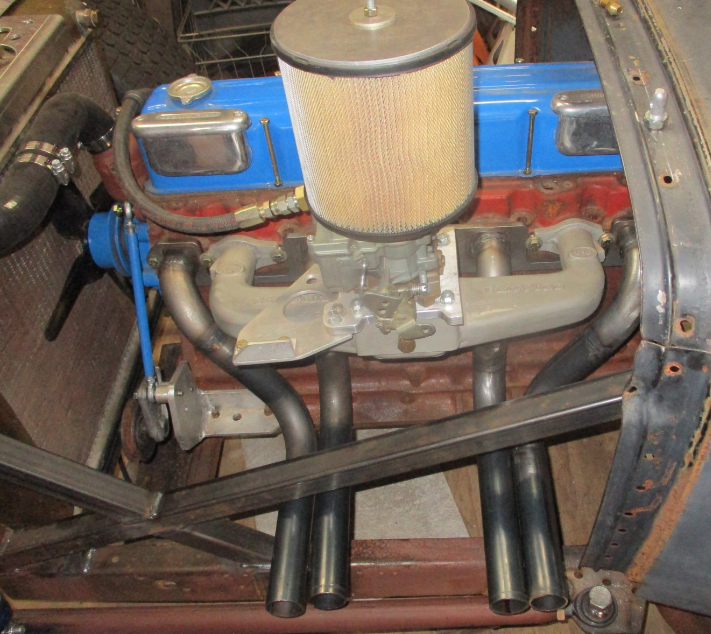

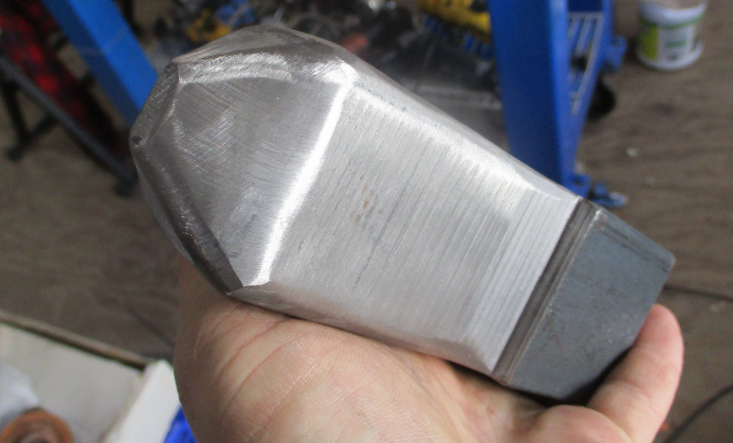

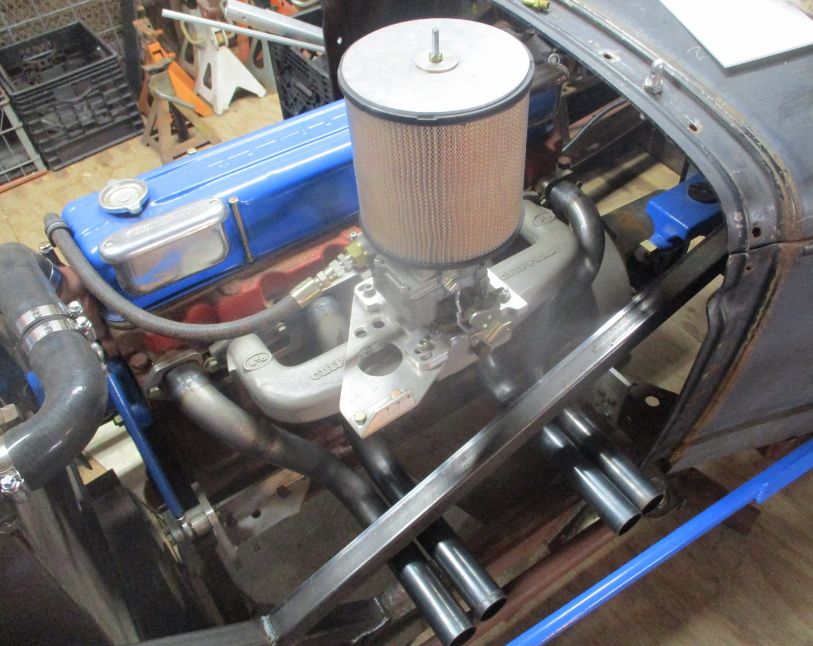

    upload_2024-7-19_19-0-22.png upload_2024-7-19_19-0-45.png upload_2024-7-19_19-1-23.png upload_2024-7-19_19-1-55.png upload_2024-7-19_19-3-18.png upload_2024-7-19_19-3-56.png upload_2024-7-19_19-5-21.png upload_2024-7-19_19-6-3.png upload_2024-7-19_19-6-34.png upload_2024-7-19_19-7-27.png upload_2024-7-19_19-8-52.png upload_2024-7-19_19-9-17.png

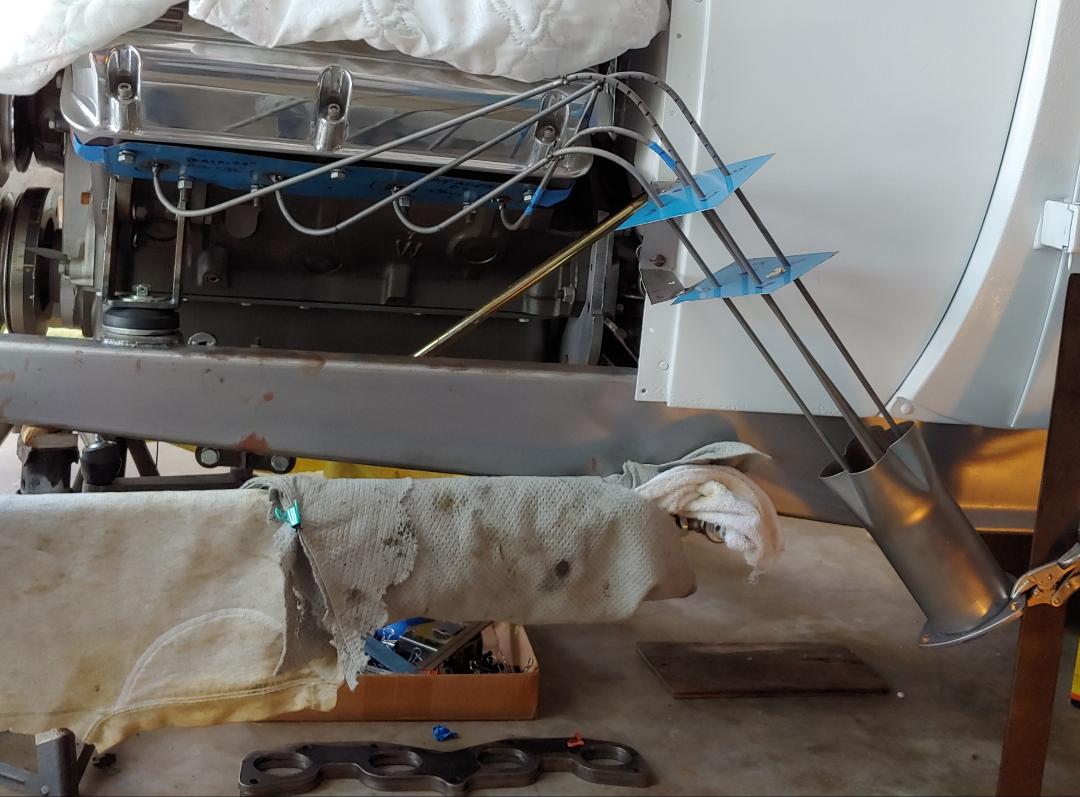

  9. My MIG-welded headers have 5/16" thick flanges from "Headers by Ed" with 3.5"x10" collectors and 16 ga, 1 5/8" primary tubes using 2.5" radius mandrel U-bends from Summit.

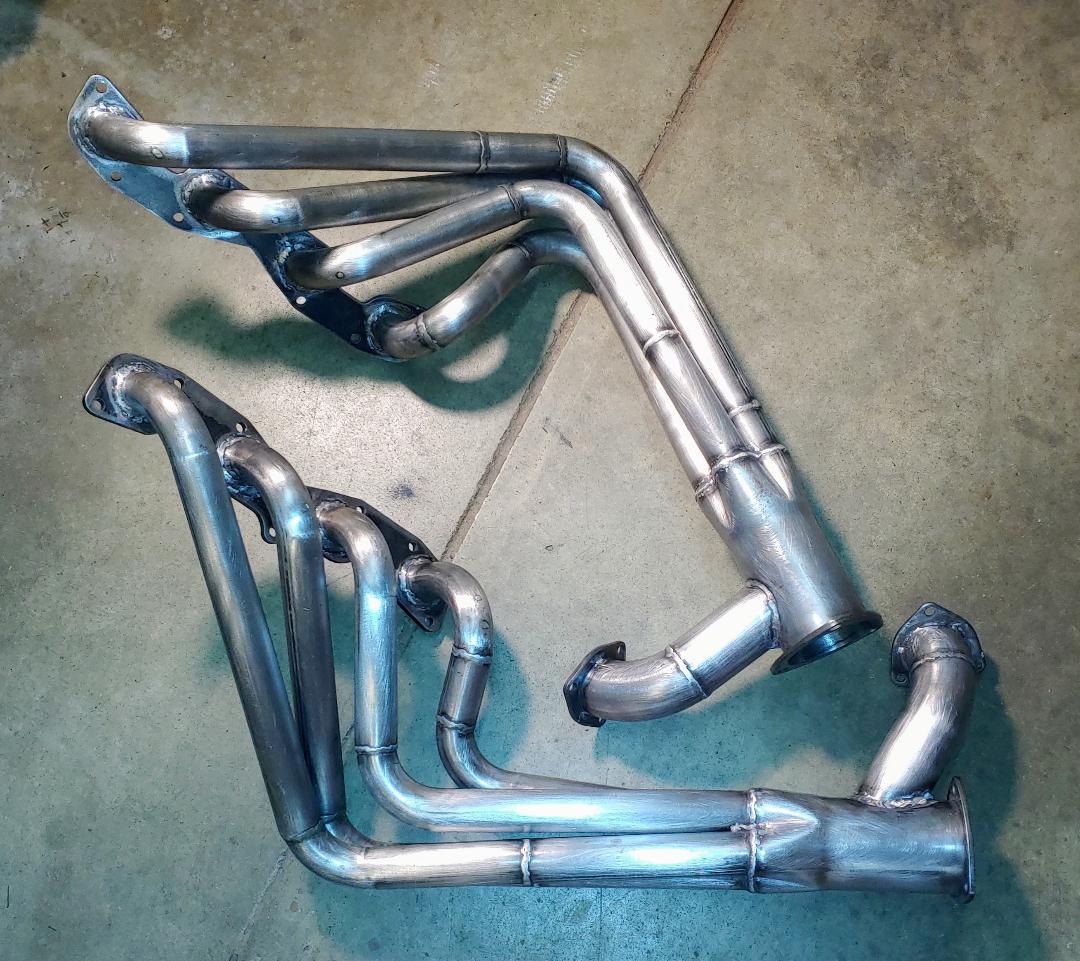

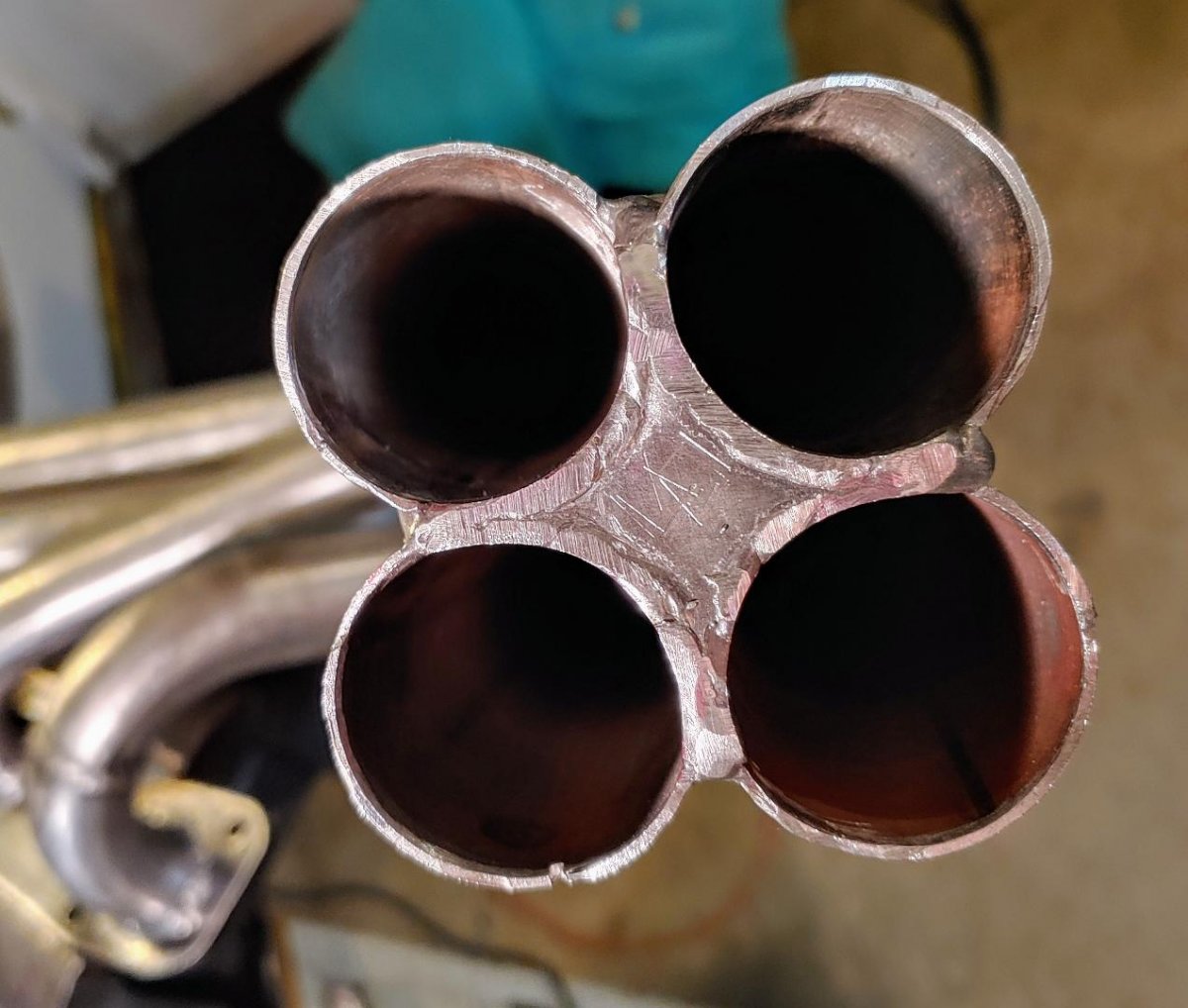

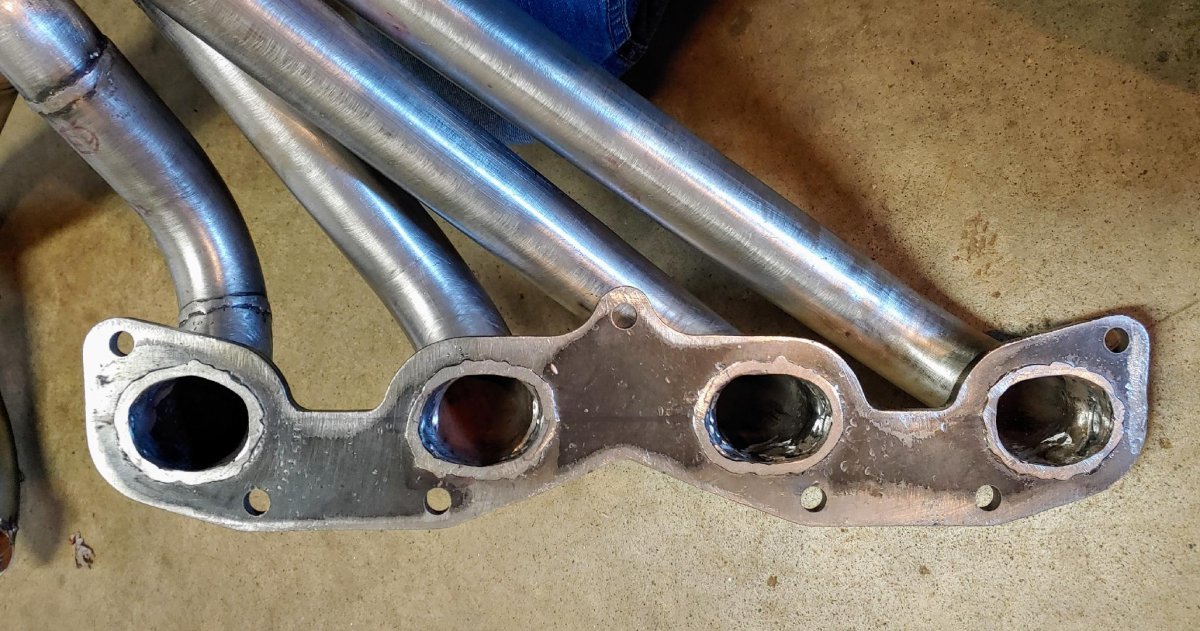

    20190704_123009_HDR(1)(1).jpg 20200207_161450_2.jpg 20200129_193055_HDR_2.jpg 20200212_190112_2 (1).jpg 20240404_181011.jpg

    slayer, jet996, neilswheels and 17 others like this.
  10. Mysterion reproduction

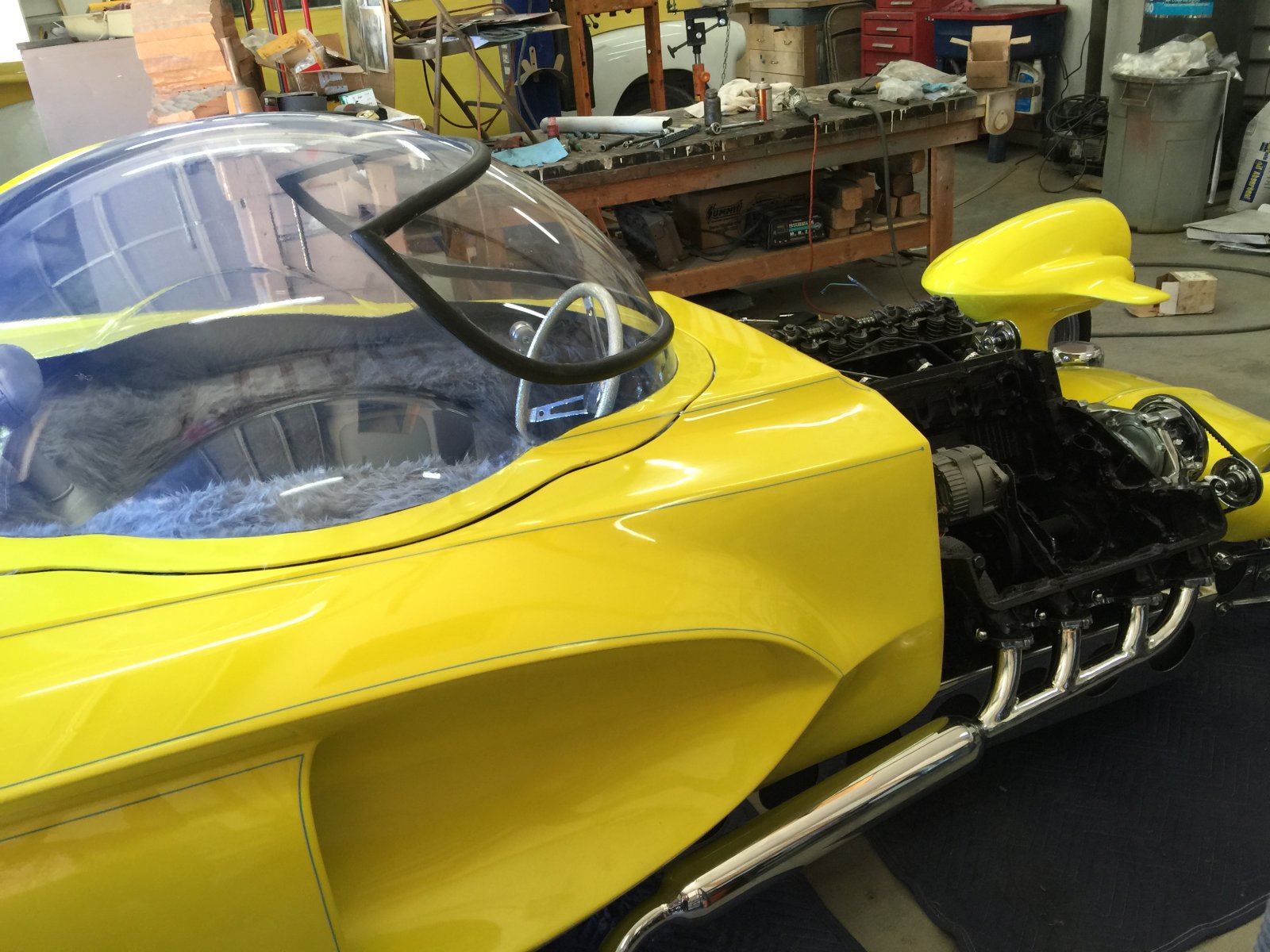

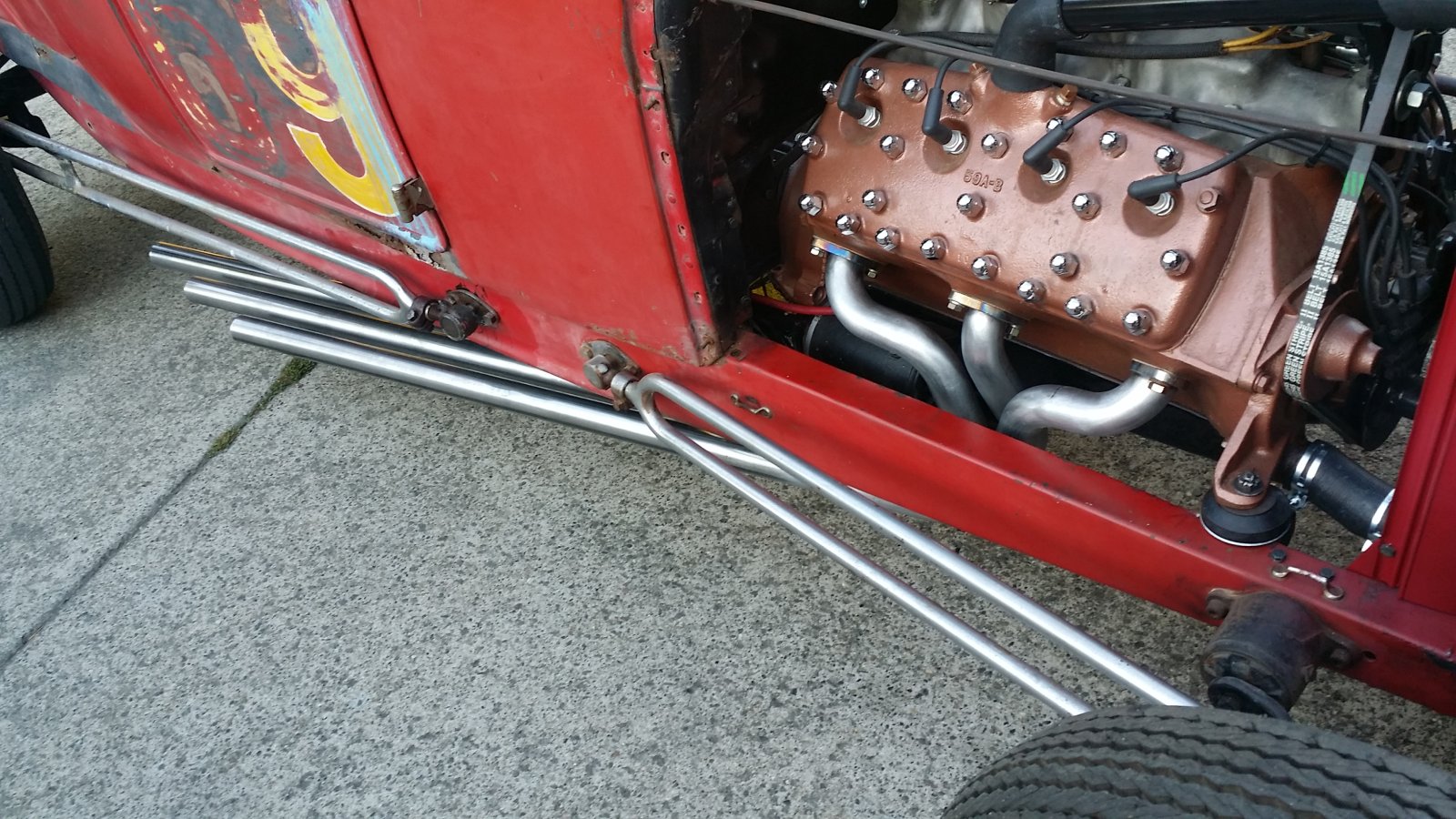

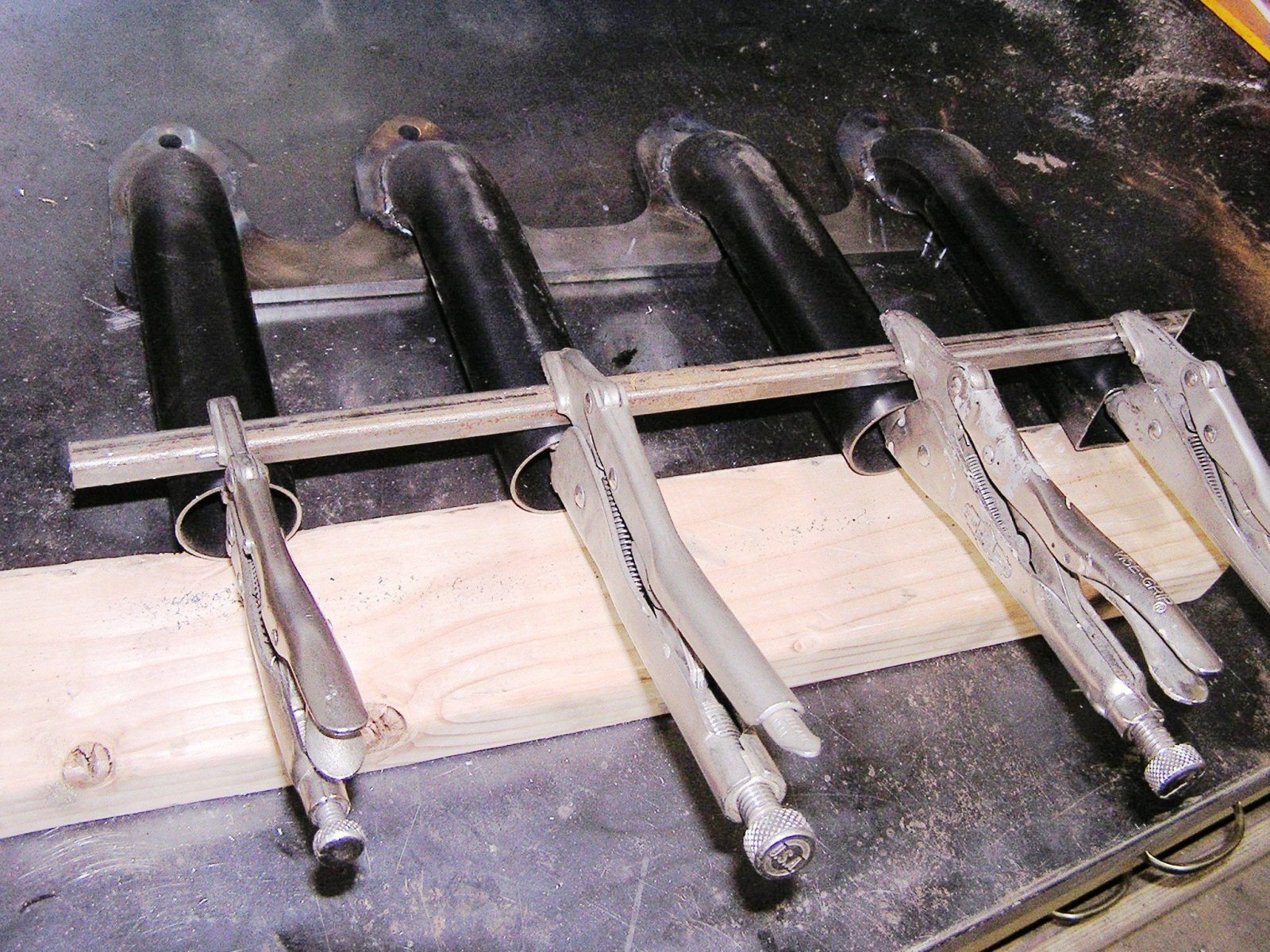

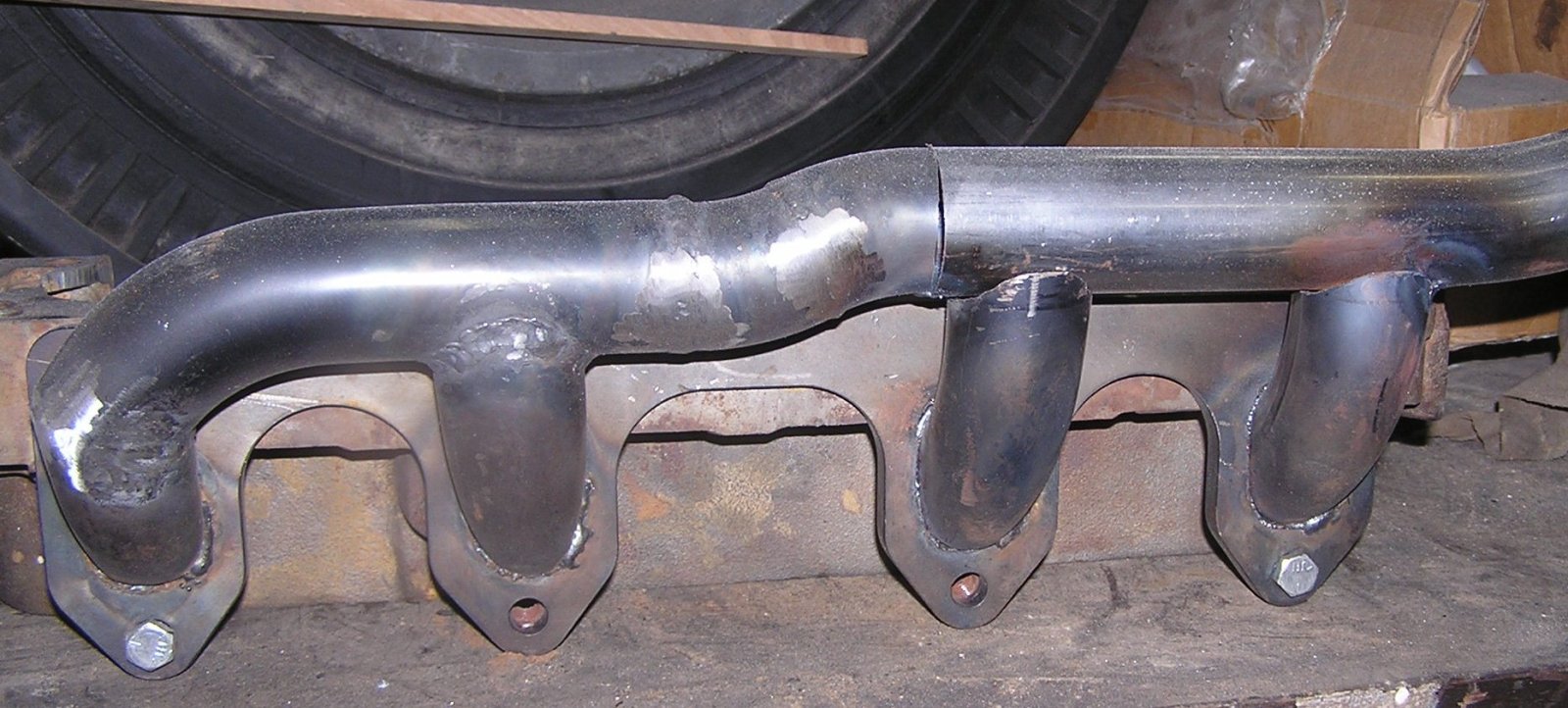

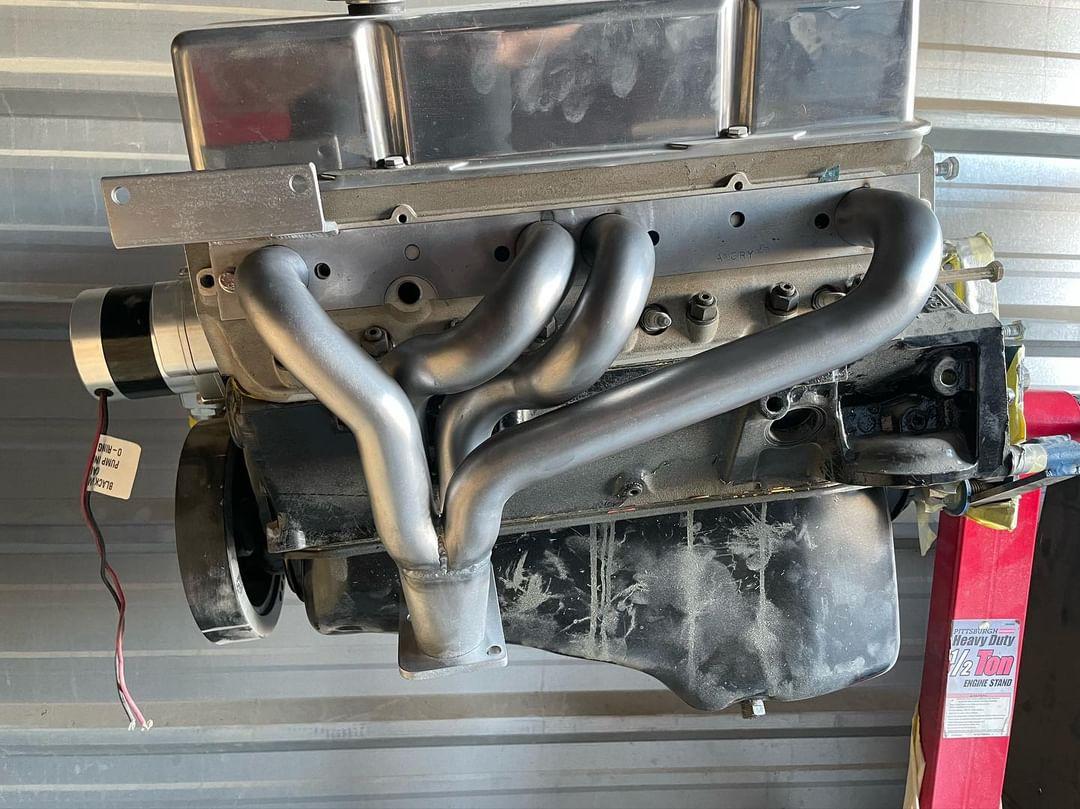

    engine header assembly.JPG engine header mockup.JPG P1010316.JPG P1010319.JPG IMG_1718.JPG

    Willys
    For small 331 heads. Put new heads with bigger ports so made the ones below

    New big tube headers for the Willys


    '36 Pontiac with 230 straight 6. Excuse the XXXXXXX front end!!
    headers.jpg pontiac_3..JPG

  11. Frames
    Joined: Apr 24, 2012
    Posts: 5,122

    Frames
    Member

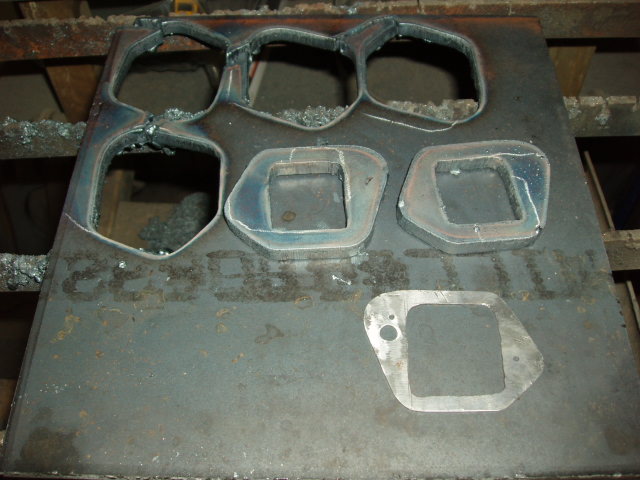

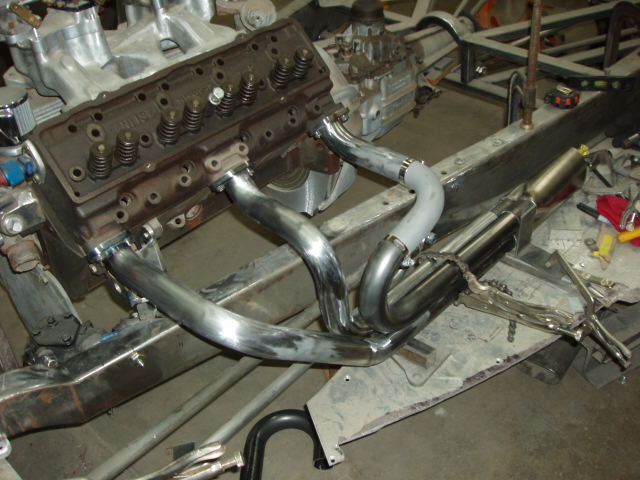

    Building a 32 roadster with a 365 Cadillac engine. Sprint car type headers. Smoothing the welds for chrome plating. My own flame cut flanges. 2024-07-17 21.48.26-1.jpg 2024-07-17 21.48.26-2.jpg 2024-07-17 21.48.26-3.jpg

    jet996, pbr40, dana barlow and 6 others like this.
  12. Frames
    Joined: Apr 24, 2012
    Posts: 5,122

    Frames
    Member

    302 G M C. 2 center pipes 2" because they have to serve 2 cylinders each. Engines-parts (44) 040.jpg Outer pipes 1.75" because they only serve 1 cylinder each.

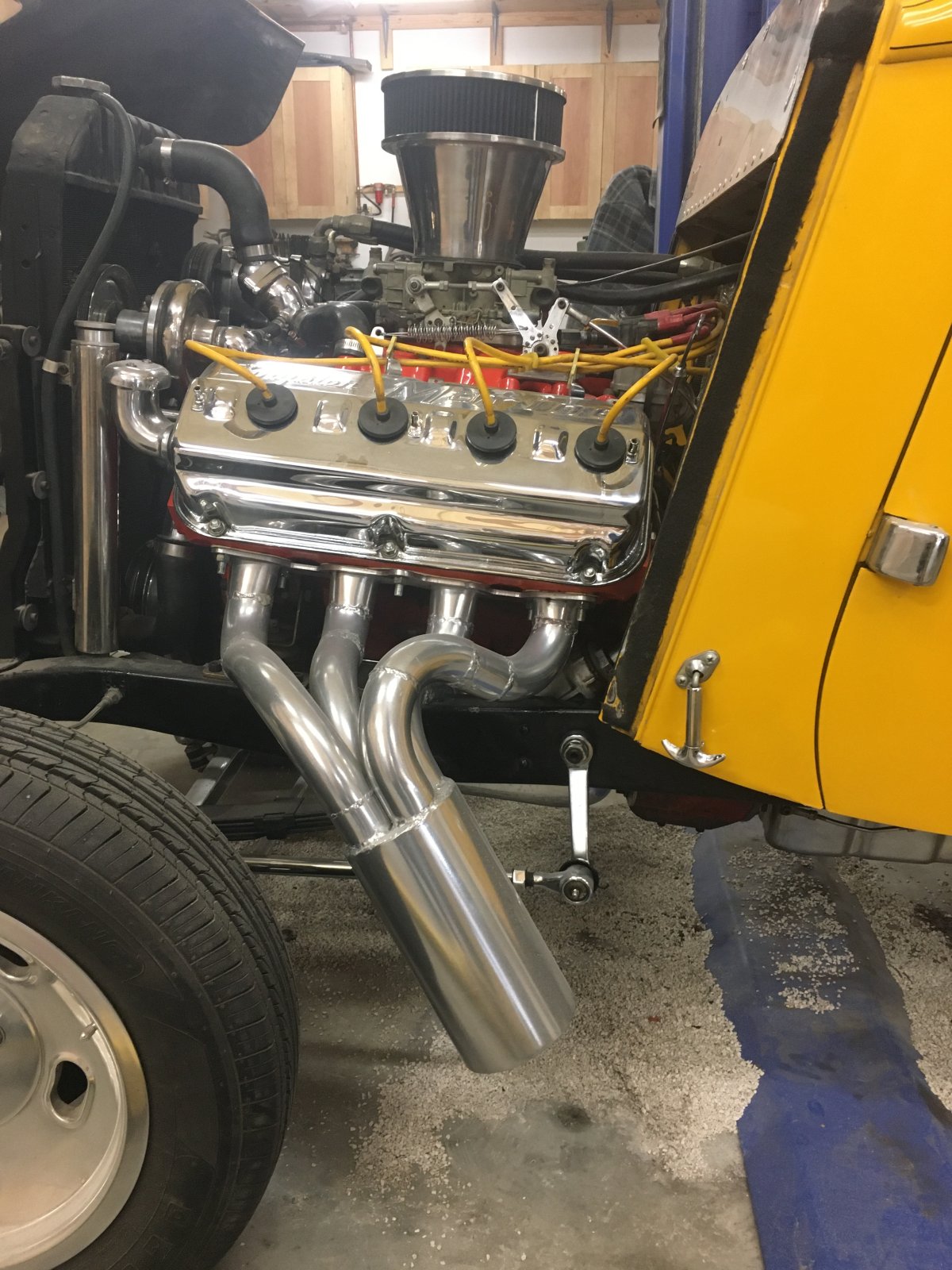

  13. Consider Jet Hot instead of chrome. This stuff is amazing. Have headers that are unblemished and still bright after 20 years. IMG_1590.JPG

    jet996, whtbaron, dana barlow and 9 others like this.
  14. Frames
    Joined: Apr 24, 2012
    Posts: 5,122

    Frames
    Member

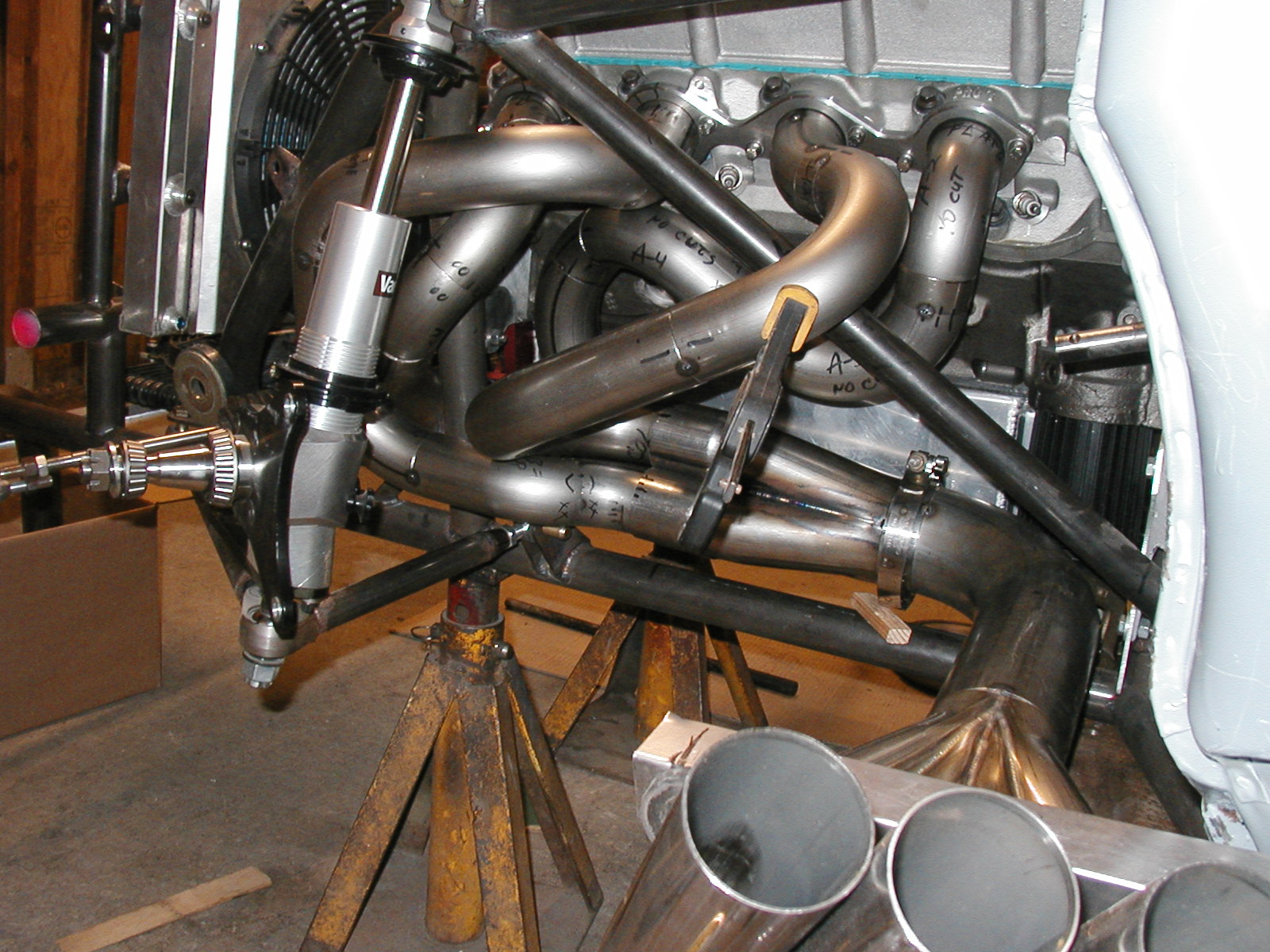

    Lots of headers I built have been ceramic coated.

    mad mikey, willys36 and Pist-n-Broke like this.
  15. THE FRENCHTOWN FLYER
    Joined: Jun 6, 2007
    Posts: 5,633

    THE FRENCHTOWN FLYER
    Member
    from FRENCHTOWN

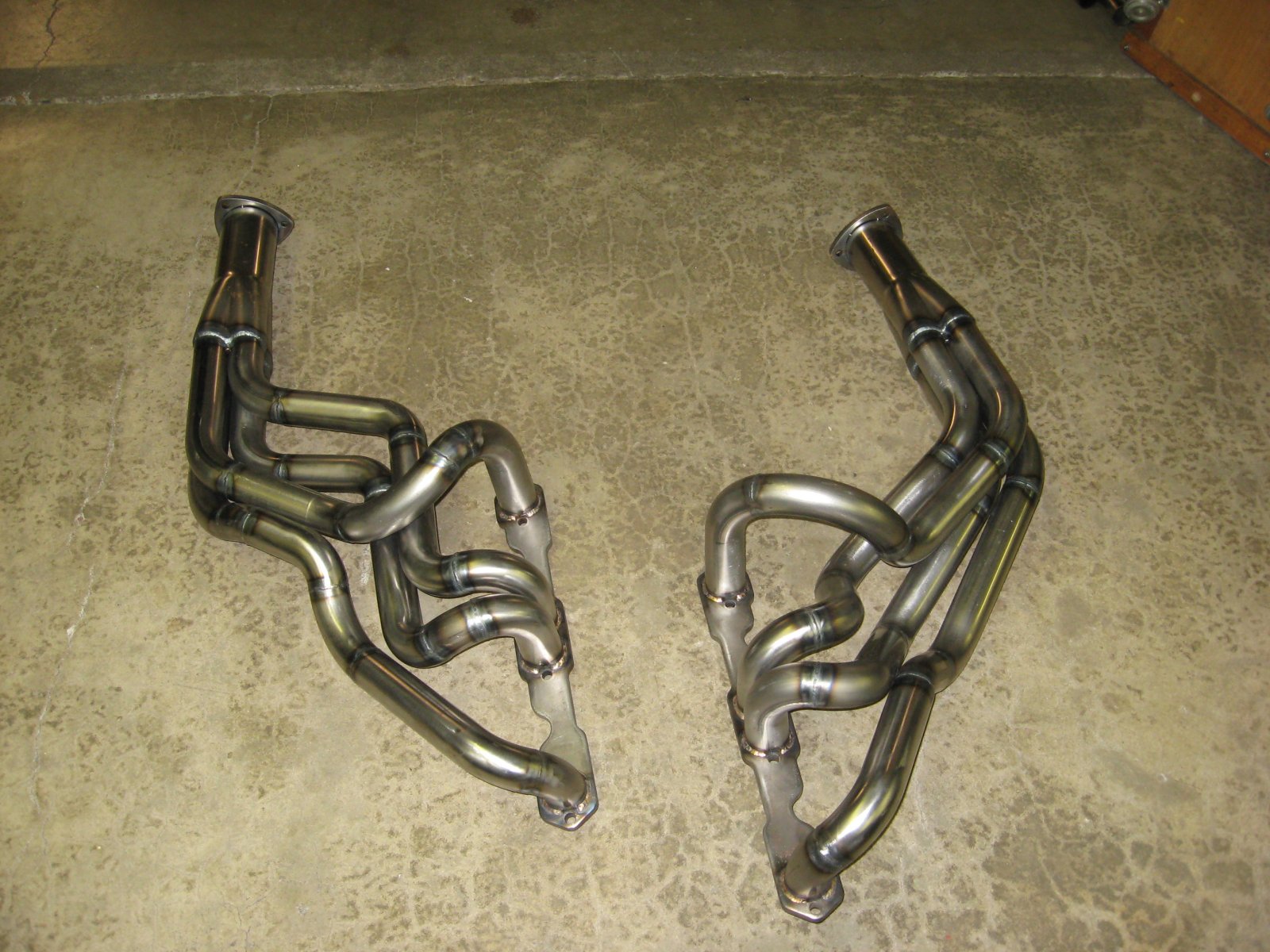

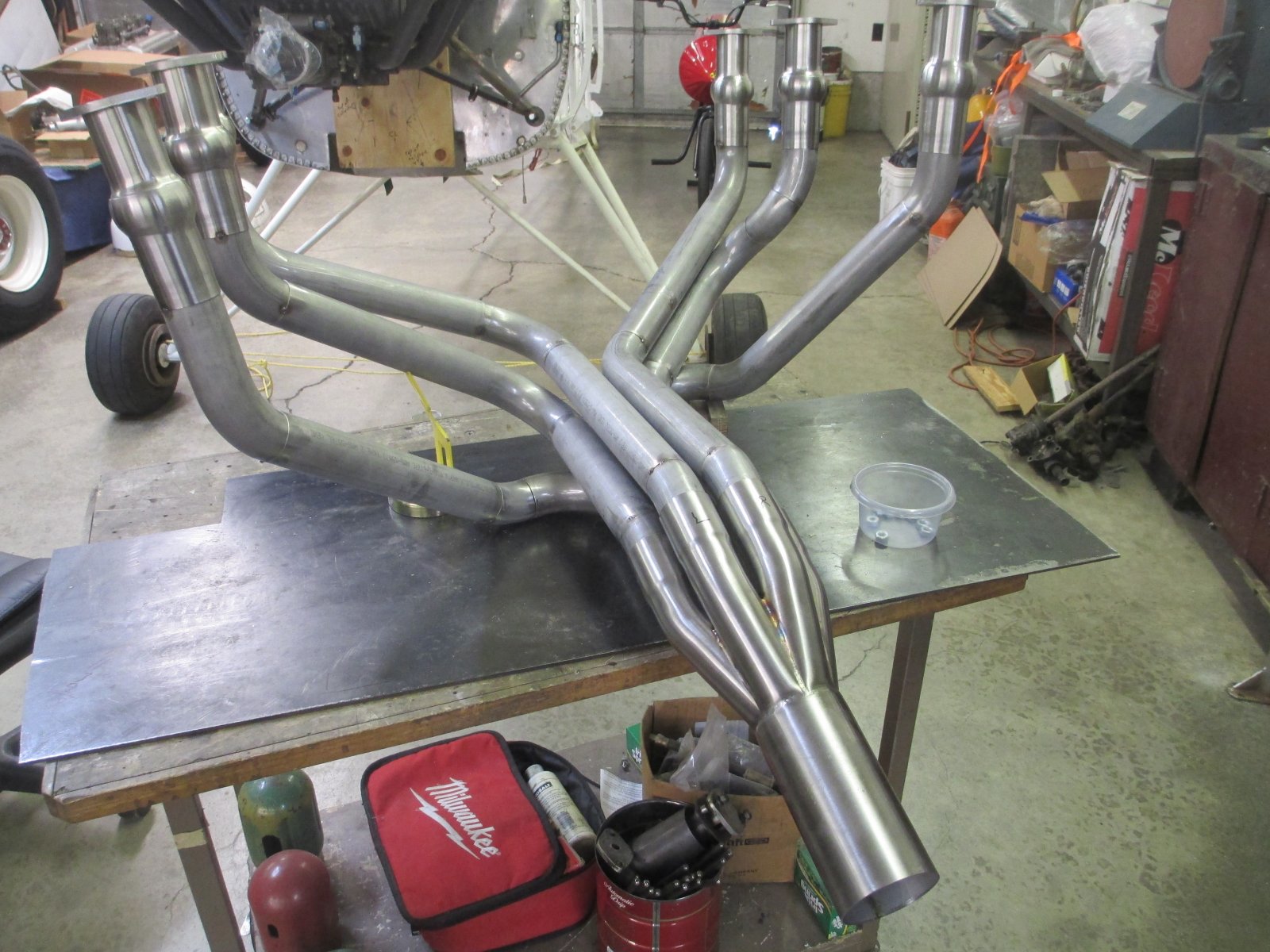

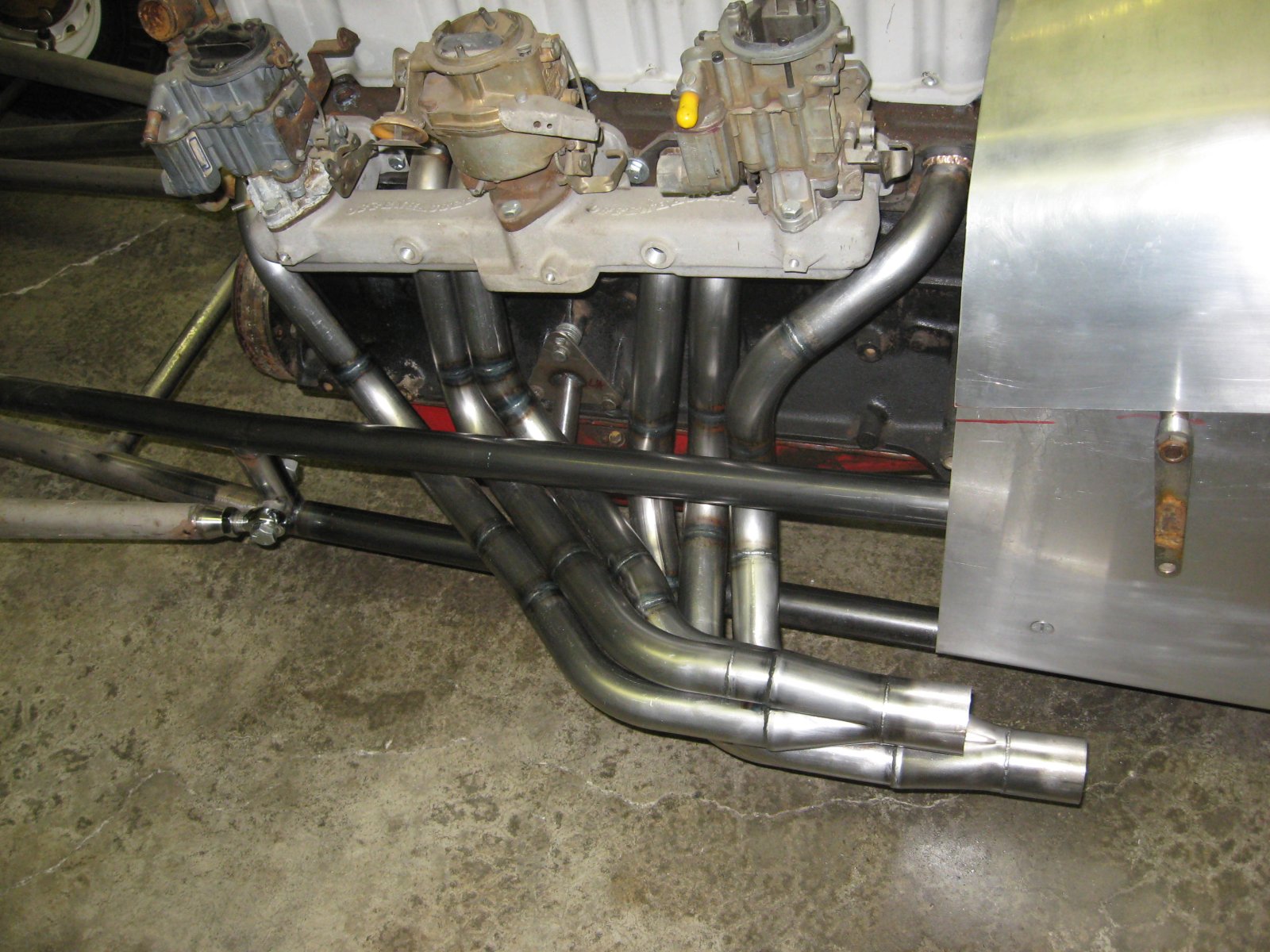

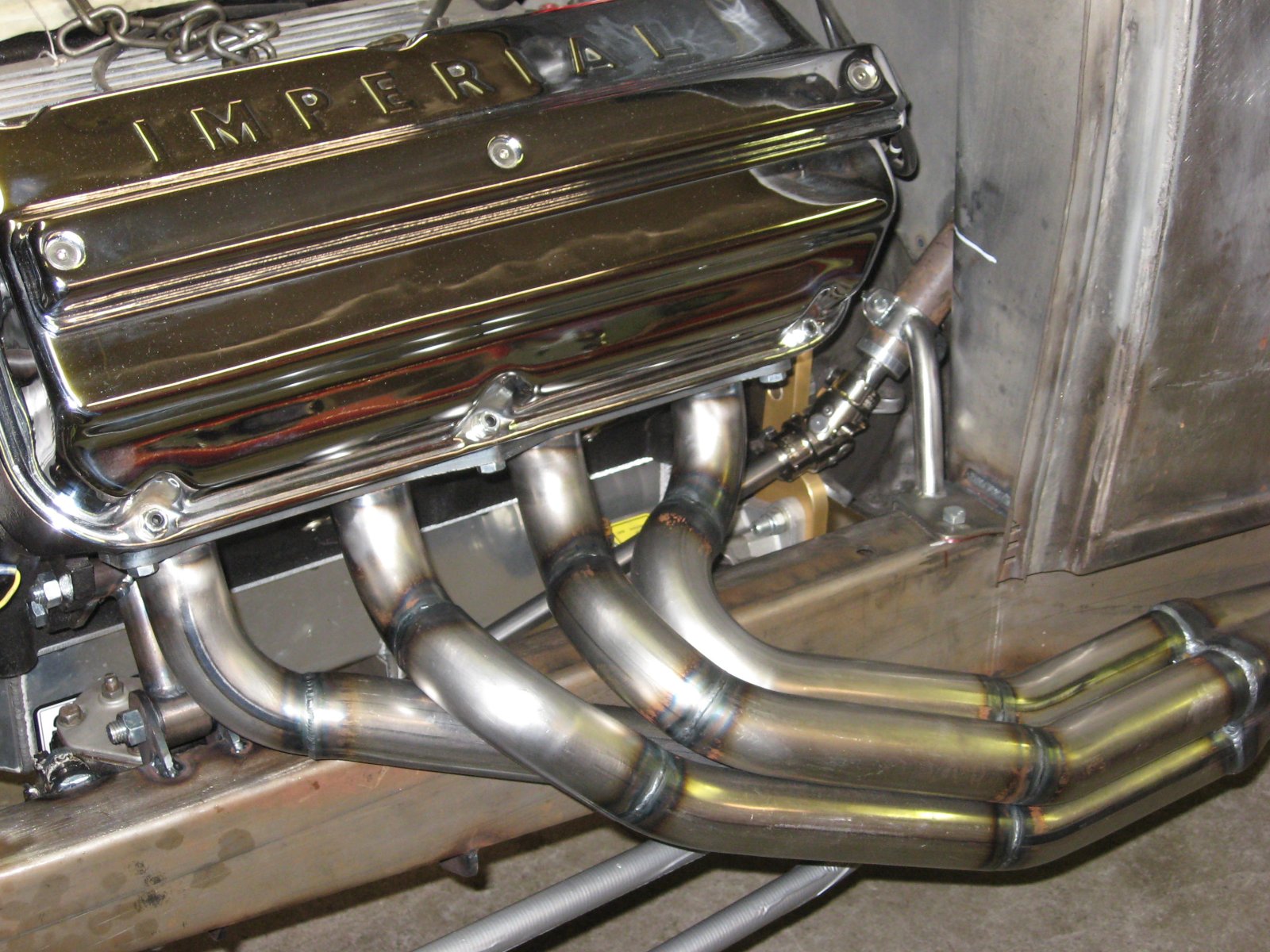

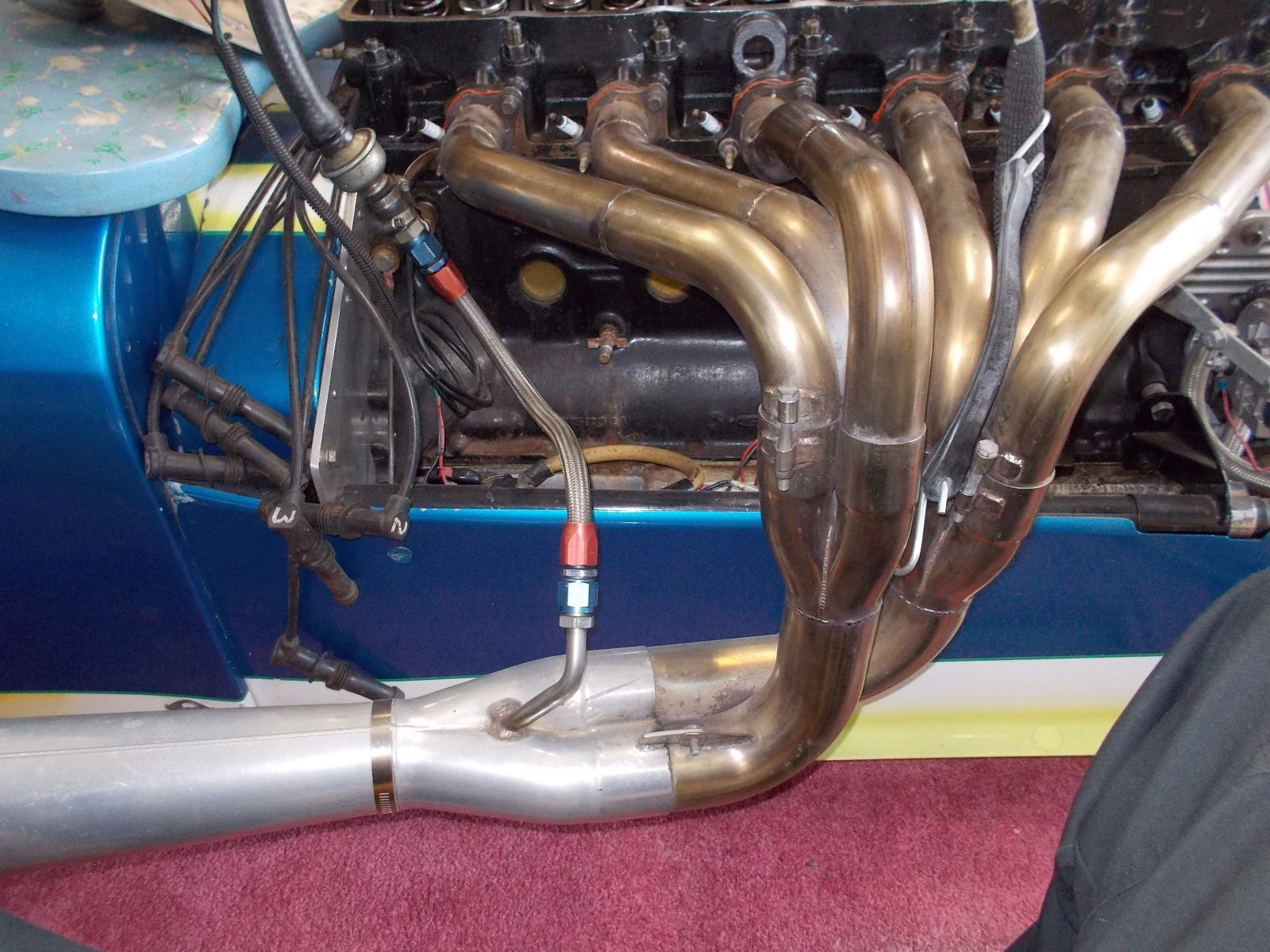

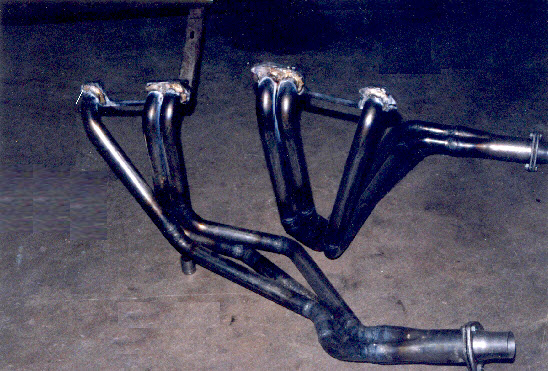

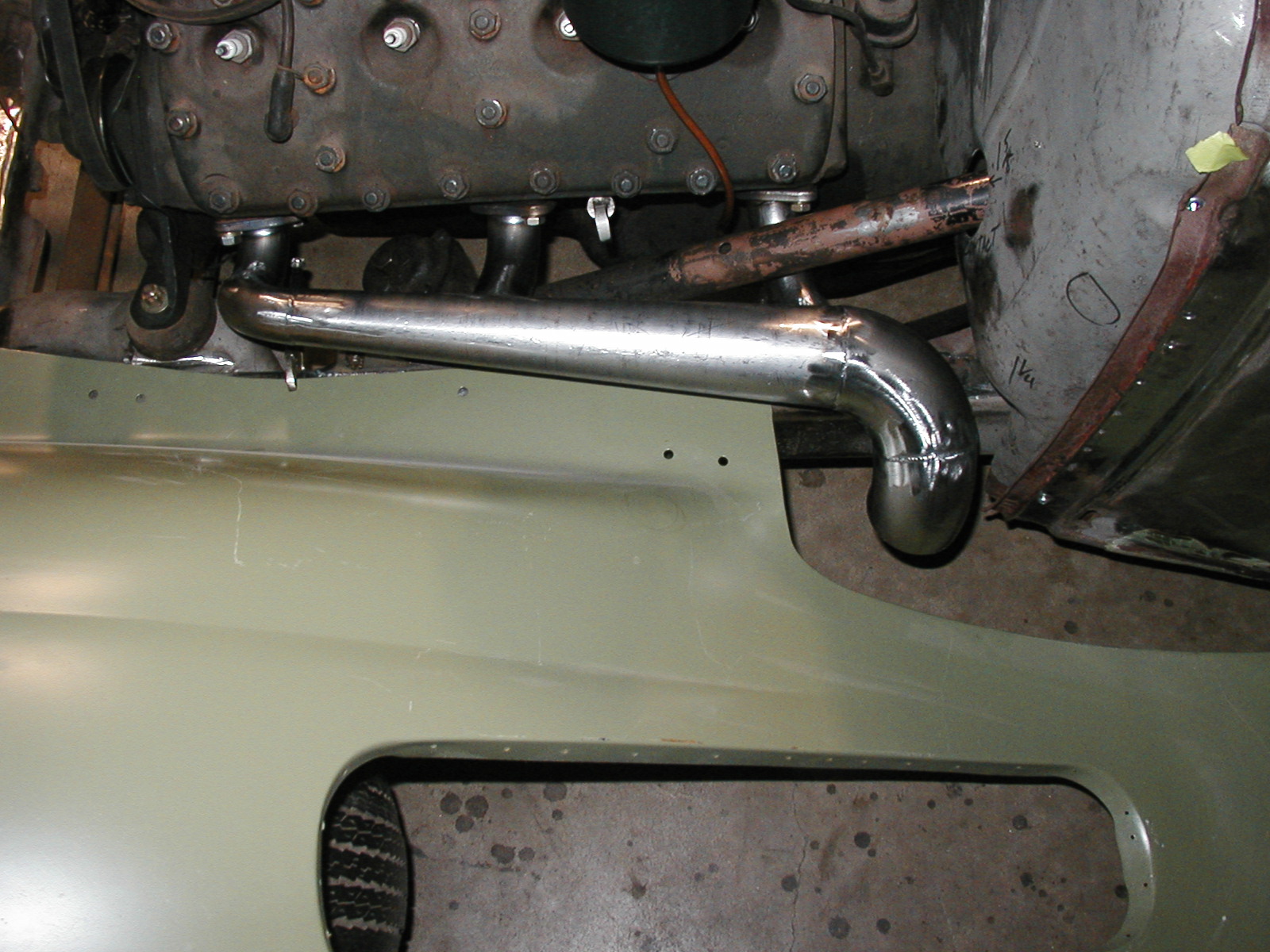

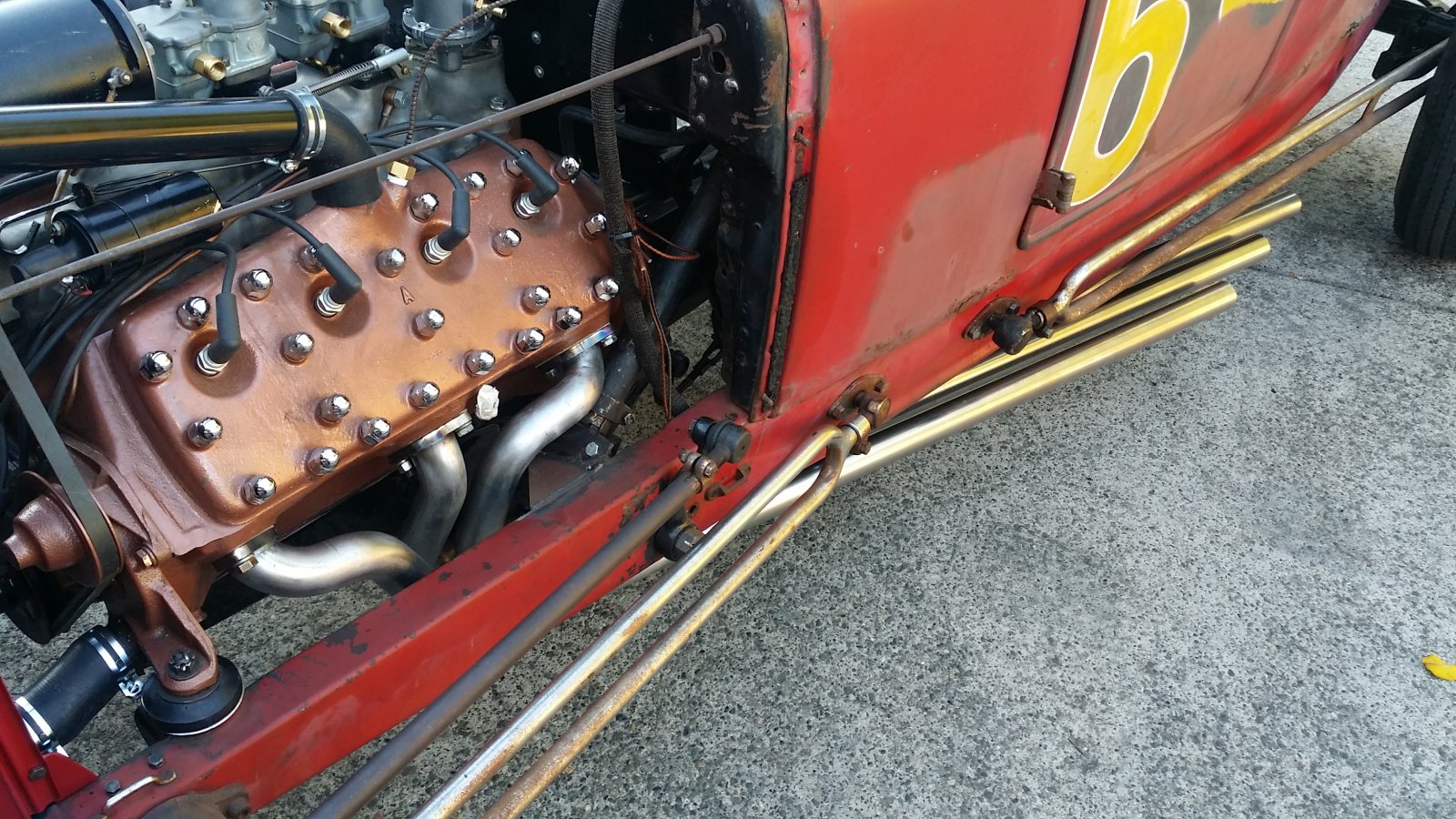

    adv23t098.JPG Here are two I've done.
    One on my avatar champ car; one for my altered roadster drag car.
    I used stainless steel on both of these.
    Hood 16.JPG

    jet996, Gotgas, Ned Ludd and 12 others like this.
  16. Frames
    Joined: Apr 24, 2012
    Posts: 5,122

    Frames
    Member

    Full race 47 Ford. 2" center pipe split length wise to form taper. 2012-11-03 17.53.52.jpg 2012-11-03 17.53.54-1.jpg

    jet996, whtbaron, dana barlow and 7 others like this.

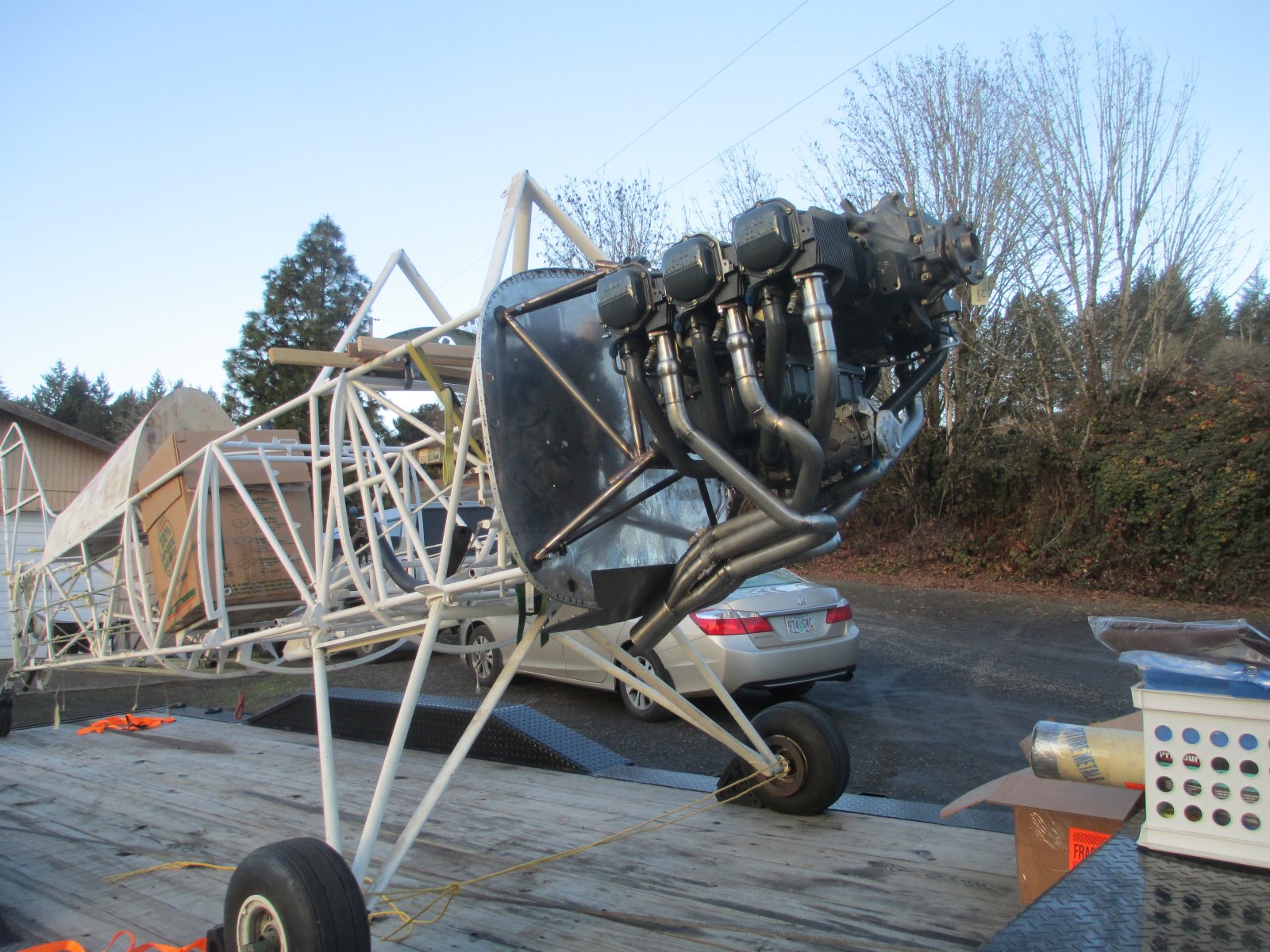

  17. Paul
    Joined: Aug 29, 2002
    Posts: 16,625

    Paul
    Editor

  18. Paul
    Joined: Aug 29, 2002
    Posts: 16,625

    Paul
    Editor

  19. Paul
    Joined: Aug 29, 2002
    Posts: 16,625

    Paul
    Editor

  20. -Brent-
    Joined: Nov 20, 2006
    Posts: 7,491

    -Brent-
    Member

  21. patsurf
    Joined: Jan 18, 2018
    Posts: 1,386

    patsurf

  22. Marty Strode
    Joined: Apr 28, 2011
    Posts: 9,345

    Marty Strode
    Member

  23. Marty Strode
    Joined: Apr 28, 2011
    Posts: 9,345

    Marty Strode
    Member

  24. -Brent-
    Joined: Nov 20, 2006
    Posts: 7,491

    -Brent-
    Member

    @TexasSpeed fabbed it!

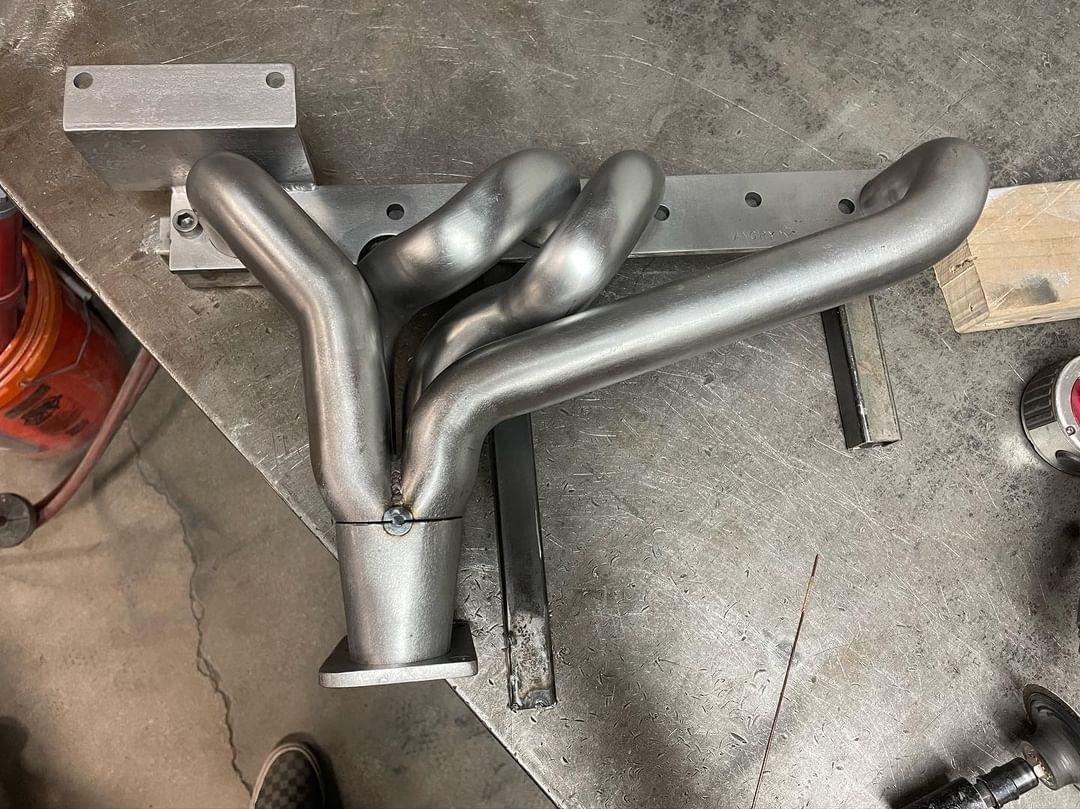

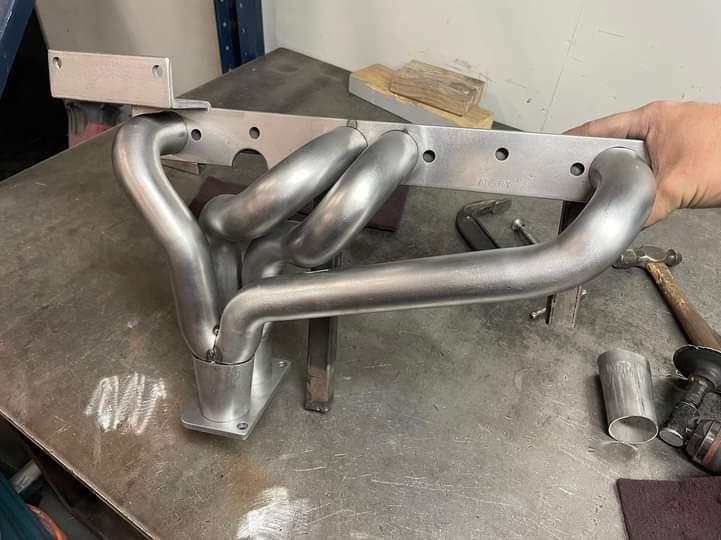

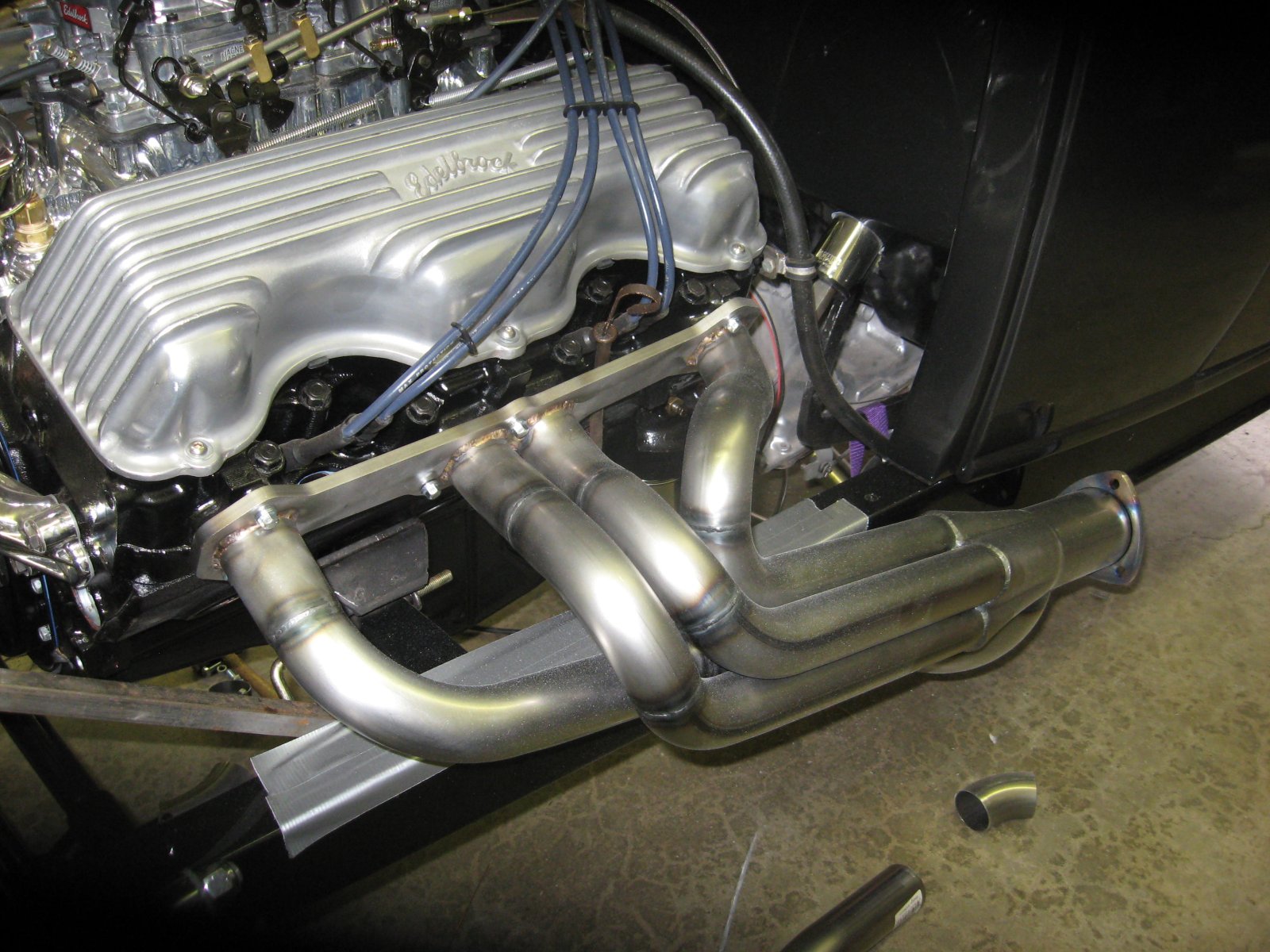

    Header Progress.jpg Header Progress 2.jpg

  25. big duece
    Joined: Jul 28, 2008
    Posts: 6,895

    big duece
    Member
    from kansas

    20240720_132653.jpg You didn't mention scale, does 1/8 scale count?

  26. Paul
    Joined: Aug 29, 2002
    Posts: 16,625

    Paul
    Editor

    and new headers to fit.
    I don't know who built the new headers
    or if they cut mine up to do it.

  27. Paul
    Joined: Aug 29, 2002
    Posts: 16,625

    Paul
    Editor

  28. Paul
    Joined: Aug 29, 2002
    Posts: 16,625

    Paul
    Editor

  29. 69fury likes this.
  30. Budget36
    Joined: Nov 29, 2014
    Posts: 14,358

    Budget36
    Member

    That’s pretty intense!
