Let's Talk Cyclecars

Discussion in 'The Hokey Ass Message Board' started by Bigcheese327, Dec 4, 2007.

  1. `50 Spartanette
    Joined: Jun 30, 2011
    Posts: 58

    `50 Spartanette
    Member

    definitely cant afford to buy and restore a genuine Cyclecar,
    but i`m seriously thinking about building my own "vintage styled" version :rolleyes:

    after looking at a gazillion pics i think the "airplane fuselage" Sandford cars are very inspiring.
    (i love vintage airplanes ... actually i love everything made out of aluminum & lots of rivets :cool:)

    [​IMG]

    [​IMG]

    i also like this `29 Speedster ;

    [​IMG]
    [​IMG]

    so i used that pic to "photoshop" my vision of a "modern" Sandford trike;

    [​IMG]

    i`m thinking to use a newer shaft driven V-twin Bike as driveline donor
    something like a Vulcan 1500 or similar (sorry, not very HAMB friendly :rolleyes: ... but cheap, powerful and reliable)

    i guess a model A grille shell & headlights would be a good starting point
    and i could shape the rest of the aluminum body to match....

    what do you guys think about this ???

  2. nexxussian
    Joined: Mar 14, 2007
    Posts: 3,240

    nexxussian
    Member


    Earlier T she'll would likely be a better fit (shorter and narrower, if you get the right one ;) ).

    Rendering looks good. :)

  3. banjeaux bob
    Joined: Aug 31, 2008
    Posts: 6,677

    banjeaux bob
    Member
    from alaska

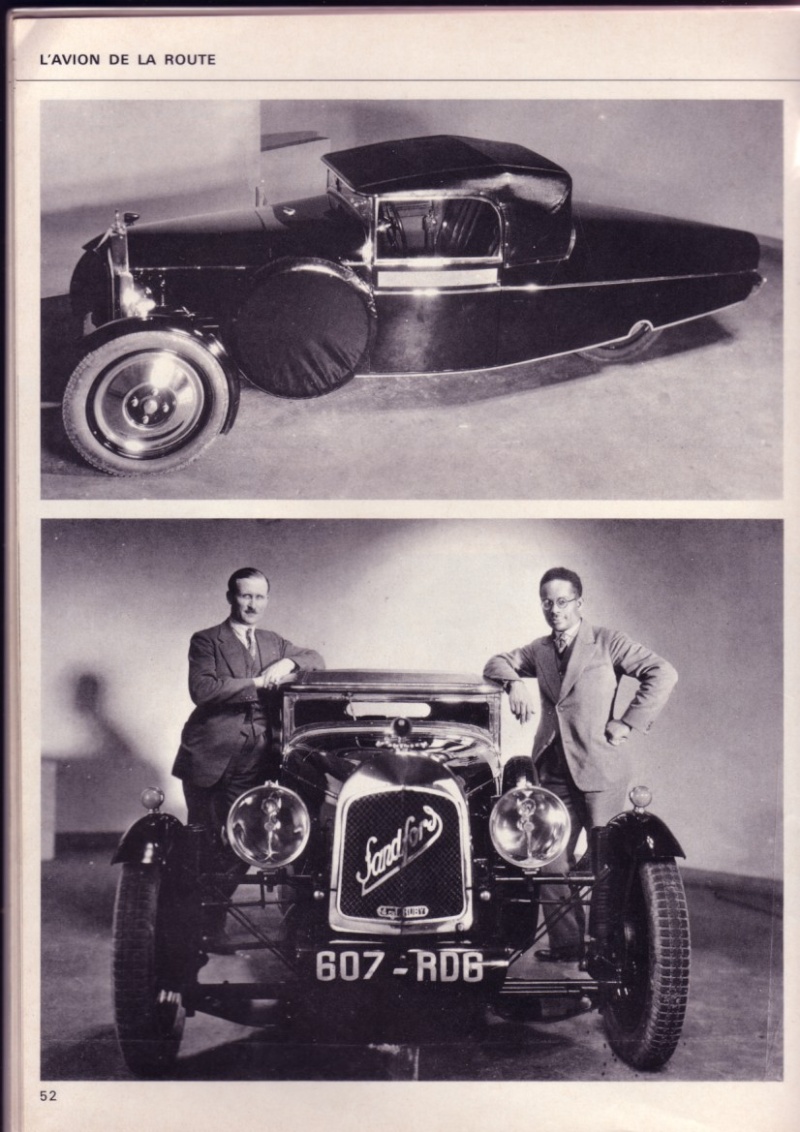

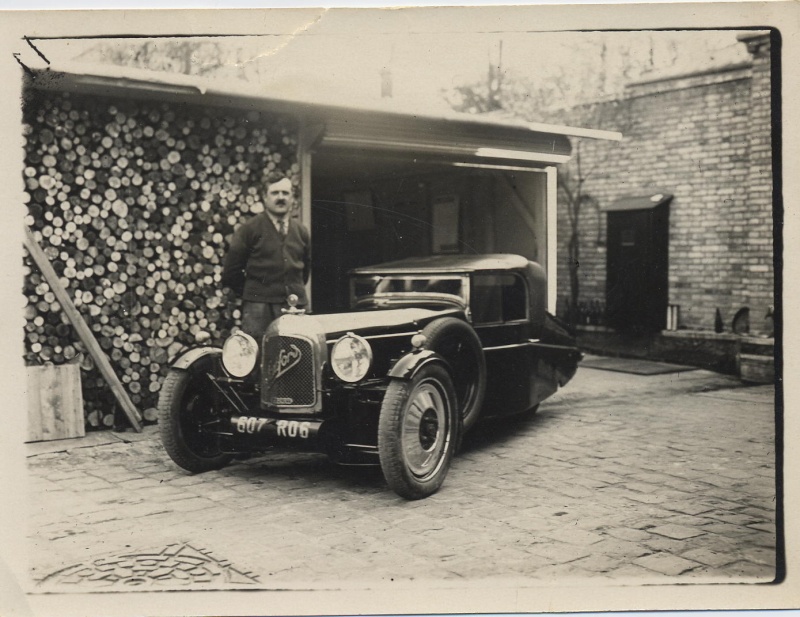

    Here you go '50 Spartanette, 2 of my favorite Sandford images.


    Attached Files:

  4. `50 Spartanette
    Joined: Jun 30, 2011
    Posts: 58

    `50 Spartanette
    Member

    thanks Bob

    i like the "L`Avion de la Route" (the airplane of the street) :cool:

    love the chopped look, but how could you enter the car with the top up :confused: :p


    nexussian

    after figuring out the basic chassis dimensions i think the 22.5" wide and 29" tall Model A shell will be a perfect match.
    this gives me plenty of underhood room to hide a tall V-twin and its radiator
    the seating position will be a little higher then in a Morgan (to clear the driveshaft) , so i think a taller hood will not look out of place

    btw
    here is another photoshop of how i roughly envision the driveline (left front tire missing for clarity):

    [​IMG]

    however, i think i will set the engine back a little more between the drivers feet.

    Last edited: Jul 3, 2013
  5. banjeaux bob
    Joined: Aug 31, 2008
    Posts: 6,677

    banjeaux bob
    Member
    from alaska

    I've posted these before,maybe '50 Spartanette might like them as well!

    Last edited: Jul 9, 2013
  6. ebtm3
    Joined: May 23, 2007
    Posts: 837

    ebtm3
    Member

    No springs? And high pressure tires?

    OH my aching kidneys!

    Herb

  7. Ned Ludd
    Joined: May 15, 2009
    Posts: 5,324

    Ned Ludd
    Member

    There does seem to be provision for axle motion, so presumably there are springs of some sort.

  8. 64 DODGE 440
    Joined: Sep 2, 2006
    Posts: 4,432

    64 DODGE 440
    ALLIANCE MEMBER
    from so cal

    Love the extreme drop on that front axle. It looks like there are semi-elliptic springs hidden under the sheetmetal on the front of the chassis and the rear has slots for the axle to move vertically. Seems like they did a lot to streamline and fair in all the running gear. Neat little car.

  9. banjeaux bob
    Joined: Aug 31, 2008
    Posts: 6,677

    banjeaux bob
    Member
    from alaska

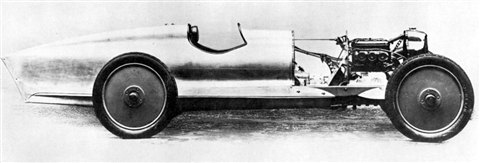

    It's called the Razorblade.1926 Panhard. There is even a model of it. I think Old dodge has the right idea about the springs. This car went 214 kmh at Montlhery.


    Attached Files:

    Last edited: Jul 4, 2013
  10. `50 Spartanette
    Joined: Jun 30, 2011
    Posts: 58

    `50 Spartanette
    Member

    wow... amazing craftsmanship :cool:

    [​IMG]

    very inspiring ;)

    Last edited: Jul 3, 2013
  11. banjeaux bob
    Joined: Aug 31, 2008
    Posts: 6,677

    banjeaux bob
    Member
    from alaska

    Salmson VAL3 kit of parts being sold in France.Around 6000 Euros.


    Attached Files:

  12. morac41
    Joined: Jul 23, 2011
    Posts: 531

    morac41
    Member

    Hi.. banjeaux bob.....I just want to thank you for your constant contribution to this thread ...I get a lot of enjoyment reading it every day.....Cheers Doug

  13. banjeaux bob
    Joined: Aug 31, 2008
    Posts: 6,677

    banjeaux bob
    Member
    from alaska

    Doug,you are more than welcome.Glad you enjoy it.Maybe you could post some here too!

    BanjeauX Bob

  14. Airhead Roadster
    Joined: Sep 26, 2012
    Posts: 106

    Airhead Roadster
    Member

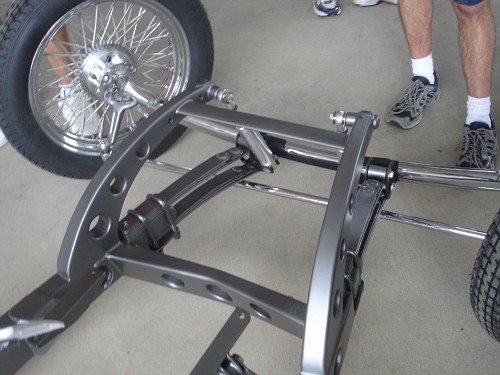

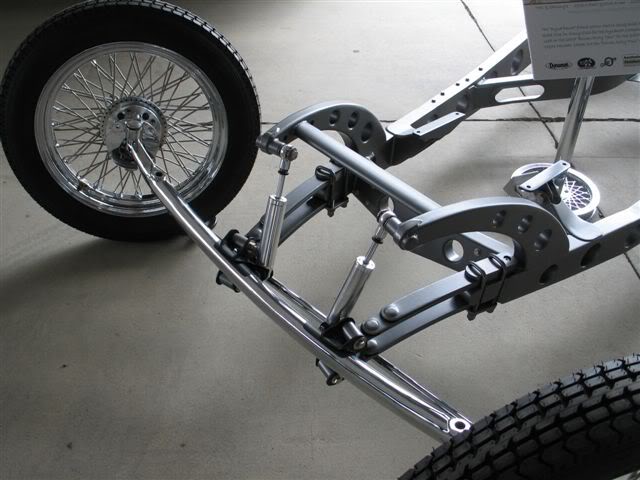

    Here's a neat front suspension setup I came across while searching the web.


    Attached Files:

  15. Airhead Roadster
    Joined: Sep 26, 2012
    Posts: 106

    Airhead Roadster
    Member

  16. banjeaux bob
    Joined: Aug 31, 2008
    Posts: 6,677

    banjeaux bob
    Member
    from alaska

    Airhead Roadster,that front end comes from the Dynamat 32 Roadster.


    Attached Files:

  17. banjeaux bob
    Joined: Aug 31, 2008
    Posts: 6,677

    banjeaux bob
    Member
    from alaska

    2 more images of the Razor Blade...


    Attached Files:

  18. Ned Ludd
    Joined: May 15, 2009
    Posts: 5,324

    Ned Ludd
    Member

    [​IMG]

    Pretty but not that clever: the narrow spring base requires a lot of spring rate for the amount of roll stiffness it gives, and moreover creates a large bending moment in the portion of axle between the spring attachment points. In other words, expect an unnecessarily heavy axle, and either a harsh ride or tail-happy handling.

  19. Bobert
    Joined: Feb 21, 2005
    Posts: 820

    Bobert
    Member Emeritus

    Check out the third from last photo in post #74794.

  20. UKAde
    Joined: Nov 13, 2002
    Posts: 502

    UKAde
    Member
    from Oxford UK

    My personal opinion aout this car is the grill is too far forward

  21. 64 DODGE 440
    Joined: Sep 2, 2006
    Posts: 4,432

    64 DODGE 440
    ALLIANCE MEMBER
    from so cal

    I agree on that. it should be about where the rear edge of that grill shell sits.

  22. banjeaux bob
    Joined: Aug 31, 2008
    Posts: 6,677

    banjeaux bob
    Member
    from alaska

    Here is a great little video of an Amilcar

    Go to YouTube

    Search : Amilcar (Driver Kees Kersten)

  23. Kume
    Joined: Jan 23, 2010
    Posts: 1,001

    Kume
    Member

    Fabulous !

  24. Ned Ludd
    Joined: May 15, 2009
    Posts: 5,324

    Ned Ludd
    Member

    <iframe width="640" height="360" src="http://www.youtube.com/embed/C5yu-3pjhCA?feature=player_detailpage" frameborder="0" allowfullscreen></iframe>

  25. Ned Ludd
    Joined: May 15, 2009
    Posts: 5,324

    Ned Ludd
    Member

    ^^^
    That is patina. The appearance that the remaining half of something has just been dug out of a swamp is not patina.

  26. ago
    Joined: Oct 12, 2005
    Posts: 2,198

    ago
    Member
    from pgh. pa.


    I agree with you 100%. Some of the trash people call patina is crazy.



    Ago

  27. banjeaux bob
    Joined: Aug 31, 2008
    Posts: 6,677

    banjeaux bob
    Member
    from alaska

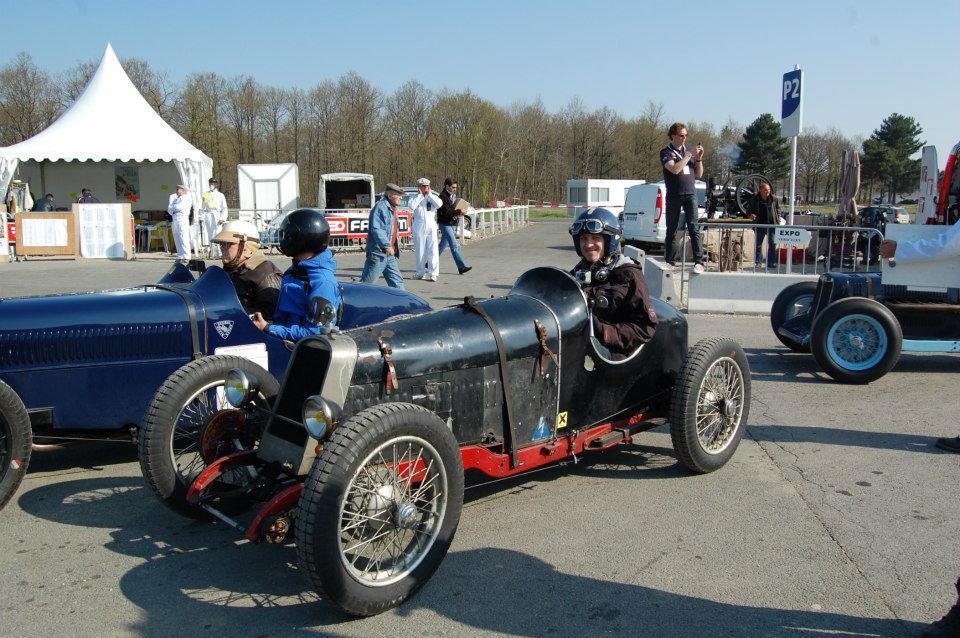

    Another one of my favorites.... 750cc Ratier.Picture taken at Vintage Revival Montlhery 2013 by Isabelle Bracquemond and the Indian Motorcycles Club France.


    Attached Files:

  28. Airhead Roadster
    Joined: Sep 26, 2012
    Posts: 106

    Airhead Roadster
    Member

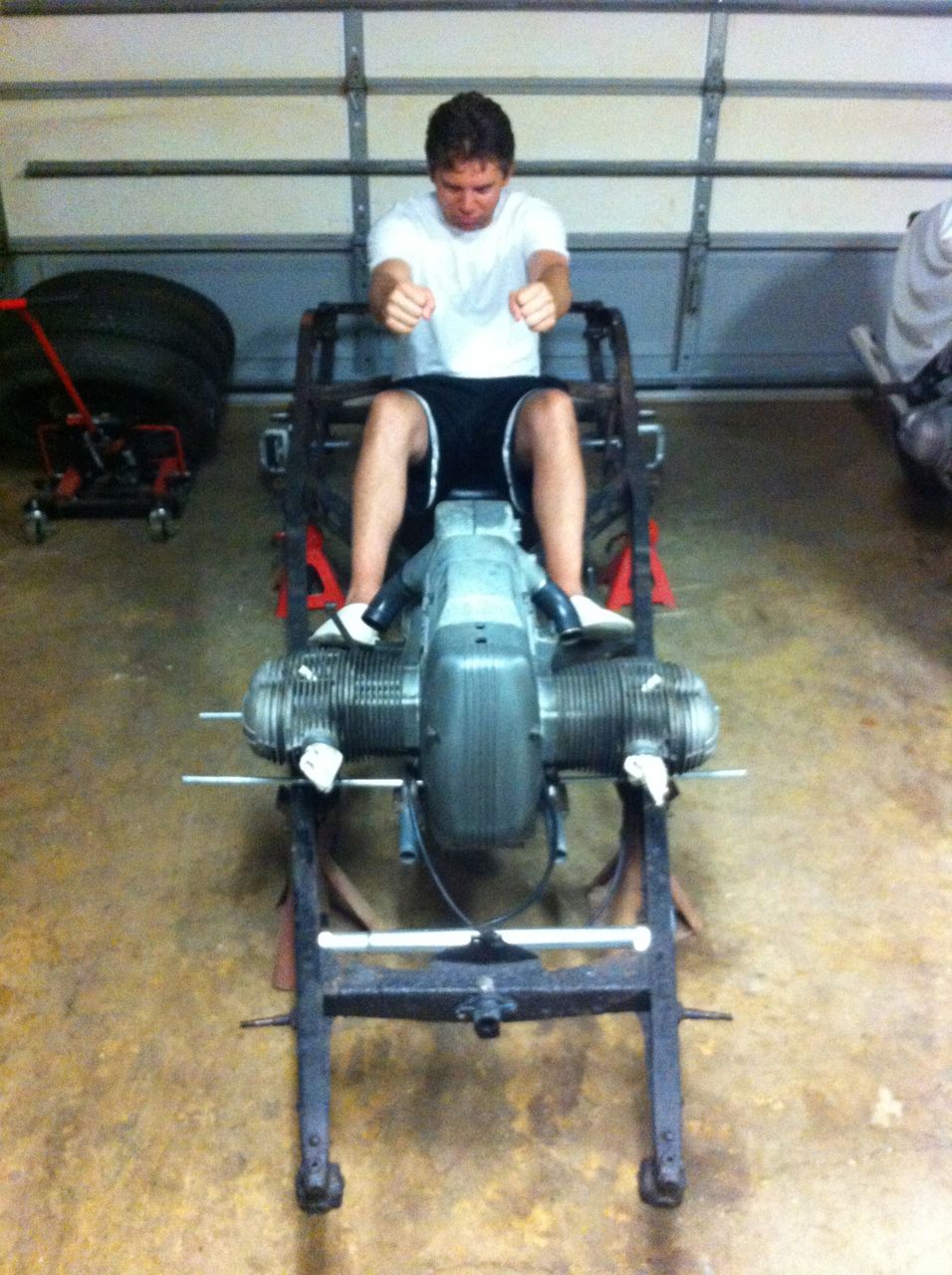

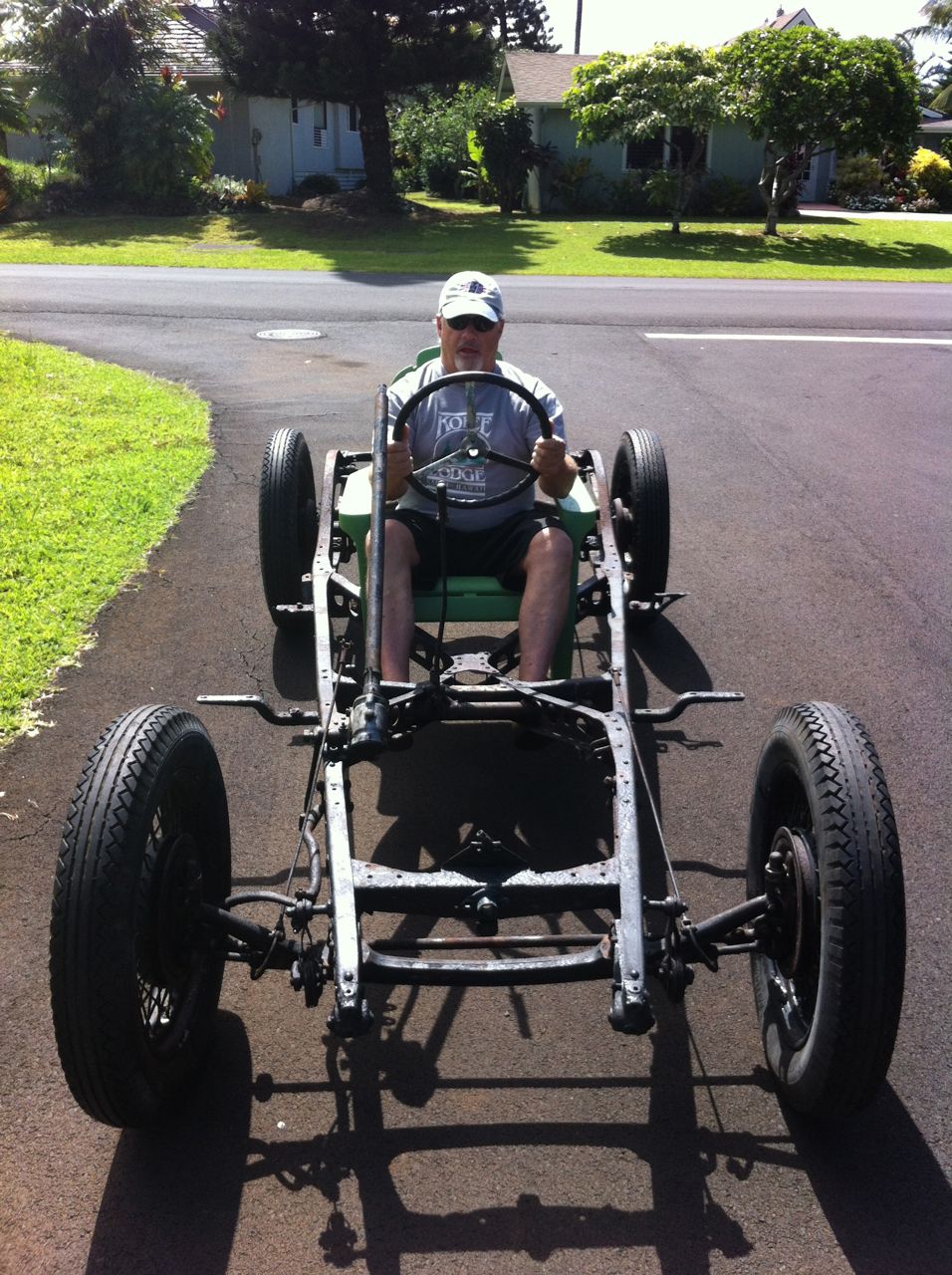

    My friend Mark (6'6") and my friend Joe (5'7") testing the AR's seating position and pedal layout. I'm building the car for myself, but enjoy the challenge of making it operable for others the way a production car designer would.


    Attached Files:

  29. `50 Spartanette
    Joined: Jun 30, 2011
    Posts: 58

    `50 Spartanette
    Member

    lol ....AR; in the first pic it looks like your friend is making engine noises :D

    i`m also making some progress on my project:
    (but for the moment only in the virtual world :rolleyes:)

    [​IMG]

    [​IMG]

  30. banjeaux bob
    Joined: Aug 31, 2008
    Posts: 6,677

    banjeaux bob
    Member
    from alaska

    The Ganger Hartley Anzani-Nash,seen at this last weekends VSCC meet at Shelsley Walsh. G.L. image.


    Attached Files:
