Let's Talk Cyclecars

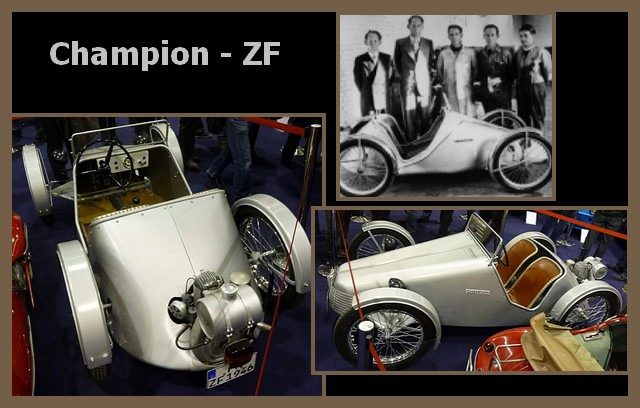

I really like the champion,
The moter "TWN" , was a german moter ?

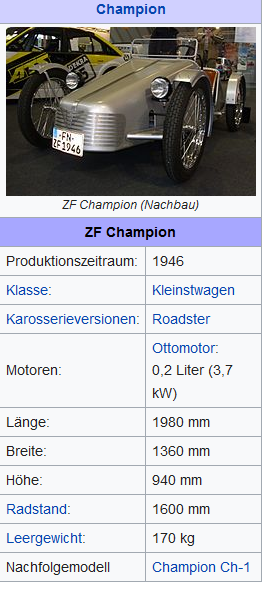

HERE IS SOME DATA
THESE ARE WONDERFUL TINY CARS. HONESTLY A MOTORIZED OVERCOAT

http://deacademic.com/dic.nsf/dewiki/246579



TWN stood for Triumph Works Nuremberg. (I think!) Not any relation to the English Triumph Motorcycle.

Herb

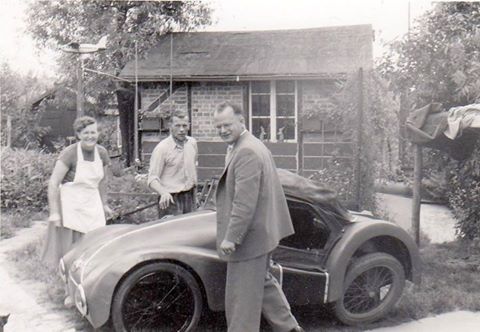

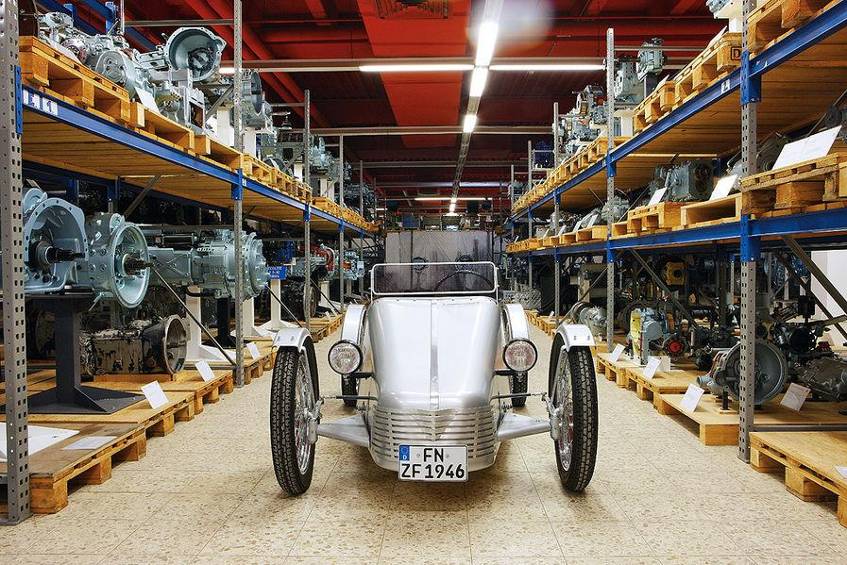

... a few more photos of Champion micro-car!









After the Second World War, Europe was full of new-developed micro-cars, some known as bubble-cars, some in a style of modern cyclecars, as the first models of Champion or Voisin Biscooter! However, soon small cars, but designed and made as real cars prevailed and micro-cars disappeared.

Ciao,
Zoran​



... and, a few more:

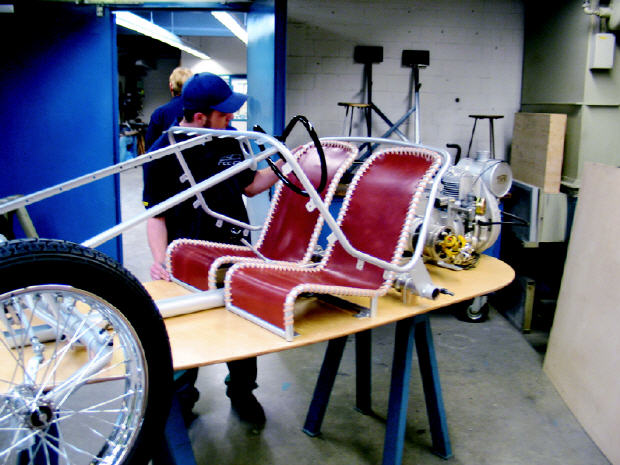

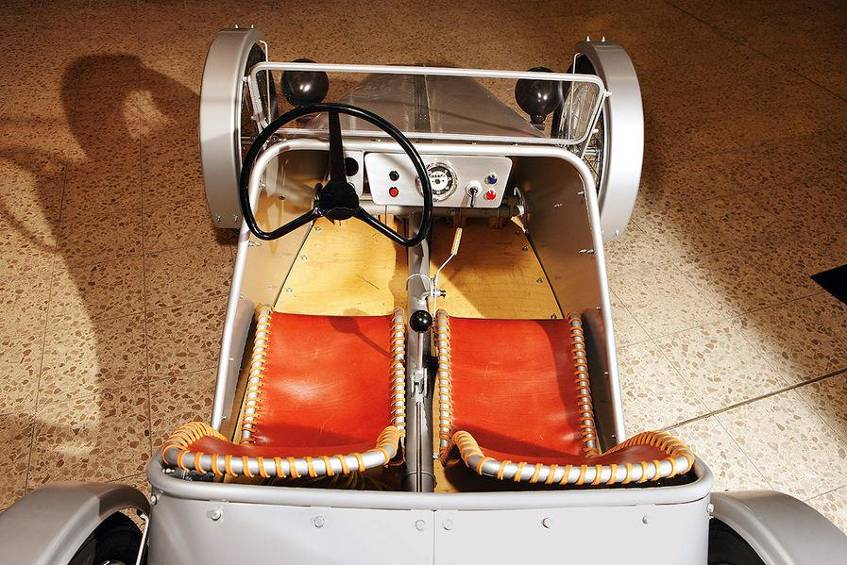

Looks like a substantial part of the ch***is is the wood plank.

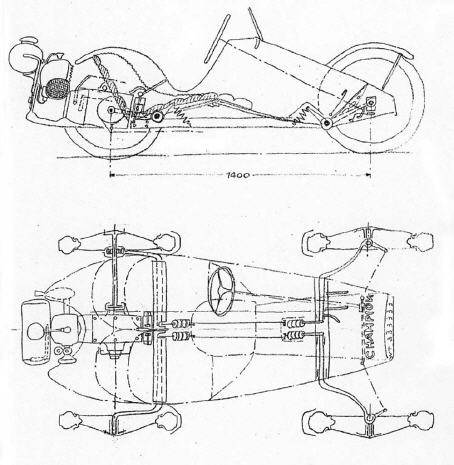

Not really. The plywood is primarily a seat base. It is an I-beam ch***is stiffened by the ****pit surround. The skin and the seat base add only a little to the stiffening.



===========================

Hello,​

I think that you must be right, according to photos and sketch!
Probably that wooden plate is made of plywood?

We should pay attention to the central tube connecting the front and the rear cross-tubes that are carriers of the front and the rear suspension.
All four wheels are independently suspended, with long leading arms at the front and long trailing arms at the rear, with coil/spiral springs attached to the central tube, two for front and two for rear arms...

Probably that light (aluminium?) carrosserie with tube frame add some stiffness and torsional resistance for the entire system?

So, besides a cute look of light quadricycle for two persons, it was designed and constructed in a very clever way.

Would be nice to replicate it as "light quadricycle" according to E.U. Directives, but not an easy task, including half-shafts with universal joints (maybe rubber disks?)

Ciao,
Zoran​



P.S.: It seems that SR100 and I were writing comments at the same time!
(still think that plywood plate have some role in stiffness and torsional resistance with everything else, including soft springing)
Z.

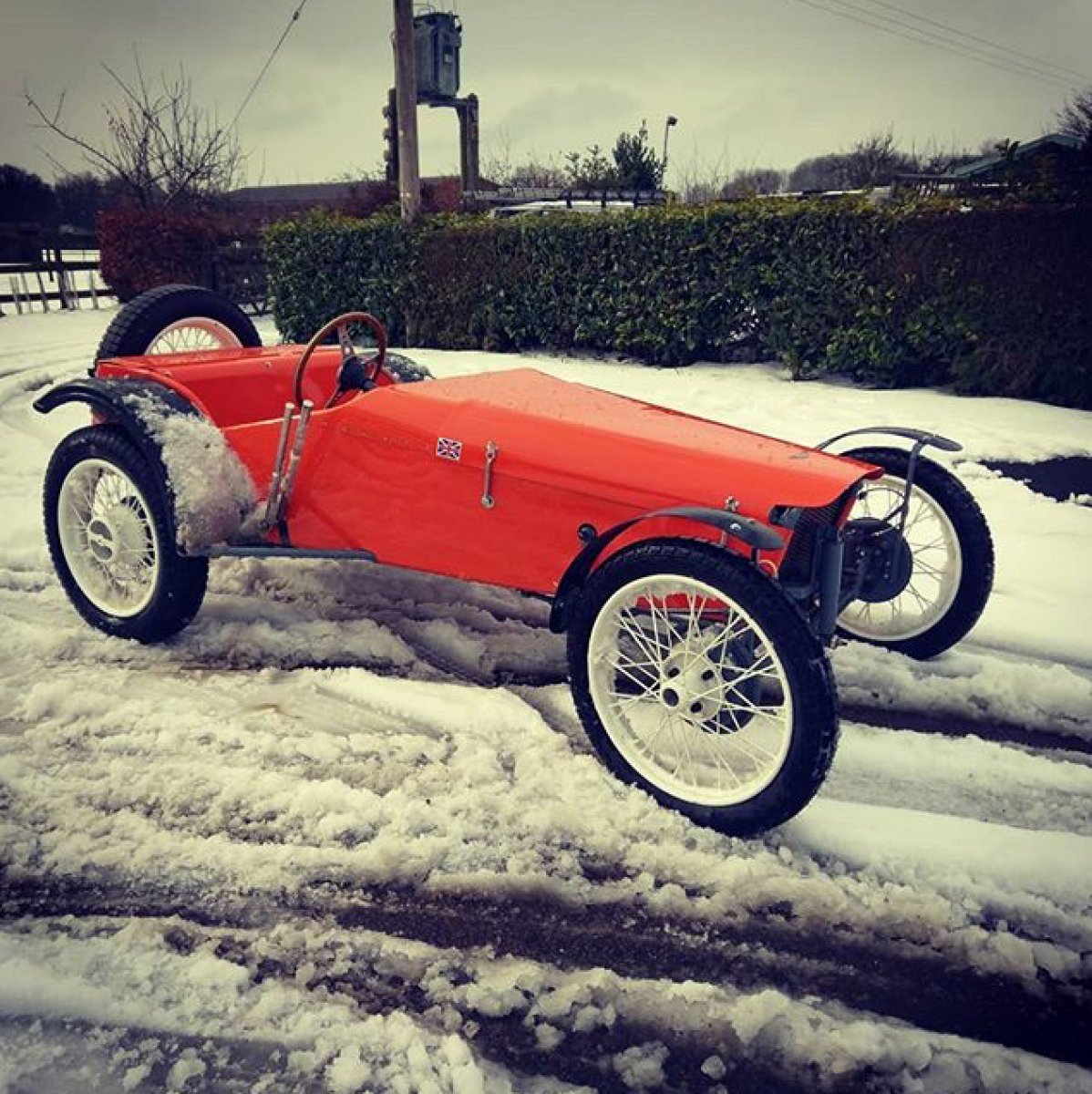

# Not a cyclecar.


Legends

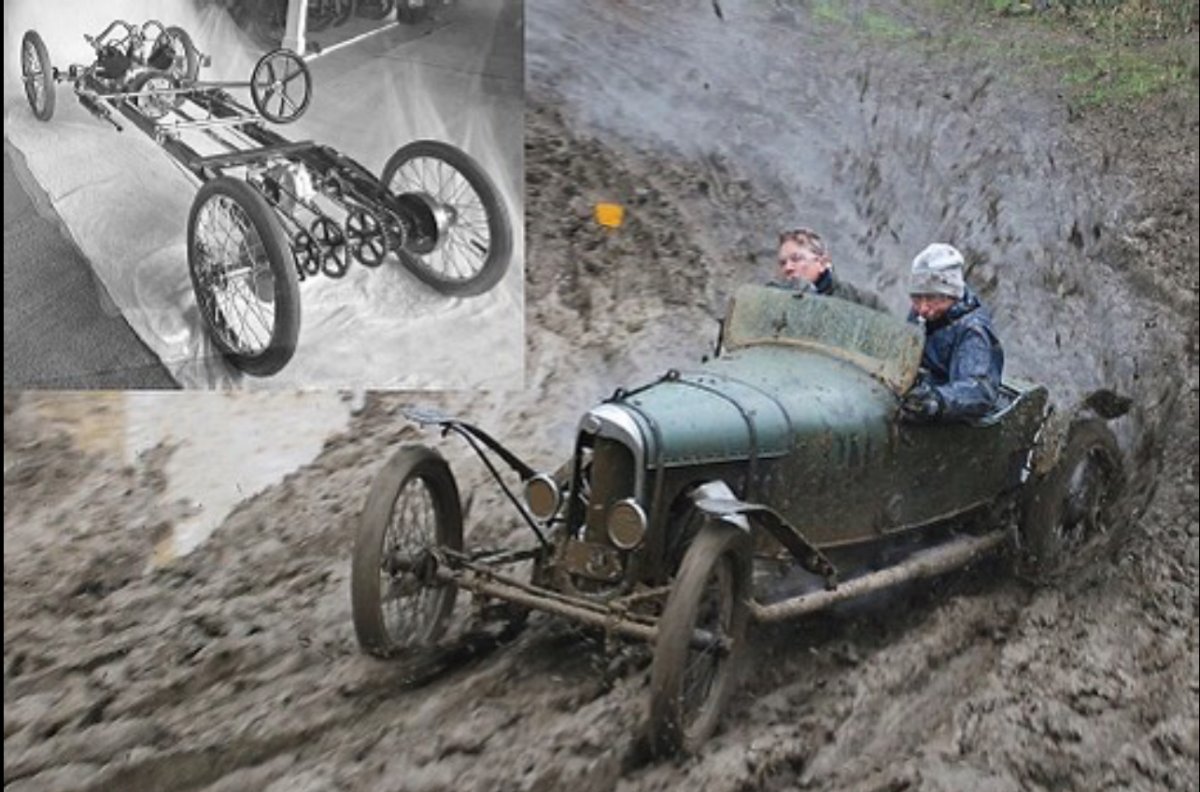

Looks like a Cannon manufactured sporting trials car

This is the natural environment for a UK trials car



"Would be nice to replicate it as "light quadricycle" according to E.U. Directives, but not an easy task, including half-shafts with universal joints (maybe rubber disks?)"
-------------------
Great idea! With a carbon fiber composite plank.



... oh, no!​

At least for me - only good and practical composite is plywood!
(for carrosserie, plywood could be covered with cotton fabric and painted, or by fine and polished aluminium folie)

About carbon-fiber I do not know anything otherwise that it is excellent material and expensive.
Maybe to use painting in a style of "carbon-fiber-look" as often is done now? Of course - NOT!

For me as a kid from the middle of ** century (still couldn't say: the previous/last century), only cl***ic materials for any replica, especially of cyclecar: steel or/and aluminium, plywood and wood-sticks, fabric...

For modern light motorised road-going vehicles - every one of modern materials and technologies is possible, even welcomed!

Ciao!
Zoran​



P.S.: Possible solution?
... Polish humor about modest possibilites...
Z.

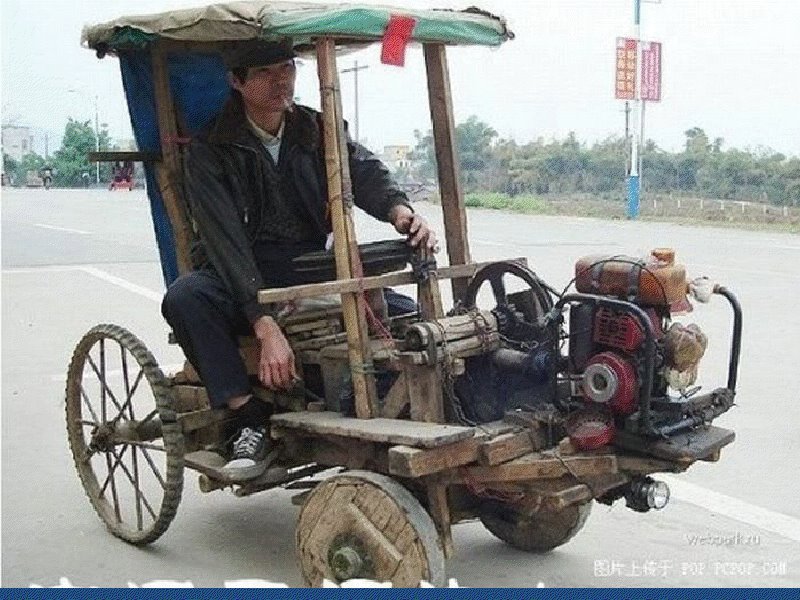

P.P.S.: Asian-African reality...
(don't worry, vehicles are movable and faces are smiling)



Great stuff Zoran. Love the Flintstone one.



A bit short on wheel count but still in the spirit . . .



We are officially off the rails...



... like 90% of the times until now?
(but have fun)
Ciao,
Zoran



THANK YOU

I, FOR ONE, AM VERY HAPPY WE DIDN'T GET OFF ON PARTICLE CONTAINMENT IN A FUSION REACTOR

BACK TO QUIRKY LITTLE KNOWN EARLY AND OFTEN HOMEMADE AUTOMOBILES, PLEASE

"HOW MANY ANGELS?" FIT ON THE HEAD OF A PIN HAS ALREADY BEEN DONE TO DEATH



... SOOOOOOOOOO, ​

THE SIMPLEST CYCLECARS THAT COULD BE BOUGHT FROM TURN OF THE CENTURY UP TO FIFTIES: AMERICAN INVENTION - BUCKBOARD CYCLECARS!

SIMPLE WOODEN PLATFORM WITHOUT ANY SUSPENSION! CH***IS IS FLEXIBLE IN ANY DIRECTION TO AVOID PROBLEMS WITH UNEVEN ROAD SURFACE, AND BUMPS OR HOLES (NOT TOO BIG), GIVING "COMFORT" IN RIDE...
OFTEN WITHOUT GEARBOX AND SOME VARIANTS EVEN WITHOUT CLUTCH...

THIS TIME, PRESENTED IS REPLICA OF MC-DONOUGH BUCKBOARD FROM FIFITES, MADE BY JIM FLANINGAN FROM THE USA, MEMBER OF CYCLEKART CLUB.

HIS EXPLANATION:

"The wheelbase is 69 in. Front and rear track are 40.5 in. The seat is 40 in wide. Rear bed is 36.l in x 34.5 in. The steering wheel is 11 in. Tires are 16 x 2.50. Overall length is 104 in. Powered by a Hemi 212cc. CVT trans and disc brake for the right rear wheel. The left rear wheel is freewheeling. I saw pictures of the original and eye-ball engineered it. It came out looking good!"​

IT IS SOMETHING BIGGER THEN ORIGINAL WELL-KNOWN AS EXPONENT IN FORMER MICRO-CAR MUSEUM OWNED BY BRUCE WEINER.

CIAO,
ZORAN



... TOM BARTLETT, ANOTHER MEMBER OF CYCLEKART CLUB MADE REPLICA OF RED-BUG ELECTRIC BUCKBOARD!






HIS EXPLANATION:

"I am in the process of converting my replica of a 1919 Briggs & Stratton Flyer to the later Electric Auto Red Bug. I removed the 5th wheel and gasoline engine, and subs***uted a 1924 Dodge 12-volt starter/generator driving the right rear wheel. I also added a mechanical expanding drum brake (Ford Model T brake drum) on the left rear wheel, similar to the original. I have retained the original wagon-type wheel-scrubbing rear brakes as a parking/emergency brake. I am re-furbishing the entire vehicle at the same time, installing the proper McCauley type (crowned) fenders with hub caps on all axles. I also changed the original manual horn to an electric one, and wired up the tail/tag light and the head lights."​

BOTH THE FIRST SHOWN AND THIS ONE - POSSIBILITIES FOR BEGINNER IN CYCLECARS REPLICA MAKING AT HOME?
NEXT TIME - ORIGINALS, PHOTOS AND VIDEOS!
Z.

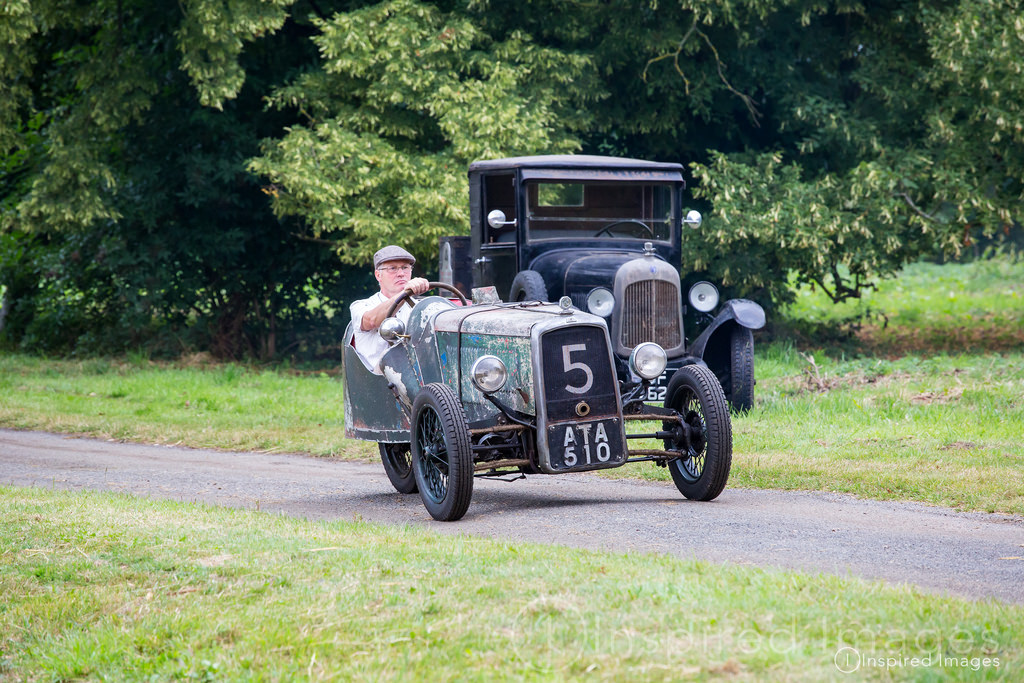

Love these tribeezas. According to my 'Boys Book of the BSA' the front wheel drive setup was copied from the Alvis failure.



I'd love to find a BSA to add to my collection. That one is a beauty.



I have that top pic as my screen saver.

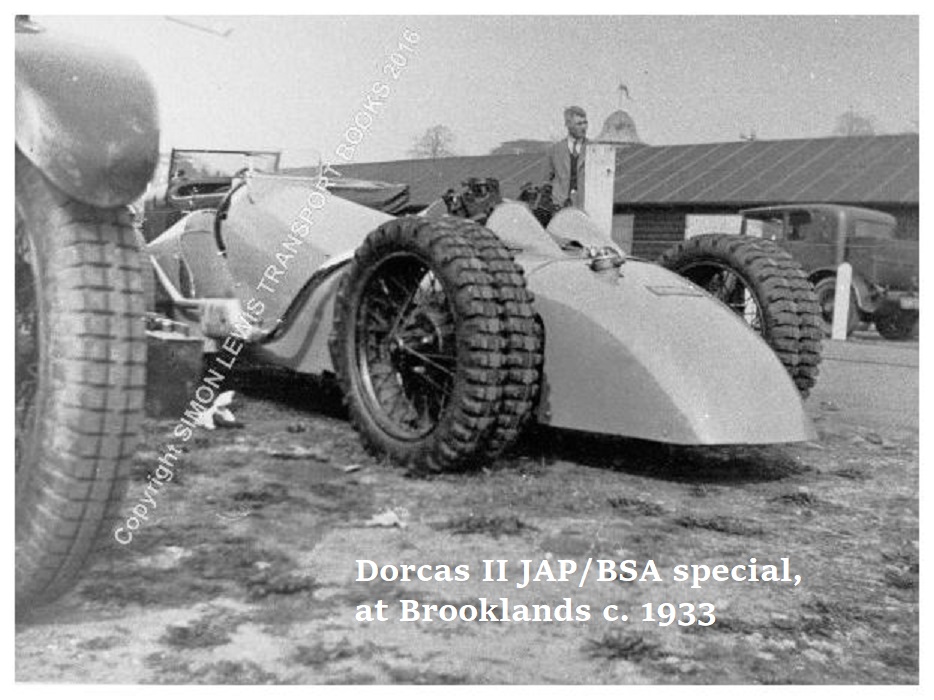

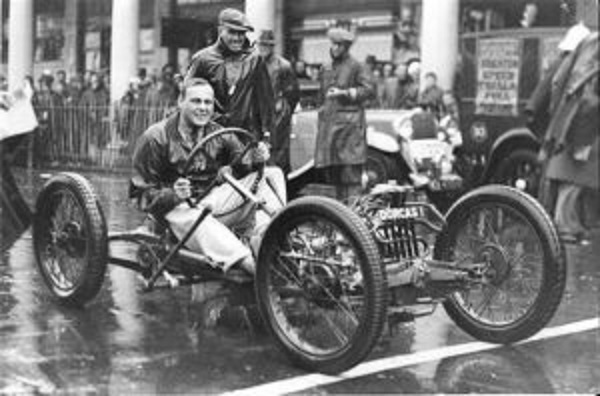

Shame BSA didnt develop the Hotchkiss or used JAP like Dorcas. Image from Bob #8702

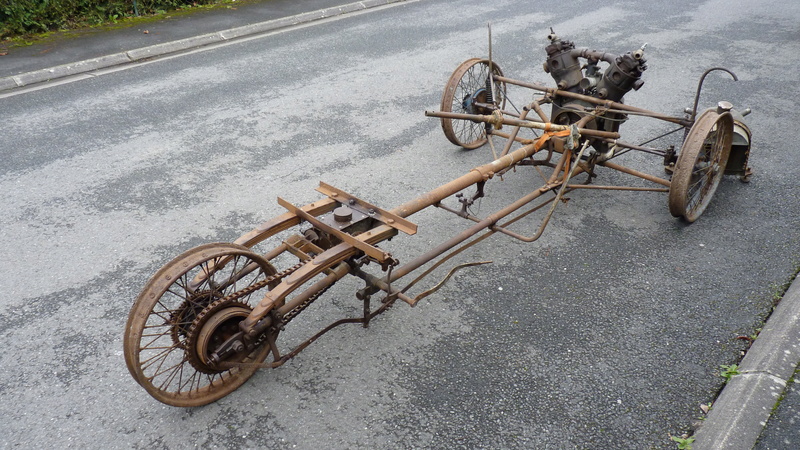

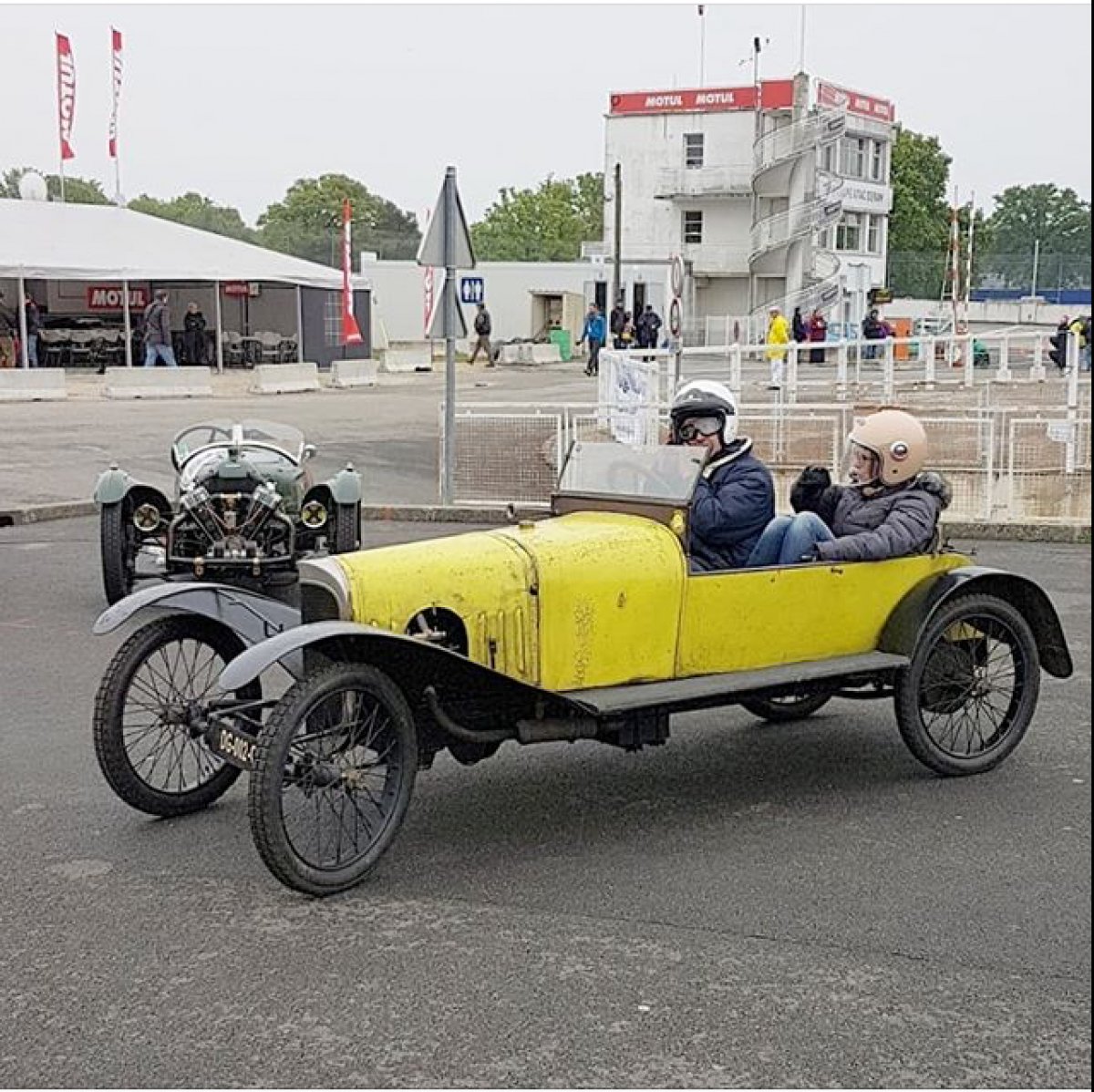

A naked Darmont!!



Hello Kume,
From unknown reason, I always prefer Sandford and Darmont (later variants) or BSA three-wheelers, compared to Morgans...
Ciao,
Zoran



Kume,​

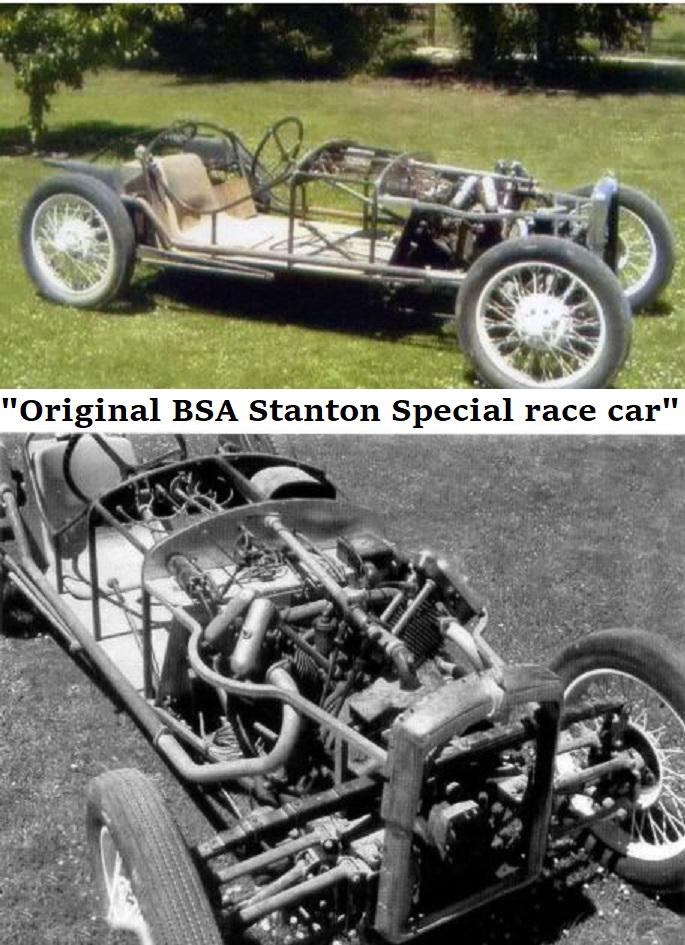

As most of the British-based specials, ****as and some other BSA specials had many variants in their original time, but many modifications up to date...

If I remember well, there were variants of 4-wheel-drive specials, some successful (with propeller-shafts) some not (with chains)...

Great fun for designers/constructors/drivers, but for public too, or us in forums...

Zoran
​
