make a 3 W coupe out of a PU cab

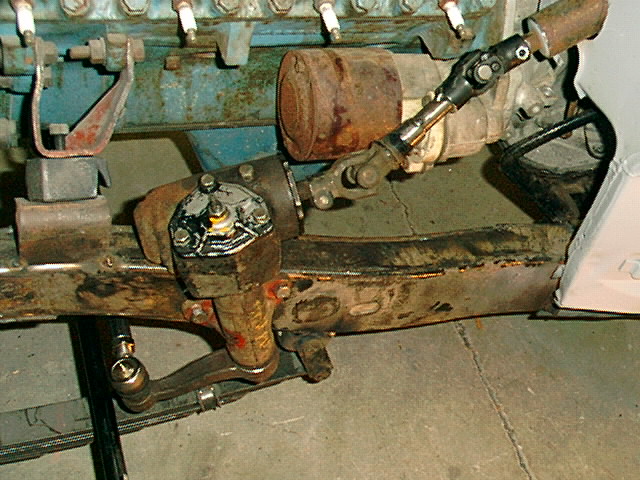

For the last month i have been trying to get the car to steer and hang pedals. I'm short on room and long on legs. This is what i came up with. I ended up using a 80's Toyota pu manual box that bolts to the outside of the frame. It used a rag joint but found that a 90's nissan pu uses a u joint and fit this box. then went to a 3/4 shaft and a DD coupler. The Yota piman armed needed to be reamed from the other side to take the tie rod end. The pitman arm has no index so it can go anywhere. I used a speedway cross steer rod end on the pass. side and all seems well. I had to bush the mopar steering arms and reem also to fit the Ford ends. I used a 36 mopar right arm on the left side to make this work. The column is a old dodge truck one cut down. I ended up with enough room to do a through the floor brake pedal. My lake style headers will hide the whole mess. Ray



Looks good!



a magician with metal. good work.



Ray, Good progress on your Coupe. Looking forward to further updates.

41 Dave



whoa. awesome. nice work!



HUUMMM...the old R word again.FRANK i allready see the hand writing on the wall. some of these folks have lined up to take credit for your work. BUT i'll know exactly who did it. the problem is i'am 68 yrs. old and won't remember!...POP.



great job Ray, all your hard work has really paid off



Made the headers. The inside floor next and then blow it apart. Happy Thanksgiving!



Really starting to come together, keep us posted



Damn what a cool CAR, you can't even tell that is or ever was a truck. Great job with the metal work, and a great eye for design.

Is the car sitting at ride height? Looks like it is too high in the front, unless the gasser look is what you are after?



You
rule.



something about the front wheels looks weird to me, i cant put my finger on it though! does anyone else see it? backspacing? tires?



Maybe just the front parellel spring suspension, that is what throws me off. Just something your not used to seeing, but not in a bad way.



ahh true. i think its because the wheels are usually set foreword more.



the best work ive seen in a while......


the only problem i can find is you did it to good.....

when you go to a show noone will know the amount of work and effort you put into it.......it will just look like another mid 30s coupe.......to most people...



awsome work though



The talent and skill of the people on the HAMB is truly amazing! Ray you seem to have more than your fair share of both.Keep it up my friend because you are truly a inspiration to others, and that is great thing.
Bob



Just make sure you take one of those "before" pictures and blow it up real big. Keep an album of the build pics in the car, or nobody will believe it.

I'd love to see some photo's of the work you do at your day job. You've got this hobby shit ruled, you must be the cat's ass professionally.



all i can say is ive followed this build from pretty much the start and this is truely great work...cant wait to see the end of this ..keep it up



Looking forward to final post's



U n b e l e i v a b l e .



That's just amazing! I can't make that much progress on my sedan that started out as a sedan!



Thanks for the atta boy's
Is the car sitting at ride height? Looks like it is too high in the front, unless the gasser look is what you are after?[/QUOTE]
It will sit a little high in the front, ( kinda gasser) I will kick the rear up another inch.

when you go to a show noone will know the amount of work and effort you put into it.......it will just look like another mid 30s coupe.......to most people...[/QUOTE]
That was the idea. I don't want one thing to stand out......just blend together. And no before and after pics in a album. It would give people a reason to pick at it. Just let it sit there. Ray



Super begining............Count me in for moral support!!



nice work.



I've blown past this thread a number of times and for some reason today I clicked in. Now that I've spent over an hour reading and studying the pix I can only think of one thing to say.

DAMN!!! That's talent!

You nailed "The Look". I wouldn't change a thing you've done. Amazing work Sir.

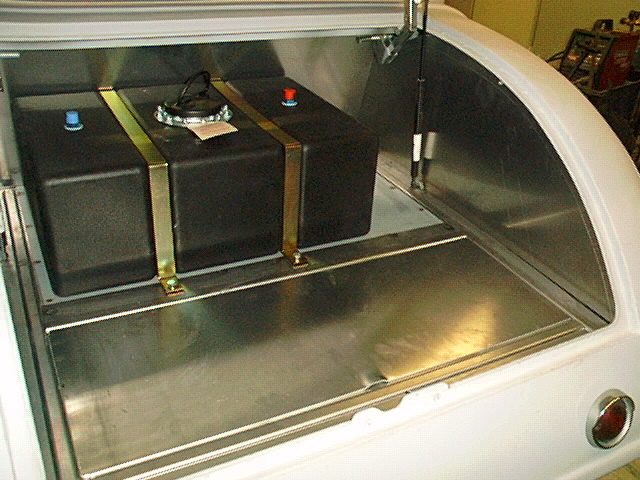

Hey, Starting in on some of the inside sheetmetal. I'm glad i did some pre planning when bracing for the quarters. Built a nice tool cuddy and bat. box under the floor and mounted the 16 gal. fuel cell. On to the cab floor and tunnel next. Ray
