  1. A bolt in M40 gearbox with no torque tube modification.
    My friend Nöru and I were discussing the Volvo M40 gearbox and the threads on here, about it, and the difficulty of getting the gearbox to fit into a Model A without changes to the torque tube. Me being a sucker for punishment, said I would have a go at it. Now here in Europe Volvo gearboxes are not hard to find and nor expensive.
    There is a lot of info on here, the H.A.M.B. about what you have to do, and I studied these threads, and my friend dropped a Volvo gearbox off to me to have a play.
    Here’s a short summary of what’s needed

    Model AA truck bellhousing, or aftermarket short bellhousing
    Volvo M40 gearbox

    modify flywheel for Volvo clutch
    Adaptor for Volvo input shaft pilot bearing
    Adaptor model A clutch fork to Volvo throw out bearing
    Shorten Volvo input shaft about 16mm
    Adaptor centring ring Volvo gearbox to Bellhousing

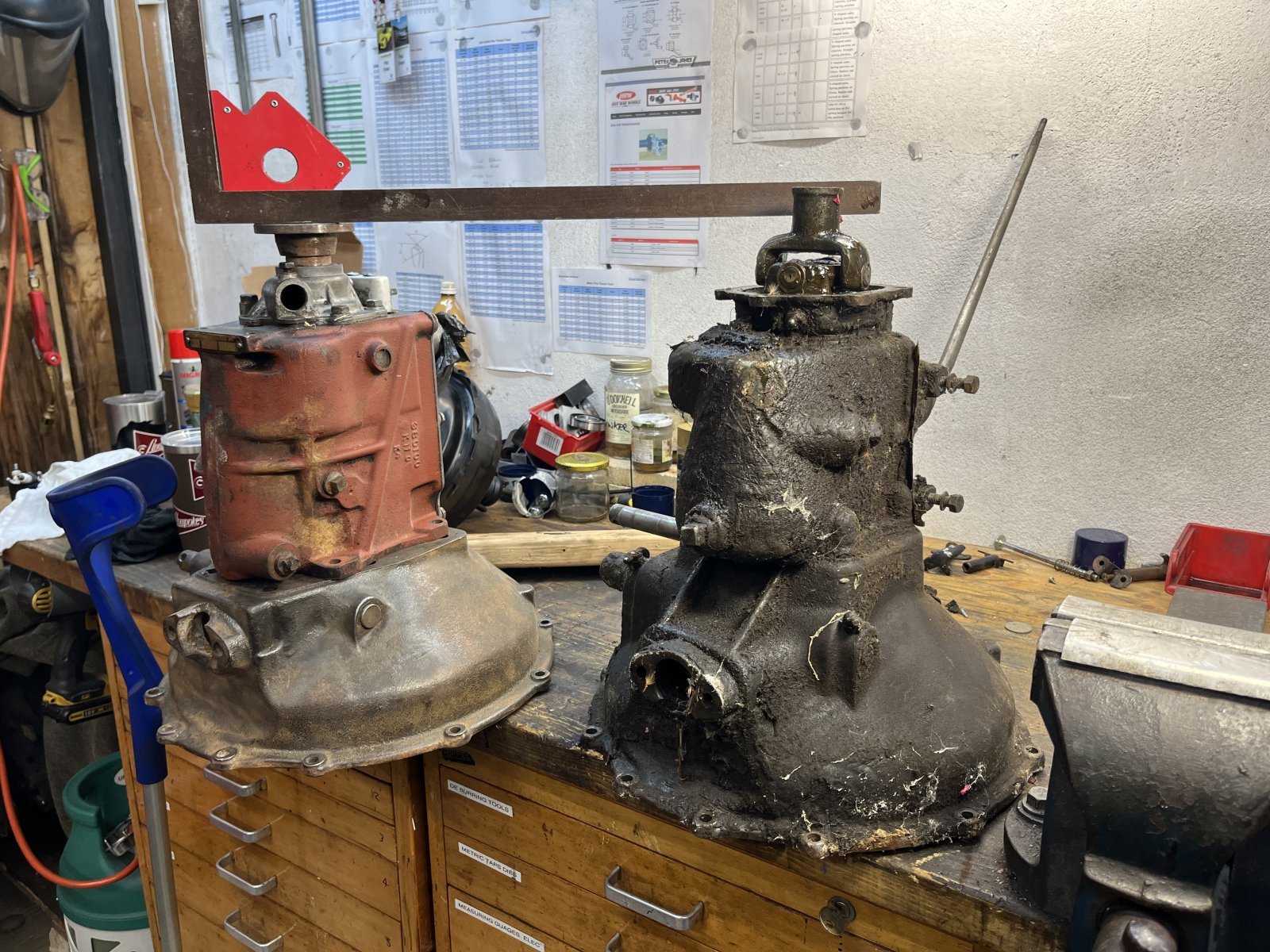

    Volvo M40 next to Model A gearbox upload_2024-5-16_9-31-10.jpeg

    Last edited: May 16, 2024
    G-son, barobert, Budget36 and 3 others like this.

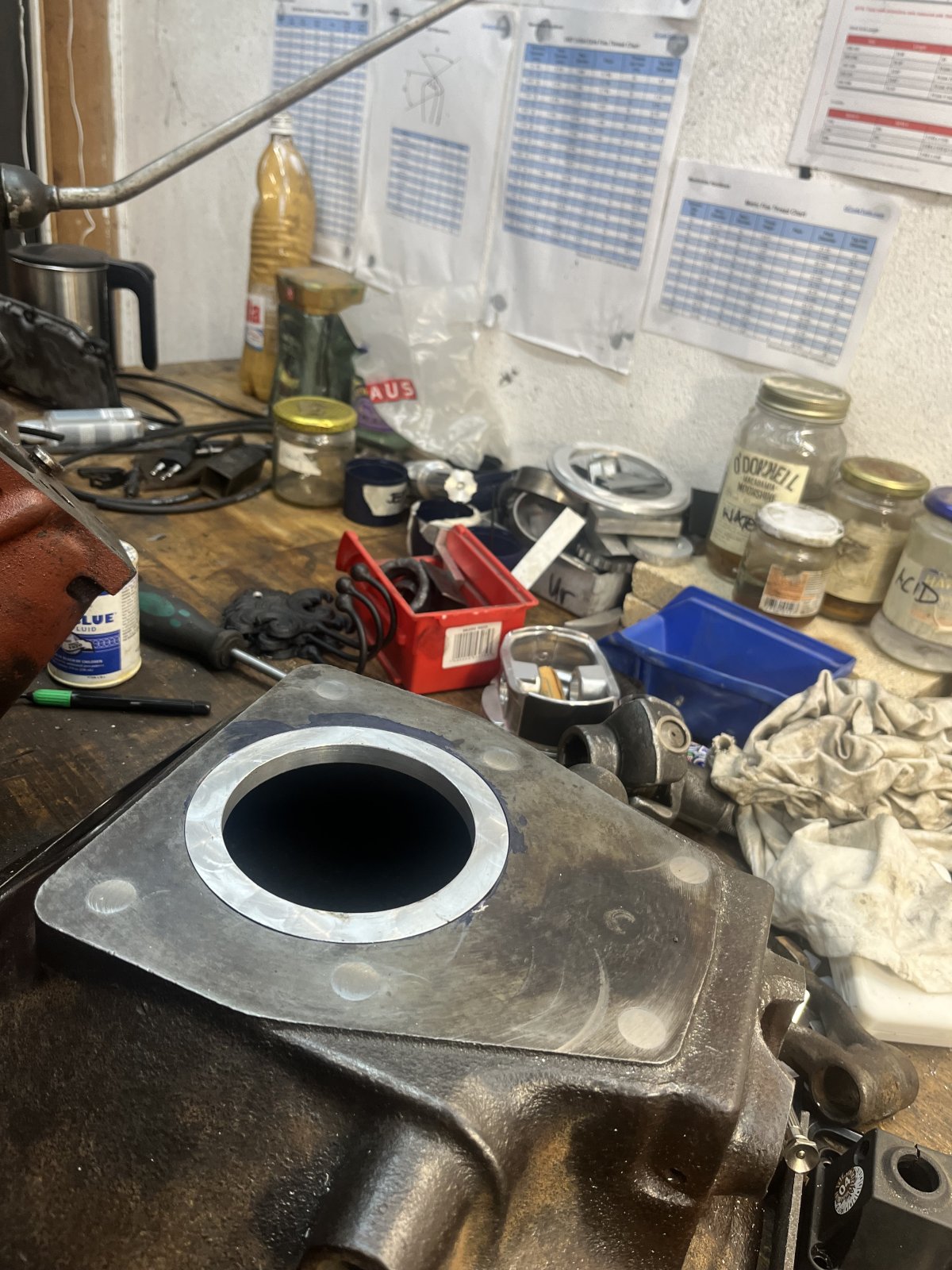

  2. Adaptor ring Model AA truck bellhousing to Volvo gearbox

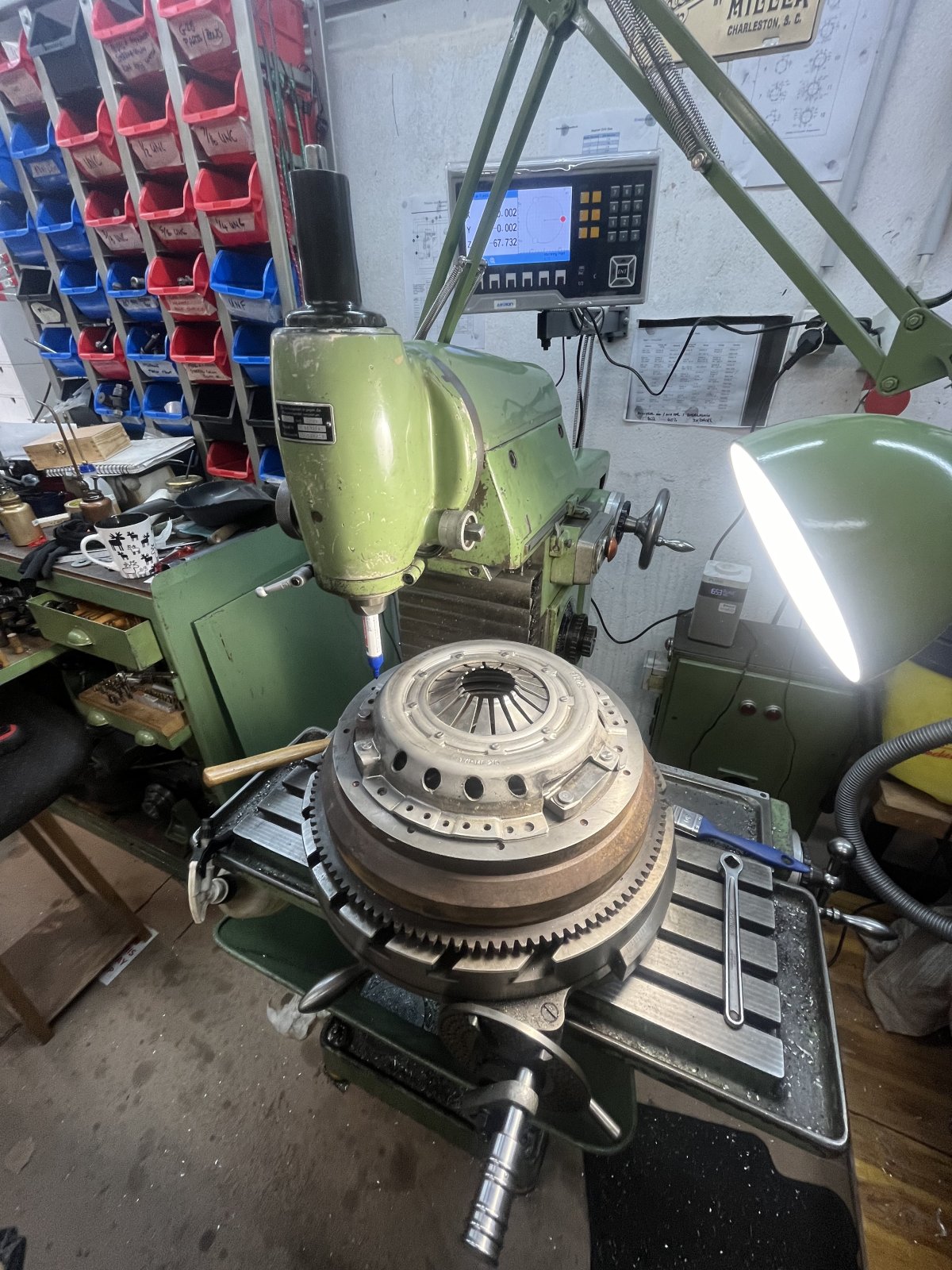

    Flywheel modified for clutch

    barobert and vtx1800 like this.
  3. I pulled to gearbox apart to get the output on to the bench

    This shows the rear bearing support and first gear with synchro

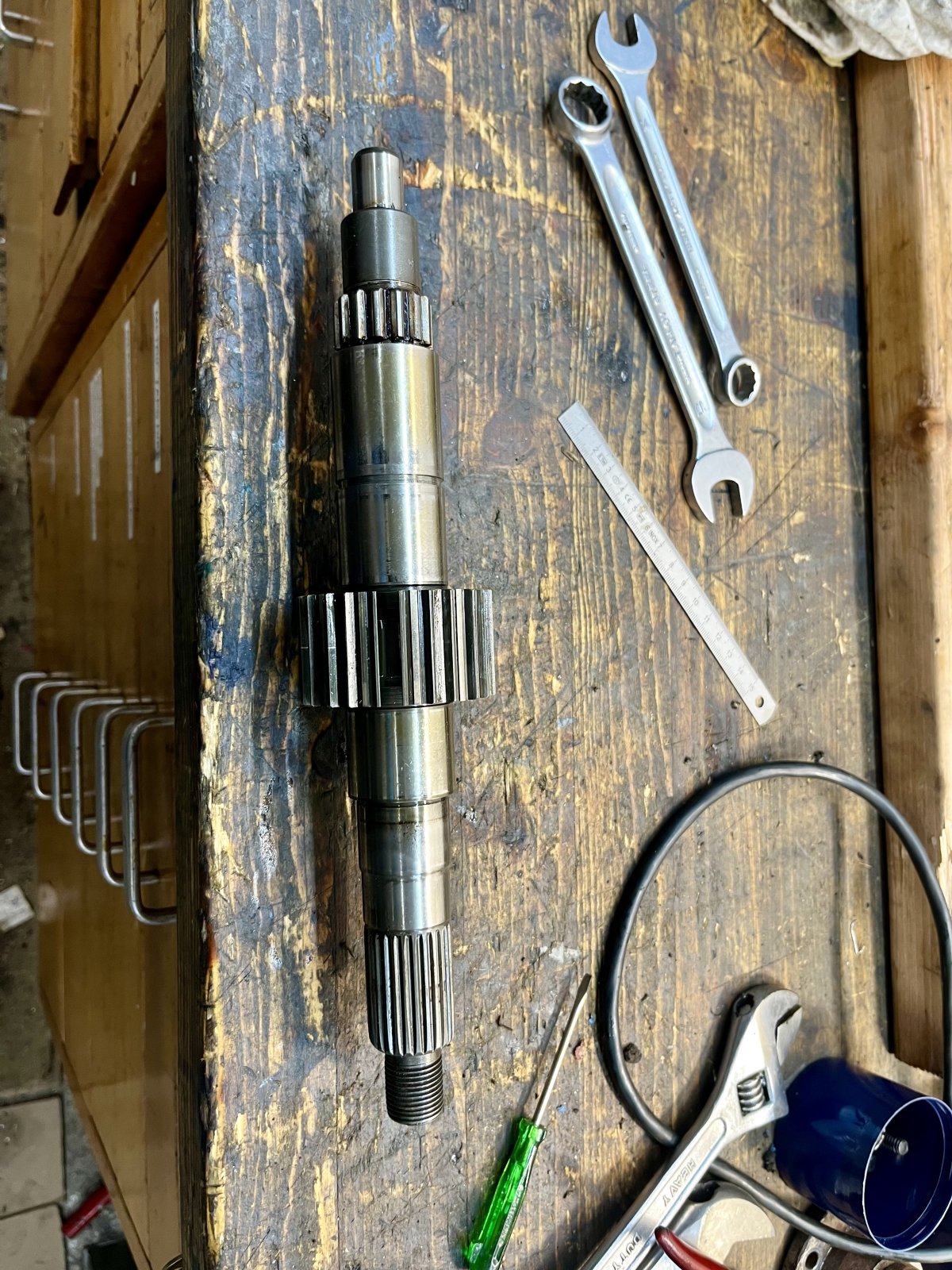

    Output shaft fully dismantled

    barobert likes this.
  4. The output shaft is just too long. After thinking about a few different ways of making this work, modifying the splines on the uni joint etc.
    The shaft is very hard, even with carbide tooling and a high speed head on my mill, cutting splines to match the Ford uni wasn’t going to be fun

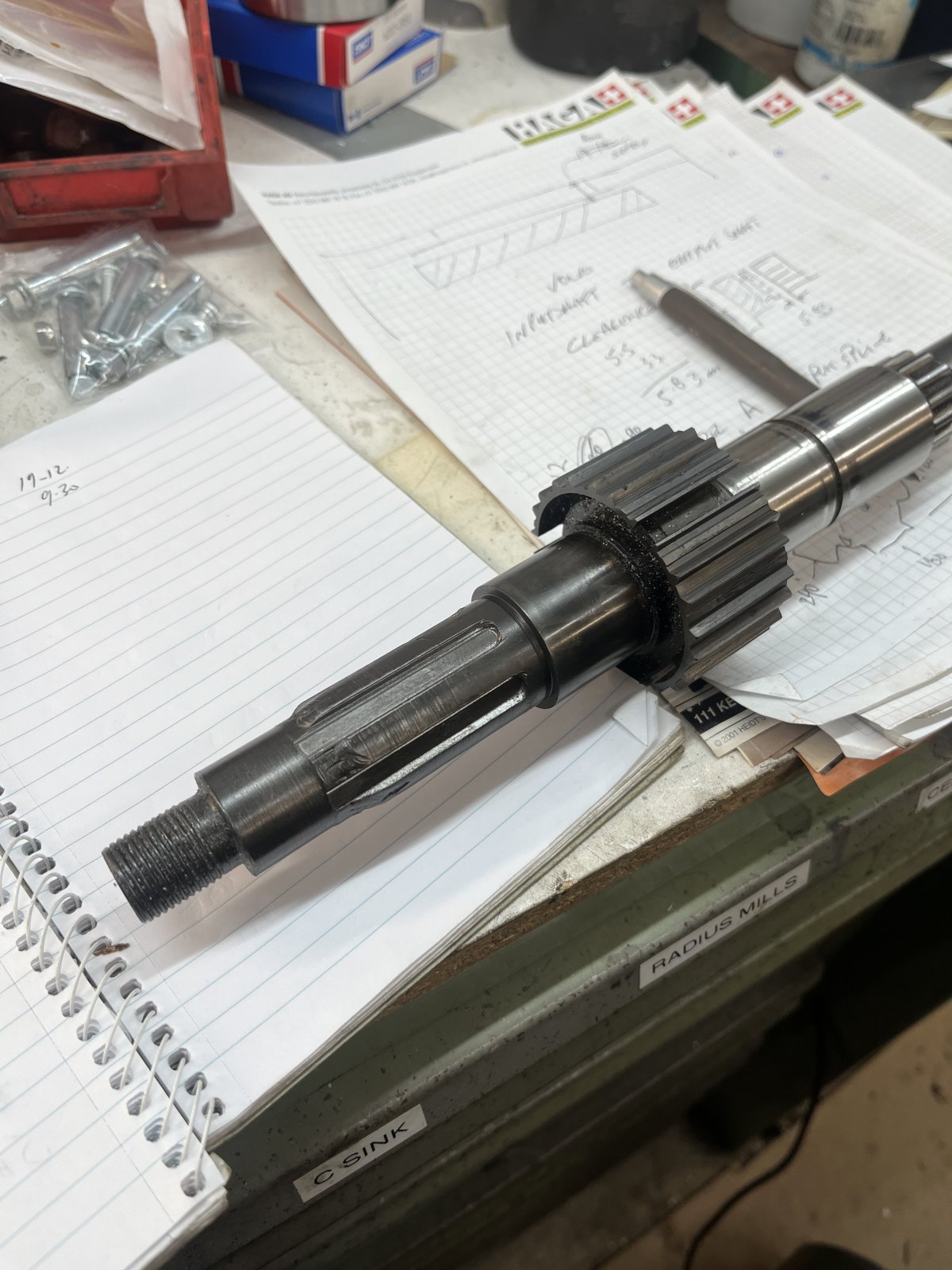

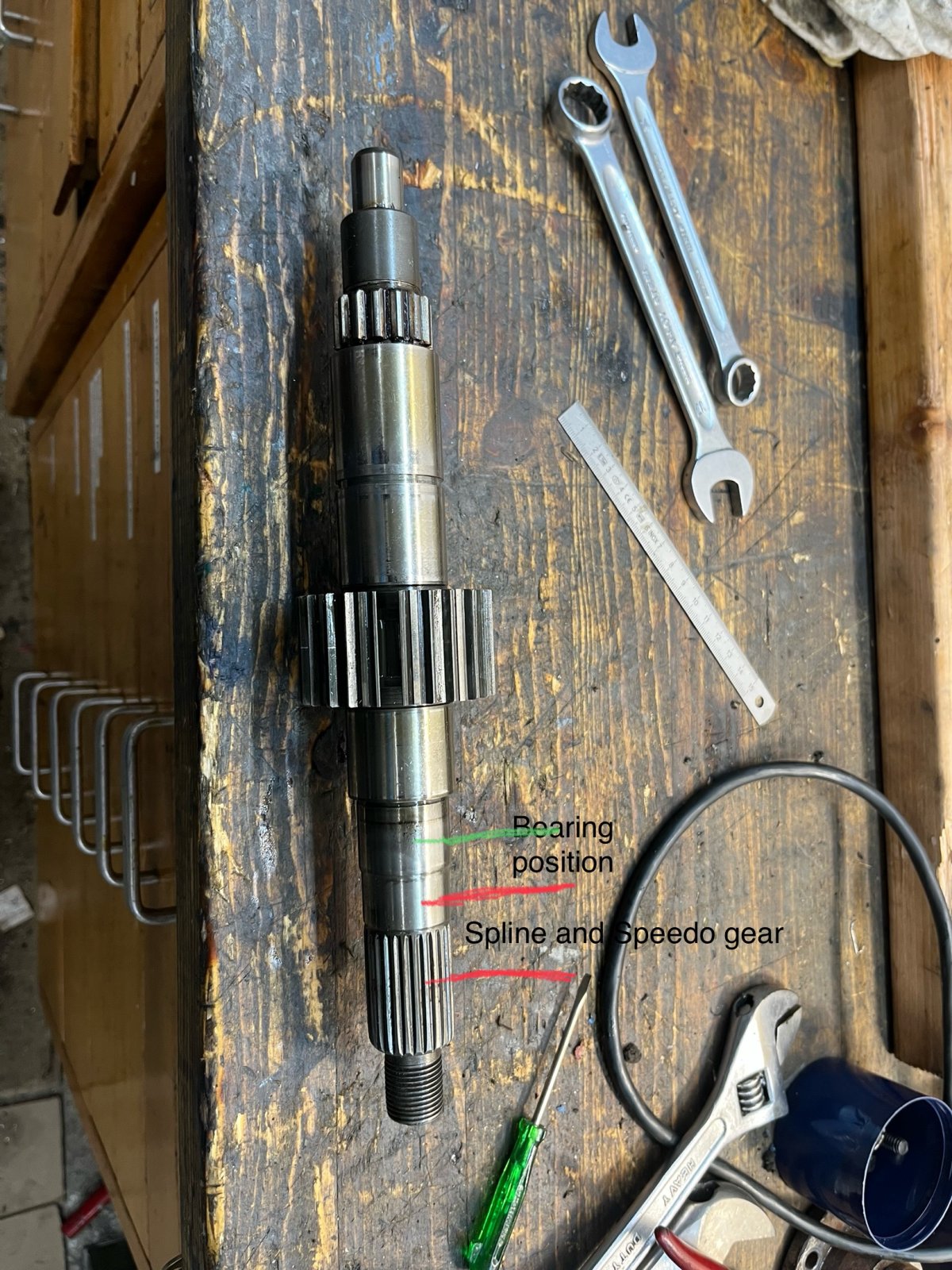

    The area in the photo shown as splines and speedo drive is undersize for the Ford uni joint max diameter

    So I got the out Tig out, and carefully, trying to minimise distortion, welded them up

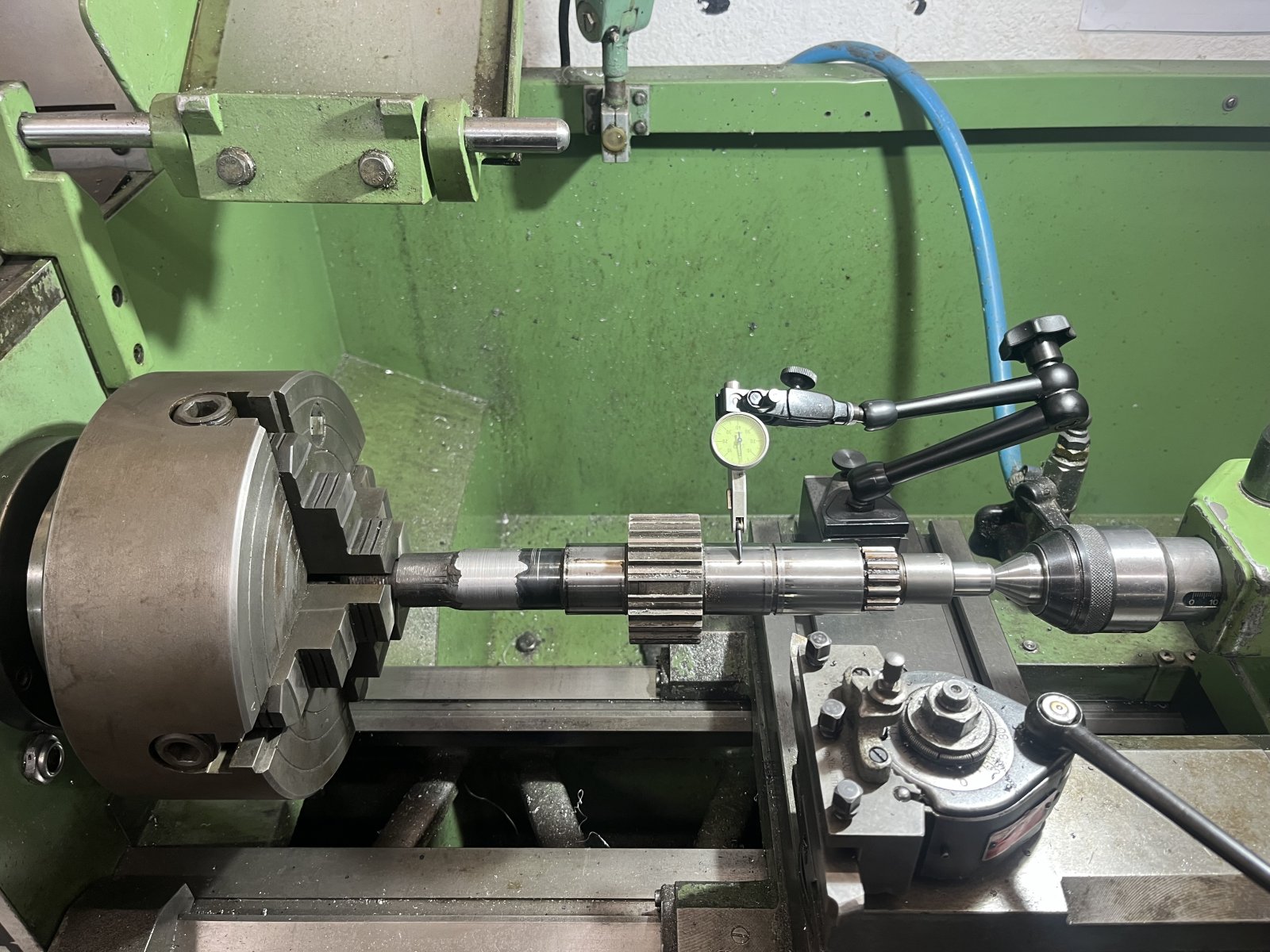

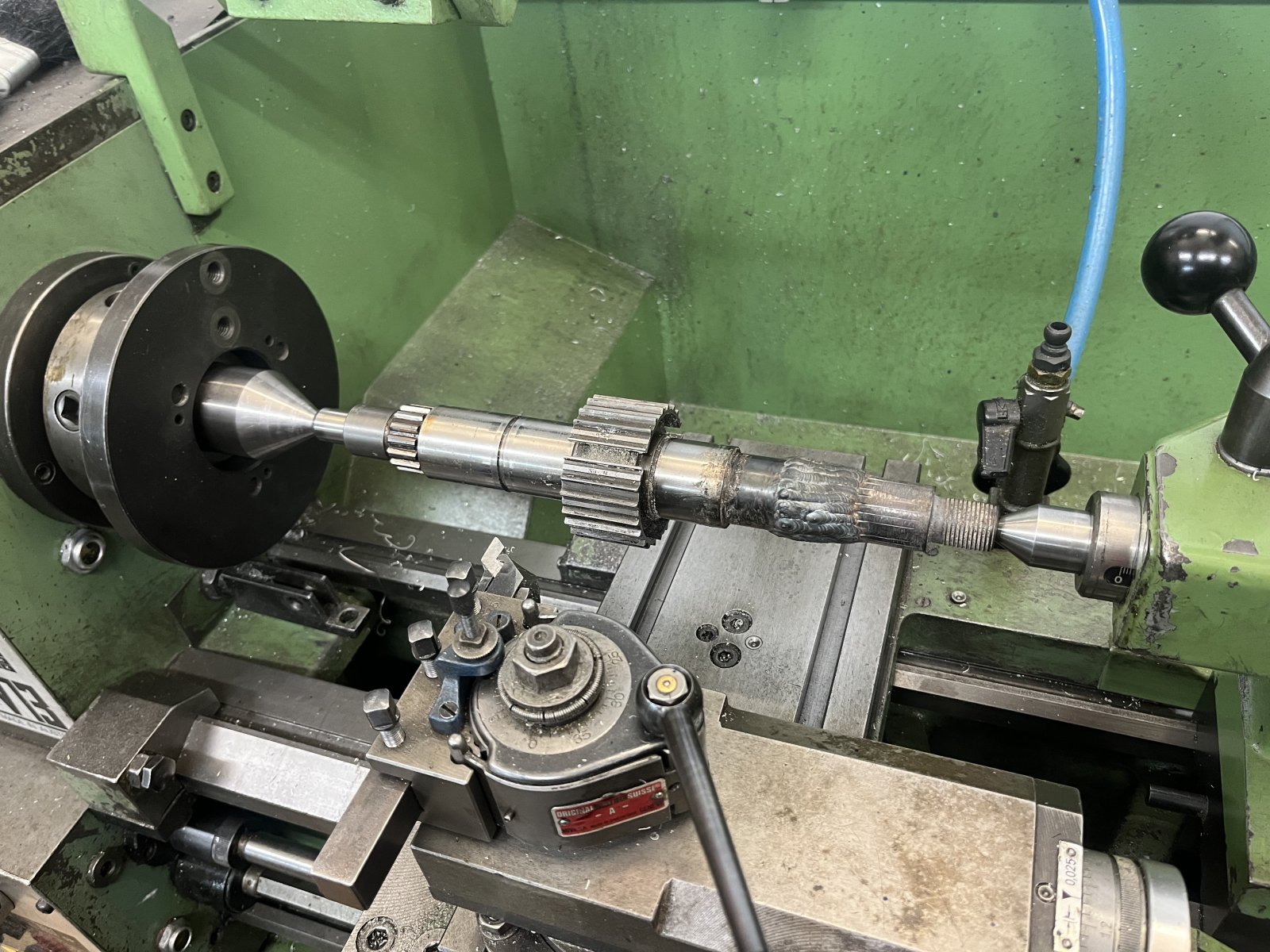

    Setting up to check the welded shaft for straightness

    barobert likes this.
  5. There was a bit of a bend in the shaft, but in the thread area, using a four jaw chuck to compensate for that, I machined the shaft to dimension

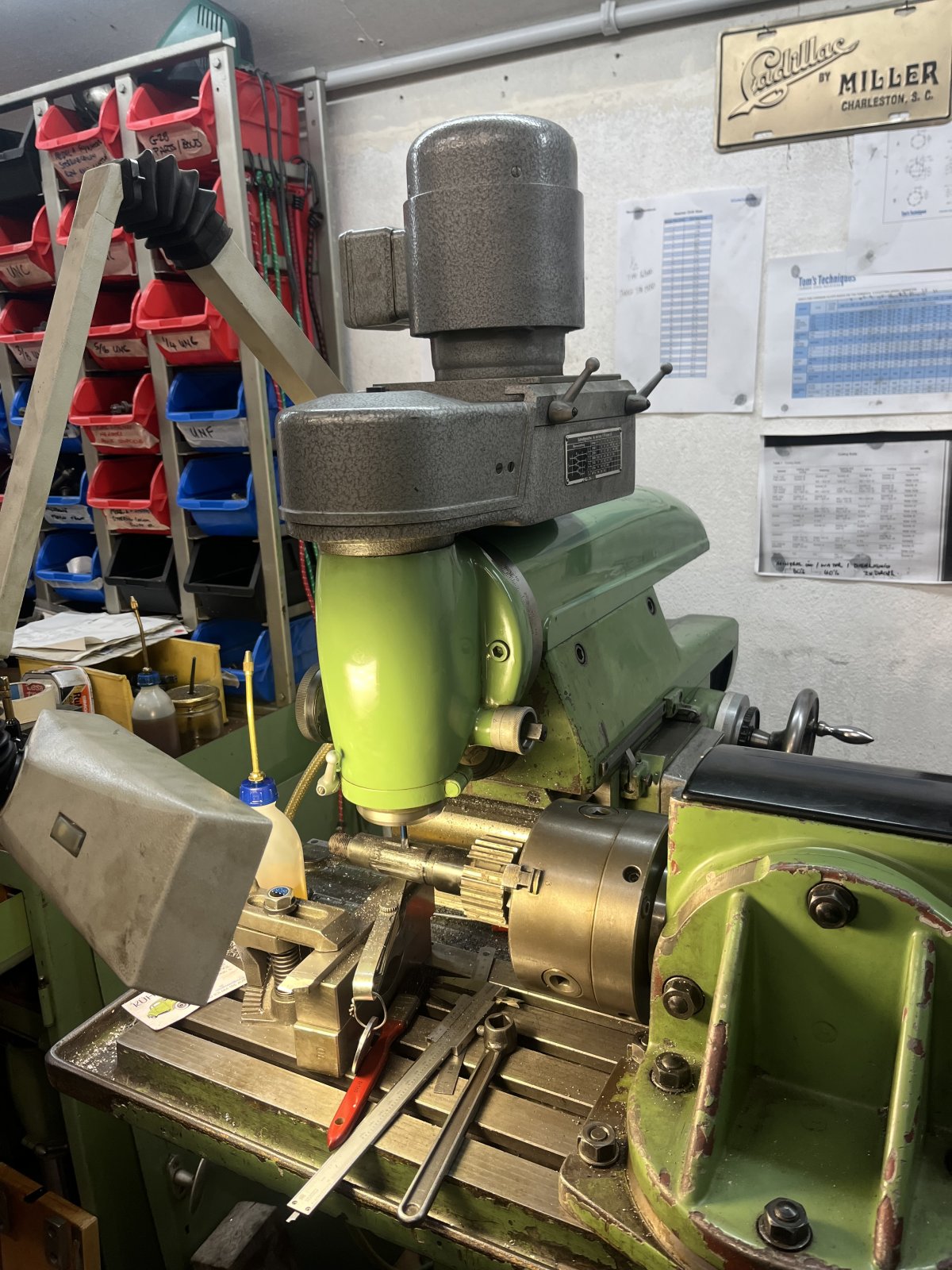

    Set the shaft in the mill, and cut the splines to match the Ford uni, this went easier, as the welding had taken a bit of the hardness out of the shaft, I don’t think this will be an issue, but only time will tell


  6. I machined the splines all the way along the shaft, under the bearing area and up to where a spacer/thrust ring goes before the first gear surface

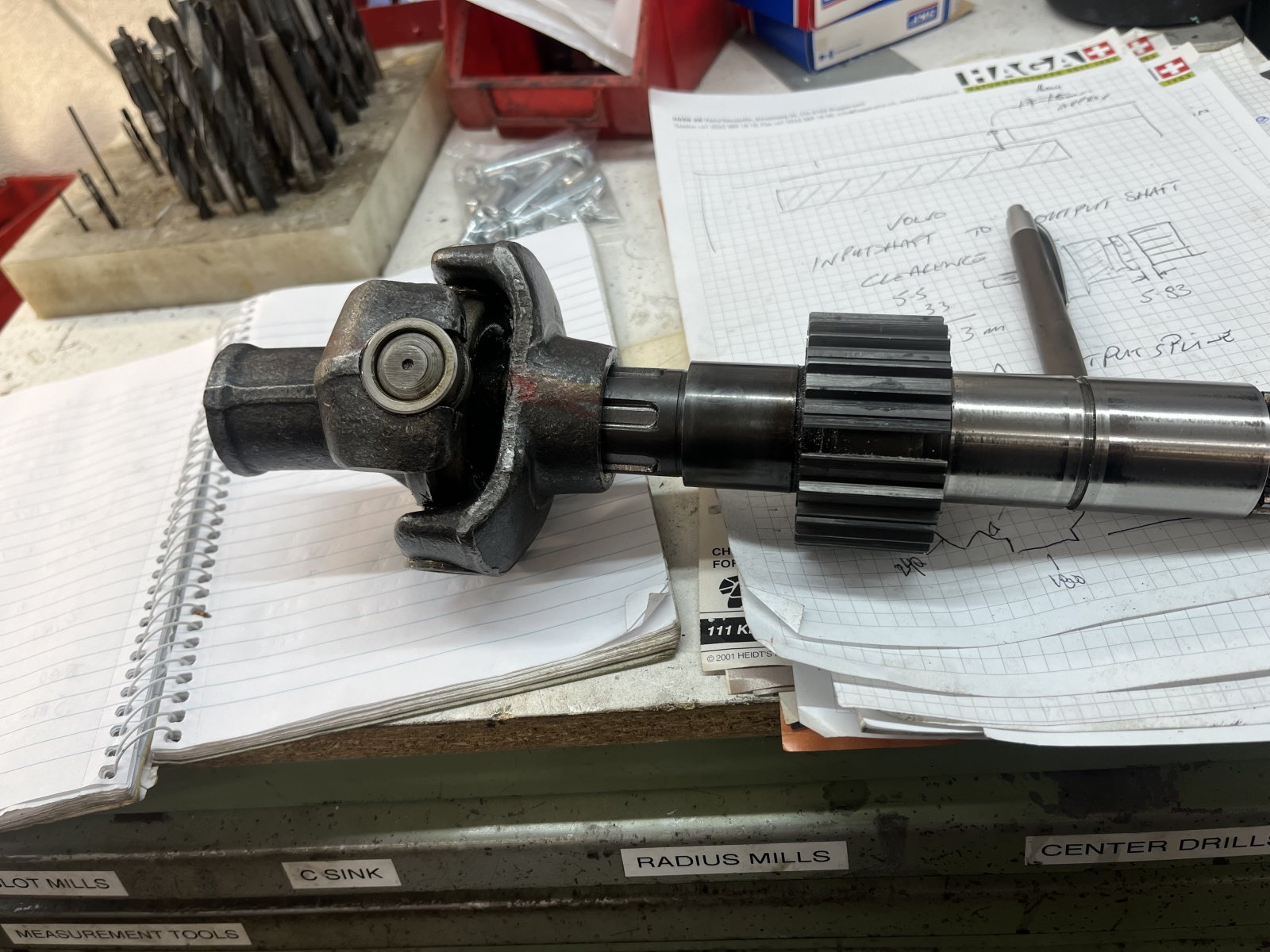

    Uni test fitted on shaft


    barobert, Just Gary and brading like this.

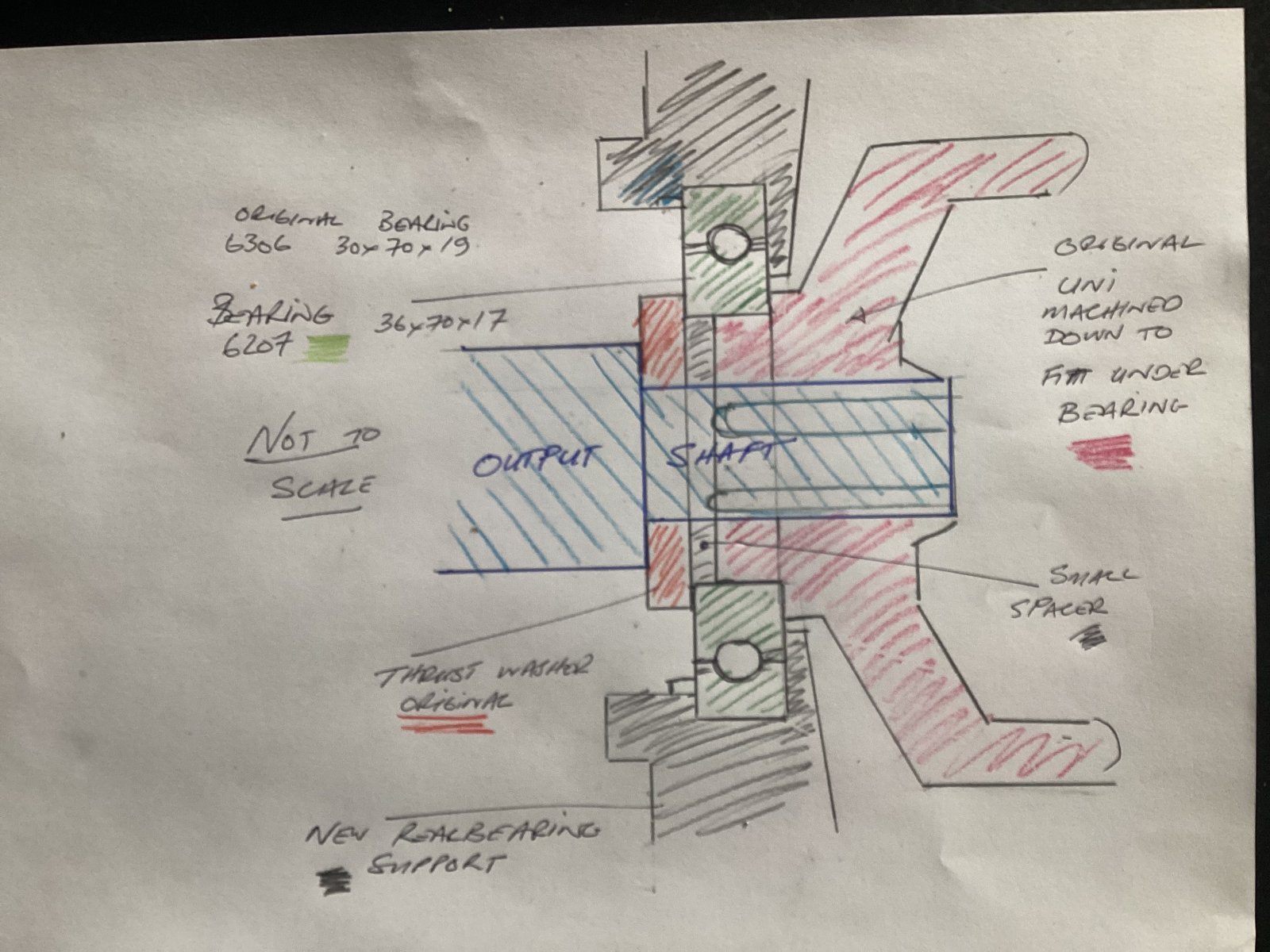

  7. So here’s my dastardly plan


    Had to get the colouring pencils out for this one, doing this on an iPad, don’t have any fancy software, it may look like something Wile E Coyote could come up with

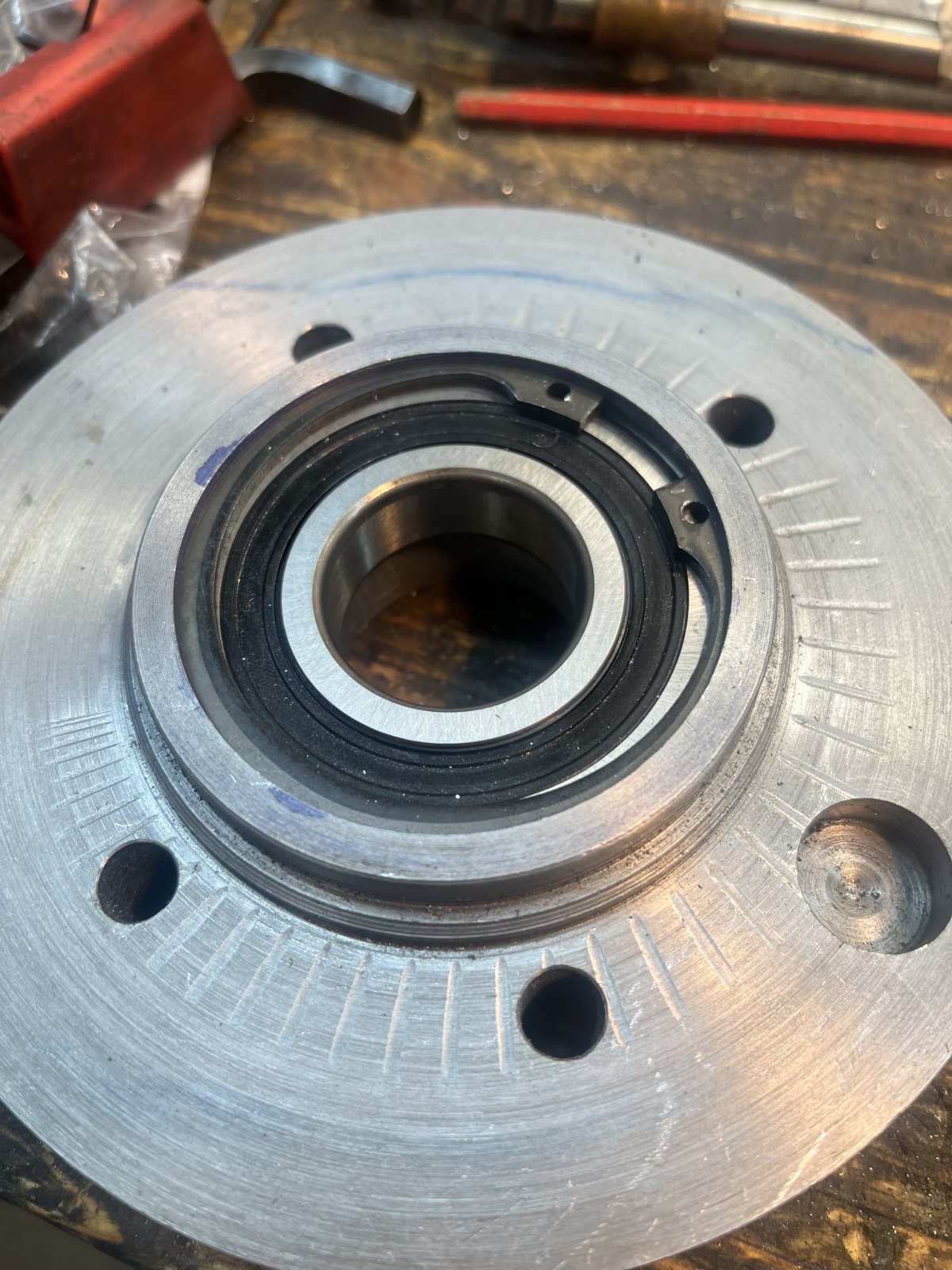

    Adaptor gearbox side, copied dimensions from Volvo but bearing depth adjusted for the narrower bearing, holes drilled for the back of the Volvo gearbox, and a relief hole for the reverse gear shaft. Please excuse the machining marks, trying to do too many things at once

    Last edited: May 16, 2024
  8. IMG_4853.jpeg

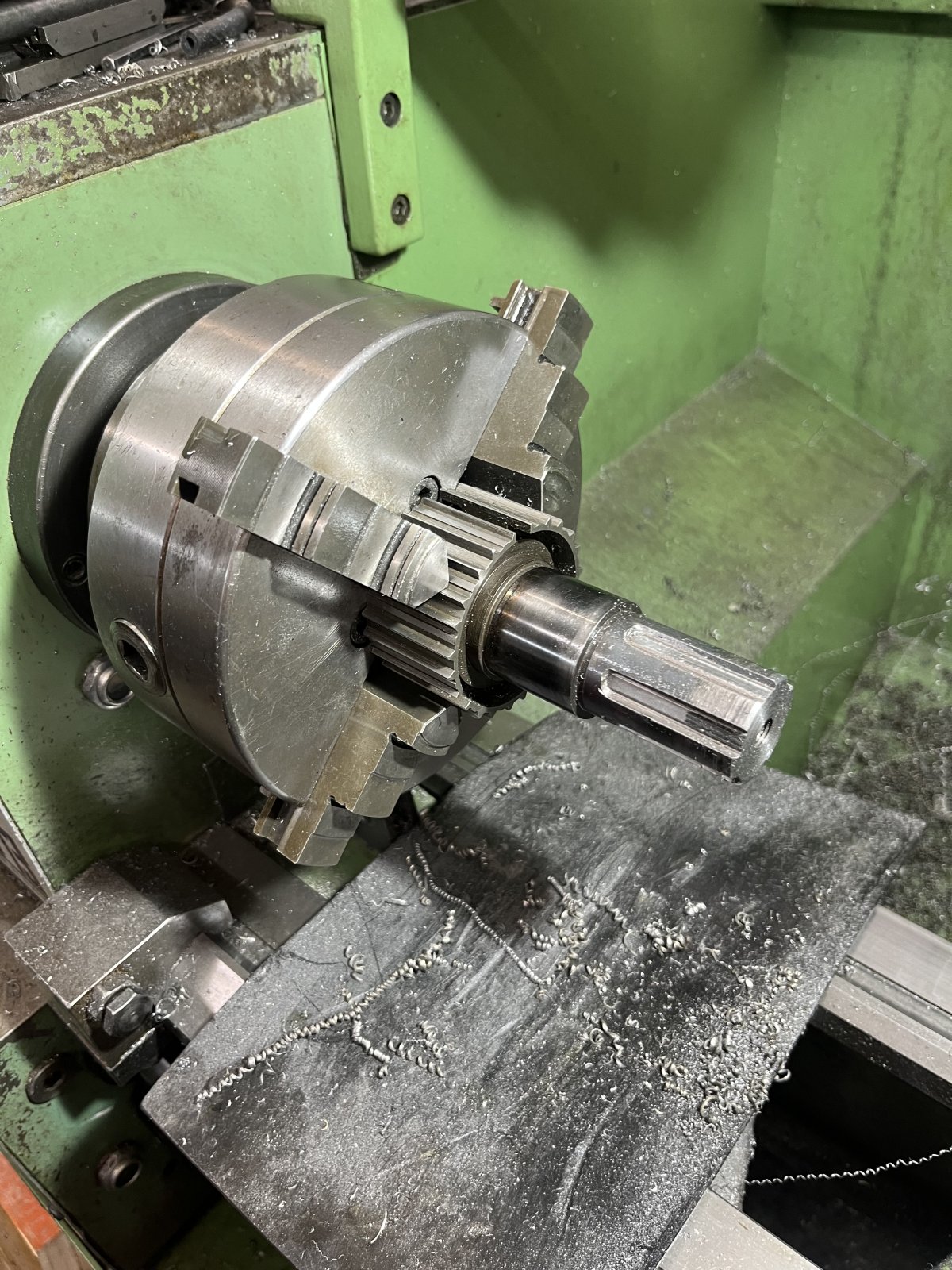

    Shortening the shaft and hole drilled and tapped to accept the original bolt

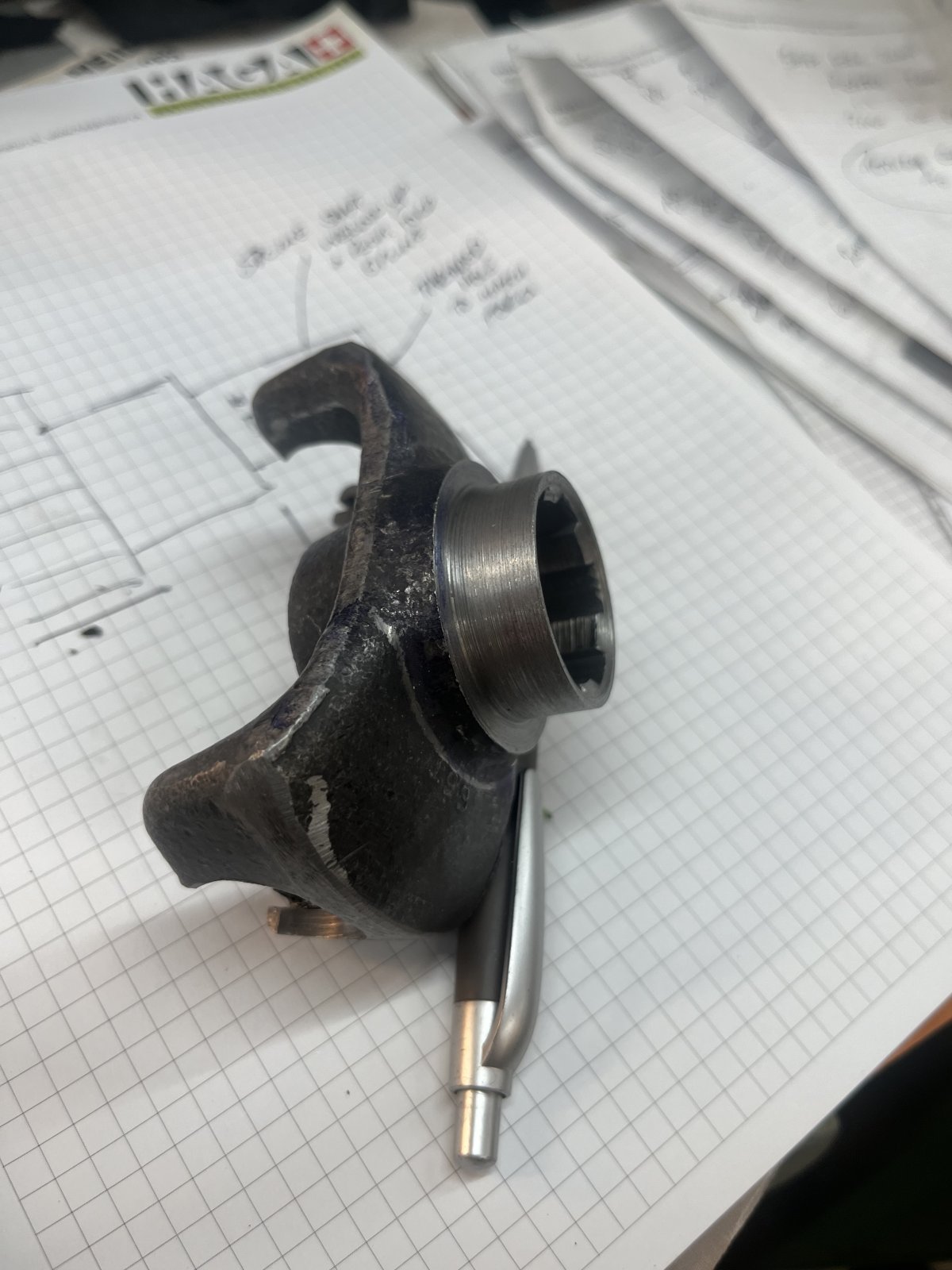

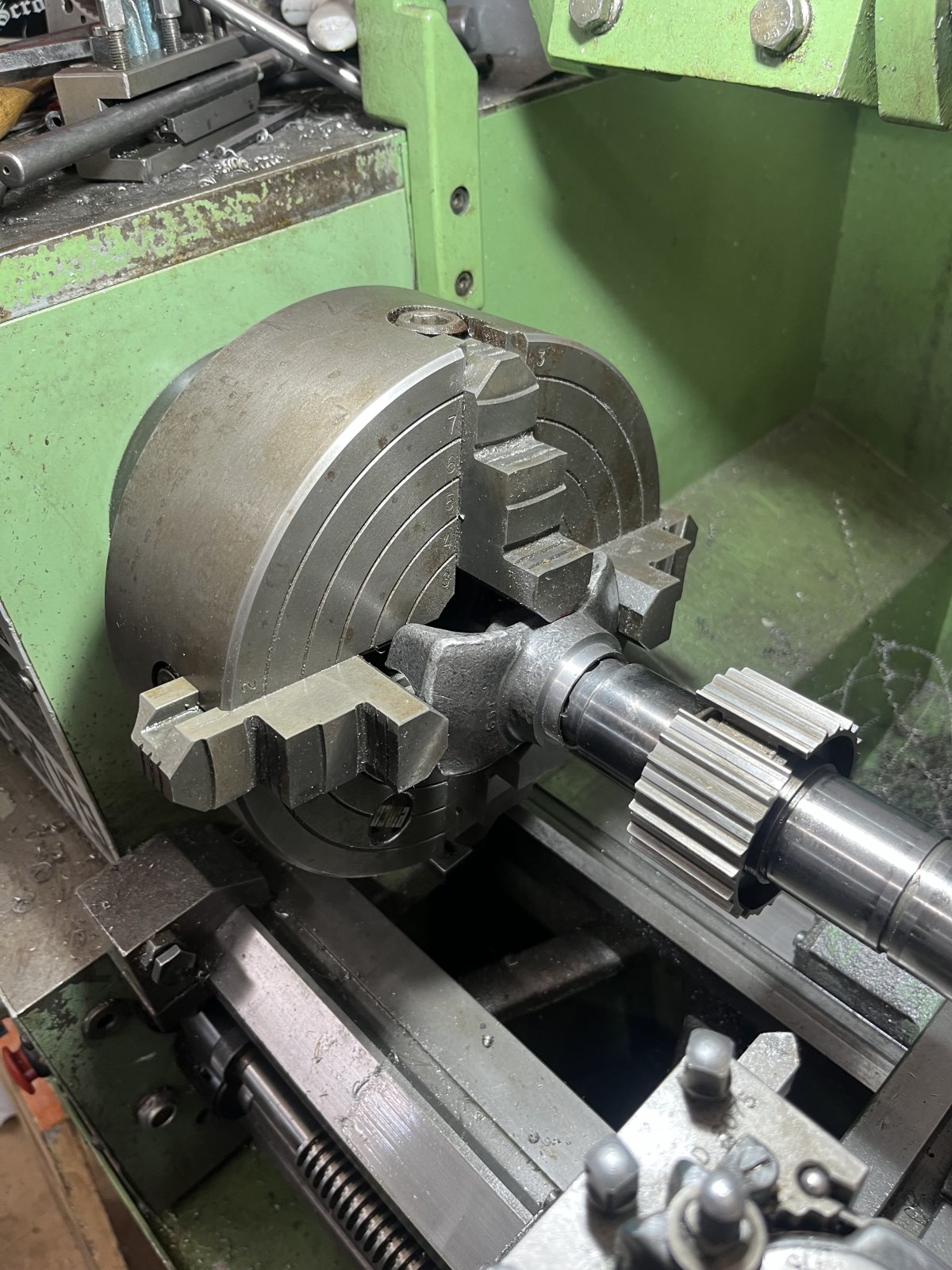

    Machining the uni down to go under the bearing

    winduptoy, barobert and 40 Olds like this.
  9. IMG_4776.jpeg

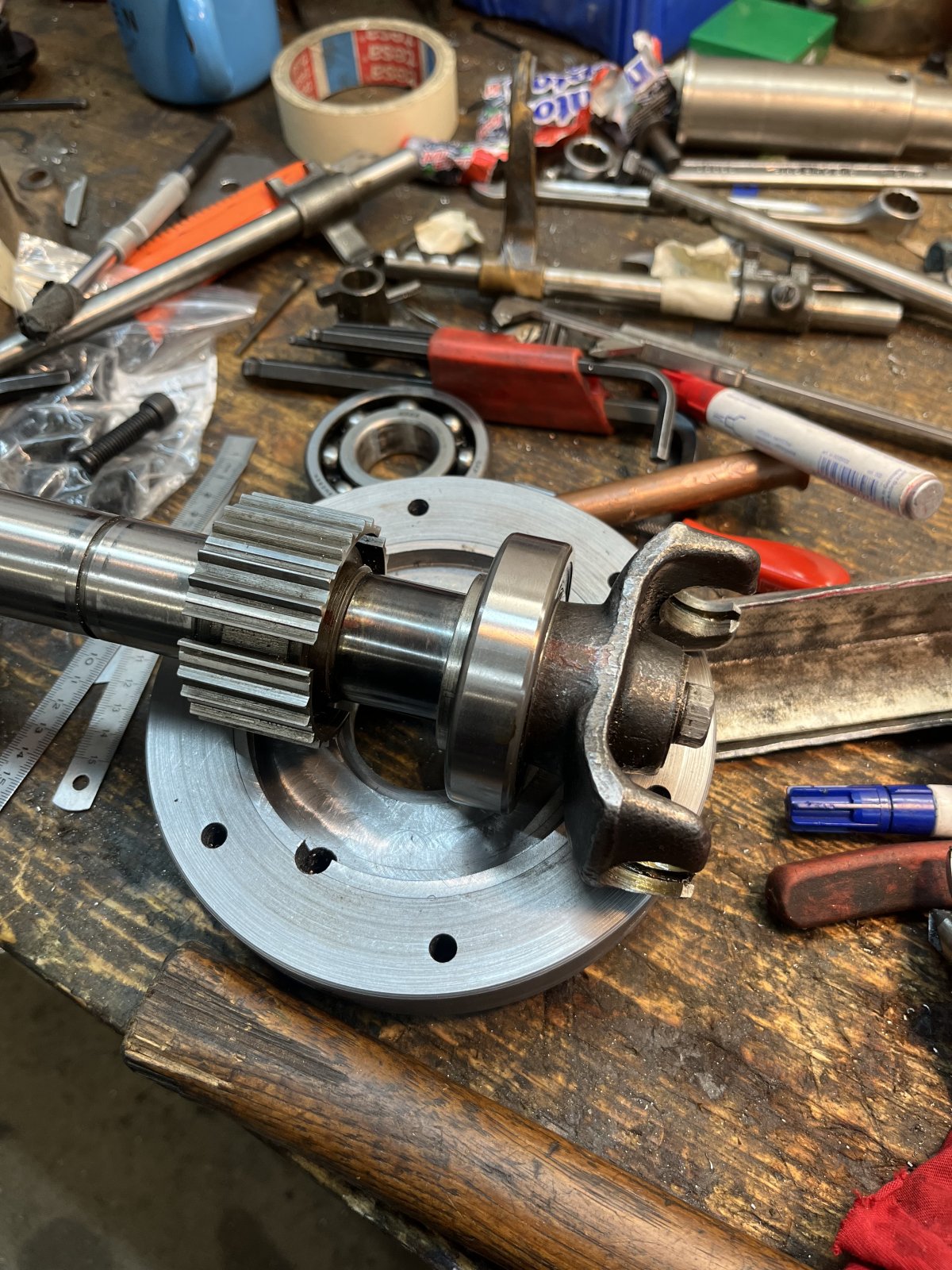

    Test on the output shaft

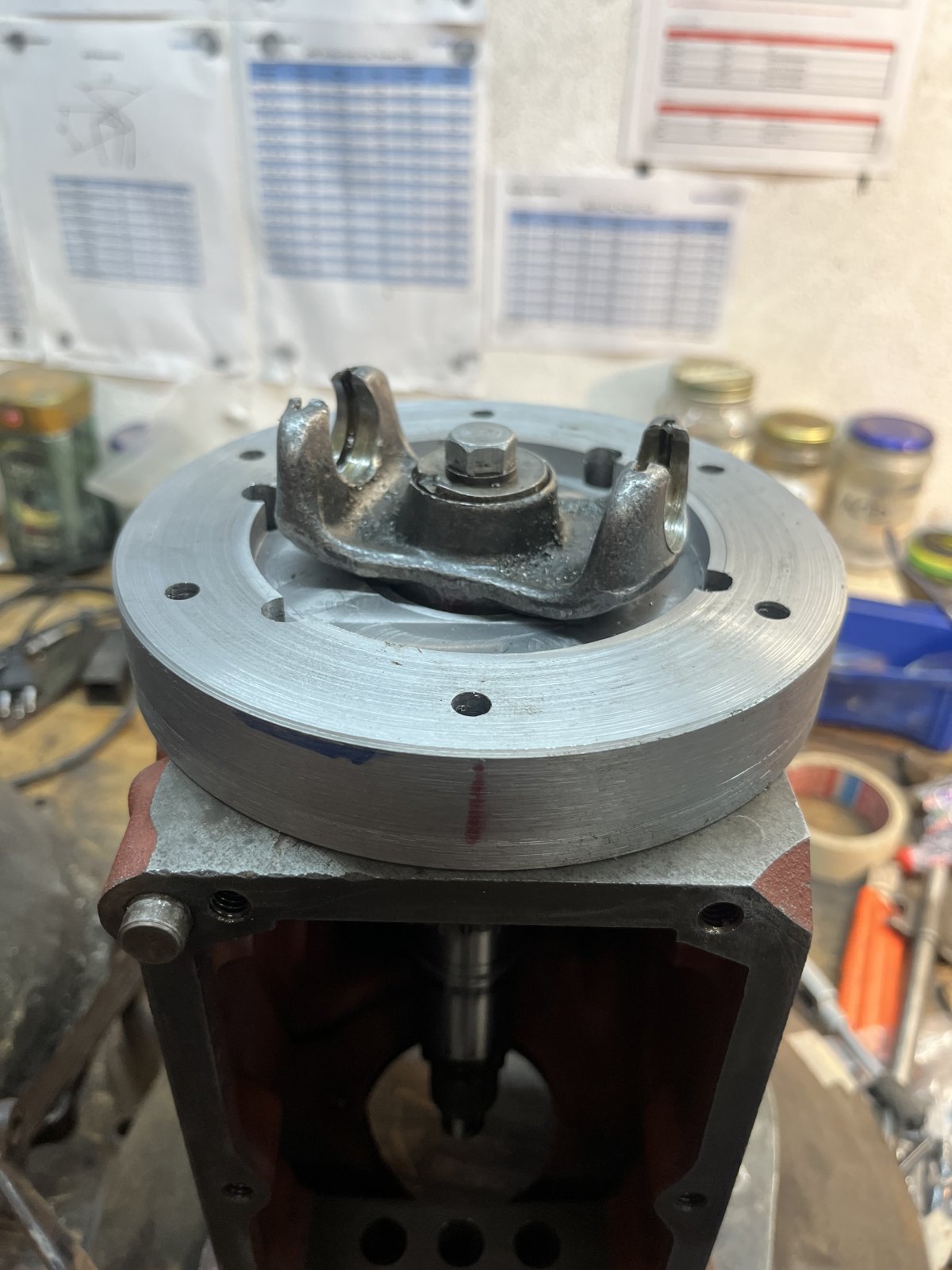

    Adaptor on the gearbox, more work to be done yet

    barobert likes this.
  10. IMG_4893.jpeg IMG_4892.jpeg IMG_4891.jpeg

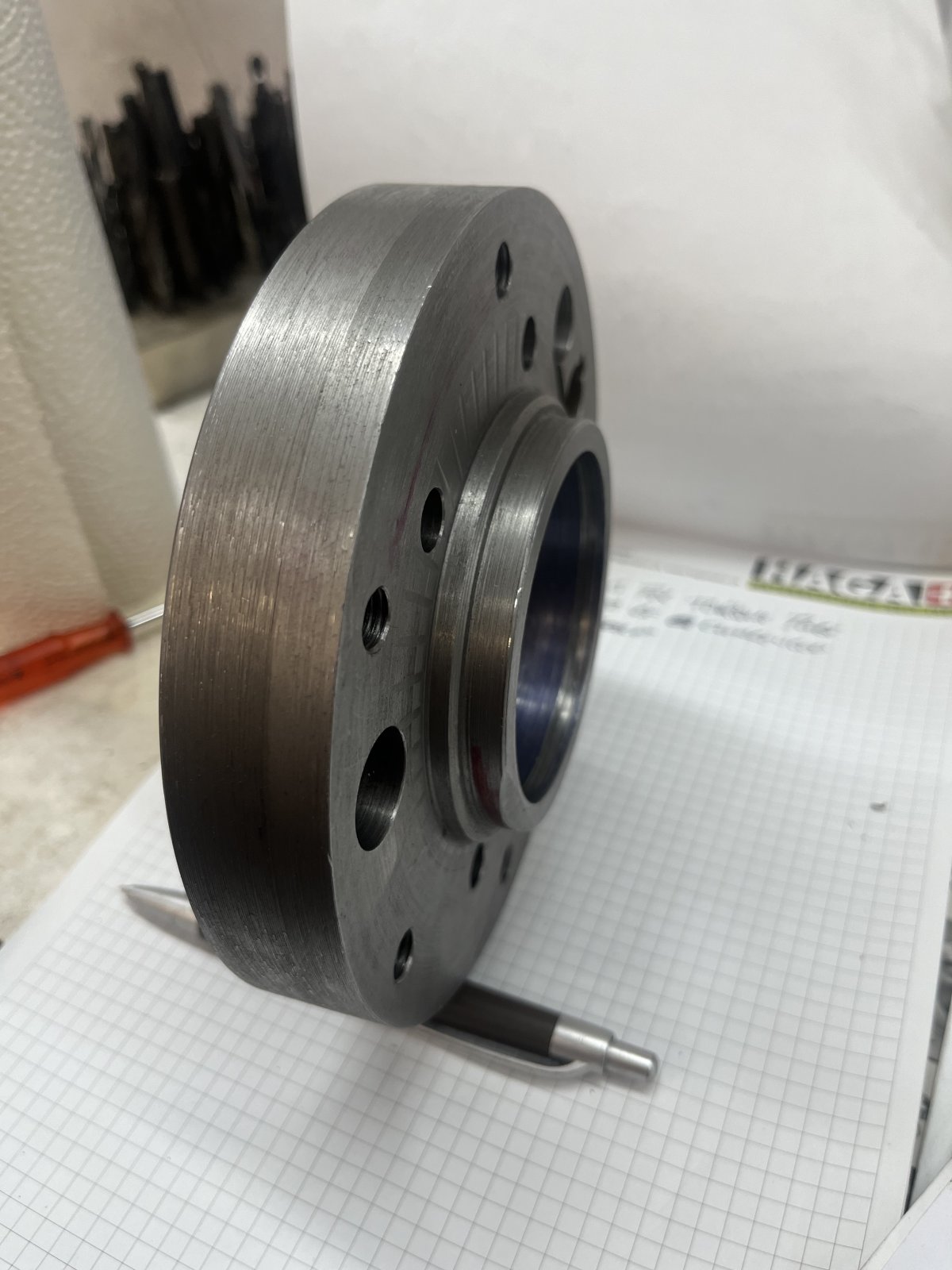

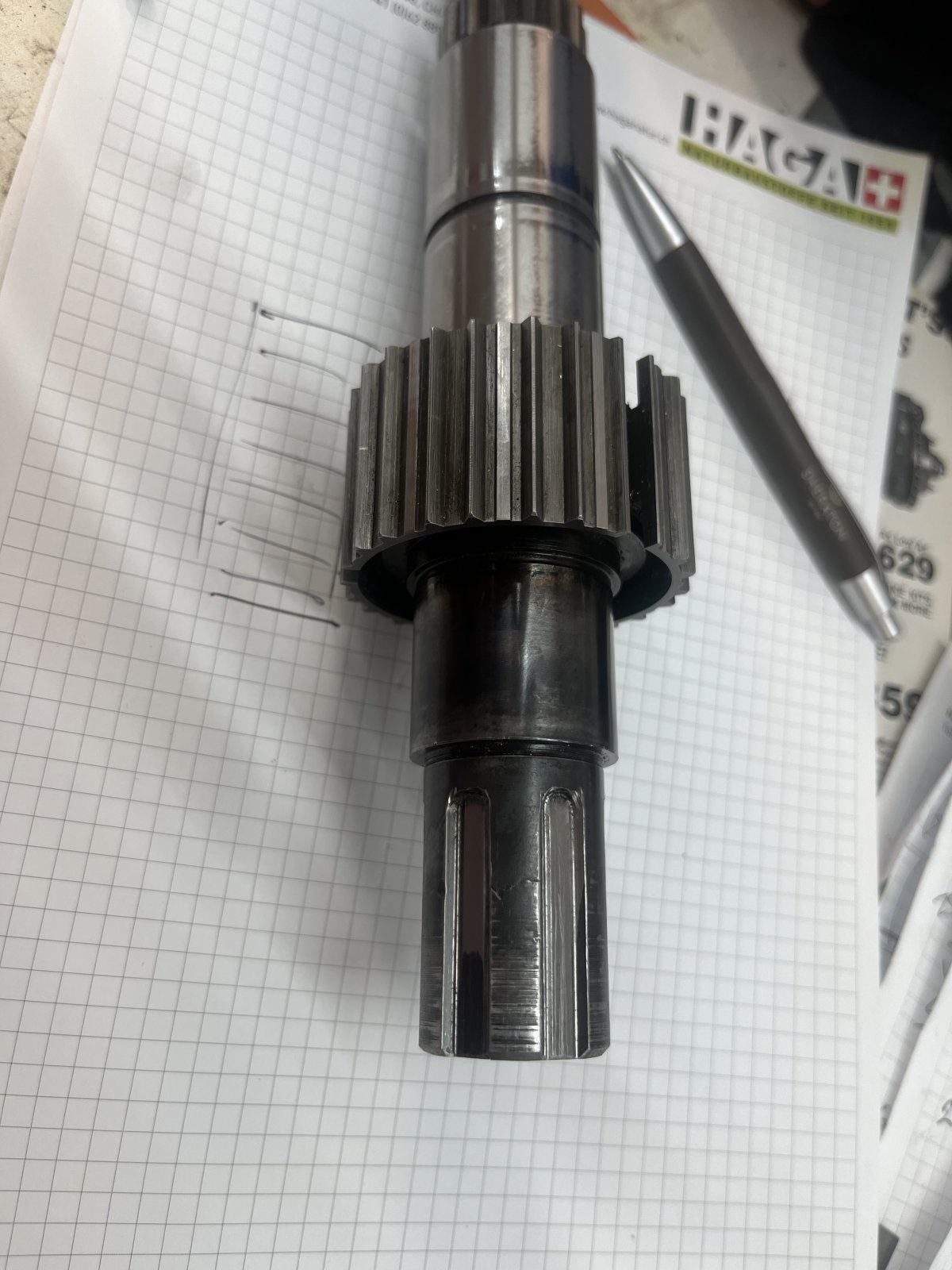

    Finished adaptor, shaft, uni

    winduptoy and SuperKONR like this.
  11. IMG_4890.jpeg IMG_4889.jpeg IMG_4888.jpeg

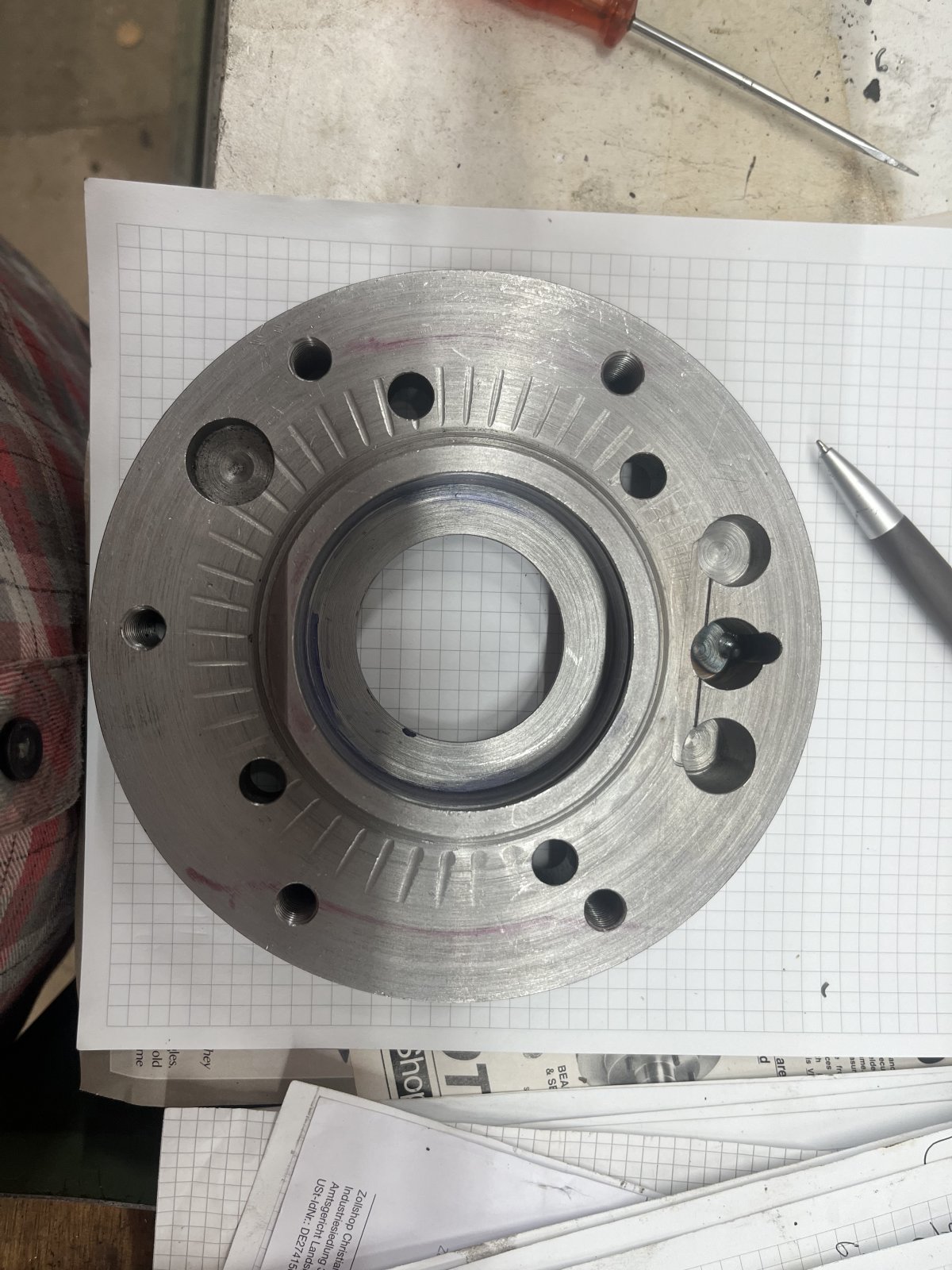

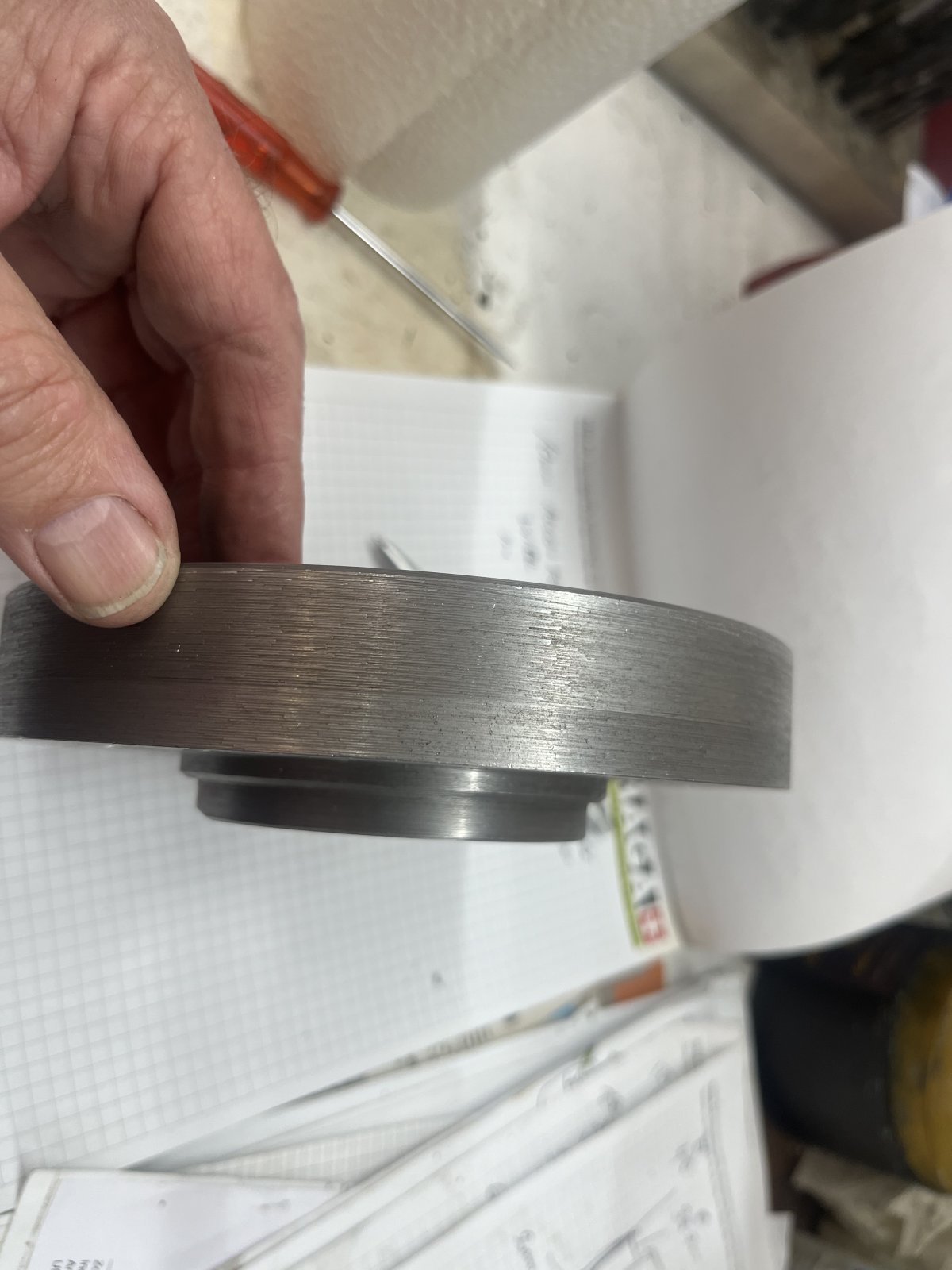

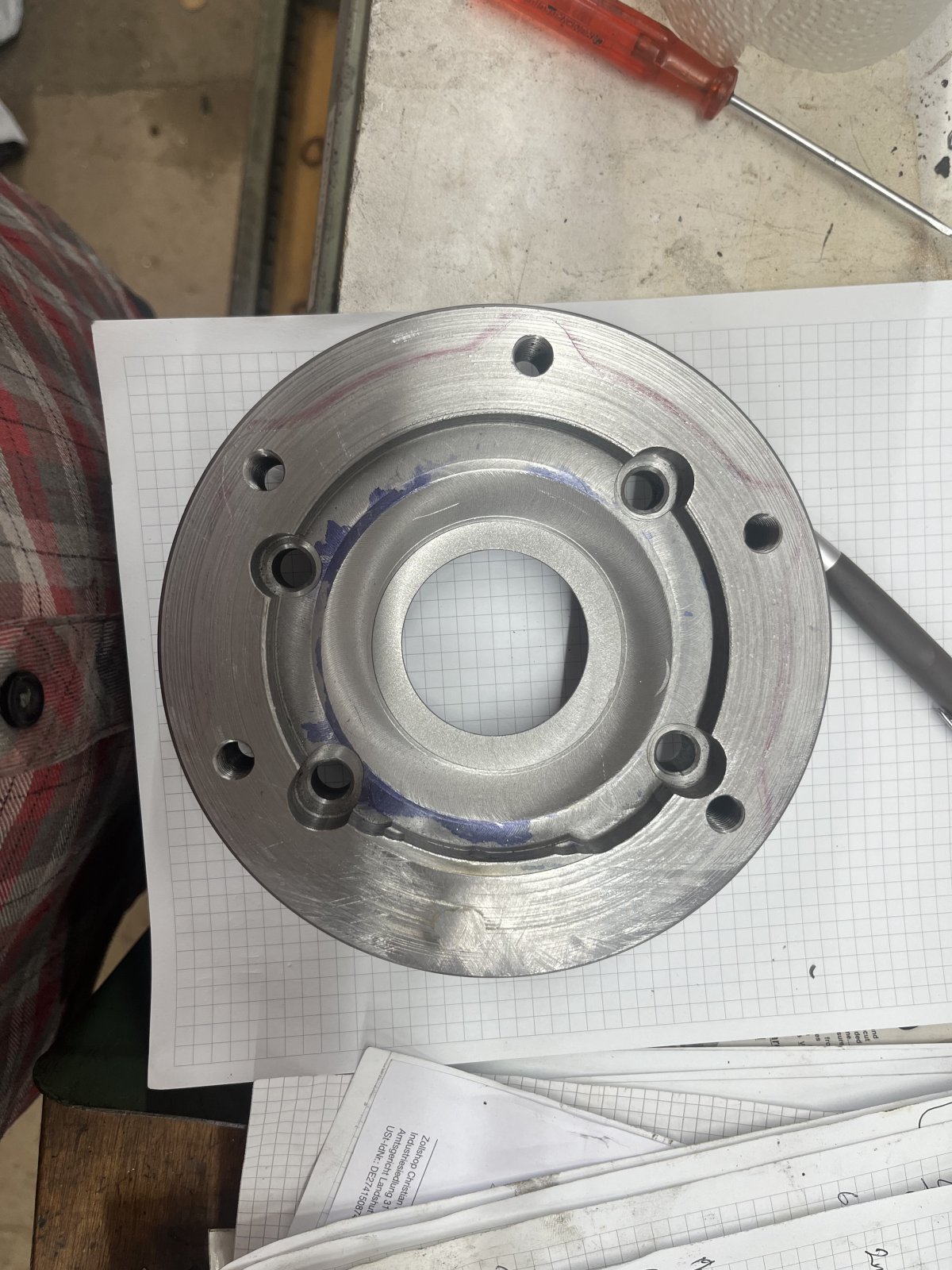

    Details on the adapter, allen head bolts to mount to the gearbox recessed in to clear the uni, holes for the shift rods to come back into the adapter. Holes for the TT clam shell mount up, here I stuffed up, the top hole interferes with the shift rods, I should of rotated the TT clam shell to clear or possibly used a V8 style clam shell, they only have 4 mounting bolts. Another thing I used a V8 uni joint, they are stronger than the original Model A style. I used steel for the rear adapter for strength reasons and I could get good quality steel in that diameter (165mm). Not shown in these photos, but I drilled and tapped a hole for a zirk fitting to grease the uni

    Last edited: May 16, 2024
  12. IMG_4915.jpeg

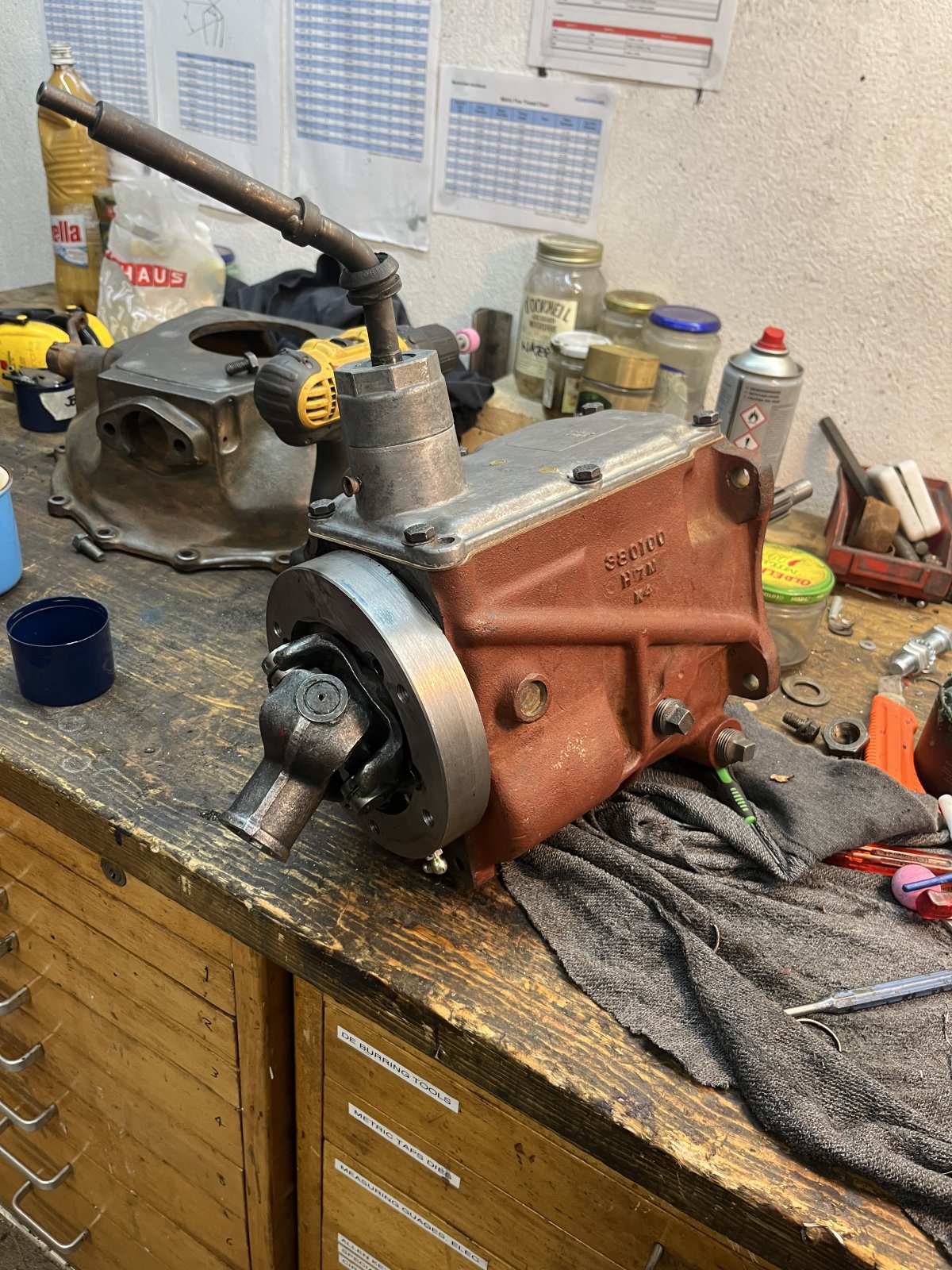

    Assembled, it’s a bit tricky to get it together with putting the lay shaft in and the shift shafts, then the rear adapter bearing carrier


    winduptoy, barobert and rmcroadster like this.
  13. IMG_4920.jpeg

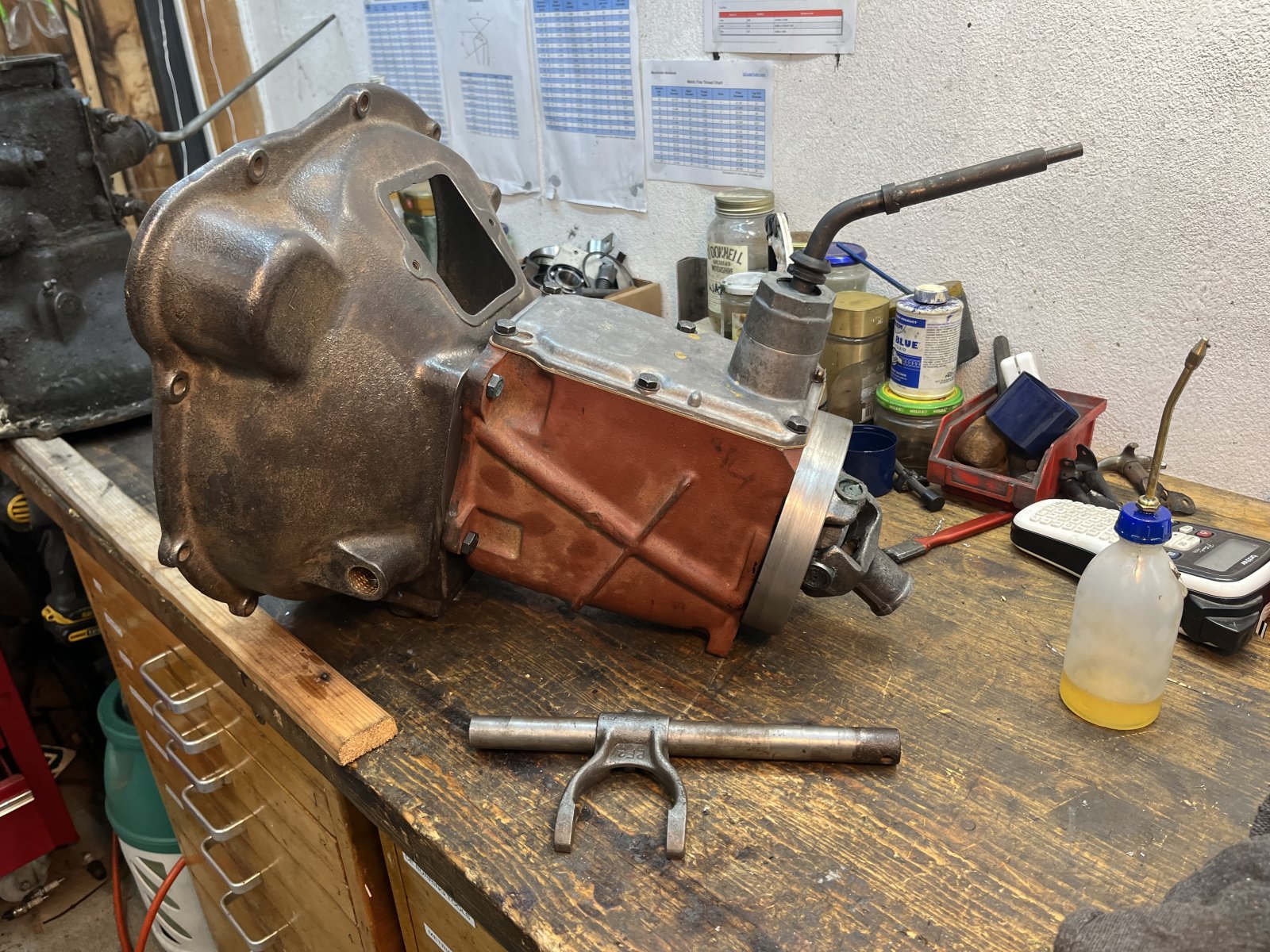

    Side by side, a bit of optical illusion with the camera, with the ruler on top, it’s not sloping down, they are the same length. A bracket for the pedal shaft has to be made, and another to mount the handbrake lever

    jet996, winduptoy, barobert and 7 others like this.
  14. 51504bat
    Joined: May 22, 2010
    Posts: 5,489

    51504bat
    ALLIANCE MEMBER

  15. IMG_0079.jpeg

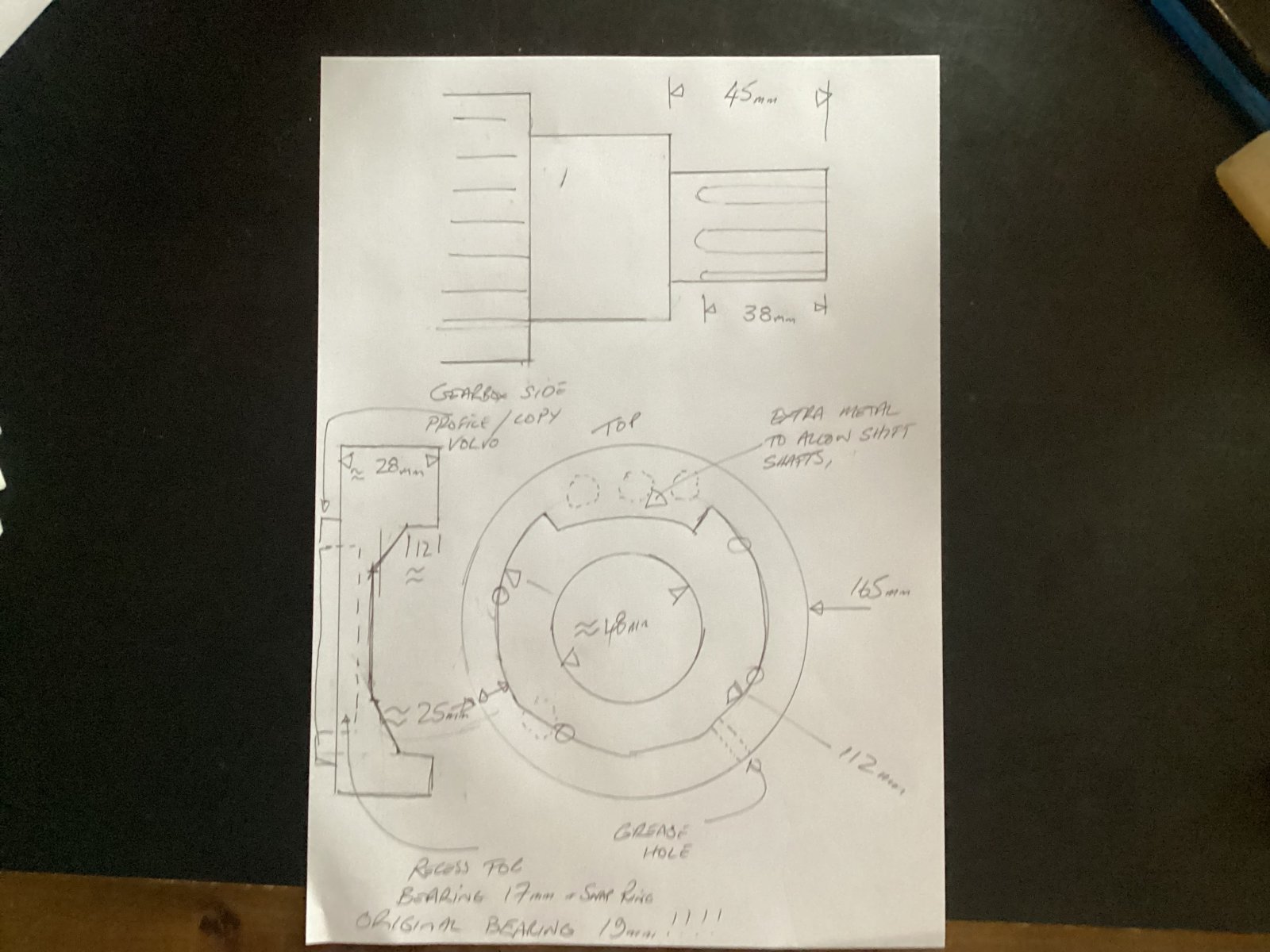

    Dimensions for the rear adapter, I made this with a lot of machine a bit, test fit, machine a bit more, so there’s not a lot of exact measurements, I would test fit for clearance, assemble to see how it went.

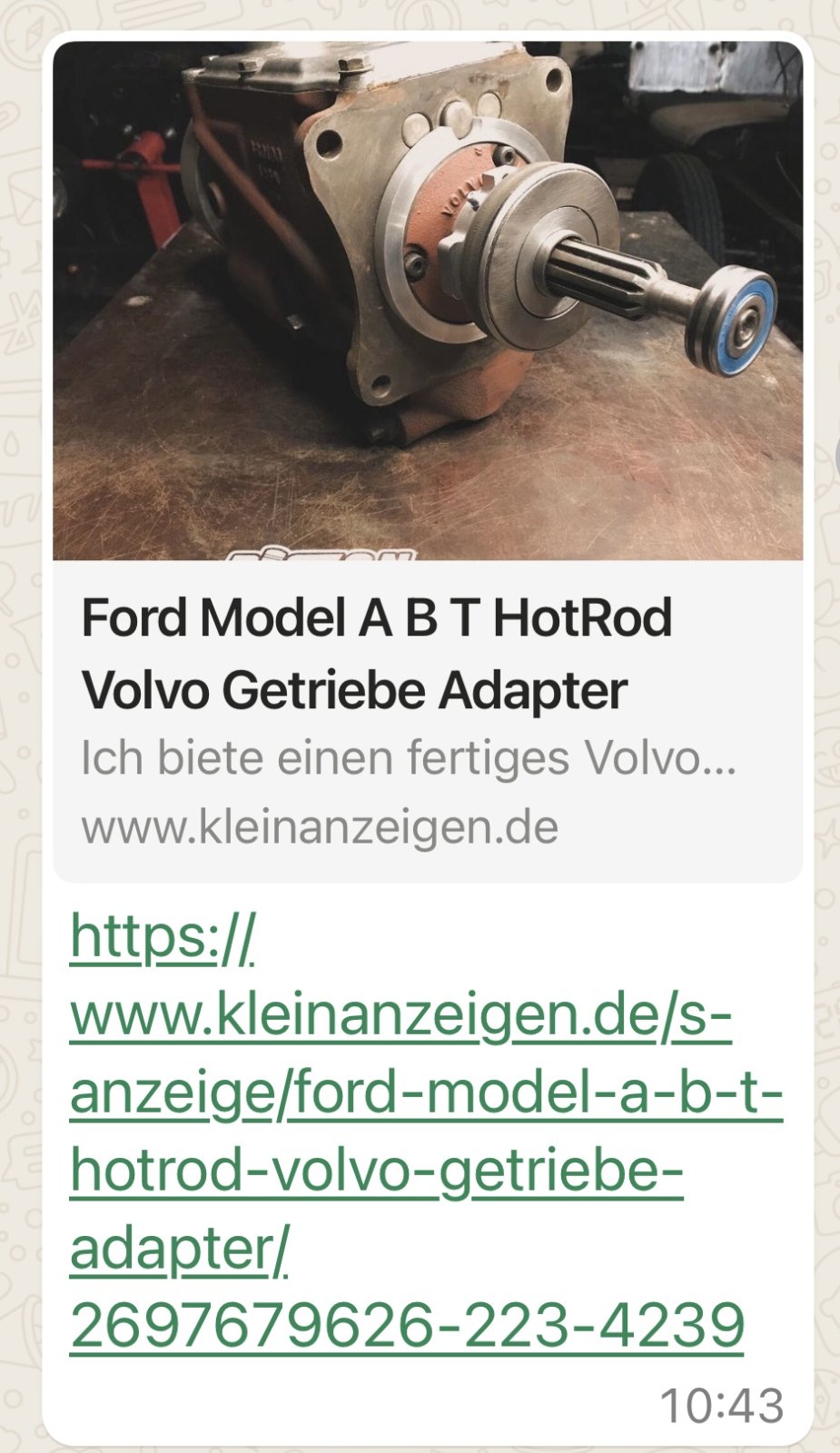

    While I was doing this project, I had a skiing accident and ended up getting my hip replaced, which slowed things down, so it won’t be fitted to the car until winter, there’s too many events on now to take the car off the road. It will be going behind a rebuilt G28, so we will see how it holds up. Typical when this was under development, I got sent this

    I guess great minds think alike

  16. MARKDTN
    Joined: Feb 16, 2016
    Posts: 179

    MARKDTN

    Nice work!

    winduptoy, skip65 and 51504bat like this.
  17. Great tech thread. Thanks.

  18. tubman
    Joined: May 16, 2007
    Posts: 7,970

    tubman
    ALLIANCE MEMBER

    About once a month I am totally amazed at talent, skill, and ingenuity some folks exhibit on this forum.

    This is one of those times.

    winduptoy, skip65, cfmvw and 3 others like this.
  19. nrgwizard
    Joined: Aug 18, 2006
    Posts: 3,012

    nrgwizard
    Member
    from Minn. uSA

    Thanks for posting thought-process, good pics, n dimensions.
    Marcus...

    winduptoy and skip65 like this.
  20. Thank you for the replies, I put a lot of photos, to show as much as possible, and I’m not the best writer. Even though I have been on the spanner’s for more than 35 years, I have learnt so much from the H.A.M.B, and keep learning everyday. The dimensions and drawings are my way of saying thanks

  21. Not only can you make the plan, you can bring it to completion with your matching machining skills!
    Great work!

    winduptoy and skip65 like this.
  22. barobert
    Joined: Apr 14, 2010
    Posts: 105

    barobert
    Member

    A really great work Paul
