Technical Model A Splash Apron ID

Car anyone provide ID assistance on this splash apron? I need to find its passenger side mate. It is about 59 inches long. I think it is a late 1930 thru 1931 but for what car, truck,etc? Also, if anyone has one for sale let me know! Doesn’t have to be in great shape. Thanks



They’re all the same length, coupe, roadster, sedan, pickup.

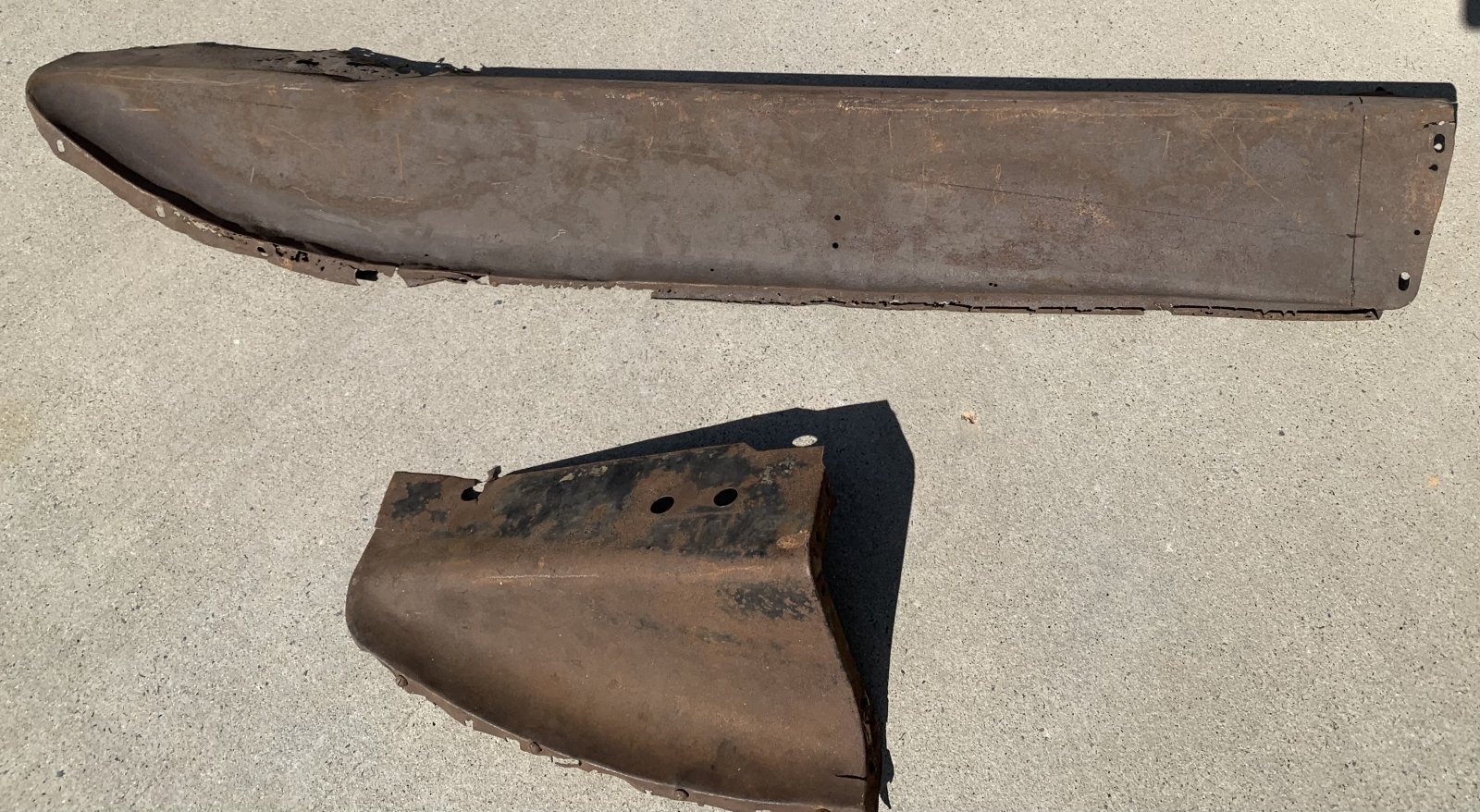

The top is 1931. The bottom piece is the front portion of a 1930. 28/29 are one size, 30/31 are another. 1930 is two piece, 1931 is one piece. Within the year ranges they all fit all models.

​

ironandsteele.com​



The top apron looks odd. The model a apron is not angled at the rear fender mounting area. I'm not sure.



You have a 1931 splash apron and the front section of a 1930. The camera angle is at play.
I have a set of 1930 2 piece aprons and running boards in usable condition, free to a good home if anyone has the need and can pick up. Located just across the border from Detroit in Windsor Ontario. Just taking up space and I have no need for them.



Thanks for all the replies. Now I just need to find a 31 passenger side.

That’s just a camera angle thing, the end is square.

If you were closer I’d take you up on that as I could probably make a pair the 30 version work for what I have in mind.



Wish I was closer. but Hawaii.
