Hot Rods Model A's with 40-48 full length crossmembers

Do anyone have pics of model a frames using the original crossmembers found in 40 thru 48 cars? I tried a couple searches but ended up with hundreds of threads about model a's or lots of crossmember threads. I'm talking about using the full length legs and center box section, t******* to fit of course.
Thanks,
Mike



you want to look for X-member



not sure how that would work? model a frame is like 4" tall and 40-48 are around 6" tall. 32 frames are 6" tall it could work on that and look right.



This is a 32 frame and I think he's a HAMBer. There was a thread on this at sometime?

I've seen Model As done this way but a 32 frame is way different to a Model A frame



You pie cut the legs so they taper to the skinner model A rail.



Here's mine, its a 39 X though.



thanks for posting that video, nice work.

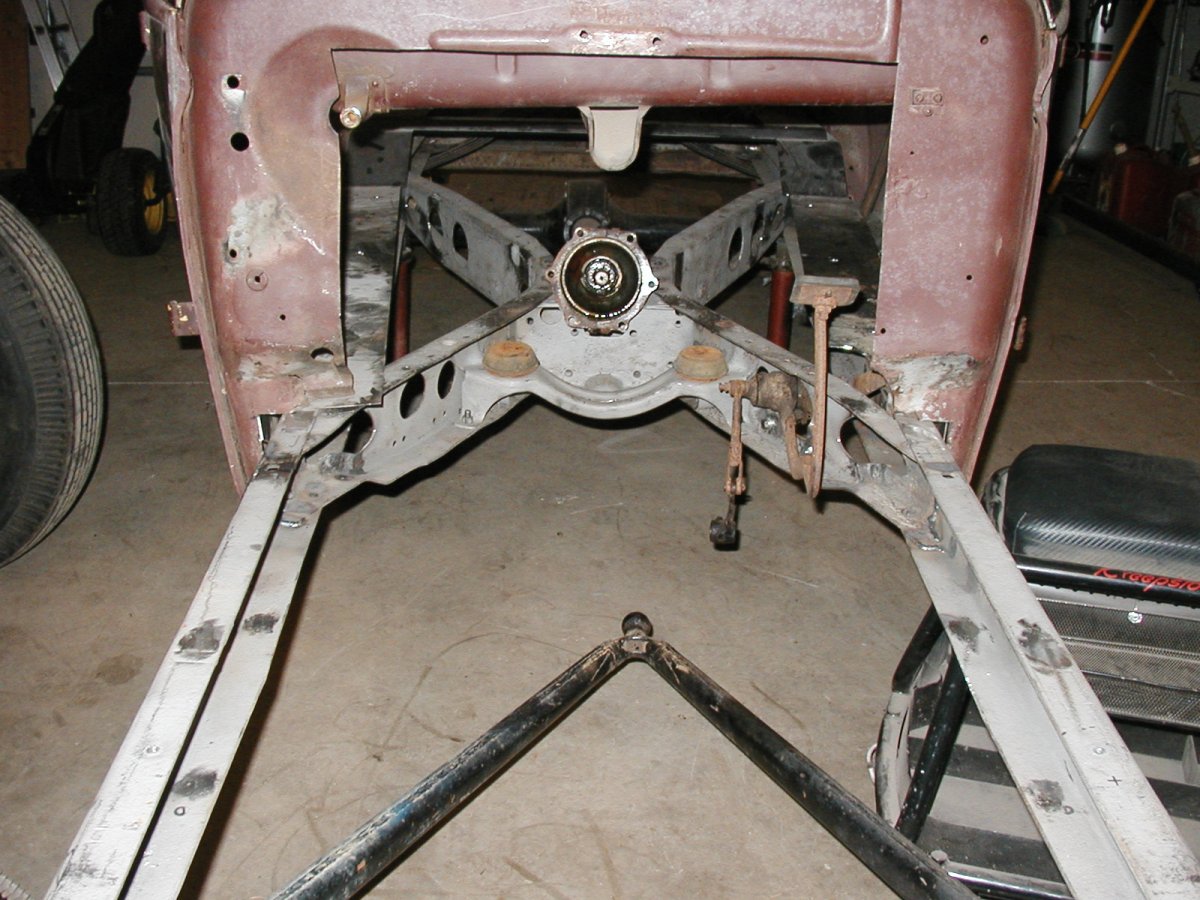

Sorry I don't have a Video for you. These photos have been around here several years now. This is a 36 X member, pretty much same as 39. I didn't let the ****** mount dictate where I mounted the X unit. I mounted my Body and positioned the pedals in relation to the floor/firewall. I also used a 39 pedal unit, non split front bones and closed drive. Kind of the same as Aaron D only different.
The Wizzard



Thanks guys, the responses and pics/video are great. I had not thought about sectioning a crossmember/legs but now looking at it, it makes sense to me. Anybody got more, throw them in here.
Mike



Not an 'A' but I used a modified 46 Olds X-Member in a friends 42 Chevy PU with OEM trailing arm suspension with a 9" and coil overs.
