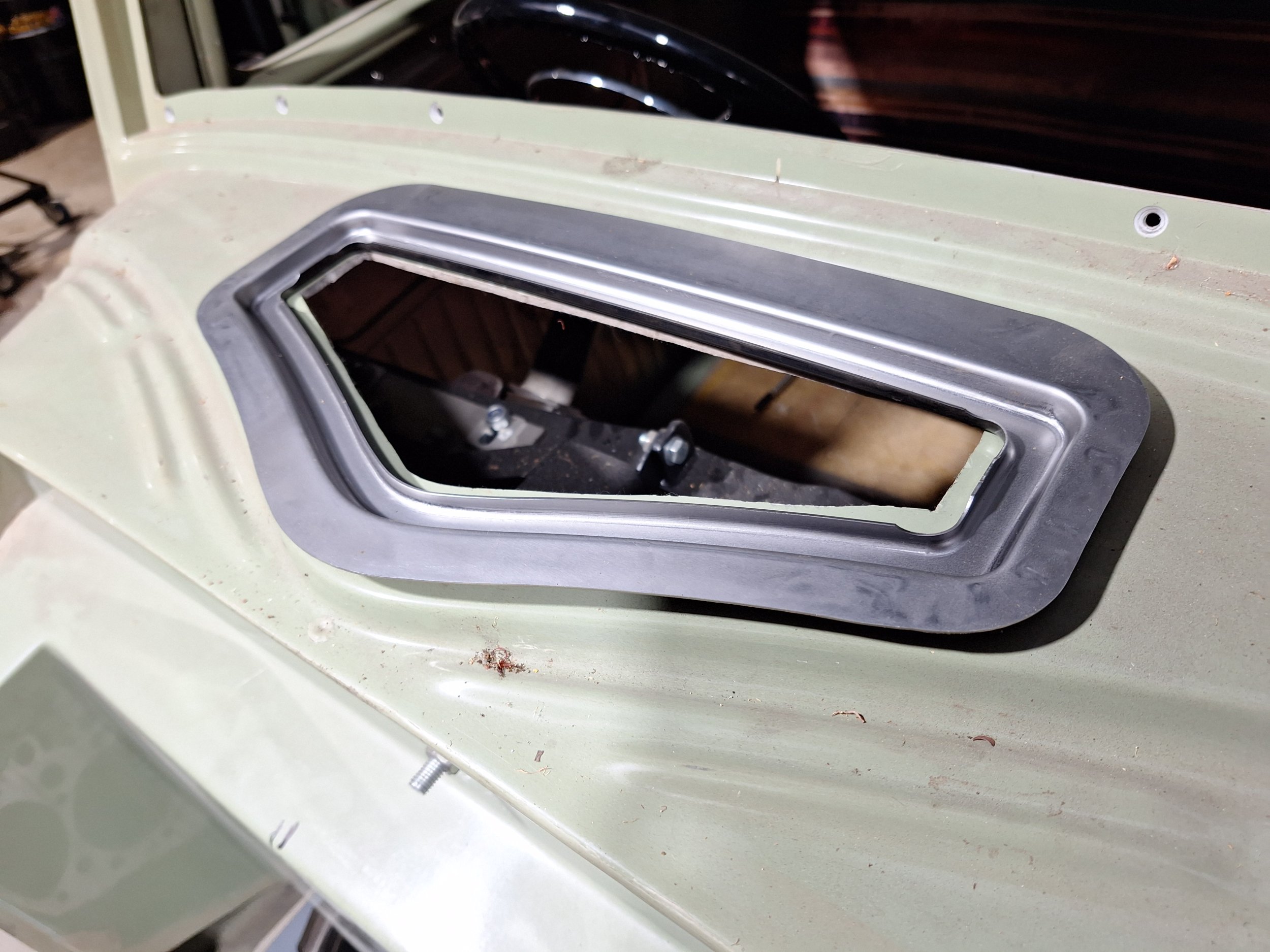

Ive just spent 4 weeks driving around outback OZ on holidays, not much progress on hotrod but I was still able to purchase some items to keep project moving along. I now have a complete ignition system. I also purchased a steel cowl vent panel, I plan to reproduce vent in fibreglass or attach to body as is - Im not sure witch way to go and am open to suggestions. A few pics. Glen

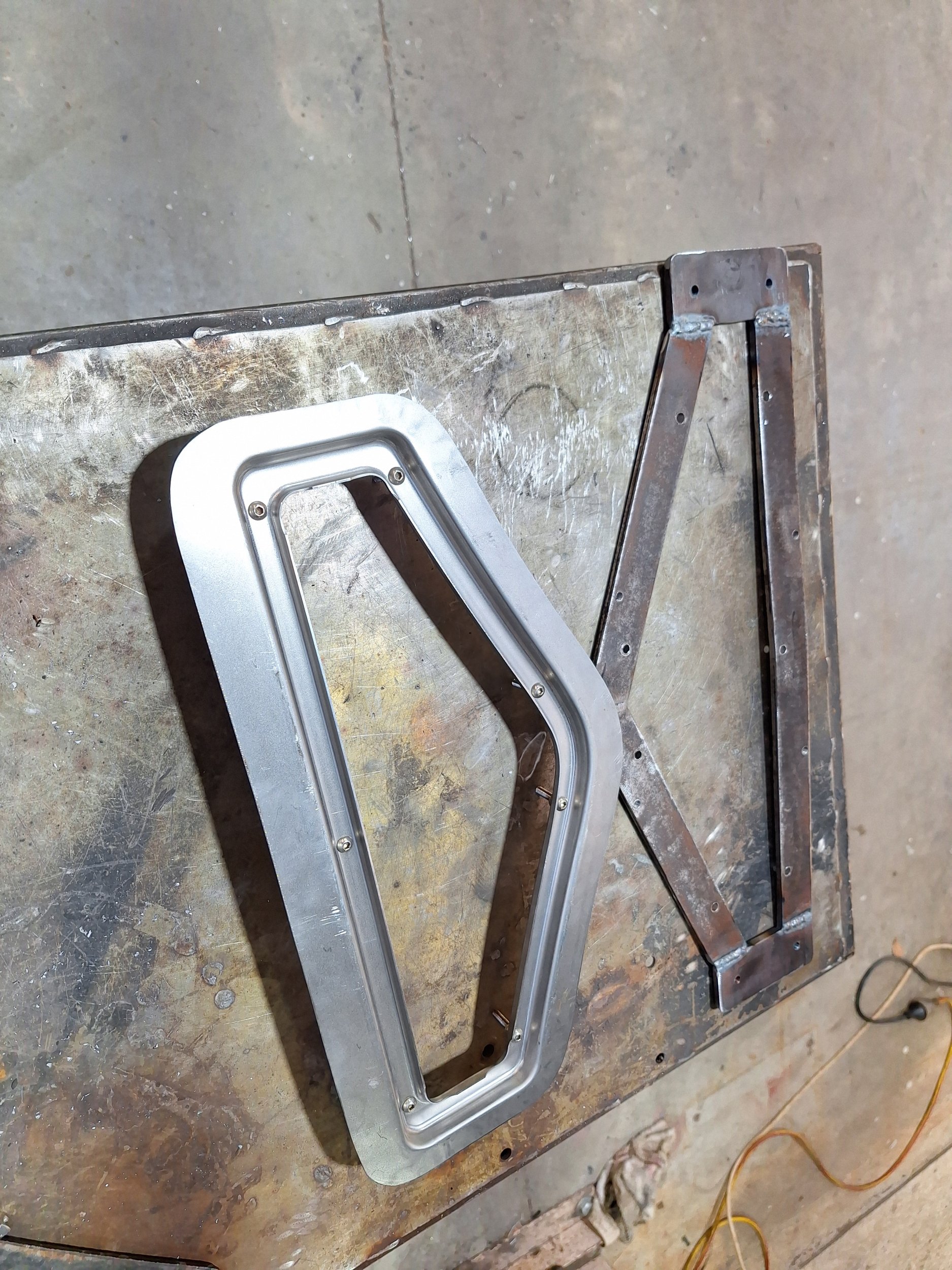

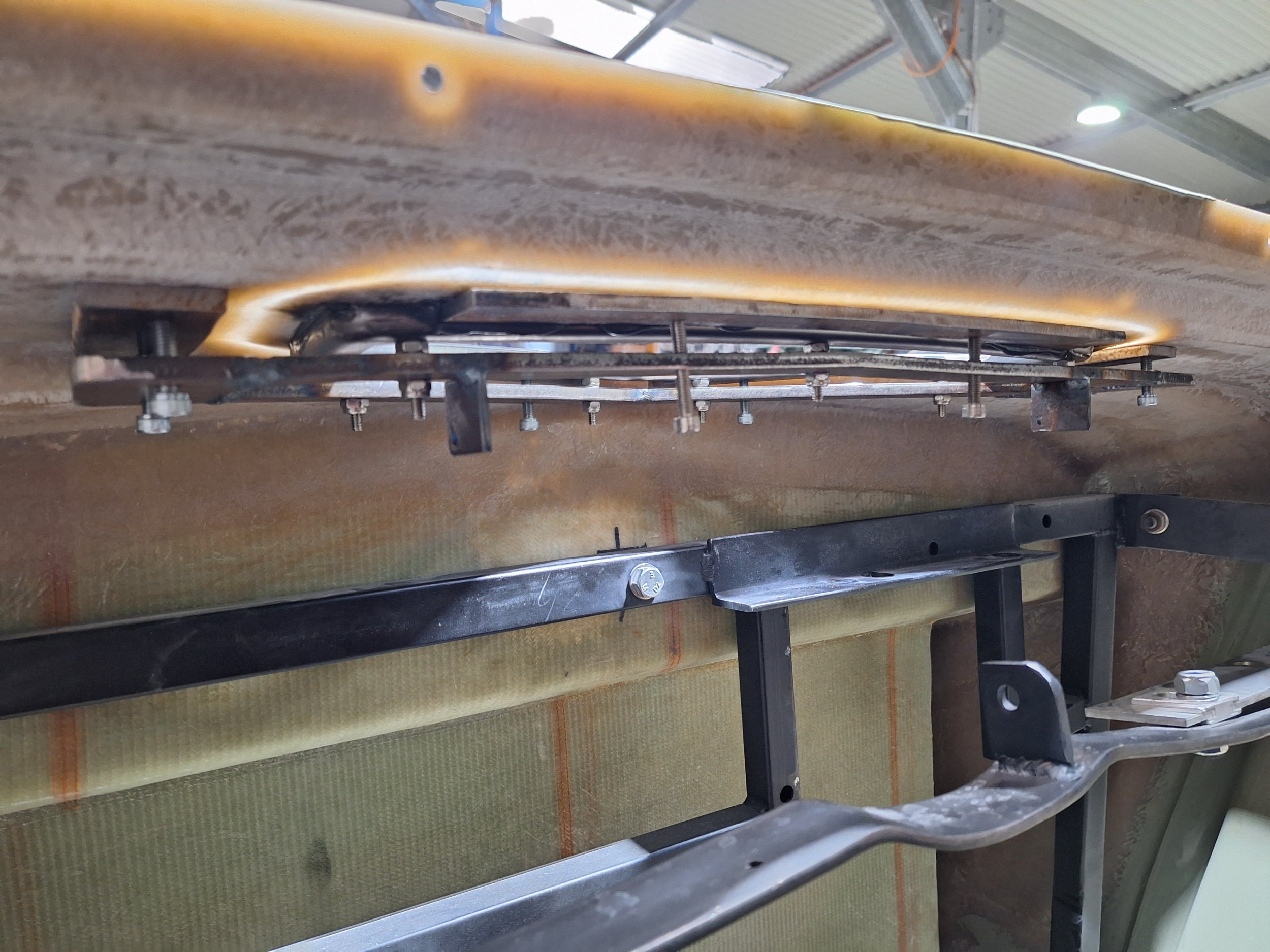

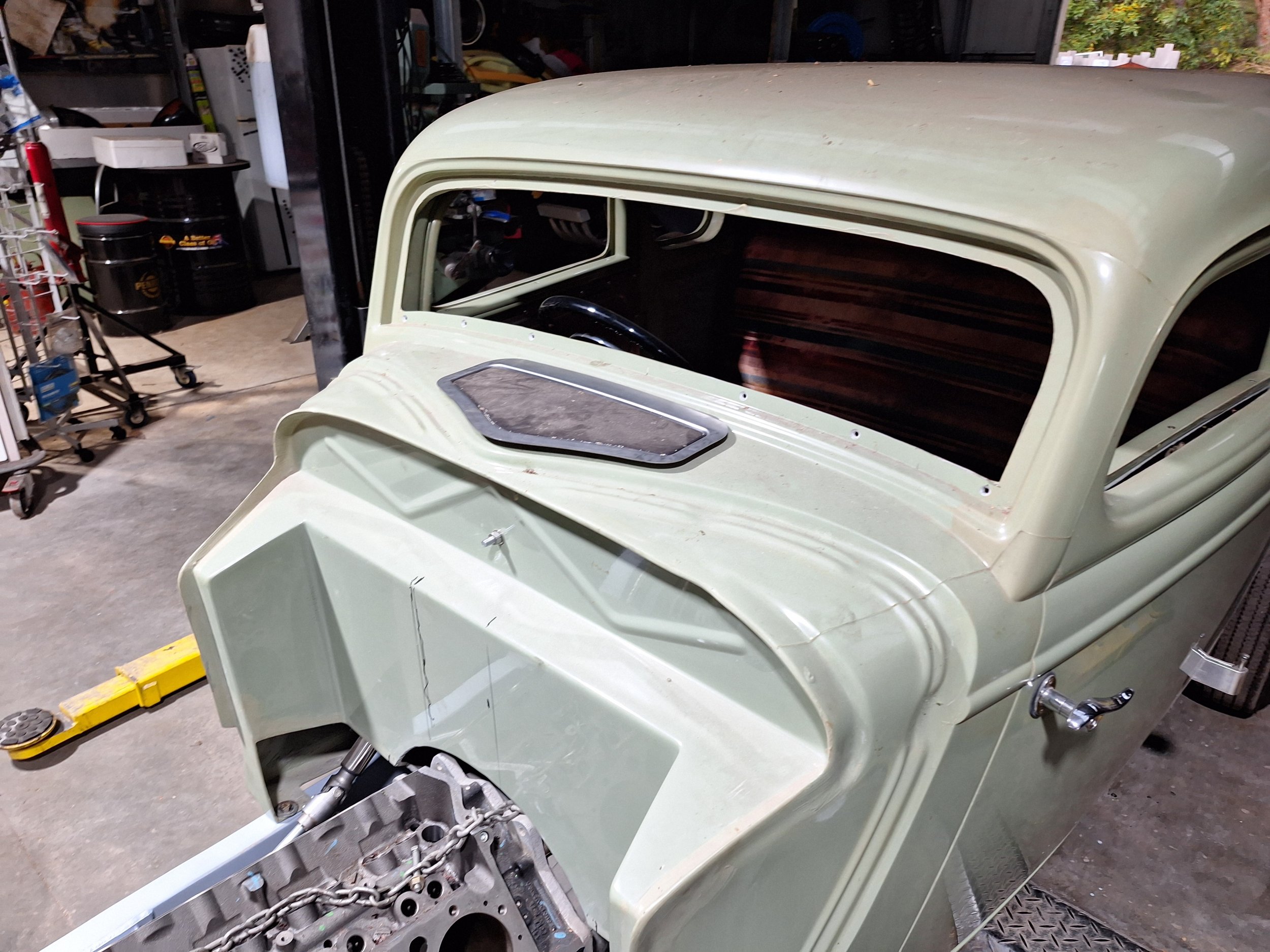

A few pics of recent progress, at this point in time I plan to glue steel panel in place ( although making one in fibreglass is still an option ), today I fabbed up a support frame that will hold panel in place and have provision to hinge vent. I still need to fab up handle assembly to open / close vent. I have a plan in place and hopefully will fab handle on next day off, Glen



Generally, fiberglass has about 1.5 times the thermal expansion coefficient of steel. In rough numbers on a 12" section and a 16°C (30°F) temperature swing, the steel will expand by about 2.8 thousandths of an inch, while the fiberglass would be more like 4.2 thousandths.

Its good news this way, as your steel shouldn't push on the fiberglass and cause body cracks, but you could get cracks over time in whatever filler and paint is over the connection between the steel and fiberglass. I'd use one of the fillers with fiberglass strand in it to help stabilize the connection. Otherwise everything else expands and contracts with temperature changes, so you should be fine to go with the steel lid and frame.



Thanks for this info, this is the reason I was planning to re produce panel in fibreglass but have now decided to glue steel panel in, as the car will have a distressed look anyway and if it cracks in the future a repair wont be an issue. Thanks again, Glen

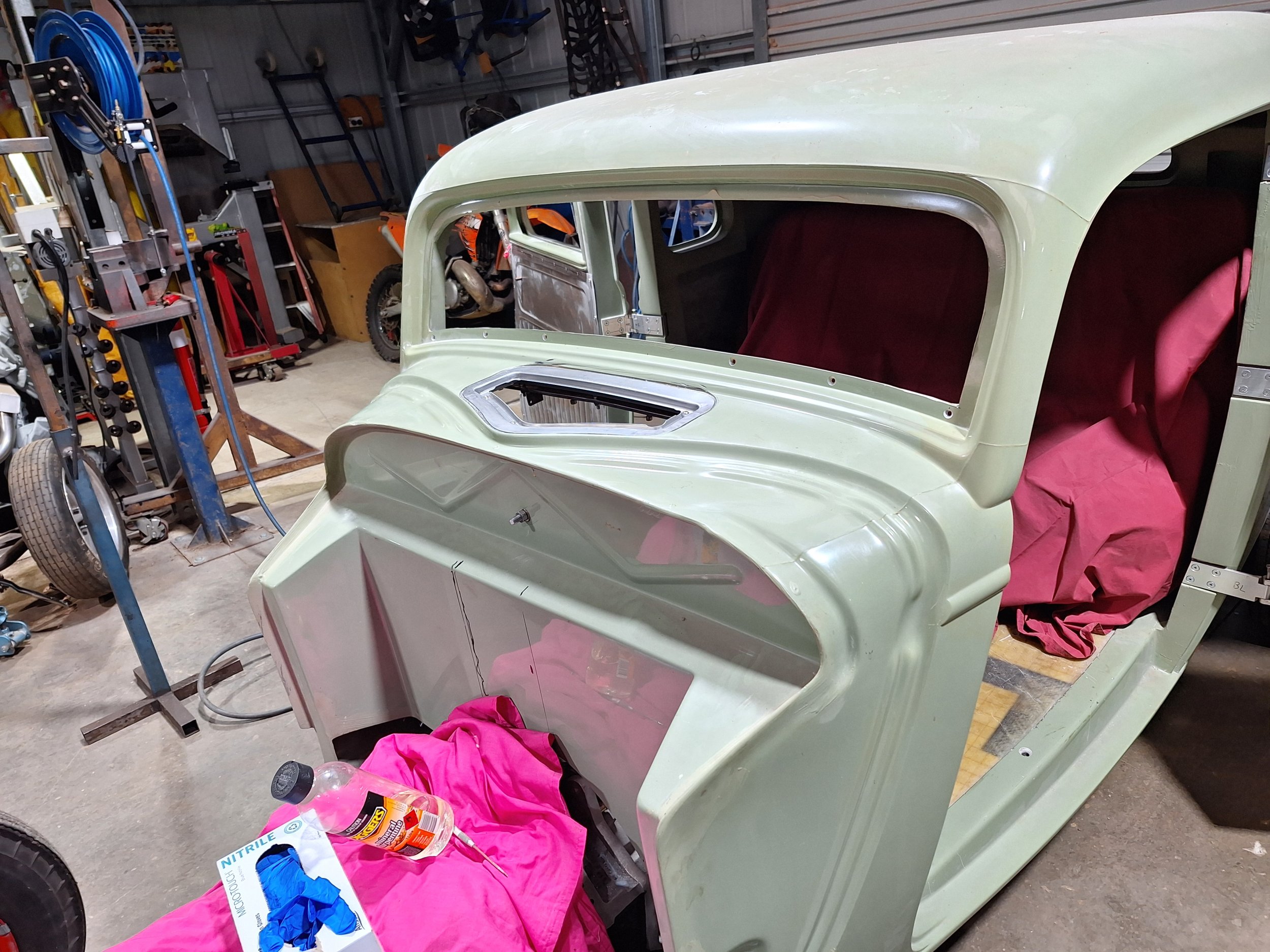

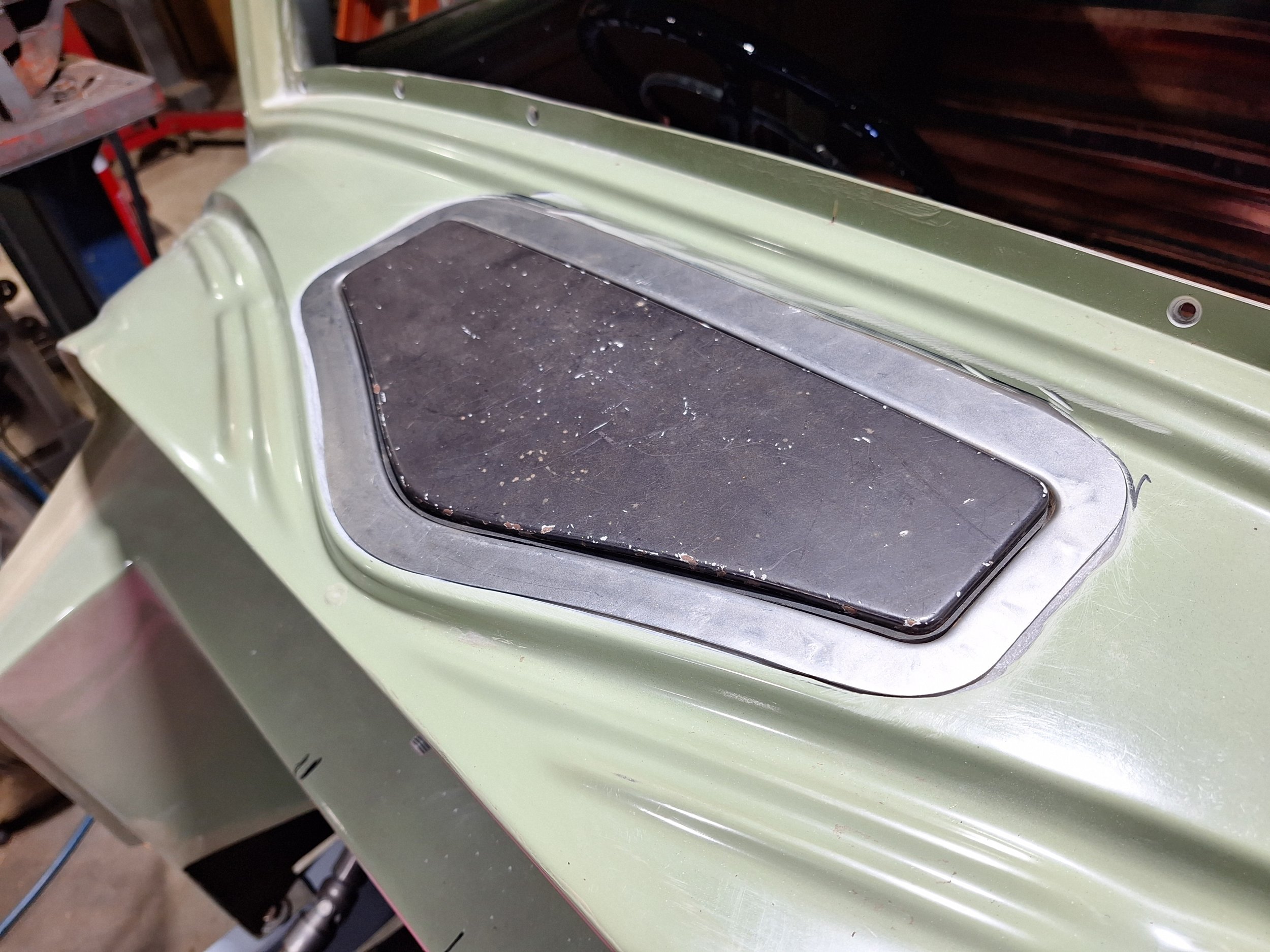

I glued vent panel in place today, once set I will finish of with body filler and complete hinge / handle assembly, a few pics. Glen

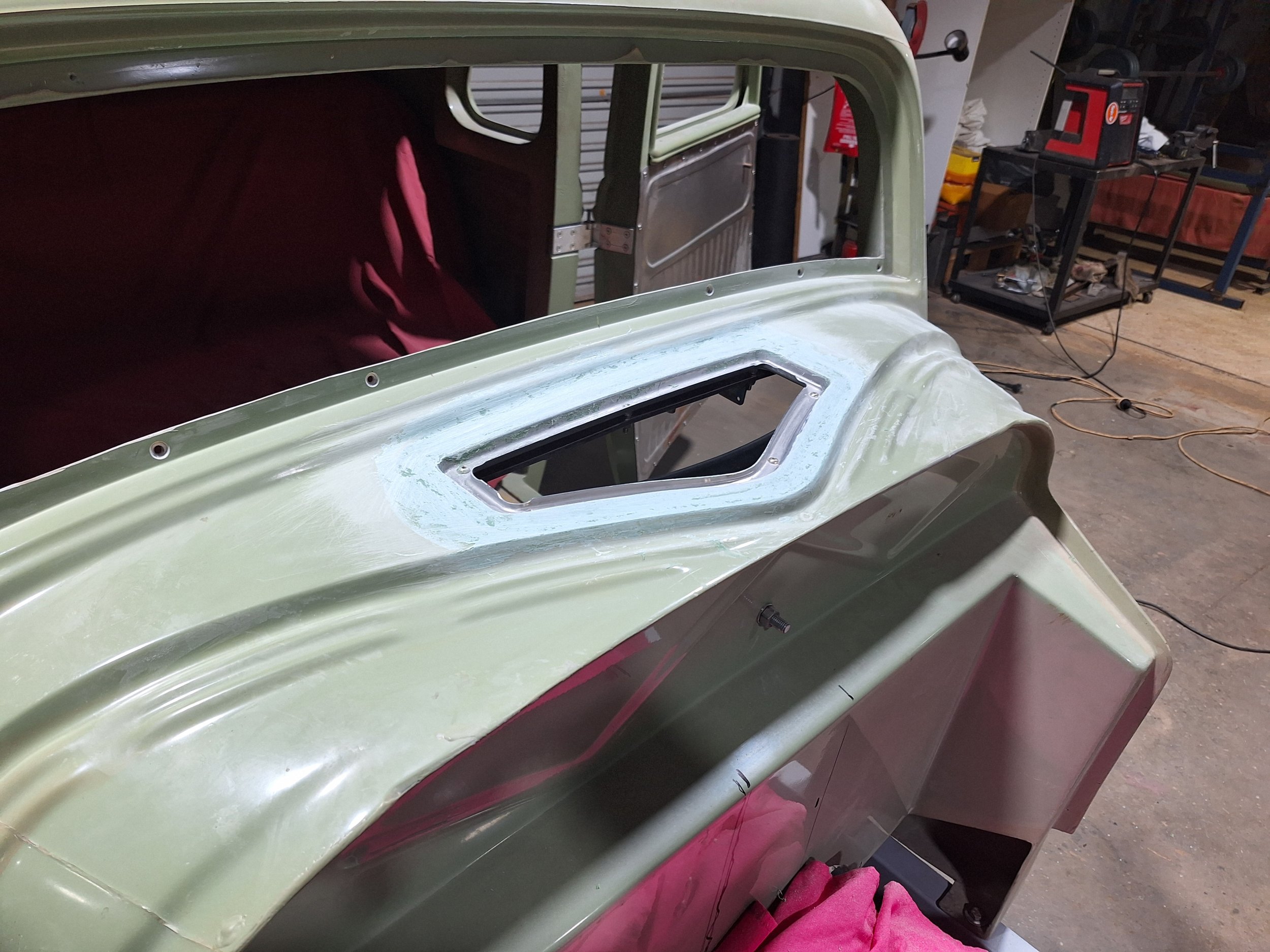

I applied some fibreglass reinforced filler today, still need another skim coat but happy so far, Glen

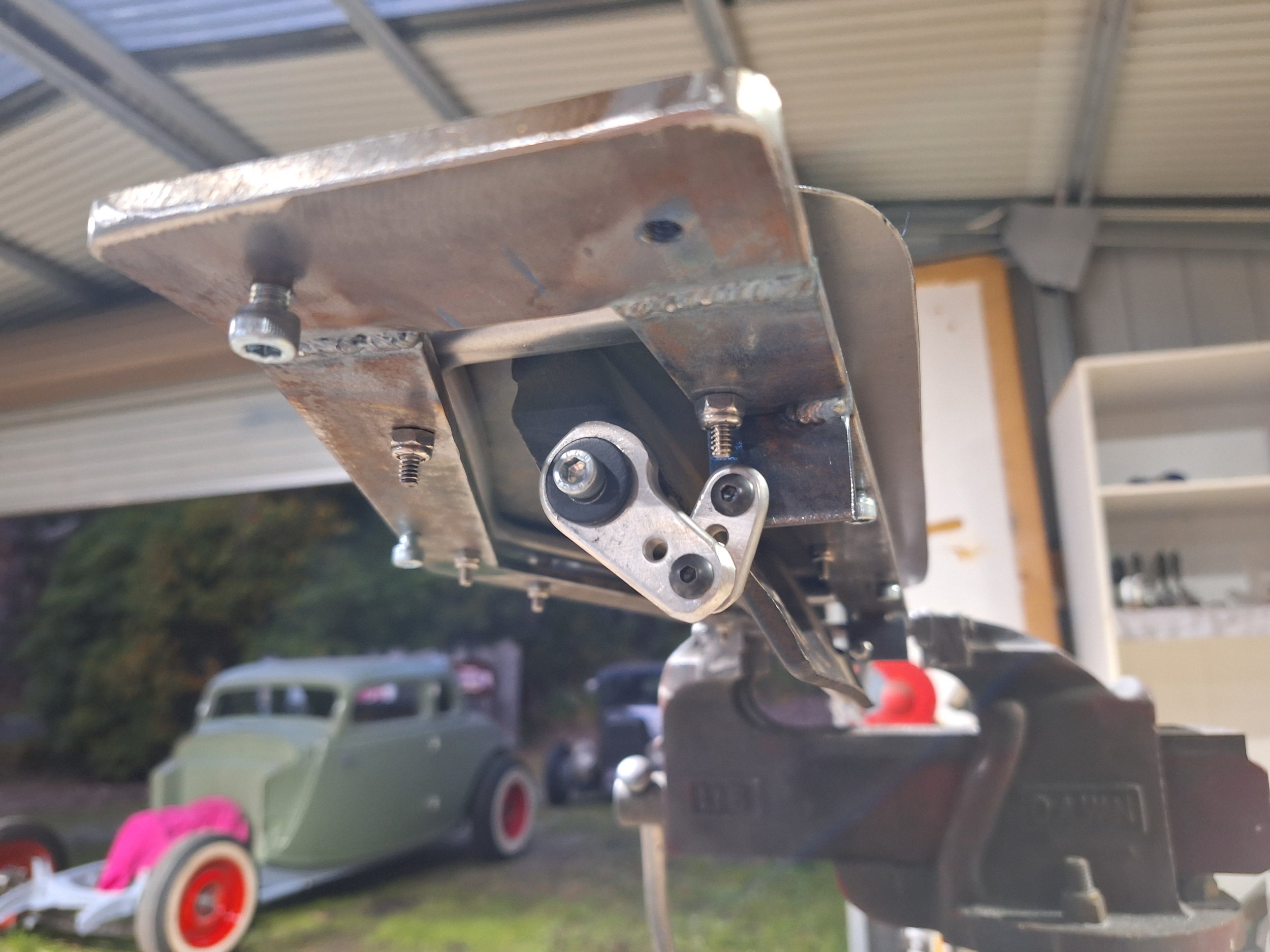

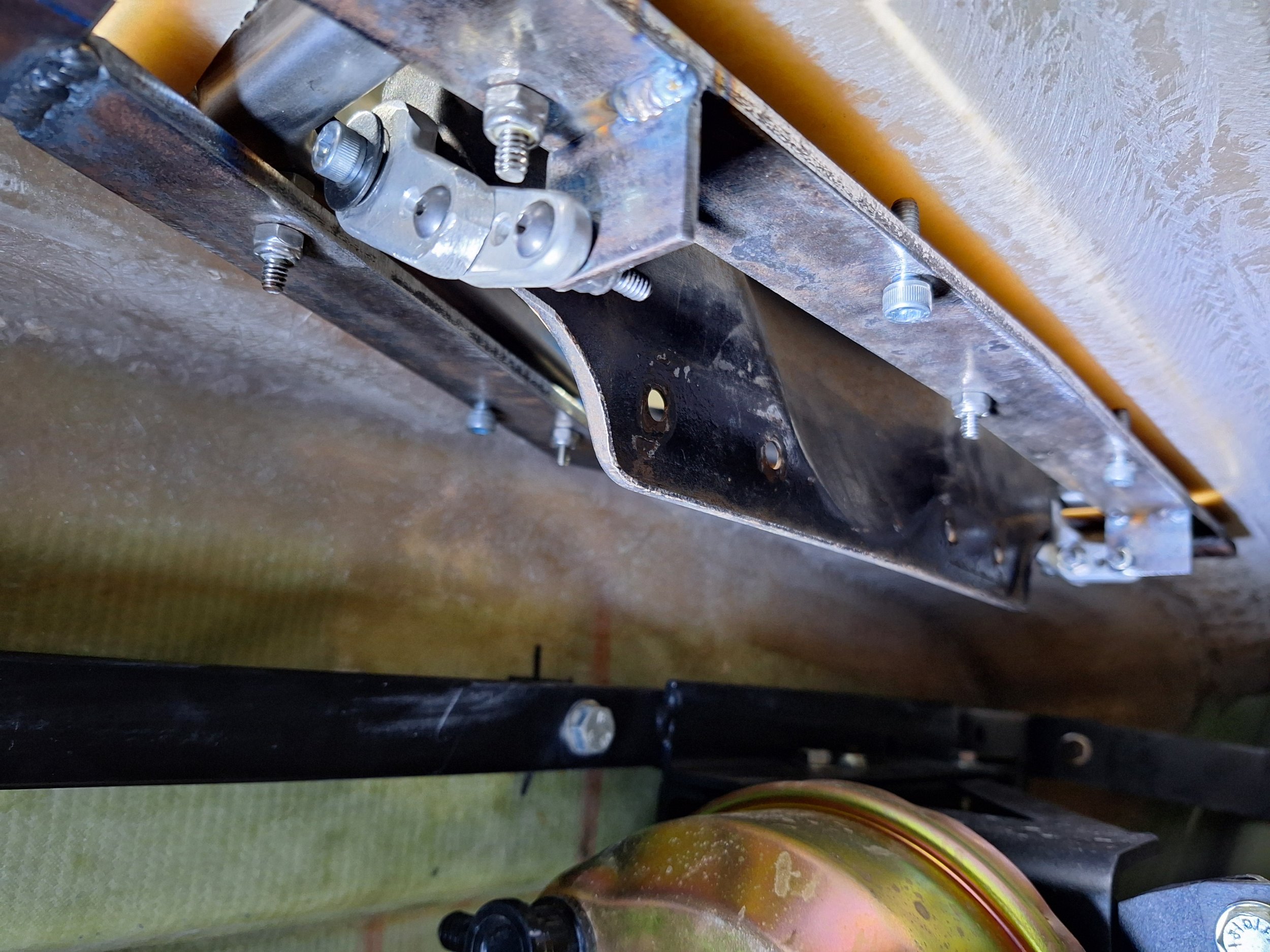

Started fabbing hinge assembly today, only problem was there was no room for lever under dash as brake booster in the way so I decided to poke it out the dash, happy with the result. Still a lot to do - I may make a a nice surround around lever either riveted or bead rolled or both. I also have to work how to keep open and closed. Glen



I like the dash mount. You're missing some parts that would help with keeping it open and closed. My 46 GMC has kind of a cam where you pull the lever back to lock it down, and there are detents when you open it up to hold it. Usually these pieces connect to the cowl vent where you have connected your lever. You might need to get creative with that you have there.



I try not to be a safety freak in older cars, but I'd prefer a handle that doesn't look like a spear also.
I don't know how much leverage is needed to operate. Could it be bent down? I see it threads in and a bend would be a bother.
I realize the wheel isn't in place yet, but that design looks unfinished.



I have seen how the original rachet system works to open and close these vents on a 34, but I don't have one on hand to play with / modify. My plan at this stage is to fab up a fancy bezel / surround with slots at the top and bottom for the lever to go sideways into the slot, and possibly hinge lever horizontally and use a spring to hold in position. Hope I have explained it ok, I also plan to shorten lever and make it all look like it belongs there. Glen



You are correct, this design is totally unfinished, the finished product hopefully will look like its supposed to be there, there is very little leverage required to open and close vent so the lever will not be this long, watch this space. Glen



I can see your idea, it's just like the mowing height adjustment on my lawnmower. Good plan, that will save a lot of space under the dash.

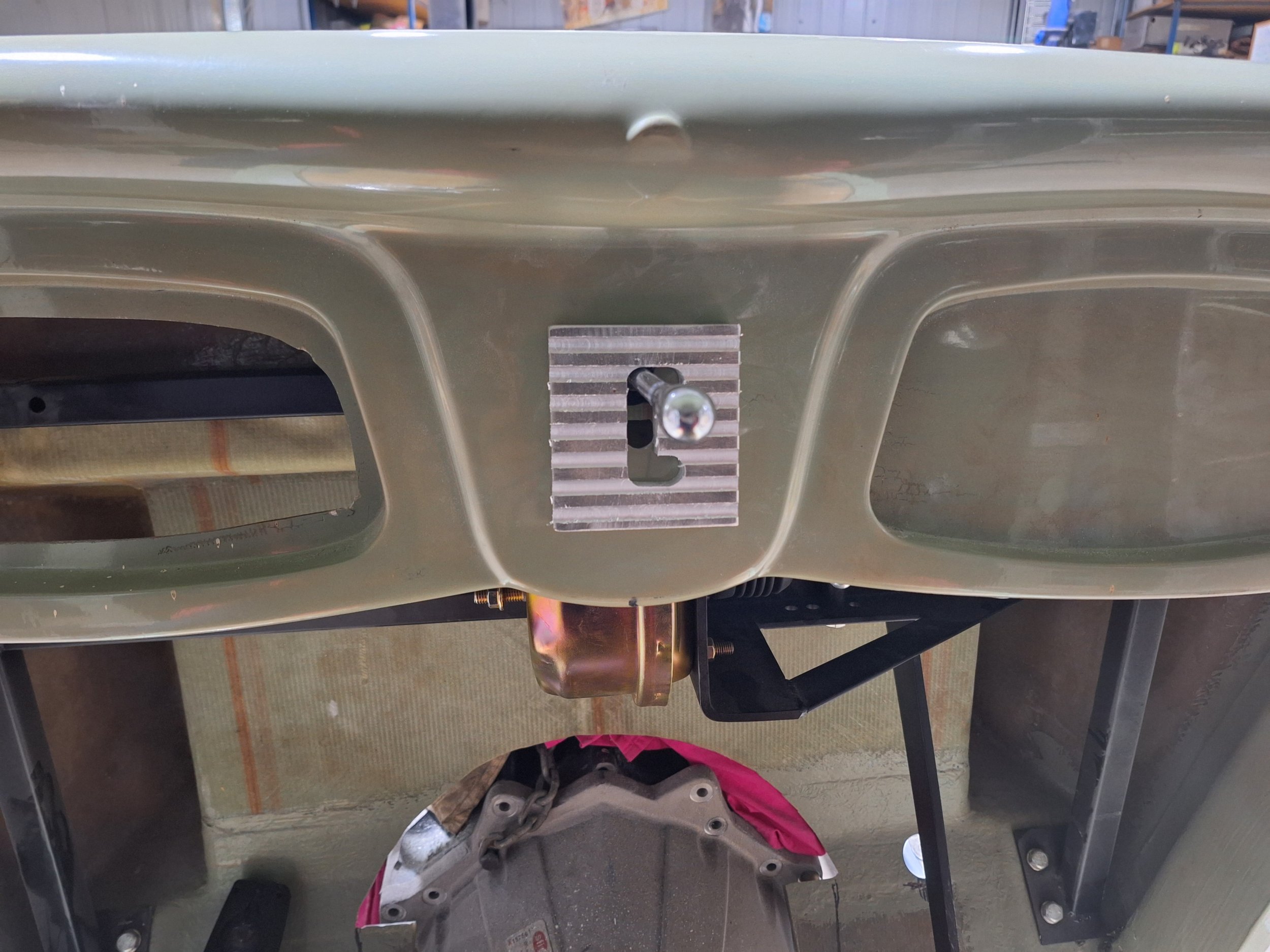

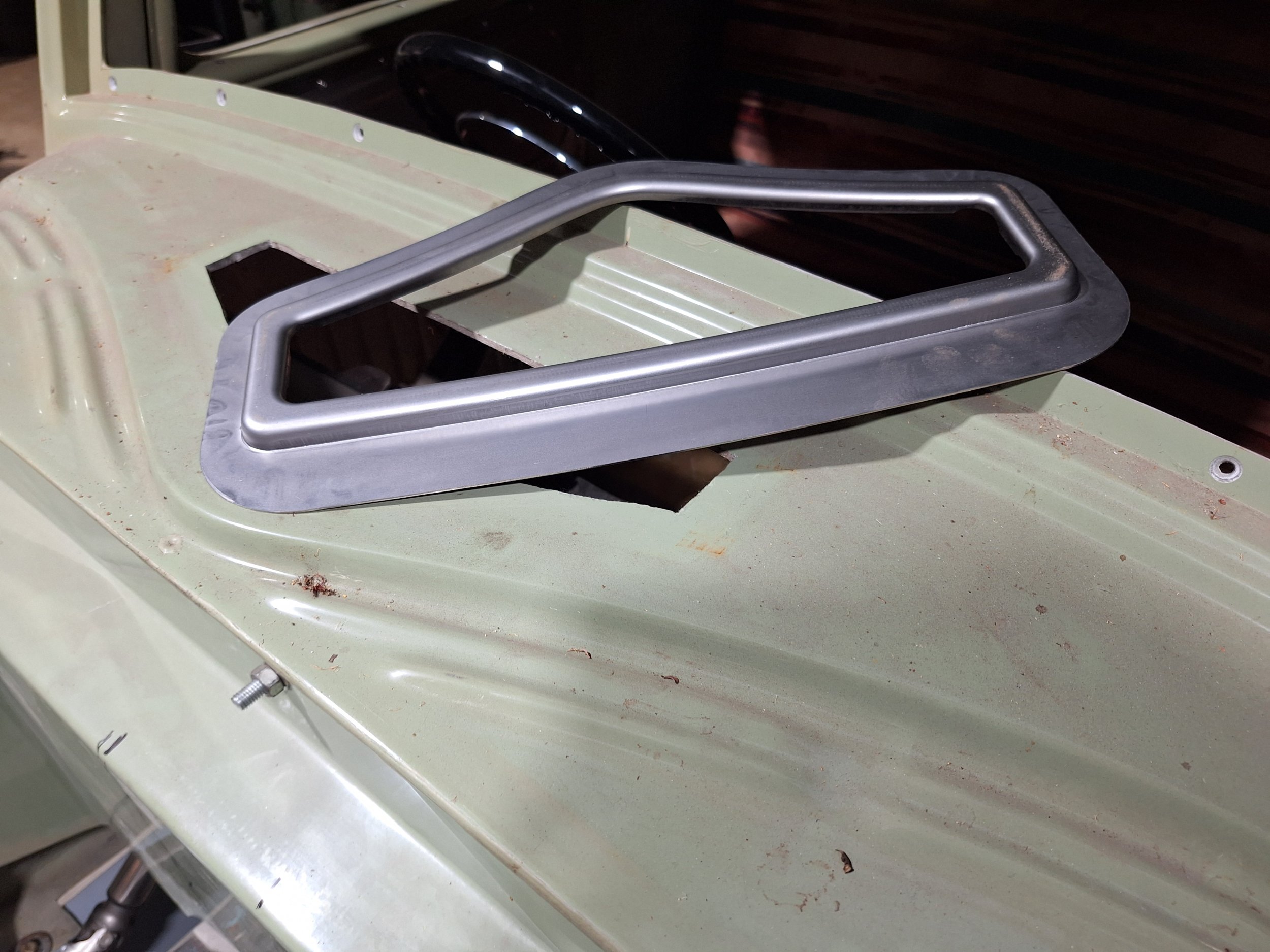

I spent about 2 hours in shed today, this is what I came up with. I plan to make a little smaller and shape similar to center of dash and recess in by machining around the inside edges of bezel, a few pics, Glen

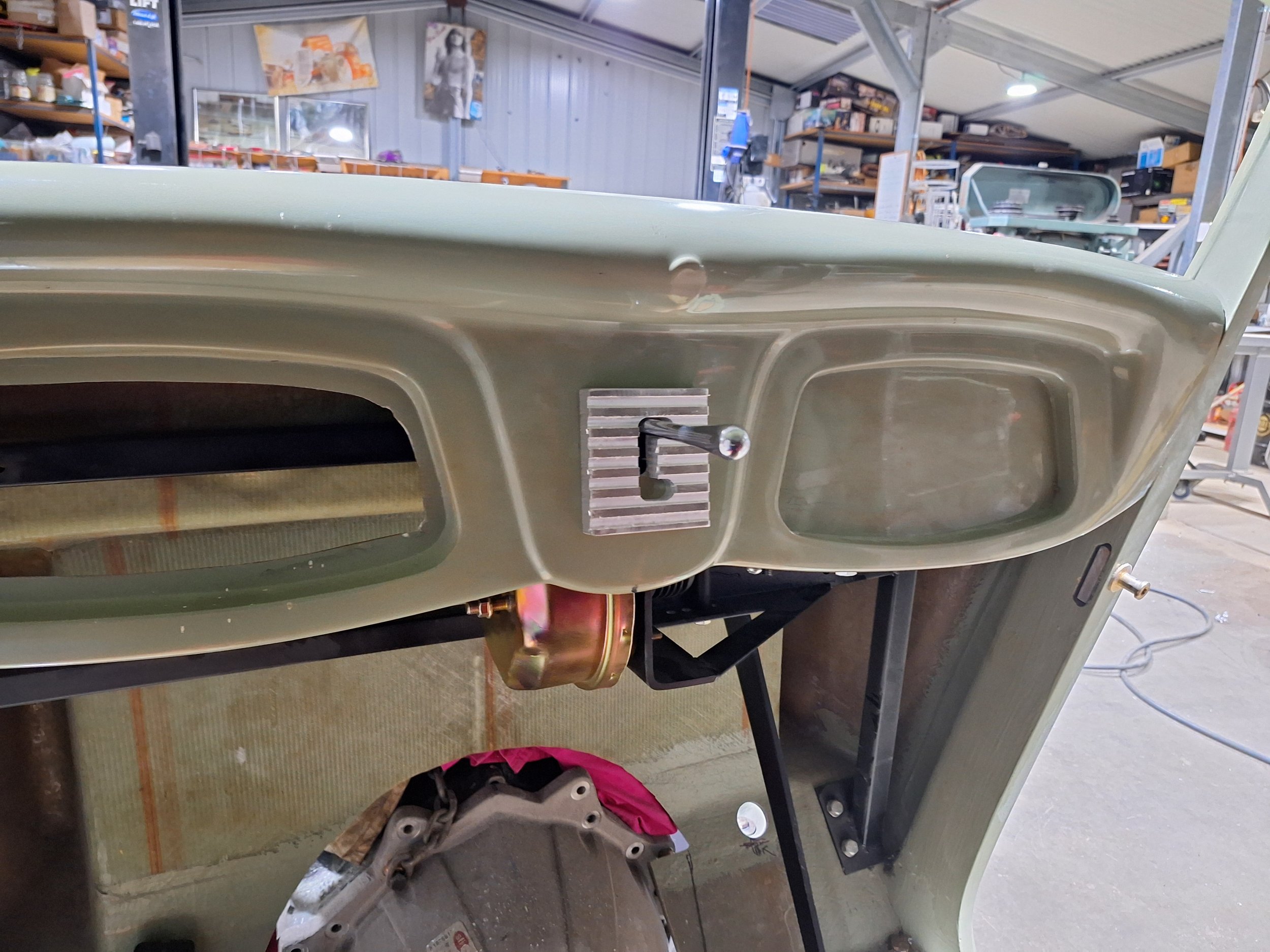

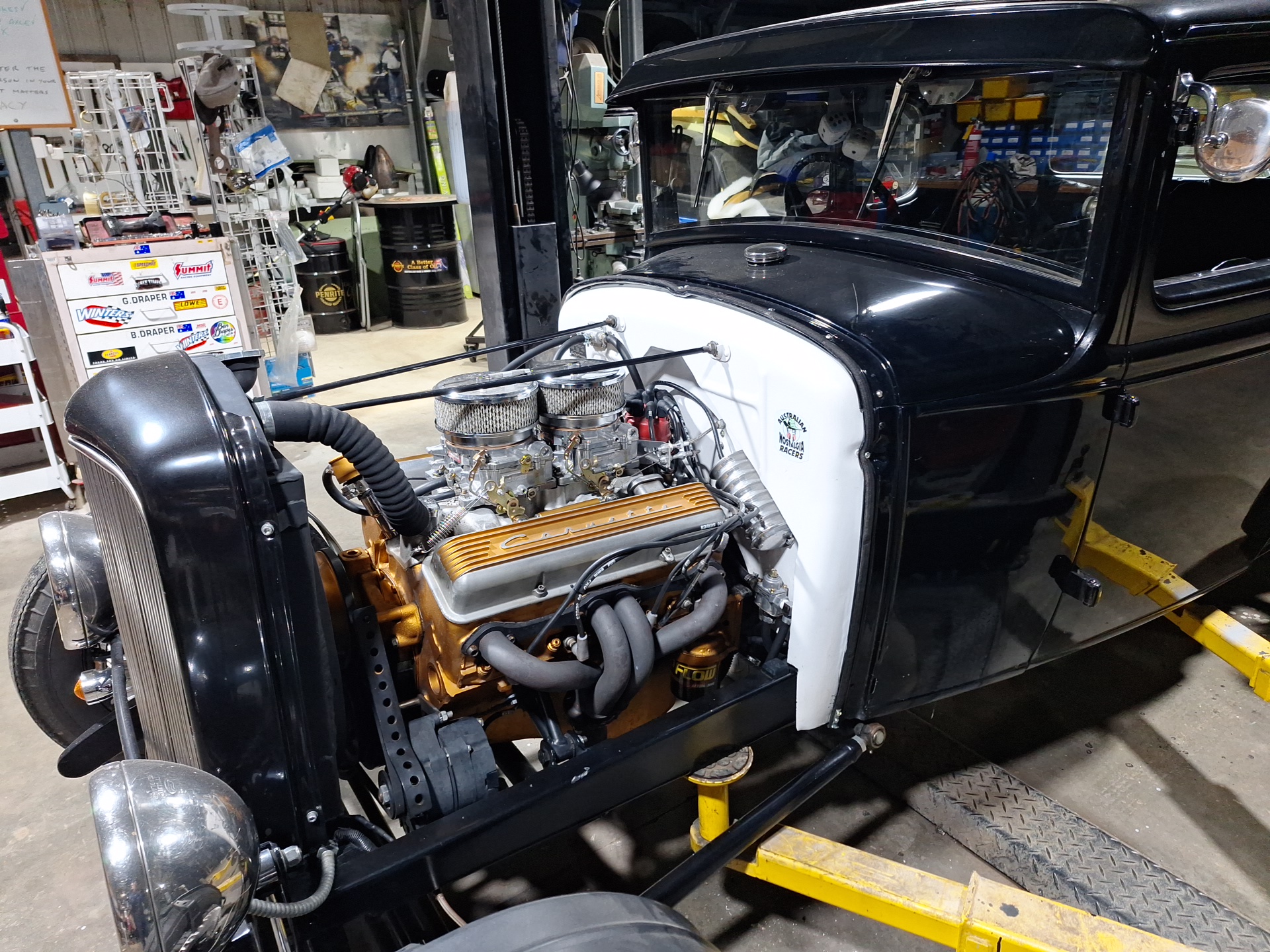

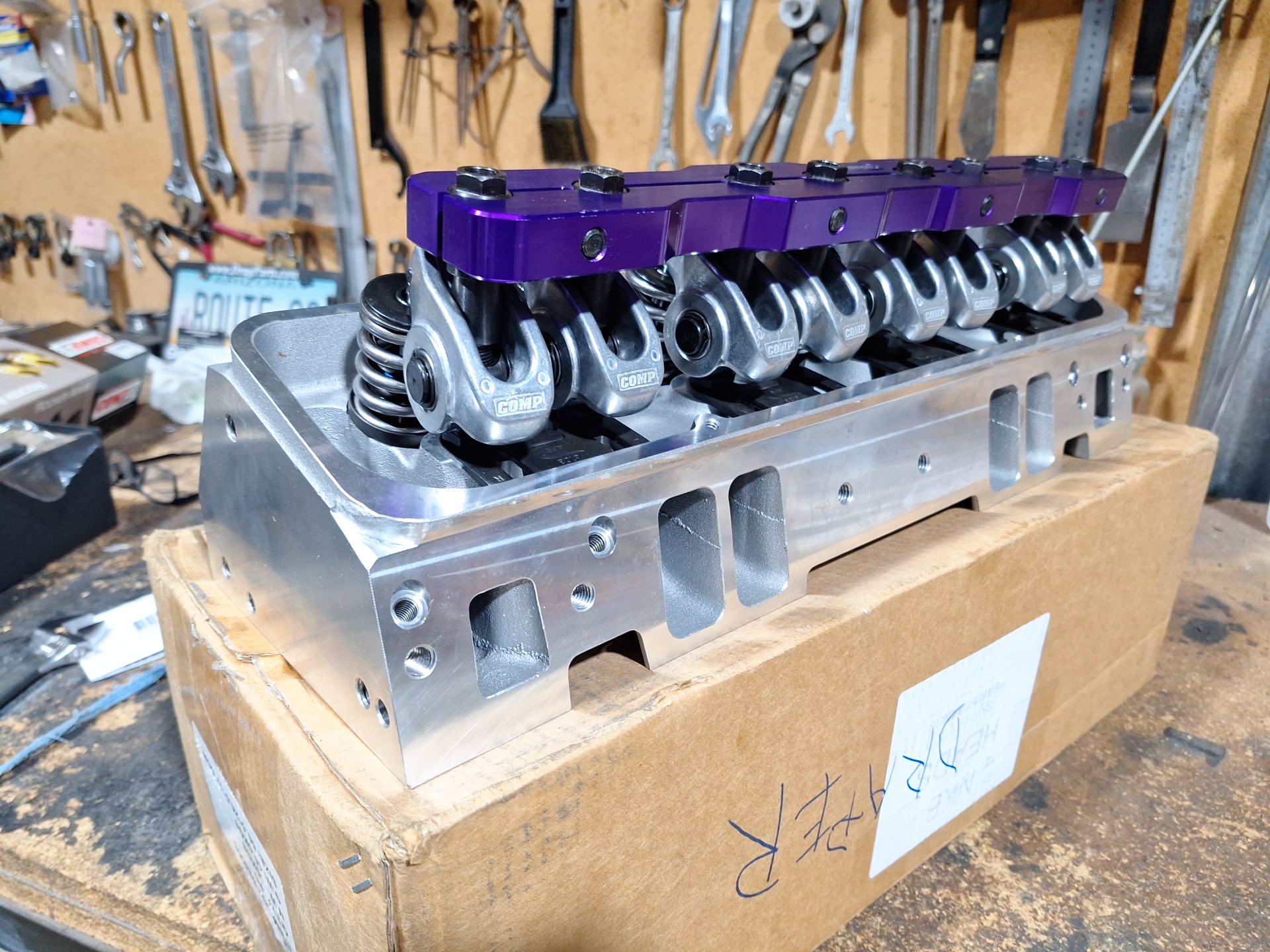

A few pics of todays progress, I now have a working vent. I'm not 100% sure if I love it but I do like it, I will wait until I have gauges, steering wheel, glove box etc. and then see how it looks. I will leave it for now and progress with other items such as fabricating headers, exhaust, windshield frame, trans tunnel, cover for rear crossmember in trunk etc. etc. etc. But my next job is to install some aluminum cylinder heads on my 31 coupe. Glen

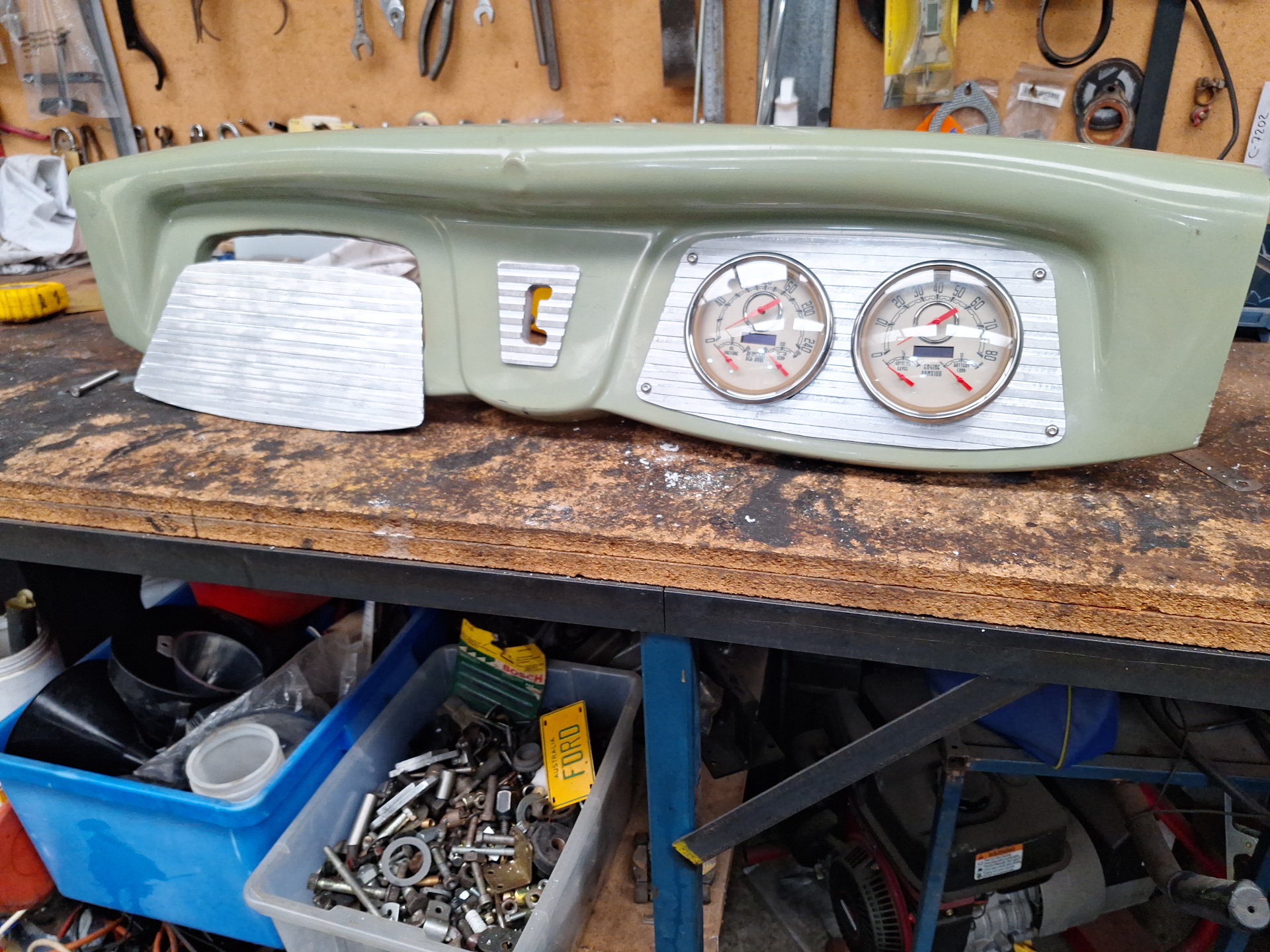

I recently purchased some vintage gauges for my 34, Yesterday I started fabbing some bezels for the gauges and for a glovebox lid. I decided to follow the theme of my vent handle bezel and machined some groves into some allow sheet, I still need to sand and polish all items and I am happy with the result so far, although not 100% happy with glove box lid - I plan to reduce the overall size of the outside of the lid by 2-3mm, a few pics, Glen



Well as 34Larry would tell you, you can't do any better than that. ( Oh I did say that)



I trimmed my glove box lid today, so glad I did as it looks so much better now. Glen



Started fabbing headers and exhaust recently, yesterday I started making a pair of mufflers, a few pics Glen

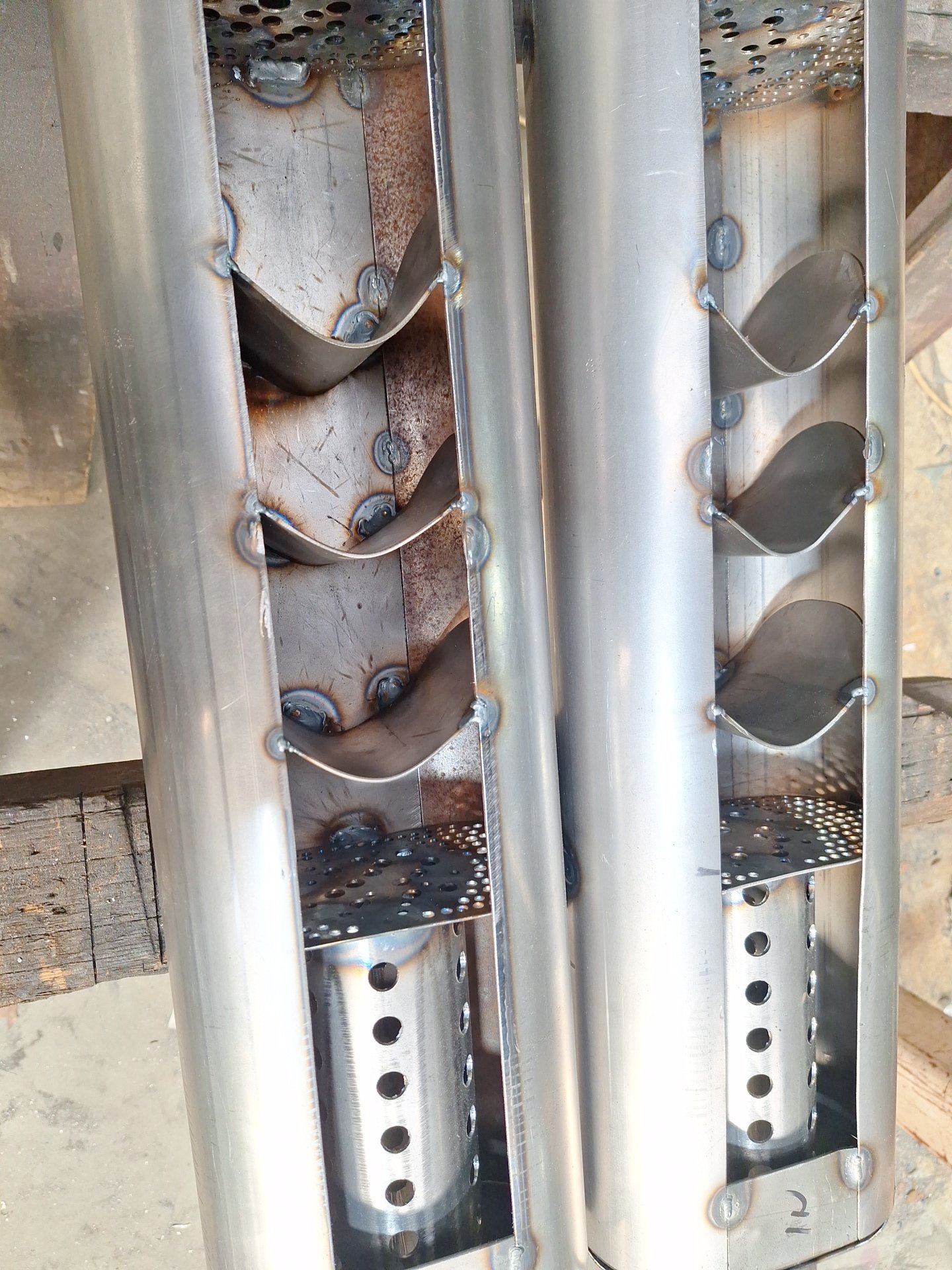

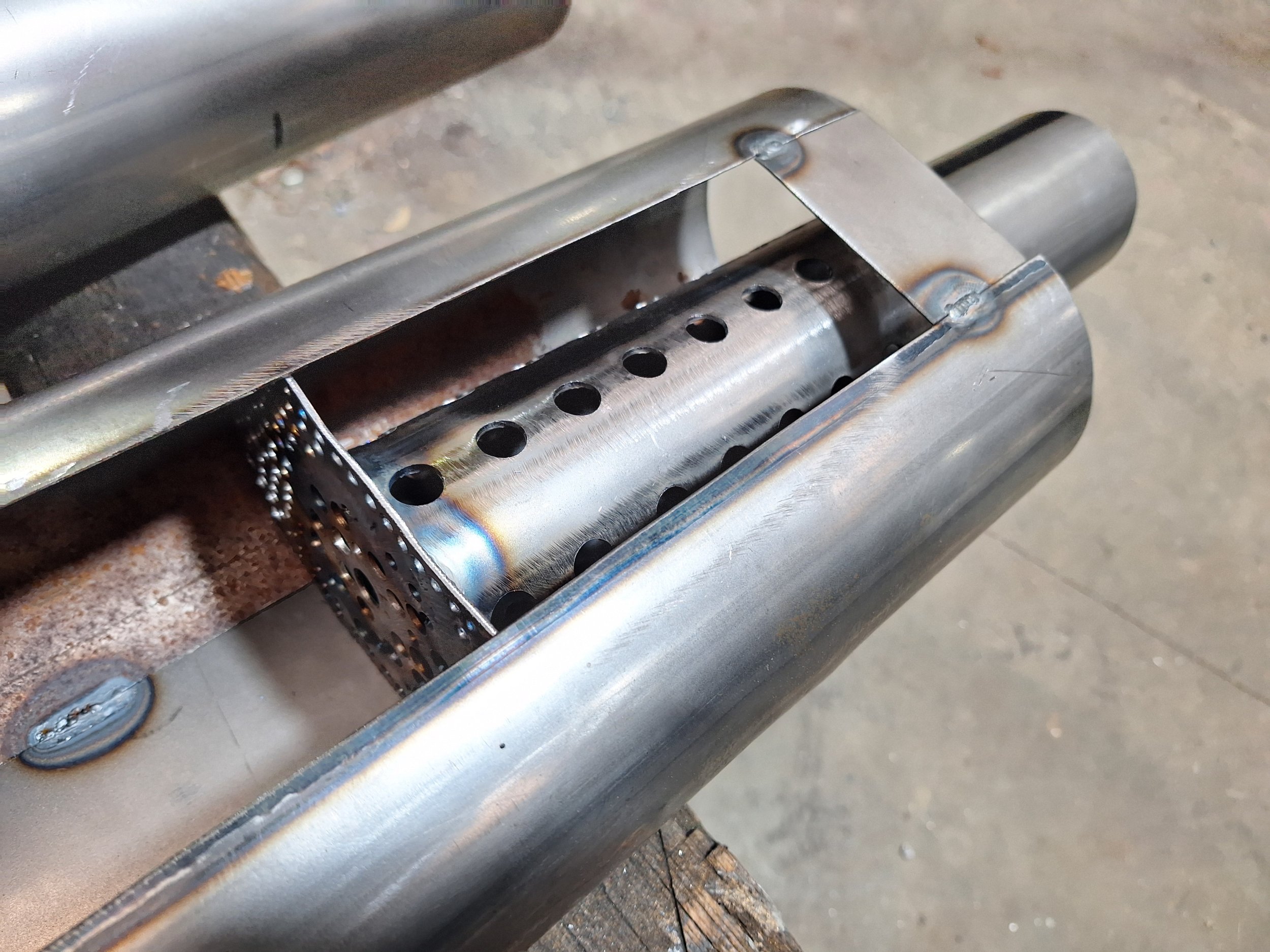

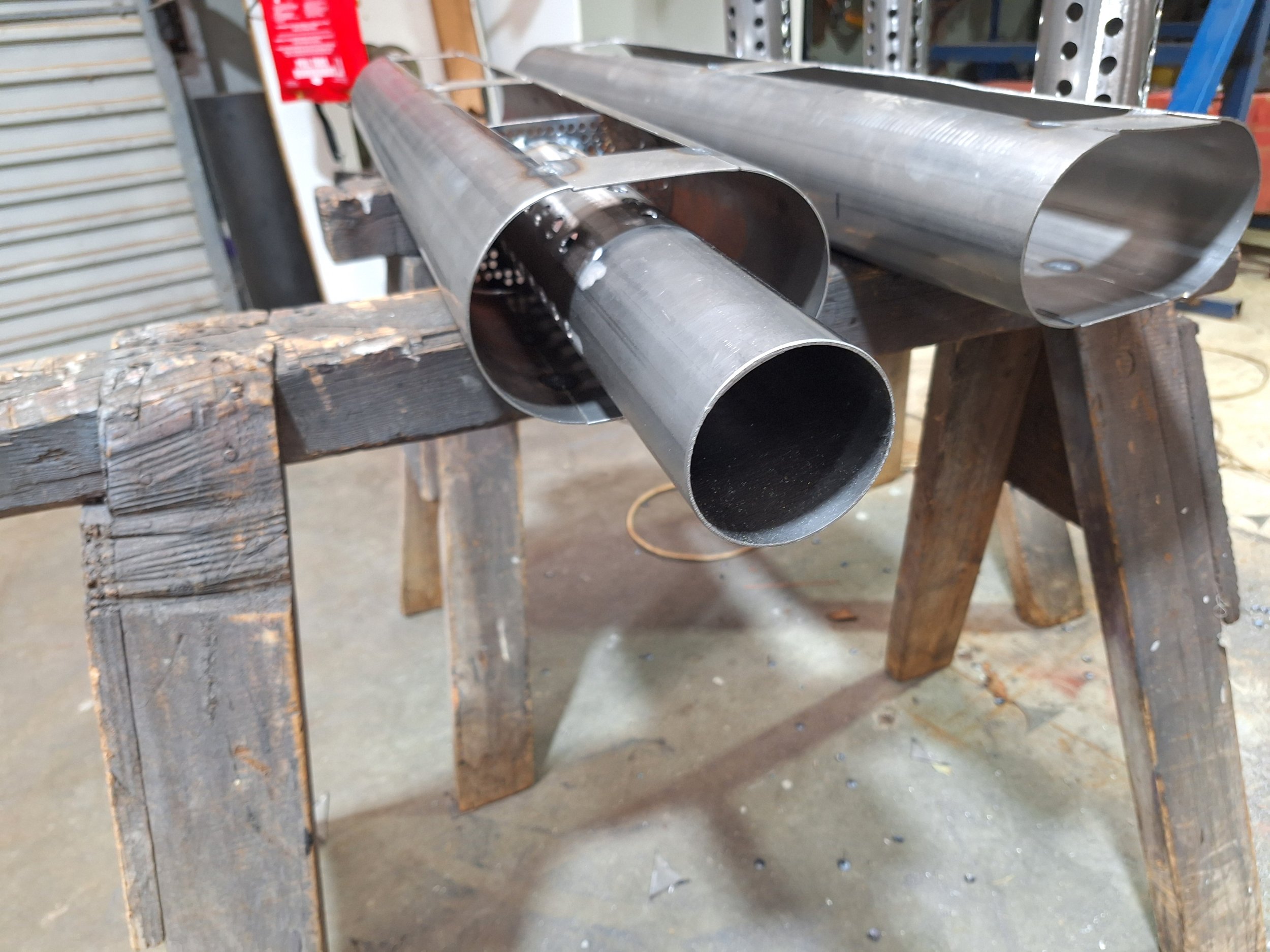

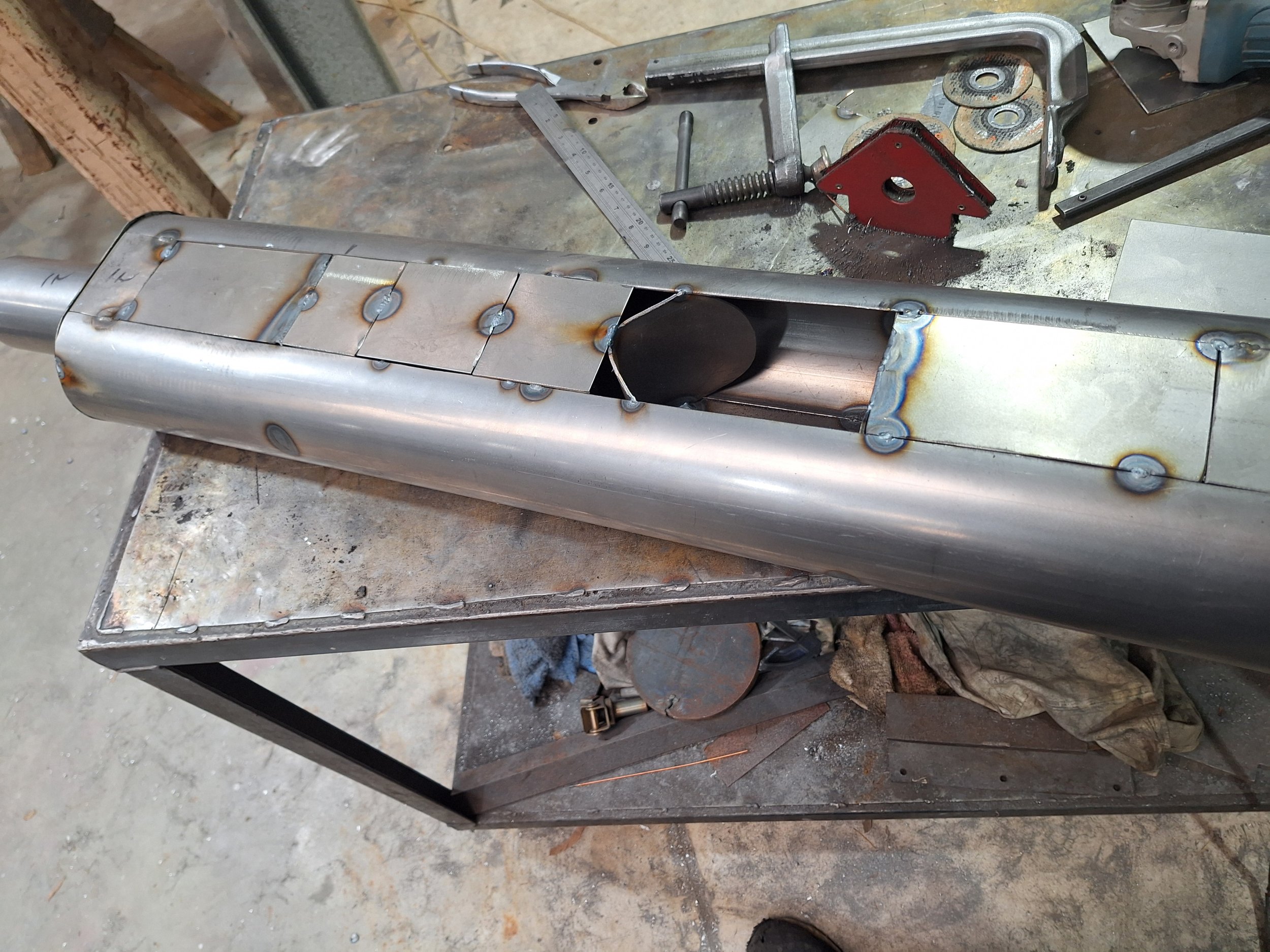

A couple more pics, I decided to make my own mufflers as this car needs to meet quite strict noise requirements for registration and running a healthy supercharged SBC this was always going to be an issue. So I decided that I would fill up as much space as I could with muffler, these mufflers are 750mm long, 175mm wide and are made using a 4 inch pipe cut in half, inlet and outlet is 3 inch ( whole system will be 3 inch and finish out the side before back wheel ). Once mufflers are done I will fab the headers, Glen



Finished mufflers today, happy with how they have turned out, now to work out how to mount them and start fabricating the headers, a few pics, Glen



First mufflers seen built on HAMB - amazing. Had thought about something similar as gather parts for modified. Love your build & all the detail



Awesome build. Enjoyed going thru it .can't wait to see progress..

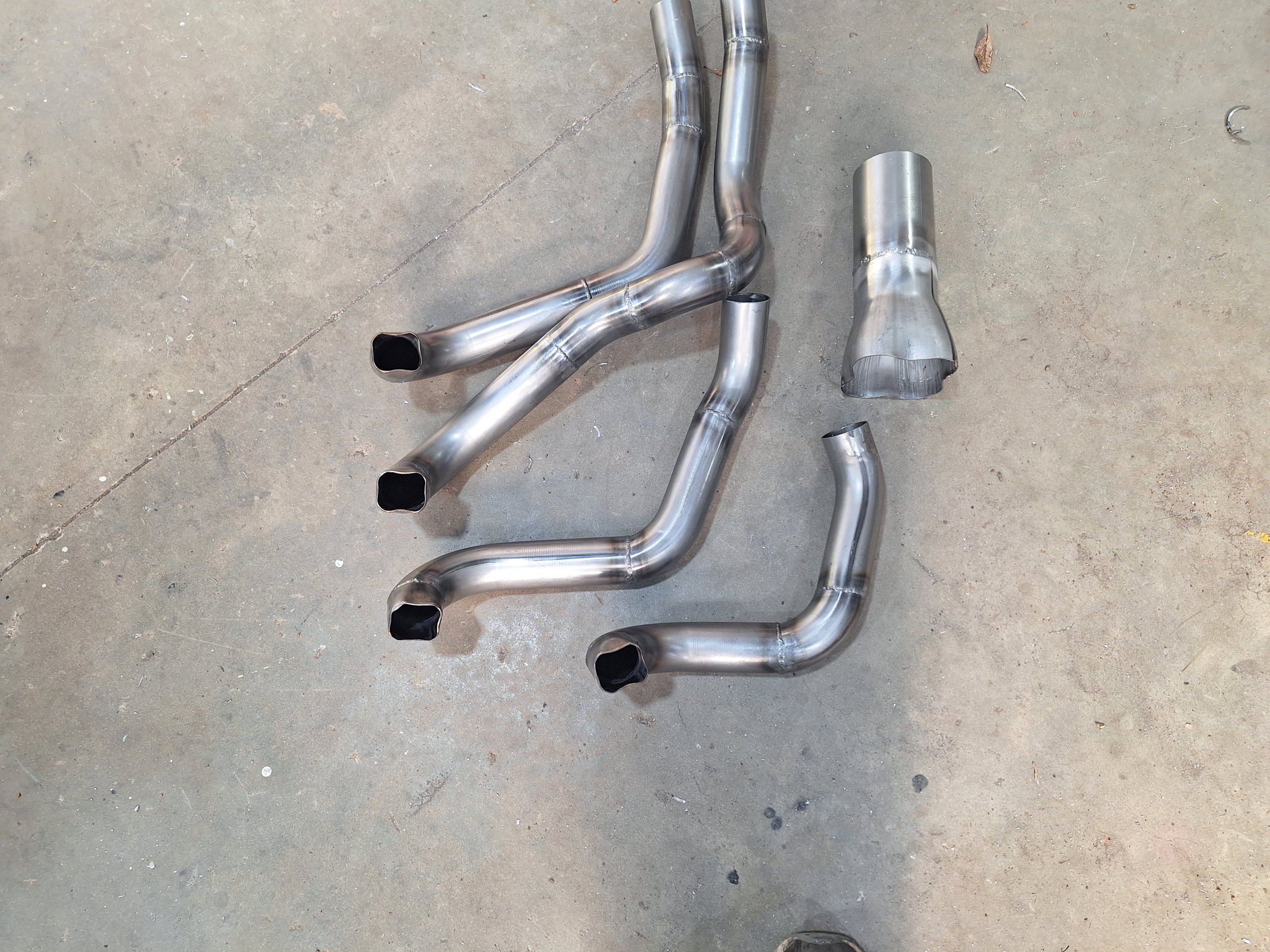

Thanks for nice comments guys, a few pics of recent progress, started fabbing headers, Glen



A few more.

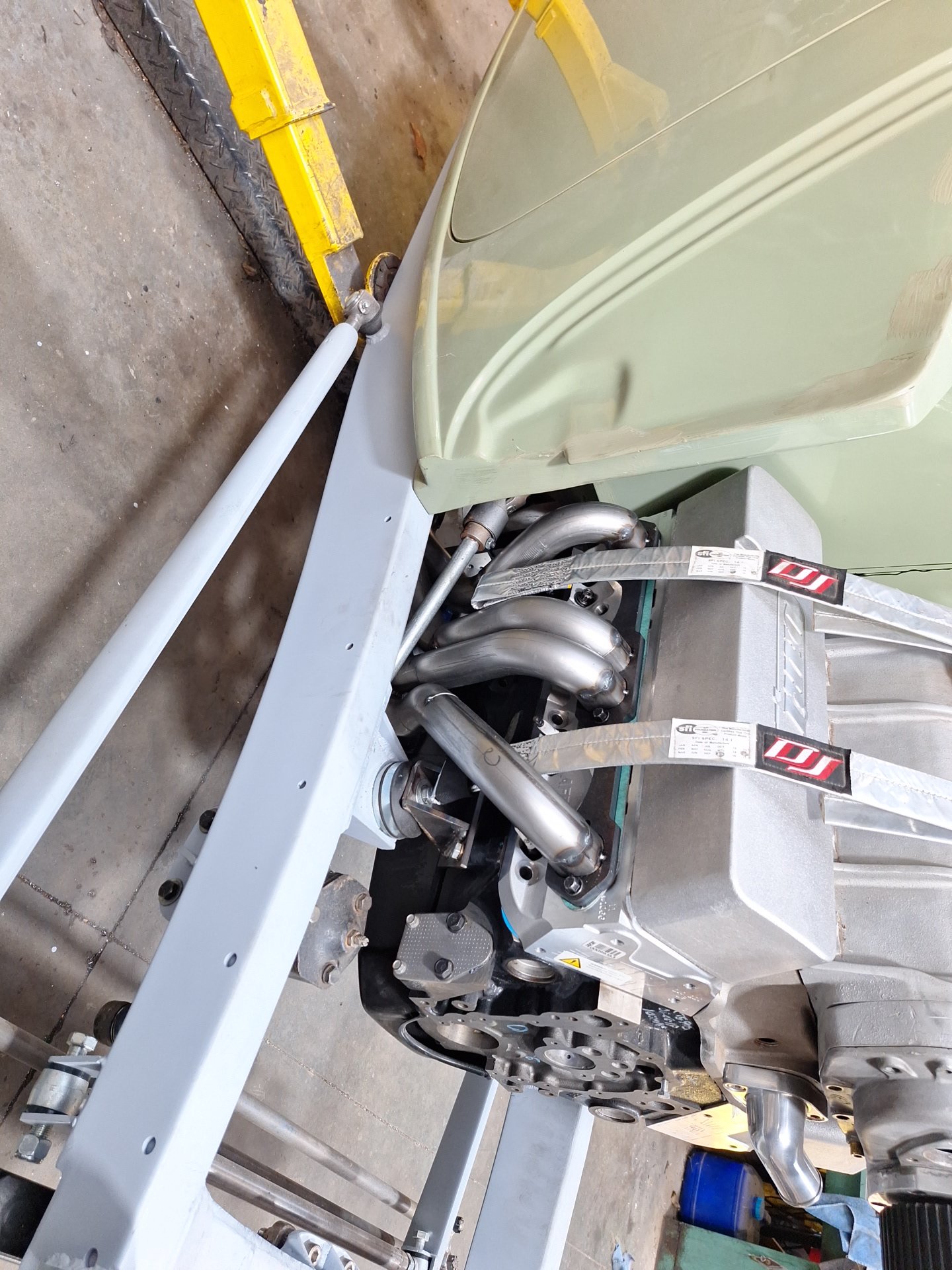

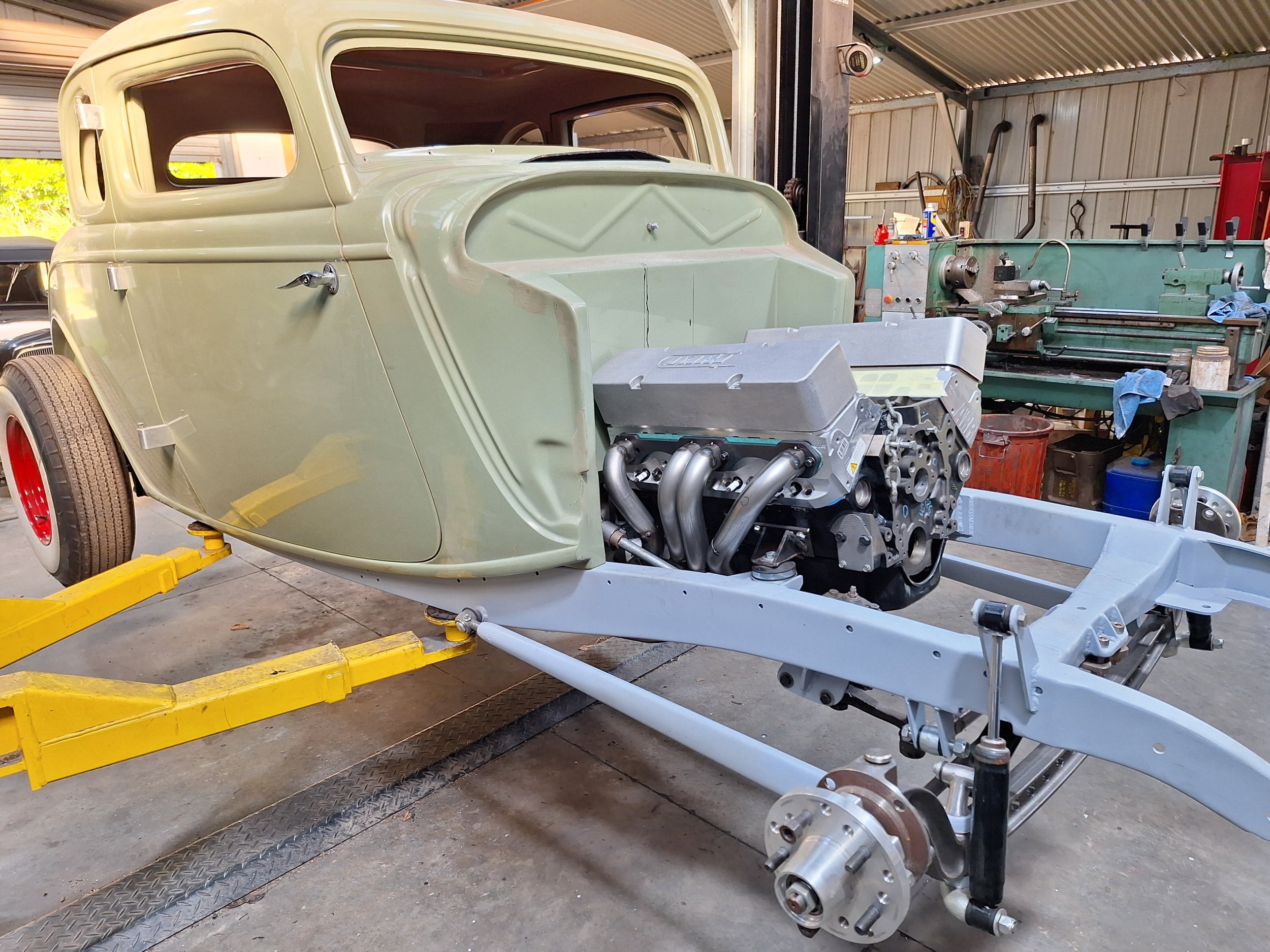

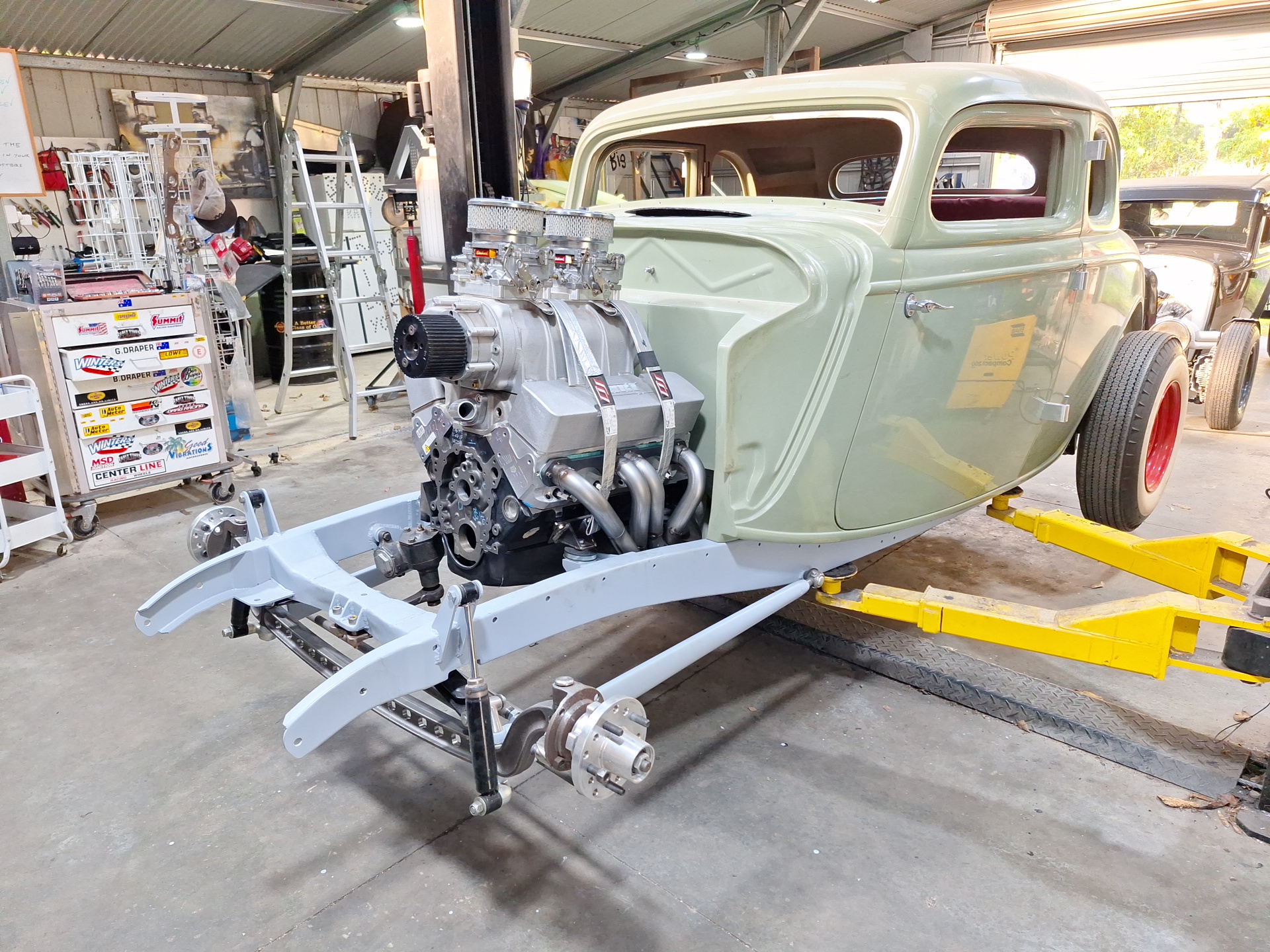

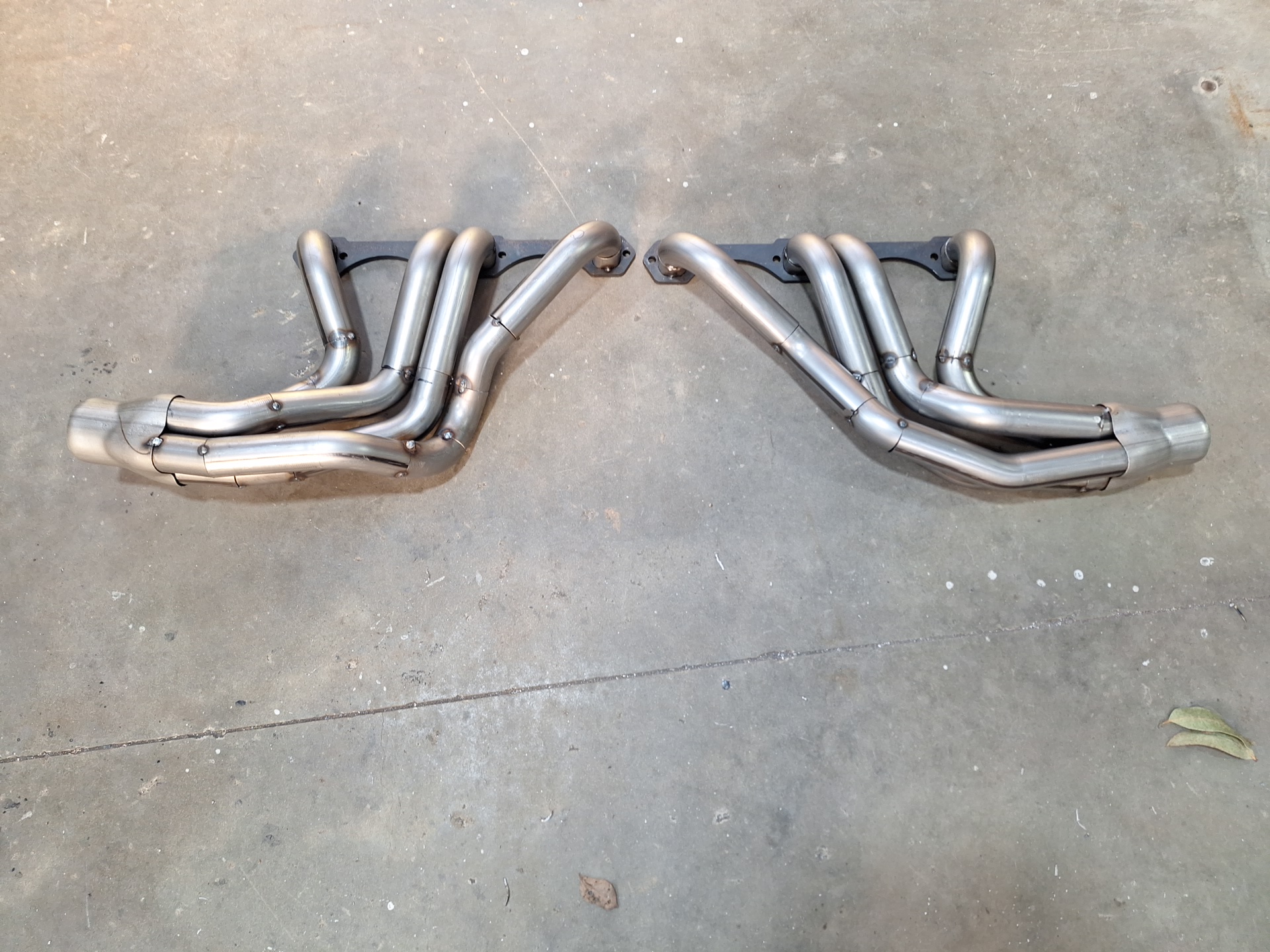

Headers are nearly done, Im very happy with how they have turned out. All I need to do is mount mufflers so that the collector has a straight run to the mufflers, I plan to bolt headers directly to the mufflers and fab muffler mounts to suit, then fab rear pipes to end before back wheel. I can access all spark plugs except no 8 and needed to fab a plug spanner to suit, a few pics. Glen



Beautiful work!
Really like the cone at the collector.
I was picturing the wrench before I scrolled down and saw the pictures.
You are going to have a special plug wire for that one!



Thanks for nice comment, I don't think the plug lead will be a problem there should be enough room just looking at it ( I do have the leads - I will check today ). Glen

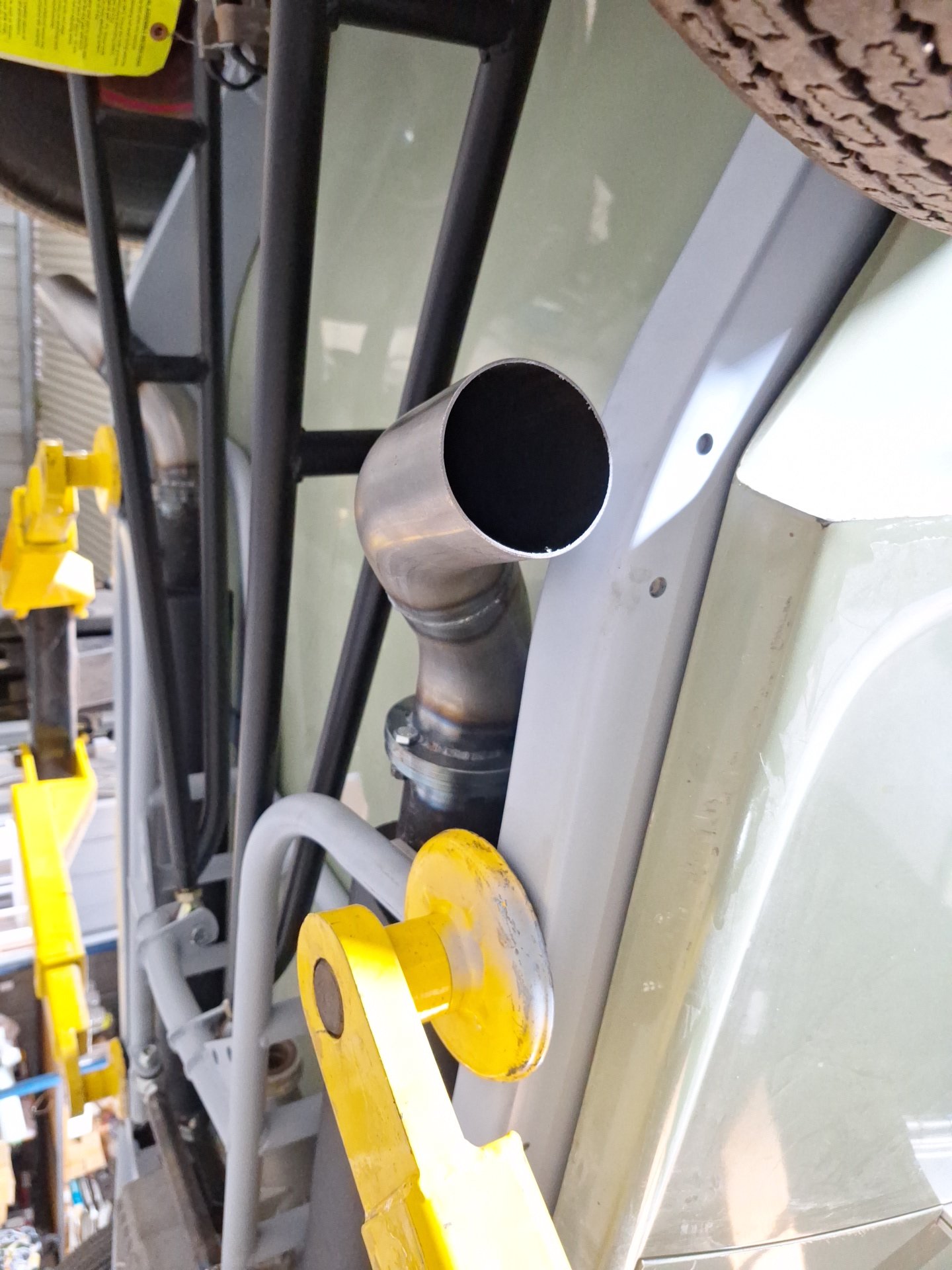

A few pics of todays progress, I still need to fab mounts and finish weld but overall happy so far. I would like the pipe to be less noticeable and dump under car pointing slightly to the side, but in order to keep engineer happy I will leave as is for now, being a 3 inch diameter pipe it still looks the business. Glen



Finish welding exhaust today, all I have to do is fab exhaust mounts to finish, then I start on fuel tank fab out of this sheet of 1.6mm steel. Glen

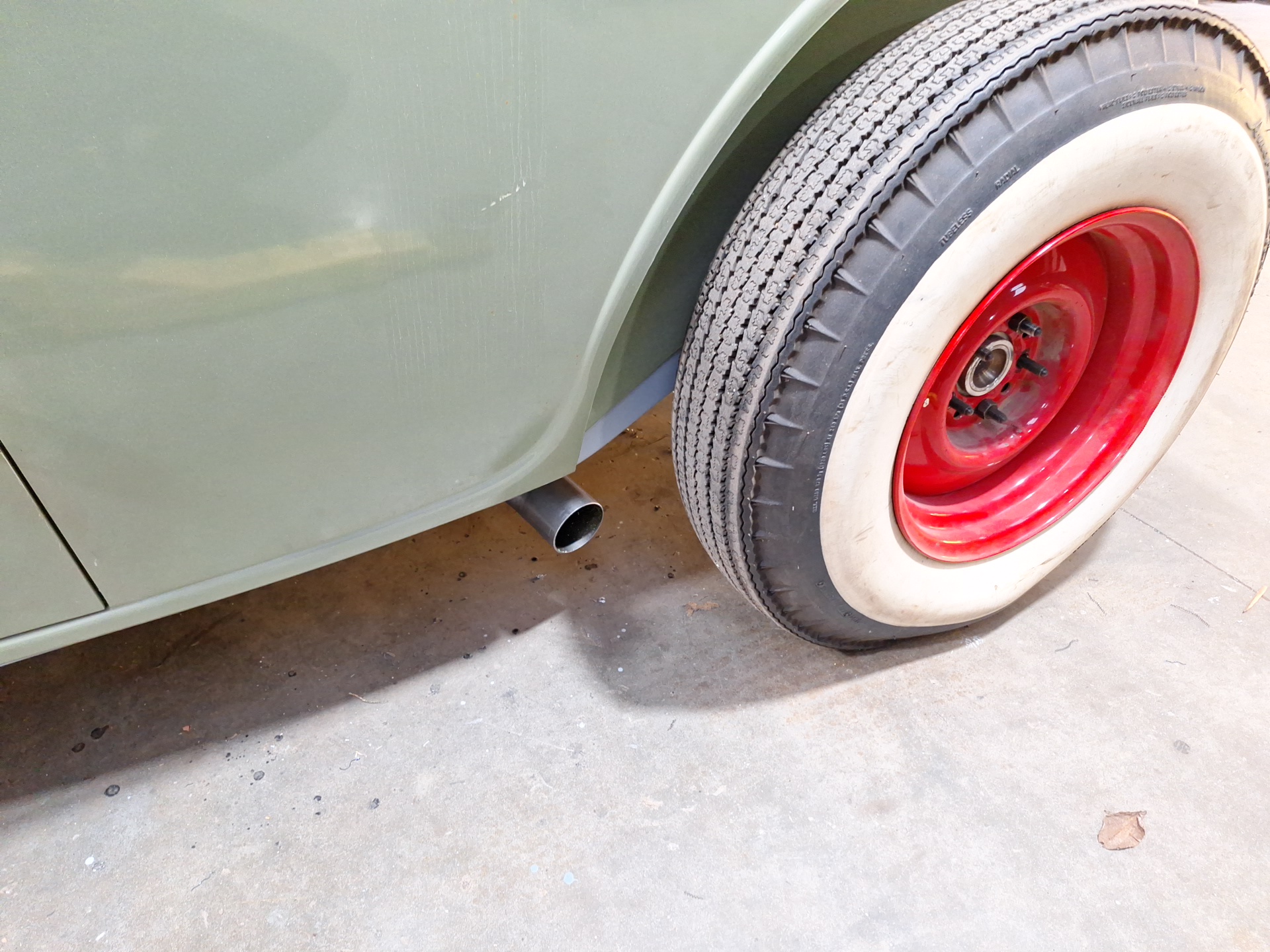

Fabbed up rear exhaust mounts today, all I have to do is finish a few little welds and paint complete system, overall very happy with the finished product, I'm really digging how the side pipe is looking. Glen
