Naked-bare rolling chassis pics

My avatar:



Old frame......



My 34 3 window's chassis, pics taken in 1994. Still under the car today, but in the next rebuild I lose the four bars!



Under my now completed avatar ....



From 2001



Chassis I built for Bob's Brookville 3 window



Looks sweet !!!



Its the cam out of the olds engine, didn't want to waste it



Re: Naked-bare rolling chassis pics
Quote:

Rex
I was searching for photos of your car just the other day after i found a few pictures of it on here.love the front-looks early indy inspired?well love the whole car-do you have any decent full side on/front side on pictures i can add to the others i have already saved? thanks,andy


Andy, PM me at rexschimmer@gmail.com and I will send you some good pics.

Rex

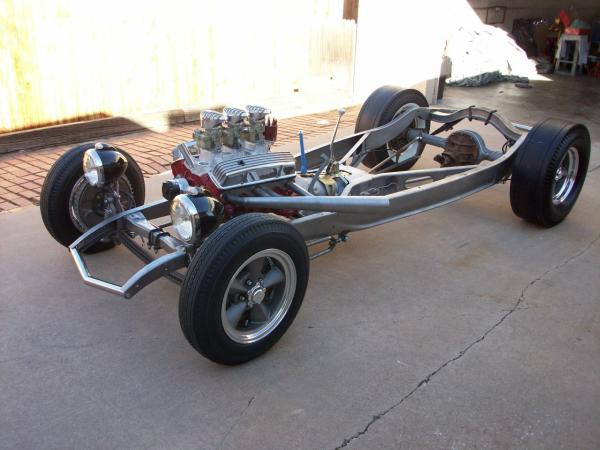

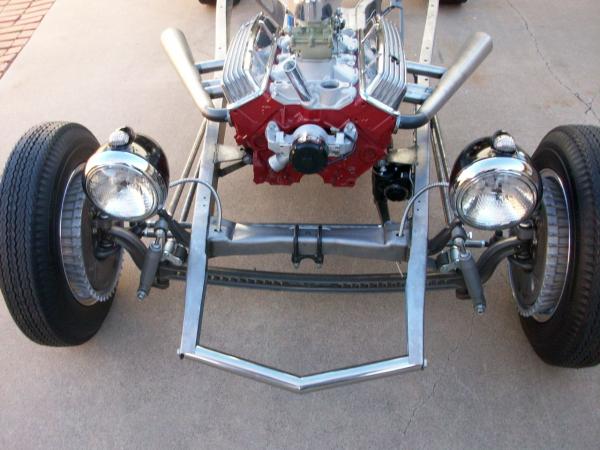

here is my 32 coupedeville chassis


here is a my not so hamb friendly v w hotrod

here are some customers chassis



Here is one for a pick-up we did a while back



How do you find using those quarter elliptics as a bottom link, Any axle wrap up ???
Also interested in how those friction shocks perform ??? Are they the Speedway ones ???



I can look at chassis all day, i hope to see some more posted.



Awesome!!
such a shame to put the bodies down on all that amazing detail



Here's my '35 Frame-



here's mine body almost ready to cover it up!



Here is the chassis for my 53 Chevy. Gambino notch, custom designed rear suspension, stock frontend with Fatman dropped uprights and custom 5 speed trans mount.

I'm waiting till I have the car completly mocked up to blast and paint it.



Started with American Stamping rails. Pete & Jakes ladder bar setup with transverse spring and Superbell dropped front end.



Hot Rod Flatz black.



Hemi and 4 speed at home.



My 34 Ford Pickup during Mock-Up .



These are from my 51 Chevy truck build last year.

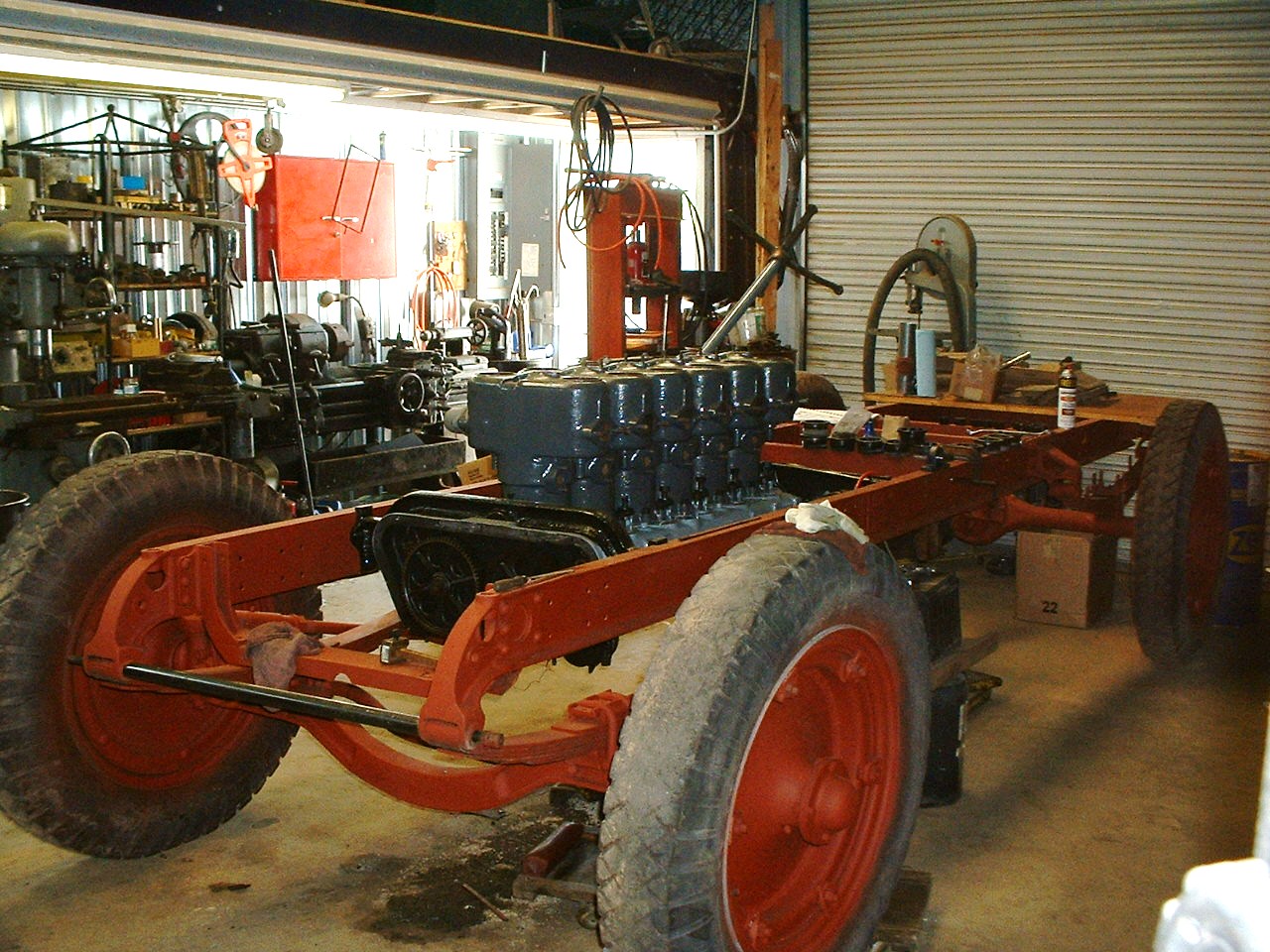

Here the chassis on my 1923 Seagrave Special. You can check out the build at. http://www.jalopyjournal.com/forum/showthread.php?t=468936&showall=1

Jerry
<input id="gwProxy" type="hidden"><!--Session data--><input onclick="jsCall();" id="jsProxy" type="hidden"><input id="gwProxy" type="hidden"><!--Session data--><input onclick="jsCall();" id="jsProxy" type="hidden">



I'm a sucker for the details too. Beautiful fab work one and all!!!



for my coupe ... qtr elipticals and sway bars, front and rear.



My roller



Almost there



Got any pics of the frontend ???



Here is my 1956 f100 chassis that i built and my chassis for my 1927 roadster



Not totally naked, cuz the body doesn't come off anymore
