Opinions on RPU Bed

Discussion in 'The Hokey Ass Message Board' started by Blue One, Nov 28, 2012.

  1. Blue One
    Joined: Feb 6, 2010
    Posts: 11,497

    Blue One
    ALLIANCE MEMBER
    from Alberta

    I built my RPU bed and now I'm wondering if I should come up with some sort of panel to fill in the area circled in my picture.

    My frame pinches in there and the frame side rails end abruptly there and the kickup under the bed is narrower.

    As a result the open area you see ahead of the wheel.

    I was thinking that some sort of panel to fill the area and transition from the end of the frame to the bottom of the bed skirt might look better than leaving it open.

    What do you think ? Any examples of what I'm thinking ?


    Attached Files:

  2. edcodesign
    Joined: Mar 30, 2007
    Posts: 4,875

    edcodesign
    Member

    Dump your exhaust pipe thru a panel in front of the wheel, just an idea.

  3. Crankhole
    Joined: Apr 7, 2005
    Posts: 2,644

    Crankhole
    Member

  4. 49ratfink
    Joined: Feb 8, 2004
    Posts: 22,453

    49ratfink
    Member
    from California

    probably too late to mount the bed a little lower. (?)

    I'm not feeling what you have drawn there... maybe something going straight back under the bed, but no lower than the frame. roll a bead or 2 and put some "lightening" holes in it.

    EDIT: ... or louvers.:cool:

  5. propwash
    Joined: Jul 25, 2005
    Posts: 3,857

    propwash
    Member
    from Las Vegas

    do what Cooter did - it looks nice and it's 'period perfect'. We used to louver everything we could afford to.

  6. need louvers ?
    Joined: Nov 20, 2008
    Posts: 12,901

    need louvers ?
    Member

    Honestly, as you can imagine I louver everything, but I would look at dropping the bed just a bit. I've just gone through almost the same deal but opposite with my '29 RPU. Every direction I looked at it from I loved except one... The answer in my case was to raise the bed back up to where it should have been. Proportions fixed.

  7. Blue One
    Joined: Feb 6, 2010
    Posts: 11,497

    Blue One
    ALLIANCE MEMBER
    from Alberta

    It's not too late but not an option I like.

    I like the look as it sits now with the bed mounted on top of the kickup.

    I wanted the bed to have some capacity to it, right now it is 13" deep and 37" wide inside, 34" long. I really need the room at the front of it for my fuel tank.

    With my modified triangulated 4 bar rear suspension design there is really no room elsewhere for a tank.

    I like the look of the louvered panel, maybe I'll give that a shot, I think it may look good.

    Any other ideas, post away. :)

  8. Blue One
    Joined: Feb 6, 2010
    Posts: 11,497

    Blue One
    ALLIANCE MEMBER
    from Alberta


    I like it :)

  9. 117harv
    Joined: Nov 12, 2009
    Posts: 6,586

    117harv
    Member

    I would compromise, fab a piece that covers half the hole so it looks like part of the bed, like Jimmys truck above and not a panel there just to fill a hole....do louvers as suggested.

  10. Tank
    Joined: Nov 8, 2002
    Posts: 749

    Tank
    Member

    Used a section of Model a Splash Aprons on a RPU I helped work on once to fill that area. The shape was perfect and looked like it was supposed to be there. Depending on how high that area is on yours it could work.

  11. rottenleonard
    Joined: Nov 7, 2008
    Posts: 1,996

    rottenleonard
    Member

    I think that what you have drawn will look better as the frame won't look as sawn off, rather it will draw the eye to believe the frame swoopes upwards.
    Good looking RPU btw!

  12. No offense but the bed does look like kind of an after thought sitting way up in the air like that. There must be a huge expanse of emptiness from the back. I definitely think the hole needs to be filled and Shine's truck is a great example but I fear in your case the panel will need to be pretty big and may look out of place.

    I hear you on wanting it to be functional but sometimes IMO function has to give way to asthetics when building a hot rod.

  13. RFAGrasshopper
    Joined: Oct 30, 2011
    Posts: 108

    RFAGrasshopper
    Member

    I'd do a louvered panel from the bottom of the body and bring it back behind the wheel. You could all so run your exhaust out the side in front of the rear wheel using that panel. That's if your going to do an inside the frame exhaust.

  14. Don's Hot Rods
    Joined: Oct 7, 2005
    Posts: 8,319

    Don's Hot Rods
    Member
    from florida

    I see the same thing the others are talking about, the bed is a little too high. They look better if there is some drop down after the cab. Even 2-3 inches would make a big difference.

    That filler panel Cooter pictured is really sharp.

    Don

  15. Blue One
    Joined: Feb 6, 2010
    Posts: 11,497

    Blue One
    ALLIANCE MEMBER
    from Alberta

    The bed is not perched way up in the air and there is not a huge space underneath it.

    With the skirt there will be room for the licence plate below the bed and the exhaust pipes too.

    You won't see much more or less of the rear end from the back than most other RPUs.

    The bed is well within the proportions of many other RPUs that I have seen posted here.

    It doesn't sit much different than many of them.

    I collected a lot of pictures.

    The picture is deceiving and the panel I would need is not that big at all.

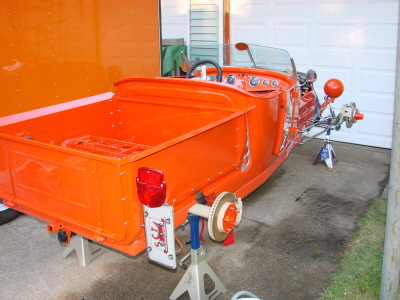

    A rear view, and don't forget its sitting up on the ramps for the pictures too.


    Attached Files:

    Last edited: Nov 28, 2012
  16. Blue One
    Joined: Feb 6, 2010
    Posts: 11,497

    Blue One
    ALLIANCE MEMBER
    from Alberta

    I know what you are saying Don, I just need that in the box space. I like that panel Cooter did, I'm going to try that out first.

    I don't want to give up in the bed space, hope I don't have to.

    Last edited: Nov 28, 2012
  17. EnragedHawk
    Joined: Jun 17, 2009
    Posts: 1,256

    EnragedHawk
    Member
    from Waco, TX

    I have little if any sense of style, but what if you added to the back of the frame to make it look like it continues to the back under the bed, then added the filler panel?


    Posted from the TJJ App for iPhone & iPad

  18. Make up a filler in poster board, and play with it till your happy. Then post pictures so we can pick it apart!!! :D

  19. Blue One
    Joined: Feb 6, 2010
    Posts: 11,497

    Blue One
    ALLIANCE MEMBER
    from Alberta

    That is an option I could also consider. It might work, even if it was a dummy section that gave the impression of the frames continuation sweeping up under the bed.

    Then the panel could also be more proportional.

    When I built the chassis I was mainly concerned with the side rails and then the kickup to fit my suspension design and give me a proper stance.

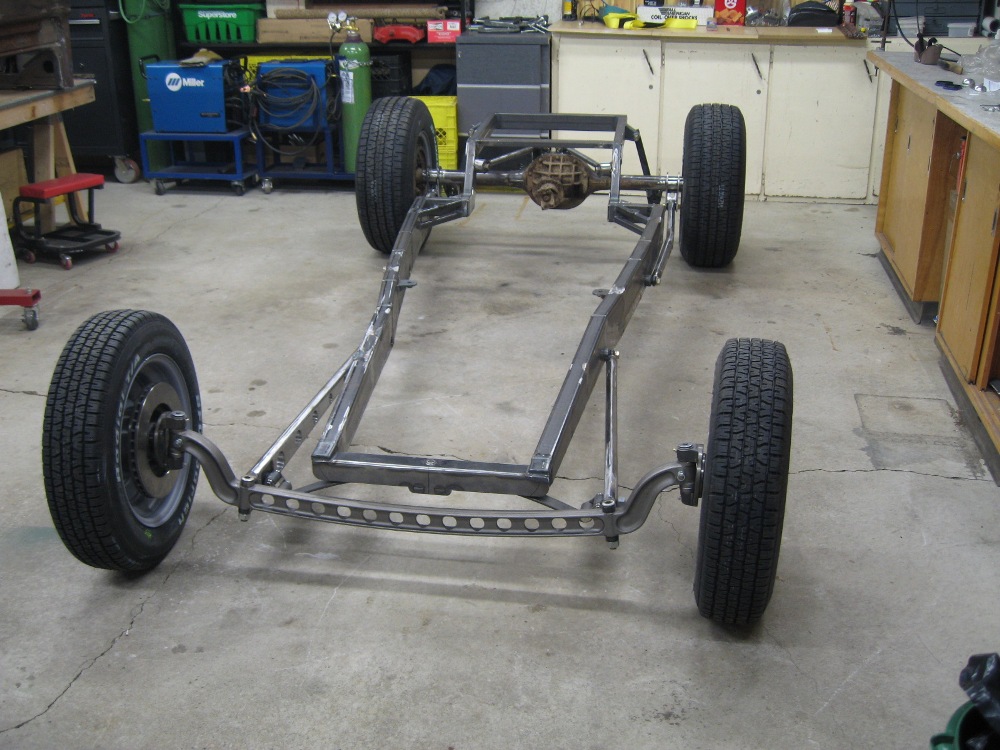

    Here are a few early pictures of my bare frame sitting on the wheels (at floor level) before any crossmembers or much of anything else.


    Attached Files:

  20. GREASER815
    Joined: Dec 2, 2008
    Posts: 973

    GREASER815
    Member

    Yeah, fill it, throw in a couple louvers, looks good. Night prowlers sells louvered panels, might be able to make something up easy.

  21. Good idea.

  22. steves29
    Joined: Jan 19, 2010
    Posts: 194

    steves29
    Member

    Try adding a skirt in the style of what would be there on an original

  23. Blue One
    Joined: Feb 6, 2010
    Posts: 11,497

    Blue One
    ALLIANCE MEMBER
    from Alberta

    Something else to keep in mind is that my body is mounted hiboy style on top of the rails not channeled so the bed doesn't really need channeling either.

    I am happy with the overall look of it now.

    When it's off the ramps sitting on the floor it looks good.

    The idea of the panel is to somewhat fill that hole and hide the exhaust and rear end - driveshaft just a little.

    I think if I play a little I can come up with a panel that will look good there using some of the ideas you guys threw out.

  24. rpu28
    Joined: Jan 17, 2006
    Posts: 200

    rpu28
    Member
    from Austin

    The problem is that your frame rails are bent badly just behind the cab. Straighten the rails and the gap will go away.

  25. Blue One
    Joined: Feb 6, 2010
    Posts: 11,497

    Blue One
    ALLIANCE MEMBER
    from Alberta

    :D Good one :D

  26. Here's a shot of my '26 track roadster pickup. The kickup is inside the bed. May or may not be helpful to you.


    Attached Files:

  27. Leoraf
    Joined: May 1, 2009
    Posts: 41

    Leoraf
    Member

    Yup, rpu28 is correct.:D. Or you could make your bed sides taller and keep your current bed capacity. Keep the top where it is and just stretch the bottom of bed sides down. Instead of a filler panel, the bed sides will be your filler. That's what I did on my current 29 rpu bed. Keep at it, Good luck.

  28. Blue One
    Joined: Feb 6, 2010
    Posts: 11,497

    Blue One
    ALLIANCE MEMBER
    from Alberta

    I have formulated a plan, stand by it will look good. :)

  29. Blue One
    Joined: Feb 6, 2010
    Posts: 11,497

    Blue One
    ALLIANCE MEMBER
    from Alberta

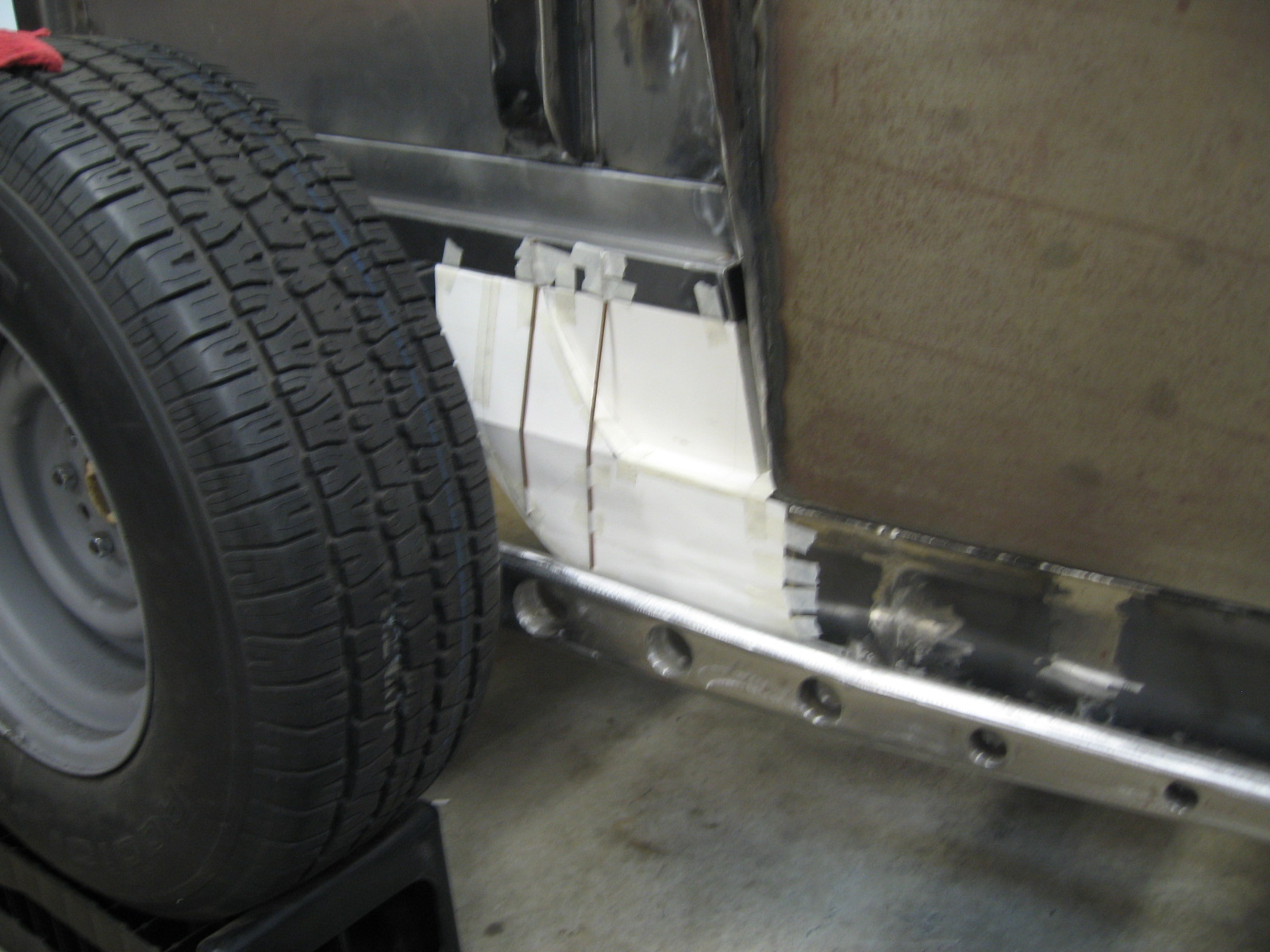

    I put this as an update on my build thread, but since I have this thread I may as well show you what I did.

    My solution, a panel that is a bit of a fake out, making it appear that the frame sweeps up under the box (which it does just inboard.)

    I started with a poster board pattern and then made the real thing in 18 ga metal just like the bed.

    I like it, better than the hole there I think.


    Attached Files:

  30. mastergun1980
    Joined: Oct 18, 2010
    Posts: 1,094

    mastergun1980
    Member
    from Alva OK

    Wow .. I was just going to say to add a filler panel with a bead rolled in it. But waht you did is killer.
