Technical Part Identification?

Discussion in 'The Hokey Ass Message Board' started by CAHotRodBoy, Jul 2, 2024.

  1. CAHotRodBoy
    Joined: Apr 22, 2005
    Posts: 467

    CAHotRodBoy
    Member

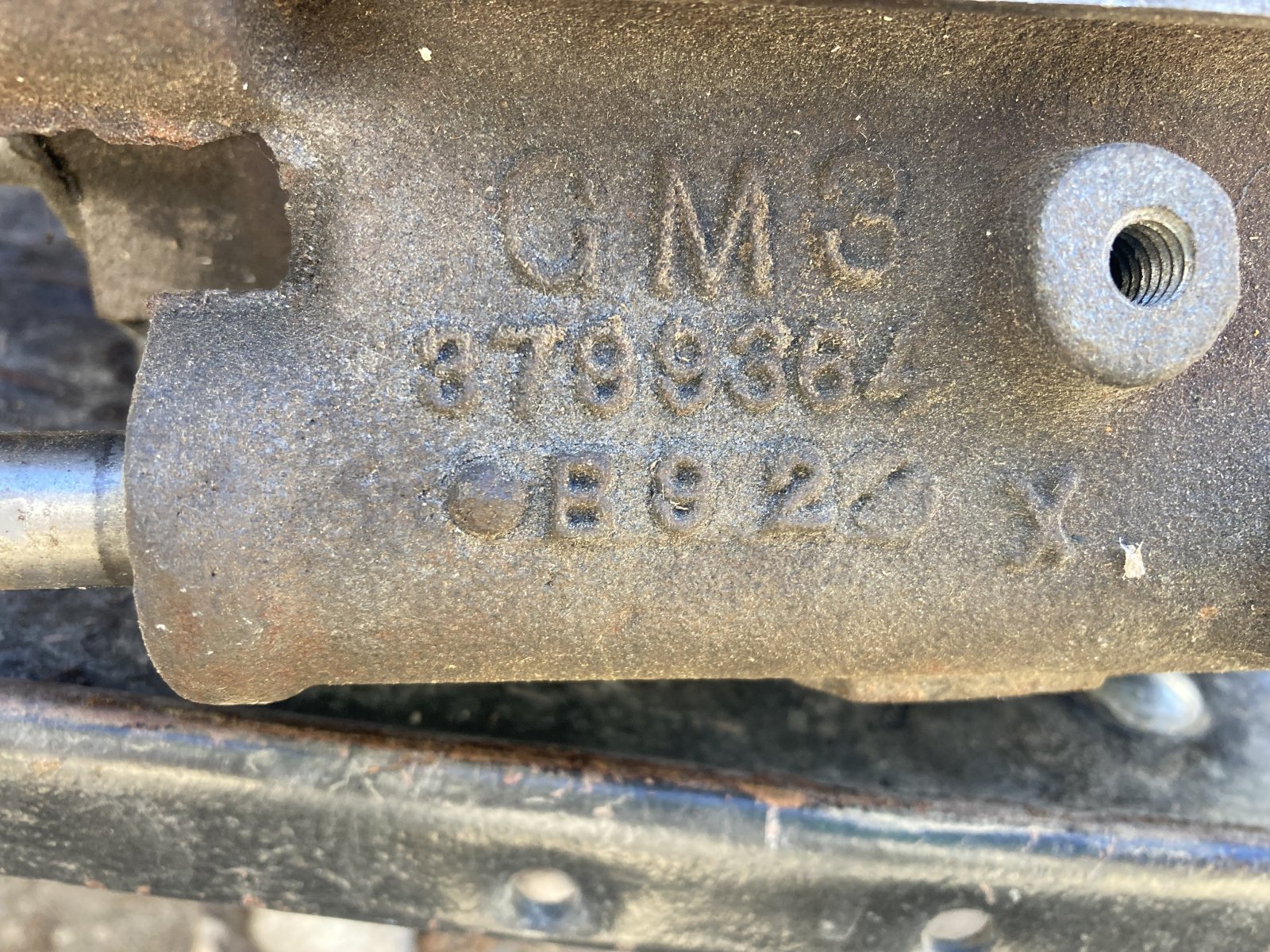

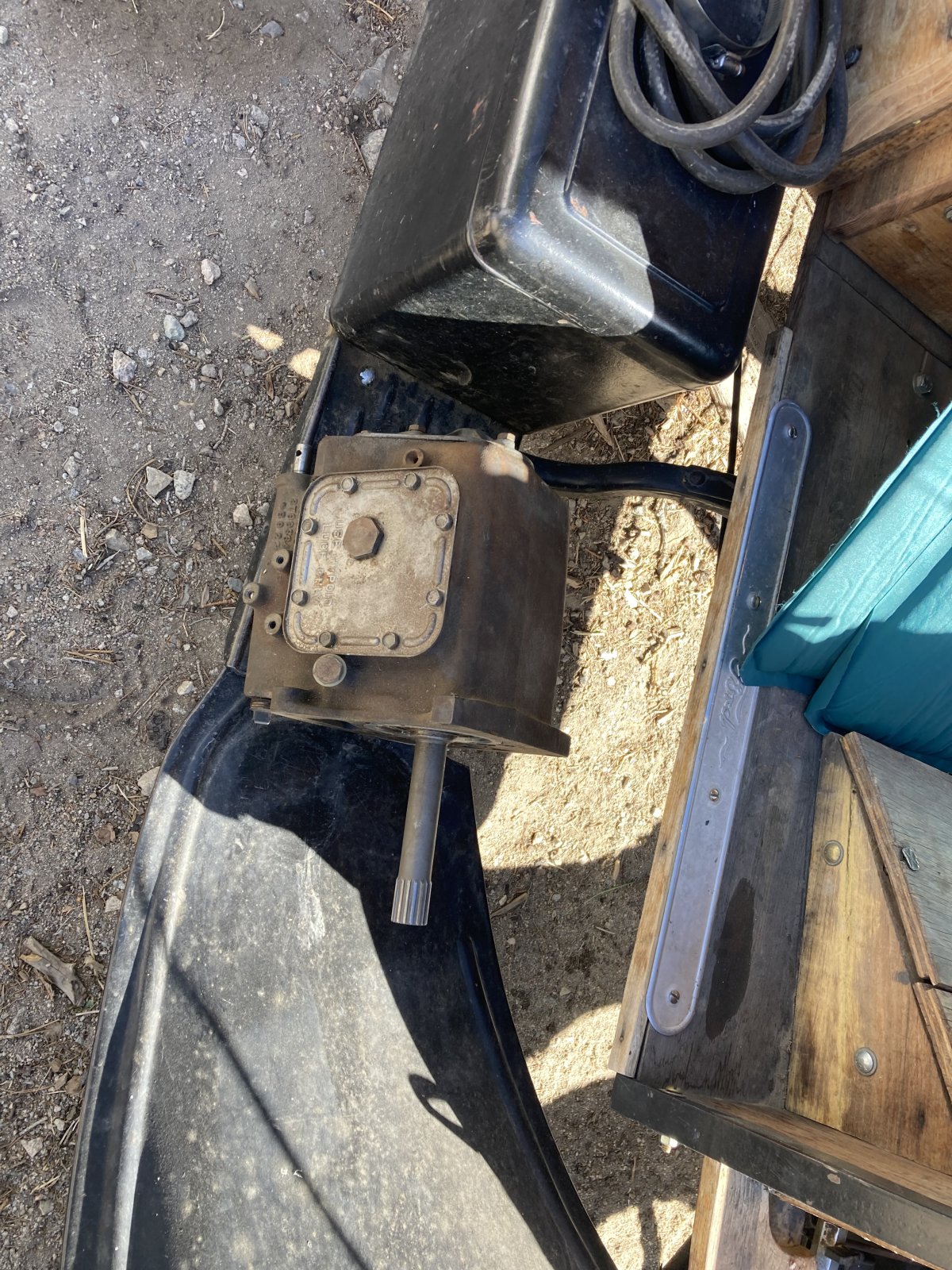

    Anybody recognize this? Looks like it could be a transmission but has an input shaft but no output shaft. There is a cover plate on the back side but has no open hole for a shaft. I have no opened it up yet to look inside. The numbers on side are GM3 379936 B92.

    Yes, it is sitting on a Model T running board but is not part of that car. Came from a liquidation sale of a local property so they didn't know anything about it.

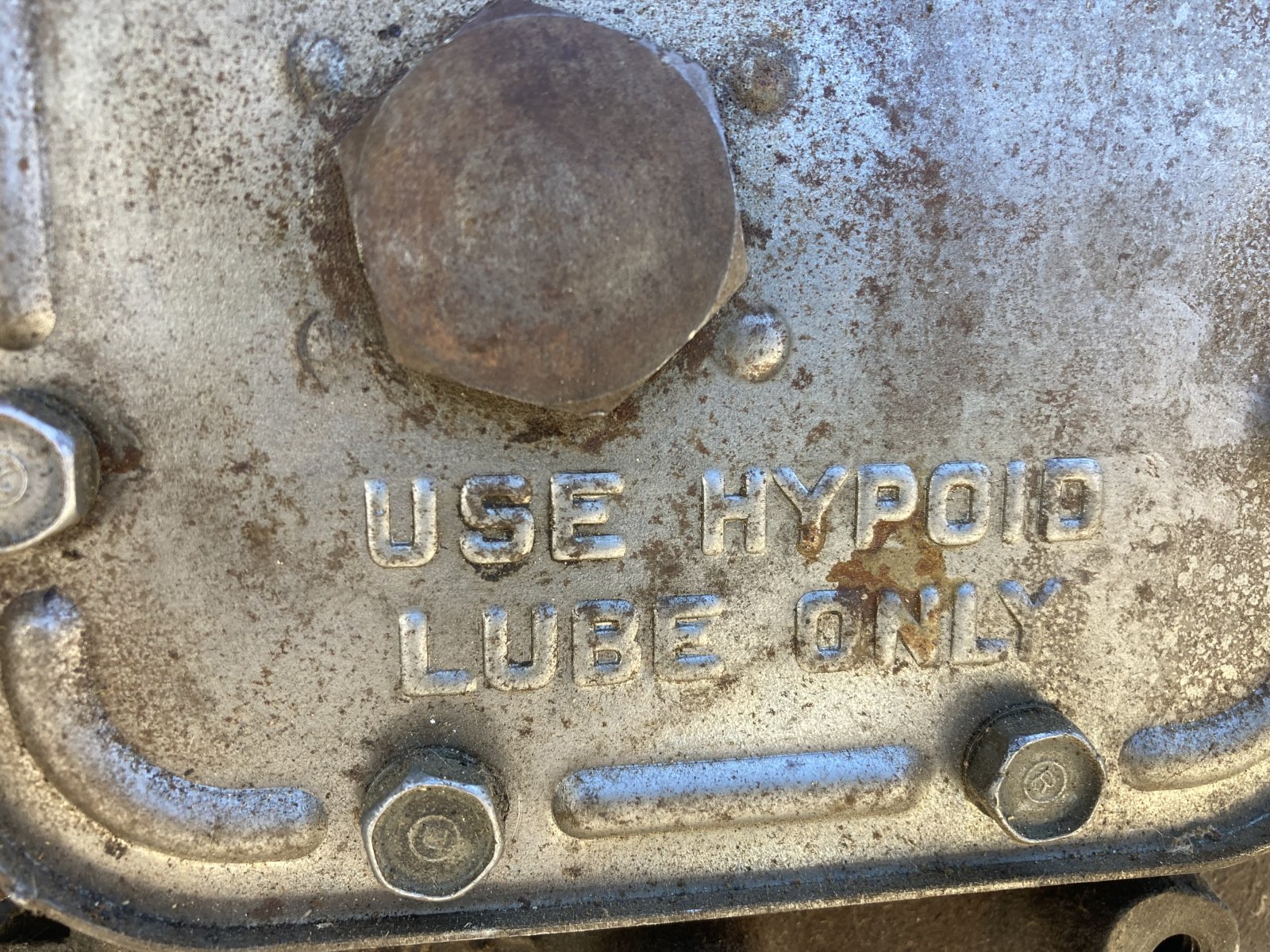

    IMG_4012.JPG IMG_4013.JPG IMG_4014.JPG IMG_4015.JPG IMG_4016.JPG IMG_4017.JPG

  2. kb cookout
    Joined: Dec 17, 2004
    Posts: 5,590

    kb cookout
    ALLIANCE MEMBER

  3. CAHotRodBoy
    Joined: Apr 22, 2005
    Posts: 467

    CAHotRodBoy
    Member

    I just searched Corvair transmission and found it. Thanks!

    Last edited: Jul 2, 2024
  4. squirrel
    Joined: Sep 23, 2004
    Posts: 59,024

    squirrel
    Member

    It's the transmission. It bolts to the final drive part of the transaxle.

    see it on on the left end of this crappy picture


    Last edited: Jul 2, 2024
    JohnLewis likes this.
  5. Beanscoot
    Joined: May 14, 2008
    Posts: 3,504

    Beanscoot
    Member

    But how is the power taken off?
    Is the one visible shaft hollow, and the second shaft inside?

  6. squirrel
    Joined: Sep 23, 2004
    Posts: 59,024

    squirrel
    Member

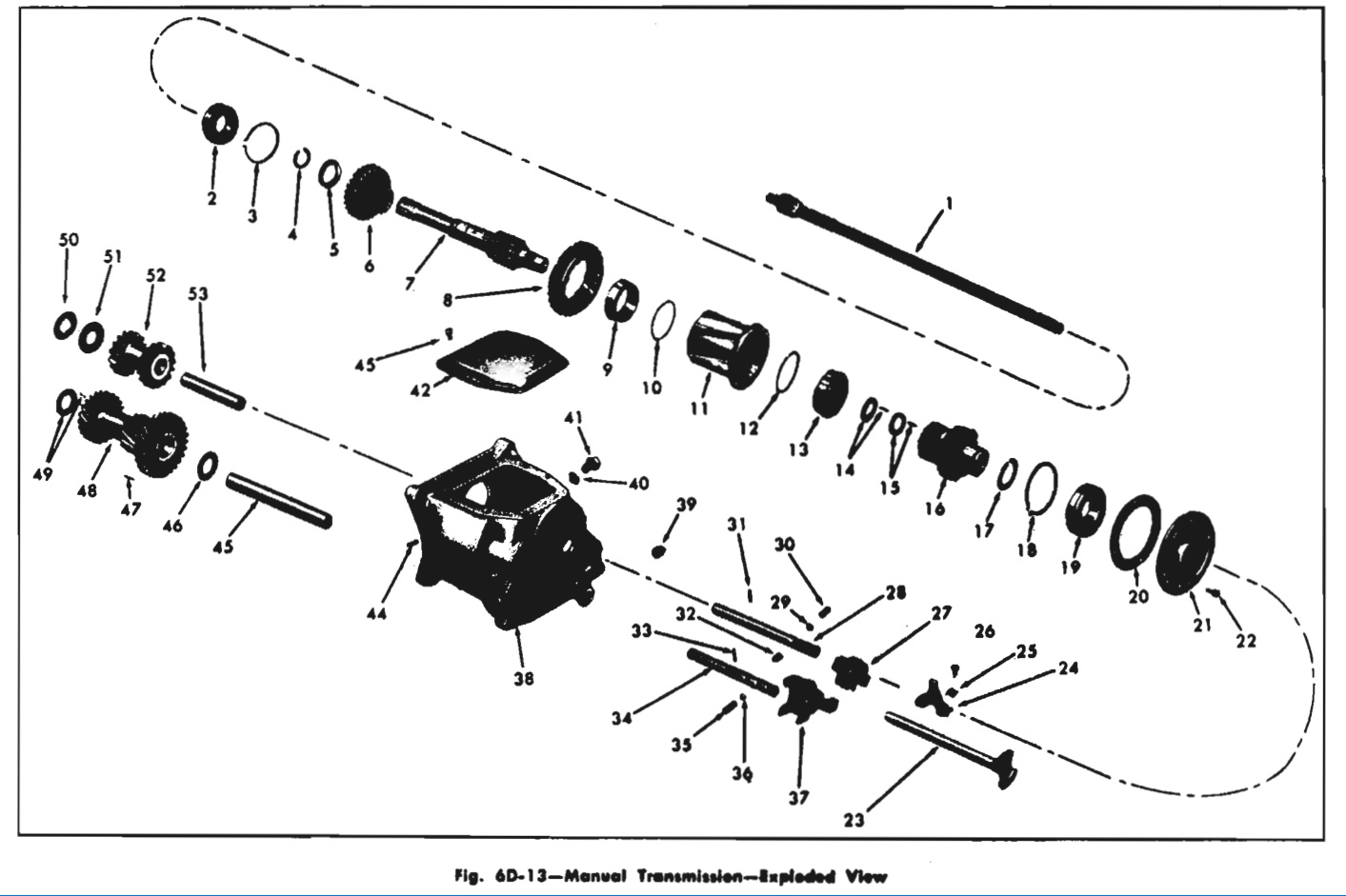

    this pic shows the input shaft, which you're missing. It's skinny, and fits inside the output shaft, which you see sticking out of the end of the transmission.


    JohnLewis and Andy like this.
  7. Jagmech
    Joined: Jul 6, 2022
    Posts: 237

    Jagmech

    Looks like a 1961-65 4 speed, looks excellent from the pic, pull the cover, if it looks good inside, without water / rust damage, it's a great find. Corvairs and parts are valuable these days, go to Clark's corvairs site for more info.

    JohnLewis and squirrel like this.
