Discussion in 'The Hokey Ass Message Board' started by dtwbcs, Dec 15, 2016.

  1. dtwbcs
    Joined: Nov 15, 2011
    Posts: 867

    dtwbcs
    Member
    from Brenham,TX

    Wanting pictures of how/where you have done it. I know one line goes to the thermostat. The other to the heater hose(?). Wanting mine to look neat; not an after thought.

    Thanks

  2. swifty
    Joined: Dec 25, 2005
    Posts: 2,539

    swifty
    Member

    On my coupe with an open engine bay I didn't want the rubber heater hoses running across the top of the engine so I ran them in stainless steel to the back of the engine then a short rubber hose to a fitting on the firewall through to the heater. Supply came from the water pump and the return dumped into a water fitting on the manifold.

    loudbang likes this.
  3. What are you working on?

    I ran the hoses on my '57 over to the inner fender and back to the firewall. Not much different than stock except perhaps longer and tucked in tight.

    [​IMG]

    mgtstumpy and voodookustoms like this.
  4. TTTT8
    Joined: Jun 2, 2011
    Posts: 61

    TTTT8
    Member

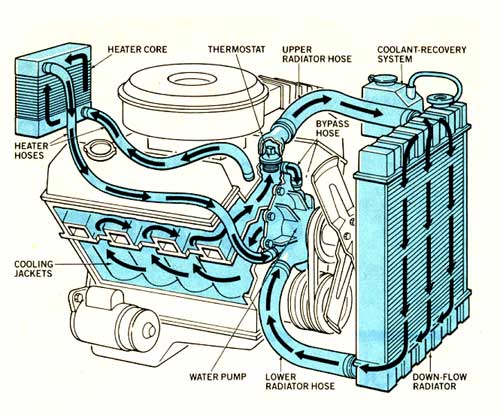

    Keep in mind, there is a right way to connect the hoses to your heater system. See diagram.
    [​IMG]
    Note the inlet to the heater core is from upstream of the T-stat. You will get the most efficient heating this way. For that hose, there is a hose made for Fords I used that has an "L" molded into the hose. Sorry, I cannot remember the part number, but it makes a clean transition off the intake to the side of the engine. Looks kinda like the attached image.

    Hope this helps a little.


    Attached Files:

    loudbang and LOU WELLS like this.
  5. dtwbcs
    Joined: Nov 15, 2011
    Posts: 867

    dtwbcs
    Member
    from Brenham,TX

    Its for a GMC 302 6cylinder.....

  6. TTTT8
    Joined: Jun 2, 2011
    Posts: 61

    TTTT8
    Member

    That helps! Try this image. Same principal applies. Hose labelled 6 is the one that goes to your heater core first. Maybe I should clarify: this assumes you have a heater shut off valve in your system, be it vacuum operated or electro-mechanical. That valve is typically in the heater supply hose.
    [​IMG]

    loudbang likes this.
  7. Heater cores usually have two size hoses- a 5/8" supply and 3/4" return

  8. Inked Monkey
    Joined: Apr 19, 2011
    Posts: 1,845

    Inked Monkey
    Member

    Are you talking about the heater core hoses or the heated intake hoses? On my 250 straight six I ran a hose from right under the thermostat to the intake and then to a water port low on the block on the drivers side.

  9. 6-bangertim
    Joined: Oct 3, 2011
    Posts: 411

    6-bangertim
    Member
    from California

    The KEY is keeping the lines close to the block, AWAY from the headers. I T-eed off 5/8" heater hose with a steel fitting with a 3/8 (I think) nipple from Carquest - found in the picture section of their catalog. Just used rubber fuel line, no issues after 10+ years on my 235 with Langdon's kit. Hardest part was finding the STEEL nipple, didn't want to trust plastic! Good Luck, Tim

    loudbang likes this.
  10. Local builder had fittings made to run the new smaller high pressure hoses. He has used 3/8's for heater hose. Makes I it easy to twist and turn as needed inside the car. No issues.

  11. His title on the thread refers to the intake manifold.

    KoolKat-57 likes this.
  12. dtwbcs
    Joined: Nov 15, 2011
    Posts: 867

    dtwbcs
    Member
    from Brenham,TX

    Thanks 4 the advice

  13. dtwbcs
    Joined: Nov 15, 2011
    Posts: 867

    dtwbcs
    Member
    from Brenham,TX

    Ok jut to clarify-Guess I was sleeping when I started this post.
    gmc302 6cylinder engine Clifford carburetor intake water heat lines

  14. 302GMC
    Joined: Dec 15, 2005
    Posts: 8,392

    302GMC
    Member
    from Idaho

    When did Clifford cast a water heated intake ?

  15. dtwbcs
    Joined: Nov 15, 2011
    Posts: 867

    dtwbcs
    Member
    from Brenham,TX

    "the quick throttel response, and great economy with Jack's High Flow Intake Manifold."

    "It has a water jacket cast into the base of the Manifold to atomize air and fuel unlike the stock intake that sat on the exhaust for heat"

  16. Inked Monkey
    Joined: Apr 19, 2011
    Posts: 1,845

    Inked Monkey
    Member

    That's what I thought, but everybody was responding with heater hose routing.

  17. Inked Monkey
    Joined: Apr 19, 2011
    Posts: 1,845

    Inked Monkey
    Member

    Here's a pic of mine. This was the cleanest way I could do it using the shortest hose I could. You can see it coming from the thermostat housing to the intake and then going to the lower port on the engine block. Maybe your jimmy has the same block plug?

    GlassThamesDoug likes this.
  18. Yes, I noted that, as well.

  19. Mr48chev
    Joined: Dec 28, 2007
    Posts: 35,536

    Mr48chev
    ALLIANCE MEMBER

    I think you have it. It hooks up the same as the heater core would. If you are going to run a heater I'd run the outlet hose from the engine to the manifold heater, then run the hose from there to the heater core and the return line from the heater core back to the water pump. It will take a couple of minutes to get full heat out of the heater on cold days as you will be warming up the intake first but that shouldn't be a big issue.

  20. dtwbcs
    Joined: Nov 15, 2011
    Posts: 867

    dtwbcs
    Member
    from Brenham,TX

  21. dtwbcs
    Joined: Nov 15, 2011
    Posts: 867

    dtwbcs
    Member
    from Brenham,TX

    Someone mentioned there is a place on the block that I can use for a water line? I understand about the place on the thermostat housing. Thinking of using copper lines for a cleaner look. I am not found of the idea of running a water line around the back of the engine to t into the heater hose. thermosts.JPG

  22. dtwbcs
    Joined: Nov 15, 2011
    Posts: 867

    dtwbcs
    Member
    from Brenham,TX

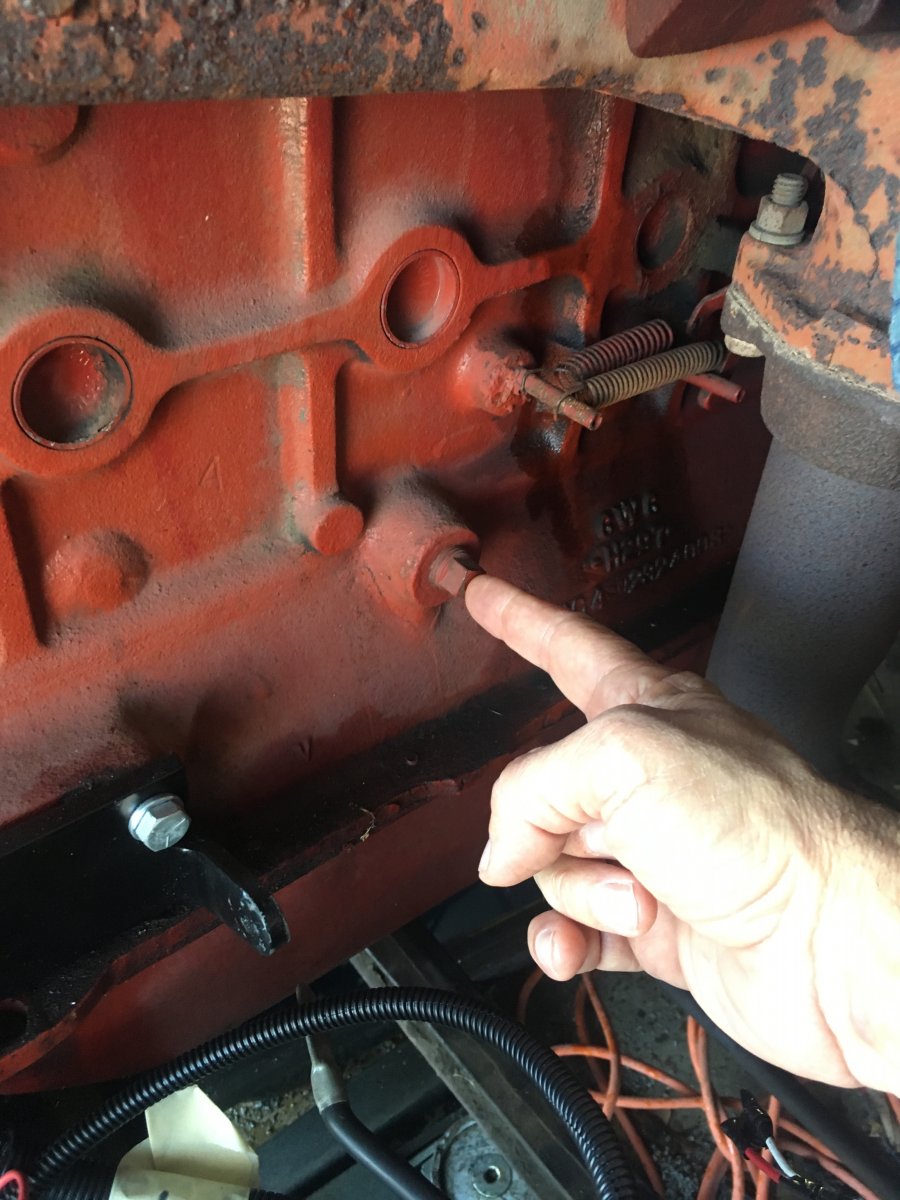

    Can I use either of these places for the "block" port? They #2 (2).JPG #2 (1).JPG are both on the drivers side.

  23. dtwbcs
    Joined: Nov 15, 2011
    Posts: 867

    dtwbcs
    Member
    from Brenham,TX

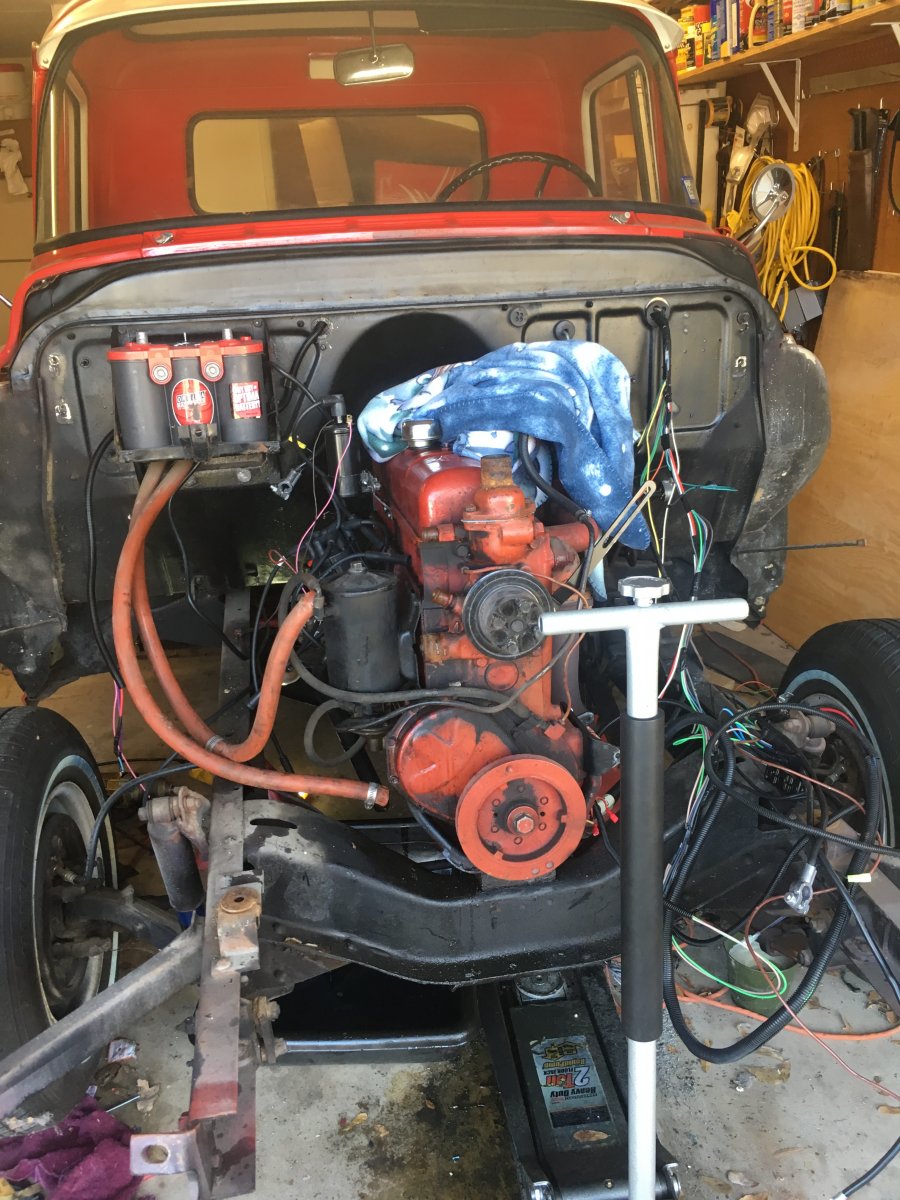

    This is the 270 that I am swapping out for a 302. 270.JPG

  24. BamaMav
    Joined: Jun 19, 2011
    Posts: 6,969

    BamaMav
    Member Emeritus
    from Berry, AL

    Usually, but not always. Have seen a bunch of them that both hoses were the same size.

    And as to plumbing the core, lots of them have side by side inlets instead of stacked ones. Don't know if it makes a difference on plumbing them....

  25. motion guru
    Joined: Oct 18, 2009
    Posts: 169

    motion guru
    Member
    from yacolt, wa

    That square head plug is to the oil gallary . . . You probably don't want to use that for heating your intake manifold. :eek:

  26. 19Eddy30
    Joined: Mar 27, 2011
    Posts: 3,369

    19Eddy30
    Member
    from VA

    Buy new freeze plug , weld a bun in , pick a location and install,
    Then use tubing or copper ,go down under block .
    No body said that it has to go around front or top ,
    You can make it look clean and nice if you think about it !!;)

    Last edited: Jan 8, 2017
  27. I tried the water heat and eventually went with exhaust heat .
    I found the water too slow to heat , meaning running choke longer .

    The exhaust heat to my manifold is also a little hotter , which made it work a bit better .

    100_4356.JPG fenton.JPG

    LONG and dtwbcs like this.
  28. dtwbcs
    Joined: Nov 15, 2011
    Posts: 867

    dtwbcs
    Member
    from Brenham,TX

    Don't have that option with Cliffords' Headers...

  29. 19Eddy30
    Joined: Mar 27, 2011
    Posts: 3,369

    19Eddy30
    Member
    from VA

    You can get Creative !!
